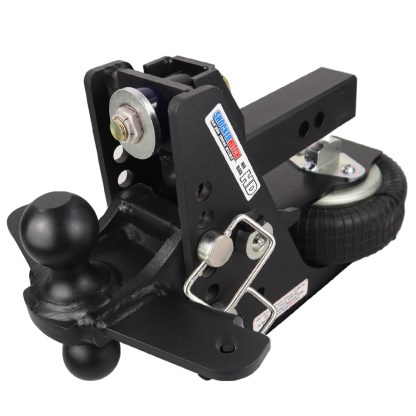

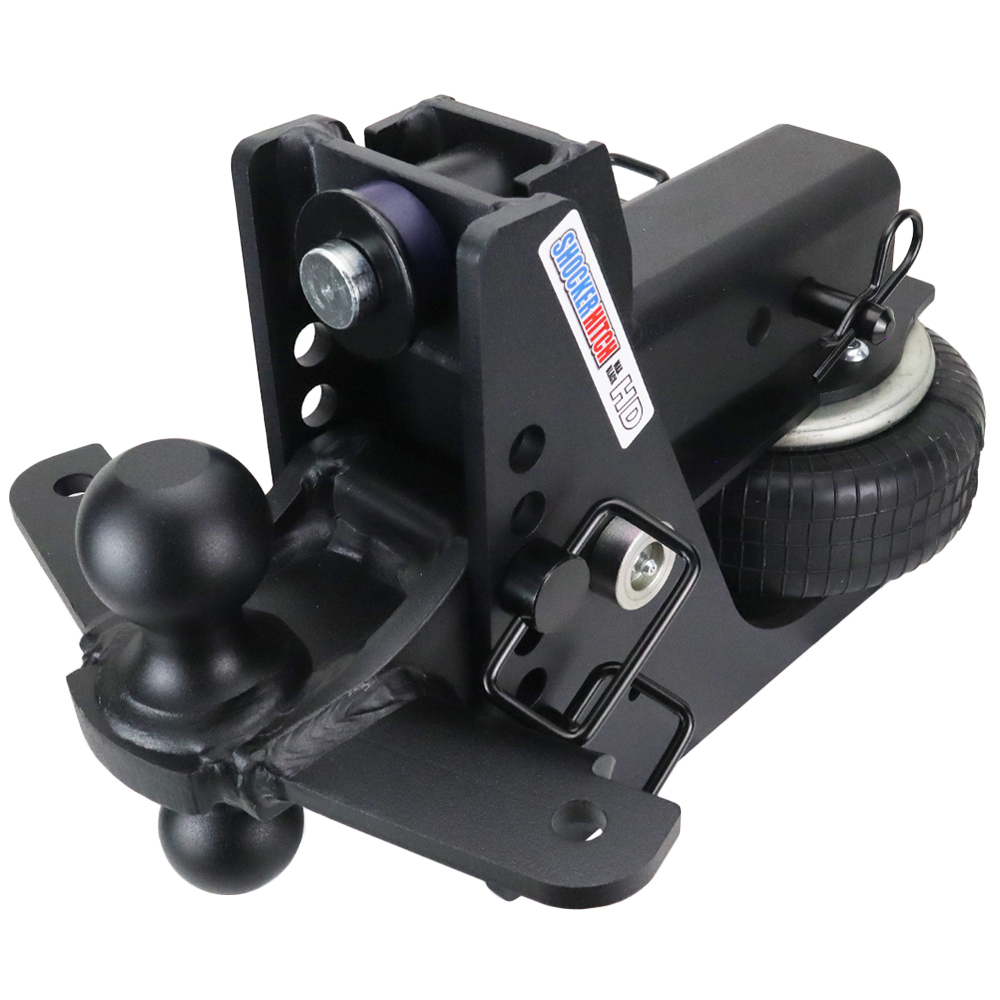

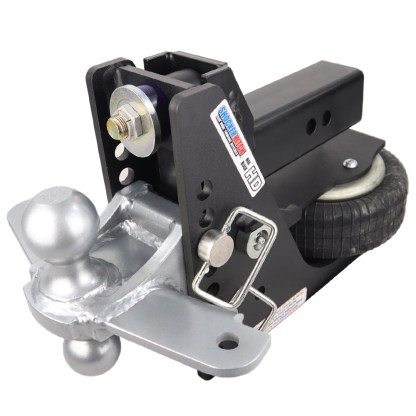

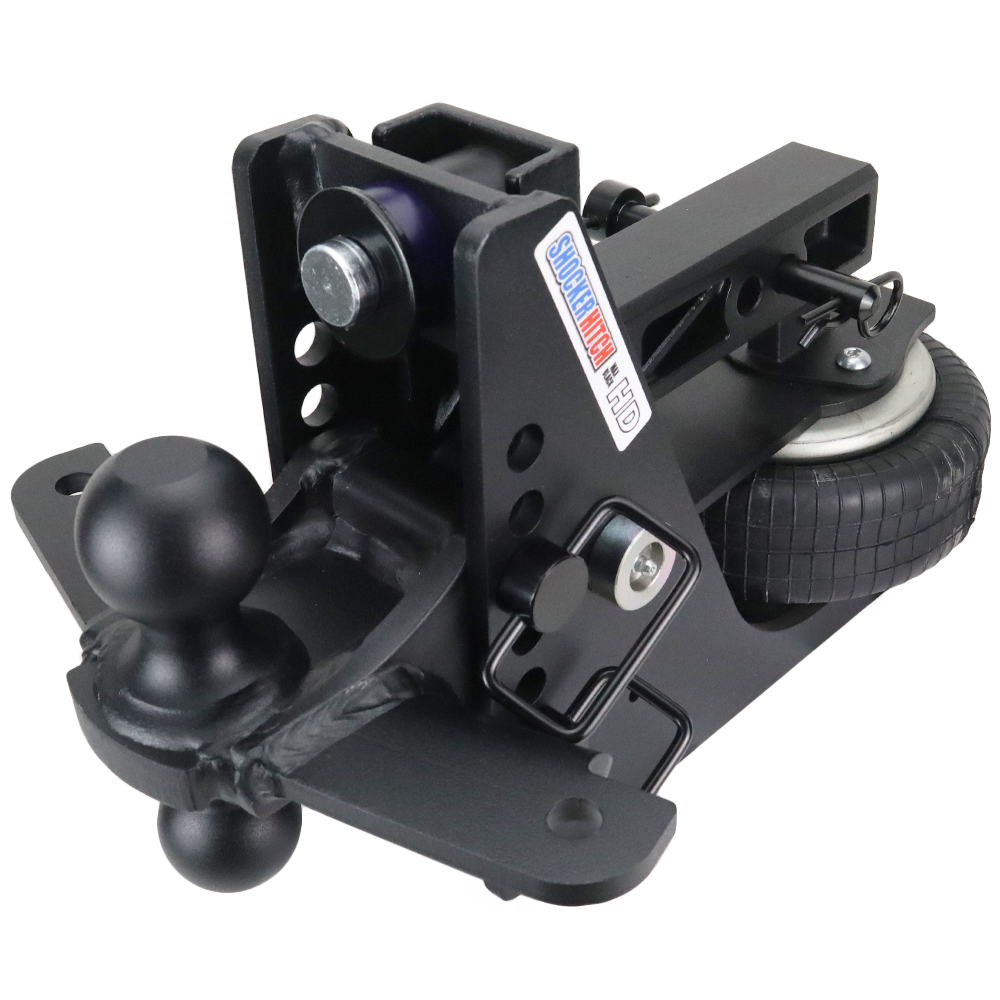

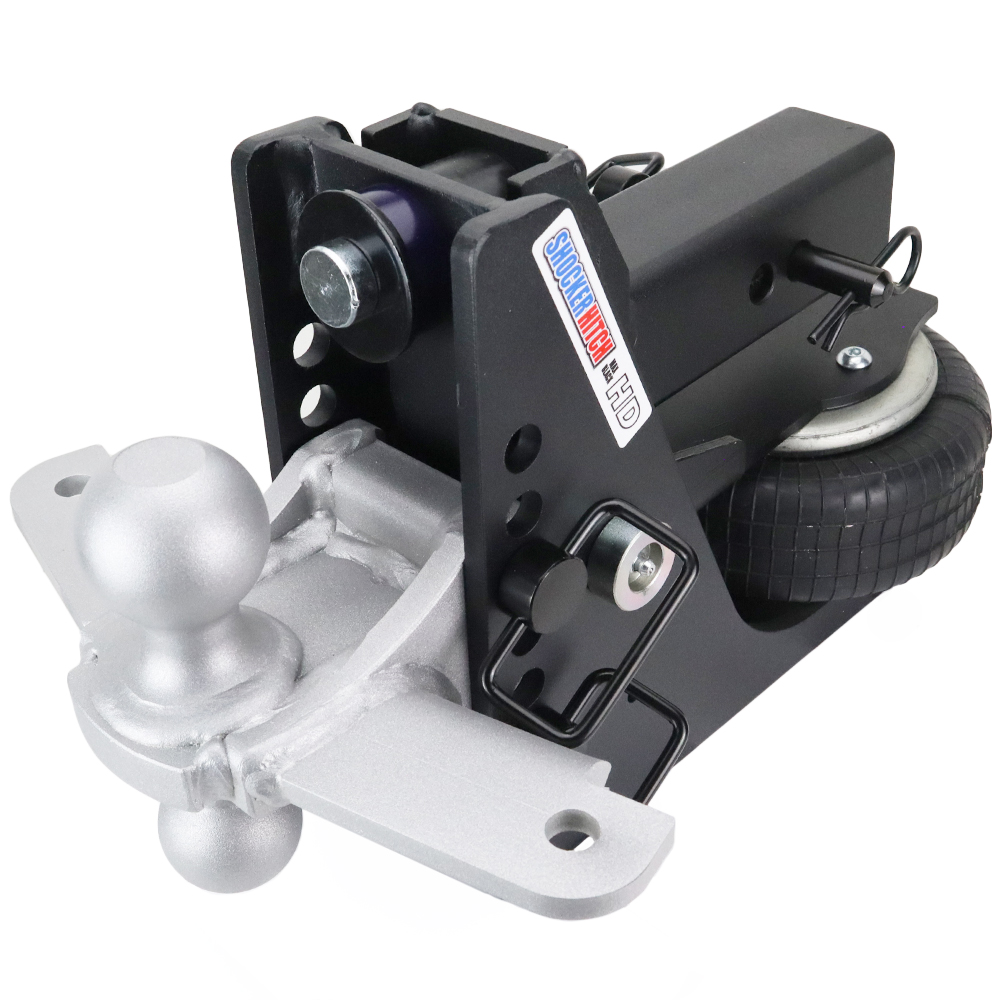

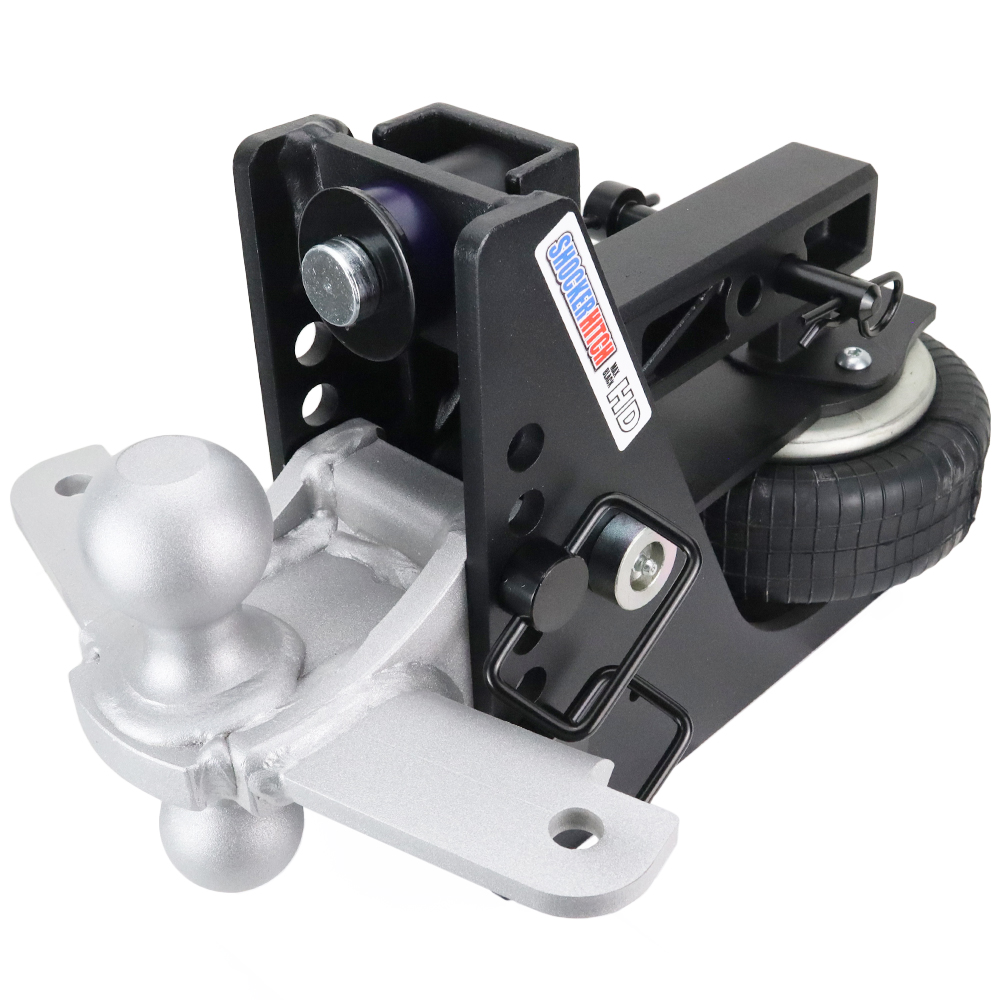

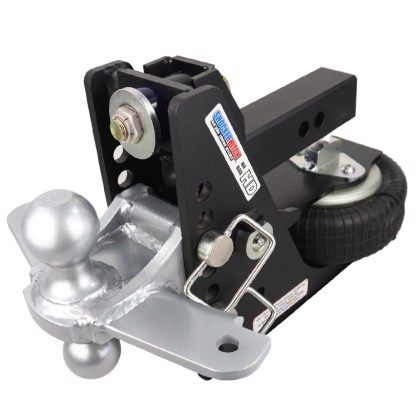

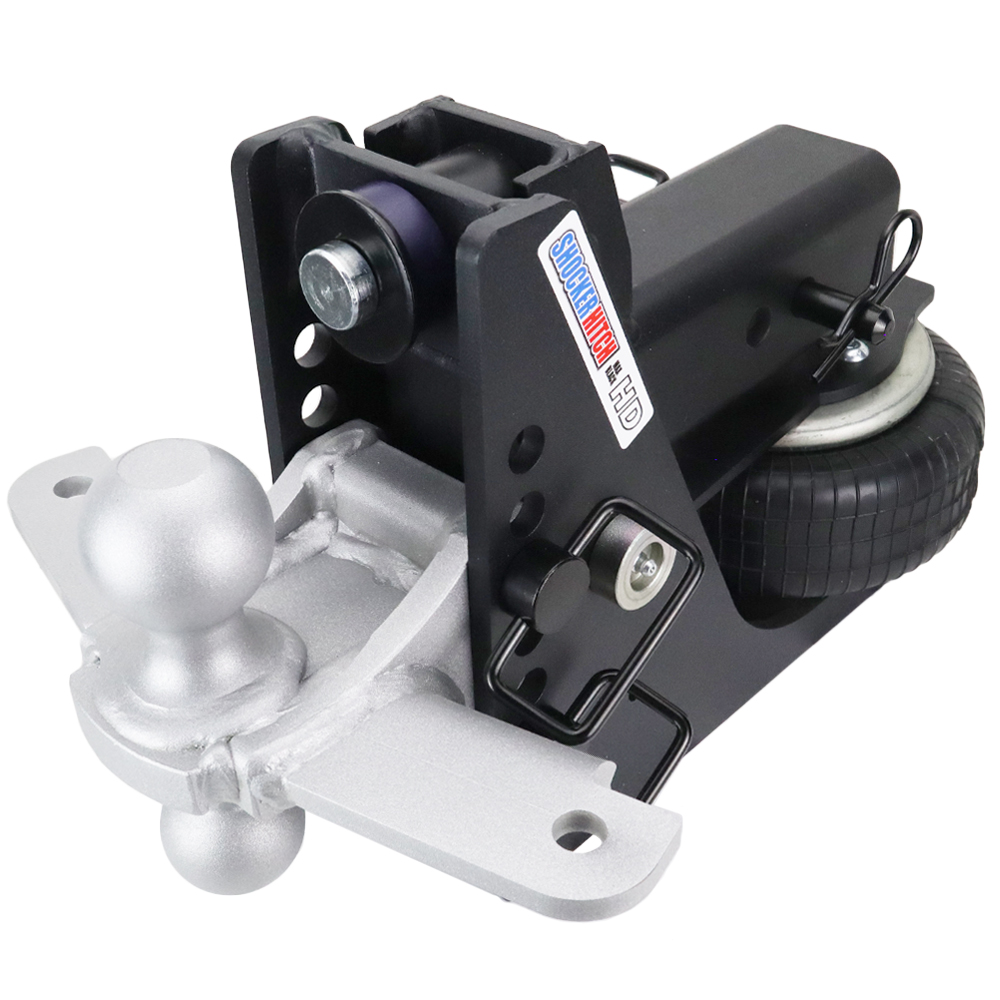

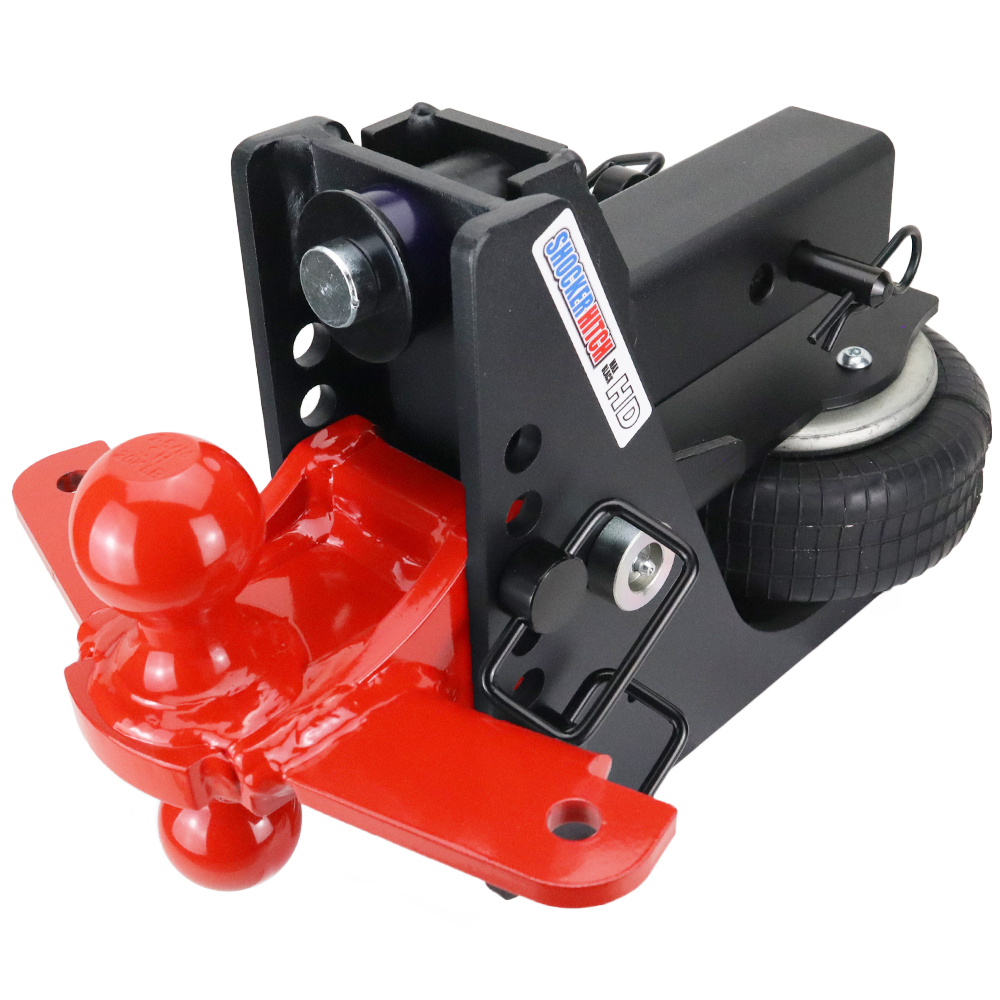

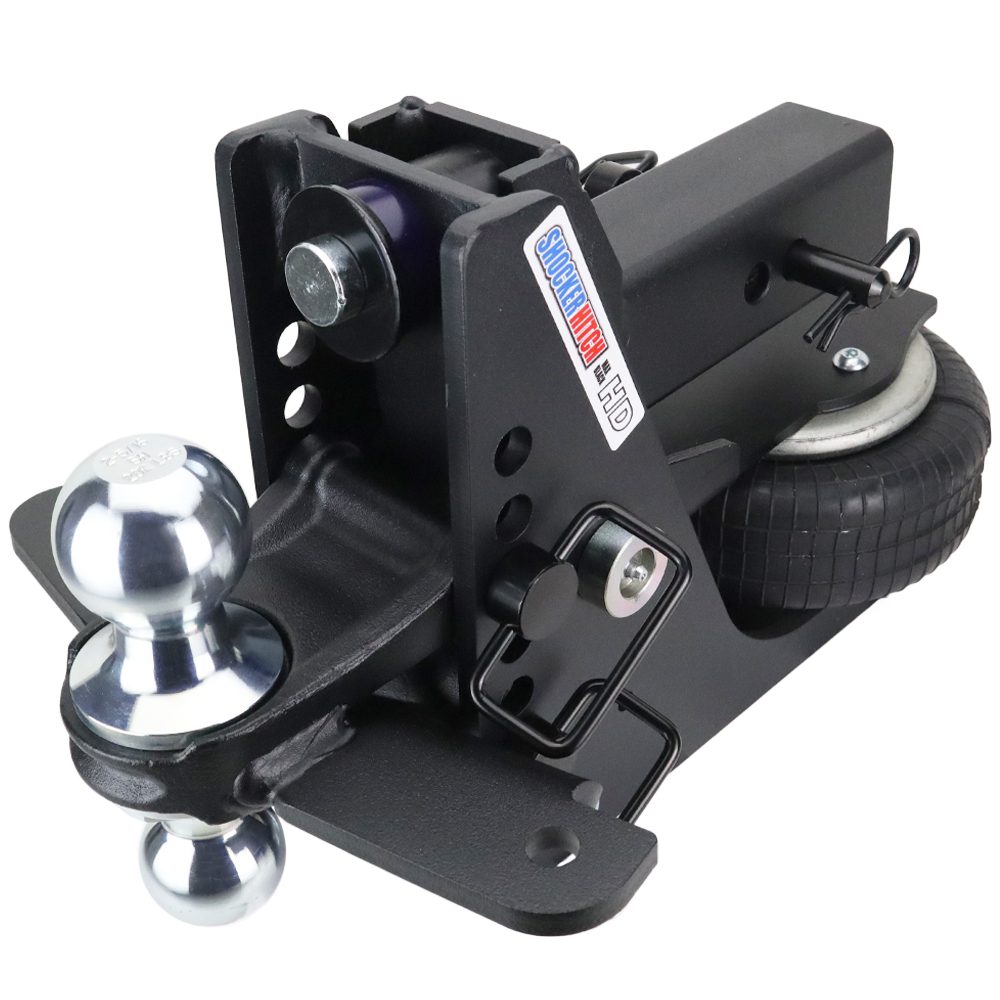

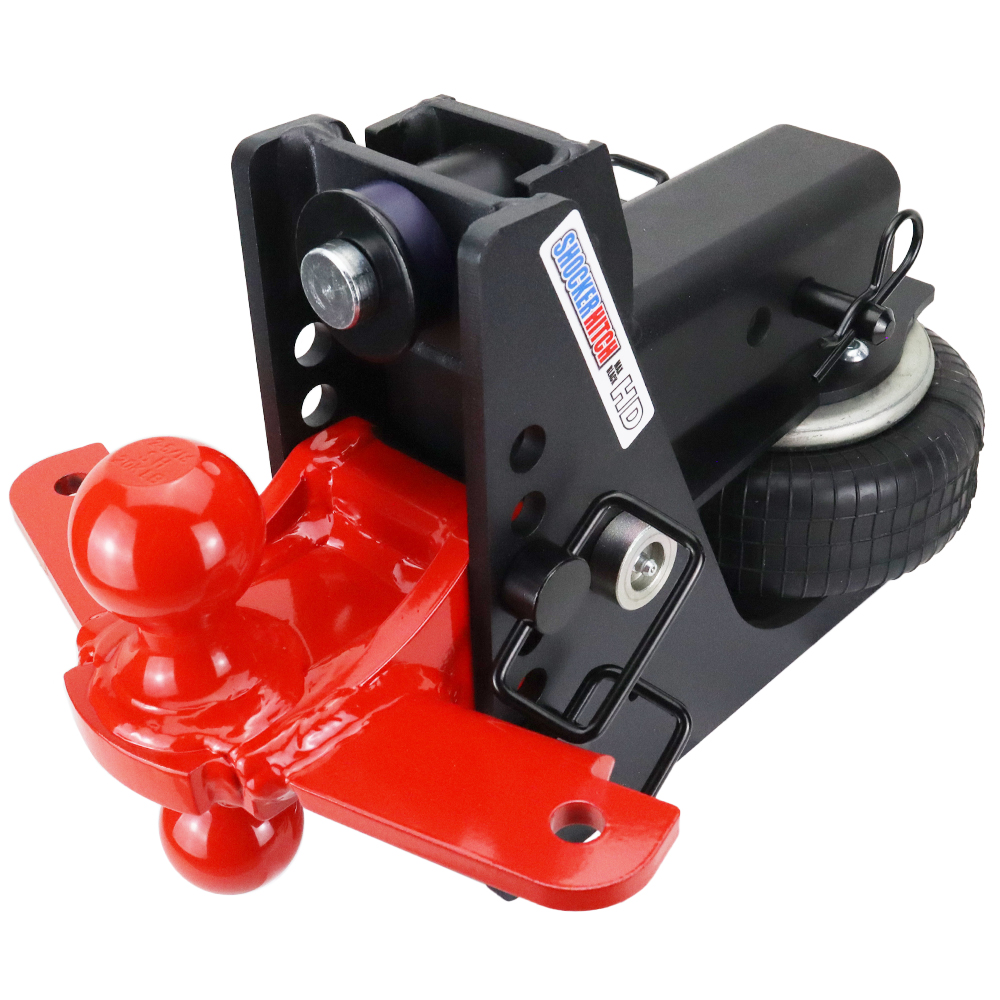

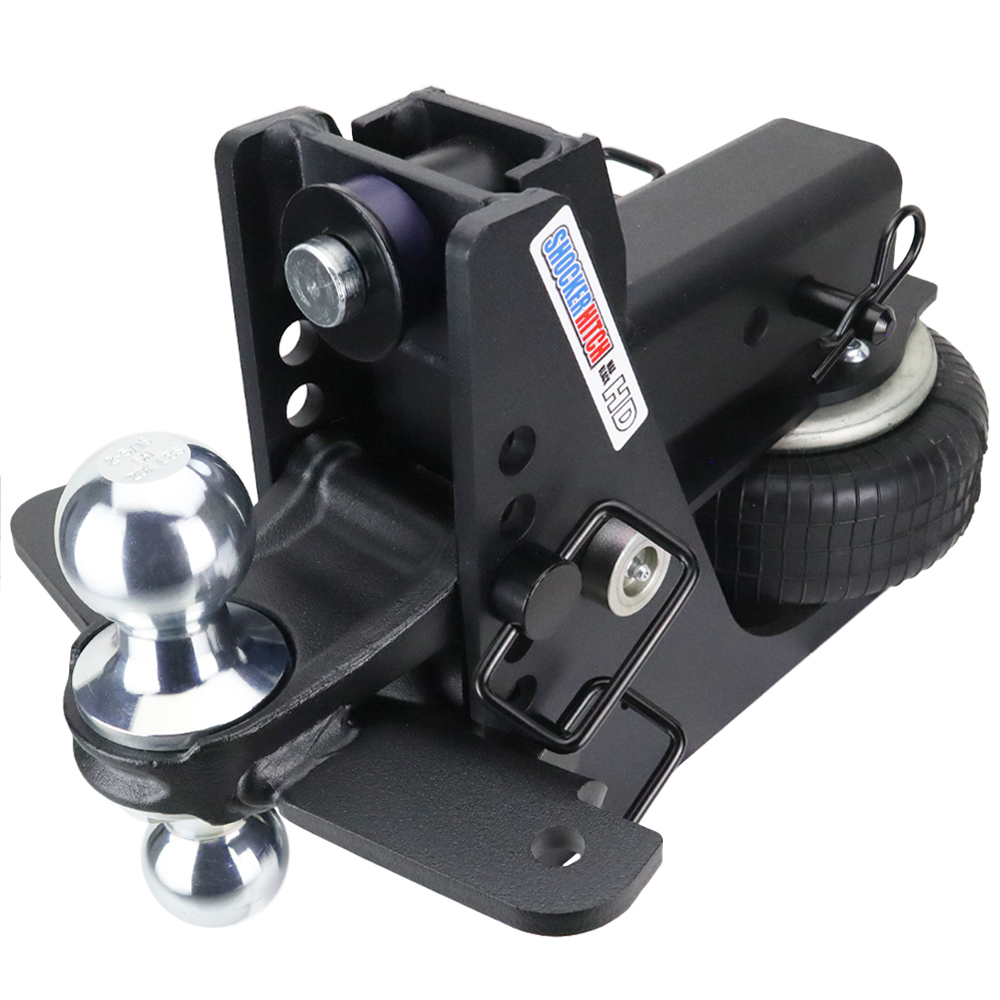

Shocker HD Max Black Air Hitch Combo Ball Mount with Sway Bar Tabs

Select Option:

Clear

Product Information:

List Price: $819.99$869.99Sale Price: $769.99$819.99Free Ground Shipping*

Reviews
Rated 0 out of 5
SKU: SH-HD-MB-CS
Series: ,

-

Product Description

  • Smoother Safer Towing: Air ride towing technology: Heavy duty built in air spring to cushion the ride & absorb the road shock. The air bag sits under receiver tube. Adjust the air pressure for the best ride and load control.
  • Built in HD Airbag: Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
  • 8 Adjustment Holes: 8 Adjustment Holes for 1/2″ to 4-1/2″ of drop.
  • Sway Tab Combo Ball Mount: 1 piece welded design with 2″ and 2-5/16″ trailer hitch ball zinc plated with 2 welded sway bar tabs for mounting the basic sway control arm bar(s) & mini balls, such as the Shocker 17200 friction sway control kit.
  • Matte Black Finish: Max Black™ Textured Matte Black Premium Powder-Coat Finish on Base Frame.
  • 20,000 lbs Heavy Duty Capacity: 20,000 lbs towing capacity and a 2,000 lbs tongue weight.
  • Combo Ball Mount Tow Rating: 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  • Adjustable for Weight: Fine tune for your towing weight. Just add air for heavier loads.
  • 2 Hole Receiver Shank: Available for 2″, 2 1/2″ & 3″ receiver hitch tubes with Two hitch pin holes for length adjustability.
  • Choose Your Receiver Size: Available for 2″, 2-1/2″ and 3″ receiver hitches.
  • Great for Pickups: Fits Great for Full Size Pickup Trucks & Vans, Midsize Pickups & Select SUVS (with receiver under bumper). Popular installs include GMC Sierra, Chevy Silverado, Chevy Colorado, GMC Canyon, Dodge Ram, Ford Ranger, Maverick F150, F250, F350, F450, F550 Superduty, Toyota Tundra, Tacoma, Nissan Titan, Frontier, Honda Ridgeline & Hyundai Santa Cruz.
  • Shock Dampening Action: Shocker air hitch effectively absorbs the jerking, tugging, and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and your receiver hitch.
  • Comes complete with Shocker HD air base frame hitch assembly with built in HD airbag, adjustable combo dual ball mount (2″ & 2-5/16″ balls) with sway bar tabs and two d-handle ball mount pins. Sway control friction bar assembly sold separately.
  • 10+ Ball Mount Options: Choose the ball mount that works best for you. We have dual ball, drop, raised, pintle hooks, combo multi-ball, clevis pin, dual ball with sway bar tabs, cushioned drawbar, drawbar and more.
  • Improves Safety: By giving you improved control of your tow vehicle and trailer. The airbag receiver hitch system allows for better control of your pickup and the trailer it is towing.
  • Simple Pivot Design: uses a rocker arm pivot design which produces a down and back motion, much different than other air hitches on the market. Our design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple air bags common to other air hitches.
  • Provide Comfort: With a smoother ride! Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps and bumps.
  • Saves Money & Add Life to Vehicle & Trailer: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker hitch absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long-term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.
  • Note: The sway control tab mount is designed to work with the Shocker 17200 Friction Sway control kit which is not included and is available separately. Suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs.
  • Friction Sway Control Bar Kit Options: Order with 1 Friction Sway Arm Kit for use with Trailer up to 10K lbs. Order with 2 Sway Arm Kits for use with Trailers over 10K lbs. (Friction Sway Arm Sold Separately)
  • Safety Notice: The Shocker Hitch is a heavy duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • NOTE: This product will not work with a weight-distribution hitch system, if you have a w-d hitch, check out our Shocker Hitch Air Equalizer for WD Hitches.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out  how much drop or rise you need.

Get the smoothest, straightest towing experience when using the Shocker HD Max Black Air hitch with a sway control combo ball mount. This bumper-mounted combo ball 20,000 lbs air hitch with sway bar control tabs was designed specifically to remove any road shock or jerking, as well as keep your truck and trailer pulling straight down the road.  The Shocker HD Max Black air hitch comes with an impact-resistant durable matte black powder-coat frame for years of great looks. But most importantly this HD air hitch adds instant air ride towing to your pickup and trailer. This Shocker HD Air Hitch has a combo ball mount with sway bar tabs that are made for the basic sway control arm bars with a mini hitch ball. The combo ball mount has both a 2″ hitch ball and a 2-5/16″ hitch ball along with mount tabs on both sides for basic sway control mini hitch balls.  It’s made for heavy-duty trailer towing. It also offers 8 adjustment holes for 1/2″ to 4-1/2″ drop. 20,000 lbs tow rating capacity and 2,000 lbs tongue weight. Shocker Hitch Heavy-Duty Max Black air bumper hitch provides the ultimate smooth towing experience. This shocker absorbing hitch is an air suspension towing hitch mounted between your pickup truck and trailer. The built-in 20k HD airbag cushions the ride and absorbs the road shock creating a smoother and safer towing experience. This Shocker air receiver hitch with a sway bar ball mount fits into a standard receiver hitch tube. This shock-absorbing ball mount takes the bumps, jerks, tugs, and roughness out of trailer towing and cushions your ride. The combo multi-ball mount features welded hitch balls for superior strength and the combo ball mount comes in a black powder coat finish. Cushions ride and works nicely to help the tendency of trailer sway. Works great on compact, midsize, and full-size pickup trucks, vans, and select SUV’s that the receiver hitch is under the bumper. Have a CUV? Check out our Cushion Ball Mounts.  Manufactured by Shocker Hitch® USA in Arthur, ND.

The air bag sits under the receiver tube allowing a short distance of 10-inches between the mounting pin and ball center. You will find the advantage of the Air Shocker is your ability to adjust air pressure for the best ride and load control. Fits standard 2″ receiver tube, 2 1/2″ and 3″ receivers.

Sway Bar combo ball mounts with sway control bar tabs is a solid one-piece welded design and is fully zinc plated.

Note: The sway control tab mount is designed to work with the Shocker 17200 Friction Sway control kit which is not included and is available separately. Suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs.

California Residents: Prop 65 Warning

Videos

Shocker HD Max Black Air Hitch Videos

Install

Shocker Air Bumper Hitch Installation Instructions

The Shocker Air Bag Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag. Once the bag has been compressed, you can install the unit into the receiver tube. Next, install the hitch pin.

To Set Air: Hook up a trailer using a properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to lightly compress top bushing or until bump stop clearance is approximately 1/8″.

Shocker Air Bumper Hitch Air Pressure Setting Video

Additional Set Up Notes:

  • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
  • Spacer block included and may be required when using 2″ shank (see spacer block install manual below)
  • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
  • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

Shocker Air Receiver Hitch Install Instructions

Shocker Air Hitch Install Video

Shocker 12K Original Air Hitch Diagram
Shocker 12K Original Air Hitch Diagram


Note: Always use a good hitch ball with the proper recommended tow weight.

Installation Issues

We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

We’re here to help. Contact Us

FAQ

Answers to Frequently Asked Questions

How much air do I put in the Shocker Air Bumper Mount Receiver Hitch?
With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker until main frame rotates and lightly compresses top bushing (about 1/8″ of squeeze or pinch in the bushing). See our quick How To Set PSI in Shocker Bumper Hitch Video.

Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you are just use sway bars that hook to a mini ball, then yes, if you order the combo sway control ball mount attachment. If you have a equalizer or weight distribution hitch then it will not. However, check out our Air Equalizer for weight distribution hitches.  Note: If your pickup suspension can handle the weight of your trailer and doesn’t “squat” when you hook up your trailer to pickup, then you really don’t need a weight distribution hitch. A load leveling weight distribution hitch, distributes the weight between the pickup and trailer and is generally used if your pickup can’t handle the static trailer tongue weight load.

How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

How long will the airbag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

How strong is the center pivot bolt?  The main pivot bolt with grease zerk, or center pivot bolt, used on the shocker air bumper hitch, is a custom made 1 inch diameter 1045 medium carbon steel bolt. Strategically heat treated to prevent wear and includes a machined grease passage for easy lubrication and maintenance. It should be noted that the yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler or receiver hitch.

How do I know the Shocker Air receiver hitch will fit my truck?
We have made sure that the receiver air shocker will fit into most Ford, Chevy, GMC Dodge, Toyota, Nissan & Honda Pickups, Vans & SUV’s (SUV’s were the receiver is under the bumper). There are some clearance issues with the Chevy Envoy, Ford Explorer, some imports and service body vehicles where the body extends below the receiver tube or the receiver tube is inside the bumper.  The Shocker Air receiver hitch is available in a 2″, 2 1/2″ & 3″ shank.

How far below my pickup does the receiver air shocker hang? Five inches below bottom of receiver tube.

How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

Does the receiver air hitch work with sway bars?
Yes, it works with the friction style sway control bar, however you want to order a ball mount with sway bar tabs. See our sway bar tab ball mount attachments.

How does the Air hitch work? The Receiver air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

Should I tighten up the top jam nut on the receiver shocker? No. The air shocker needs at least one half inch of play to work properly.

How long do the bump cushions last? This depends on if the hitch is left on the truck year round or not. If they bump cushions become mushy, you should replace them. Typical life expectancy is 5-7 years.

How much does an Shocker Air bag receiver hitch weigh? The Receiver Air Shocker weighs 50-55 pounds

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

Reviews

Be the first to review “Shocker HD Max Black Air Hitch Combo Ball Mount with Sway Bar Tabs”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 53 lbs
Dimensions 15 × 8 × 14 in
Select Receiver Hitch Size

Fits 2" Hitch, Fits 2-1/2" Hitch, Fits 3" Hitch
