• No-Drill Clamp on Trailer A-Frame Mount Bracket for Mounting Sway Arm Bar to Trailer: Use for mounting the 1-1/4" ball attachment to your trailer frame without having to drill your trailer frame. Each kit is for attaching one 1-1/4" ball to the trailer frame. Fits most trailer frames except Airstream. If you have a propane tank in the front of your trailer A-frame or have an Airstream trailer, See part # SH-7015 Airstream Trailer Frame Mount Bracket Kit for more details.
• Great For Aluminum Trailers & If You Don’t Want to Drill Your Trailer A-Frame: This clamp-on trailer frame mount bracket kit is great for trailers when you don’t want to drill install the mini 1-1/4" hitch ball for the friction sway arm bar kit into the side of your trailers frame.
• Fits 4" to 8" Tall Trailer Frames: The bracket kit is designed to fit 4", 5", 6", & 8" tall frame rails. The hardware provided is designed for 2" thick frame rails; thicker frame rails will require longer 3/8" carriage bolts.
• Clamp on Bracket Kit Includes: Each kit includes 2 aluminum brackets, 4 carriage bolts with split lock washers and nuts along with 4 3/8" x 3/4" stainless steel countersink bolts, lock washed and nuts, along with a 7/32" hex wrench.
• Aluminum Brackets with Stainless Hardware: Brackets are made of 6061-T6  aluminum with powder coated textured matte black finish. All mounting hardware is stainless steel.
• Works with 1 Friction Sway Arm Bar Kit: Designed to work with the SH-1001 Shocker friction sway arm bar kit or similar. If you have 2 sway arm bars, order two kits.

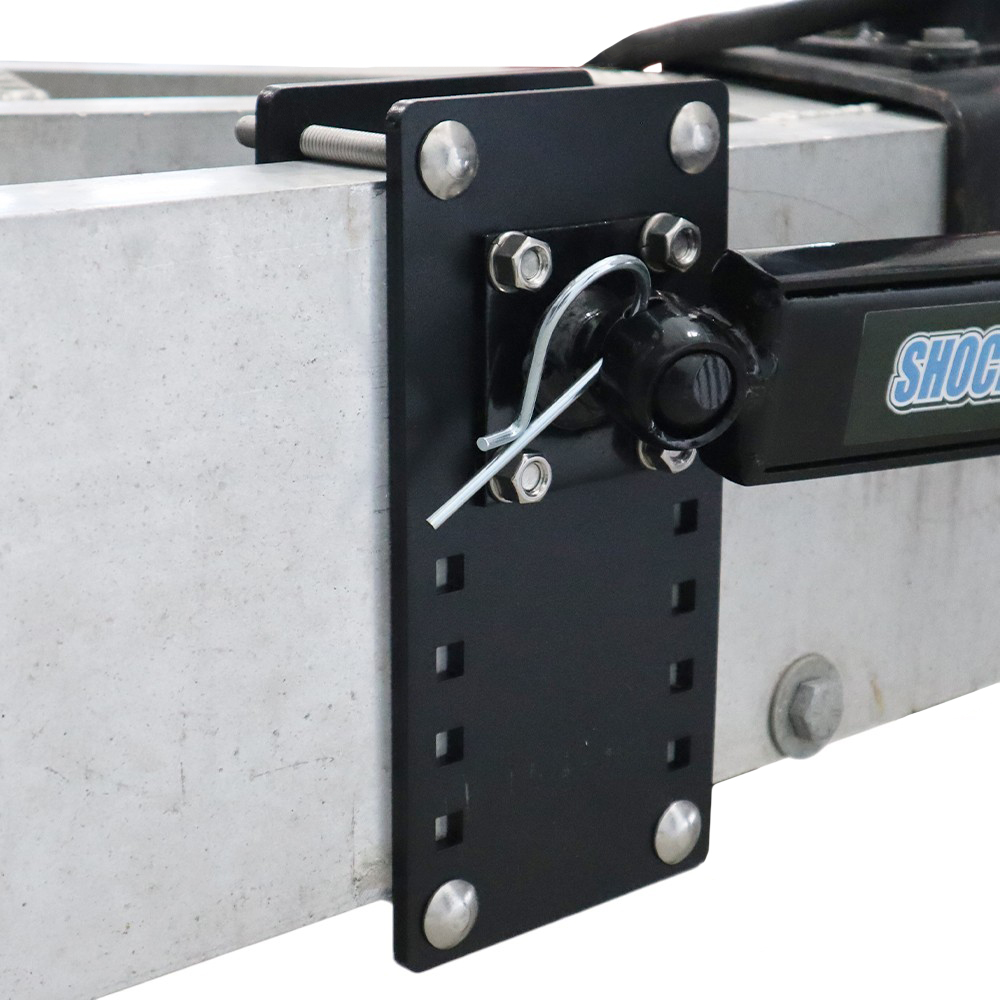

• Easy Installation Clamp on Trailer Frame Installation: These plates clamp around your trailer frame, so you don’t have to drill into your frame to attach the trailer mounted 1-1/4" attachment ball.  Note the attachment ball is not included in this kit.

This no-drill clamp-on trailer frame mount bracket kit is great for aluminum trailers when you don’t want to drill the mini 1-1/4" hitch ball for the friction sway arm bar kit into the trailer frame. The clamp bracket kit is designed to fit 4", 5", 6" & 8" tall frame rails. It fits and allows for a clamp on install of the 1-1/4" ball from a friction sway bar kit that normally is drilled into the trailer A-frame.

The provided hardware is designed for 2" thick frame rails; thicker frame rails require longer 3/8" carriage bolts.  Each kit includes 2 brackets, 4 carriage bolts with split lock washers and nuts, along with 4 3/8" x 3/4" stainless steel countersink bolts, lock washers, and nuts, along with a 7/32" hex wrench. Great solutions for clamping the sway ball attachment to the trailer frame without drilling.

These no-drill plates clamp around your trailer frame, so you don’t have to drill the 1-1/4" hitch ball into the side of your trailer’s A-frame. You can now clamp on the 1-1/4" ball to the side of your trailer’s A-frame. Note the attachment ball is not included in this kit. The sway control trailer bracket for ball mount adapter kit includes aluminum mounting brackets that are powder-coated in textured matte black, and all hardware is stainless steel. This is designed to work with the SH-1001 shocker friction sway arm bar kit or similar.
