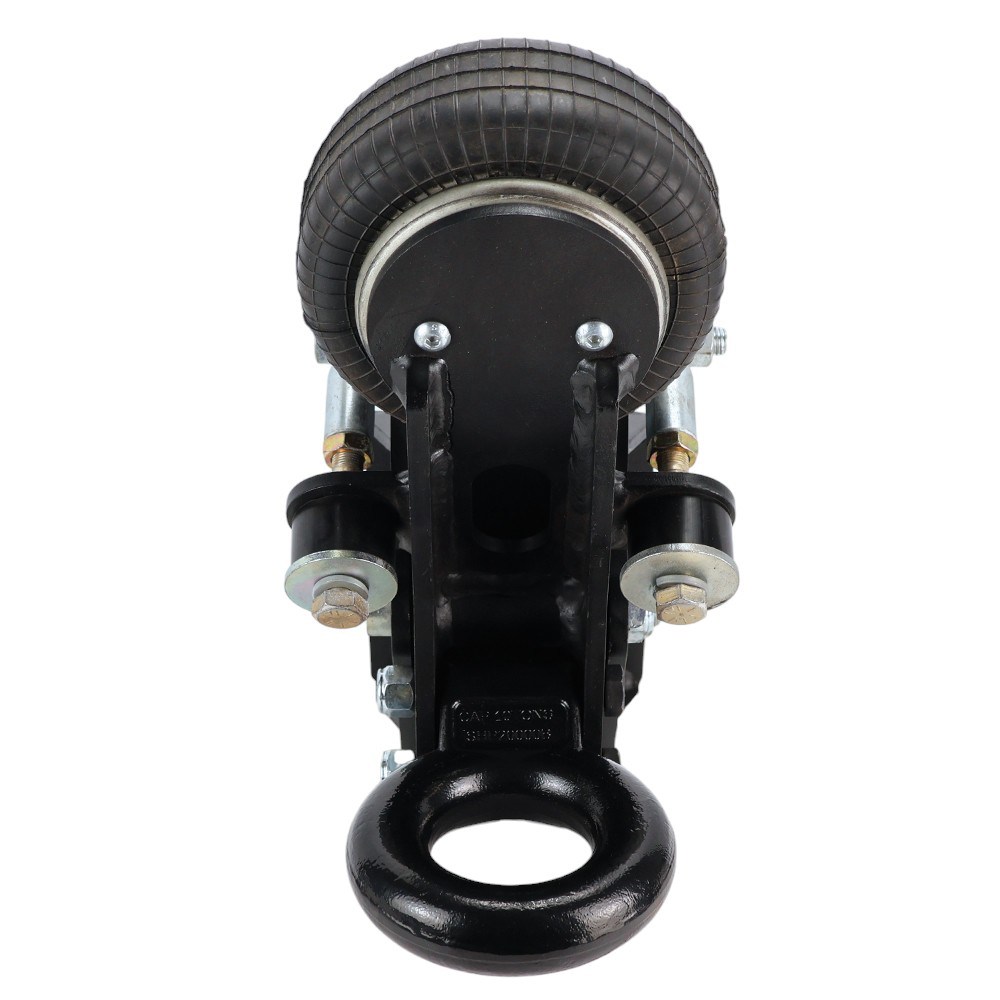

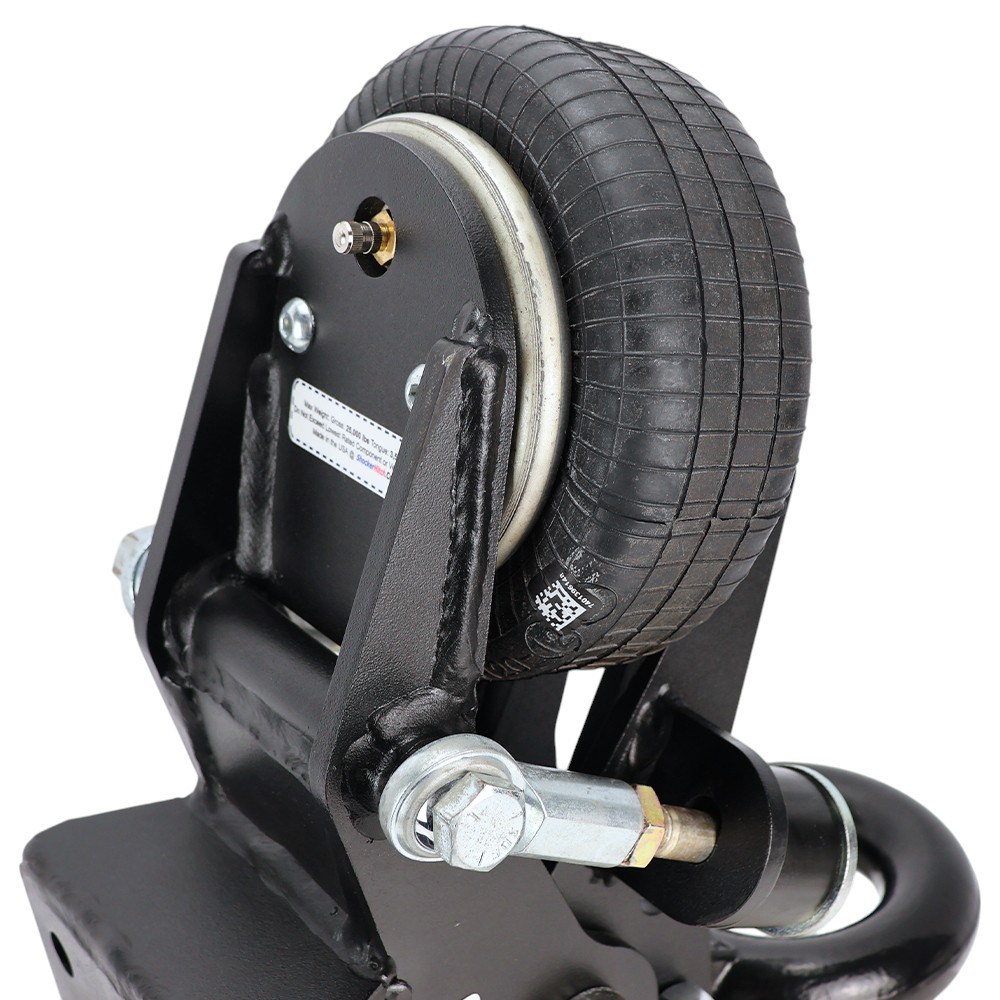

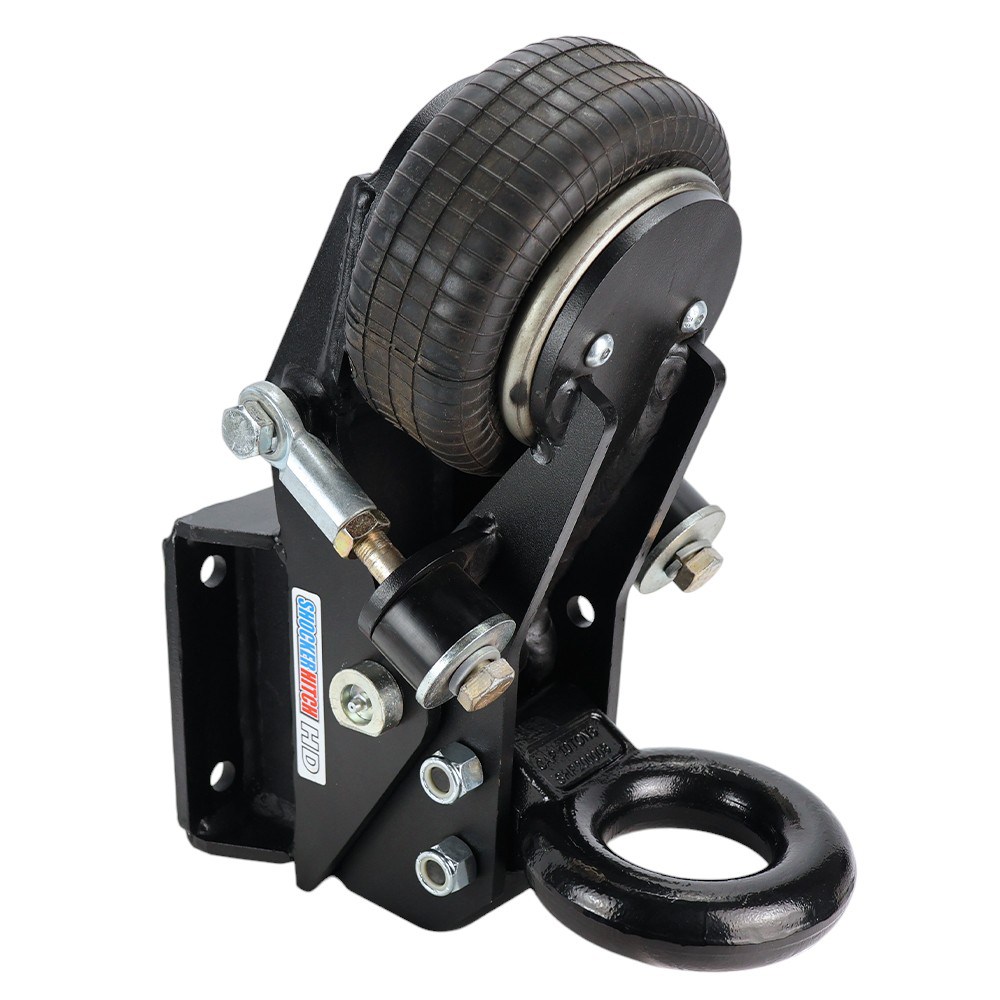

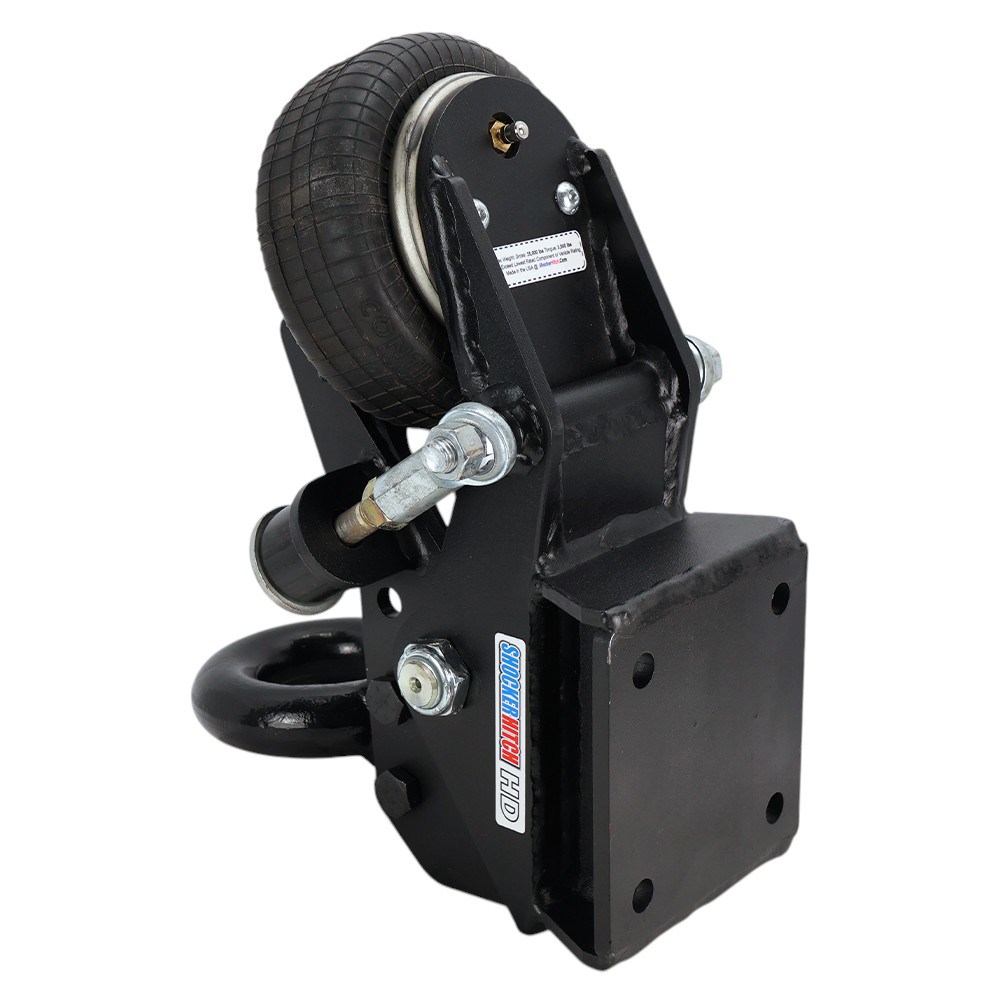

Shocker 20K Air Pintle Ring Trailer Tongue Mount 20,000 lbs

Select Option:


Product Information:

List Price: $779.99$799.99Sale Price: $679.99$699.99Free Ground Shipping*

Rated 0 out of 5
SKU: SH-400-Gen


Product Description

  • Air Ride Upgrade for your Trailer: Smoother Safer Towing. Improves your ride, reduces wear & tear on pickup & trailer
  • 20,000 lb rated towing capacity with heavy duty pintle ring for using with pintle hook. 2,000 lbs tongue weight rating
  • HD pintle ring is 6″ OD x 3″ ID
  • Great for heavy duty trailers, farm applications and from end dumps to flat beds
  • Quickly mounts to trailer tongue vertical channel or 4 bolt flat plate
  • Choose from vertical channel mount (fits 3-1/2″ wide OD / 3″ wide ID channel with 2″ on center bolt pattern & secure with 5/8″ pins or 5/8″ x 4-1/2″ long bolts) or square plate 4 bolt mount (4-1/2″ square bolt pattern)
  • Air Ride Towing: Built-in air bag for a smoother towing experience with built in height adjustment plus weight adjustable.
  • Perfect when you don’t know what pickup will be hauling your trailer
  • Fine tune for your towing weight. Just add air for heavier loads.
  • Absorbs the road bumps, thumps & bangs on whatever road you travel
  • Vertical Channel Kit Available: Optional weld-on vertical tongue adapter available.
  • NOTE: This product Will work with a weight-distribution hitch system.

The Shocker Air trailer tongue mount with a pintle ring is made for heavy duty trailers used on end dumpers to race hauler stacker trailers. Bolts to trailer tongue vertical channel or flat plate on front of trailer a-frame style trailer. Often used on equipment and end dump trailers. Features at 20,000 lb towing capacity. Upgrade your trailer with air ride technology.  Pintle ring size is 6″ OD x 3″ ID. This air bag pintle ring trailer tongue mount is great for reducing trailer fatigue and made for trailers and pickups with stiff suspension.  Smooth out your ride. Plus is great if you have an end dump trailer or HD flat bed trailer and you never know what pickup truck will be hauling it.  The Shocker air is attached to your trailer and ready for whatever truck is pulling it.  Simple bolt on installation in minutes. Choose from the vertical channel mount & secure with 5/8″ pins or 5/8″ x 4-1/2″ long bolts or square plate mount (4-1/2″ bolt pattern and bolts into place). Shocker air provides the ultimate smooth ride. The Shocker Air is a miniature air suspension unit mounted between your truck and trailer. This Shocker mounts by sliding into a standard receiver tube. Bolt this to the front a-frame of your trailer and join the smooth towing movement. This military style ring, hooks up to a pintle / military style hitch mount. Great for farm applications and heavy duty trailers for quick hookup.

The air bag is mounted above the trailer tongue for maximum ground clearance. You will find the advantage of the Air Shocker trailer tongue coupler is your ability to adjust air pressure for best ride and load control.

Air Ride Pintle Ring Hitch: Shocker Air is designed with a built-in air bag for a smoother towing experience. Featuring a built in height adjustment plus weight adjustable. Just add or reduce air depending on the weight of your trailer and it’s contents.

Adds Life To Your Trailer: Commonly used on end bumper and flatbed trailers. It adds life to your trailer. By reducing wear and tear on pickups driveline and frame as well as the frame of the trailer! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations. Join the list of satisfied customers that are using Shocker hitches. Order one today and get ready for your ultimate smooth towing experience the next time out.

Provide Comfort: With a smoother ride! Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps and bumps.

Simple Pivot Design: uses a rocker arm pivot design which produces a down and back motion, much different than other air hitches on the market. Our design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple air bags common to other air hitches.

Improves Safety: By giving you improved control of your tow vehicle and trailer. The air bag receiver hitch system allows for better control of your pickup and the trailer it is towing.

Shock Dampening Action: Shocker air hitch effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and your receiver hitch.

Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker hitch absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.

California Residents: Prop 65 Warning


Shocker Air Trailer Tongue Mount Videos


Shocker Air Trailer Tongue Mount with Coupler Installation

Vertical Channel & Square Plate adaptor styles only: Remove your existing coupler and bolt on the air trailer tongue mount to your vertical channel or 4 bolt flat plate trailer tongue.  Replace the existing ball coupler on the tongue of trailer with the Shocker Hitch Tongue Mount Hitch. Verify or lengthen safety chains and wiring connections to ensure proper clearance when turning corners.

Shocker Air Trailer Tongue Mount Install Video

When used properly these products will make noticeable improvements in your trailer towing quality. Giving both truck and trailer a smoother ride with less trailer fatigue and breakage.

Setting Shocker Air Pressure for Trailer Tongue Mount Coupler

To Set Air

Load trailer the way it will be towed. Inflate airbag on Shocker Air Trailer Tongue Mount hitch. CAUTION: Keep hands and clothing away from moving parts of hitch to avoid pinching and injury. As air pressure increases, the unit will rotate lifting the hitch and trailer tongue. Install air until green bushing has 1/4″ clearance from the red frame. Always inflate air bag to set the Shocker Hitch, never deflate air bag to set Shocker Hitch, unsatisfactory results may occur. When using Equalizer/ Weight Distribution Hitch: Follow directions above, then hook up equalizer bars, and continue inflating air bag until 1/4″ clearance on bump stops is achieved. Note: When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker. Usage: Under normal circumstances, tongue weight should be at least 10 percent of the total towing weight. NOTE: IT IS HIGHLY RECOMMENDED THAT THE HITCH BALL BE GREASED TO REDUCE WEAR AND IMPROVE SHOCKER ACTION. Maximum Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

Download Installation Manual

Air Trailer Tongue Mount Hitch Diagrams
Air Trailer Tongue Mount Hitch Diagrams

Installation Issues

We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

We’re here to help. Contact Us


Answers to Frequently Asked Questions

What is the air trailer tongue mount tow rating? The rating is 20,000 lbs GTW & 2,000 lbs Tongue Weight with the 20,000 lb GTW cast coupler for 2-5/16″ ball or 20,000 lb pintle ring. The 12K air trailer tongue is rated at 12,000 lbs GTW. It must have a 12,000 lbs GTW coupler to the rating to apply.

How long will the airbag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

Will this work with a W-D Hitch? Yes it will.

How strong is the center pivot bolt?  The main pivot bolt with grease zerk, or center pivot bolt, used in the Tongue Mount Shocker air coupler, is a custom made 1 inch diameter 1045 medium carbon steel bolt. Strategically heat treated to prevent wear and includes a machined grease passage for easy lubrication and maintenance. It should be noted that the yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler on the average vertical channel adapter.

Safety Notice: The Shocker Hitch is a heavy duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle, your tow vehicle rating, trailer rating and coupler rating.

How much air do I put in the air trailer tongue mount? With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker air tongue until green bushing has 1/4″ clearance from the red frame. See install guide.

How does it install? Simple bolt on installation in minutes. See install guide.

How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

How do I know the Shocker Air trailer tongue mount with fit my trailer? We have 2 mounting options.  Square plate mount:  Simply bolts in place of existing coupler and has a 4-1/2″ square bolt pattern. Vertical channel mount: Simply bolts in place with existing trailer vertical channel for typical trailer couplers.  We do offer a weld on channel adaptor for your trailer tongue that can also be used if you don’t have one on your trailer.

Does this affect my trailers ground clearance? No, the air bag is above the trailer tongue for maximum ground clearance

How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

Does the Shocker air trailer tongue limited my tailgate with hooked up to the trailer? Maybe. It depends on your vehicles ball mount length. You can still open your tailgate, but it may rest on your air bag.

How does the air ride trailer tongue coupler work? The air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

How much does an Shocker Air trailer tongue mount weigh? The Receiver Air Shocker weighs 60-70 pounds depending on model.


This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.


Questions and answers of the customers

    Is there added benefit to using the product on both the truck side and trailer side?
  1. 0 votes
    Q Is there added benefit to using the product on both the truck side and trailer side?

    There would be no extra benefit having this on both sides.   If you were to install it on the truck and the trailer side it may cancel one another out.
