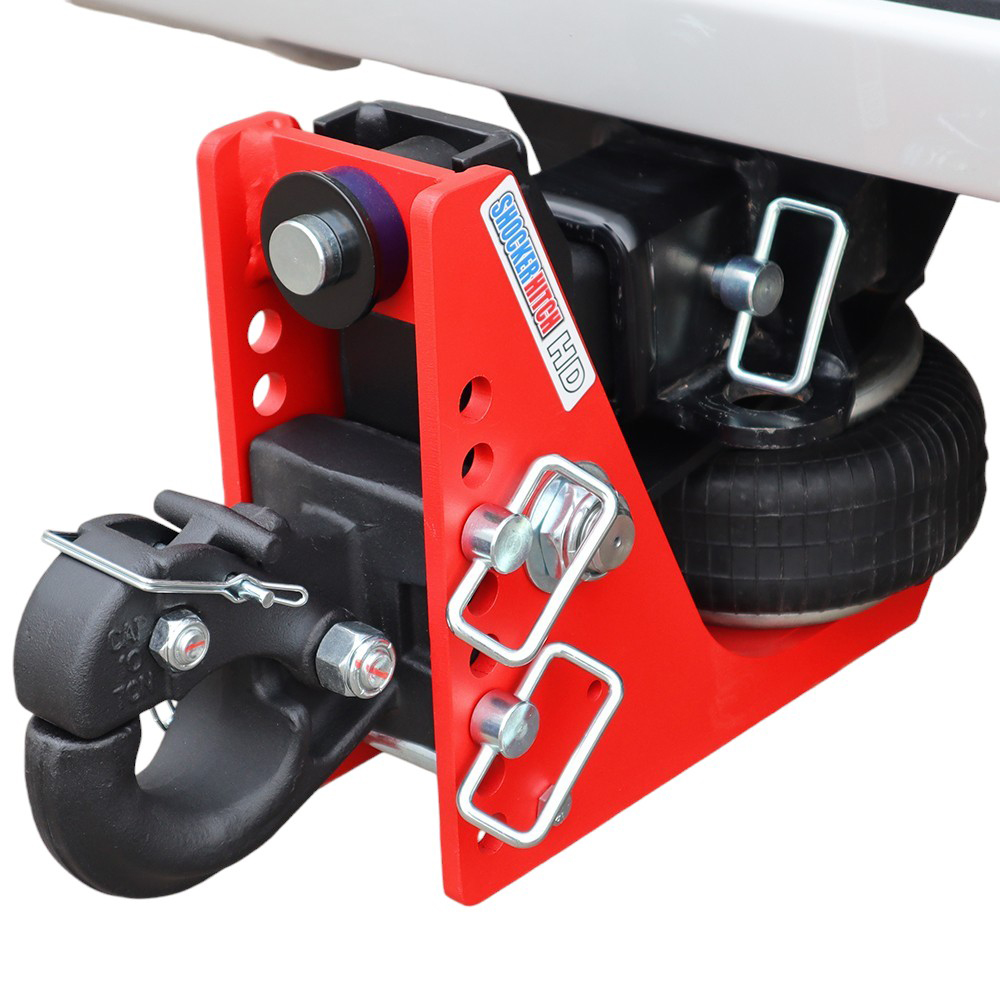

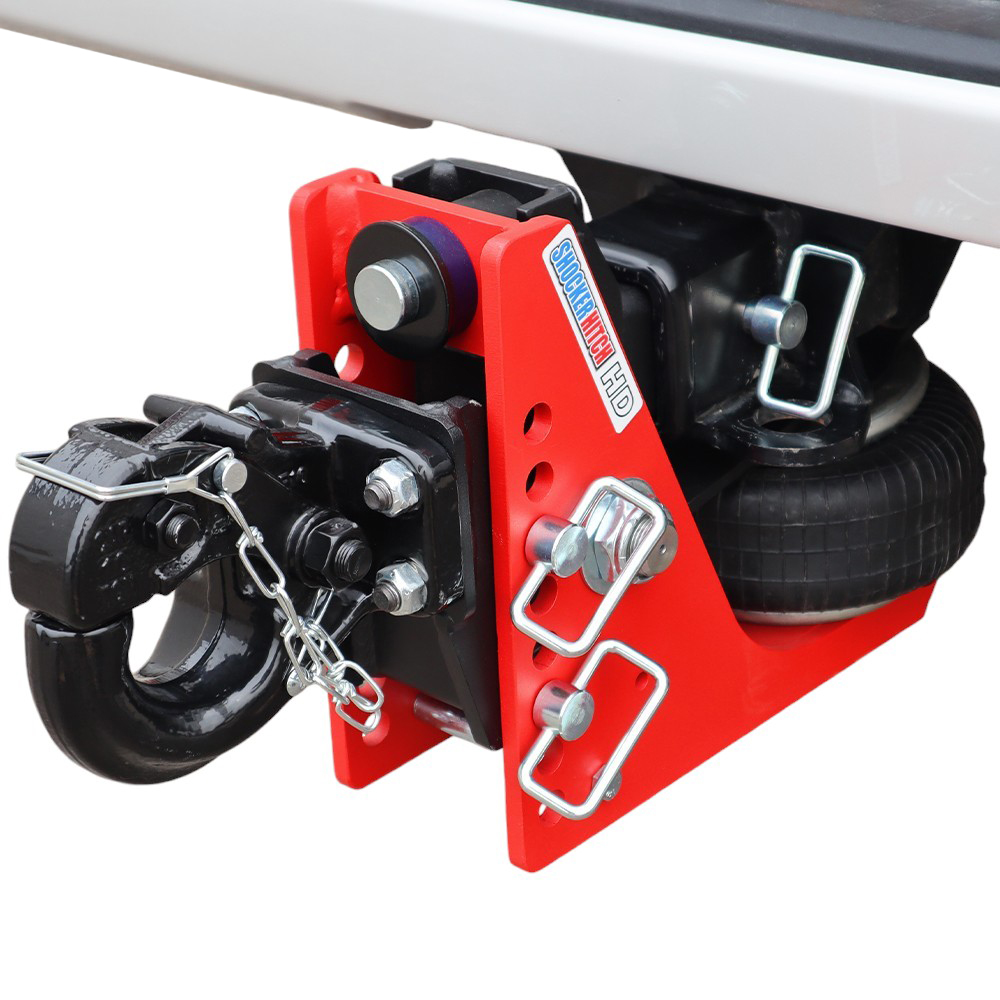

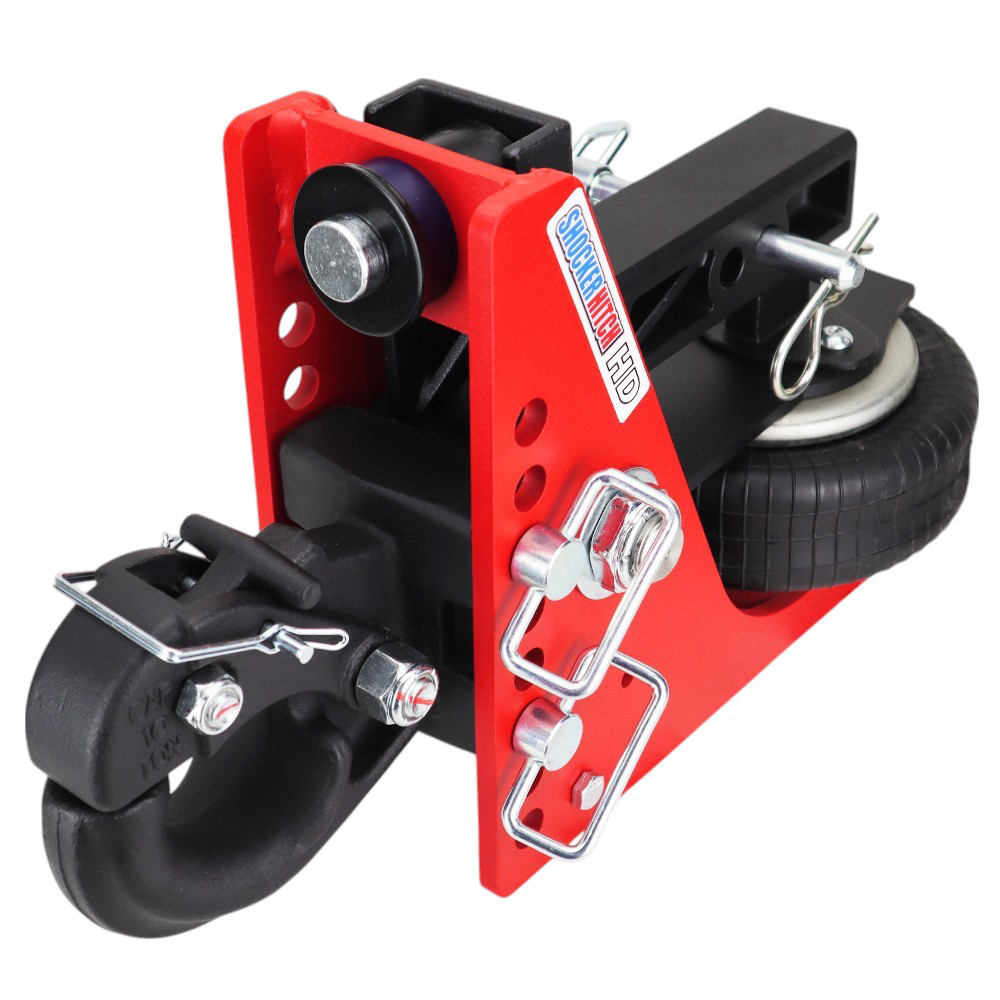

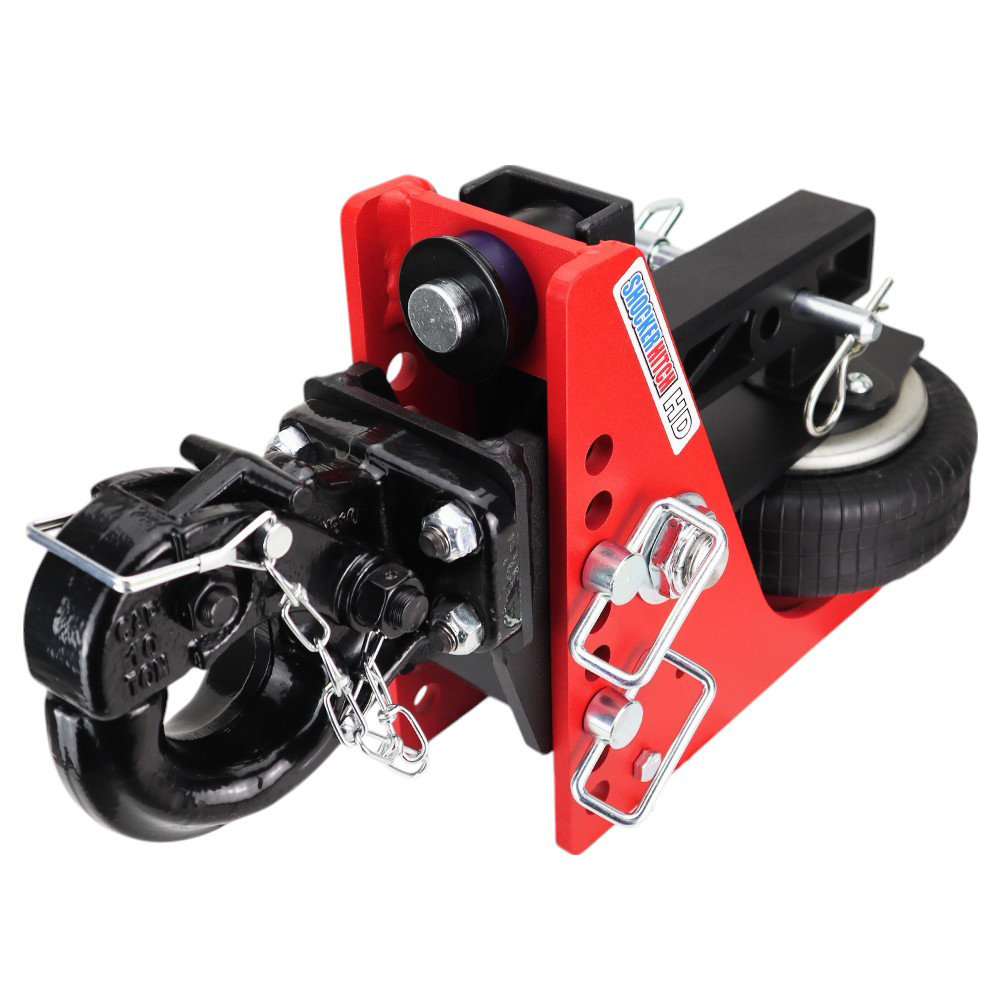

Shocker HD Air Pintle Hitch

Select Option:

Clear

Product Information:

List Price: $649.99$709.99Sale Price: $619.99$679.99Free Ground Shipping*

Reviews
SKU: SH-620-P
Series:

-

Product Description

  • Smoother safer towing. Improves your ride, reduces wear & tear on pickup & trailer
  • Air ride technology: Built in airbag cushions towing on tow vehicle and trailer
  • Includes heavy duty Pintle Hook ball mount. Works with 6″ OD x 3″ ID pintle rings.
  • This adjustable pintle has a nice fix because of the design reducing slop and the built in airbag smooths out your towing
  • Adjustable height (Choose 0″ to 4″ or 2-1/2″ to 6-1/2″ drop)
  • Fine tune for your towing weight. Just add air for heavier loads.
  • 16,000 lb rated tow capacity & 1,600 lb tongue wt
  • Fits standard 2″ receiver tube, 2 1/2″ and 3″ receivers. Often used on farm applications, contractor trailers and off-road trailers and works great on pickups, vans and select SUV’s with the receiver tube under the bumper.
  • Comes complete with Shocker HD air hitch with built in 16K airbag, adjustable pintle hitch and two d-handle ball mount pins with clips
  • Huge selection of ball mount adapters available from combo multi-ball mounts, draw bars, drop ball mounts, raise ball mounts and more.

Shocker Hitch Guarantee

Free Ground Shipping* | Shocker Guarantee | Free Returns

Not sure if you have a 2″, 2 1/2″ or 3″ receiver tube?  Just measure inside to inside. How to measure receiver hitch tube size?

The Shocker HD Air Pintle Hook Receiver Hitch with either a 0″ to 4″ or  2-1/2″ to 6-1/2″ Drop. Shocker Heavy-Duty air pintle hitch provides the ultimate smooth ride. The Shocker Air is a miniature air suspension unit mounted between your truck and trailer. This Shocker mounts by sliding into a standard receiver tube and is built for heavy duty hauling. Comes with pintle hook for easy attachment and hookup to trailer with a pintle ring. This pintle hook fits 6″ OD x 3″ ID pintle rings. Great for farm and heavy -duty contractor towing applications for quick hookup and smooth towing. This adjustable pintle has a nice fix because of the design reducing slop and the built in airbag smooths out your towing. Fits standard 2″ receiver tube, 2 1/2″ and 3″ receivers. Often used on farm applications, contractor trailers and off-road trailers and works great on pickups, vans and select SUV’s with the receiver tube under the bumper. Manufactured by Shocker Hitch® USA in Arthur, ND. 16,000 lbs tow rating capacity and 1,600 lbs tongue weight.

The HD air bag sits under the receiver tube allowing a short distance of 10-inches between mounting pin and ball center. You will find the advantage of the HD Air Shocker is your ability to adjust air pressure for best ride and load control. Fits standard 2″ receiver tube, 2 1/2″ and 3″ receivers.

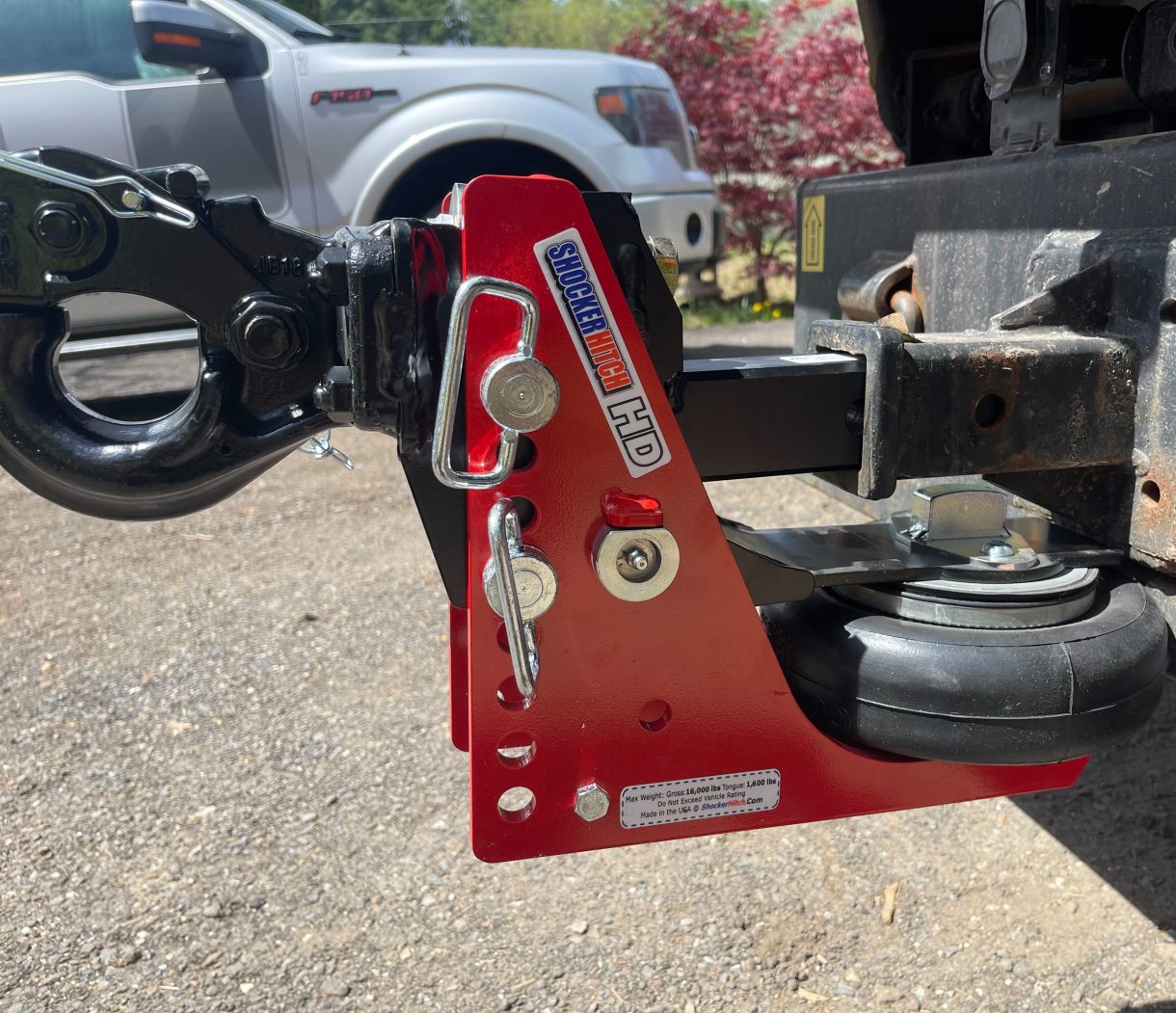

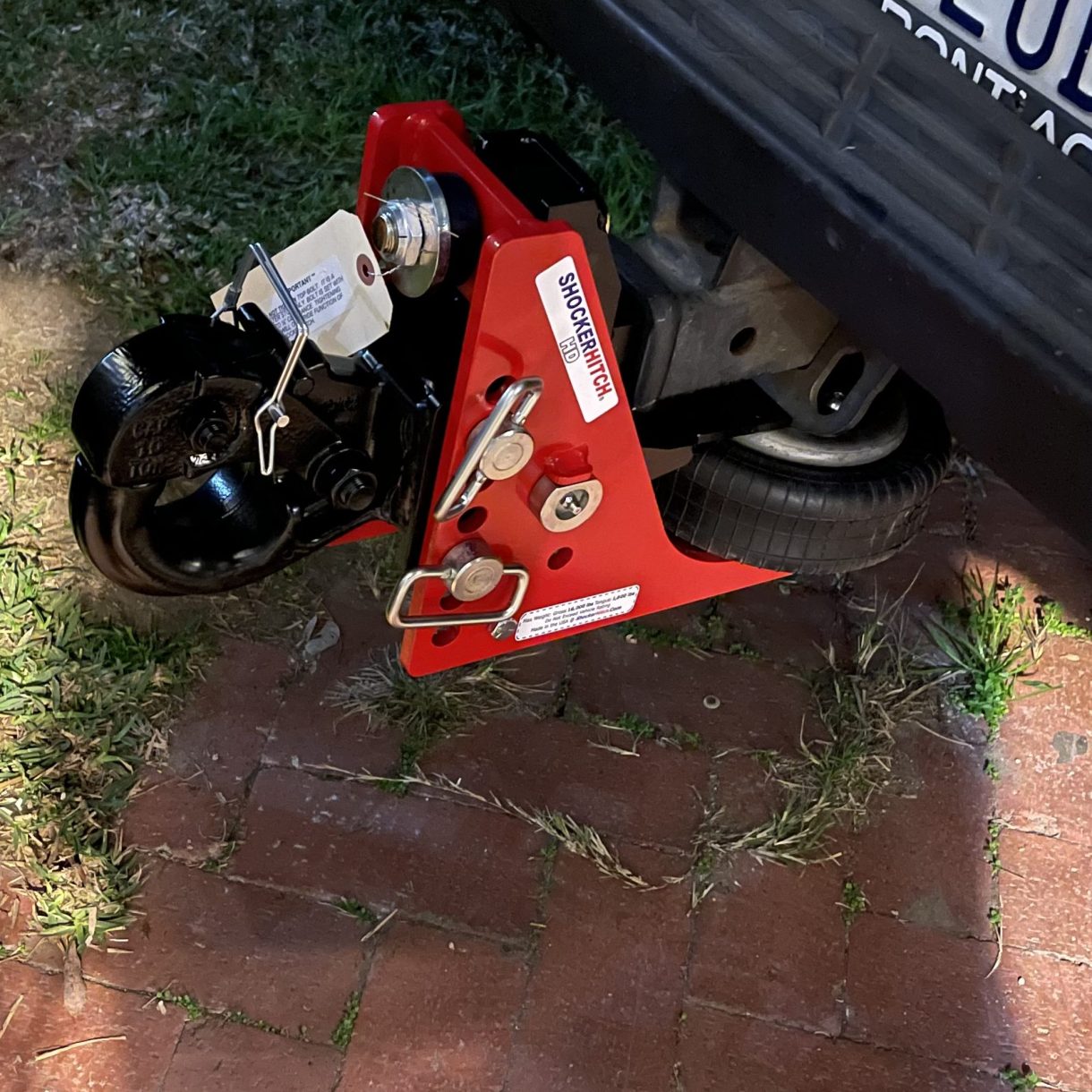

The Shocker HD with the pintle hook to mount to your pintle ring trailer. The Shocker HD is 16,000 lbs towing capacity and 1,600 lbs on tongue weight.

Air Ride Hitch: Shocker HD Air is designed with a built-in air bag for a smoother towing experience. Featuring a built in height adjustment plus weight adjustable. Just add or ride air depending on the weight of your trailer and it’s contents.

Provide Comfort: With a smoother ride! Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps and bumps.

Simple Pivot Design: uses a rocker arm pivot design which produces a down and back motion, much different than other air hitches on the market. Our design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple air bags common to other air hitches.

Improves Safety: By giving you improved control of your tow vehicle and trailer. The HD air bag receiver hitch system allows for better control of your pickup and the trailer it is towing.

Shock Dampening Action: Shocker HD air hitch effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and your receiver hitch.

Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker hitch absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.

Adds Life To Your Vehicle: By reducing wear and tear on driveline and frame! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations. Join the list of satisfied customers that are using Shocker hitches. Order one today and get ready for your ultimate smooth towing experience the next time out.

Tons of Attachments: We offer a wide variety of our ball mount attachments; standard mounts, drop ball mounts, clevis mounts, drawbar mounts, cushioned drawbar mounts, pintle hook attachments, raised mounts and combo multi-ball mounts.

California Residents: Prop 65 Warning



Fitment & Application

Shocker HD Air Hitch with Pintle Mount Applications

Part # Product Name Vehicle Info Rating Drop / Rise
SH-HD630-200 Shocker HD Air Pintle Hook Receiver Hitch Fits 2″ Receiver Hitch 16,000lb Tow / 1,600lb Tongue
2-1/2″ to 5-1/2″ drop
SH-HD635-200 Shocker HD Air Pintle Hook Receiver Hitch Fits 2″ Receiver Hitch 16,000lb Tow / 1,600lb Tongue 0″ to 3″ drop
SH-HD630-250 Shocker HD Air Pintle Hook Receiver Hitch Fits 2-1/2″ Receiver Hitch 16,000lb Tow / 1,600lb Tongue
2-1/2″ to 5-1/2″ drop
SH-HD635-250 Shocker HD Air Pintle Hook Receiver Hitch Fits 2-1/2″ Receiver Hitch 16,000lb Tow / 1,600lb Tongue 0″ to 3″ drop

Videos

Shocker HD Air Hitch Videos

Shocker HD Installation

Shocker HD vs Shocker Original Air Hitch

Install

Shocker HD Air Hitch Ball Mount Installation Instructions

The Shocker HD Air Bag Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

Shocker Air Receiver Hitch Diagram
Shocker Air Receiver Hitch Diagram


Note: Always use a good hitch ball with the proper recommended tow weight.

Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle.

Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you are just using sway bars that hook to a mini ball (such as the shocker sway control kit), then yes, if you order the combo sway control ball mount attachment. If you have an equalizer or weight distribution hitch then it will not. However, check out our Air Equalizer for weight distribution hitches.

Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag.
Once the bag has been compressed, you can install the unit into the receiver tube. Next install hitch pin.

To Set Air: Hook up trailer using properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to slightly compress top bushing or until bump stop clearance is approximately 1/8″.

Shocker HD Air Hitch PSI Air Pressure Setting Guide Video

Additional Set Up Notes:

  • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
  • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
  • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

Shocker HD Air Bag Receiver Hitch Install Instructions

Shocker HD Air Bag Hitch Install Video

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Guarantee.

Shocker Hitch Guarantee

FAQ

Answers to Frequently Asked Questions

How much air do I put in the Receiver Mount hitch?
With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker until main frame rotates and lightly compresses top bushing (about 1/8″ of squeeze or pinch in the bushing).

What the best way to hook up a pintle ring & hook?  Please see this video

How long will it hold air?
This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

How do I know the Shocker Air receiver hitch will fit my truck?
We have made sure that the receiver air shocker will fit into most Ford, Chevy, Dodge, Toyota and SUV’s. There are some clearance issues with the Chevy Envoy, Ford Explorer, some imports and service body vehicles where the body extends below the receiver tube. The use of “reducer” sleeves on trucks with a 2 1/2″ receiver tube is not recommended. The Shocker Air receiver hitch is available in a 2″, 2 1/2″ & 3″ shank. Please indicated which vehicle you intend to use the hitch with, make/model/year and we will attempt to get you a great fitting hitch.

How far below my pickup does the receiver air shocker hang?
Five inches below bottom of receiver tube.

How often do I grease it?
The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

Does the receiver air hitch work like or with an equalizer hitch?
No.

How does the Receiver hitch work?
The Receiver air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

Should I tighten up the top jam nut on the receiver shocker?
No. The air shocker needs at least one half inch of play to work properly.

How much does an Shocker Air bag receiver hitch weigh?
The Receiver Air Shocker weighs 40 pounds

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

3 reviews for Shocker HD Air Pintle Hitch

Add a review

Your email address will not be published.

  1. Mike G. (verified owner)

    If you have a Dodge/ram you will need the drop hitch for sure

  2. Wayne (verified owner)

    The best hitch I’ve ever bought won’t ever buy anything but that great product

  3. Joshua Boham (verified owner)

    Awesome hitch, controls my 16k dump trailer very well!

Weight / Dimensions

Weight 53 lbs
Dimensions 18 × 12 × 12 in
