Shocker XR Adjustable Receiver Hitches

Set up for different trailers with Shocker XR adjustable receiver hitches, a solid channel hitch with no air spring or cushions. The reversible channel design provides drop or rise, with 8-hole and 10-hole frame options and a wide selection of ball, pintle, drawbar and clevis mounts. Ratings depend on the shank: 12,000 lbs GTW for 2-inch and 16,000 lbs for 2.5-inch receivers. Capacity and height adjustment also depend on the attachment selected.

Who the XR Series is for

The XR Series is our adjustable receiver hitch without an air spring or cushions: a solid, flip-around channel hitch you can set for drop or rise. The rating depends on the receiver shank:

  • 2" shank: 12,000 lbs GTW
  • 2.5" shank: 16,000 lbs GTW

Tongue weight is 10% of the GTW rating. It fits pickups, service-body and flatbed trucks, RVs, UTVs, Gators and Toolcats, and it’s used for:

  • Contractors and equipment: Equipment, cargo, car and utility trailers, plus pintle-ring trailers.
  • Farm and ranch: Hay wagons, anhydrous tanks and carts, with drawbar, clevis and pintle mounts.
  • Campers and recreation: Campers with high A-frames, boats, race trailers, and ice and fish houses.

8-hole or 10-hole channel?

The XR channel comes with 8 or 10 adjustment holes. The 10-hole channel adds about 2" of drop or rise. Flip the channel over to switch between drop and rise.

Pick the right mount for the job

Mount 8-hole 10-hole
Drop ball Up to 7-1/2" drop Up to 9" drop
Raised ball 5" rise to 3" drop 7" rise to 5" drop
Combo ball (2" and 2-5/16") 4" rise to 4" drop 6" rise to 6" drop
Drawbar and Cushion Drawbar 4" rise to 4" drop 6" rise to 6" drop

A higher-rated ball or mount doesn’t raise the rating of the XR shank, your receiver or your vehicle. Check the drop/rise guide on each product page, or use our drop hitch calculator and measuring guide.

Farm Mount Towing Kits

The XR Drop Hitch Farm Mount Towing Kit includes a combo ball mount, a clevis mount, a 10-ton channel pintle hook and a standard drawbar. The Deluxe Farm Mount Towing Kit swaps in the quad-cushion drawbar.

Sway control kits

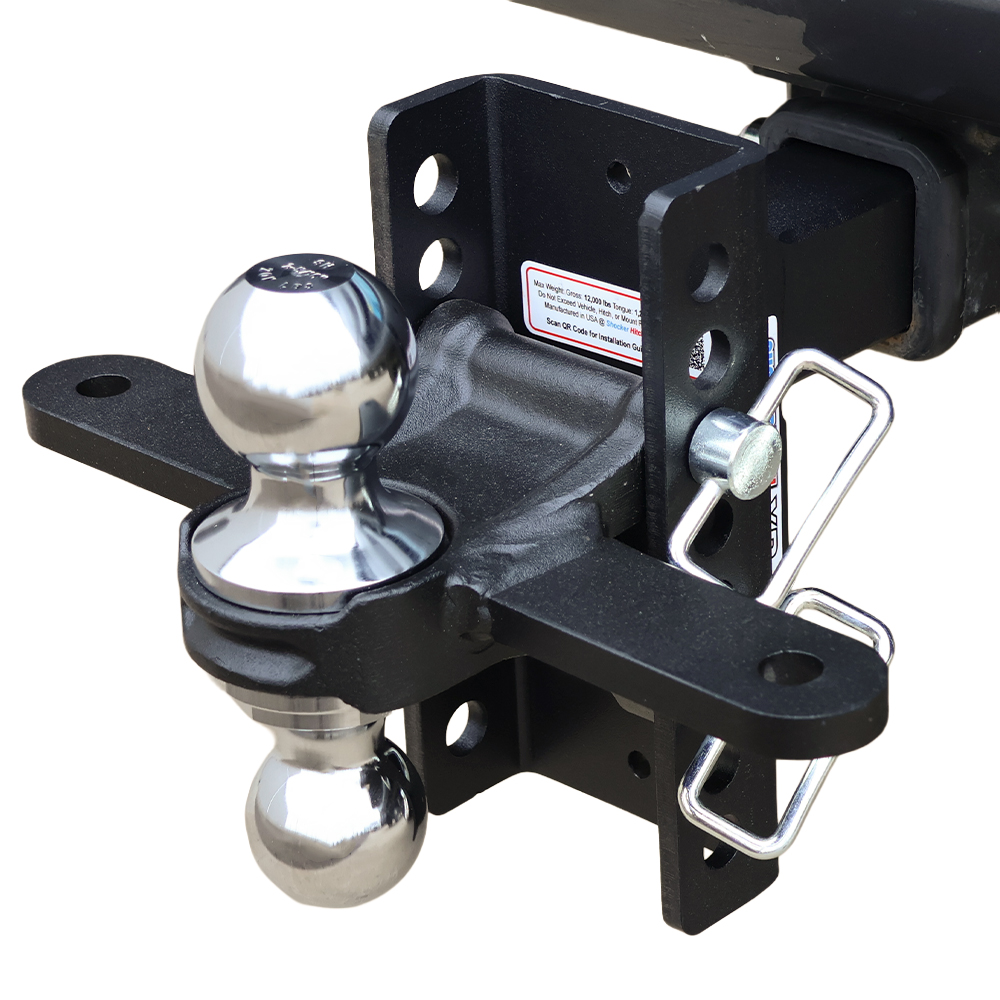

The XR Sway Control Towing Kit comes with a black or chrome sway-tab combo ball and one or two friction sway bar kits. Use one kit for trailers up to 10,000 lbs and two kits for heavier trailers. If you already own a friction sway bar, the sway-tab drop, raised, and combo ball mounts accept it.

Want built-in cushioning?

The XR has no air spring or cushions. For dual urethane cushions with the same flip-around design, compare the Impact™ 14K and Impact™ Max 20K Series. For adjustable air ride, choose the 14K or 20K HD air receiver hitch Series.

Shocker XR Series video

More XR videos

Video What it covers
Shocker XR Adjustable Ball Mount 101 How the adjustable channel works and flips for drop or rise
Shocker XR Adjustable Ball Mount Attachments The ball, pintle, drawbar and clevis mounts you can use
