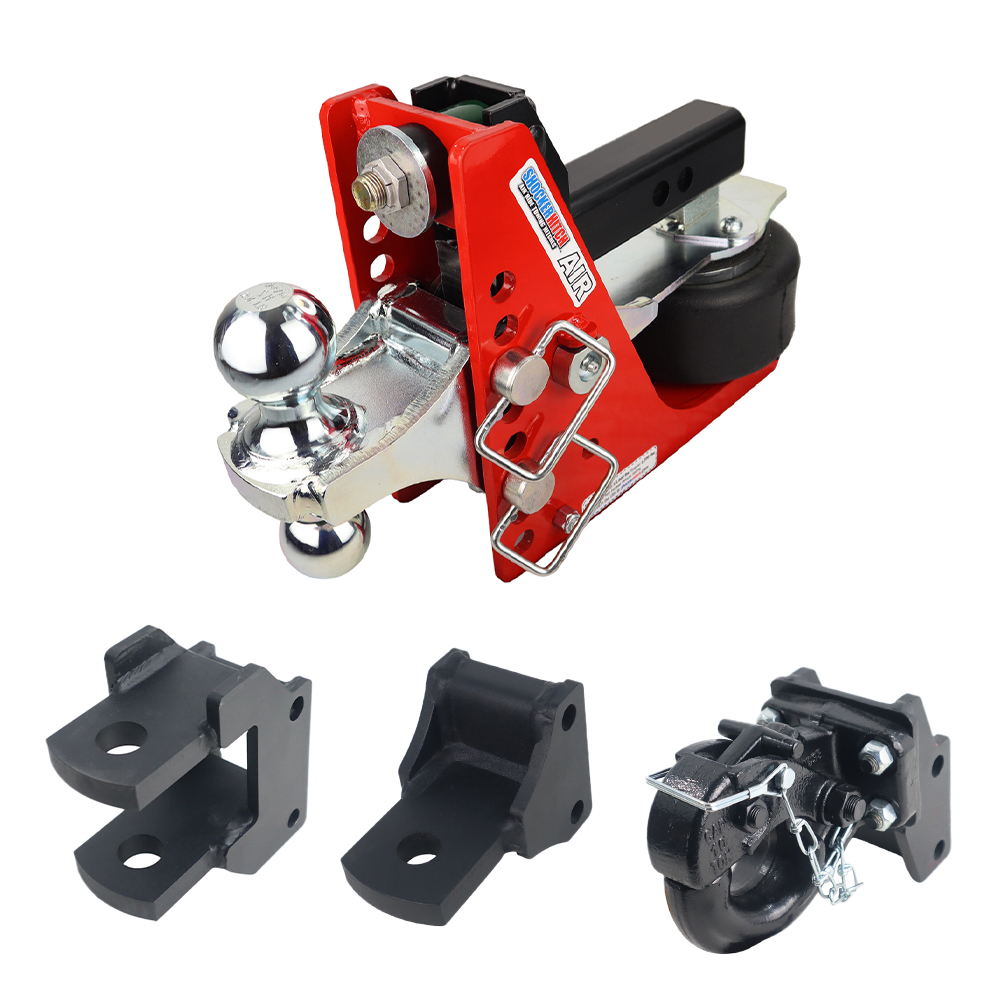

Shocker Air Hitch Combo Ball & Farm Mount Towing Kit

Select Option:

Clear

Product Information:

List Price: $989.99$1,109.99Sale Price: $892.79$1,004.39Free Ground Shipping*

Money IconExtra 7% OFF, hurry limited time offer.

-

Product Description

  • Air Ride Technology: With a heavy-duty built-in air spring to cushion the ride & absorb the road shock. Add instant air ride to your pickup & trailer.
  • Built-in Airbag: Absorbs road shock, creates smooth ride & reduces the tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
  • Designed For Farm Use: Perfect for bobcats, john deer, wagons, farm equipment, cultivators, fertilizer spreaders, bailers, augers, sprayers, and other agriculture-related equipment, trailers, and more.
  • 8 Adjustment holes: 2-1/2″ of rise to 7-1/2″ of drop – Depends on mount.
  • 12,000 to 20,000 lbs GTW Capacity: Original 12,000 lbs towing capacity & 1,200 lbs tongue weight. HD: 20,000 lbs towing capacity and a 2,000 lbs tongue weight. (can vary by mount).
  • Adjustable Combo Ball: Combo adjustable multi-ball mount has with 2″ hitch ball & 2 5/16″ hitch ball. (1/2″ rise to 4-1/2″ drop) – 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
  • Clevis Pin Mount: Adjustable clevis pin hitch mount with 1-1/4″ holes (3-1/2″ rise to 7-1/2″ drop)
  • Adjustable Pintle Hook: Fits 6″ OD x 3″ ID pintle rings. (2-1/2″ rise to 6-1/2″ drop)
  • Drawbar Mount: Standard drawbar mount with 1-1/4″ holes. (1/2″ rise to 4-1/2″ drop)
  • Safety Red Powder Coat Finish: Impact Resistant Premium Powder-Coat Finish on Base Frame.
  • 2 Hole Receiver Shank: Available for 2″, 2 1/2″ & 3″ receiver hitch tubes with Two hitch pin holes for length adjustability.

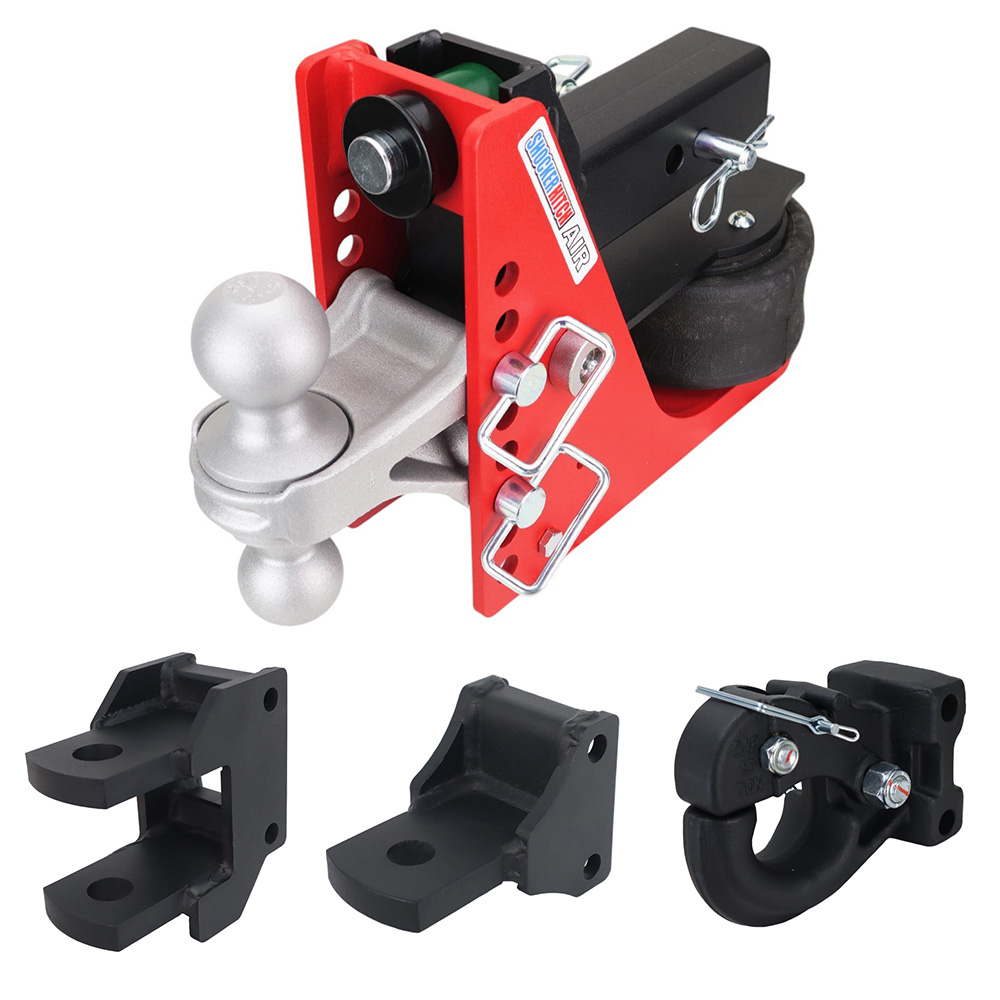

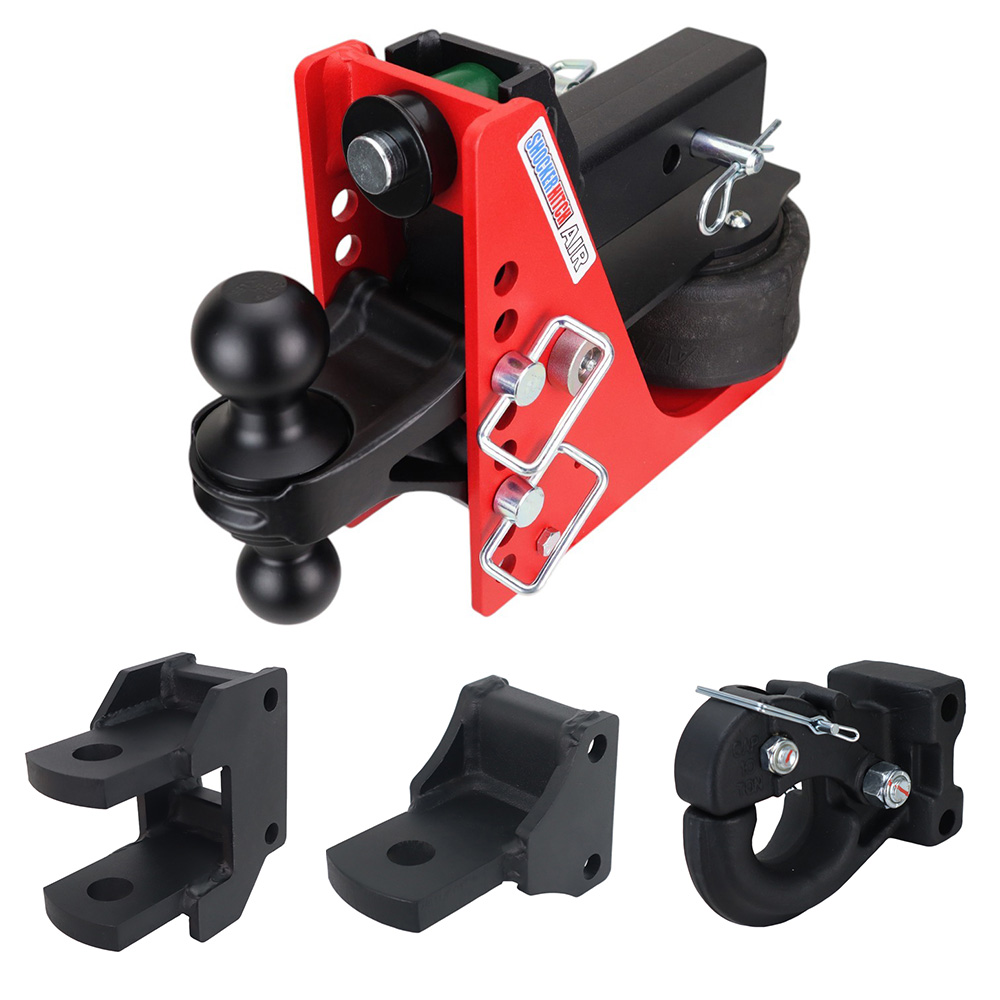

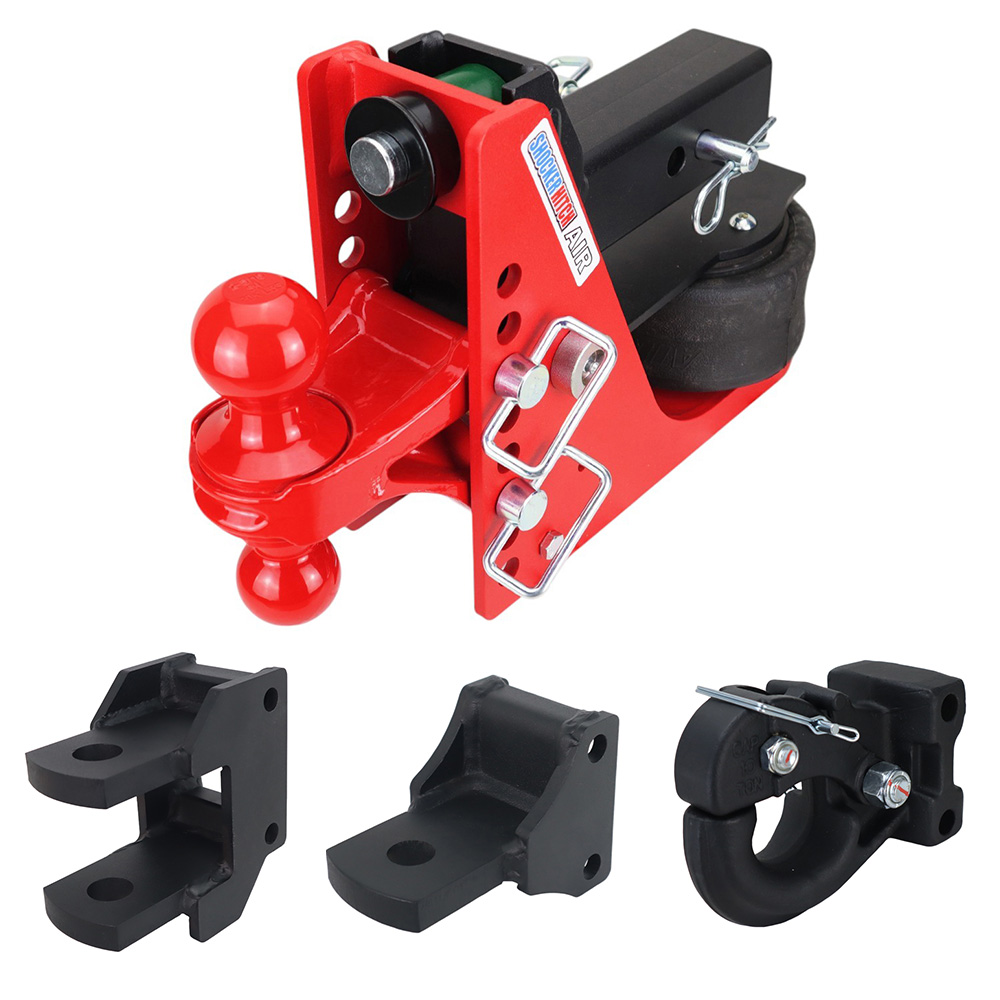

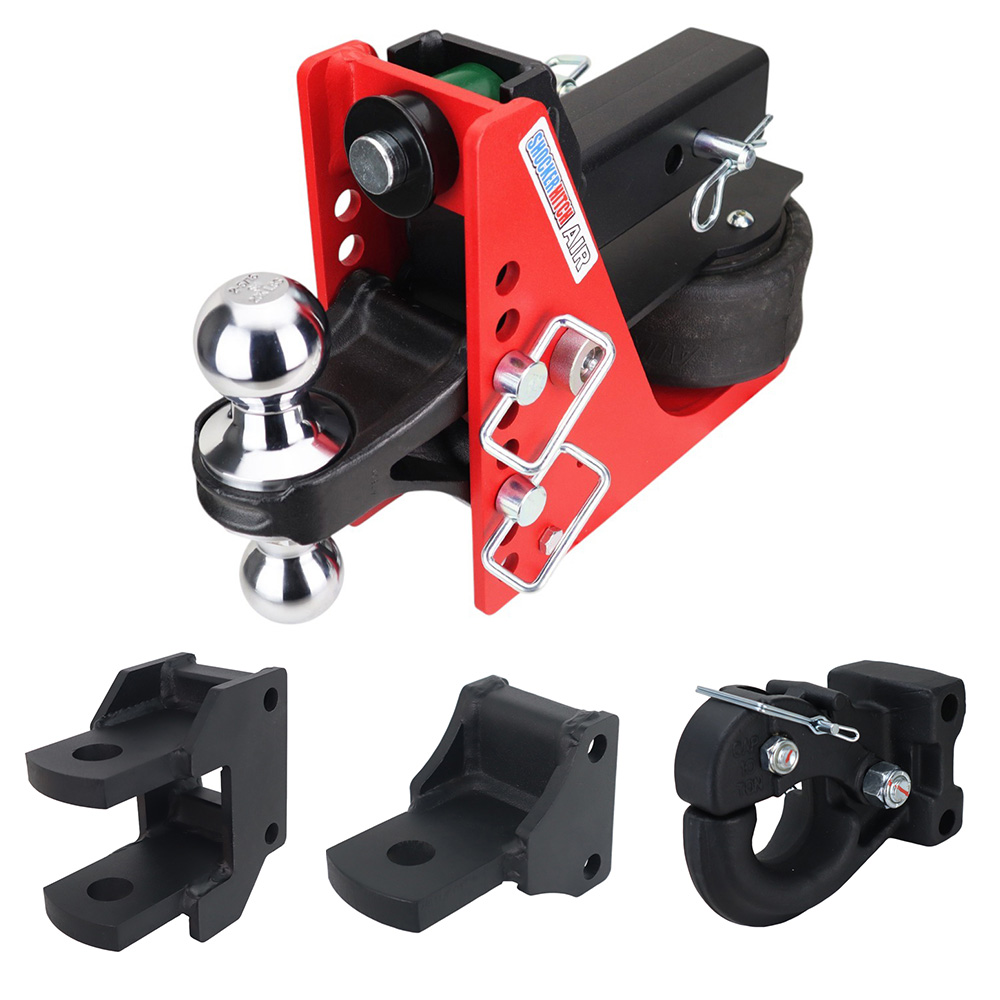

  • Includes complete adjustable Shocker air receiver hitch base frame assembly, combo dual ball mount with 2″ & 2-5/16″ hitch balls, clevis mount, adjustable pintle mount, drawbar & 2 ball mount pins.
  • Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory towing weight capacities, therefore it’s important you read and follow the tongue & tow weight recommendations of the truck it is mounted on, the trailer coupler rating & the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. Bolt-on 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

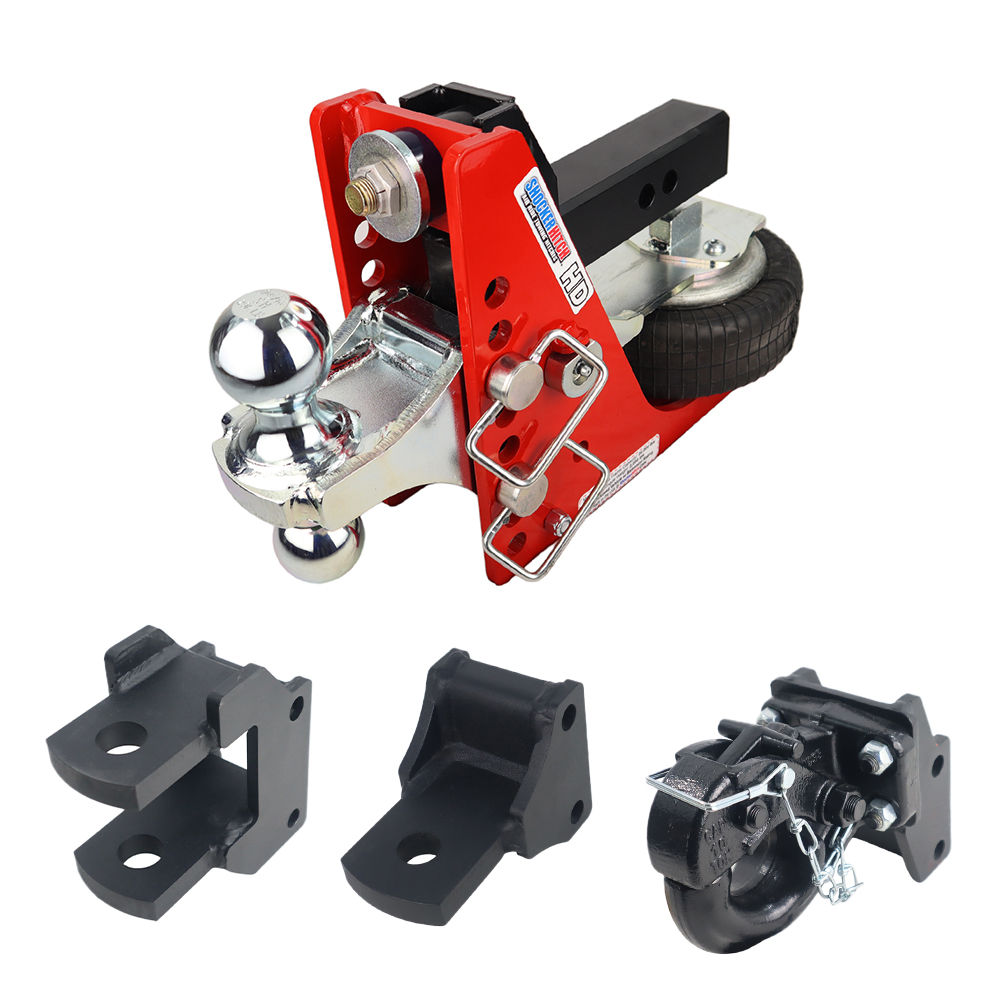

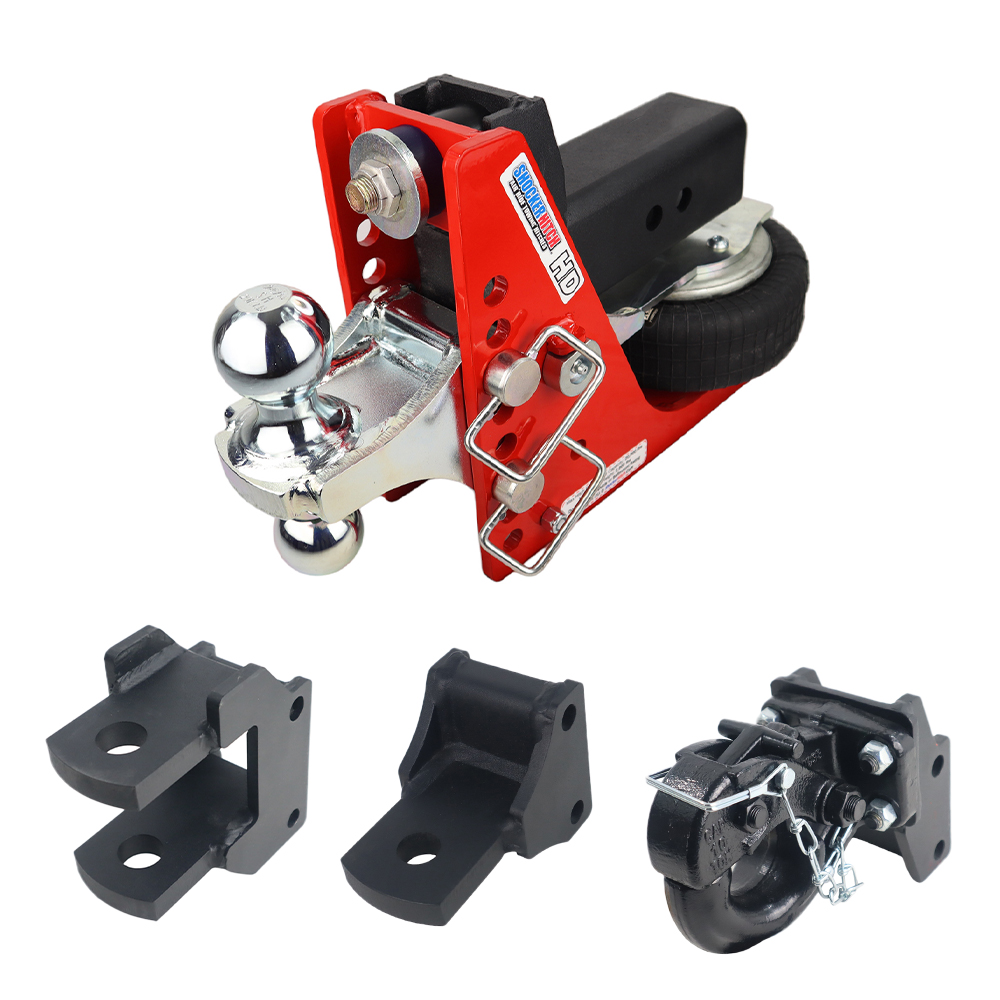

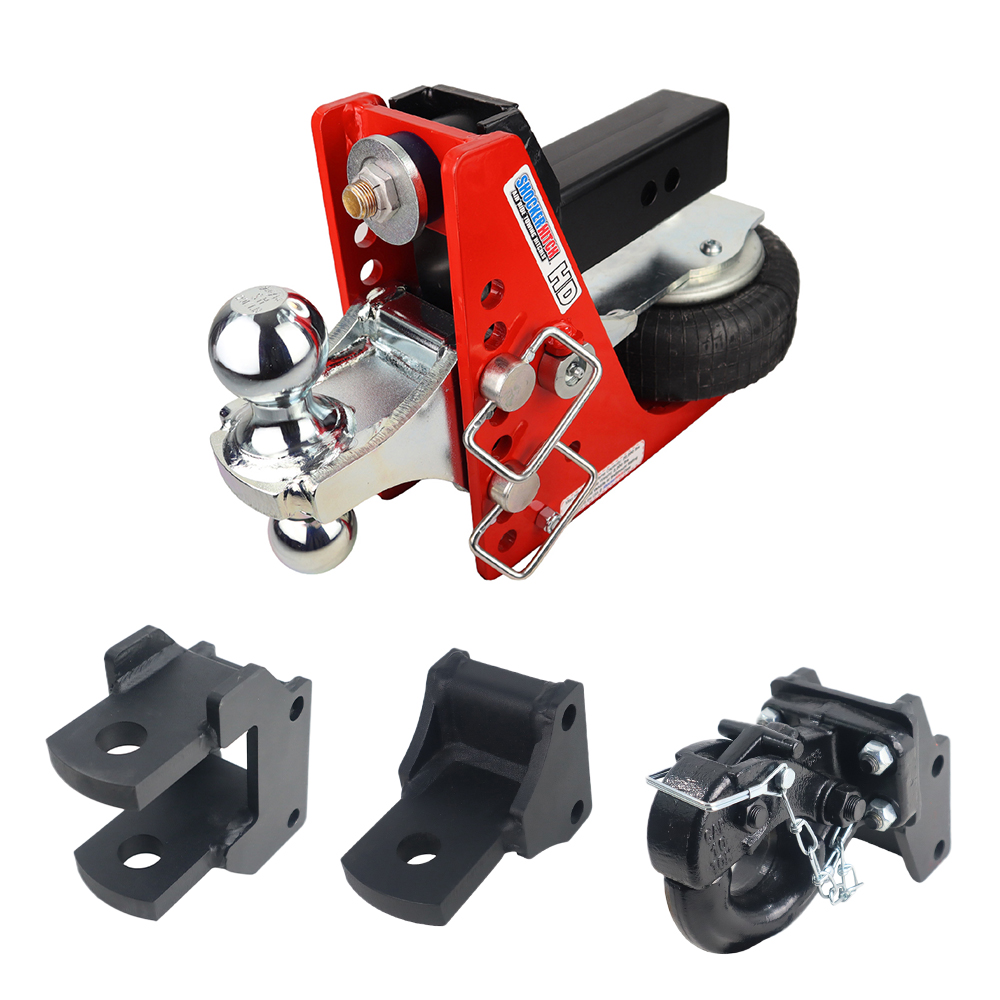

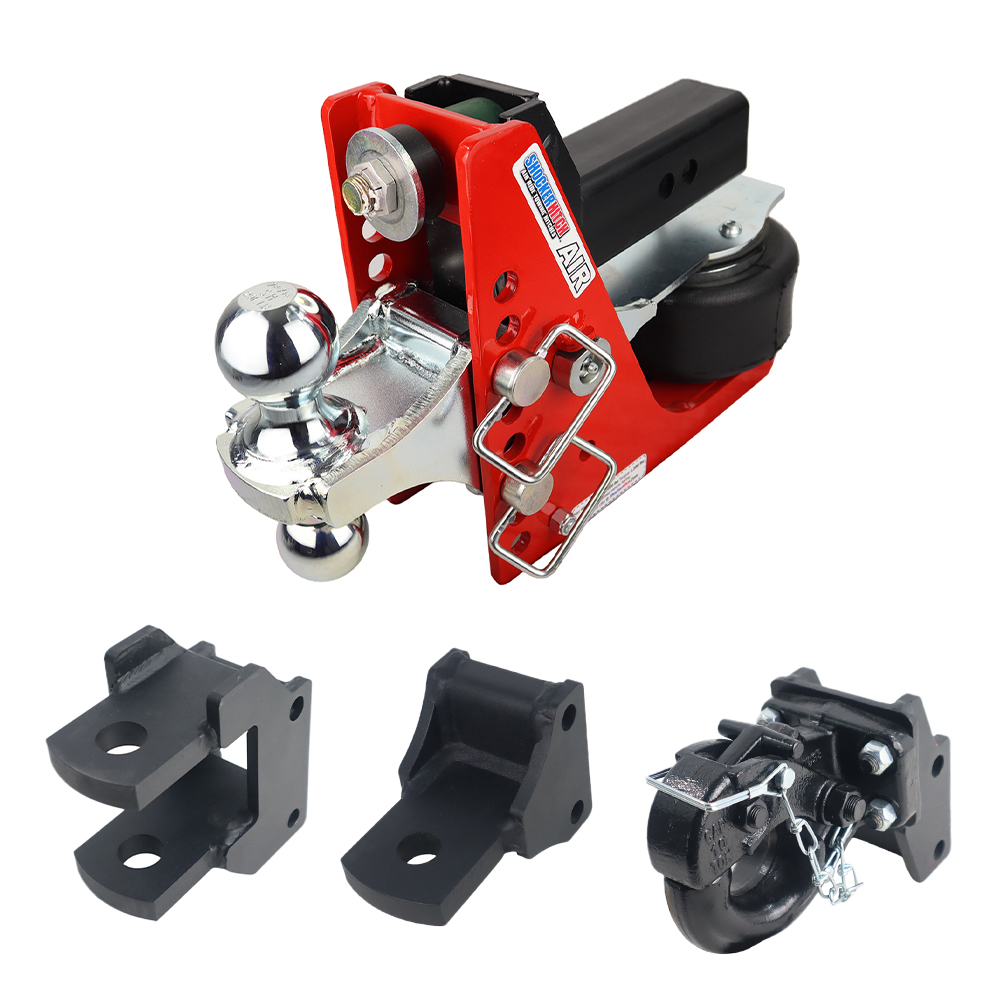

Treat your back and ride to the ultimate smooth towing farm package with the Shocker Air hitch farm towing kit. We combined our Original and HD air hitch together with the most commonly used farm mount attachments that we offer. Design for quick hookup and a smoother, safer ride around the farm with almost any trailer. The Shocker Air hitch and Farm Mount kit provides every mount you need to hook up to farm equipment, cultivators, fertilizer spreaders, bailers, augers, sprayers, and other agriculture-related equipment, trailers, and more.  With the Shocker airs adjustable design, you can easily swap out mounts in a matter of seconds to match up with your select trailer coupler. The built in airbag absorbs the road shock and cushions your ride and overall towing experience. The Shocker Air is a miniature air suspension unit mounted between your truck and trailer ultimately creating a smooth towing experience for your pickup, trailer and the contents. This kit includes a welded combo ball mount for standard trailers, a clevis pin mount, an adjustable pintle hook, and a standard drawbar mount. Choose from the Original Shocker Air and the Shocker HD. Original Shocker Air is rated at 12,000 lbs towing capacity and 1,200 lbs tongue weight. The Shocker HD is 20,000 lbs towing capacity and 2,000 lbs on tongue weight. The Shocker Air receiver hitch farm package provides versatility and a way smoother towing experience than a solid ball mount. The Shocerk Air ball mount has built-in adjustability and maximum versatility with 8 adjustment holes for your towing needs for pulling farm equipment, trailers, contractor & heavy-duty trailer towing applications. The Shocker Air hitch farm package is the best thing you can have sitting on the farm ready to give you a smoother, safer day.

Please Note: The Shocker Hitch is a heavy duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. (See ball mount weight ratings below)

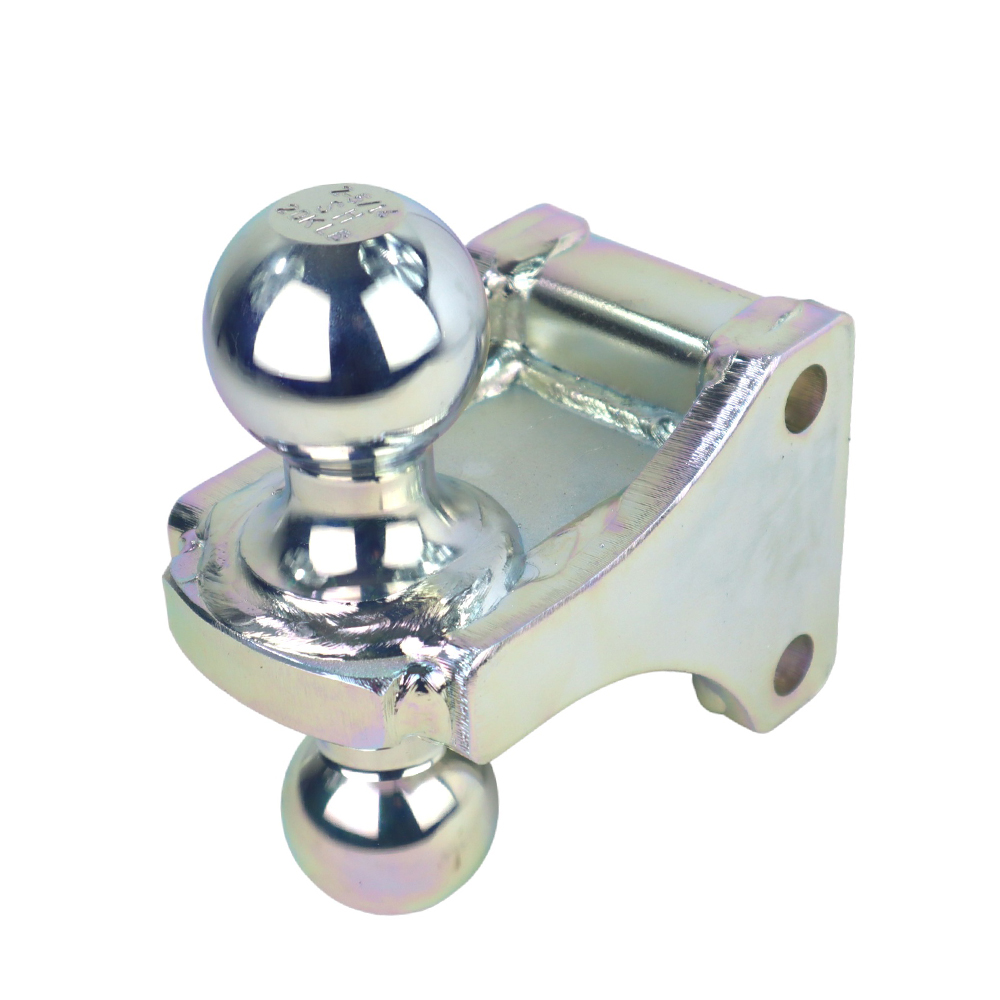

Combo Ball Mount: The combo multi-ball mount features both a 2″ hitch ball and a 2-5/16″ hitch ball with a 1/2″ of rise to 4-1/2″ of drop. 1 piece welded design for maximum strength with a premium clear zinc-plated finish. ( 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.)

Adjustable Pintle Hook: The pintle hook features an adjustable design that allows you to flip the mounting plate for more rise or drop offering a 4″ Rise to 6-1/2″ Drop. This pintle hook was designed for a nice, tight fit with 6″ OD x 3″ ID pintle rings.  Rated at 12,000 lbs. tow capacity & 1,200 lbs. tongue weight with Original Air Hitch. Rated at 20,000 lbs. tow capacity & 4,000 lbs. tongue weight with HD Air Hitch.

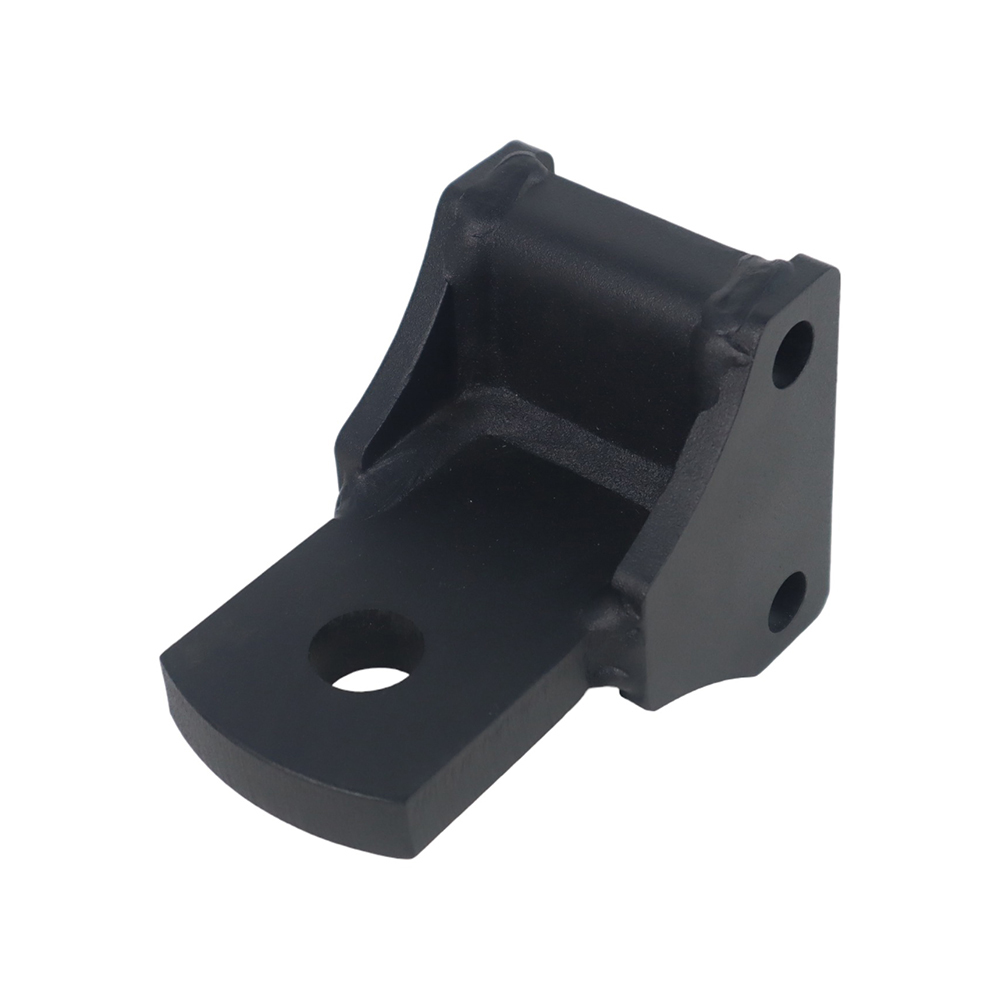

Adjustable Drawbar: Standard drawbar with a 1″ hole for quick hookup. Featuring 1/2″ or Rise to 4-1/2″ of drop. Rated at 12,000 lbs. tow capacity & 0 lbs. tongue weight with Original Air Hitch. Rated at 20,000 lbs. tow capacity & 0 lbs. tongue weight with HD Air Hitch. (This is NOT for use with hitch ball)

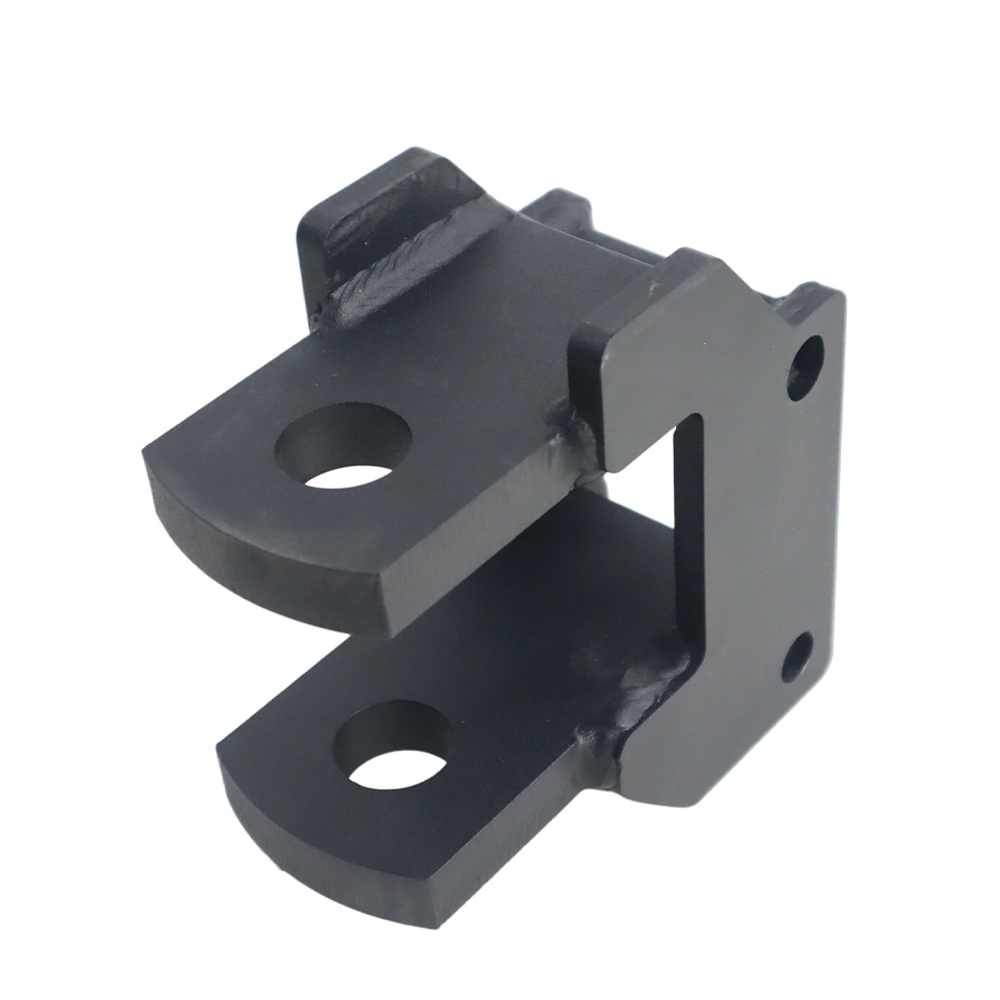

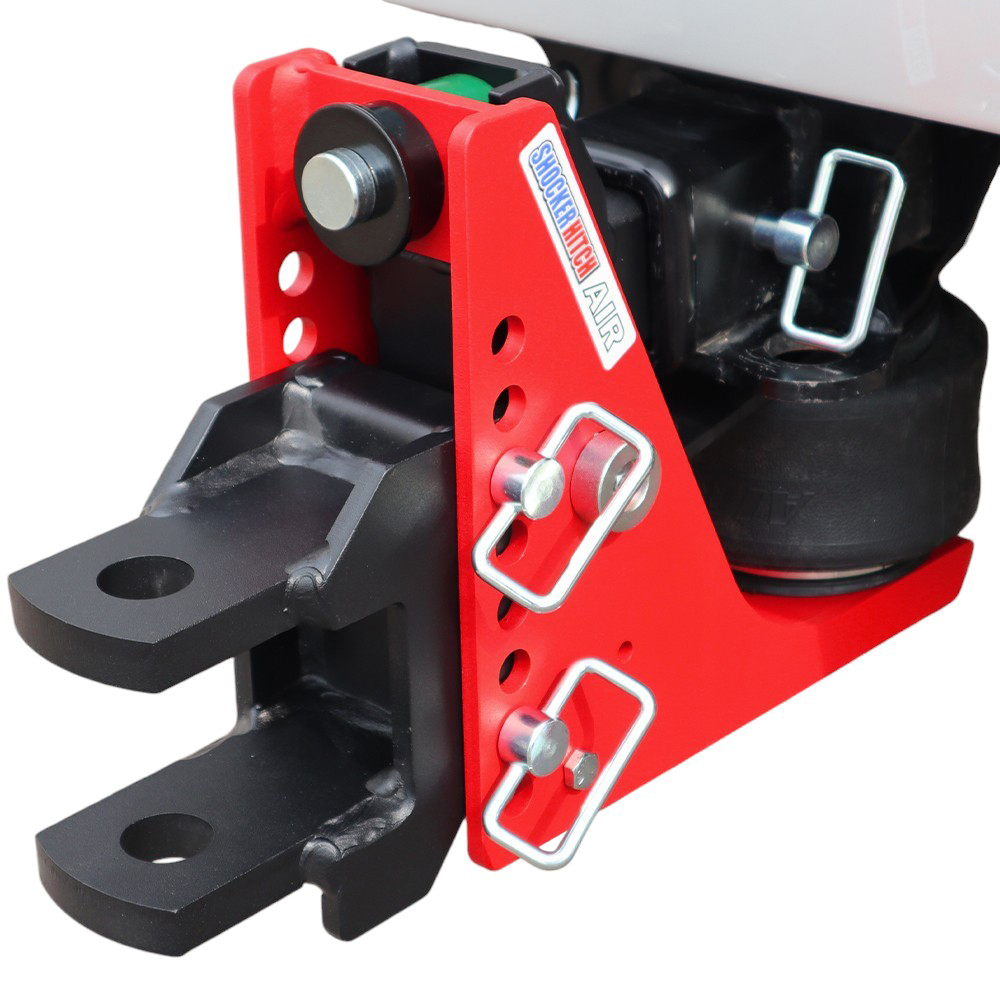

Clevis Pin Mount: The clevis pin mount features 1-1/4″ holes with an adjustable design offering  3-1/2″  to 7-1/2″ of drop. Rated at 12,000 lbs. tow capacity & 1,200 lbs. tongue weight with Original Air Hitch. Rated at 20,000 lbs. tow capacity & 2,000 lbs. tongue weight with HD Air Hitch.

This Shocker Air Reciever Cushioned hitch attaches by sliding into a standard receiver tube. Use this adjustable ball mount however you need to for tons of versatility. Works great on Bobcats, Gators, UTVs, pickup trucks, vans, SUVs, and more. Plus the shank has 2 holes for the pin for length adjustability as well as allowing it to work with hitch-mounted mud flaps. Made by Shocker Hitch® USA

Tons of Attachments: We offer a wide variety of additional ball mount attachments; standard mounts, drop ball mounts, clevis mounts, drawbar mounts, cushioned drawbar mounts, pintle hook attachments, raised mounts and combo multi-ball mounts.

California Residents: Prop 65 Warning

Videos

Shocker Air Receiver Hitch Video

Shocker HD Air Hitch Video

Shocker Pintle Hitch Fitment Video



Install

Shocker Air Bumper Hitch Installation Instructions

The Shocker Air Bag Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag. Once the bag has been compressed, you can install the unit into the receiver tube. Next, install the hitch pin.

To Set Air: Hook up a trailer using a properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to lightly compress top bushing or until bump stop clearance is approximately 1/8″.

Shocker Air Bumper Hitch Air Pressure Setting Video

Additional Set Up Notes:

  • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
  • Spacer block included and may be required when using 2″ shank (see spacer block install manual below)
  • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
  • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

Shocker Air Receiver Hitch Install Instructions

Shocker Air Hitch Install Video

Shocker 12K Original Air Hitch Diagram
Shocker 12K Original Air Hitch Diagram


Note: Always use a good hitch ball with the proper recommended tow weight.

Installation Issues

We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

We’re here to help. Contact Us

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

Reviews

Be the first to review “Shocker Air Hitch Combo Ball & Farm Mount Towing Kit”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 65 lbs
Dimensions 32 × 24 × 24 in
Select Hitch Size & Tow Capacity

Fits 2-1/2" Hitch – 12,000 lbs, Fits 2-1/2" Hitch – 20,000 lbs, Fits 2" Hitch – 12,000 lbs, Fits 2" Hitch – 20,000 lbs, Fits 3" Hitch – 12,000 lbs, Fits 3" Hitch – 20,000 lbs
