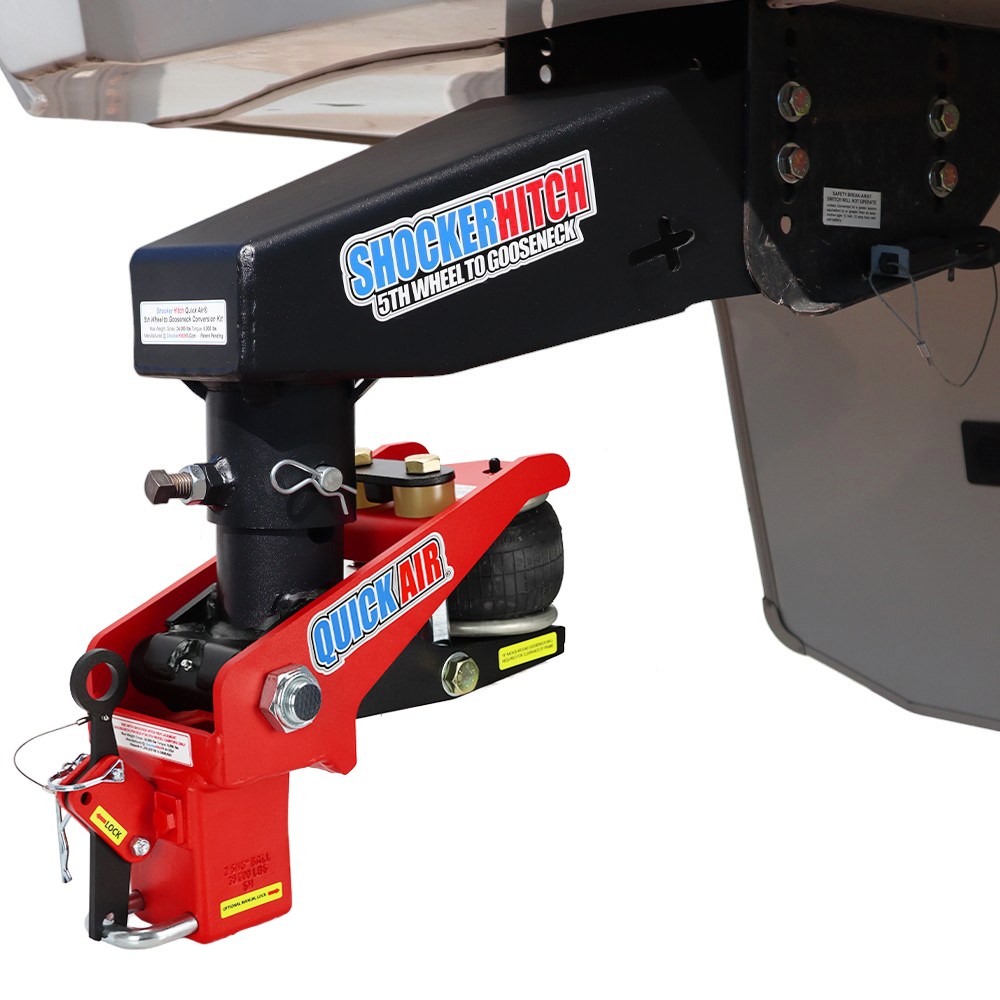

Shocker QuickAir 5th Wheel to Gooseneck Air Hitch & Coupler Conversion Kit

Select Option:

Clear

Product Information:

List Price: $1,599.99$1,769.99Sale Price: $1,349.99$1,502.99Free Ground Shipping*

Money IconExtra 10% OFF, hurry limited time offer.
Reviews
Rated 4.67 out of 5 based on 3 customer ratings
SKU: SH-5th-to-Goose-Air-Kit
Category:

-

Product Description

  • 5th Wheel to Gooseneck Air Hitch Conversion Kit: Includes Replacement Gooseneck Pin Box & Shocker Gooseneck Air Hitch & Coupler
  • Smoother Safer Towing: Improves your ride, reduces wear & tear on pickup & trailer.
  • Easy Install: Completely replaces your factory 5th wheel box with a gooseneck pin box. Then the Gooseneck air hitch & coupler Installs in Minutes.
  • Absorbs Road Shock: Helps eliminate tugs, jerks & bumps felt when towing on rough roads or concrete highways.
  • Built in Airbag: This hitch directs the tow resistance through an airbag, producing a smooth ride. Patent #’s 11,370,257 B1 & D898,628.
  • Up to 24,000 lbs Tow & 6,000 lbs tongue weight: Available with 24k dual latching Shift Lock gooseneck coupler for 2-5/16″ gooseneck ball.
  • Air Ride Technology: Protects your truck, camper trailer and the contents with a smoother, safer tow. Heavy loads, just add air. The cure for choppy, bouncy, buckled, rough & busted up roads. No more booms, bangs and jerks when towing with your gooseneck.
  • 2 Gooseneck Pin Box Option to Choose From: Choose Lippert 1621, 0719 or Rhino Box, as well as the Lippert 1716, 1116, 0115, FabEx 500, 503, 520, 530, 560.
  • Fits 2-5/16″ gooseneck hitch balls: & has 3 height adjustment holes.  (includes adjustment pin)

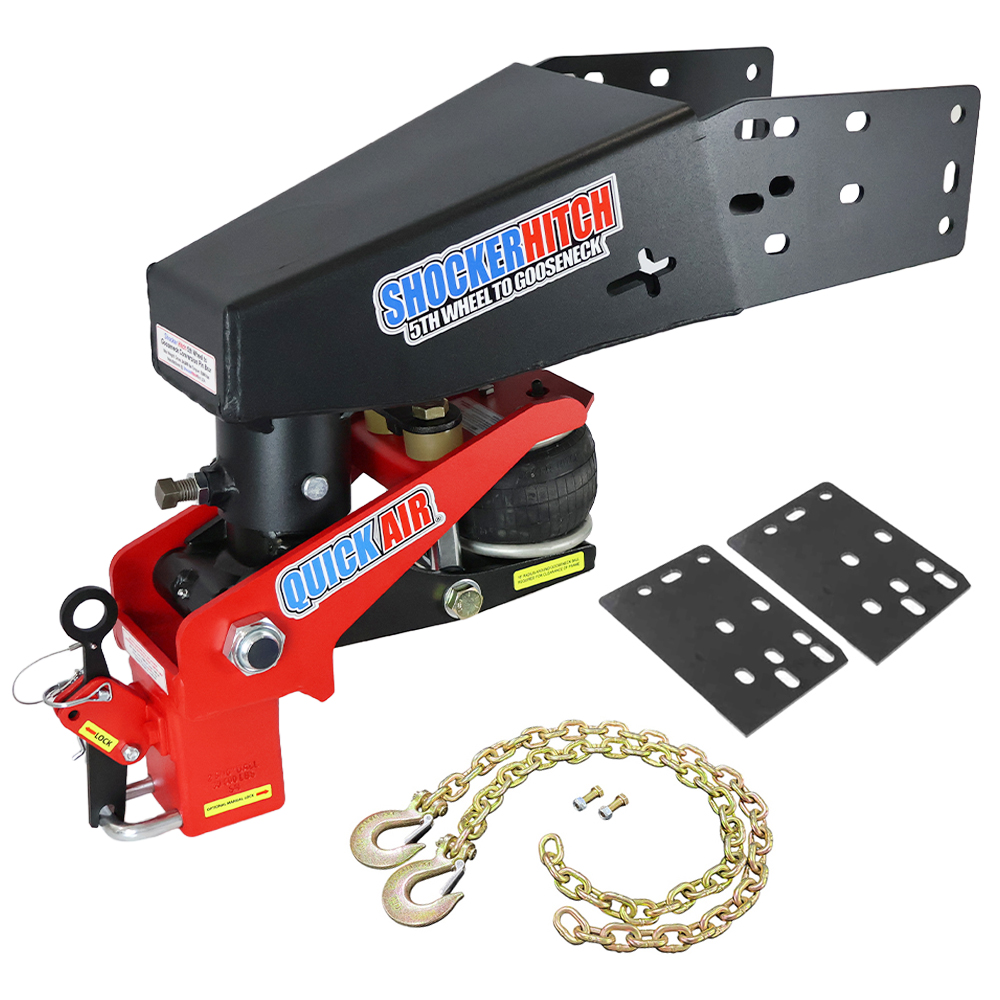

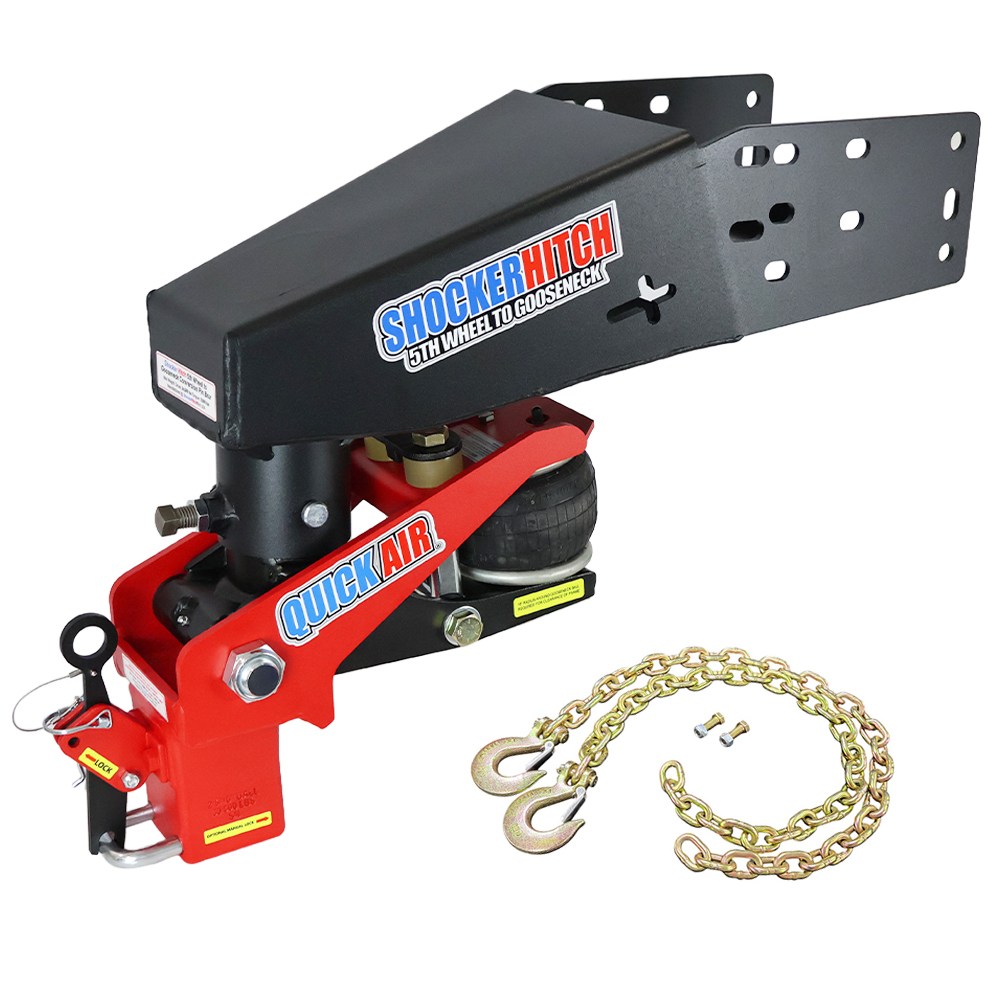

  • Includes complete Replacement Gooseneck pin box along with Shocker Gooseneck Surge® air hitch with built in airbag, replacement inner tube stem with adjustment pin & 24,000 lb Shift Lock™ gooseneck coupler for 2-5/16″ ball.  Does not include chains which can be ordered separately.
  • Note: This gooseneck hitch has a shorter stem then a normal gooseneck and is designed for to be used with the Shocker Replacement Gooseneck Pin Box for 5th Wheel Campers only. This gooseneck air hitch cannot be used on a normal gooseneck trailer as the inner tube steel is too short for that application.

Shocker Hitch Guarantee

Free Ground Shipping* | Shocker Guarantee | Free Returns

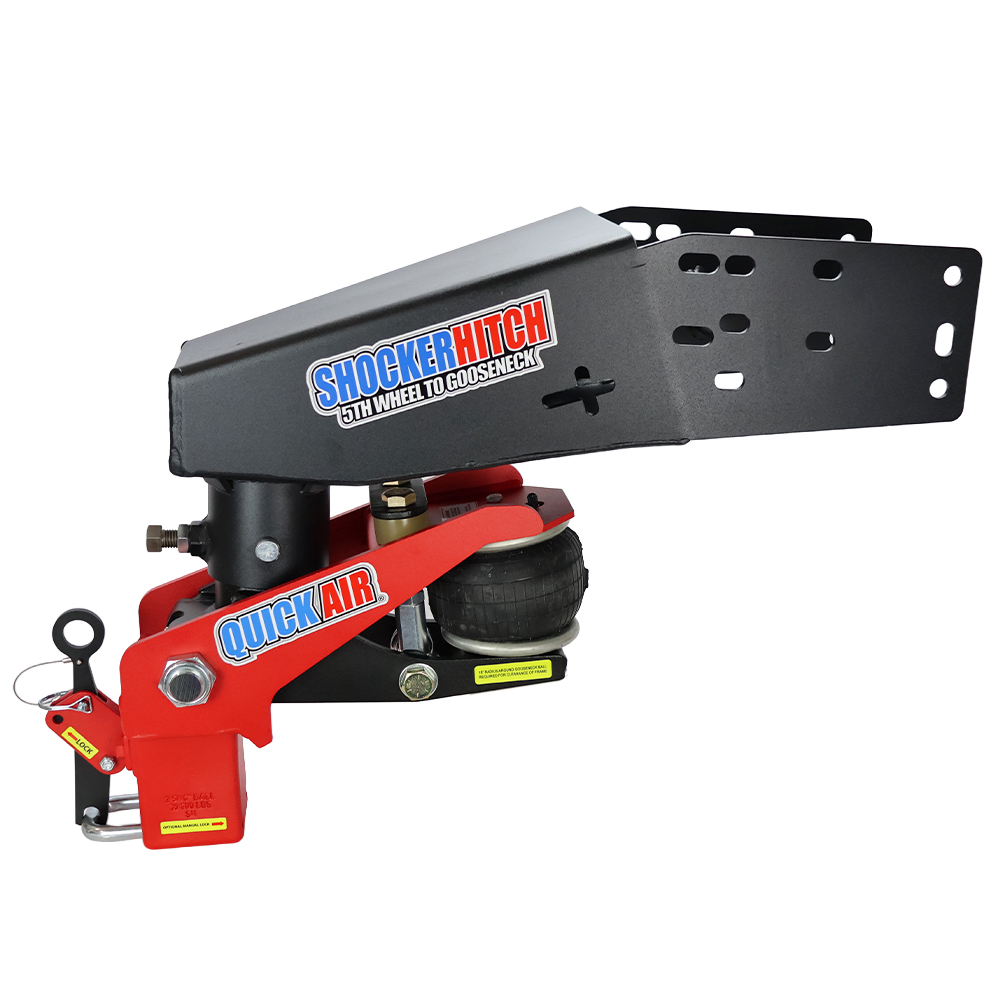

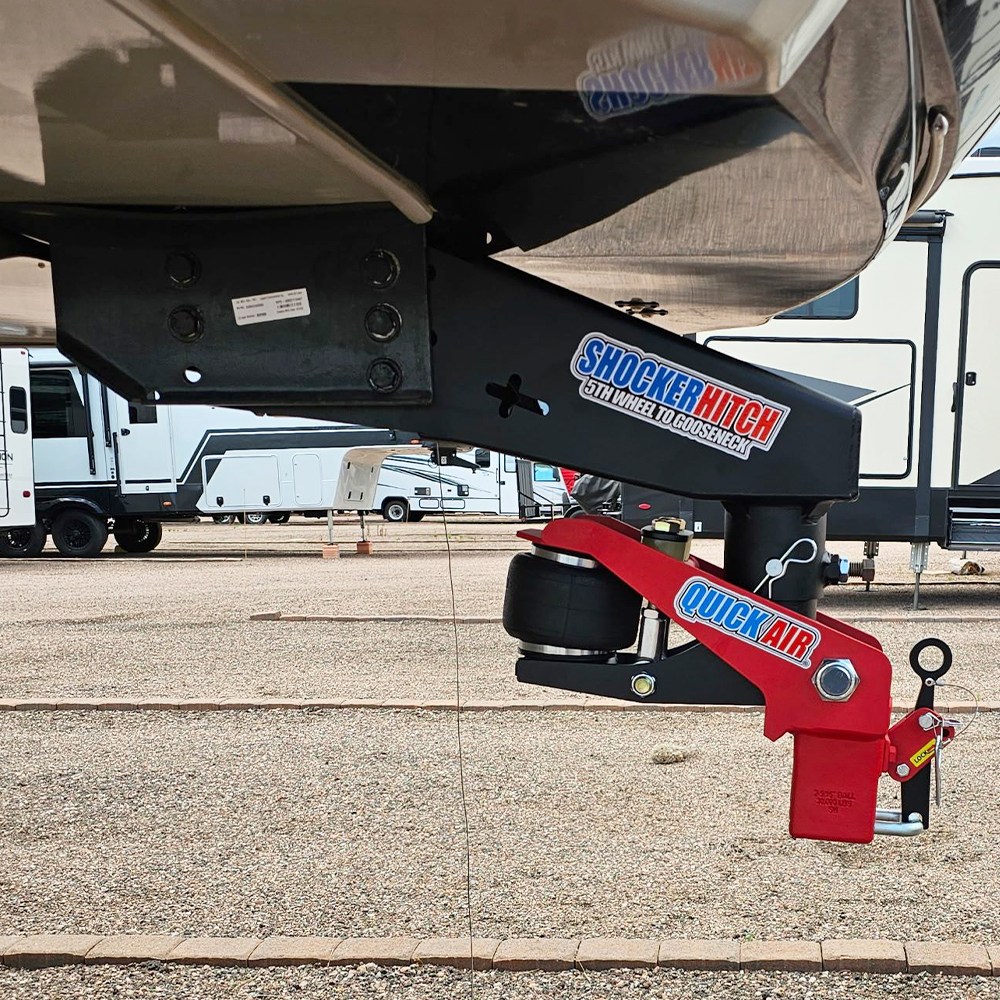

Air ride upgrade for 5th wheel camper trailers. Upgrade your 5th wheel camper with a gooseneck pin box and Shocker QuickAir™ gooseneck air hitch and coupler.  This conversion kit comes complete with a heavy duty steel replacement gooseneck pin box along with a complete Shocker gooseneck air hitch with shift lock coupler for a 2-5/16″ gooseneck ball. Get smoother safer towing along with faster hookups and disconnects with the Shocker air QuickAir™ 5th wheel to gooseneck conversion kit. The built in airbag cushions your truck and camper and absorbs the road shock giving you a much nicer towing experience.  Since it’s air ride, you can simply adjust the air pressure for when your camper is loaded or unloaded. Featuring up to 6,000 lbs tongue weight and 24,000 lbs grow trailer weight.  The patented and additional Patented Shocker Gooseneck Surge® air hitch with shift lock coupler is the ultimate in gooseneck trailer towing for your rv camper. This shock absorbing cushion hitch is the only air ride hitch to exclusively work in a forward and back motion, which is often times this is the biggest jerk you feel when towing your 5th wheel rv camper trailer.  The built in airbag absorbs the road shock and filters the bumps through the airbag creating a smoother, safer towing experience for you, your pickup, your trailer & the contents. Featuring the patented revolutionary 24K Shift Lock™ Coupler for 2-5/16″ gooseneck ball.  Whether you are a occasionally tow or are going camping all over the country, this 5th wheel to gooseneck system  adds instant air ride to your towing.  Gooseneck pin box available for these 5th wheel campers with Lippert 1621, 0719 or Rhino Box, as well as the Lippert 1716, 1116, 0115, FabEx 500, 503, 520, 530, 560. Choose with or without safety chain kit.  A safety chains are require with gooseneck hitch towing.

  • Patent #’s 11,370,257 B1 & D898,628
  • Note: This gooseneck hitch has a shorter stem then a normal gooseneck and is designed for to be used with the Shocker Replacement Gooseneck Box for 5th Wheel Campers only. This gooseneck air hitch cannot be used on a normal gooseneck trailer as the inner tube steel is too short for that application.

 Installs in minutes. Made by Shocker Hitch® USA in Arthur, ND.

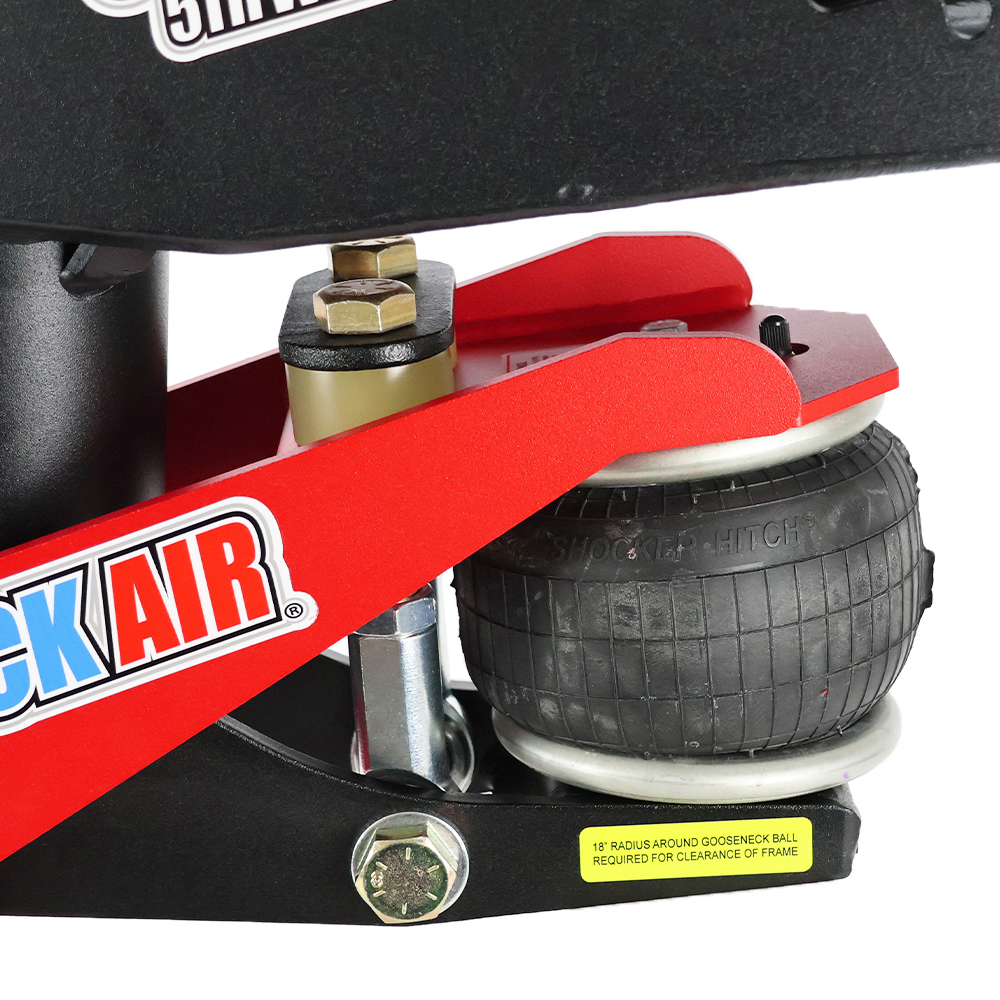

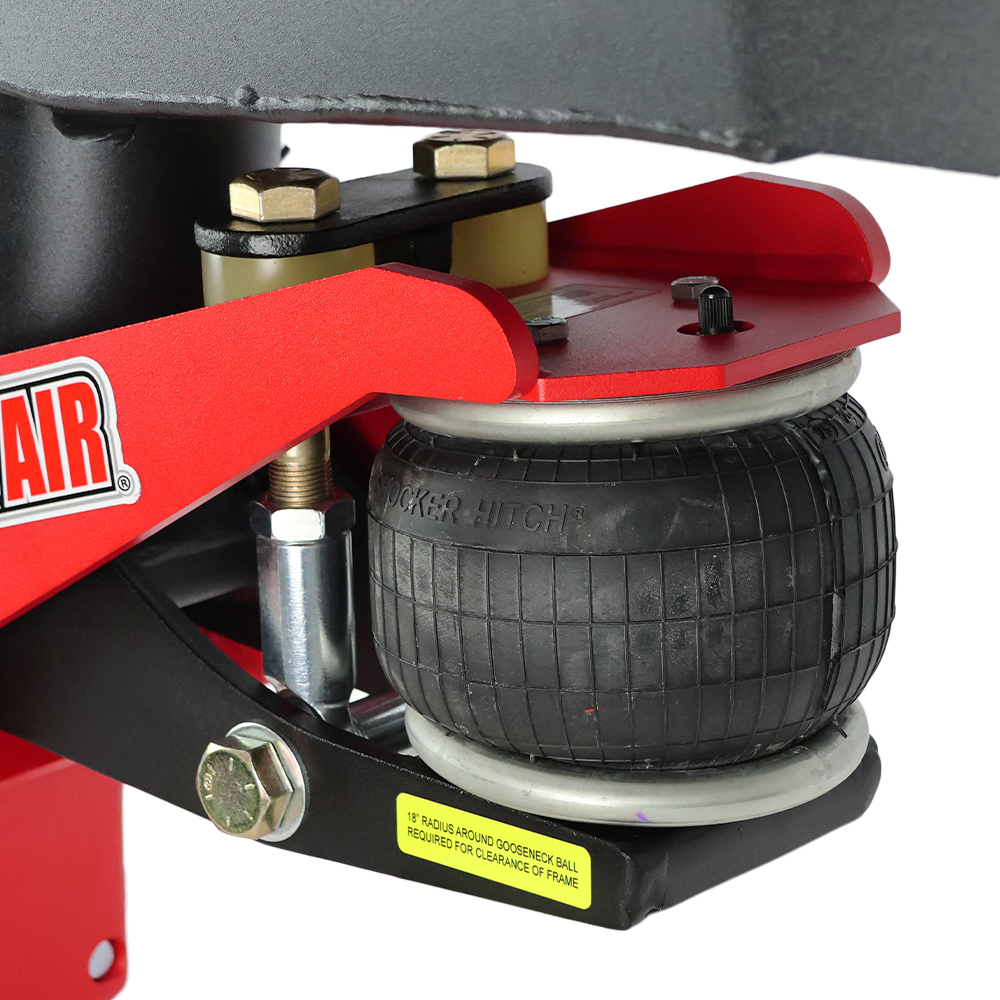

Adjustable for Tow Weight: The air bag sits behind your gooseneck hitch and out of the way. You will find the advantage of the Air Shocker is your ability to adjust air pressure for best ride and load control. View our Shocker PSI Air Pressure tuning guide.

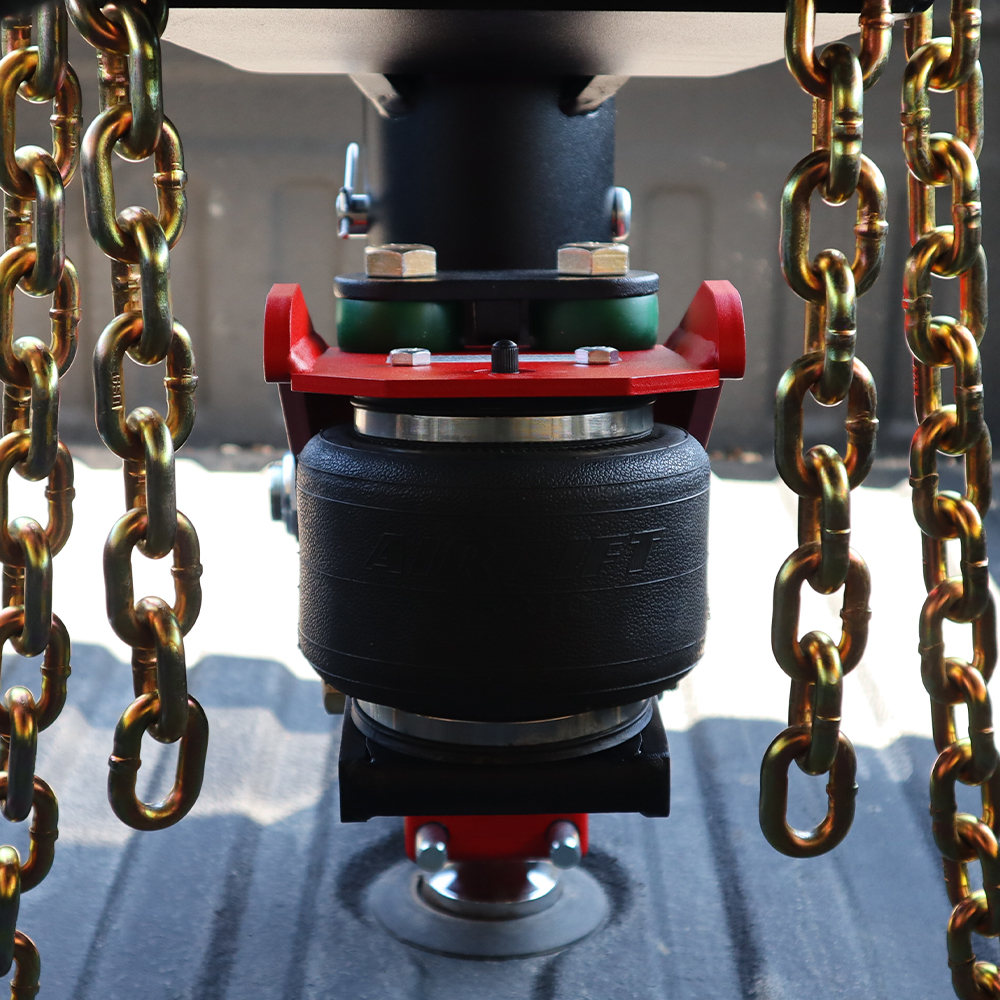

Air Ride Hitch Technology: Shocker Air is designed with a built-in air bag for a smoother towing experience. Just add air depending on the weight of your trailer and its’ contents. An air bag is simply the best cushion device on the planet.

Simple Pivot Design: Uses a rocker arm pivot design which produces a front and back motion, much different than other cushion hitches on the market. Our design eliminates the need for parallel linkages, shock absorbers, torsion arms and other over engineered gadgets.

Shock Dampening & Absorbing Action: Shocker air hitch effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection.

Improves Safety: By giving you improved control of your tow vehicle and trailer. The Gooseneck surge air hitch system allows for better control of your pickup and the trailer it is towing.

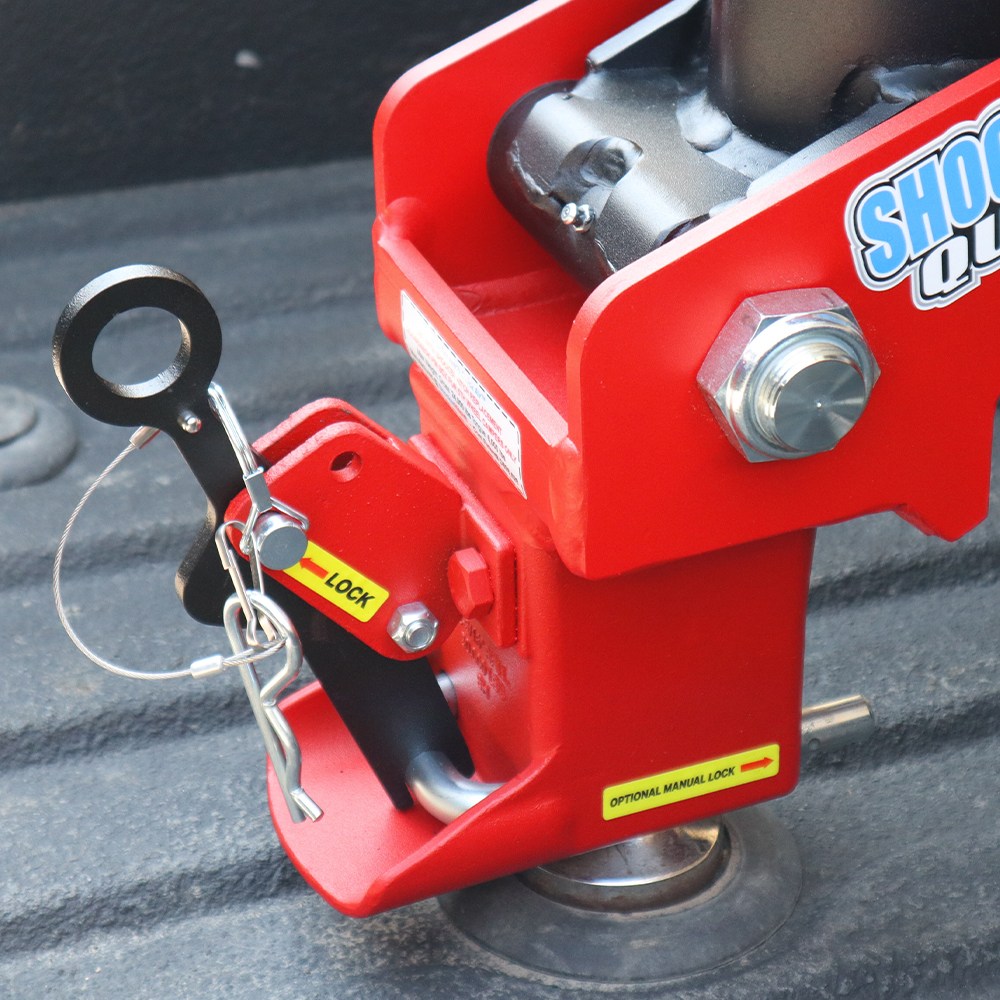

Shift Lock™ Coupler: 24,000 lbs rated, Patented gooseneck coupler. The only gooseneck coupler that captures ball on both sides. At a glance, you can see if the coupler is locked on the ball. Easy to use handle to hook up and disconnect the coupler from the ball.

Saves Fuel: By using a gooseneck Surge Hitch, you may save as much as one mile per gallon. When we developed the Surge Hitch our intention was to give a smoother ride, period.

Adds Life To Your Vehicle & Gooseneck: By reducing wear and tear on driveline and frame! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations. Join the list of satisfied customers that are using Shocker hitches. Order one today and get ready for your ultimate smooth camper towing experience the next time out.

Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker hitch absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.

Provides Comfort: With a smoother ride! Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps, bumps and jerks you feel when towing your trailer.

California Residents: Prop 65 Warning

Shocker QuickAir 5th to Gooseneck Air Hitch Dimensions
Shocker QuickAir 5th to Gooseneck Air Hitch Dimensions

Video

Shocker QuickAir 5th Wheel to Gooseneck Videos

Install

Shocker QuickAir 5th Wheel to Gooseneck Installation

When used properly these Gooseneck surge air hitch will make noticeable improvements in your gooseneck trailer towing quality. Giving both truck and trailer a smoother ride with less trailer fatigue and breakage.

Shocker QuickAir 5th Wheel to Gooseneck Installation Video

How to Air Up QuickAir Gooseneck Coupler?

Download QuickAir 5th Wheel to Goose Surge Installation Manuals

Maximum weights for Shocker QuickAir: Towing capacity = 24,000 lbs Tongue = 6,000 lbs Safety Notice: The Shocker Hitch is a heavy-duty unit, however, it is imperative that any weight capacity ratings are not exceeded on the ball that is mounted on your tow vehicle, or the Shocker Hitch. Use only a 2 5/16″ dia. Ball. V-19 rated. Do not exceed G.V.W.R. of ball being used. This gooseneck hitch has a shorter stem than a normal gooseneck and is designed to be used with the Shocker Replacement Goose Box for 5th Wheel Campers only. This gooseneck air hitch cannot be used on a normal gooseneck trailer as the inner tube steel is too short for that application.

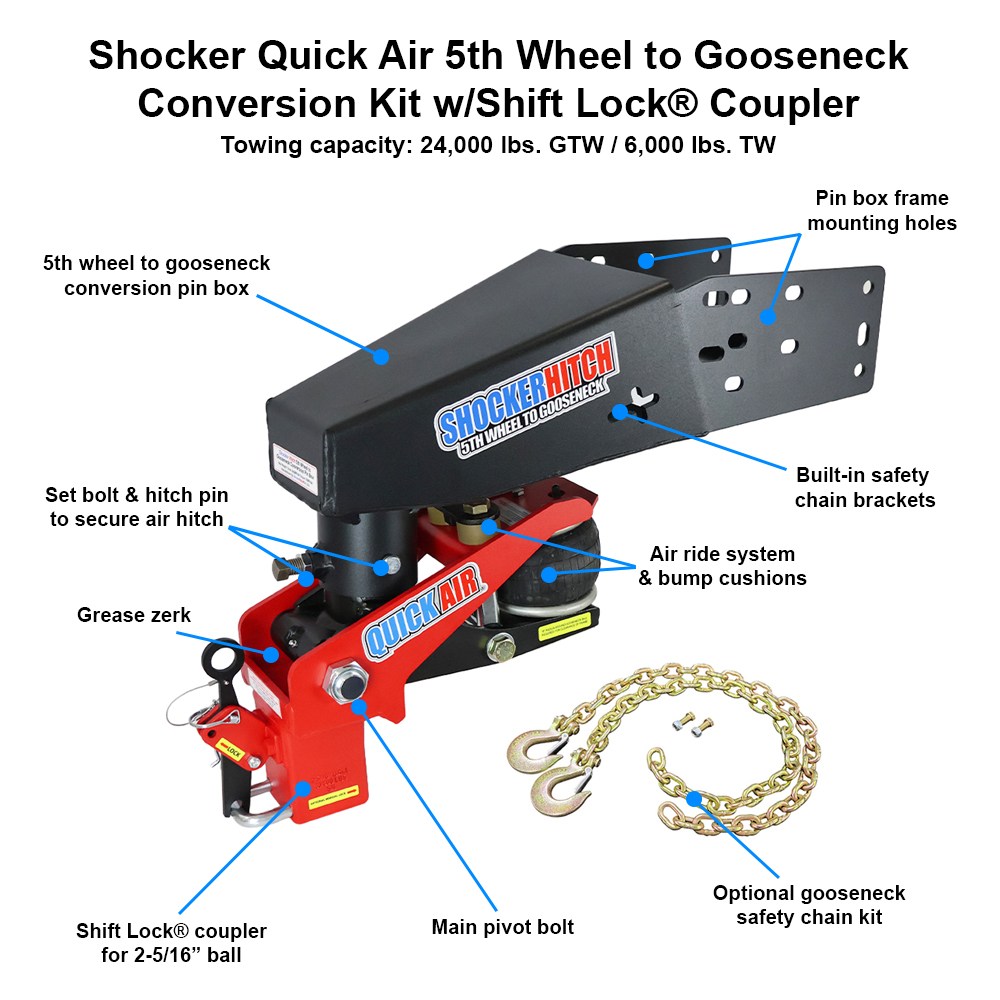

Gooseneck Surge Diagram
Installation

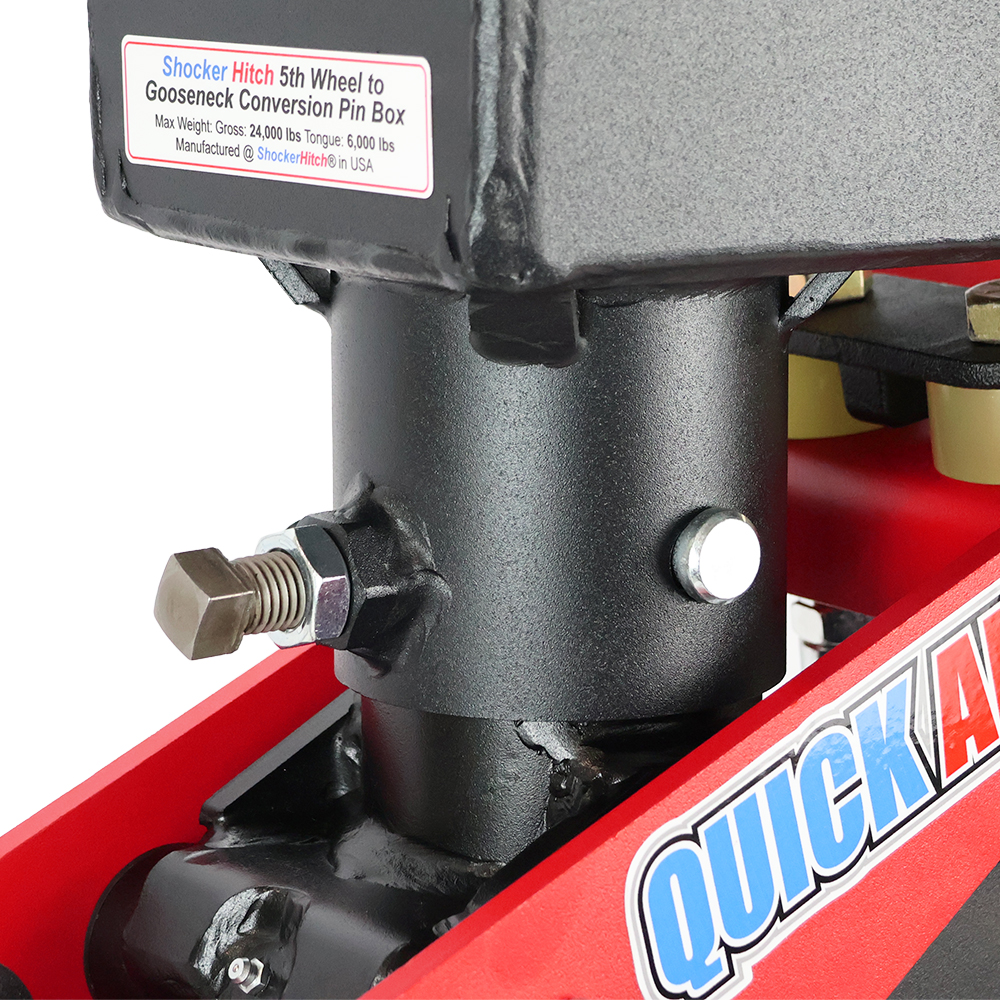

1. Remove your existing king pin box and install the Replacement Goose Box (SH-RVGC-4405 or SH-RVGC-4410) in the same location on your camper.2. TORQUE PIN BOX FASTENERS TO 120 FT POUNDS.3. Slide Gooseneck Shockerhitch stem into Goose Box sleeve with air bag toward rear of trailer. Align and install 3/4″ x 5″ thru pin with keeper. Tighten 1⁄2″ x 1″ Set Bolt on back of down tube.4. Test fit camper to truck, verify installed height will allow camper to ride level – Apply grease to trailer ball and or shift lock coupler ball socket. Hook up trailer by shifting the lever back and lowering coupler onto the ball. Pull shift lever forward and align the locking hole – insert pin.5. To adjust trailer ride height simply loosen the 1⁄2″ x 1″ set bolt in the back of the down tube. Remove the 3/4″ x 5″ thru pin with keeper. Move Shocker Gooseneck Surge hitch to desired position, reinstall bent pin with keeper and tighten set bolt.6. Routine Lubrication Maintenance should include: Oil the coupler shifting fork shafts, grease the coupling ball socket, and grease the hitch ball to REDUCE WEAR AND IMPROVE SHOCKER ACTION. Main pivot grease zerk should be greased periodically for maximum bushing life. ( Simply, you cannot over grease it! )

Gooseneck Surge Air Pressure:

  • This is a LOW-PRESSURE hitch, that works by tow resistance.
  • Set air pressure at approx. 5 psi, then test drive.
  • Increase pressure in 5 psi increments until optimum results are found.
  • Typical air pressure range is 5 – 15 psi.
Note: When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker. Maximum Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.
Flatbed Recessed Gooseneck Ball Fitment Guide
Flatbed Recessed Gooseneck Ball Fitment Guide

We’re here to help. Contact Us

Installation Issues

We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the item’s product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Guarantee.

Shocker Hitch Guarantee

Questions and answers of the customers

    How do I know which bolt pattern I need to order I have a lippert 5th wheel I just don’t know how to tell which one I need
  1. 0 votes
    Q How do I know which bolt pattern I need to order I have a lippert 5th wheel I just don’t know how...... Read more
    A

    To determine which of our pin boxes will fit best, you will want to measure the width of the pin box itself. We can accomodate a 12" or a 12.5" width.

  2. I have a 2021 ram 2500 mega cab with ram box would this setup work as far as clearance issues. I would put a in bed ball and this.
  3. 0 votes
    Q I have a 2021 ram 2500 mega cab with ram box would this setup work as far as clearance issues. I ...... Read more
    A

    Hello, for clearance of the shocker hitch you will want to make sure that, to the rear and sides the hitch, there is atleast 18" for the hitch to move freely. If you have any more questions feel free to contact us at 701-707-2666.

  4. Will this hitch void the lippert frame waranty
  5. 0 votes
    Q Will this hitch void the lippert frame waranty
    A

    You would need to contact the manufacturer of the trailer to find out if it would void the warranty on their products.

  6. I have an older 5th wheel trailer. How do I figure out which if my pin box will work?
  7. 0 votes
    Q I have an older 5th wheel trailer. How do I figure out which if my pin box will work?
    A

    Ryan ,

    You would want to make sure your pin box is compatible with the following below :

    • 2 Gooseneck Pin Box Option to Choose From: Choose Lippert 1621, 0719 or Rhino Box, as well as the Lippert 1716, 1116, 0115, FabEx 500, 503, 520, 530, 560

    Please contact us at 701-707-2666 for any additional questions.



    A

    Ryan ,

    You would want to make sure your pin box is compatible with the following below :

    • 2 Gooseneck Pin Box Option to Choose From: Choose Lippert 1621, 0719 or Rhino Box, as well as the Lippert 1716, 1116, 0115, FabEx 500, 503, 520, 530, 560

    Please contact us at 701-707-2666 for any additional questions.



  8. Will this work on a shortbed truck? Or do I need to install an offset ball to get more clearance by the cab?
  9. 0 votes
    Q Will this work on a shortbed truck? Or do I need to install an offset ball to get more clearance ...... Read more
    A

    Yes, our Quick Air does work on short bed pick ups. Thank you for choosing Shocker Hitch.

  10. I currently use an Andersen Gooseneck for my 5th wheel. Will this work safely with my Andersen Hitch?
  11. 0 votes
    Q I currently use an Andersen Gooseneck for my 5th wheel. Will this work safely with my Andersen Hi...... Read more
    A

    Scott,

    At this time our Hitches will not work with the Andersen Hitch.

Send me a notification for each new answer.

3 reviews for Shocker QuickAir 5th Wheel to Gooseneck Air Hitch & Coupler Conversion Kit

Add a review

Your email address will not be published. Required fields are marked *

Customer Reviews

  1. Good

    – Ruby K. Lindsey
  2. its good

    – William
  3. Quality hitch

    – Tyler

Weight / Dimensions

Weight 92 lbs
Dimensions 30 × 24 × 12 in
Select Gooseneck Pin Box

Lippert 1621 0719 & RhinoBox, Lippert 1716 1116 0115 FabEx500 503 520 530 560

Select Safety Chain Kit

w/Chain Kit, w/o Chain Kit
