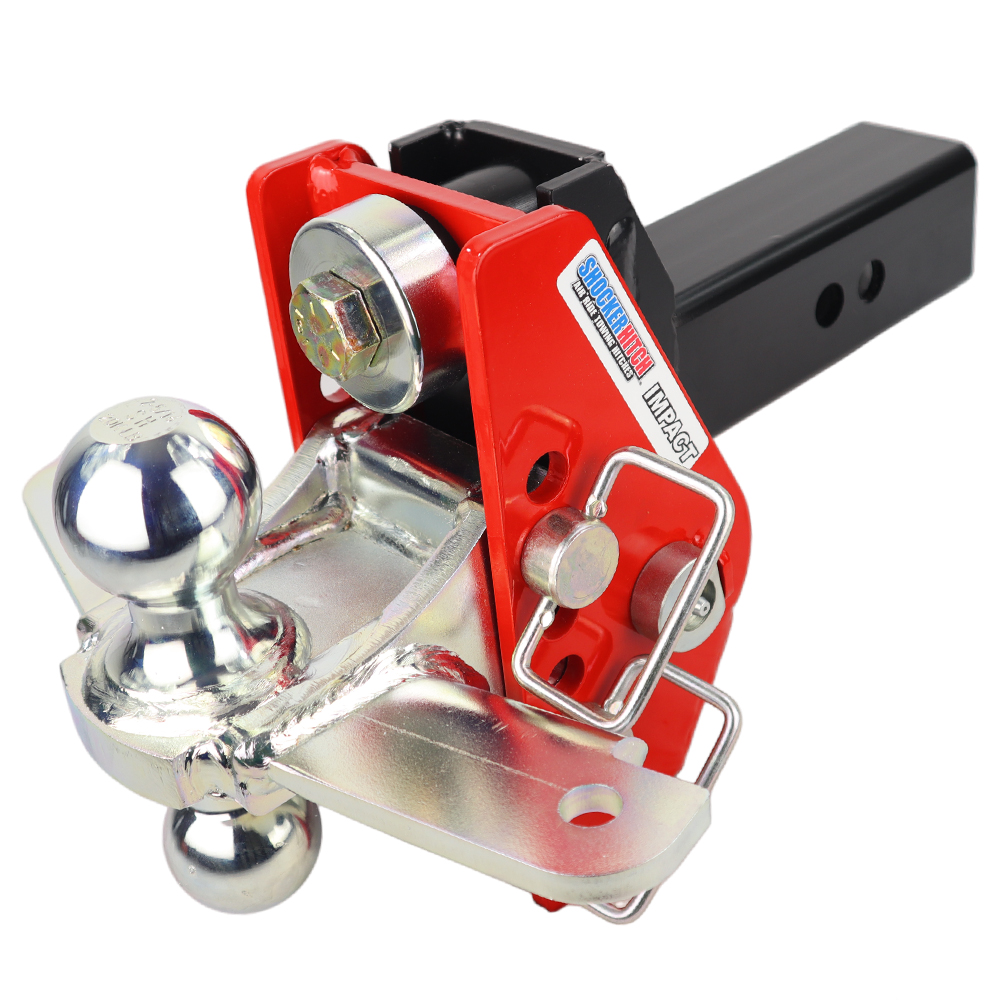

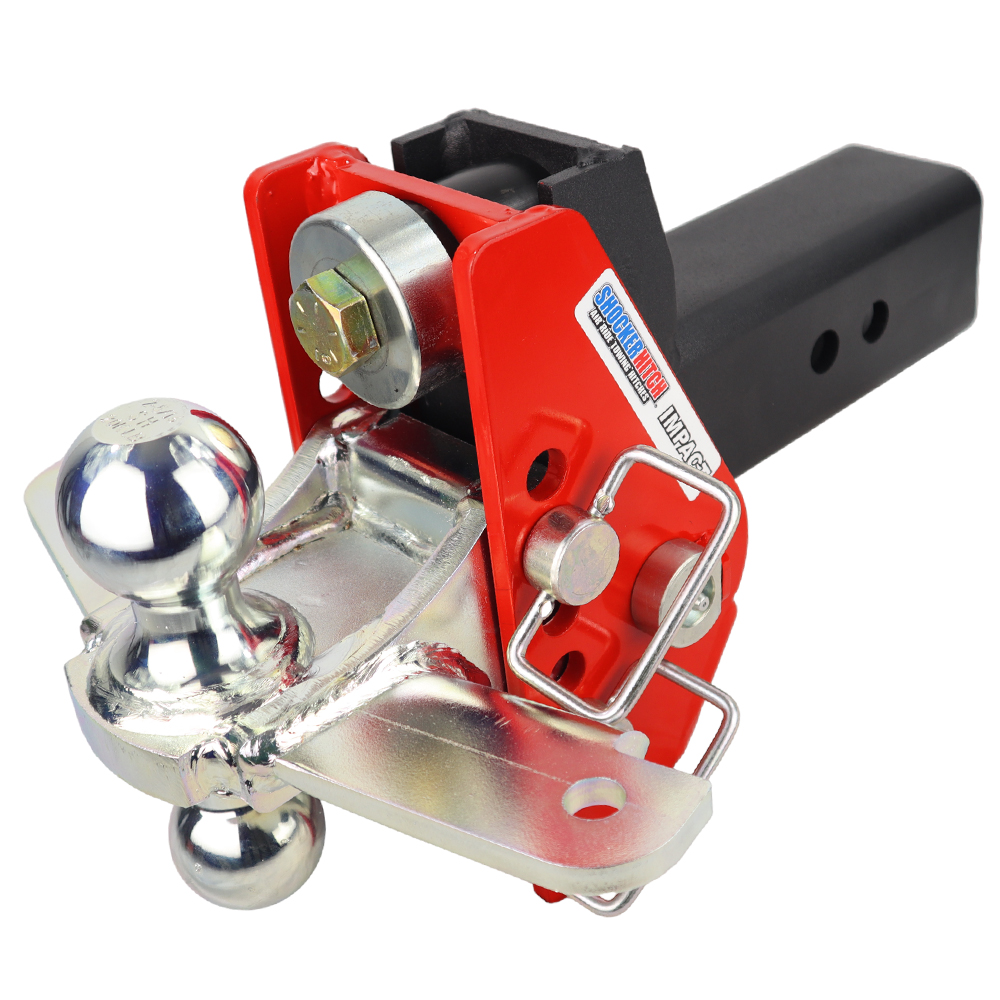

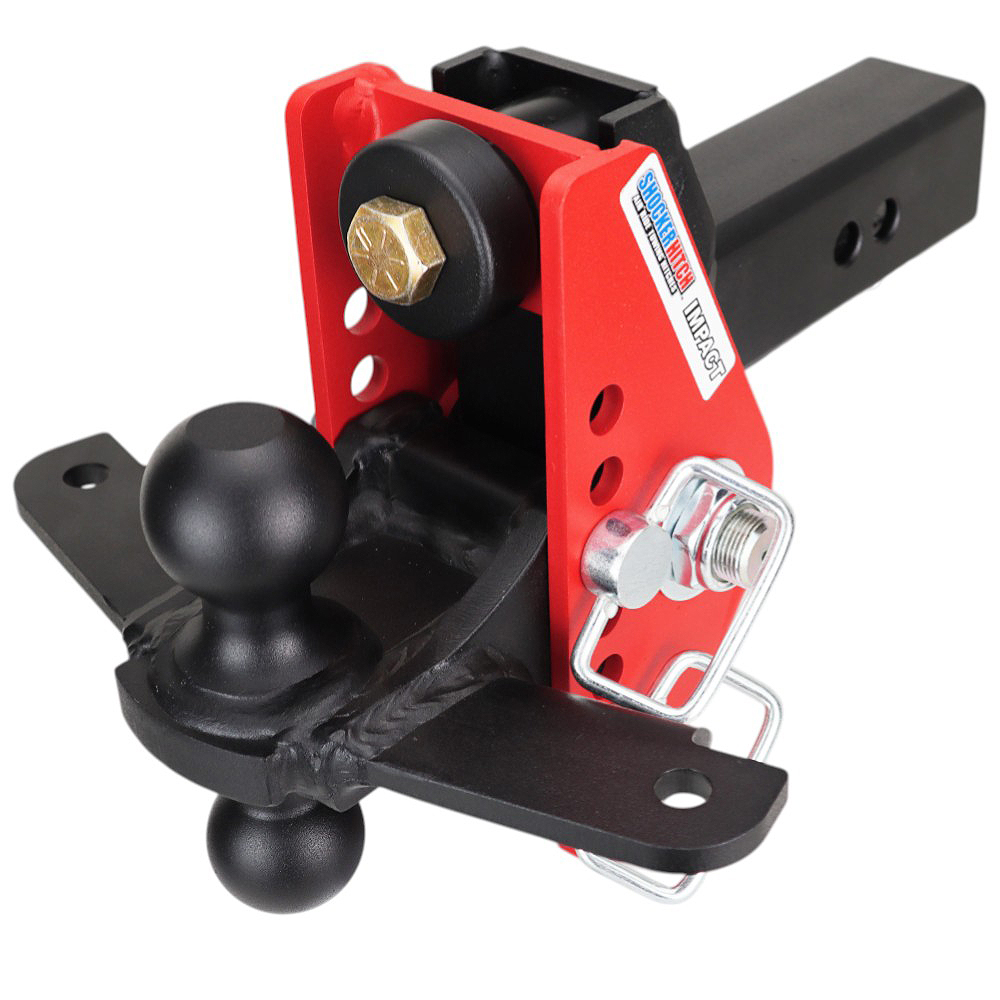

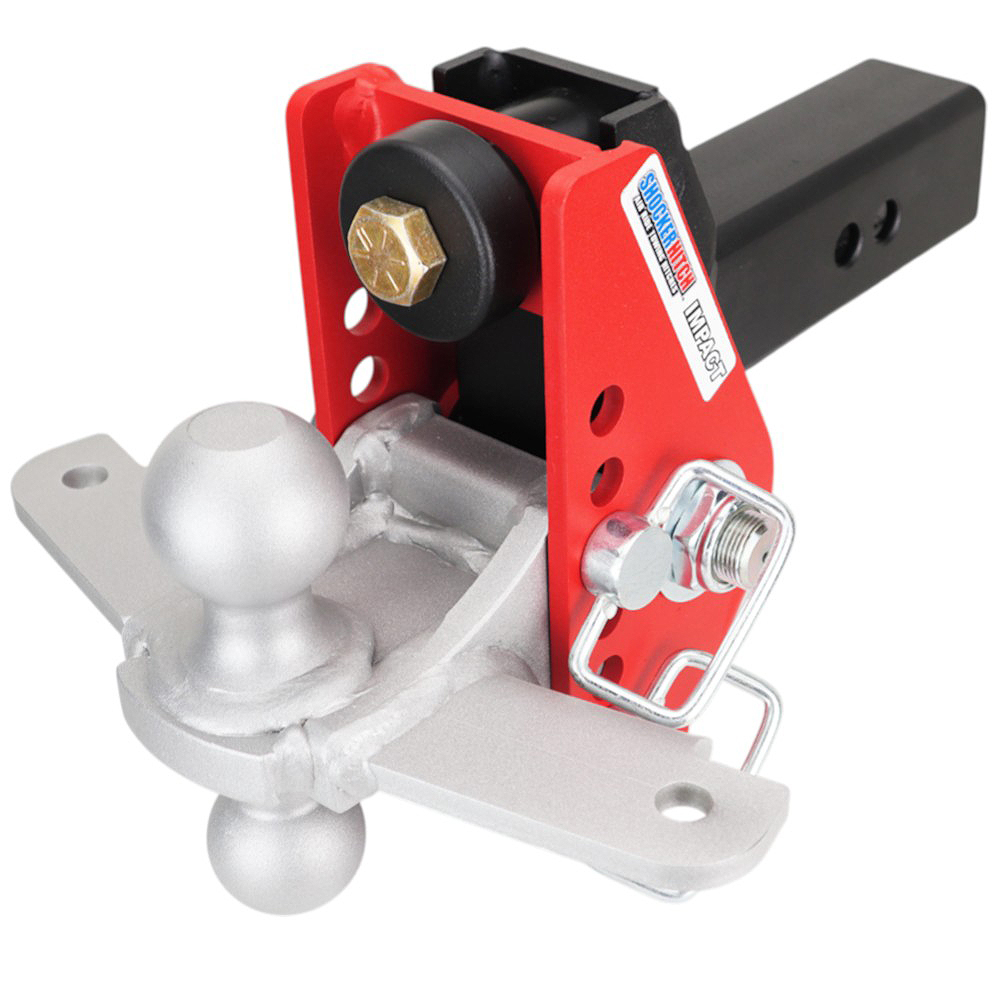

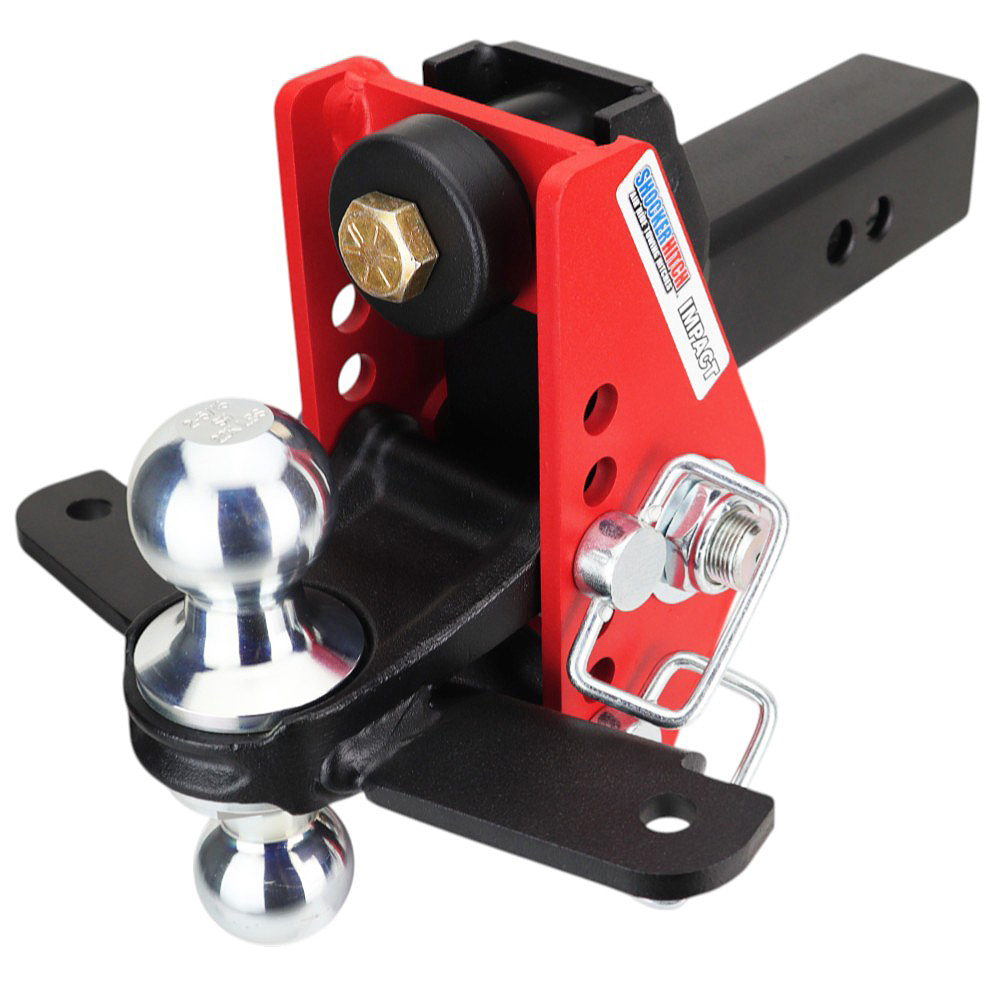

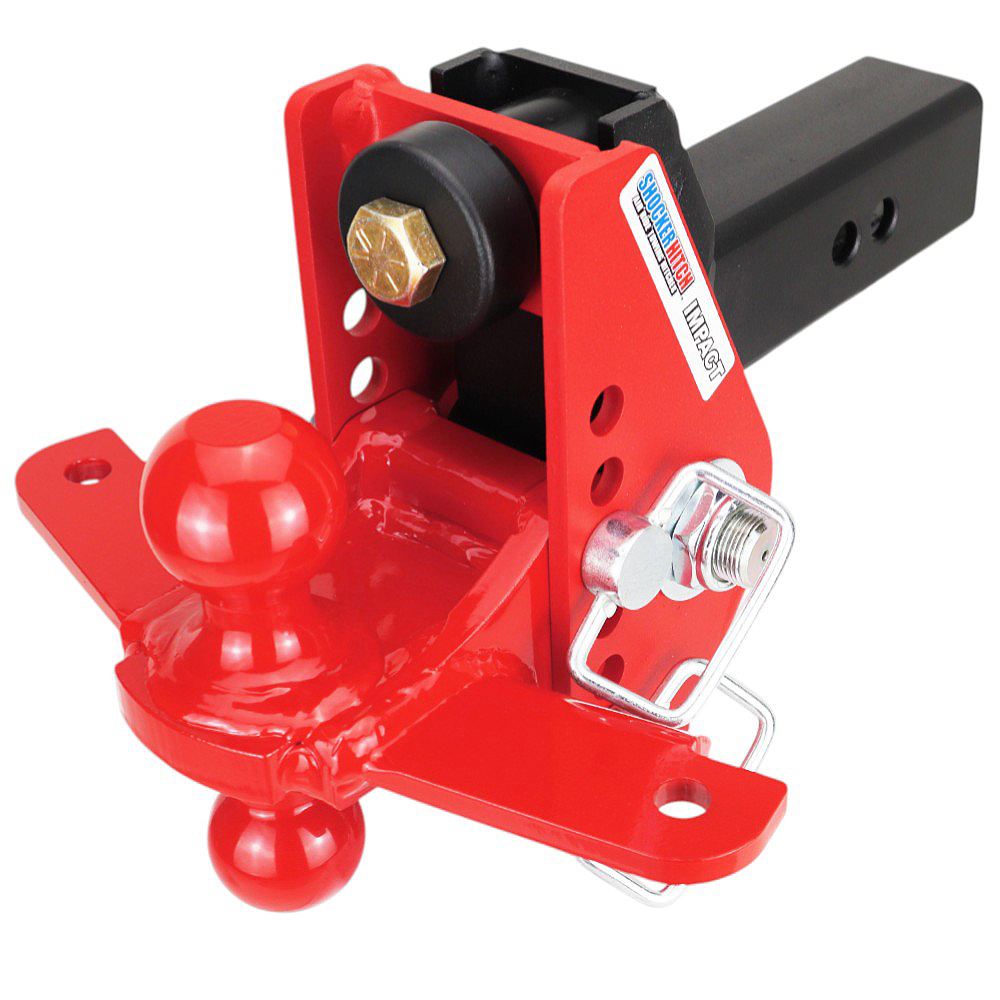

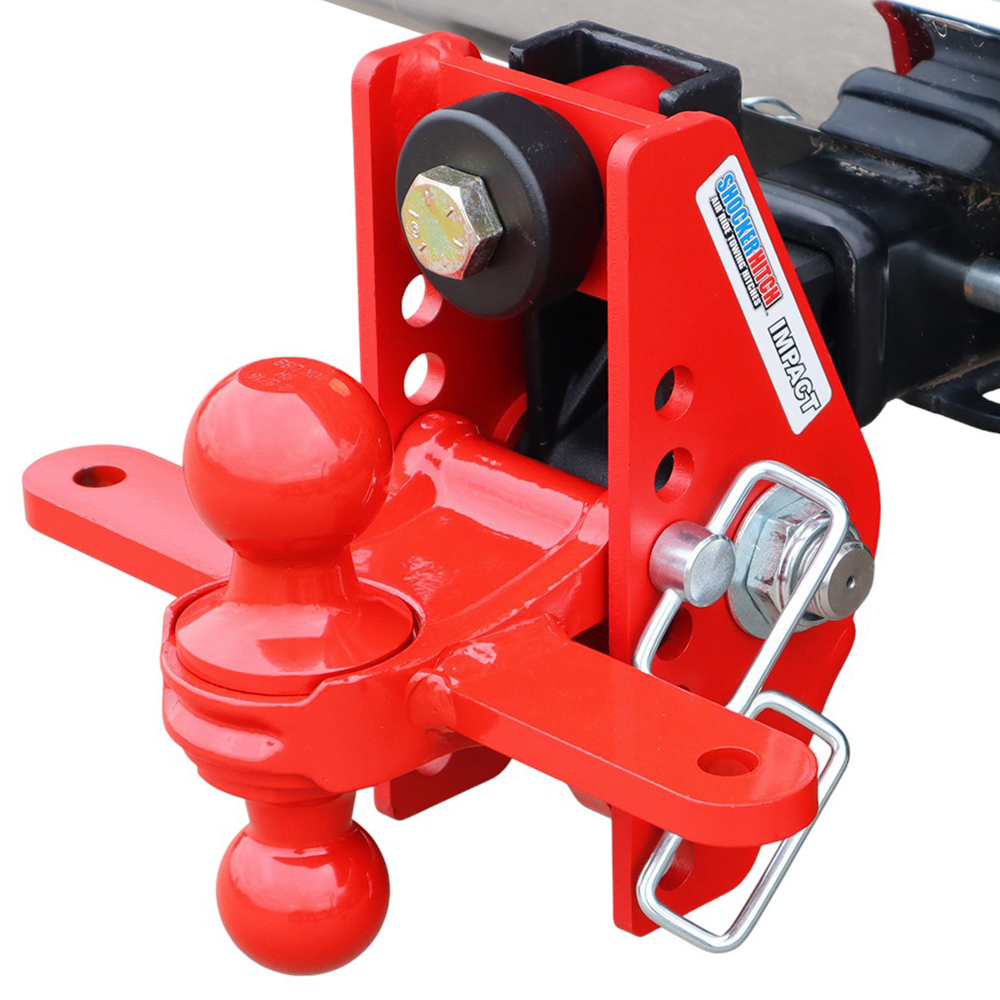

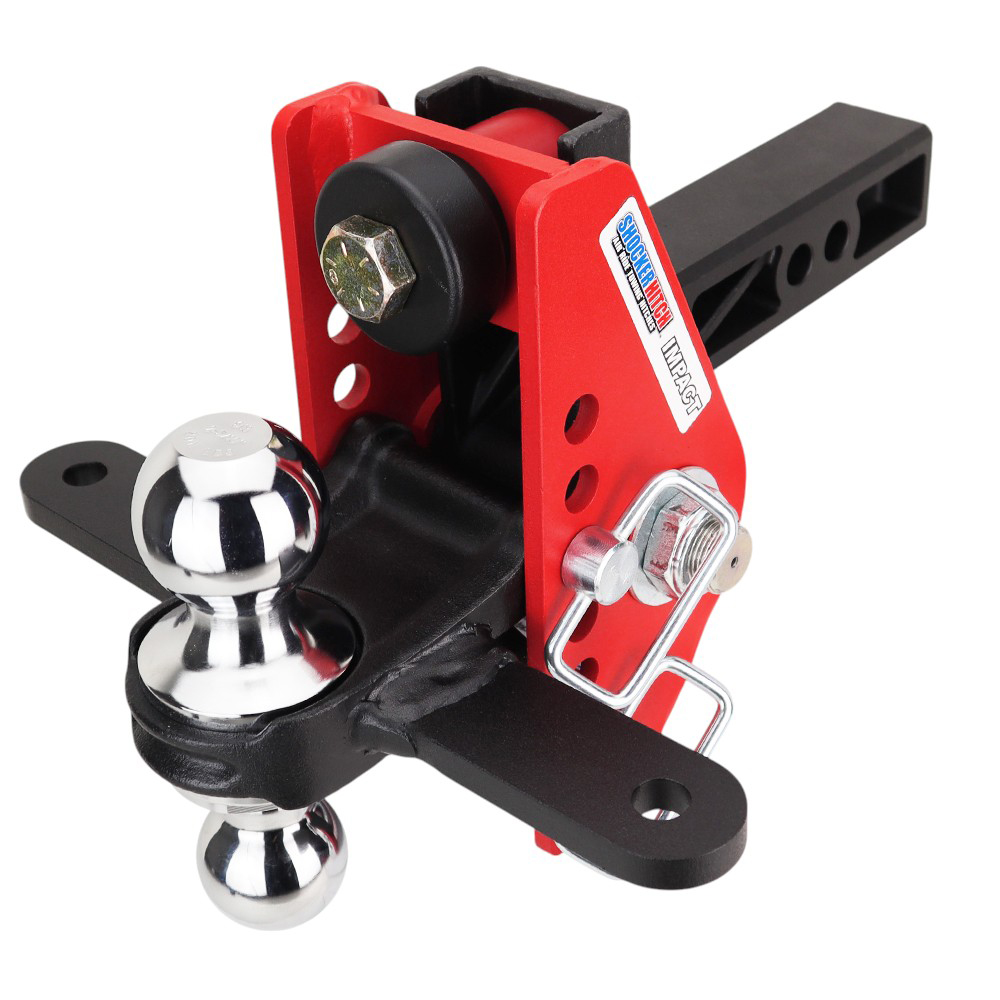

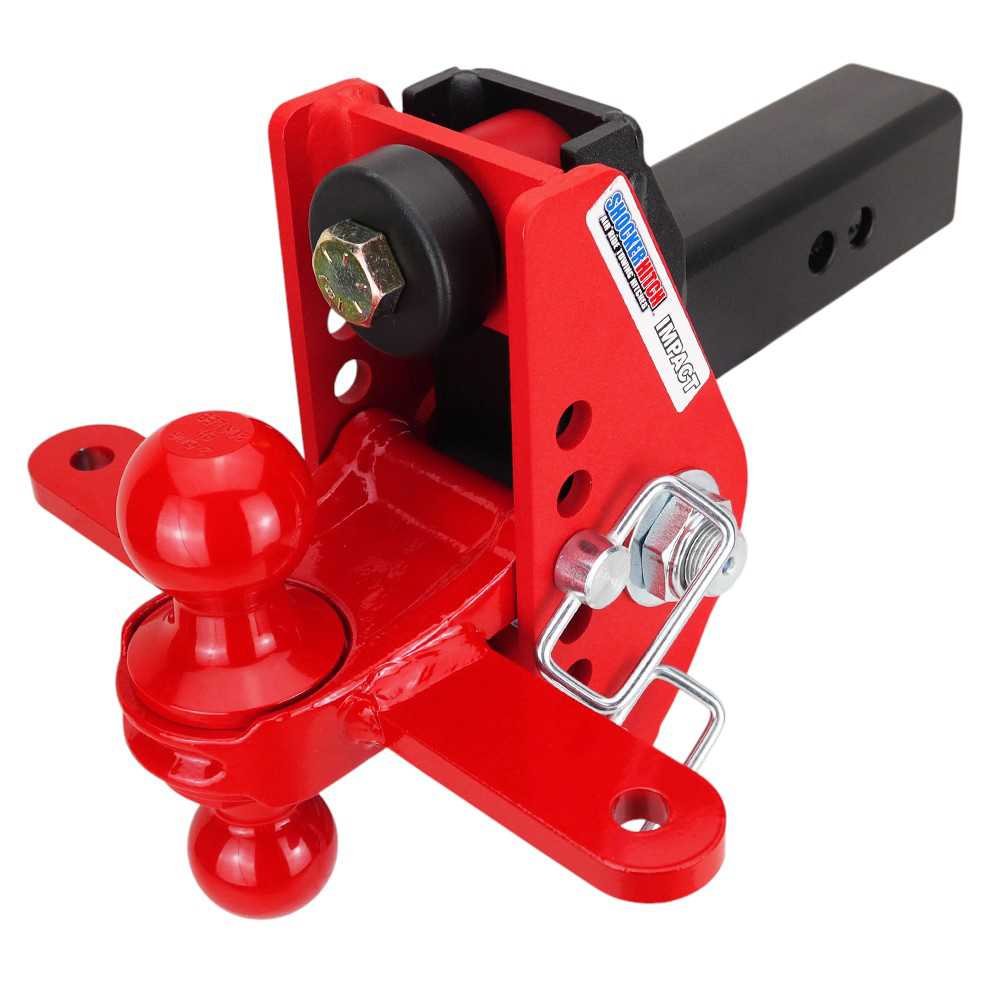

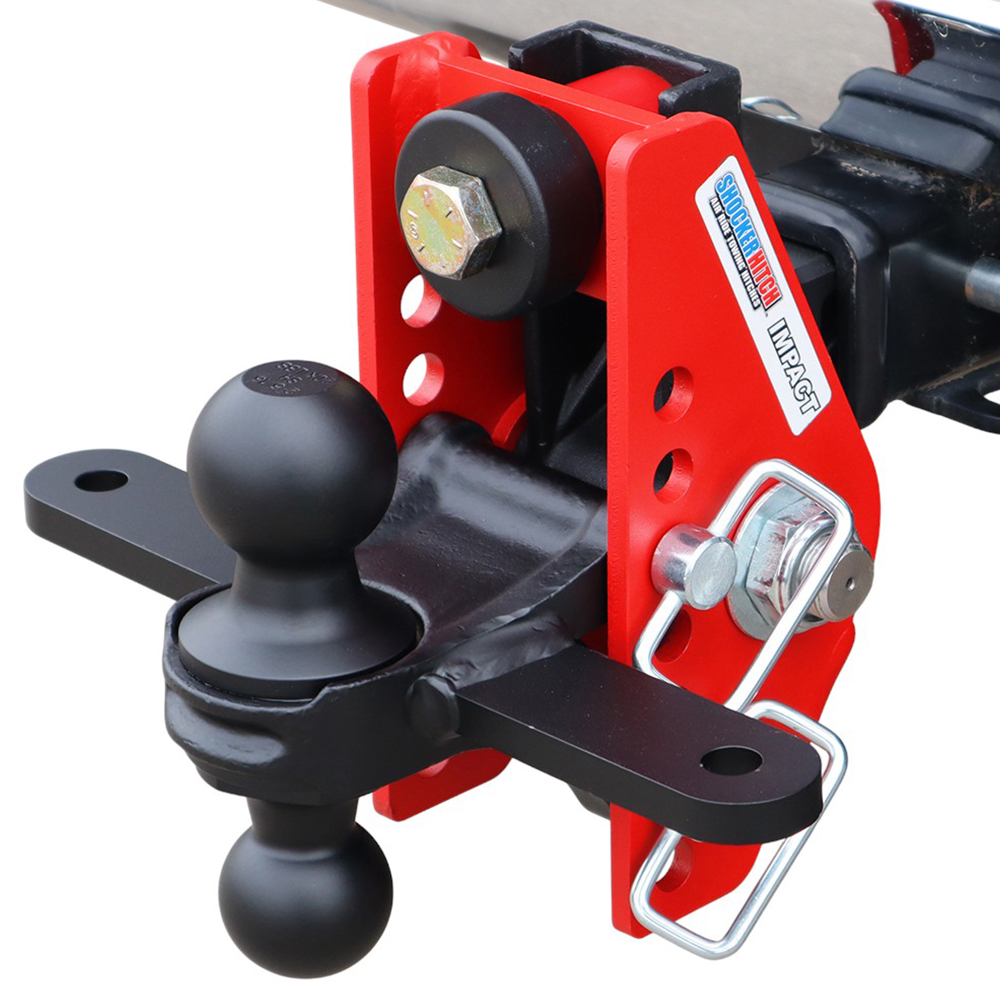

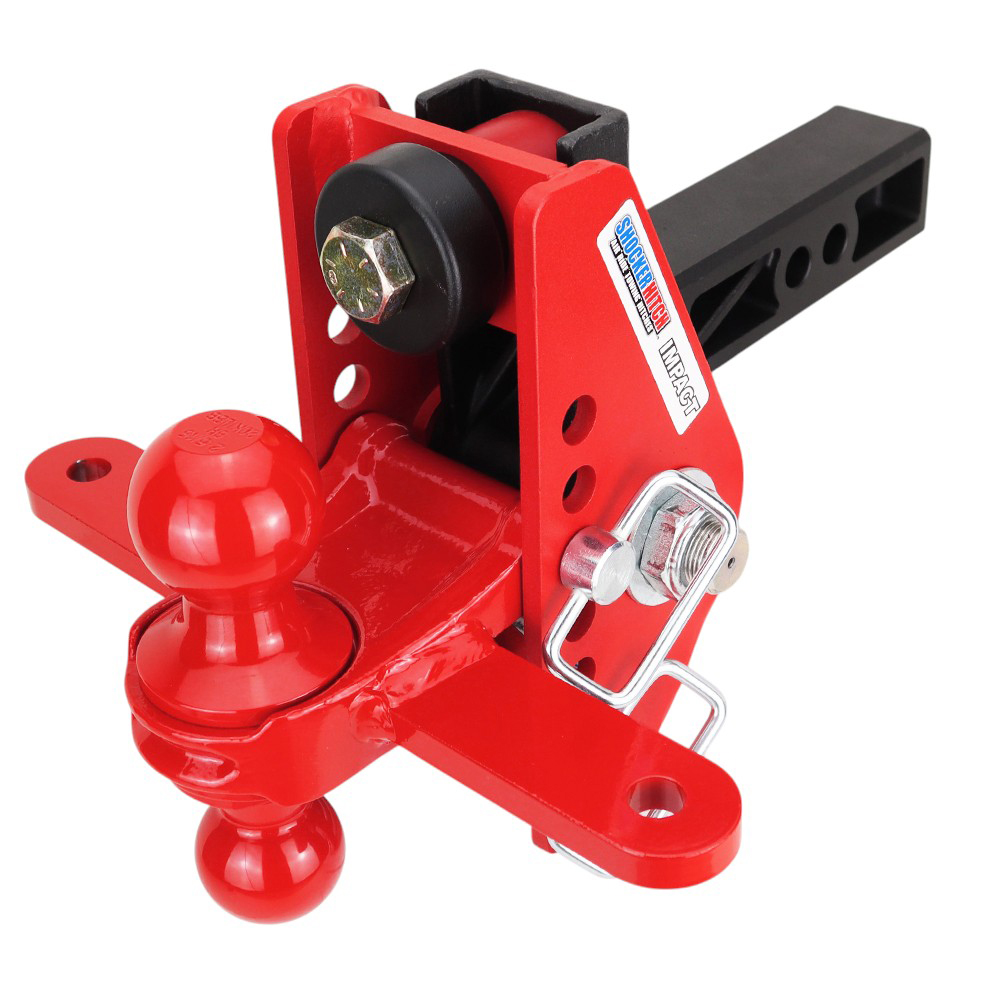

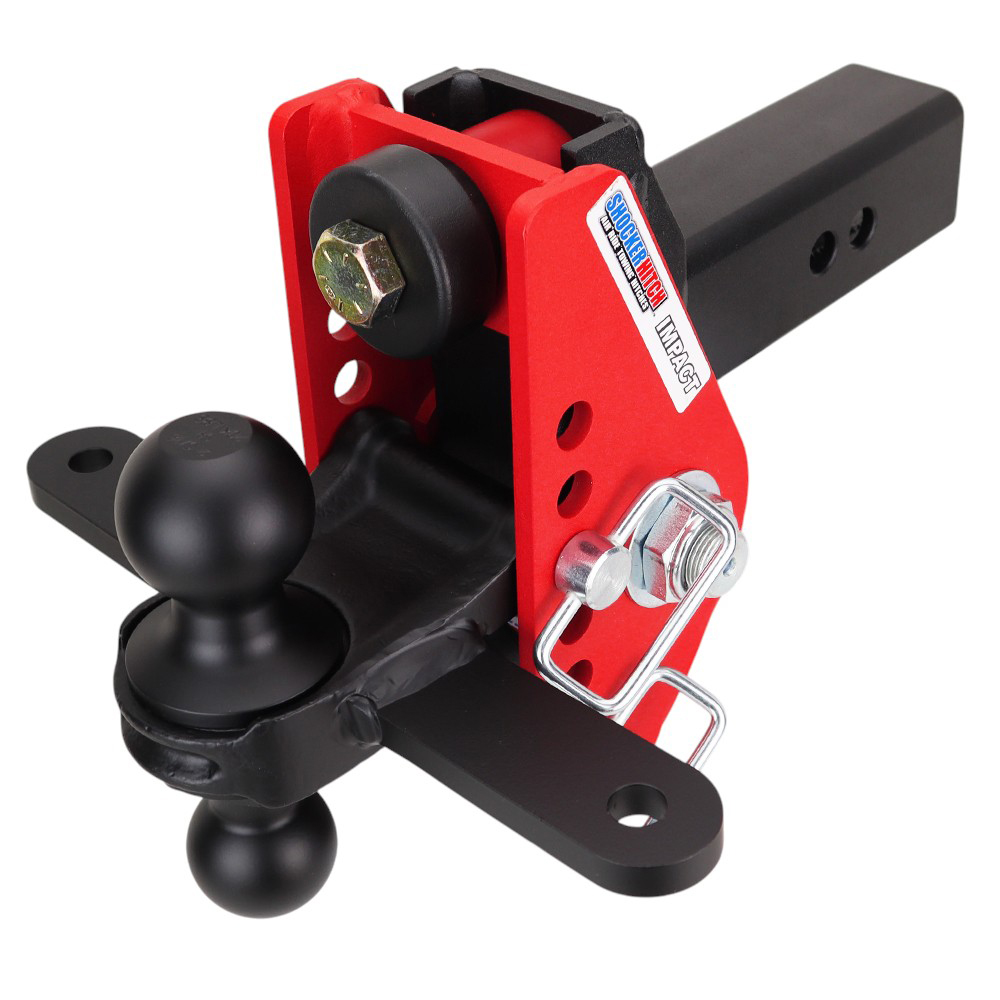

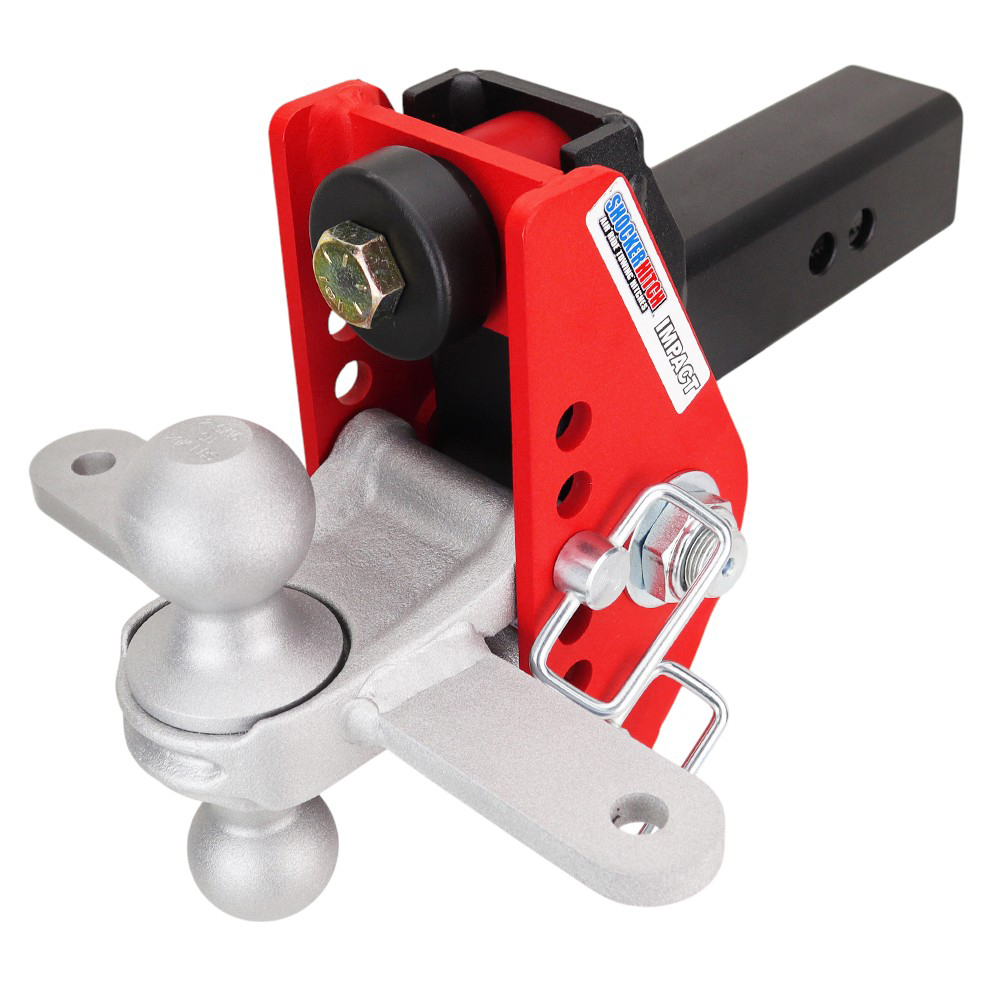

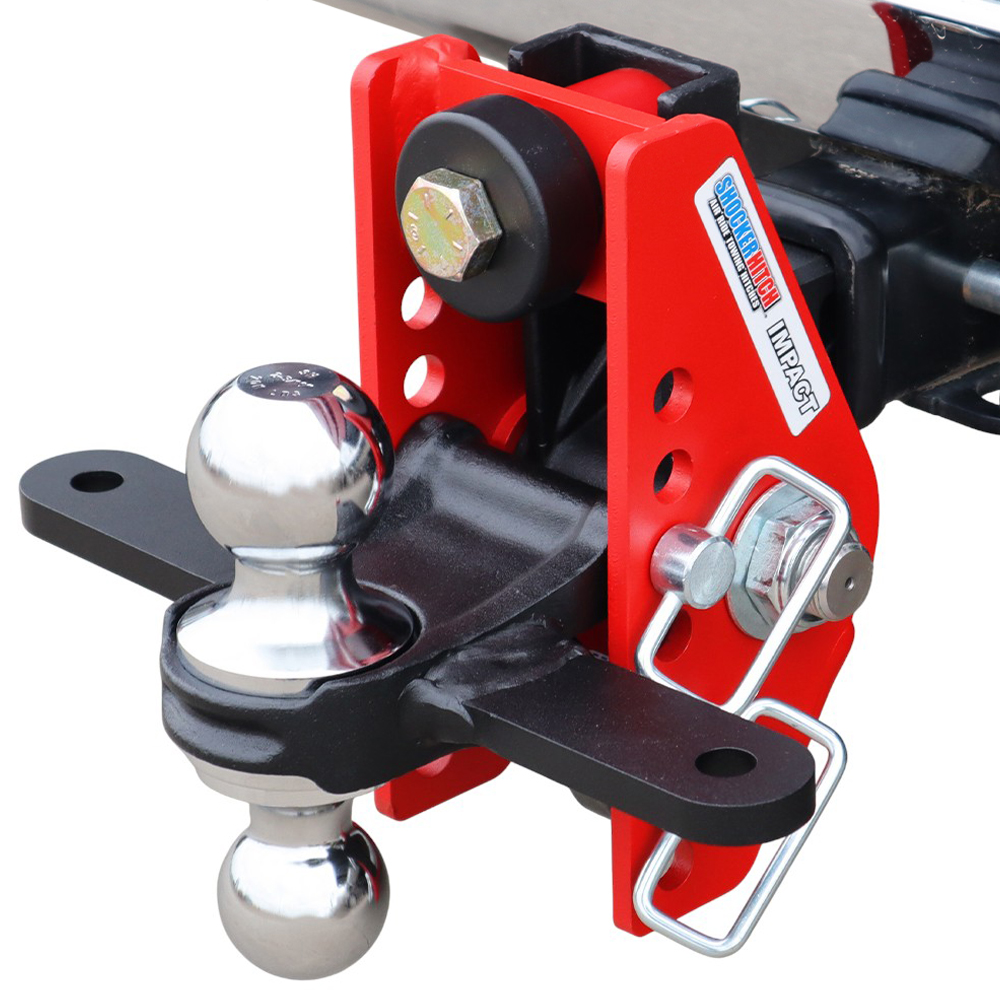

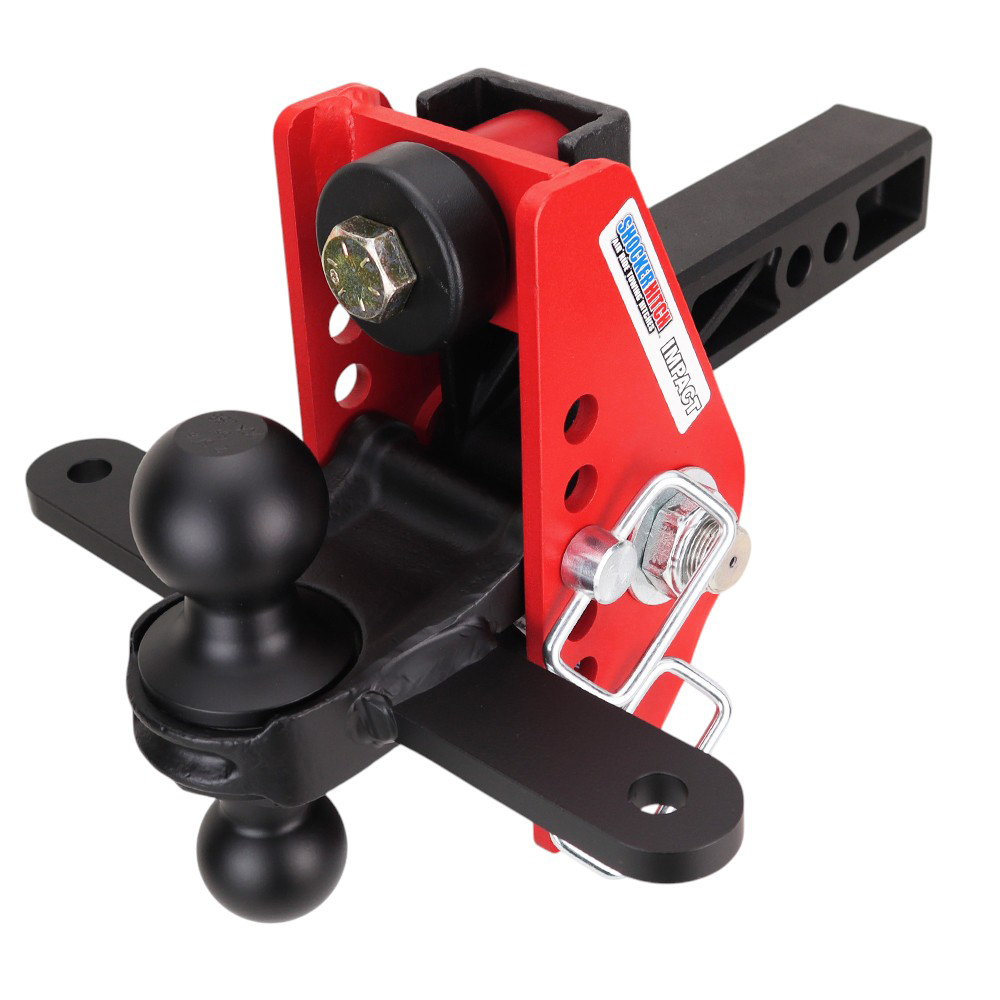

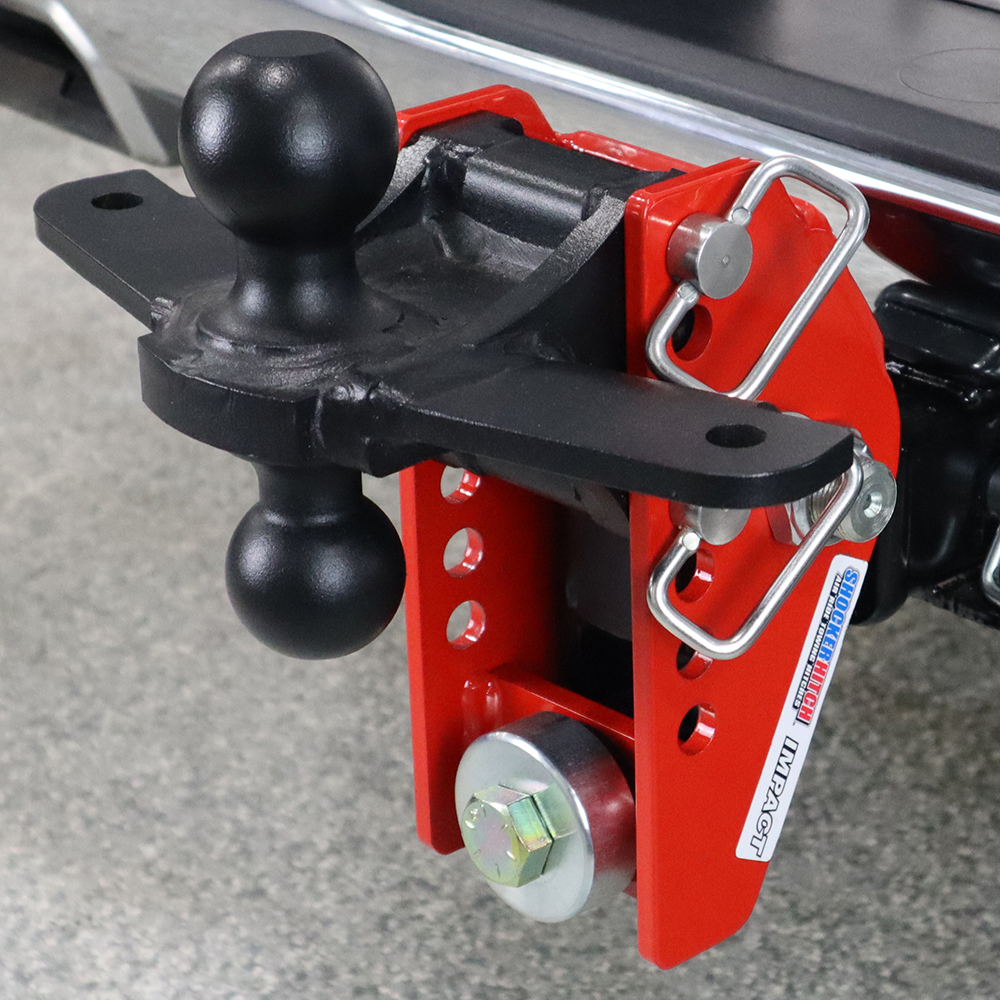

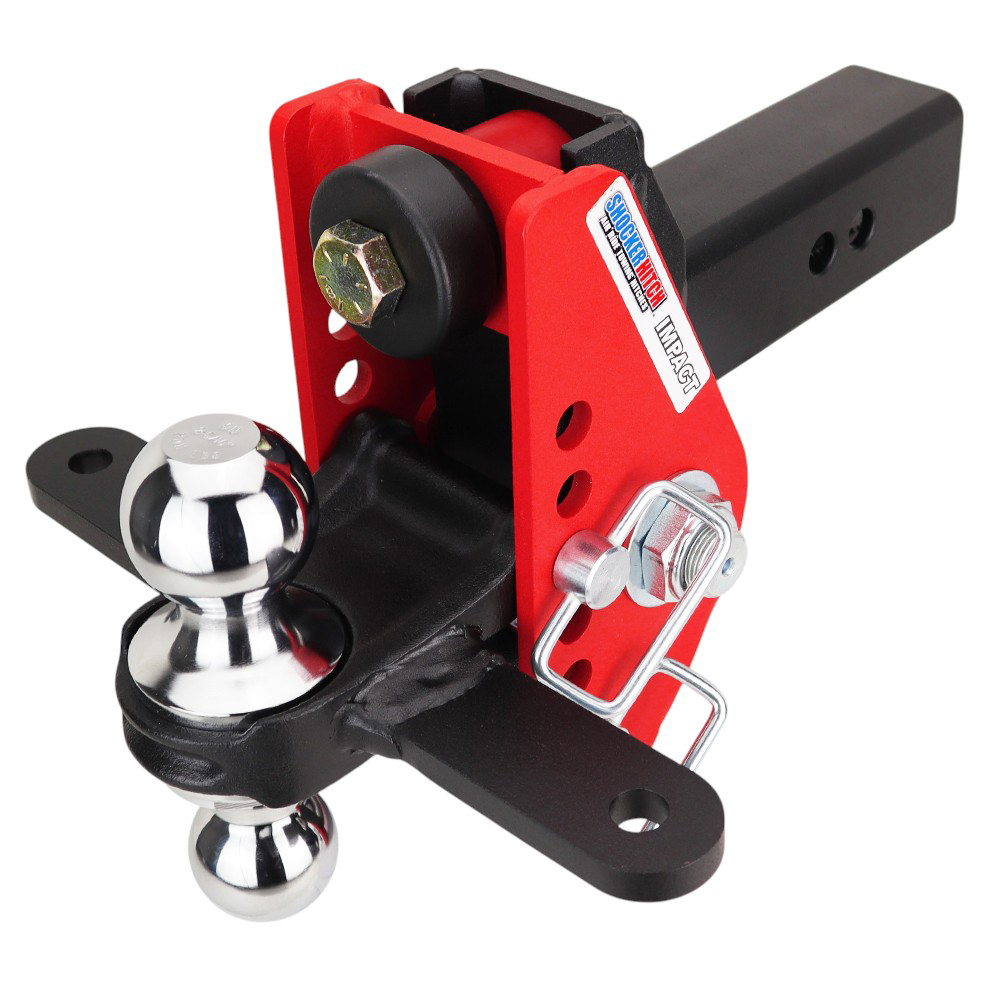

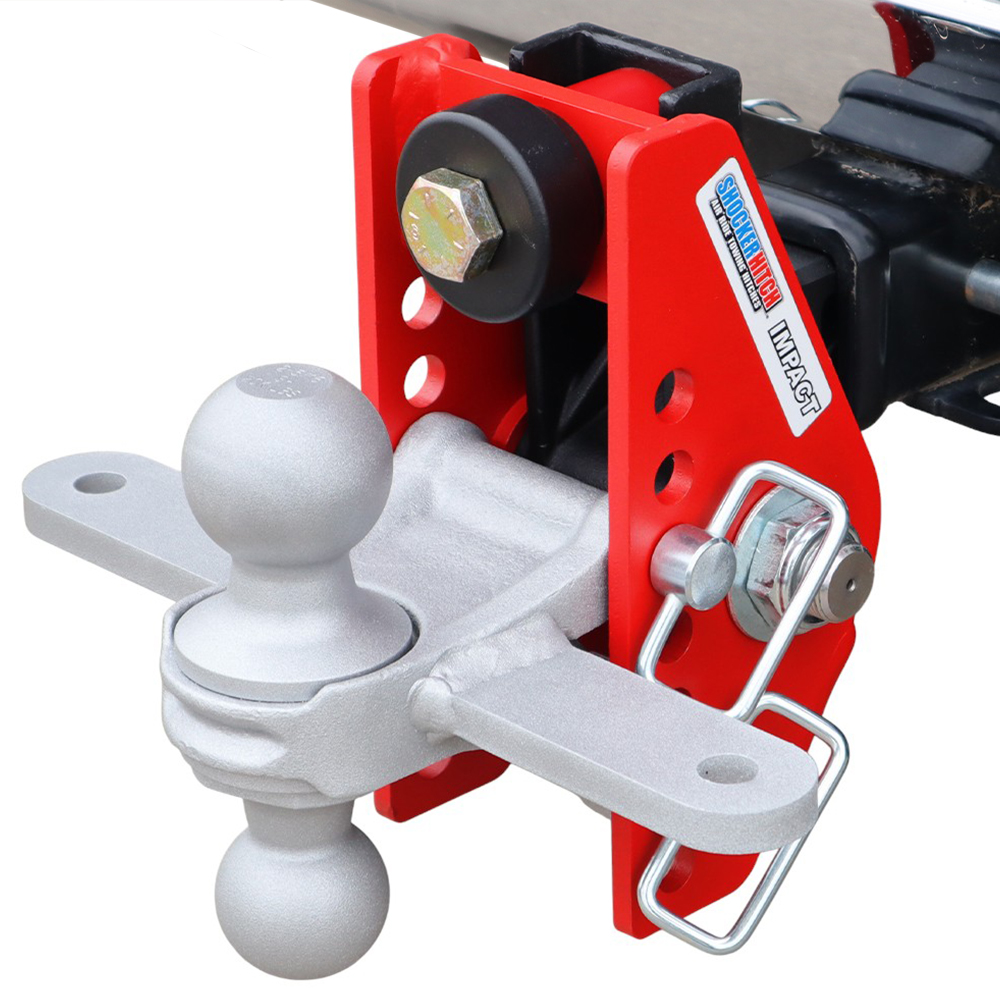

Shocker Impact Cushion Sway Control Combo Ball Mount 4″ Rise to 4″ Drop – 12,000lbs

Select Option:

Clear

Product Information:

List Price: $579.99Sale Price: $422.99Free Ground Shipping*

Money IconExtra 10% OFF, hurry limited time offer.
Reviews
Rated 0 out of 5
SKU: SH-100SB-Gen
Series:

-

Product Description

  • HD Cushion Hitch: Dual Cushioned combo ball mount with a 2″ & 2-5/16″  trailer ball and welded sway tabs.
  • Shocker Absorbing Design: Pivoting design with dual bump cushions absorbs the road shock & reduces the tendency to sway.
  • Built-in Sway Bar Tabs: 2 built-in sway control bar tabs for mounting the basic sway control arm bar(s) & mini balls (such as the Shocker 17200 friction sway control kit).
  • Ideal on Trucks to Minivans: Works great on motorhomes, rv’s, pickup trucks, vans, suvs, cuvs and minivans.
  • 7 Adjustment Holes: 7 adjustment holes that can be flipped around more drop or rise.
  • Welded 1-Piece Combo Ball: 2″ & 2-5/16″ with a welded sway tabs design for maximum strength. Gives you 4″ of rise to 4″ of drop. Premium clear zinc finish.
  • Heavy Duty Capacity: 12,000 lbs towing capacity and a 1,200 lbs tongue weight.
  • Combo Ball Mount Tow Rating: 2-5/16″ ball rated at 16,000 lbs & 2″ ball rated at 8,000 lbs.
  • Adjustable Length: 2 hitch pin holes to adjust the length and there is plenty of room on the receiver shank to accommodate hitch mounted towing mud flaps or shocker bumper tow flaps.
  • Premium Powder-Coat Finish: HD Premium powder coated finish of base frame / clear zinc plated ball mount.
  • Reducing Sway: Pivoting design with cushions reduces the tendency of sway. If sway if an issue, check out our sway control hitches
  • Choose Your Receiver Size: Comes with 2″,  2-1/2″ & 3″ receiver hitch shank.
  • 10+ Ball Mount Options: Works with all our other ball mount adaptors attachments; drop, raised, pintle hooks, combo multi-ball, clevis pin, dual ball with sway bar tabs, cushioned drawbar, drawbar and more.
  • Comes Complete: Includes everything you need, the adjustable Shocker impact cushioned base frame assembly, combo dual ball sway tab mount with 2″ & 2-5/16″ balls & 2 d-handle ball mount pins with clips.
  • Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory towing weight capacities, therefore it’s important you read and follow the tongue & tow weight recommendations of the truck it is mounted on, the trailer coupler rating & the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. Bolt-on 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

Shocker Hitch Guarantee

Free Ground Shipping* | Shocker Guarantee | Free Returns

The Shocker Impact cushioned hitch combo ball mount with welded tabs for the basic sway control arm / bars with mini hitch ball. Shocker Impact sway control cushion hitch with combo ball mount is designed for heavy duty use to cushion the towing experience. The dual bump cushion design is rated up to 12,000 lbs. Featuring a combo multi-ball mount with both a 2″ hitch ball and a 2-5/16″ hitch ball. It has 7″ of height adjustment range from 4″ of rise to 4″ of drop. 12,000 lbs tow rating capacity and 1,200 lbs tongue weight. Welded combo ball mount with a premium finish along with sway bar tabs for the mini ball on each side. Shocker Impact cushioned hitch ball mount provides versatility and a way smoother towing experience than a solid ball mount. The Impact ball mount has built in adjustability maximum versatility with 7 adjustment holes for your towing needs for pulling campers to enclosed trailers. This Shocker Impact cushioned sway bar combo ball mount attaches by sliding into a standard receiver tube. Use this adjustable ball mount however you need to for tons of versatility. Works great on motorhomes, rv’s, pickup trucks, vans, suvs, cuvs and minivans. Plus the shank has 2 holes for the pin for length adjustability as well as allowing it to work with hitch mounted mud flaps. Sway Bar combo mounts come fully zinc plated. Made by Shocker Hitch® USA

Note: The sway control tab mount is designed to work with the Shocker 17200 Friction Sway control kit or Reese 83660 sway control kit, which are not included and available separately. Suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs.

Tons of Attachments: We offer a wide variety of our ball mount attachments; standard mounts, drop ball mounts, clevis mounts, drawbar mounts, cushioned drawbar mounts, pintle hook attachments, raised mounts and combo multi-ball mounts.

California Residents: Prop 65 Warning

Video

Shock Absorbing Cushioning Hitch Ball Mount Videos

Shocker Air Hitch & Sway Control Arm Kit Video

Install

Shocker Impact Cushioned Combo Ball Mount Installation Instructions

The Shocker Impact dual cushioned ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need. Just insert into your receiver hitch and adjust pins to proper ball mount height.

Safety Notice: The Shocker Impact is a heavy-duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle.

Check out the simple installation with the Shocker Impact Cushion Hitch Installation Manual.

Shocker Impact Cushion Hitch Diagram
Shocker Impact Cushion Hitch Diagram

Shocker Sway Control Arm Installation Video

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Guarantee.

Shocker Hitch Guarantee

FAQ

Answers to Frequently Asked Questions

How much drop or rise does the Shocker Impact sway combo ball mount offer?

The combo mount is 3.5″ of rise and 3.5″ of drop.  The drop ball mount is 0″ to 7″

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

Reviews

Be the first to review “Shocker Impact Cushion Sway Control Combo Ball Mount 4″ Rise to 4″ Drop – 12,000lbs”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 38 lbs
Dimensions 13 × 13 × 7 in
Select Receiver Hitch Size

Fits 2" Hitch, Fits 2-1/2" Hitch, Fits 3" Hitch
