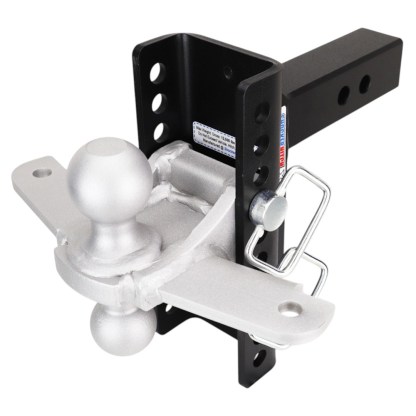

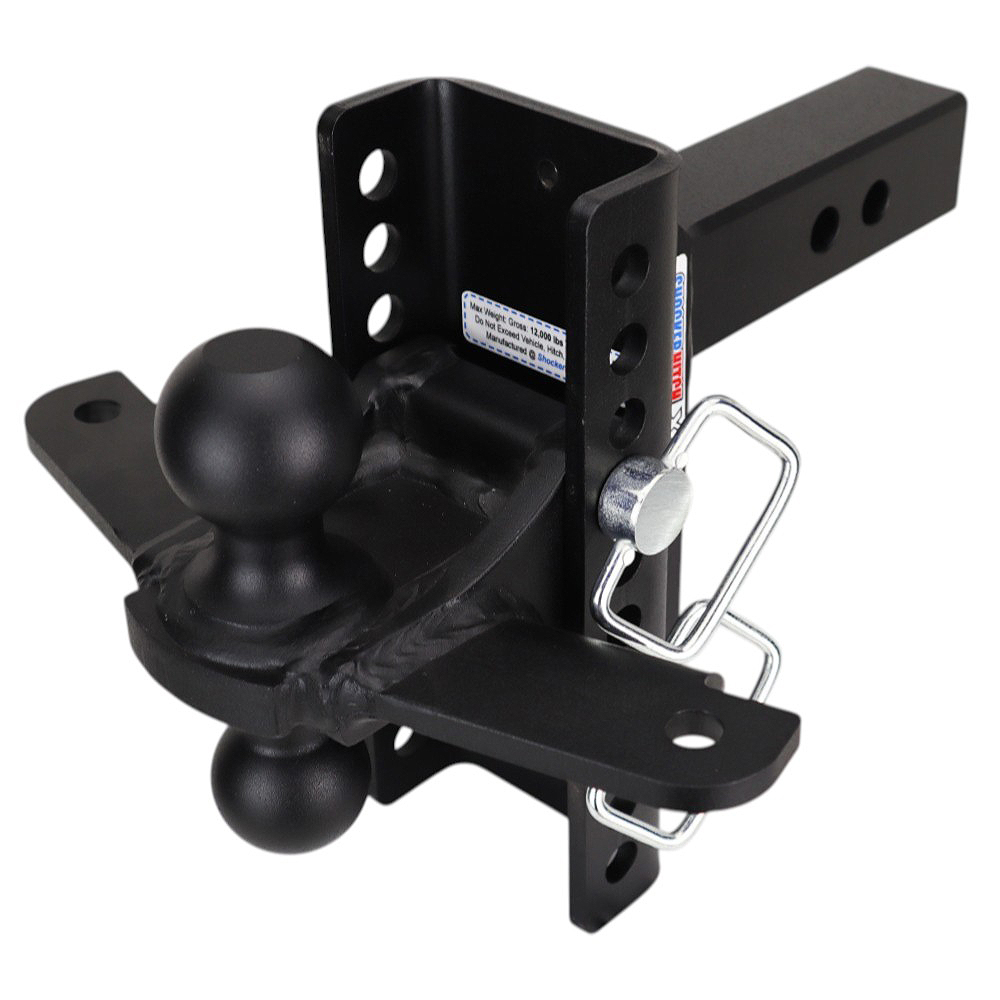

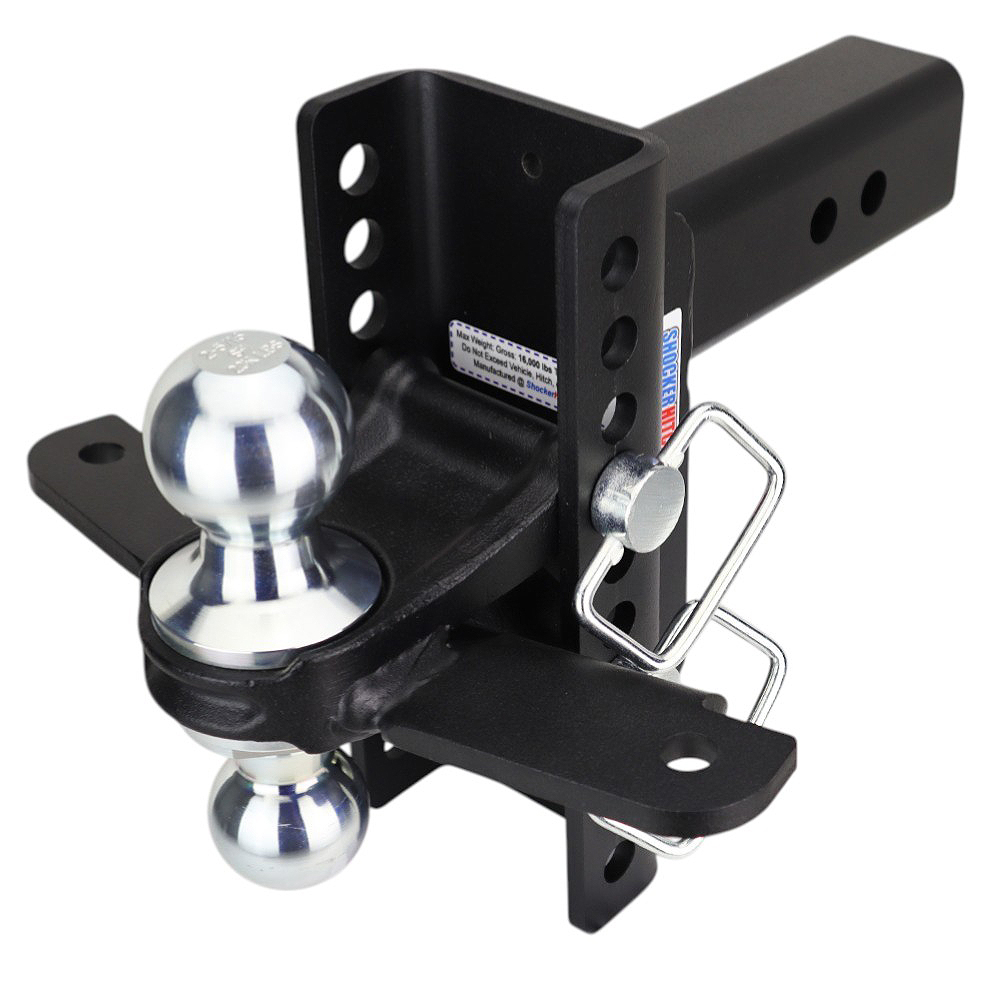

Shocker XR Combo Ball Mount with Sway Control Tabs

Select Option:

Clear

Product Information:

List Price: $379.99$419.99Sale Price: $278.99$296.99Free Ground Shipping*

Money IconExtra 10% OFF, hurry limited time offer.
Reviews
Rated 0 out of 5
SKU: SH-XR-Gen-Combo-Sway
Series:

-

Product Description

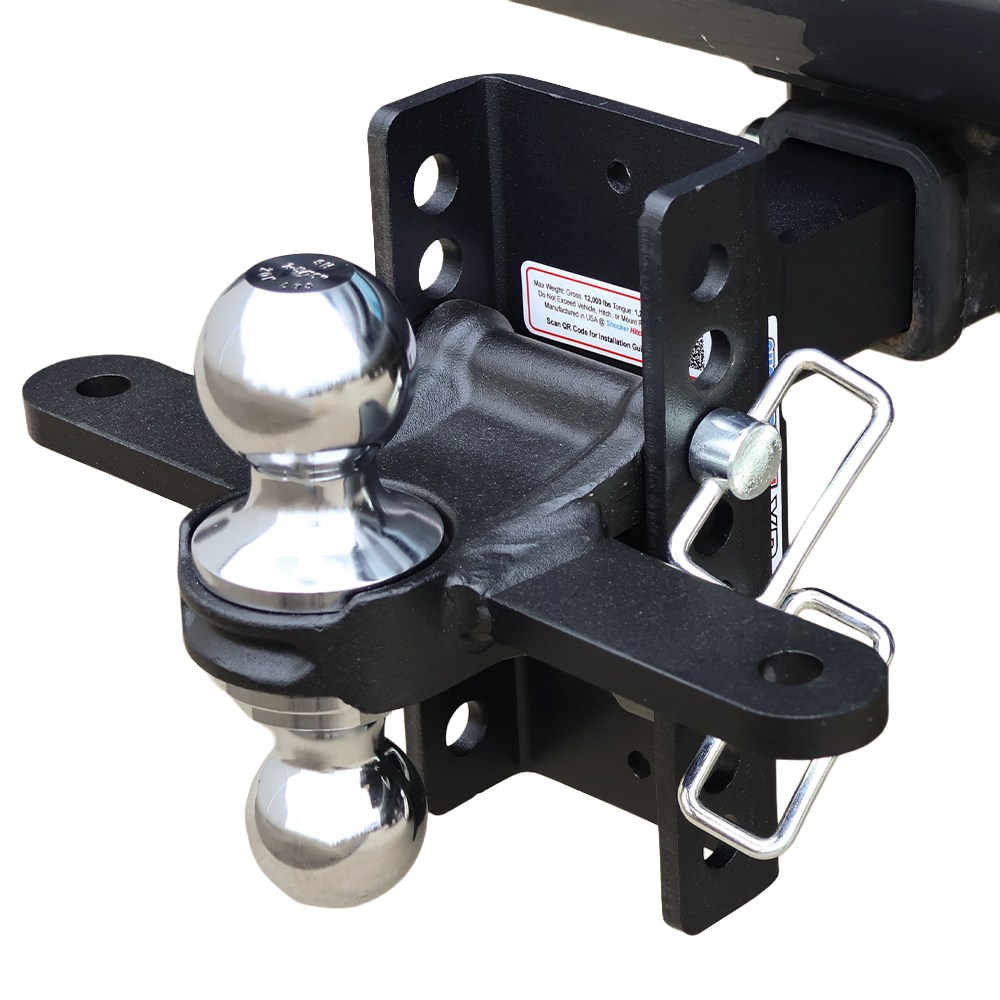

  • Adjustable HD Hitch: Featuring a combo ball with welded-on sway control bar tabs

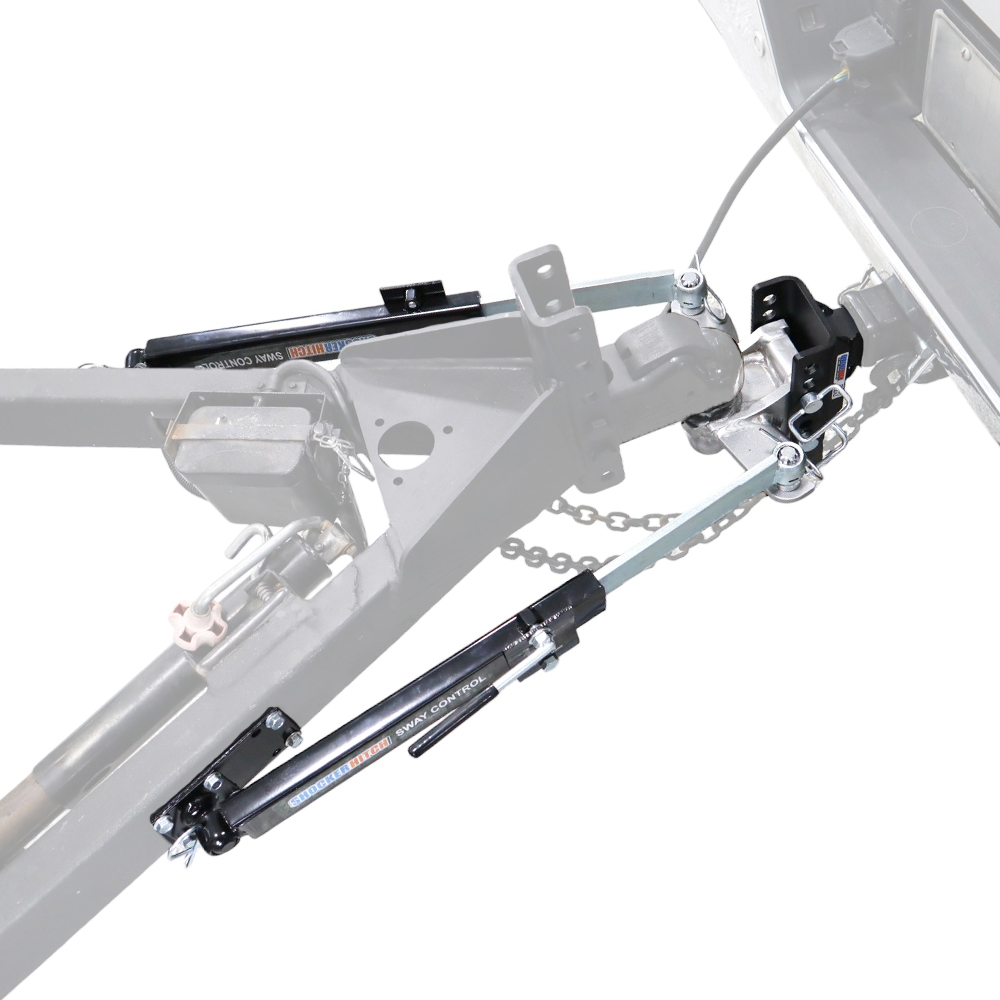

  • Combo Ball Mount with Sway Bar Tab Mounts: 1-piece welded combo ball mount with 2″ and 2-5/16″ balls and sway tabs for mounting the basic sway control arm bar(s) & mini balls. (such as the Shocker 17200 friction sway control kit or Reese 83660 Sway Kit). 2-5/16″ ball is 20,000 lbs GTW & 2″ ball is 10,000 lbs GTW.
  • Flip Around Design: Base frame hitch can be flipped around more drop or rise.
  • 8 to 10″ of Adjustment: 4″ of rise to 4″ of drop for 2″ and 2-1/2″ hitch and 5-1/2 rise and 5-1/2″ drop for 3″ hitc
  • 12,000 to 20,000 lb GTW: 12,000 lbs for 2″ hitch, 16,000 lbs GTW for 2-1/2″ and 20,000 lbs GTW for 3″. Tongue weight is 10% of GTW.
  • Black Powder Coat Finish: Base is premium black powder coat finish and sway bar combo mounts comes fully zinc plated.
  • Works with Tow Flaps: The longer shank with 2 hitch pin holes is great for hitch-mounted towing mud flaps.
  • Choose Your Receiver Size: Available for 2″, 2-1/2″ and 3″ receiver hitches
  • 10+ Ball Mount Options: Choose the ball mount that works best for you. We have dual ball, drop, raised, pintle hooks, combo multi-ball, clevis pin, dual ball with sway bar tabs, cushioned drawbar, drawbar and more. Combo balls are 2″ & 2-5/16″ welded design for maximum strength.
  • Includes complete Shocker XR base frame, adjustable combo ball mount with 2″ & 2-5/16″ hitch balls with welded-on sway control bar tabs along with 2 d-handle ball mount pins with clips.
  • Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

The Shocker XR Adjustable combo ball mount with sway bar tabs comes with 2 ball mount attachment pins and works with all our ball mount attachments. Adjustable versatile design with 4″ of rise to 4″ of drop for 2″ and 2-1/2″ hitch and 5-1/2 rise and 5-1/2″ drop for 3″ hitch. Up to 20,000 lbs tow rating capacity and 2,000 lbs tongue weight. The XR has built-in adjustability and maximum versatility for your towing needs. The Shocker XR receiver hitch ball mount is the ultimate in towing accessories. This Shocker XR ball mount attaches by sliding into a standard receiver tube. Use this adjustable ball mount however you need to for tons of versatility. The sway bar tabs are for sway control kits such as the curt 17200 sway control arm kit. Sway Bar combo mount comes fully zinc plated. It also features two hitch pin holes for length adjustment, as well as making it compatible with hitch mount towing mud flaps & rock guards. Made by Shocker Hitch® USA.

With the combo adjustable ball mount, the hitch balls are manufactured together – one piece construction for maximum strength and durability with welded sway bar tab mounts. Featuring a premium clear zinc finish for resistance to the elements.

California Residents: Prop 65 Warning

Video

Shocker XR Adjustable Ball Mount Video

Shocker Friction Sway Control Towing Video

Install

Shocker XR  Ball Mount  Installation Instructions

The Shocker XR ball mount is easy to install.  It comes complete with easy to understand instructions along with everything you need.

Note: Always use a good hitch ball with the proper recommended tow weight.

XR Adjustable Ball Mount Flipped
XR Adjustable Ball Mount Flipped

Safety Notice: The Shocker Hitch is a heavy duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle.

Shocker Friction Sway Control Arm Install Video

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Guarantee.

Shocker Hitch Guarantee

FAQ

Answers to Frequently Asked Questions

How much drop or rise does the XR ball mount offer?

From 4″ of rise to 7-1/2″ of drop depending on the ball mount attachment used.  The combo mount is 4″ of rise and 4″ of drop.  The drop ball mount is 0″ to 7-1/2″

Questions and answers of the customers

    Can this be used with a weight distribution hitch to tow a travel trailer?
  1. 0 votes
    Q Can this be used with a weight distribution hitch to tow a travel trailer?
    A No, you would want our Shocker Air Equalizer. That will work with WD hitches.

Send me a notification for each new answer.

Reviews

Be the first to review “Shocker XR Combo Ball Mount with Sway Control Tabs”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 33 lbs
Dimensions 11 × 11 × 7 in
Select Receiver Hitch Size

Fits 2" Hitch, Fits 2-1/2" Hitch, Fits 3" Hitch
