Shocker XR Adjustable Hitch Combo Ball & Sway Control Towing Kit

Select Option:

Clear

Product Information:

List Price: $439.98$539.97Sale Price: $346.50$405.00Free Ground Shipping*

Money IconExtra 10% OFF, hurry limited time offer.
Reviews
Rated 0 out of 5
SKU: SH-XR-Hitch-Sway-Control-Kit
Series:

-

Product Description

  • Black Adjustable Combo Mount Sway Towing Kit: Combo Ball Mount Hitch w/ Welded Sway Tabs & Sway Control Arm Kit.
  • Reduces Trailer Sway: Reduces trailer sway for a smooth, safe, and straight towing experience.
  • Adjustable Hitch: Choose either a 2″, 2-1/2″ or 3″ receiver hitch shank

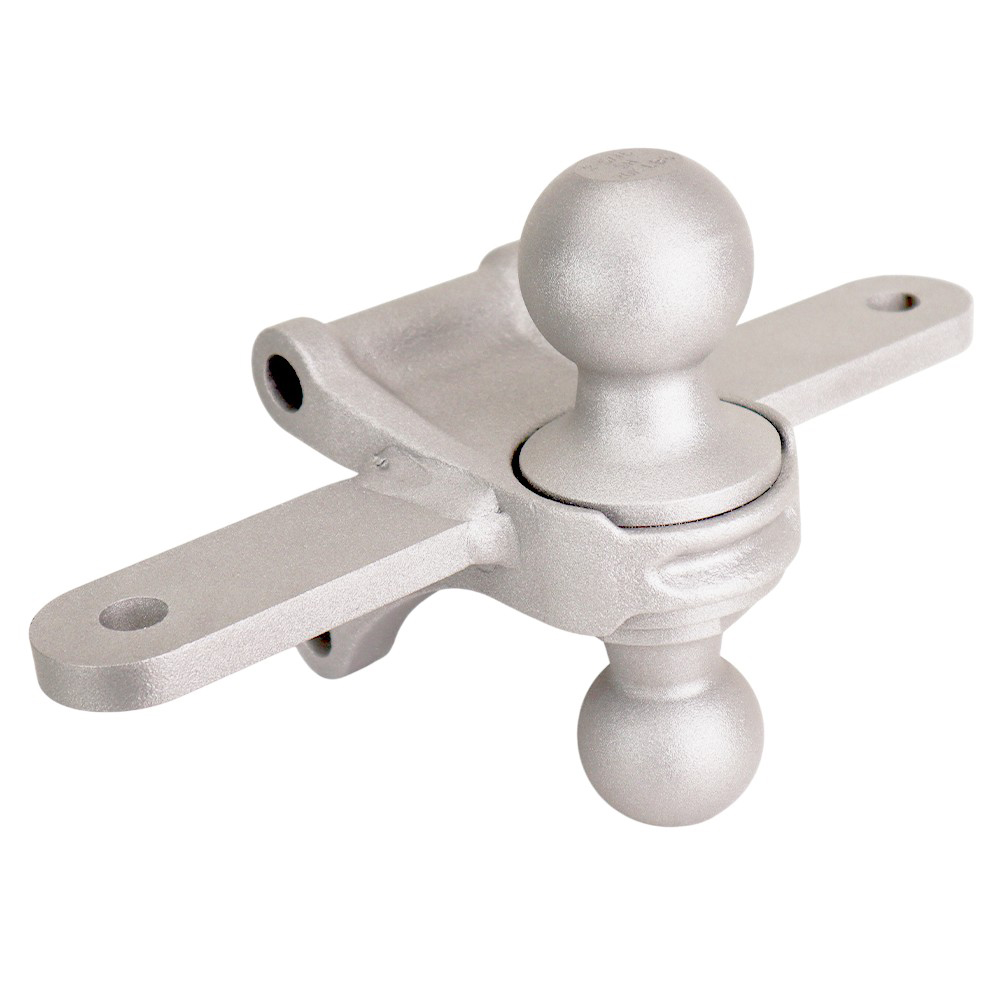

  • Sway Tab Combo Ball Mount: 1 piece construction 2″ and 2-5/16″ zinc plated trailer ball with welded sway tabs
  • 8 Adjustment Holes: Allows for 8″ of Adjustment – 4″ of rise to 4″ of drop
  • Flip Around Design: Entire hitch frame can be flipped around for more drop or rise (4″ of rise to 4″ of drop)
  • Hitch Pins: 2 hitch pin holes allow adjustment on the shank length and there is plenty of room on the receiver shank to accommodate hitch mounted towing mud flaps or shocker bumper tow flaps
  • Designed For: HD contractor type, camper, and enclosed trailer towing
  • 12,000 to 20,000 lb GTW Hitch: 12,000 lbs for 2″ hitch, 16,000 lbs GTW for 2-1/2″ and 20,000 lbs GTW for 3″. Tongue weight is 10% of GTW.
  • Combo Ball with Sway Tabs Rating: 2-5/16″ ball is 20,000 lbs GTW, 2″ Ball is 10,000 GTW. Tongue weight is 10% of GTW.

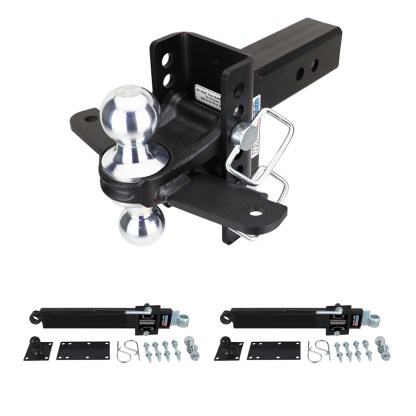

  • Sway Control Towing Kit Includes: Complete adjustable Shocker XR hitch base frame assembly, combo dual ball mount with 2″ & 2-5/16″ hitch balls & 2 sway bar tabs, 2 ball mount pins & one or two friction sway control arm kits. Choose between a single or dual sway control system.
  • Friction Sway Control Bar Kit Options: Order with 1 Sway Arm Kit for use with Trailer up to 10K lbs. Order with 2 Sway Arm Kits for use with Trailers over 10K lbs.
  • Great for reducing trailer sway: Use 1 system for trailers under 10K and 2 systems for trailers over 10K
  • Adjustable Friction Bar: Can be adjusted to fine-tune your towing experience.
  • A single sway control arm kit comes with the sway control friction arm assembly, 1 1-1/4″ trailer mounted mini ball, 1 1-1/4″ hitch mounted ball with a lock washer and nut for your sway control ball mount tab along with 4 metal lag screws and 2 retaining clips. This is great for travel camping trailers, heavy-duty trailers, race trailers, and toy haulers.
  • 10+ Ball Mount Options: We have dual ball, drop, raised, pintle hooks, pintle & ball, combo multi-ball, clevis pin, dual ball with sway bar tabs, cushioned drawbar, drawbar and more (Sold Separately).
  • Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

Reduce trailer sway and tow with ease of mind when using the Shocker Hitch Sway Control Towing Starter kit. Designed specifically to reduce trailer sway when towing this kit includes Shocker unique combo ball mount with welded sway tabs. The Shocker XR hitch combo ball mount kit with welded tabs for sway control arm/bars includes the sway arm kit with mini hitch ball.  The XR hitch design is rated up to 12,000 lbs. Featuring a combo multi-ball mount with both a 2″ hitch ball and a 2-5/16″ hitch ball. It has 8″ of height adjustment range from 4″ of rise to 4″ of drop. Up to 20,000 lbs tow rating capacity and 2,000 lbs tongue weight depending on shank size. Welded combo ball mount with a premium finish along with sway bar tabs for the mini ball on each side. Shocker XR adjustable hitch ball mount provides versatility and a way simpler towing experience than a standard solid ball mount. The XR ball mount has built-in adjustability maximum versatility with 8 adjustment holes for your towing needs for pulling campers to enclosed trailers.

When towing larger trailers, you may experience trailer sway from wind, passing vehicles, rough & uneven road surfaces. This sway control arm kit system is made to prevent the trailer from swaying. We offer a sway control arm bar system kit that connects from the Shocker sway control ball mount (sold separately) of the hitch to the front of the trailer. This sway control system is used to stiffen the connection between the truck and trailer, keeping it straight and in line with the towing vehicle.

You will want to use one (1) friction sway control arm kit when towing up to 10,000 pounds and/or 24′ trailers & when towing over 10,000 pounds and/or trailers longer than 24′, use two (2) friction sway control  arm kits. A single sway control arm kit comes with the sway control friction arm assembly, 1 1-1/4″ trailer mounted mini ball, 1 1-1/4″ hitch mounted ball with lock washer and nut for your sway control ball mount tab along with 4 metal lag screws and 2 retaining clips. This is great for travel camping trailers, heavy duty trailers, race trailers and toy haulers.

This Shocker XR hitch with sway bar combo ball mount attaches by sliding into a standard receiver tube. Use this adjustable ball mount however you need to for tons of versatility. Works great on motorhomes, rv’s, pickup trucks, vans, suvs, cuvs and minivans. Plus the shank has 2 holes for the pin for length adjustability as well as allowing it to work with hitch-mounted mud flaps. Sway Bar combo mounts come fully zinc plated. Made by Shocker Hitch® USA

California Residents: Prop 65 Warning

Video

Shocker XR Adjustable Ball Mount Videos

Shocker Hitch & Friction Sway Control Kit Video

Install

Shocker XR Ball Mount Hitch Setup Installation Instructions

Download the Shocker XR Series Hitch Instructions Insert the shank of the hitch into the receiver of your tow vehicle. Make sure you are using the correct size shank to work with your receiver. Secure the hitch with a hitch pin. Adjust the ball mount attachment so your tow vehicle and trailer are level. You can flipped the XR frame around for more drop or more rise.
XR Adjustable Ball Mount Flipped
XR Adjustable Ball Mount Flipped
Safety Notice: The Shocker XR series hitches are a heavy-duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle, coupler rating, tow vehicle rating and trailer weight rating.

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.

Questions and answers of the customers

    We already have a shocker hitch, do you make an antisway kit for an Icecastle?
  1. 0 votes
    Q We already have a shocker hitch, do you make an antisway kit for an Icecastle?
    A If you already have one of our hitches, all you will need to convert to sway control are listed below. Contact us for more info if needed. Shocker Adjustable Combo Ball Mount with Sway Bar Tabs Attachment (2" and 2-5/16" hitch balls) Part Number SH-340SC-X https://shockerhitch.com/product/shocker-bumper-hitch-ball-mount-attachments/?attribute_pa_all-ball-mount-options=combo-sway-tabs-2-2-5-16-balls Sway Control Friction Arm & Ball Kit For Trailers Over 10K - 2 Kits --Part number SH-17200-X2 https://shockerhitch.com/product/shocker-sway-control-arm-ball-kit/?attribute_pa_sway-control-kit=2-sway-kits
  2. Should sway bars be removed when backing a camper or other trailer?
  3. 0 votes
    Q Should sway bars be removed when backing a camper or other trailer?
    A

    Yes if you are backing up you would want to remove your sway arms so they do not get damaged while backing up.

  4. How and where do you put air in the air bag? Also, does this be used to replace the bars and chains of other type weight distribution hitches which are 40lbs heavier.
  5. 0 votes
    Q How and where do you put air in the air bag? Also, does this be used to replace the bars and chai...... Read more
    A

    This XR Ball Mount Hitch & sway arm kit does not come with an airbag system. This is just a standard ball mount with sway tabs that comes with friction sway arms. Our hitches do not replace weight distribution hitches, but we do have an Air bag Equalizer hitch that will work with existing W-D hitches. This hitch is designed to work with sway bar control arms with mini balls. Here is a link to check out our Air hitch & Sway Control towing kit - https://shockerhitch.com/product/shocker-air-hitch-combo-ball-mount-sway-control-kit/. You can also give us a call at 701-707-2666 and we can help explain our options better for you.

  6. Highest rise
  7. 0 votes
    Q Highest rise
    A

    The highest rise on this specific hitch would be 4"

Send me a notification for each new answer.

Reviews

Be the first to review “Shocker XR Adjustable Hitch Combo Ball & Sway Control Towing Kit”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 33 lbs
Dimensions 24 × 24 × 12 in
Select Receiver Hitch Size

Fits 2" Hitch, Fits 2-1/2" Hitch, Fits 3" Hitch

Select Friction Sway Control Kit

1 Sway Arm, 2 Sway Arms
