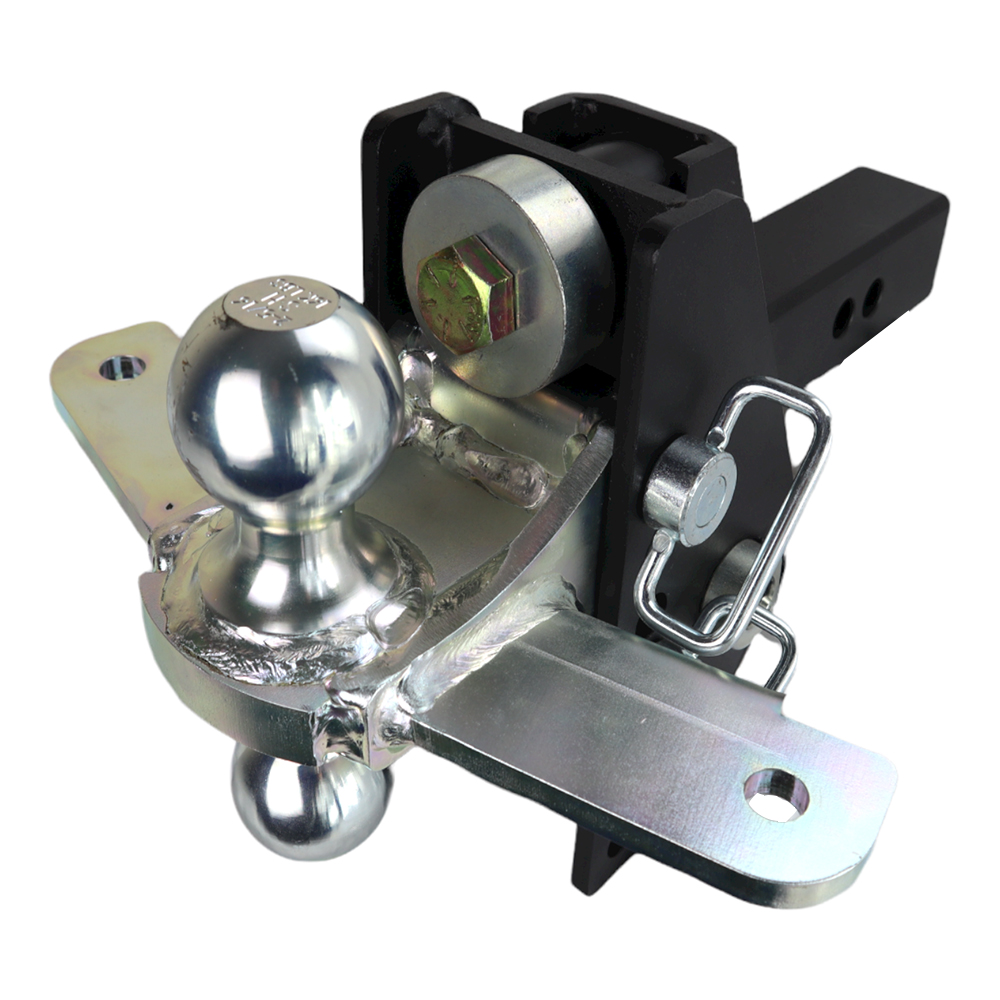

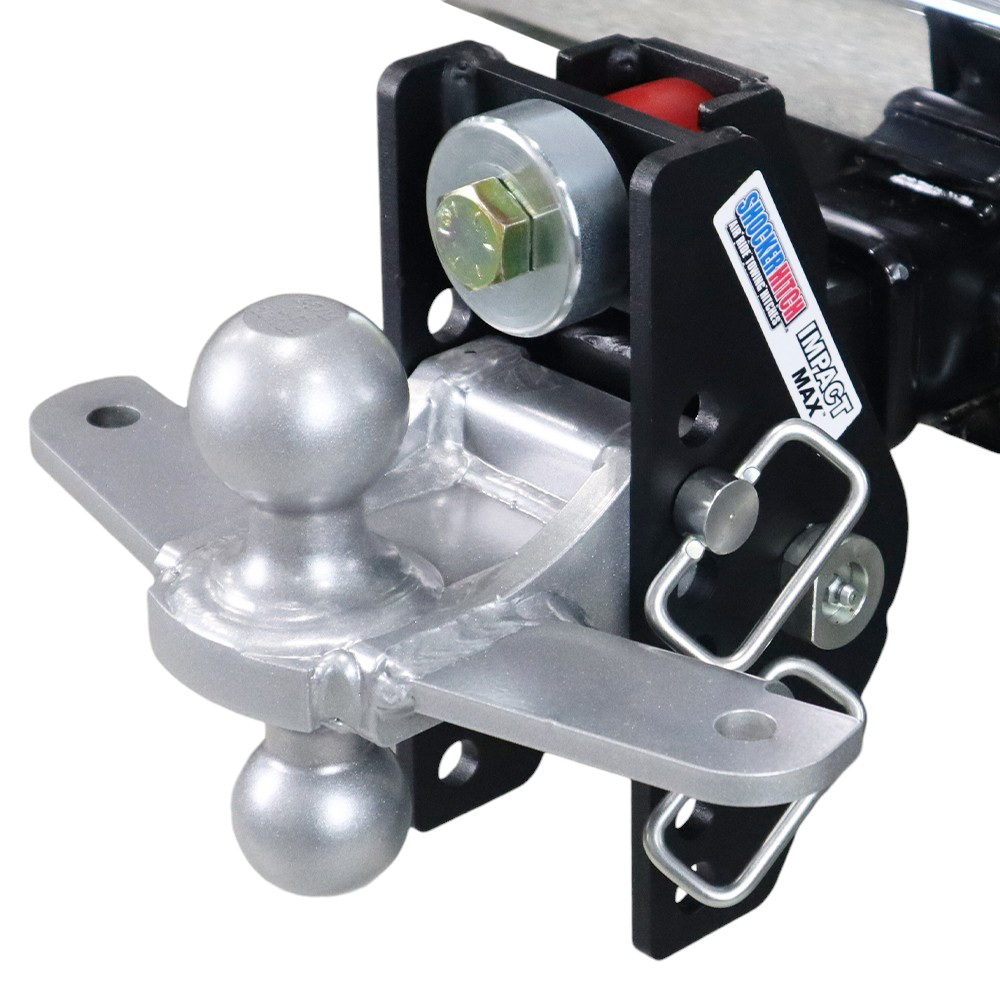

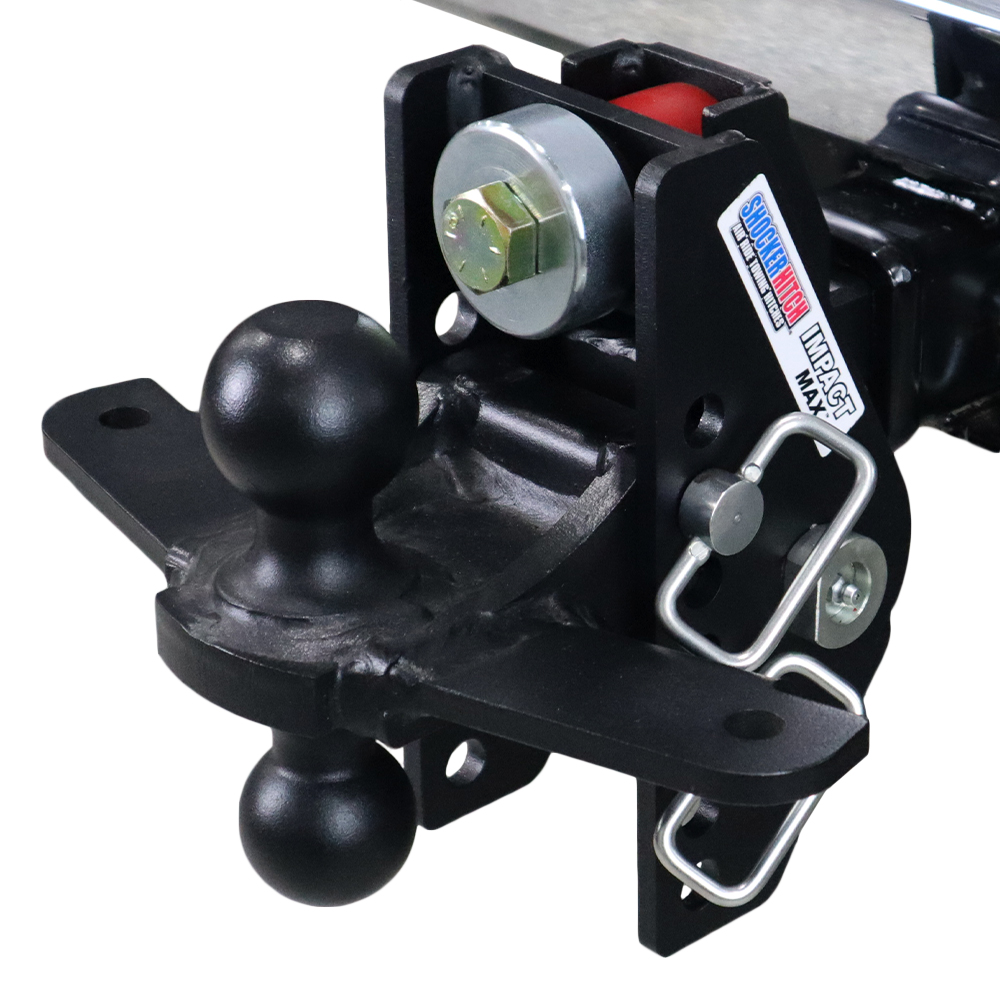

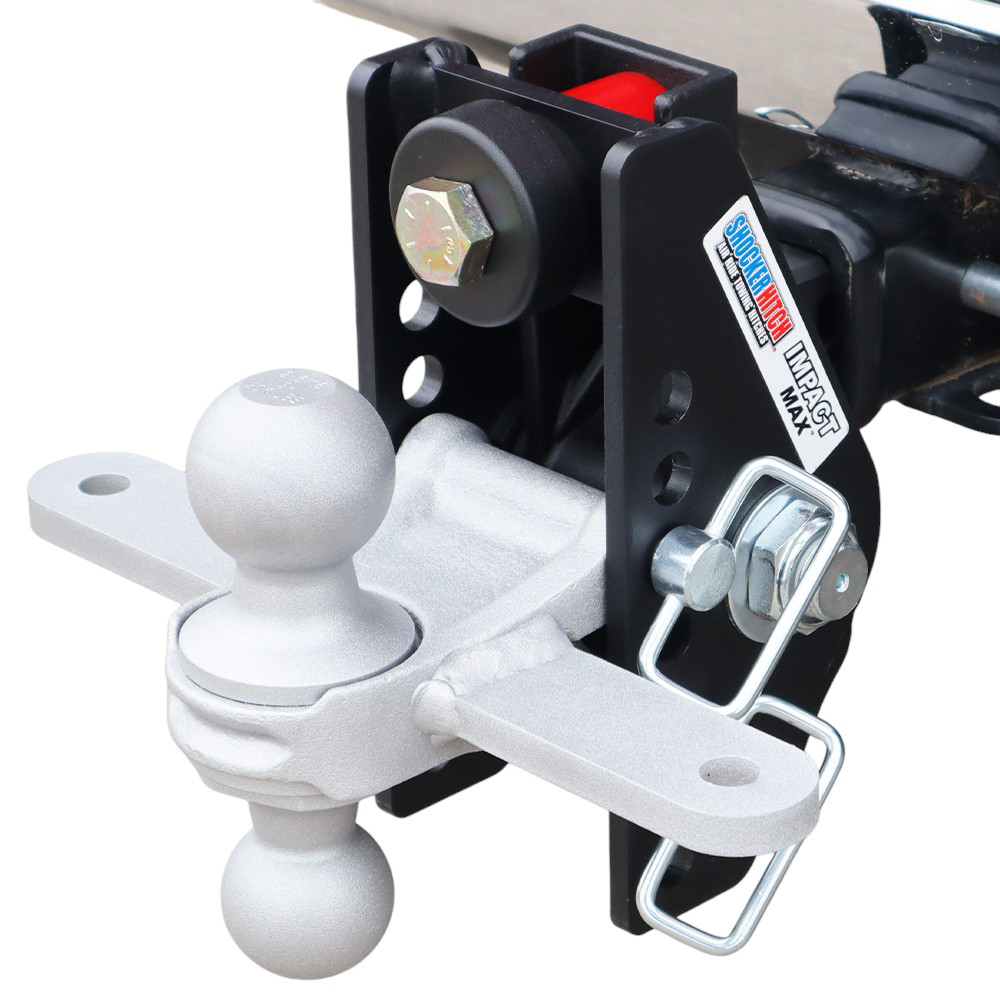

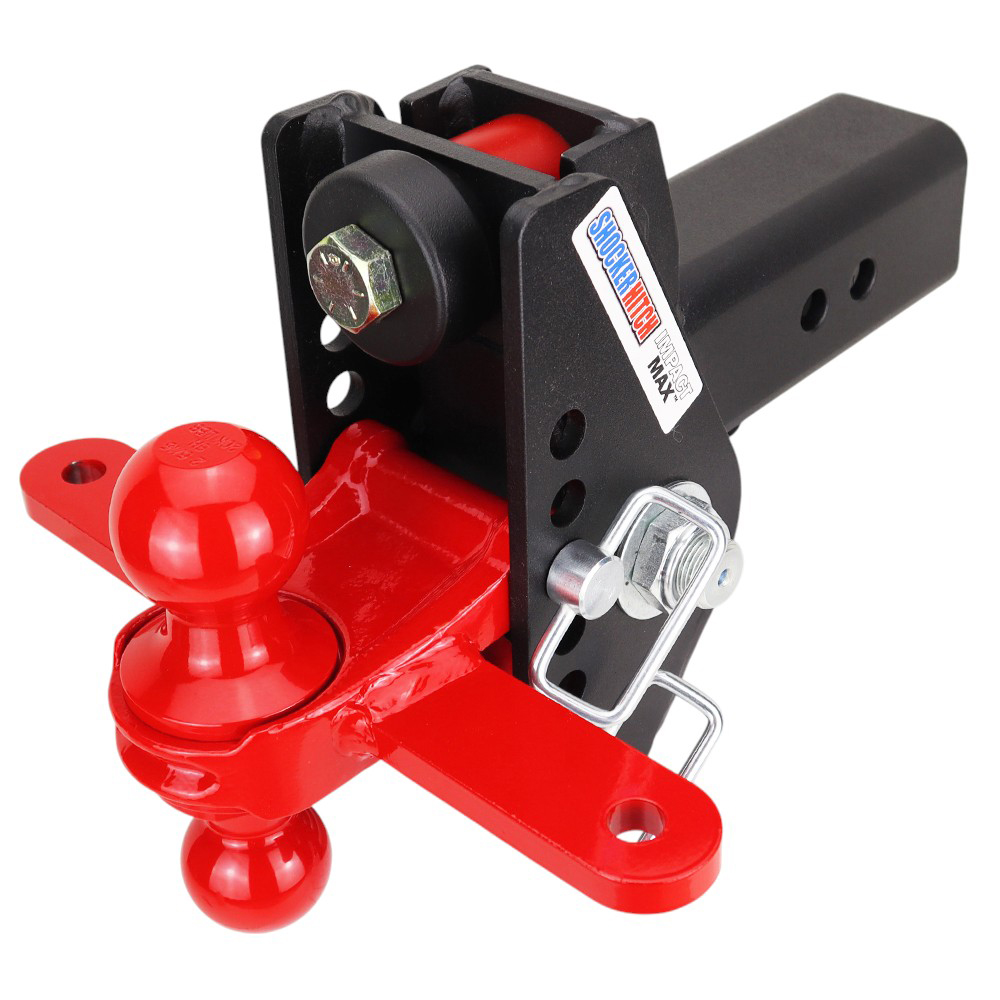

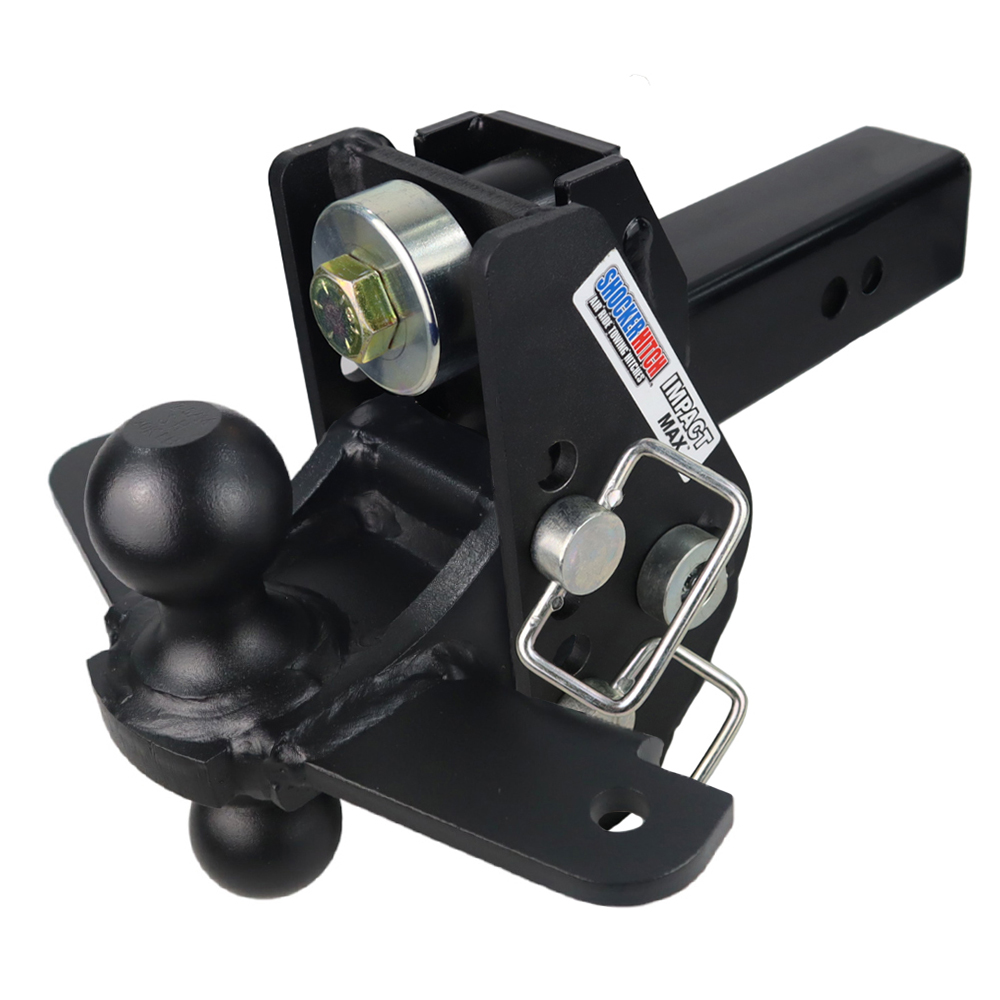

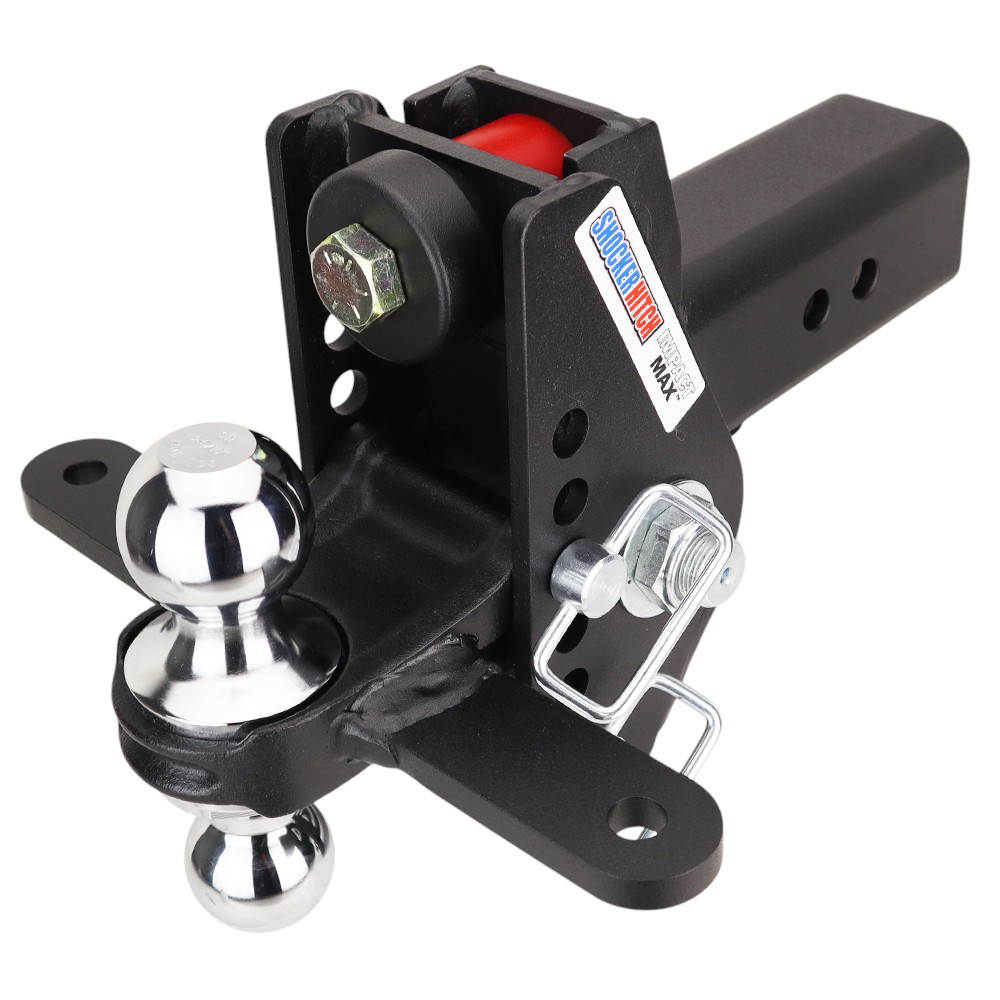

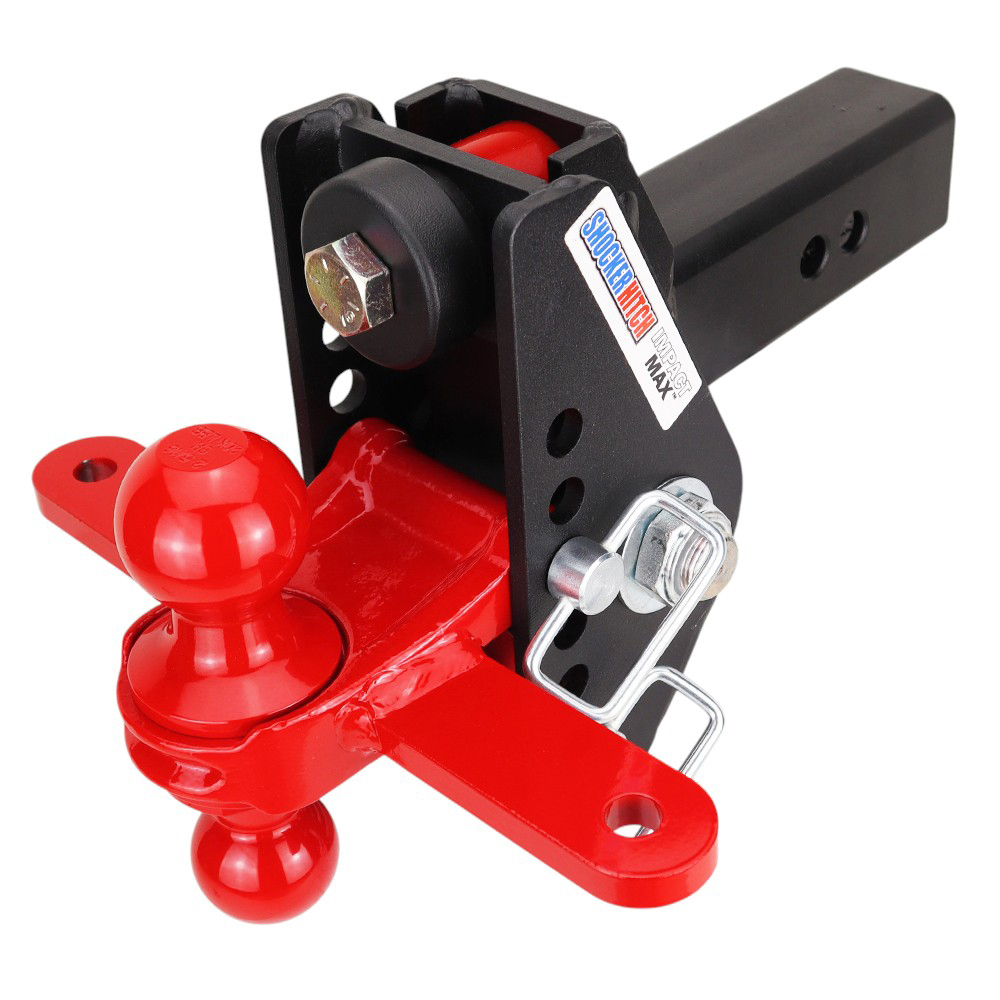

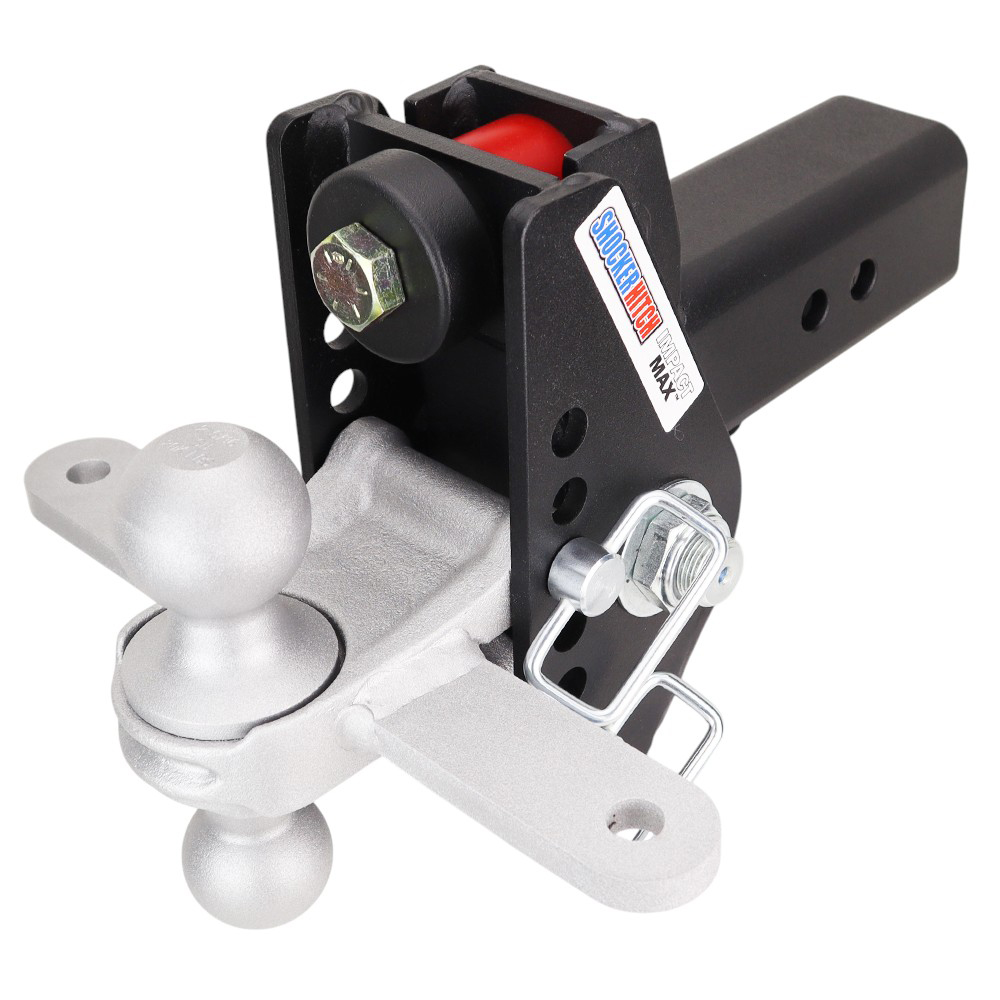

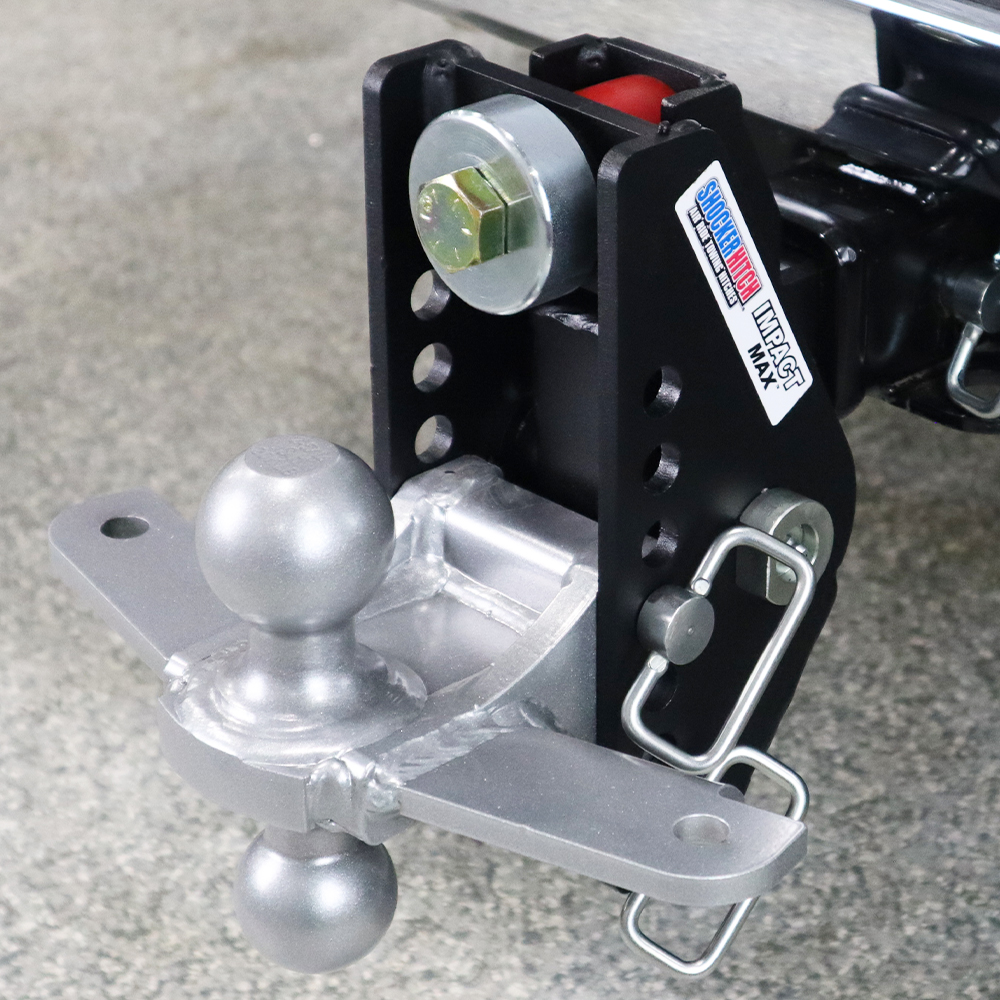

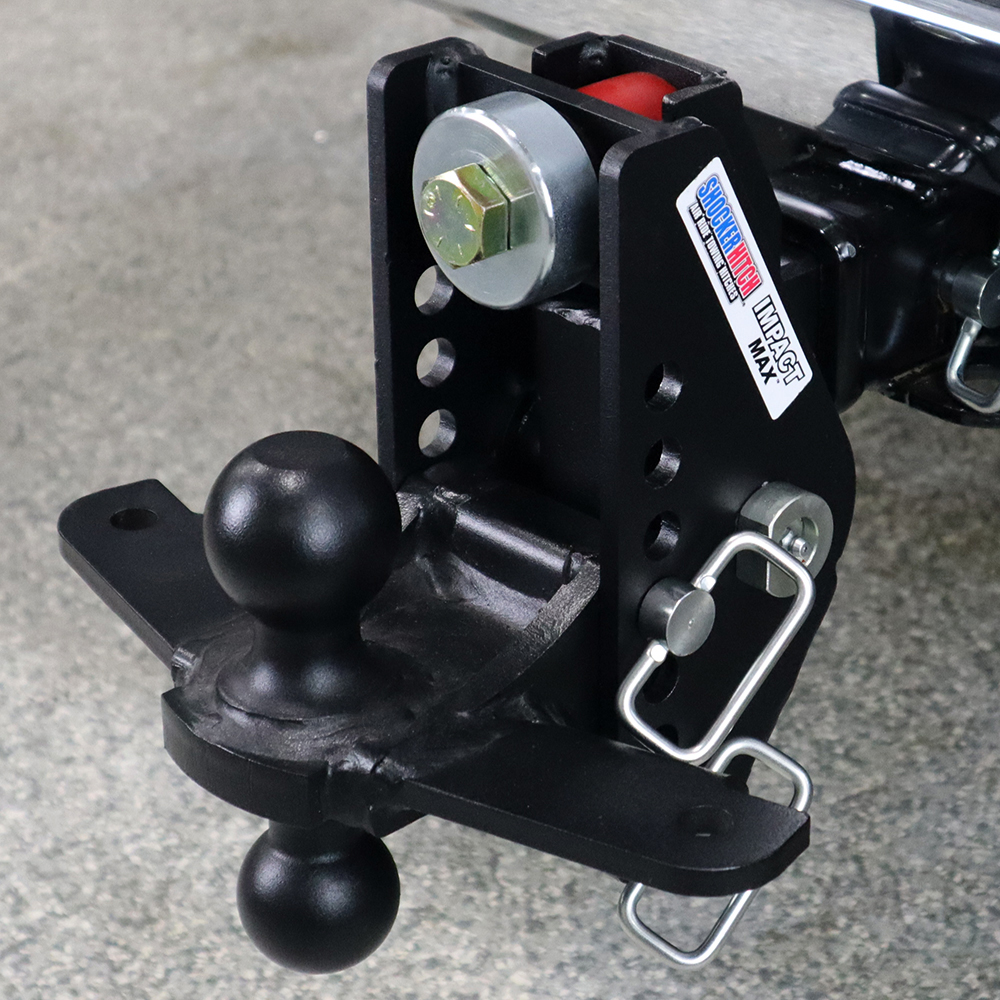

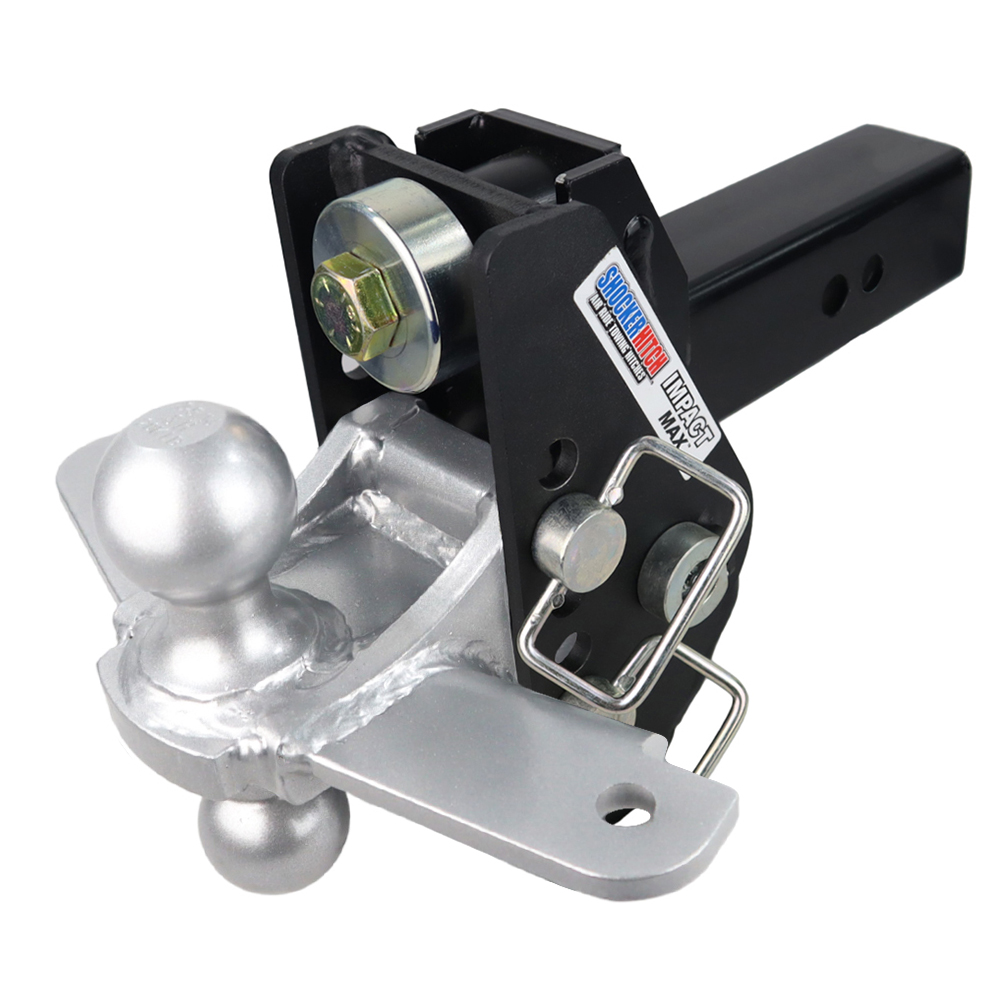

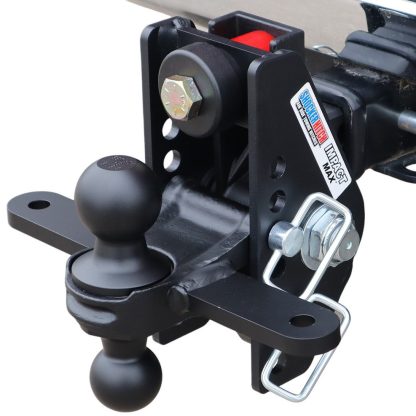

Shocker 20K Impact Max Cushioned Sway Bar Combo Ball Mount

Select Option:


Product Information:

List Price: $609.99$639.99Sale Price: $539.99$569.99Free Ground Shipping*

Rated 0 out of 5
SKU: SH-XRC100-Combo-SC


Product Description

  • HD Cushion Hitch: Cushioning combo ball mount with welded sway control tabs for sway control systems.
  • Shocker Absorbing Design: Pivoting design with dual bump cushions absorbs the road shock & reduces the tendency to sway.
  • Built-in Sway Bar Tabs: 2 built-in sway control bar tabs for mounting the basic sway control arm bar(s) & mini balls (such as the Shocker 17200 friction sway control kit).
  • Flip Around Design: 7 adjustment holes that can be flipped around more drop or rise.

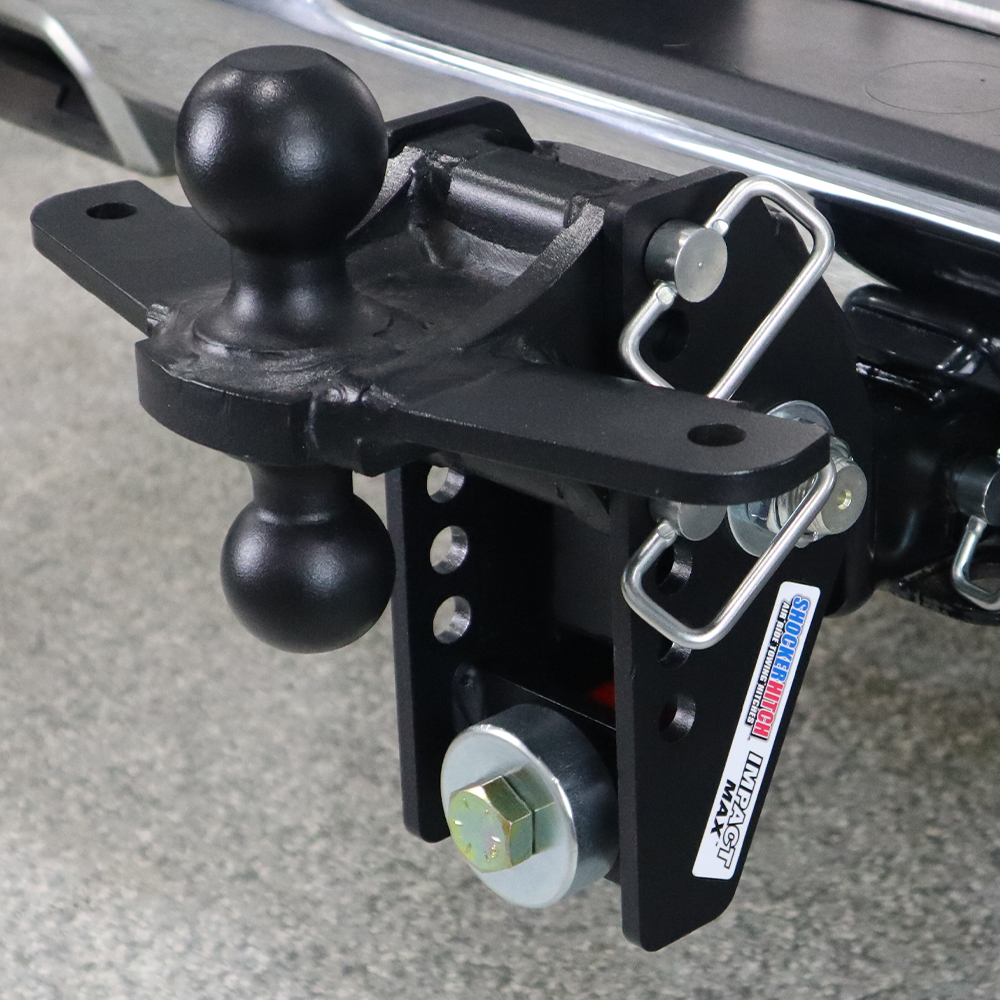

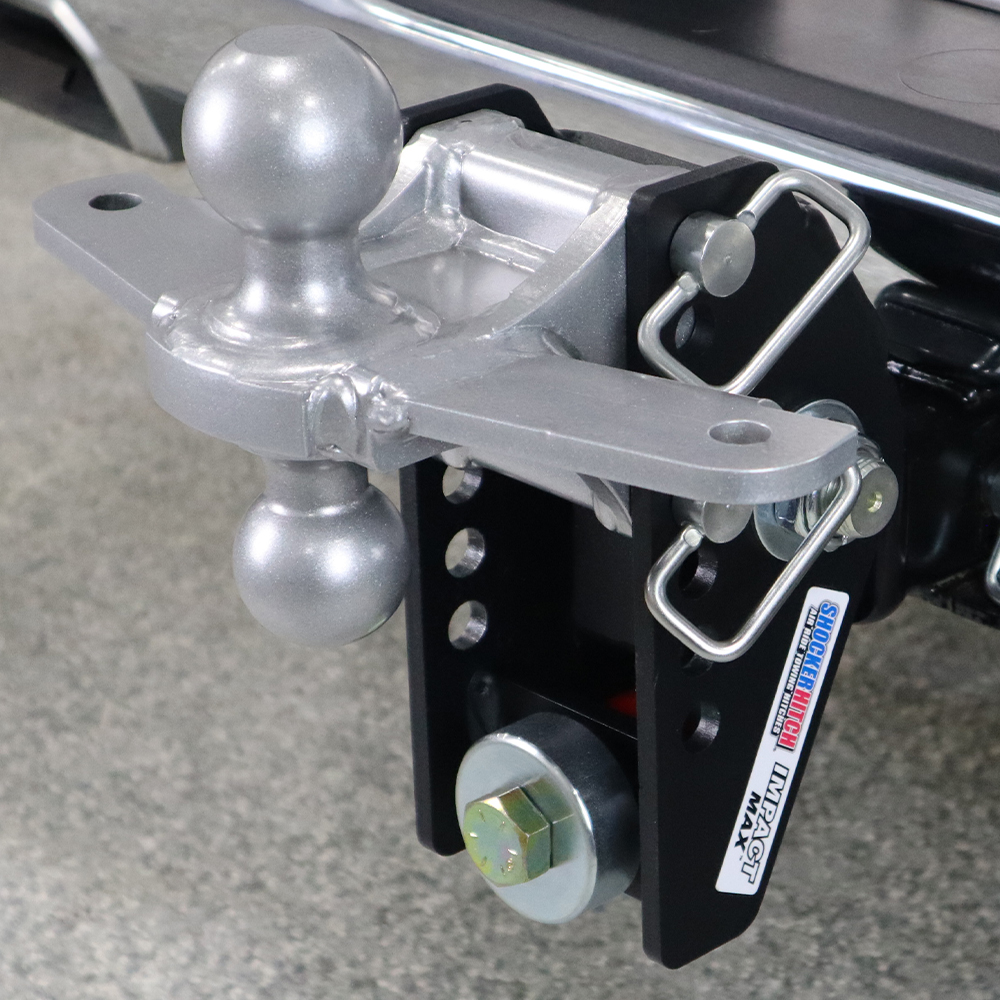

  • 8+ inches of Adjustment:– 4″ of Rise to 4″ of drop. Great for pickups, SUV’s & UTV’s.
  • 20,000 lbs Capacity: Hitch has up to 20,000 lbs towing capacity and a 2,000 lbs tongue weight.
  • Combo Ball Options: 2-5/16″ & 2″ Hitch Balls, Welded & Zinc Plated. 2-5/16″ ball is 20,000 lbs & 2″ Ball is 10,000 lbs rating.
  • Max Black Textured Finish: Impact resistant super durable textured matte black powder coated finish of base frame.
  • Great All Around Use: Works great on pickup trucks, vans, suvs, cuvs, minivans, RV’s & motorhomes.
  • 2 Hitch Pin Holes in Shank: For more length adjustability and it also works with hitch mount tow flaps or Shocker hitch tow flaps.

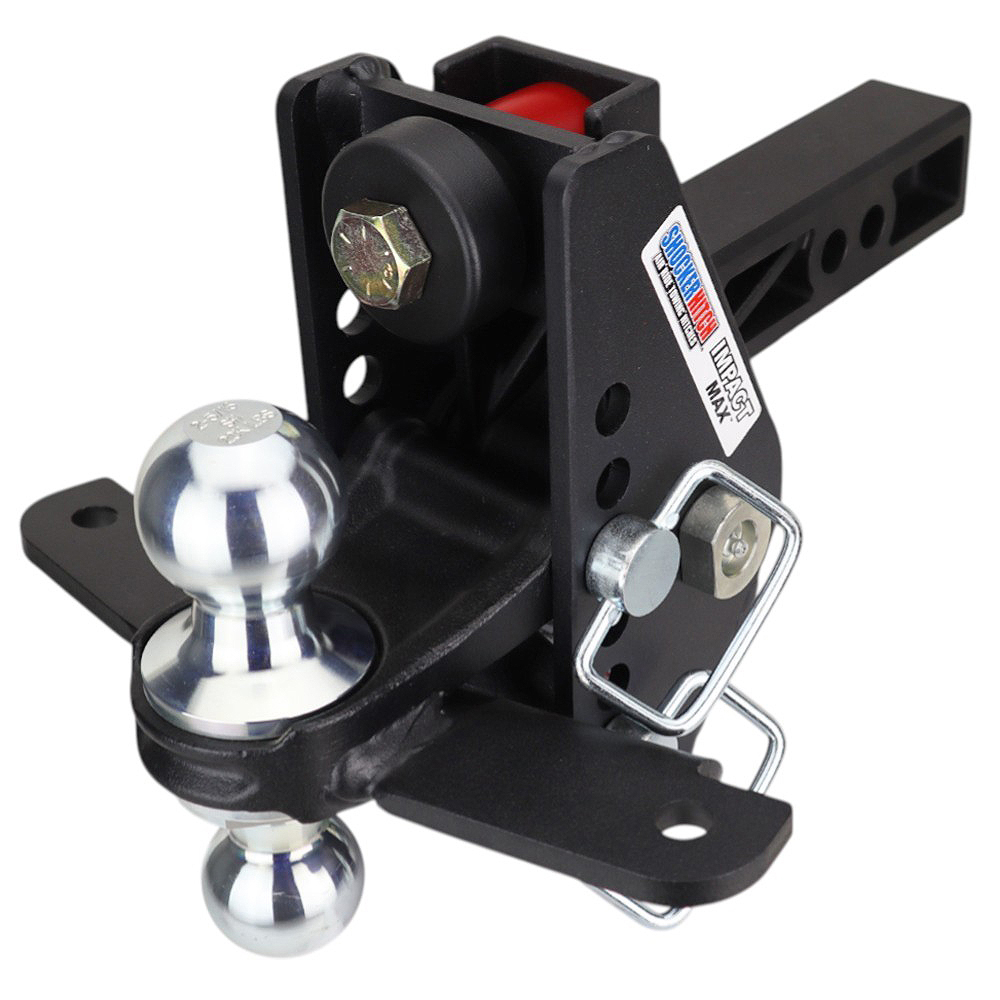

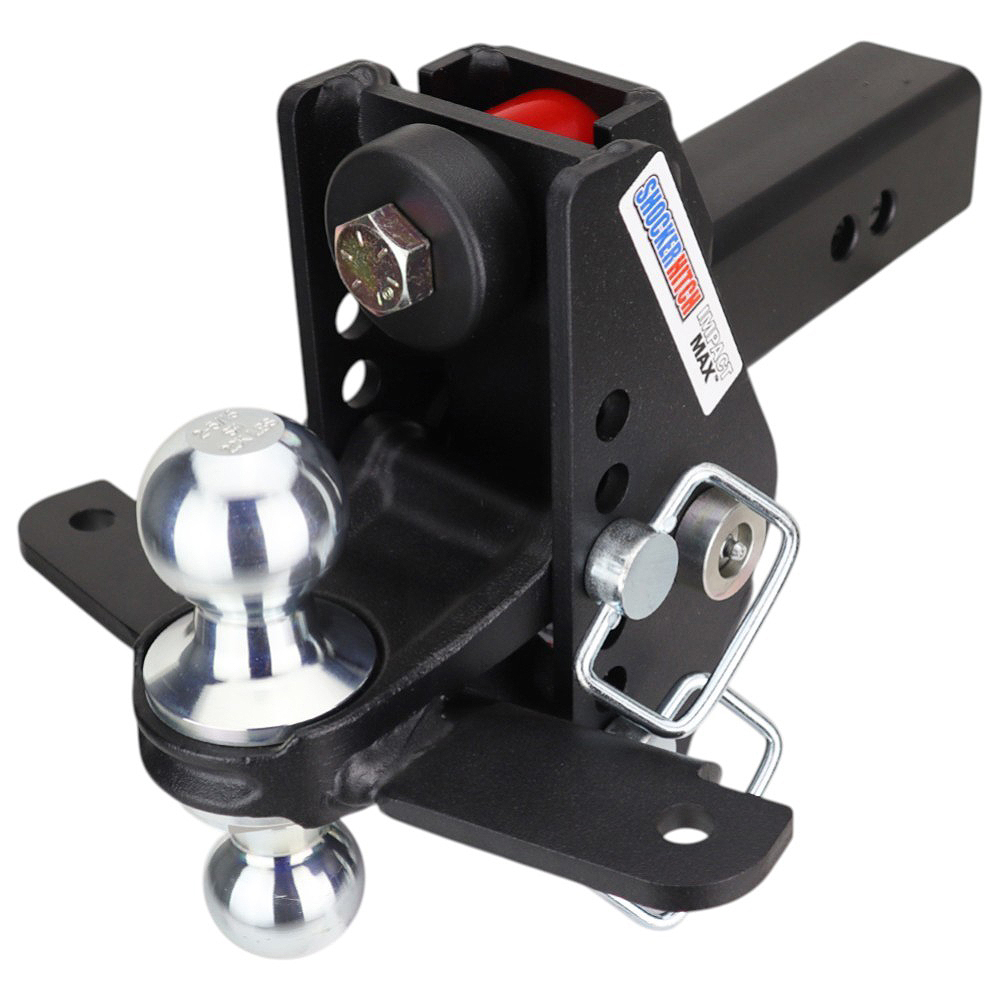

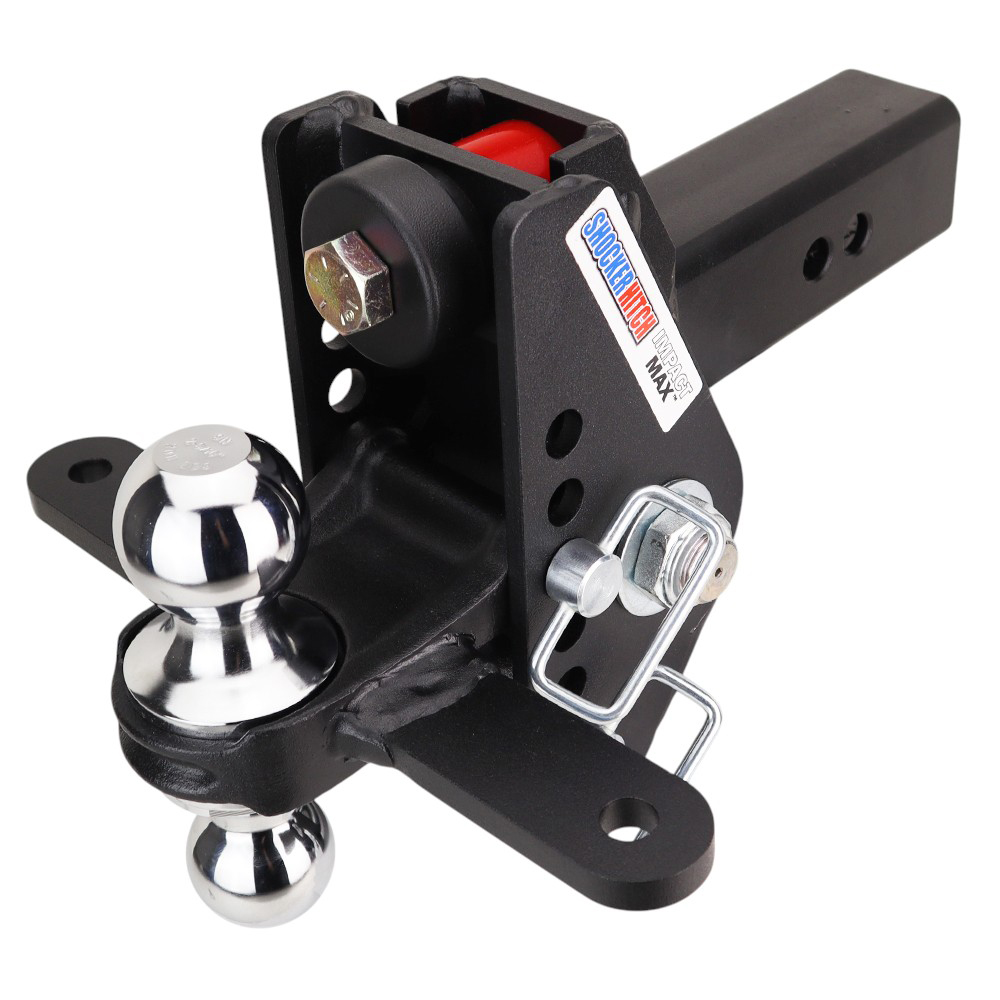

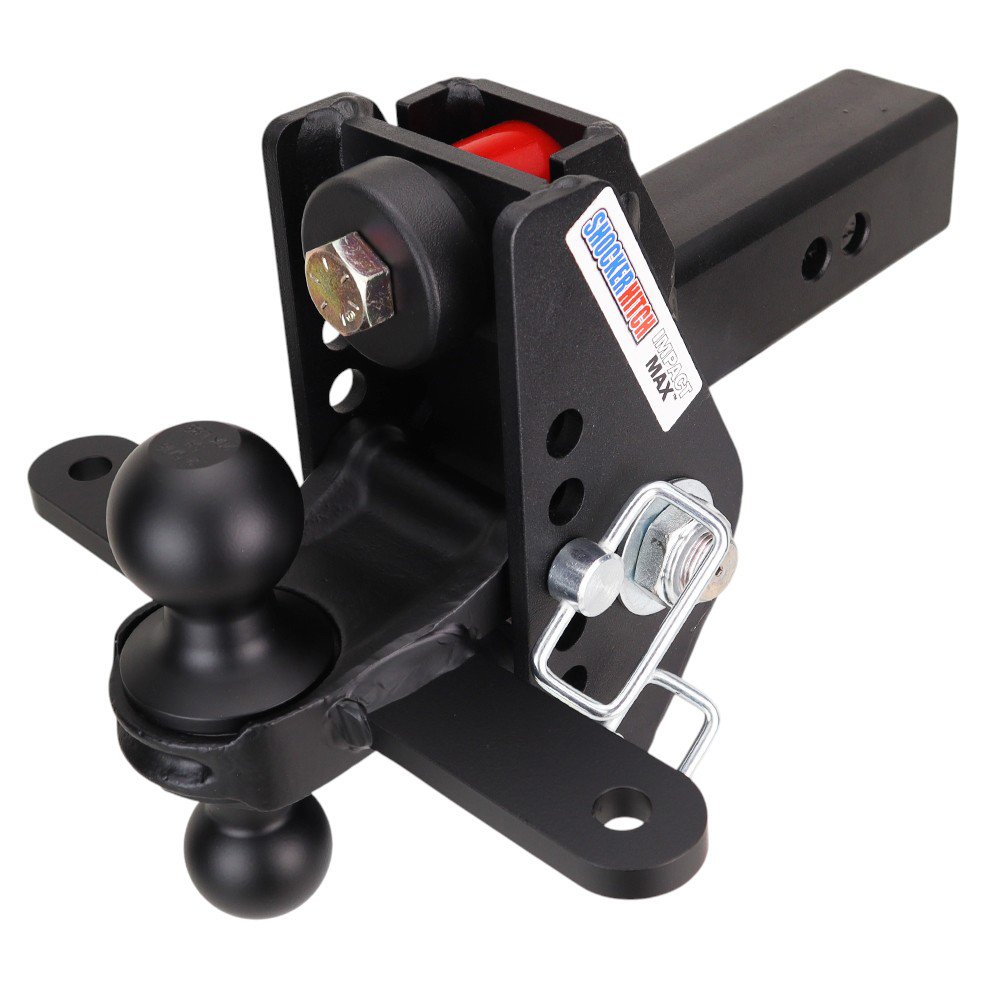

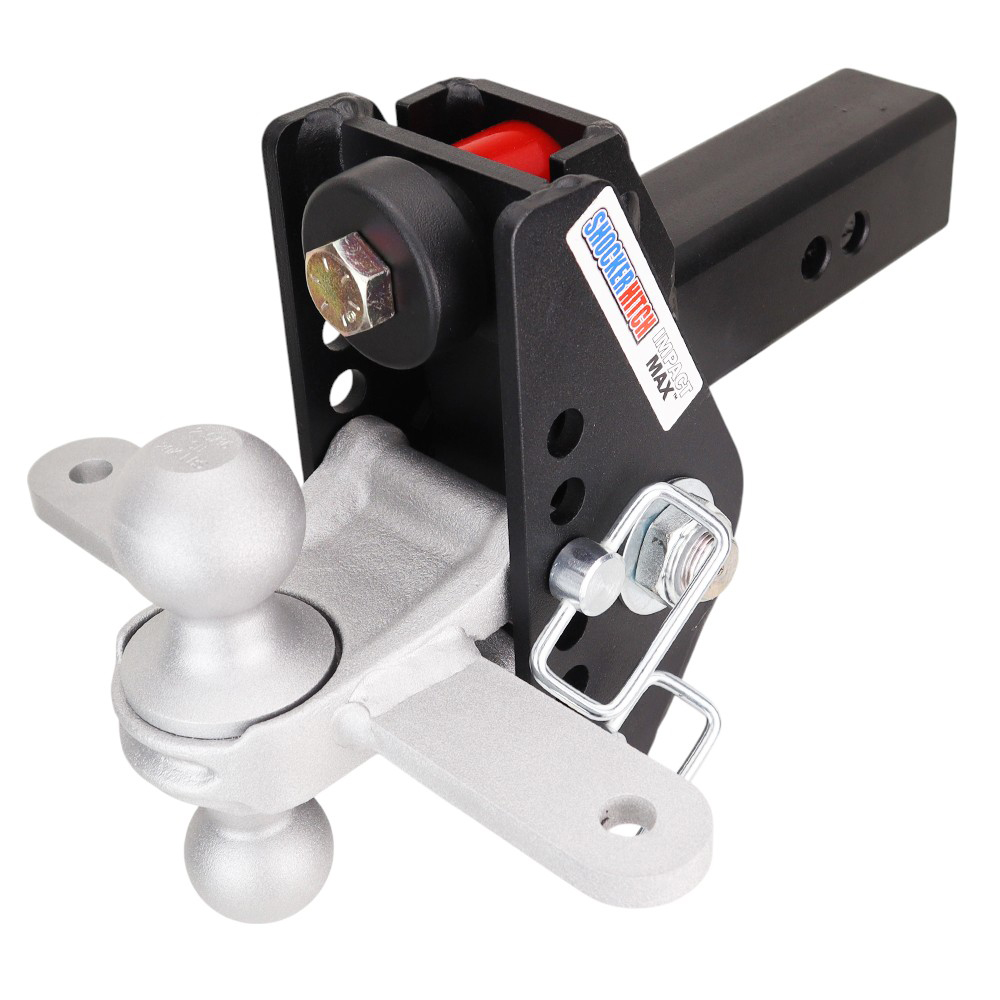

  • Available for 3 Receiver Sizes: Choose either a 2″, 2-1/2″ or 3″ receiver hitch shank.
  • 10+ Ball Mount Options: Available and sold separately. Works with all our ball mount attachments; pintle, pintle & ball, clevis pin, drawbar, drop, raise ball mounts and more.

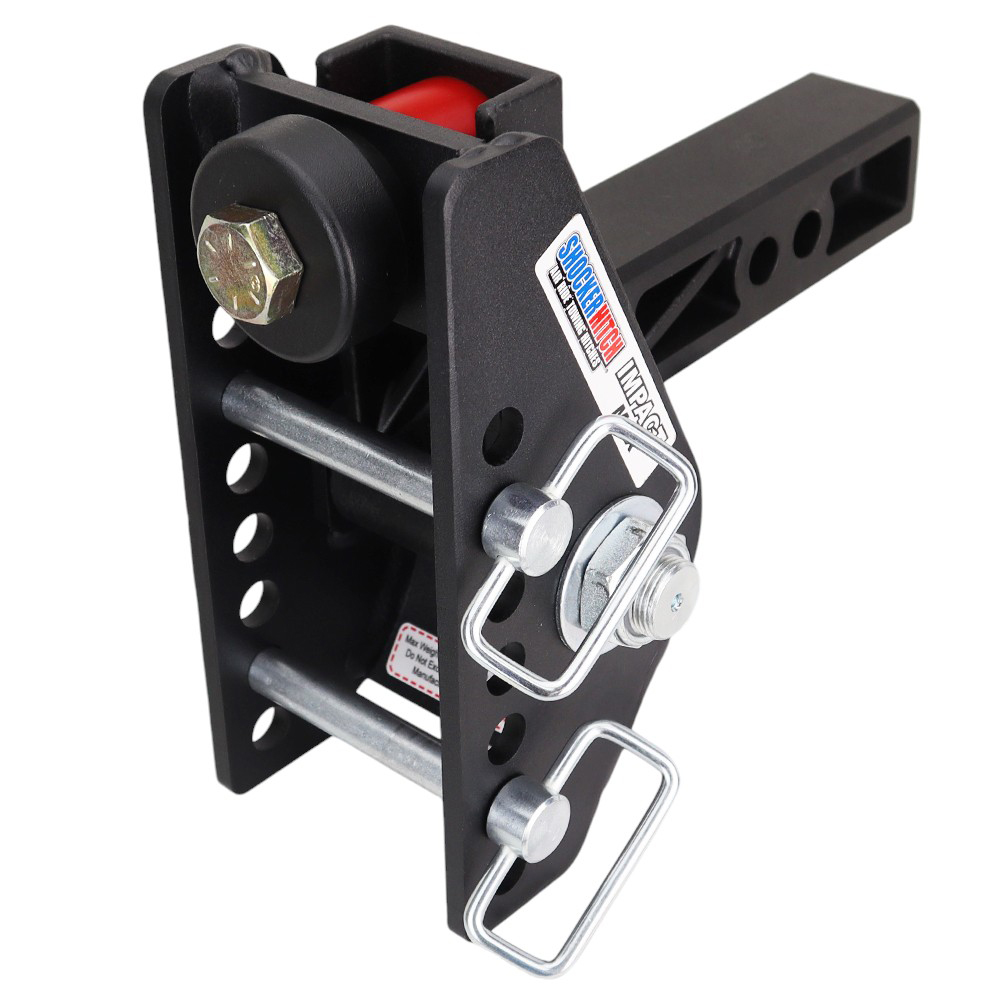

  • Sway Control Cushion Hitch Includes: Complete adjustable Shocker Impact Max cushioned base frame with built-in HD bump cushions, adjustable combo ball mount with sway tabs & 2 d-handle ball mount pins with clips. (friction sway bar sold separately).
  • Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory towing weight capacities, therefore it’s important you read and follow the tongue & tow weight recommendations of the truck it is mounted on, the trailer coupler rating & the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. Bolt-on 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

The Shocker Impact Max Black cushioned hitch ball mount with sway bar tabs is designed to cushion the towing experience and handle the road shock. Use this trailer towing hitch with friction sway bars. This shock absorbing cushion hitch ball mount is often considered the ideal boat towing and camper trailer towing hitch. The 20k dual heavy-duty bump cushion design is rated up to 20,000 lbs. Featuring a combo multi-ball mount with both a 2″ hitch ball and a 2-5/16″ hitch ball with 7 adjustment holes for 10″ of adjustment giving you 4″ of rise to 4″ of drop. Shocker Impact Max cushioned hitch ball mount with sway bar tabs provides the ultimate in versatility and a smoother towing experience than a solid ball mount. Ideal for absorbing the road shock when you are towing up to 20,000 lb trailers; boat, skid steer, dump, cargo, snowmobile, fishhouse, campers and more. The Impact Max cushion style ball mount has built in adjustment for maximum versatility with 7 adjustment holes for your towing needs. This Shocker Impact Max cushioned combo ball mount attaches by sliding into a standard receiver tube. Use this adjustable cushioned ball mount however you need to for tons of versatility.  The Impact max comes with impact resistant super durable textured matte black powder coated finish on the base frame for long-lasting life and sleek finish. If you are looking for a Shocker Hitch for an SUV, this is it. Works great on pickup trucks, vans, suvs, cuvs, minivans & motorhomes. up to 20,000 lbs tow rating capacity and 2,000 lbs tongue weight. Welded combo ball mount with clear zinc plated finish. Since it has 2 hitch pin holes, it also works with hitch mounted towing mud flaps. Made by Shocker Hitch® USA

Note: The sway control tab mount is designed to work with the Shocker 17200 Friction Sway control kit or Reese 83660 friction sway control kit,  which are not included and are available separately. Suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs.

Tons of Attachments: We offer a wide variety of our ball mount attachments; standard mounts, drop ball mounts, clevis mounts, drawbar mounts, pintle hook attachments & raised mounts.

California Residents: Prop 65 Warning


Shocker Impact Max Cushioning Hitch Ball Mount Videos

Shocker Air Hitch & Sway Control Towing Kit Video


Shocker Impact Max Cushioned Drop Ball Mount Installation Instructions

The Shocker Impact Max dual cushioned ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need. Just insert into your receiver hitch and adjust pins to proper ball mount height.

Safety Notice: The Shocker XRC is a heavy duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle.

Check out the simple installation with the Shocker XRC Cushion Hitch Installation Manual.

Shocker XRC Cushion Hitch Diagram
Shocker XRC Cushion Hitch Diagram

Shocker Sway Control Arm & Mini Ball Installation Video


This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.


Answers to Frequently Asked Questions

How much drop or rise does the Shocker Impact combo ball mount offer?

From 0″ of rise to 7″ of drop depending on the ball mount attachment used.  The combo mount is 4″ of rise and 4″ of drop.  The drop ball mount is 0″ to 7″

Questions and answers of the customers

    how well do you think this hitch will work with a 2500 lb travel light trailer and a short box regular cab ram cab , the reason I ask the combo may not be heavy enough to realy activate the hich to its full potential
  1. 0 votes
    Q how well do you think this hitch will work with a 2500 lb travel light trailer and a short box re...... Read more
    A Our cushioned hitches will work extremely well in your given situation. It does not matter if it is 12000 lbs or 2500 lbs it will stick utilize the bump cushions to smooth out your ride the same.

Send me a notification for each new answer.


Be the first to review “Shocker 20K Impact Max Cushioned Sway Bar Combo Ball Mount”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 50 lbs
Dimensions 12 × 12 × 5 in
Select Receiver Hitch Size

Fits 2" Hitch, Fits 2-1/2" Hitch, Fits 3" Hitch
