Shocker XR Drop Ball Mount with Sway Bar Tabs

Select Option:

Clear

Product Information:

List Price: $369.99Sale Price: $283.50Free Ground Shipping*

Money IconExtra 10% OFF, hurry limited time offer.
Reviews
Rated 0 out of 5
SKU: SH-XR100-320SC-Base
Series:

-

Product Description

  • Adjustable Drop Ball: HD adjustable drop ball mount with sway bar tabs
  • Flip Around Design: Versatile and flipped around more drop or rise.
  • 8 Adjustment Holes: 0 – 7-1/2″ of drop
  • Drop Sway Ball Mount: 1-piece welded combo ball mount with 2″ and 2-5/16″ balls and sway tabs for mounting the basic sway control arm bar(s) & mini balls. (such as the Shocker 17200 friction sway control kit or Reese 83660 Sway Kit)
  • 12,000 to 20,000 lb GTW: 12,000 lbs for 2″ hitch, 16,000 lbs GTW for 2-1/2″ and 20,000 lbs GTW for 3″. Tongue weight is 10% of GTW.
  • Premium Black Powder Coat: Premium black powder-coated finish of the base frame.
  • Adjustable Length: 2 hitch pin holes for length adjustment and it also allows for use with hitch mount towing mud flaps.
  • Choose Your Receiver Size: Available for 2″, 2-1/2″ and 3″ receiver hitches
  • 10+ Ball Mount Options: Choose the ball mount that works best for you. We have dual ball, drop, raised, pintle hooks, combo multi-ball, clevis pin, dual ball with sway bar tabs, cushioned drawbar, drawbar and more. Combo balls are 2″ & 2-5/16″ welded design for maximum strength. Gives you 4″ of rise to 4″ of drop. Premium clear zinc finish.
  • Kit Includes: Shocker XR base frame, adjustable drop ball mount with 2″ or 2-5/16″ hitch ball with welded-on sway control bar tabs along with 2 d-handle ball mount pins with clips.
  • Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

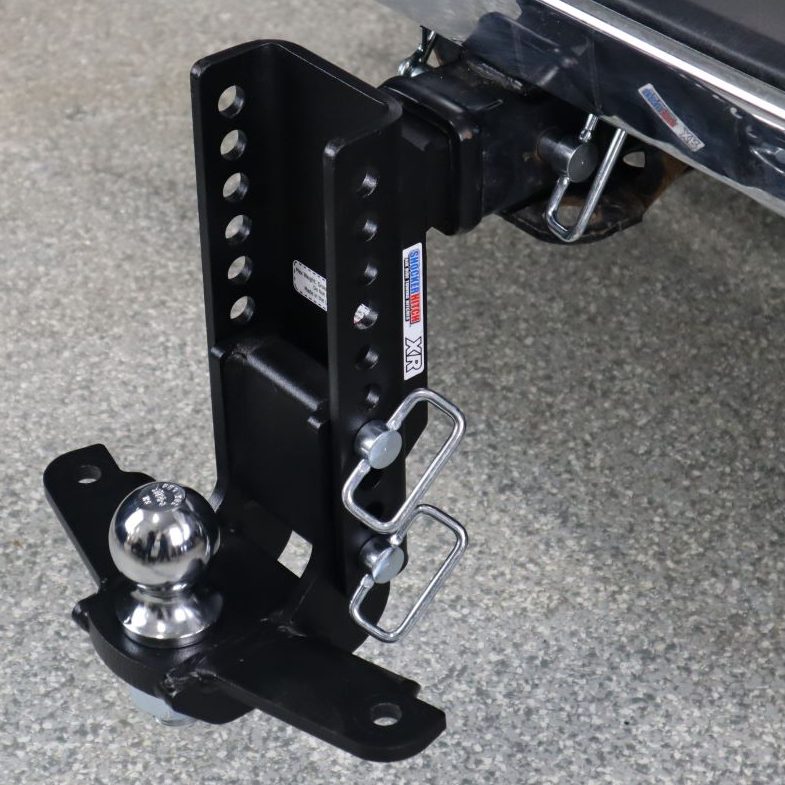

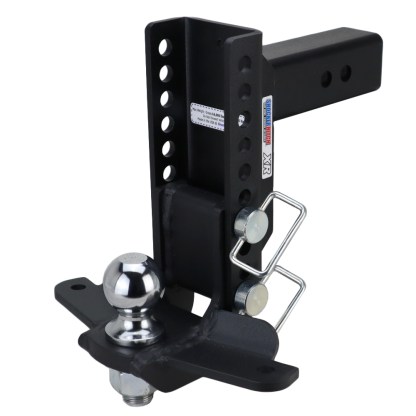

The Shocker XR Adjustable drop ball mount with sway control bar tabs is available with a 2″ hitch ball or a 2-5/16″ hitch ball with a 0″ to 7-1/2″ of drop and is perfect for taller or lifted pickup trucks. Get up to 20,000 lbs tow rating capacity, depending on hitch selected. Shocker XR drop ball mount provides the ultimate in versatility. The XR hitch has built-in adjustability and maximum versatility for your towing needs. This Shocker XR drop ball mount attaches by sliding into a standard receiver tube. Use this adjustable ball mount however you need to for tons of versatility.  This sway control bar tab drop ball mount has 2 sway control tabs for mounting the basic sway control arm bar(s) & mini-balls such as the  Curt 17200 friction sway control kit.

With this adjustable XR drop ball mount, the hitch balls bolt to a standard mount with a 1-1/4″ thick bolt and feature a premium chrome finish.

Note: The sway control tab mount is designed to work with the Shocker 17200 Friction Sway control kit or Reese 83660 friction sway control kit, which are not included and are available separately. Suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs.

California Residents: Prop 65 Warning

Video

Shocker XR Ball Mount Video

Shocker Sway Control Kit Video

Install

Shocker XR Ball Mount Hitch Setup Installation Instructions

Download the Shocker XR Series Hitch Instructions Insert the shank of the hitch into the receiver of your tow vehicle. Make sure you are using the correct size shank to work with your receiver. Secure the hitch with a hitch pin. Adjust the ball mount attachment so your tow vehicle and trailer are level. You can flipped the XR frame around for more drop or more rise.
XR Adjustable Ball Mount Flipped
XR Adjustable Ball Mount Flipped
Safety Notice: The Shocker XR series hitches are a heavy-duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle, coupler rating, tow vehicle rating and trailer weight rating.

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.

FAQ

Answers to Frequently Asked Questions

How much drop or rise does the XR ball mount offer?

From 4″ of rise to 7-1/2″ of drop depending on the ball mount attachment used.  The combo mount is 4″ of rise and 4″ of drop.  The drop ball mount is 0″ to 7-1/2″

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

Reviews

Be the first to review “Shocker XR Drop Ball Mount with Sway Bar Tabs”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 33 lbs
Dimensions 11 × 11 × 7 in
Select Receiver Hitch & Ball Size

Fits 2-1/2" Hitch, Has 2-5/16" Ball, Fits 2-1/2" Hitch, Has 2" Ball, Fits 2" Hitch, Has 2-5/16" Ball, Fits 2" Hitch, Has 2" Ball, Fits 3" Hitch, Has 2-5/16" Ball, Fits 3" Hitch, Has 2" Ball
