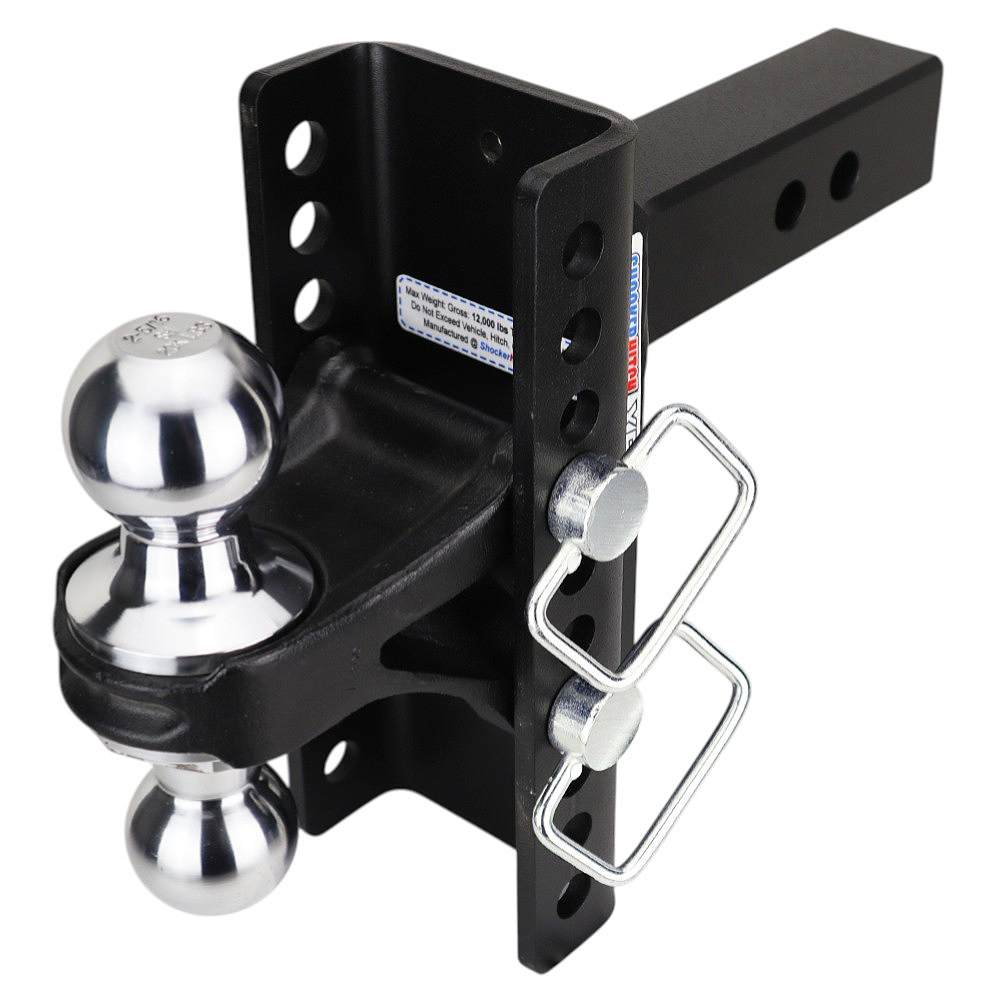

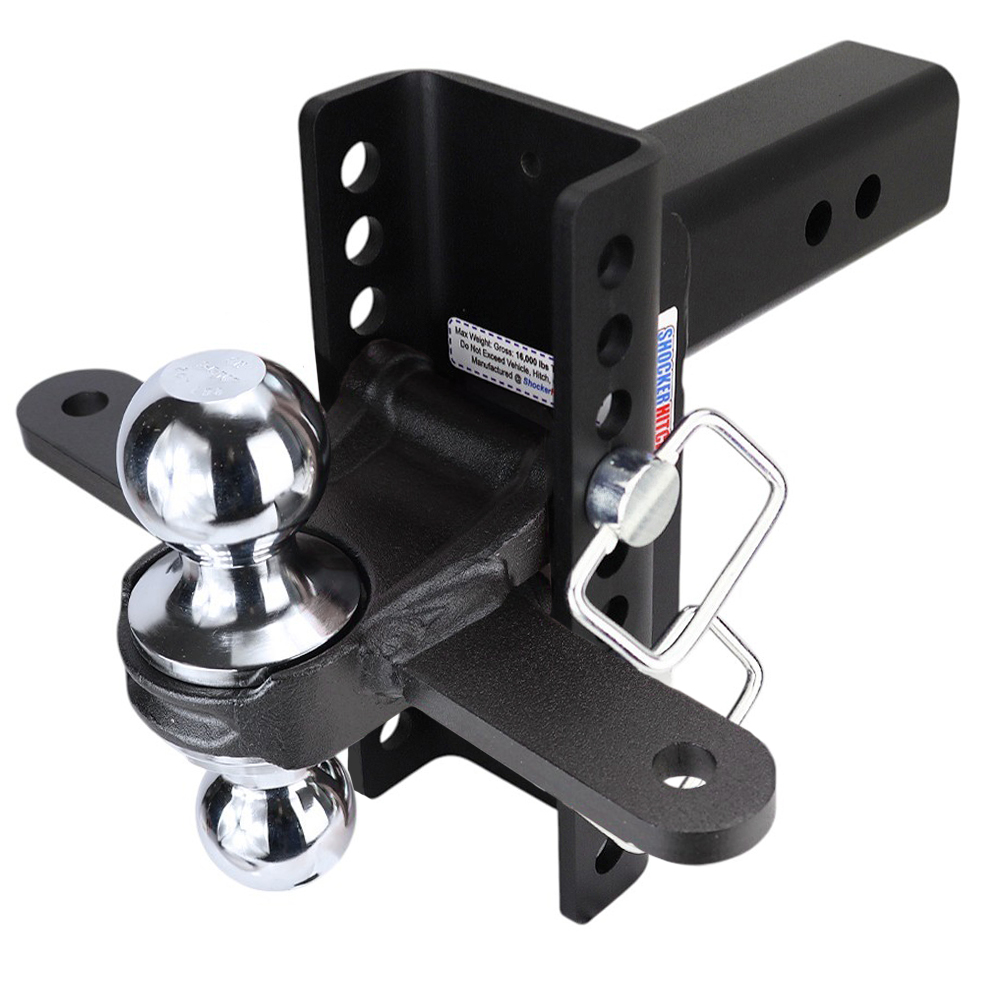

Shocker XR Channel Drop Hitch - Chrome Combo Balls - Installed - 8 Hole Frame

XR Hitch Flip Around Design for More Drop or Rise

Shocker XR Adjustable Drop Hitch – Build Your Own

Rated 5.00 out of 5 based on 13 customer ratings

$126.15 – $295.79~~$145.00 – $339.99~~

Extra 13% OFF, hurry limited time offer.

Usually Ships on or Before Fri 10/30/26

Usually Ships on or Before Fri 10/30/26

Usually Ships on or Before Fri 10/30/26

Usually Ships on or Before Fri 10/30/26

Usually Ships on or Before Fri 10/30/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Fri 10/30/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Fri 10/30/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Fri 10/30/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Fri 10/30/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Usually Ships on or Before Mon 10/19/26

Clear

Additional Add-Ons

3-Pack (2 Mount & 1 Receiver Pins)

Locking Hitch Pin & 2 Ball Mount Attachment Locking Pins - Fits Base Frame & Receiver

$62.01

|

SKU: SH-317-2-318

Shocker Pintle Hook & Ball Combo with 2-5/16 Ball - Channel Mount

8-Ton Pintle Hook & Ball

$130.19

|

SKU: SH-334-25

OR

-

Description
Product Description
- HD Adjustable Channel-Style Drop Hitch for Maximum Utility: Heavy-duty channel-style adjustable drop and rise hitch for maximum utility. Great for pulling equipment trailers, campers, cargo, car, boat, utility & fish house trailers, and more.
- One Drop Hitch for Multiple Trailers with Plenty of Adjustment for All-Around Use: Versatile design works great on pickup trucks, motorhomes, RVs, vans, gators, toolcats, all-terrain vehicles, SUVs, CUVs, and minivans. Great for when you may tow a variety of trailers with different ball coupler sizes and varying trailer tongue heights.
- Industry-Leading Heavy Duty 5/16" Thick Channel with 8 or 10 Adjustment Holes: 6" of rise to 9" of drop. Depends on the mount chosen. See the drop & rise guide below. Perfect for long-lasting, heavy-duty trailer towing with a receiver hitch. Thick HD carbon steel channel keeps holes in tolerance longer.
- Choose Your Mount & Drop/Rise: Choose combo-ball, drop-ball, raised-ball, sway-control-tab, pintle, pintle-with-ball, drawbar, cushioned-drawbar, or clevis attachments. Adjustment range depends on your selection, with the drop-ball mount providing up to 7.5" of drop on the 8-hole frame or 9.5" on the 10-hole frame. Choose No Ball Mount if you already have a compatible attachment or plan to purchase one separately. See the Drop/Rise Guide for attachment ranges and ratings, or explore ball mount attachments ↗.
- Adjusts for Both Drop and Rise with Flip-Around Design: The entire hitch channel can be flipped around for more drop or rise. Drop or rise depends on the model selected (See drop/rise chart). Get 2" more drop/rise with a 10-hole frame.
- Heavy Duty 12,000 to 20,000 lb GTW Options for 2" or 2.5" Receivers: 16,000 lbs GTW for 2.5" and 12,000 lbs GTW for 2". Tongue weight is 10% of GTW.
- XR Adjustable Drop Hitch Kit Comes Complete: Includes everything you need: the adjustable Shocker XR series channel drop hitch, ball mount of your choice & 3 ball mount attachment pins with clips. 2 for the attachment & 1 for the receiver.
- Matte Black Textured Premium Powder-Coat Finish: HD Premium powder-coated finish on base frame hitch to protect from the elements and offer a modern look.
- XR Hitch Shank Has 2 Holes for Length Adjustability & Hitch Mount Rock Guards: XR shank features a longer shank with 2 hitch pin holes to adjust the length. Plus, the longer shank offers plenty of room to accommodate and work with hitch-mounted towing mud flaps or quick-clip under-bumper tow flaps.
- Pintle & Ball Towing Ratings: Complete SH-334 attachment ratings: pintle mode, 16,000 lb GTW; 2" ball mode (SH-334-2), 12,000 lb GTW; 2-5/16" ball mode (SH-334-25), 16,000 lb GTW. Maximum attachment TW is 3,000 lb in each mode. Follow the selected hitch base rating; other attachment options have their own limits.
- Choose Your Receiver Size: Available for 2" or 2.5" receiver hitches.
- Need a Solution To Prevent Trailer Sway? If sway is an issue, check out our sway control hitches.
XR Hitch Setup & Towing Guides

Guides open in a new tab so you can keep your hitch selections.
- Safety Notice: Towing capacity is limited by the lowest-rated component. Never exceed the lowest applicable gross trailer weight (GTW) or tongue weight (TW) rating of the vehicle, receiver, hitch base, attachment, ball, coupler, or trailer. Evaluate GTW and TW separately. The proper ball must be installed before towing, including in pintle mode. SH-334 without a ball is a replacement part only.
Heavy-duty adjustable channel-style drop and rise hitch for towing bumper-pull trailers. Adjusts for both drop and rise. One drop hitch for multiple trailers. The flip-around design offers more drop and rise options. The adjustable channel is great for towing a variety of trailers with different tongue heights. With the XR drop hitch, you can pull heavy-duty equipment trailers, campers, boats, fish house & ice house trailers, cargo trailers, car trailers, and more. Pick the receiver hitch size and one of 20 + styles of mount attachment. Build your own Shocker XR ball mount hitch and pick the adjustable ball mount you need. The 20+ ball mount attachment options include Drop, dual ball, raised, pintle, drawbar, clevis pin, pintle & ball, along with combo, raised & drop mounts with sway bar mount tabs. Combo balls are available in black, red, and chrome.

Available for 2" & 2.5" Receiver Hitches. Get up to 20,000 lbs. tow rating capacity and 2,000 lbs. tongue weight (varies by hitch size chosen). These Shocker XR receiver hitch ball mounts provide 8 adjustment holes or 10 adjustment holes (depending on the model). Get 5" of rise and up to 9.5" of drop depending on the XR series hitch & mount attachment chosen. The Shocker XR series hitch is designed for heavy-duty applications for any towing needs. The XR series hitches feature an adjustable channel design that offers built-in adjustability for maximum versatility. The shank features two hitch pin holes for length adjustment, as well as making it compatible with hitch-mount towing mud flaps & rock guards. This Shocker XR drop hitch has a textured black powder coat finish & attaches by sliding into a standard receiver tube.

Made by Shocker Hitch®.

California Residents: Prop 65 Warning
Video

Video
Shocker XR Hitch Videos

Drop/Rise Guide

Drop/Rise Guide

XR Series Hitch: Drop, Rise & Tow Ratings

Never exceed the lowest applicable gross trailer weight or tongue-weight rating of any component in your towing setup. Evaluate each limit separately. Attachment ratings do not increase the hitch base’s ratings. In the table, each pair means maximum trailer weight / maximum tongue weight in pounds. Attachment ratings do not increase the hitch base rating.

The table covers the XR 8-hole frame. The existing XR frame specification provides 2 inches of additional drop and rise for the 10-hole frame; confirm the selected frame and attachment before towing.

Your usable adjustment range depends on the selected attachment. Match its name below.

Maximum attachment ratings in pounds: trailer weight / tongue weight.
Attachment	Drop / rise range	Maximum trailer weight / tongue weight (lb)

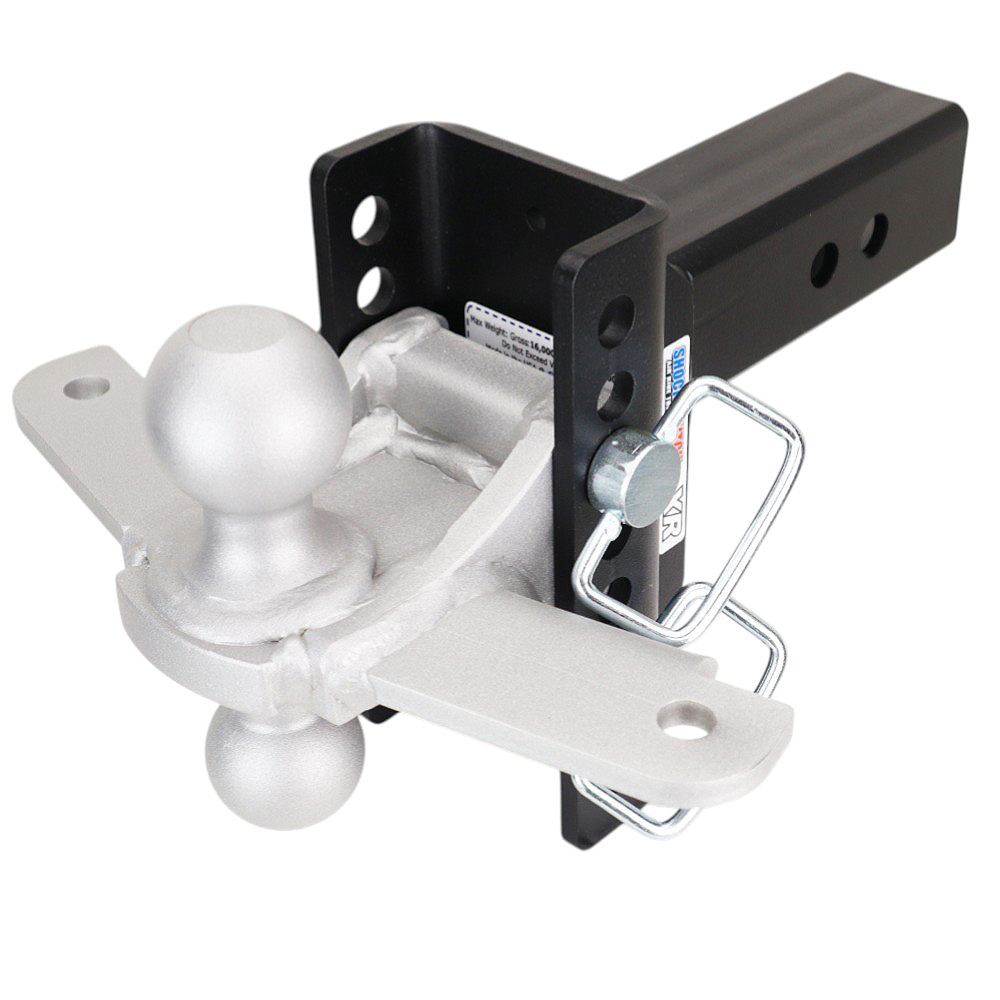

Combo Ball	4″ Rise to 4″ Drop	2-5/16″ ball: 20,000 / 2,000 2″ ball: 10,000 / 1,000
Drop Ball	Level to 7-1/2″ Drop	2-5/16″ ball: 20,000 / 2,000 2″ ball: 10,000 / 1,000

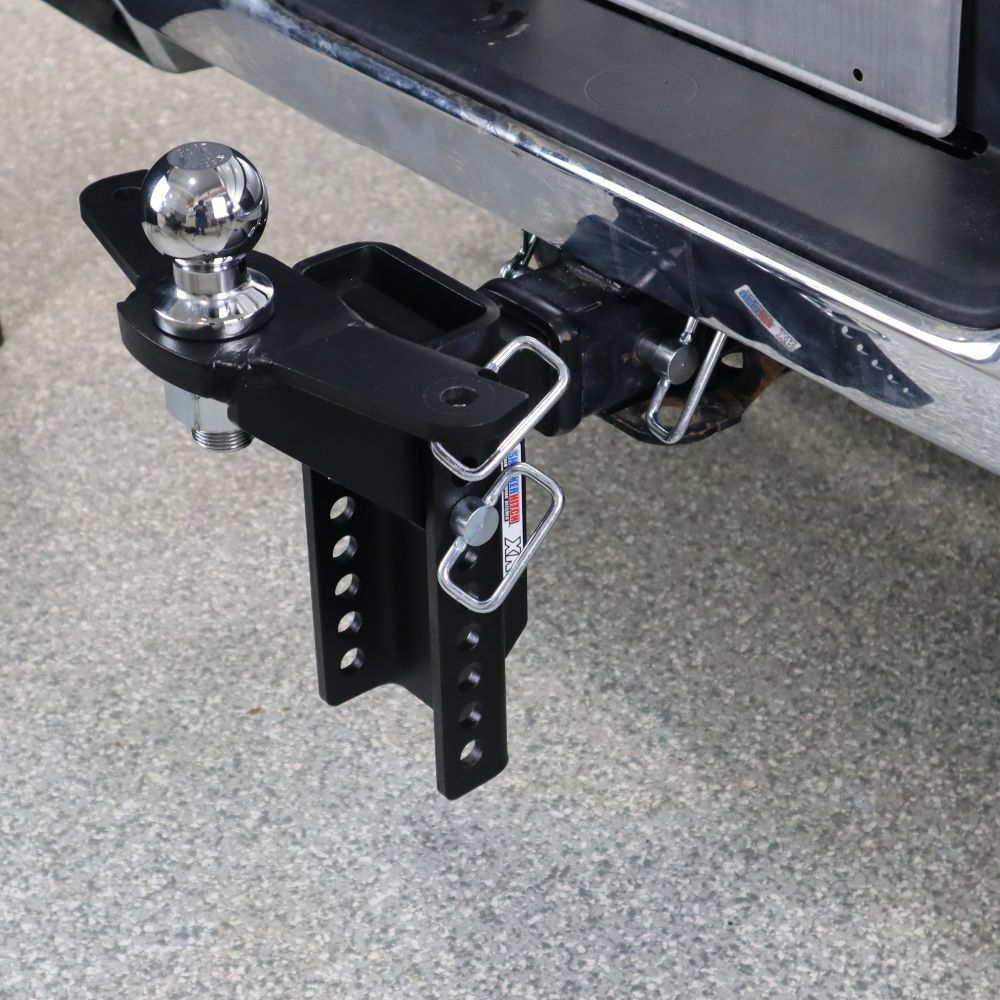

Raised Ball	5″ Rise to 3″ Drop	2-5/16″ ball: 20,000 / 2,000 2″ ball: 10,000 / 1,000
Bolt-on Pintle Hook (SH-331-332, discontinued)	3.5″ Rise to 8.5″ Drop	20,000 / 2,000
Pintle Hook (SH-333)	1″ Rise to 7″ Drop	20,000 / 2,000
Raised Pintle Hook (SH-335)	3.5″ Rise to 4″ Drop	20,000 / 2,000
Pintle & Ball — Complete SH-334-2 / SH-334-25 Attachments	1″ Rise to 7″ Drop	Pintle mode (with proper ball installed): 16,000 lb GTW / 3,000 lb TW. 2″ ball mode (SH-334-2): 12,000 lb GTW / 3,000 lb TW. 2-5/16″ ball mode (SH-334-25): 16,000 lb GTW / 3,000 lb TW.
Drawbar	4″ Rise to 4″ Drop	20,000 / 0

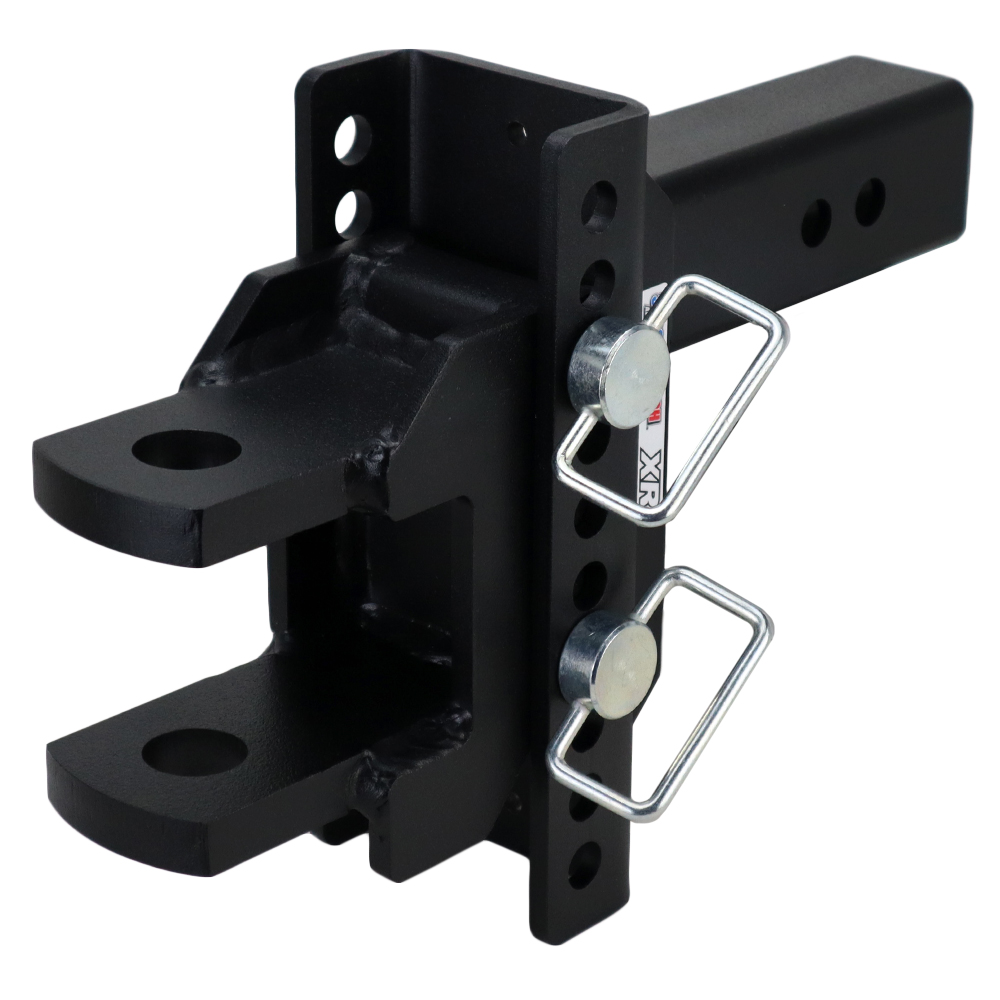

Clevis Mount	1-1/2″ Rise to 6-1/2″ Drop	20,000 / 0

Sway-control-tab mounts: Use the range and ball rating for the corresponding combo, drop or raised ball mount. Confirm compatibility with your selected hitch.

No Ball Mount: A compatible, properly rated attachment is required for towing; the base alone does not provide a towing connection.

Choose the drop or rise your trailer needs

Measure on level ground with the trailer level. “Level” means zero drop or rise. How to choose the right drop hitch (opens in a new tab).

Follow the lowest rating: These are attachment ratings, not a guarantee of your complete hitch capacity. Never exceed the lowest applicable trailer-weight or tongue-weight limit of the vehicle, receiver, hitch base, attachment, ball or trailer. A higher-rated attachment does not increase a lower-rated hitch base’s capacity. Use the marked tongue-weight rating; it is not calculated from towing capacity.

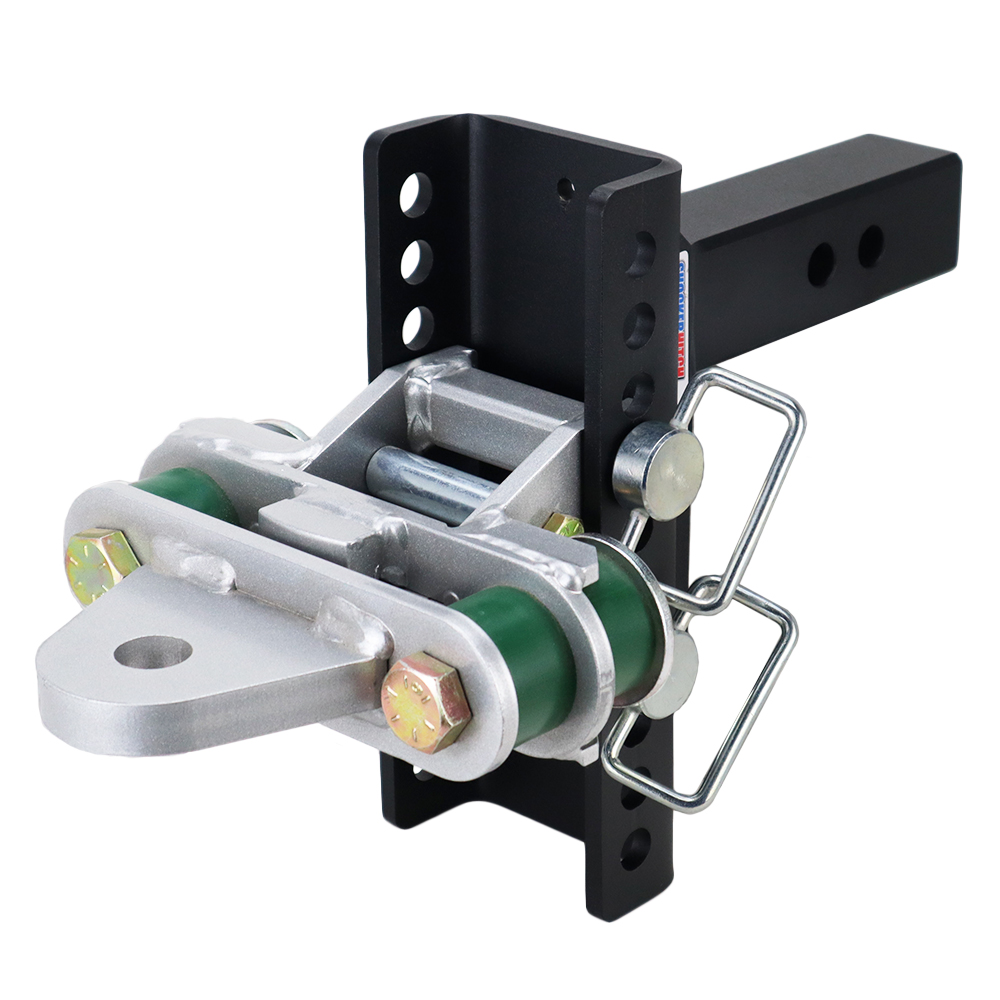

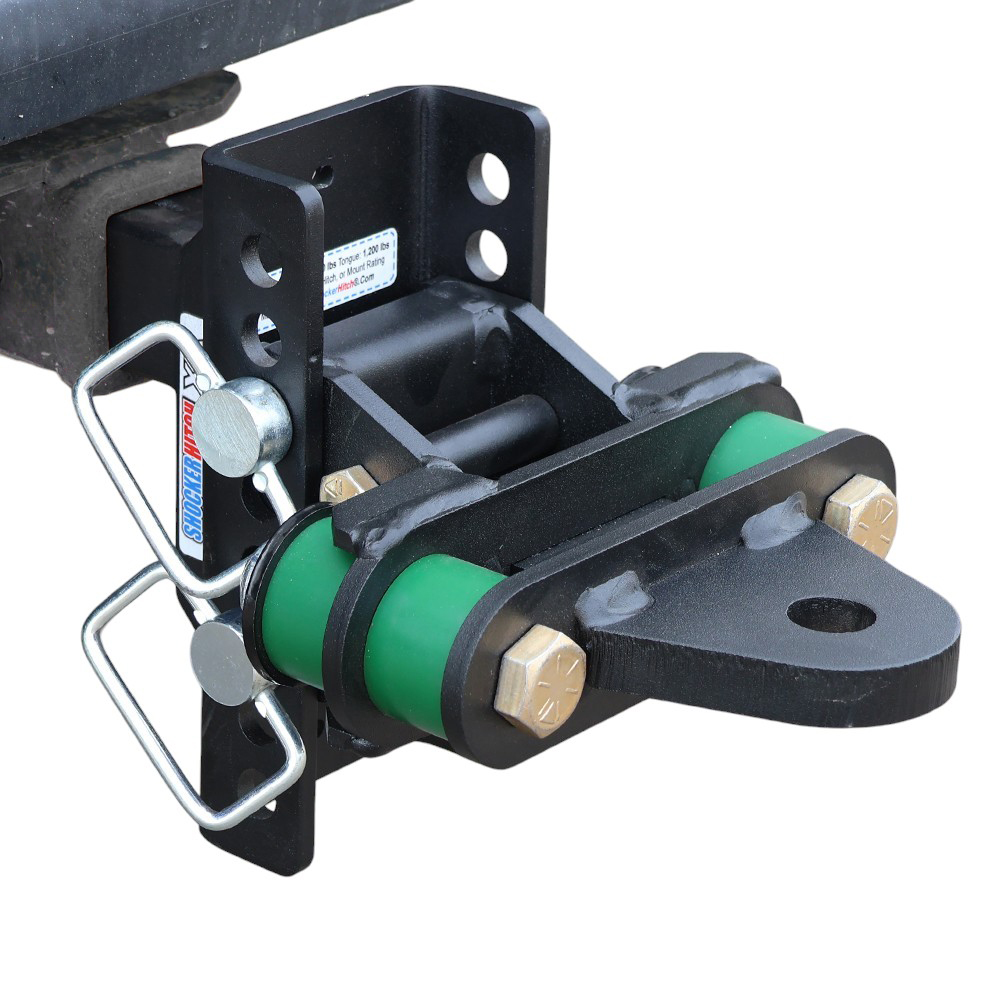

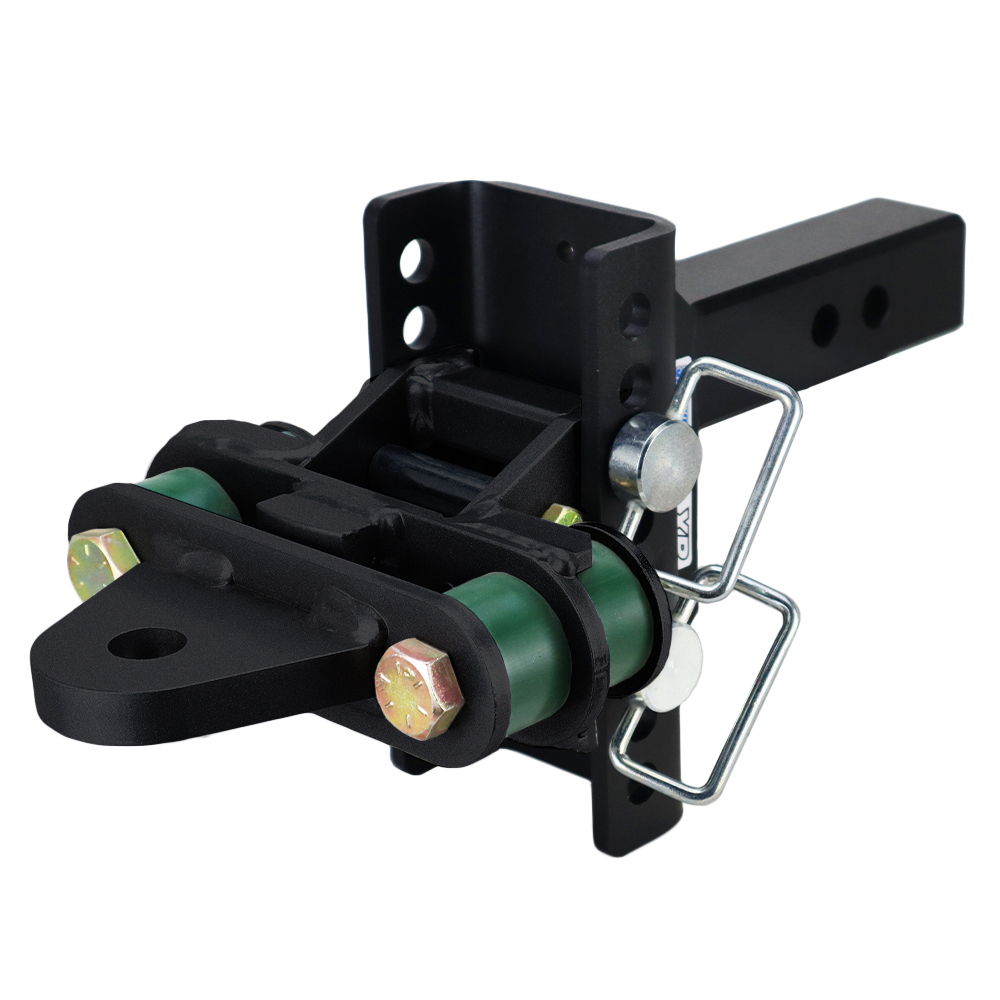

Drawbar, cushioned drawbar and SH-360 clevis: 0 lb vertical tongue load; these mounts are not for use with a hitch ball.

Legacy attachment: The bolt-on pintle hook SH-331-332 is discontinued. Its row is retained for existing owners; confirm the label and instructions for your exact attachment.

Install

Install and adjust your XR receiver hitch

Use the instructions and video below to install the receiver shank and adjust your ball mount. Check the ratings of your complete towing setup before towing.

Here you can download the Shocker XR Receiver Hitch installation instructions – Version 1.2.

Current XR models and installation

SH-XR100 / SH-XR100-10: 2-inch receiver, 12,000 lb GTW / 1,200 lb tongue weight. SH-XR125 / SH-XR125-10: 2-1/2-inch receiver, 16,000 lb GTW / 1,600 lb tongue weight. These limits apply to both 8-hole and 10-hole frames.

Version 1.2, created October 10, 2026. This current-model guide excludes legacy SH-XR130. For that model, follow its original instructions and rating labels or contact our team.

Match your equipment. Check receiver size, hitch/base labels, attachment and coupler ratings. Park on level ground; support and secure the trailer before adjusting the hitch.
Install the XR base. Slide the matching shank into the receiver. Align a receiver pin hole and install a 5/8-inch hitch pin with its clip, or a compatible locking pin. Check clearance.
Set the height. With the trailer supported, select drop or rise orientation. Position the compatible attachment to keep the loaded trailer level. Install BOTH attachment pins and secure both clips/locks.
Connect and inspect. The trailer coupler must match the hitch-ball size. Latch and secure it. Connect safety chains, breakaway cable and lights as applicable. Check all pins, locks and clearance.
Maintain. Inspect pins, clips, holes and mounts for wear or damage. Grease the hitch ball as directed by the coupler maker. Follow the separate instructions for pintle or sway attachments.

TOWING CAPACITY IS LIMITED BY THE LOWEST-RATED COMPONENT.

GTW = gross trailer weight; TW = tongue weight. Do not exceed any applicable rating for the tow vehicle, receiver, hitch, attachment, ball or pintle, trailer coupler or lunette ring, or trailer.

XR Hitch Flip Around Design for More Drop or Rise

XR Hitch Install Video

Video library: Watch the Shocker XR Adjustable Ball Mounts playlist.

Videos show product features and attachment options. Some clips include older models and ratings. Use the current Version 1.2 instructions and your model labels for installation, receiver size and capacity.

XR attachment drop, rise and capacity

The values below are attachment ratings, not complete XR assembly ratings. A higher-rated attachment does not increase the XR base capacity.

Attachment	8-hole: rise / drop	10-hole: rise / drop	Attachment GTW / TW (lb)

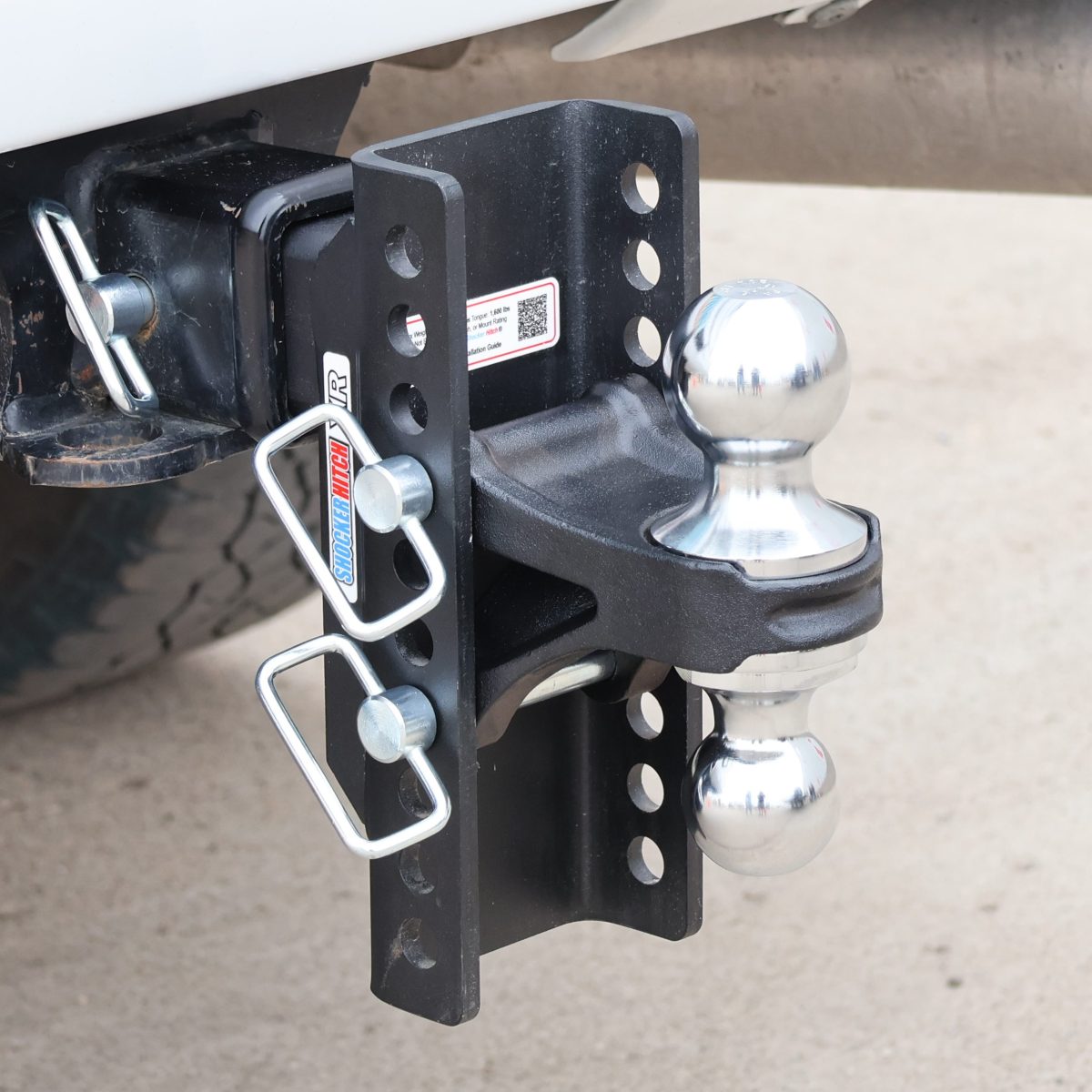

Combo ball*	4" / 4"	6" / 6"	2" ball: 10,000 / 1,000 2-5/16" ball: 20,000 / 2,000
Drop ball*	0" / 7-1/2"	2" / 9-1/2"	Same ball limits as combo above

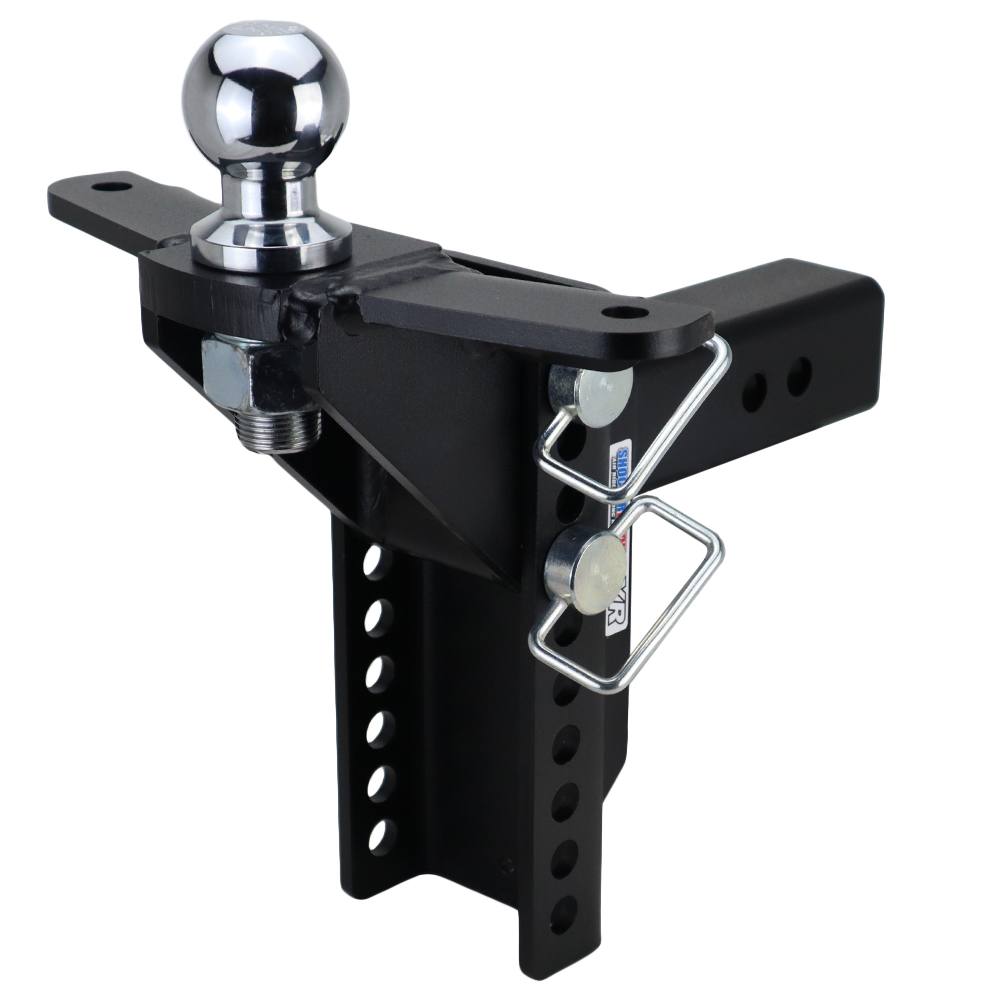

Raised ball*	5" / 3"	7" / 5"	Same ball limits as combo above

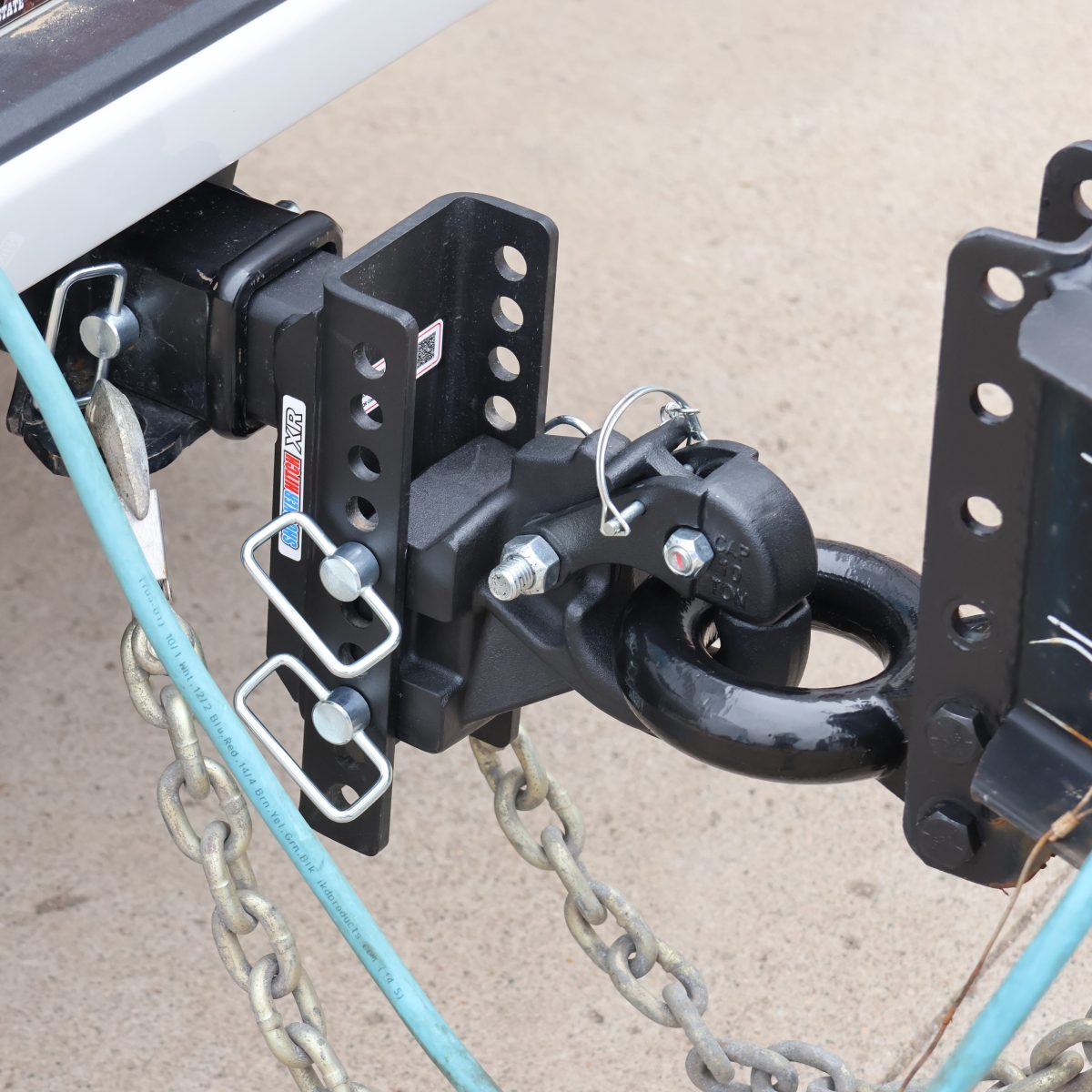

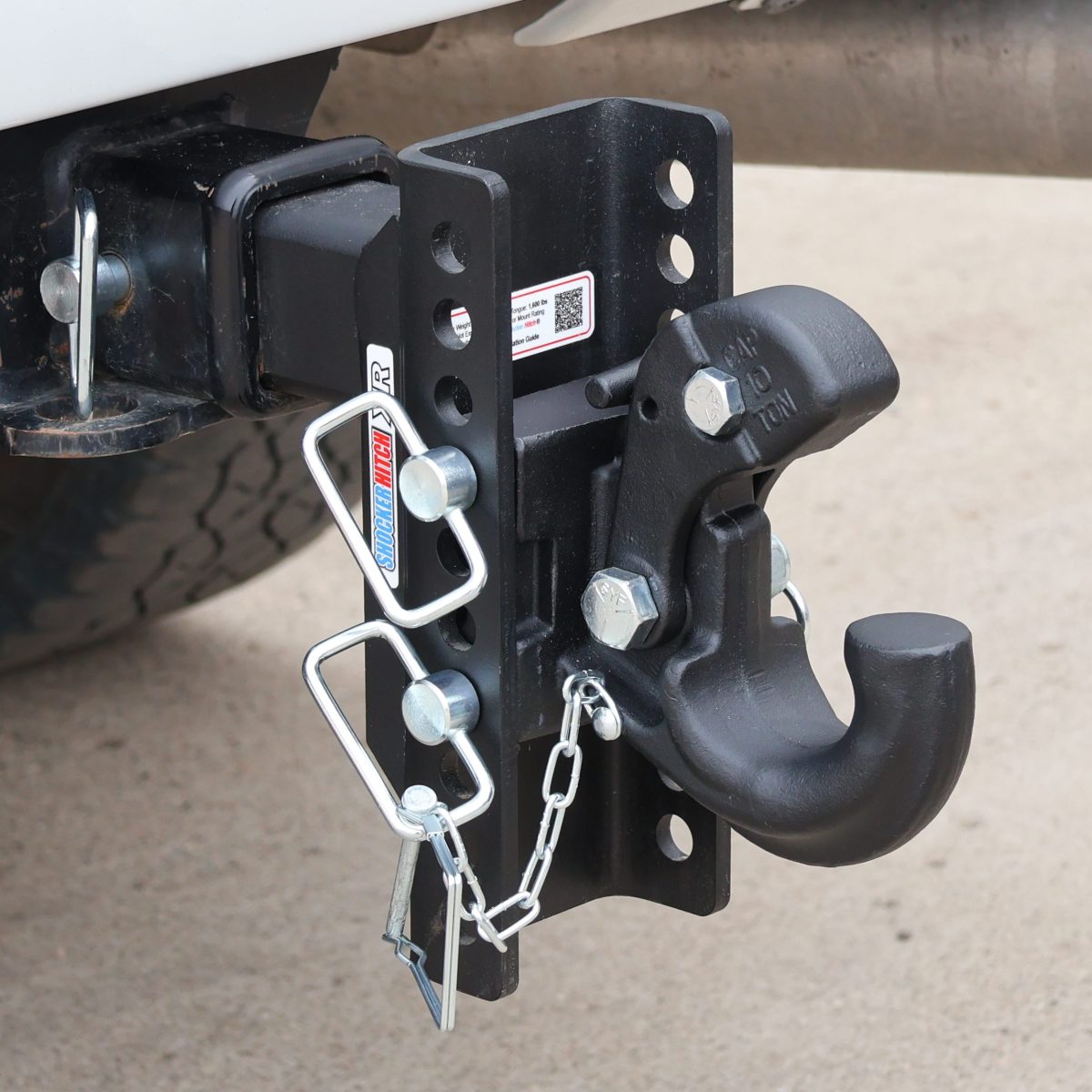

Pintle hook SH-333	1" / 7"	3" / 9"	20,000 / 2,000

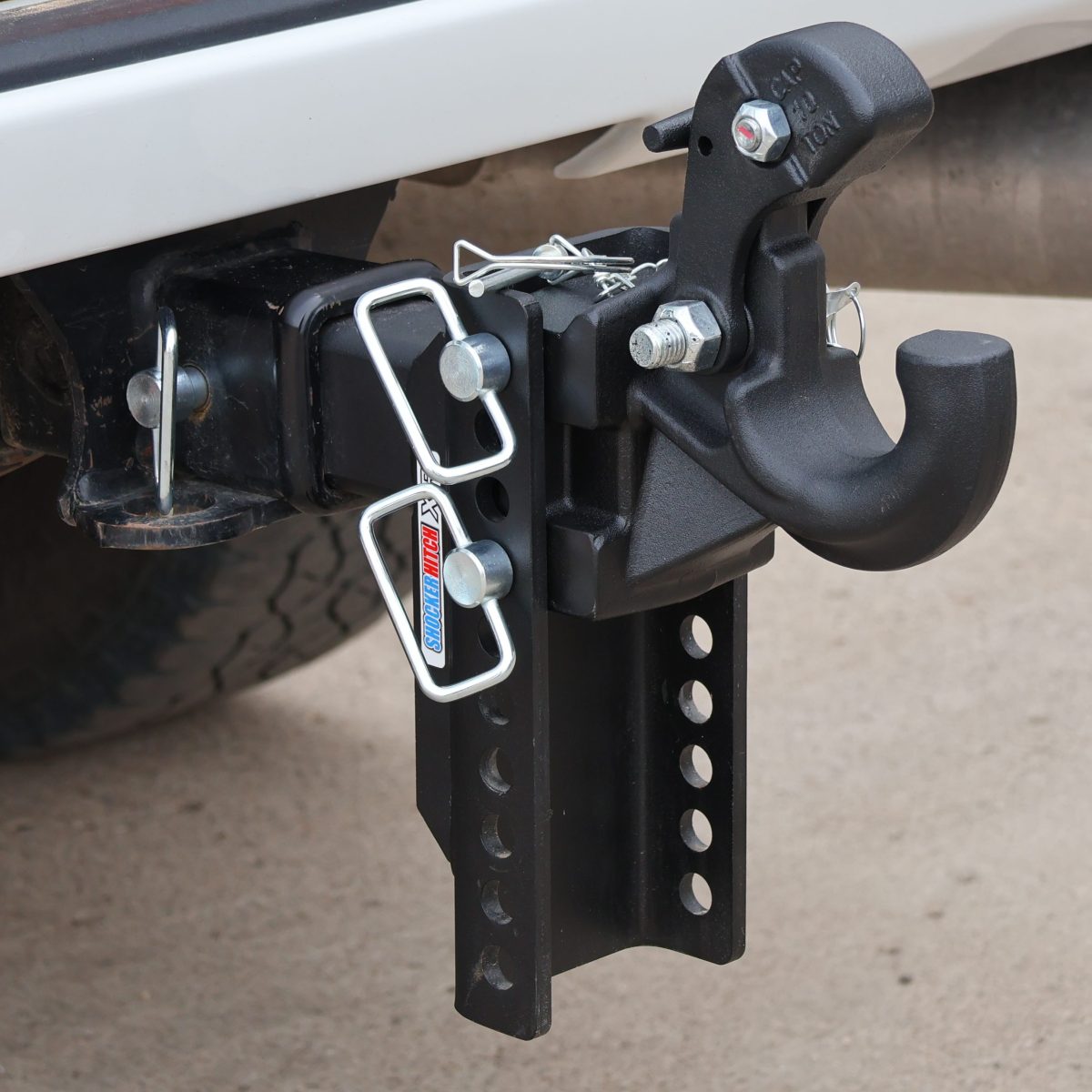

Raised pintle SH-335	3-1/2" / 4"	5-1/2" / 6"	20,000 / 2,000
Pintle & ball SH-334-2/-25	1" / 7"	3" / 9"	Pintle or 2-5/16": 16,000 / 3,000 2" ball: 12,000 / 3,000

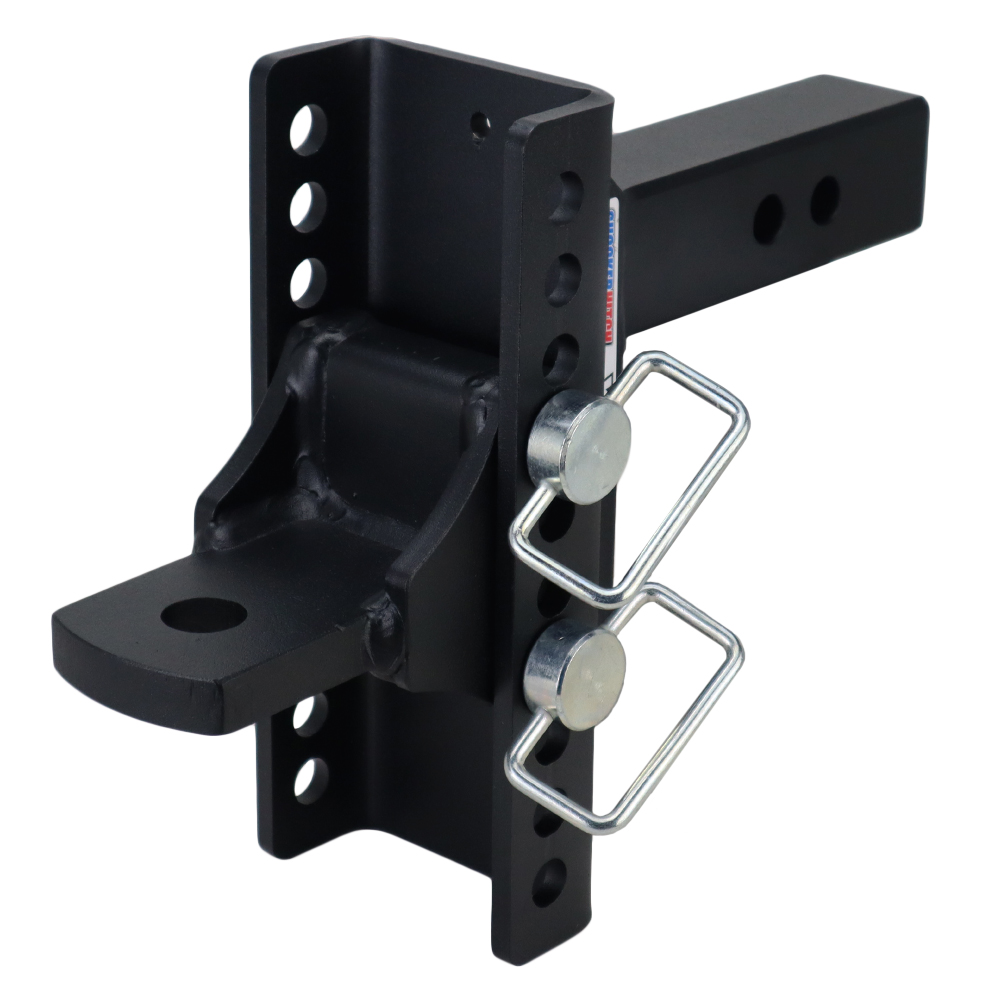

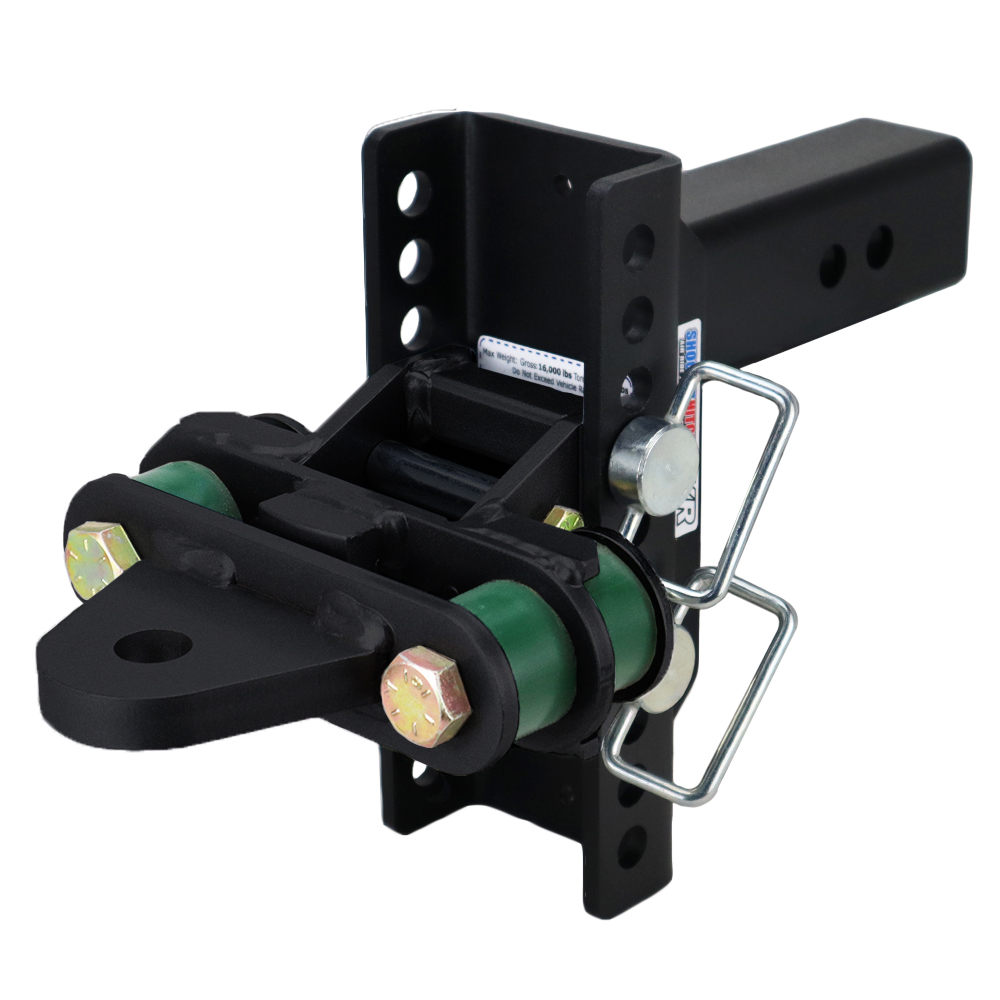

Drawbar SH-350 / SH-370	4" / 4"	6" / 6"	20,000 / 0 (no vertical load)
Clevis SH-360	1-1/2" / 6-1/2"	3-1/2" / 8-1/2"	20,000 / 0 (no vertical load)

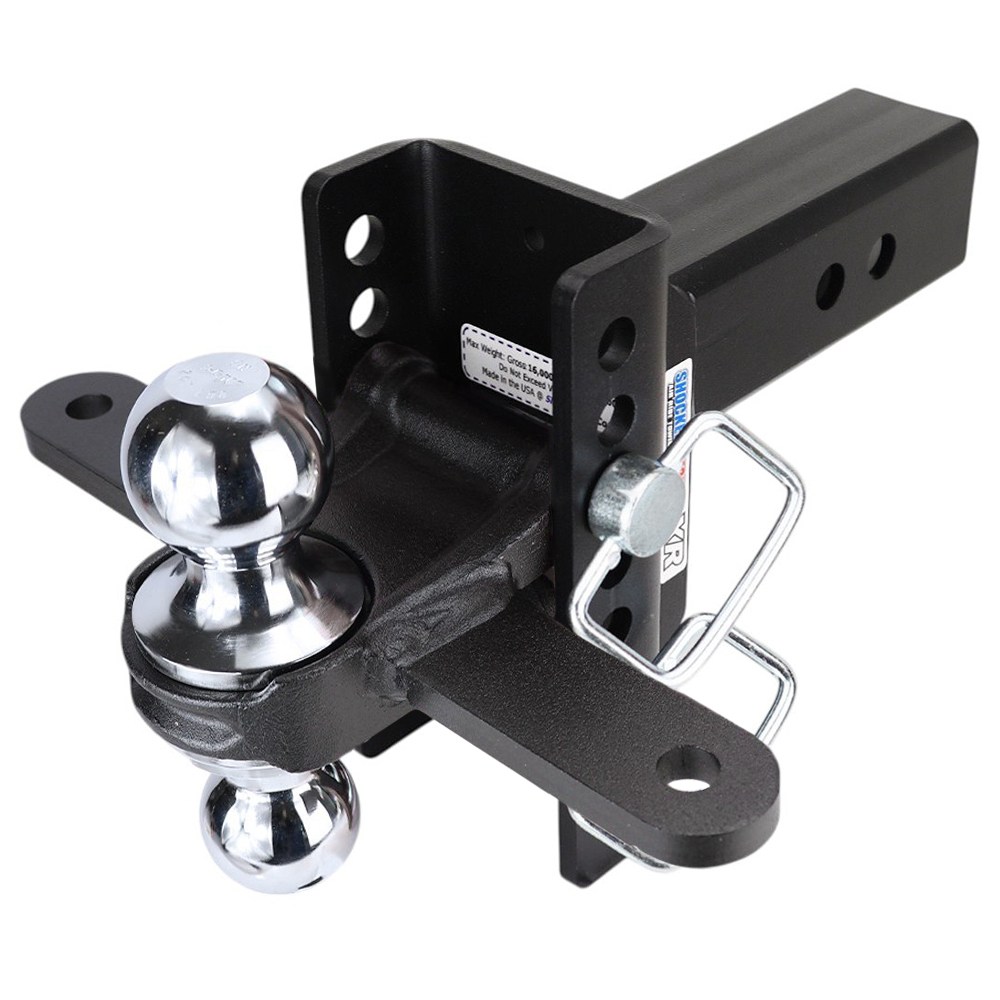

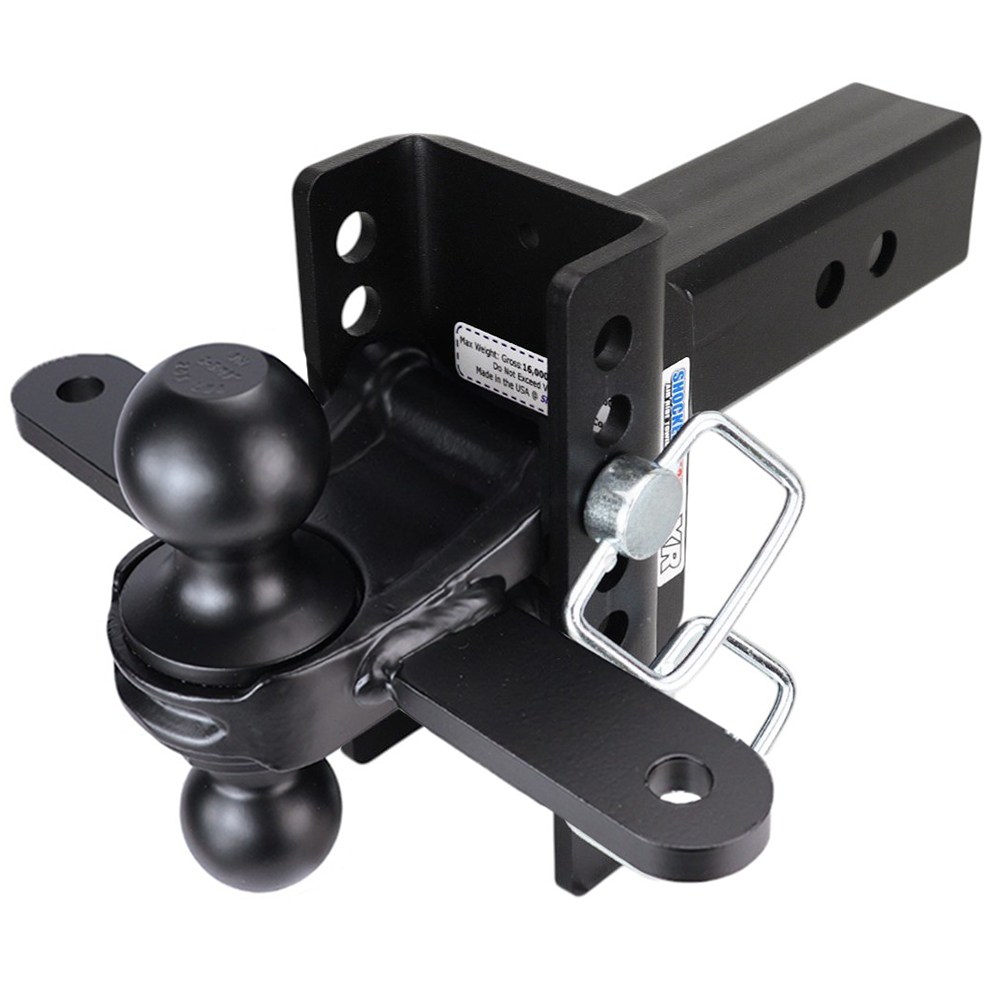

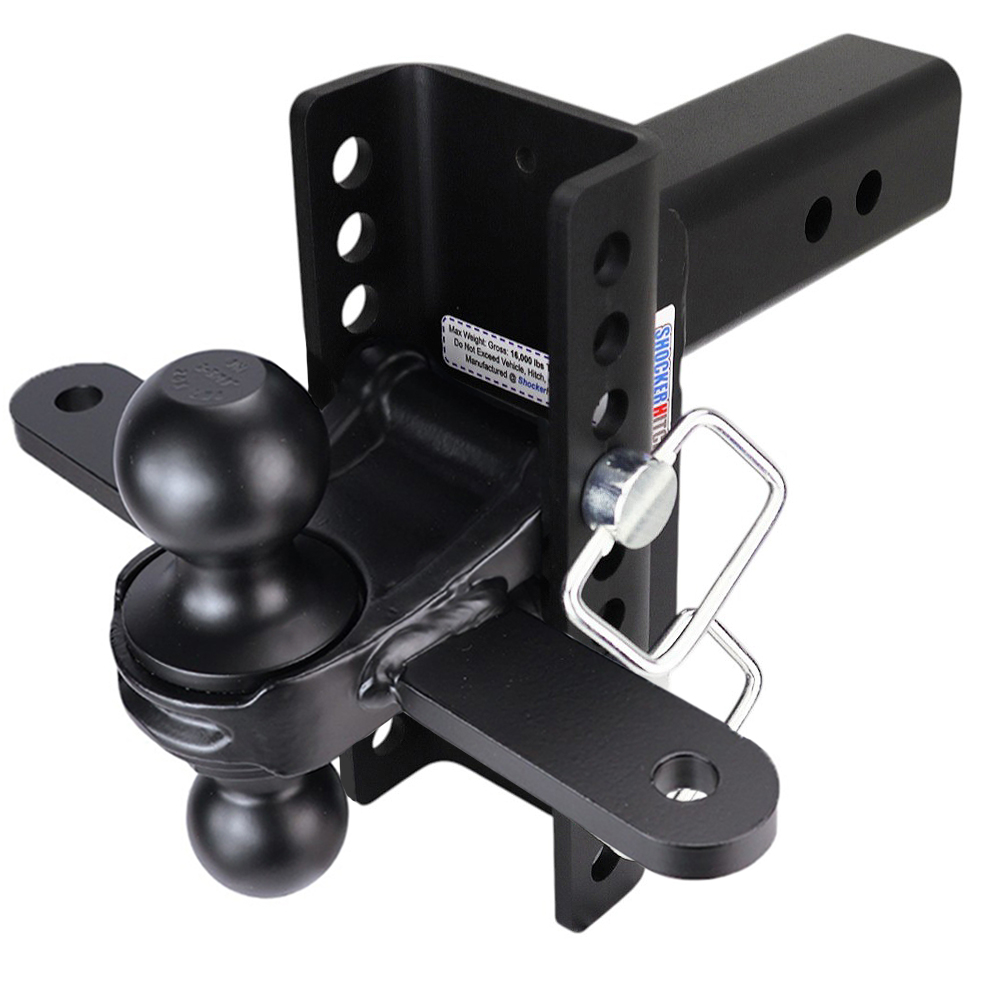

*Sway-tab versions use the corresponding ball-mount limits. Sway arms require compatible mounting tabs; follow the sway-kit instructions. Drawbar/clevis are not for use with hitch ball.

Optional sway-control setup

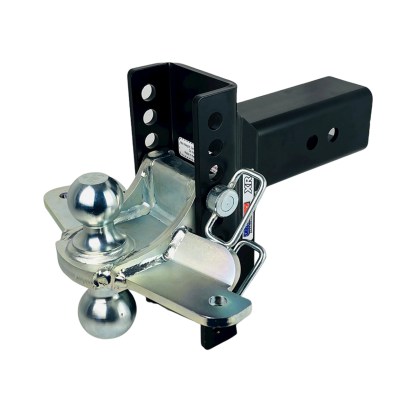

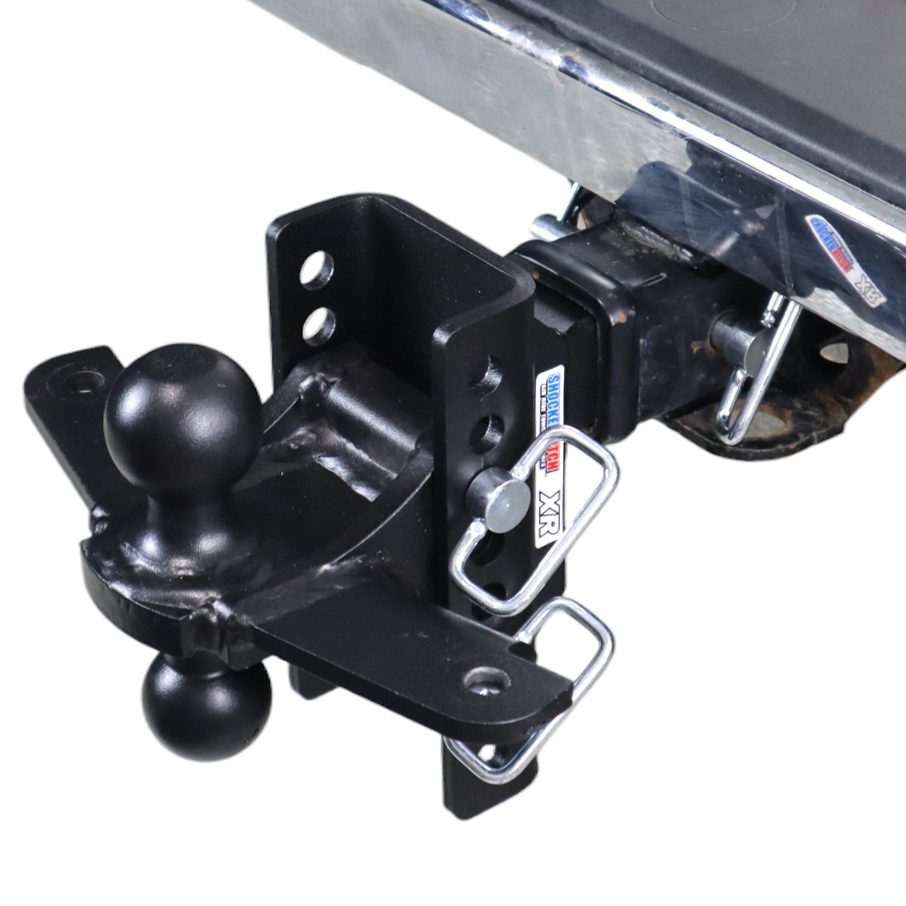

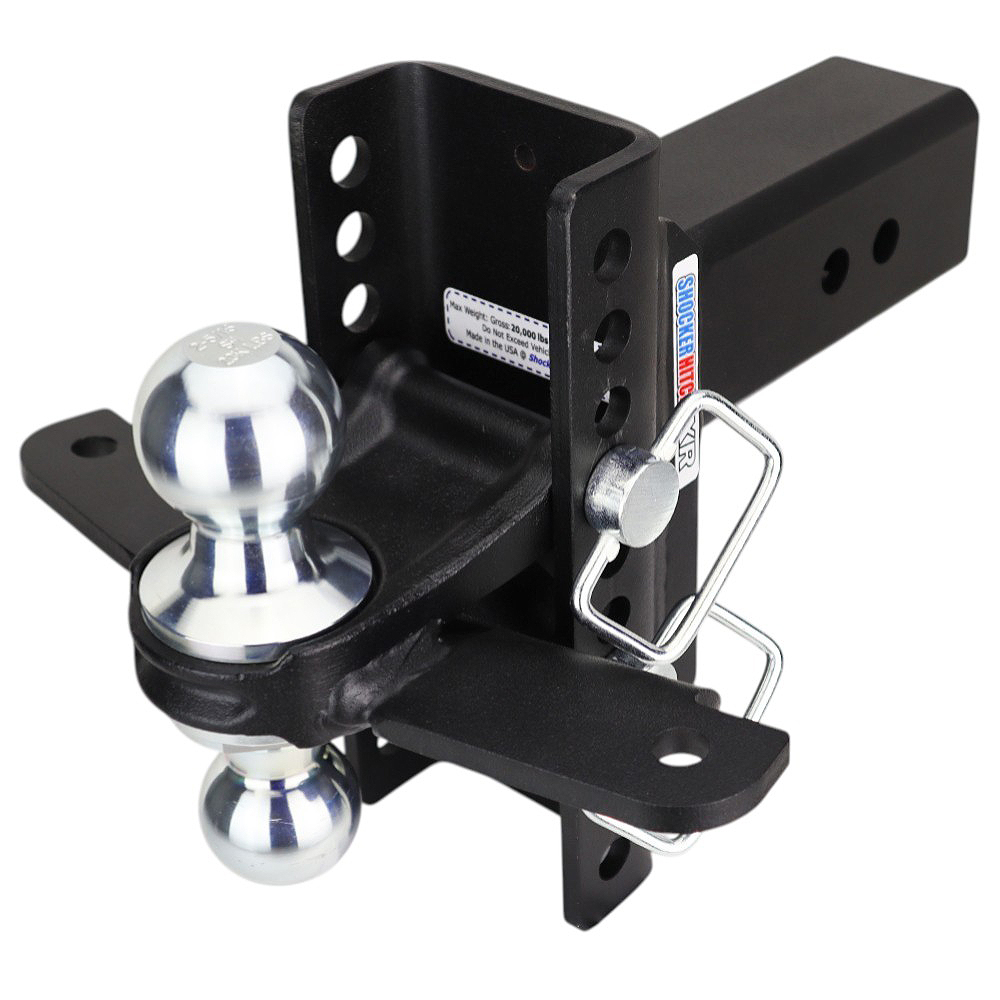

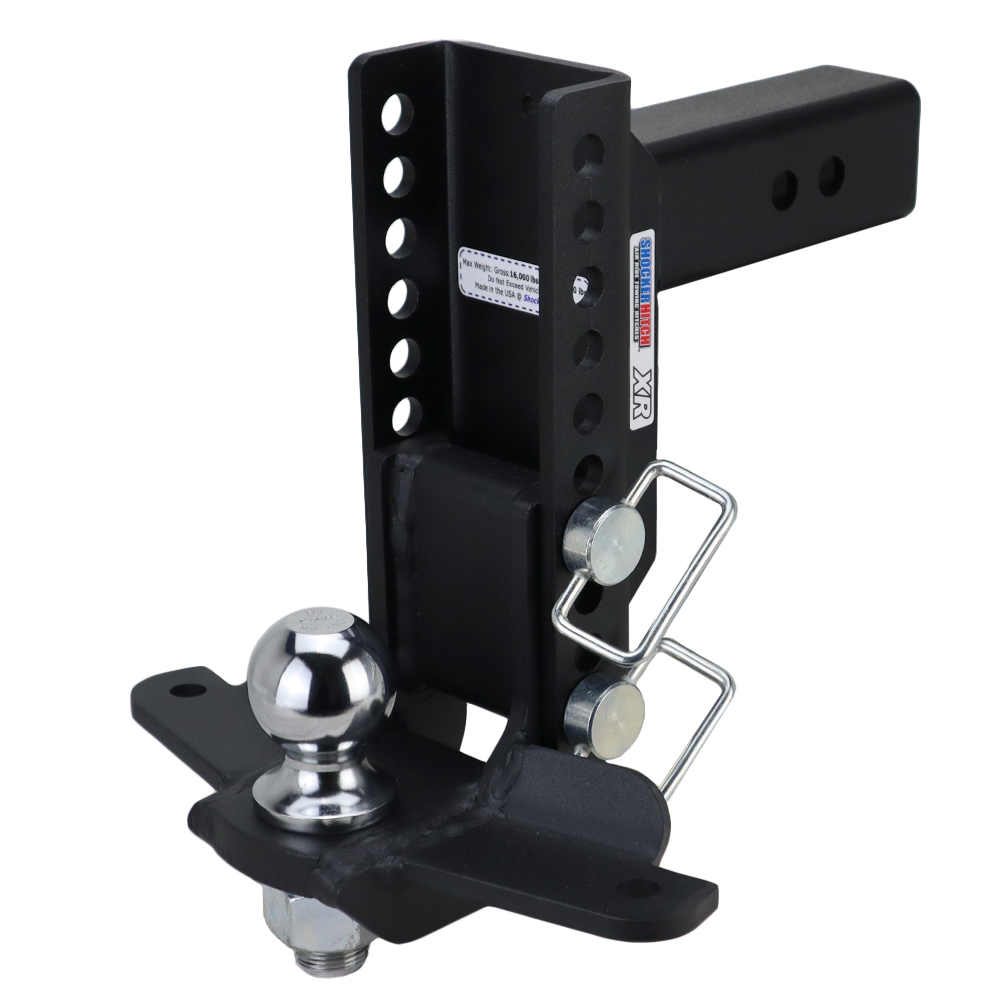

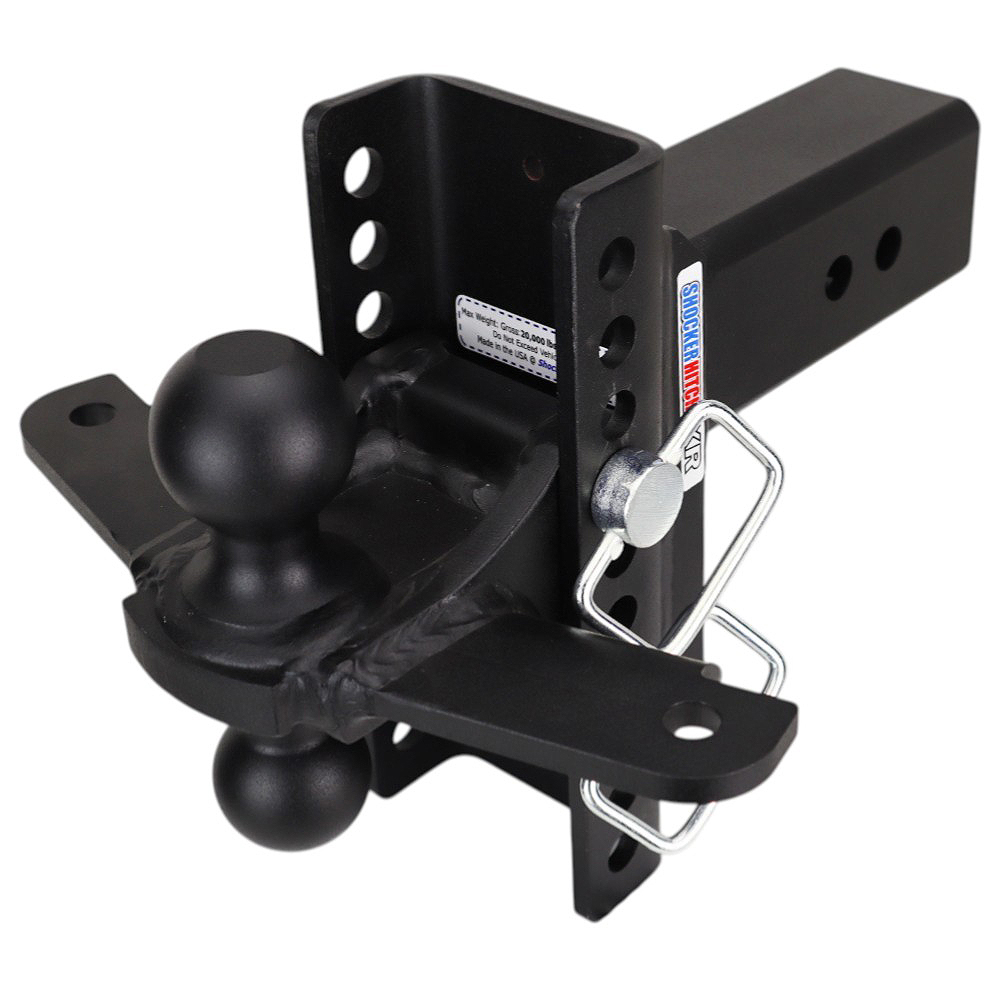

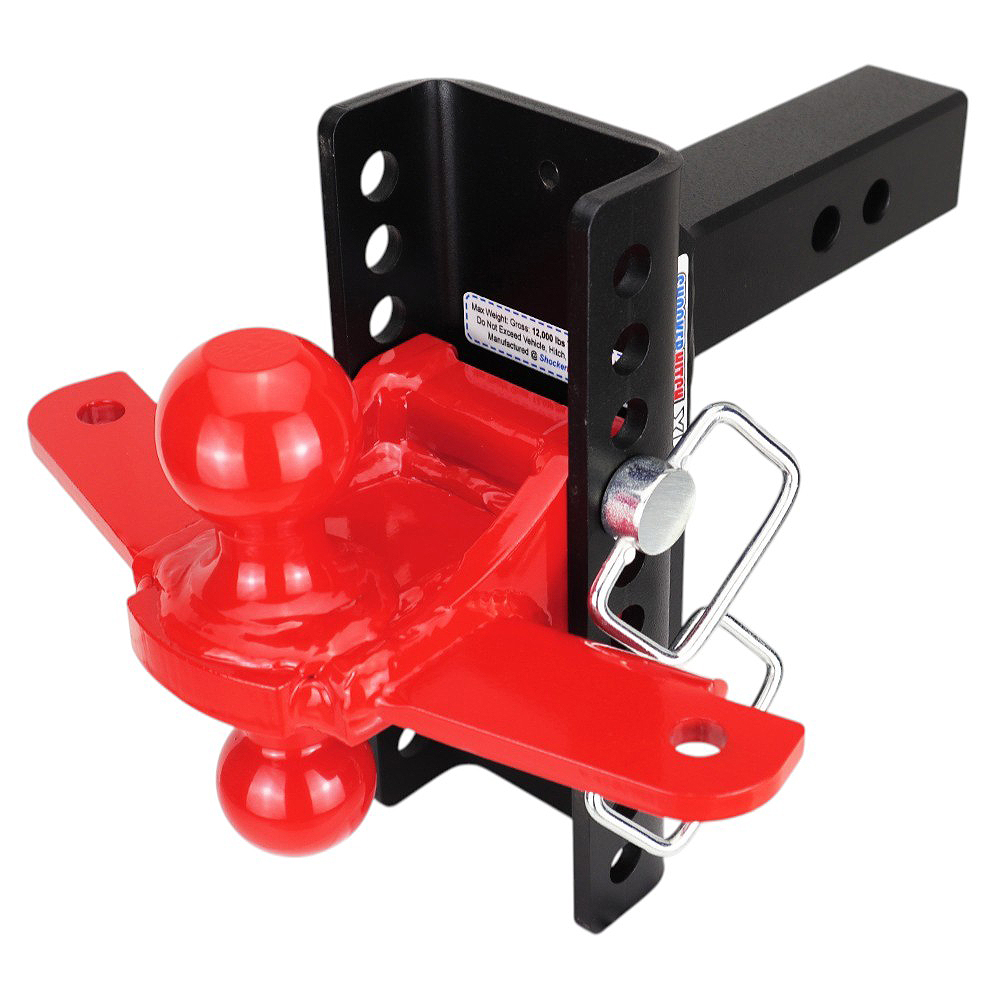

Have an XR combo, raised or drop ball mount with sway-bar tabs? Those tabs provide the hitch-side connection for a compatible friction sway-control arm. You also need the appropriate connection on your trailer.

SH-1001 Friction sway-control kit

SH-1001
Friction sway-control kit

Start here for installing and connecting the friction sway-control arm between your hitch attachment and trailer.

View SH-1001 installation instructions →

SH-7010 Clamp-on trailer-frame bracket

SH-7010
Clamp-on trailer-frame bracket

An optional trailer-side mounting method. Check the guide for frame compatibility and installation requirements.

View SH-7010 installation instructions →

SH-7015 Airstream trailer brackets

SH-7015
Airstream trailer brackets

For the applicable Airstream installation with two sway bars. Check the current guide to confirm compatibility with your trailer.

View SH-7015 installation instructions →

Choose the hardware that fits your trailer—you do not need all three kits. Follow the applicable guide for installation, adjustment and operating precautions.

Replacement pins and receiver hitch locks

Standard pins with clips: SH-BH625456PR (pair), SH-HP-3Pack (3 pins).
Clear zinc bullet-style pins with clips: P00476-2Pack (pair), P00476-3Pack (3 pins).
Standard and bullet-style pins: 5/8-inch diameter, 4-5/8-inch usable span.
SH-318 receiver locking pin: 3-5/8-inch span. SH-317 attachment locking pin: 4-5/8-inch span. SH-317-2-318: keyed-alike 3-pack.

Confirm pin fit, clearance and lock engagement for your setup. Register your warranty.
