Product Description

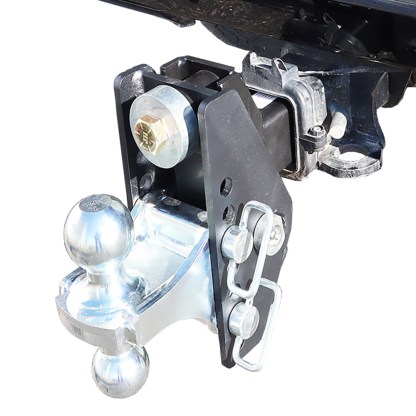

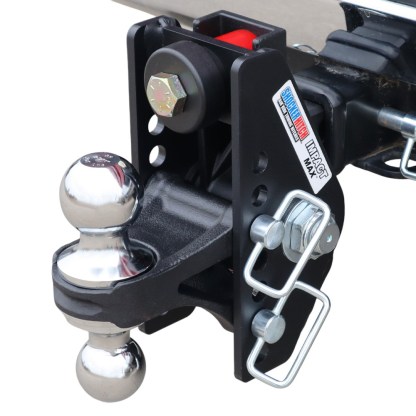

- HD Dual Cushion Shock Absorbing Adjustable Design Cushions Towing: Built-in dual urethane bump cushions for smoother towing. Filters the up & down plus forward and back tugs through the built-in cushions for maximum cushioning. Dual bump cushion design absorbs road shock, bumps & bangs. Great for smoother towing. Cushions naturally reduce the tendency of trailer sway. Heavy duty channel style adjustable drop and rise hitch for tons of utility.
- Best Drop Hitch for Fleet, Municipalities & Contractors: Easier on equipment, proven performance and built to last. Super versatile for low maintenance and maximum performance.
- Shock Dampening Pivoting Rocker Design: Our industry-leading rocker arm pivot design with integrated greaseable 1″ diameter carbon steel pivot bolt allows for a down and back motion, allowing the integrated dual bump cushions to filter, dampen & absorb the rock shock, tugs and jerks. Plus, the dual cushion design reduces the tendency of trailer sway created by changing tongue weights on concrete highways and rough roads by dampening some of the weight transfer. Great for heavy-duty towing. If sway is an issue, check out our sway control hitches.
- Unique Flip Around Design for More Drop or Rise with 8″ of Adjustment: The hitch can be flipped around more to drop or rise. The only cushion hitch on the market that can be flipped around. Tons of adjustability for many trailers and tow vehicles (rise/drop depends on mount).
- Ideal on Trucks to Vans: Great on motorhomes, RVs, pickup trucks, Econoline vans, transit vans, conversion vans & service body trucks.
- Heavy Duty 5/16″ Thick Side Plates: Rise & depends on mount chosen. See the drop & rise guide below. Thick HD carbon steel side plates & top plate with integrated dual bump cushions.
- Heavy Duty 20,000 lbs Hitch Weight Racing Capacity: 20,000 lbs gross trailer weight & 2,000 lbs tongue weight.(can vary by mount)
- Impact Max Cushion Hitch Kit Includes: Everything you need, the adjustable Shocker impact cushioned base frame assembly, ball mount of your choice & 3 d-handle ball mount pins with clips.
- Choose Your Receiver Size: Available for 2″, 2-1/2″, and 3″ receiver hitches.
- Combo Ball Mount Tow Rating: 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
- Great All Around Use: Works great on pickup trucks, vans, SUVs, CUVs, minivans, RVs & motorhomes.
- 2 Hitch Pin Holes in Shank: For more length adjustability, and it also works with hitch mount tow flaps or Shocker hitch tow flaps.

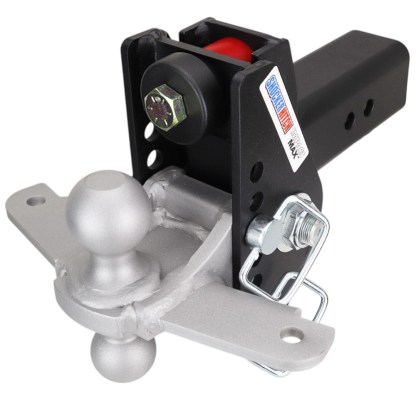

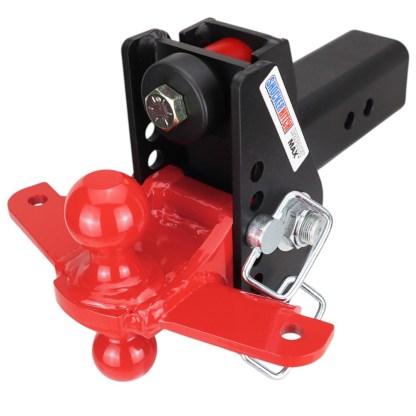

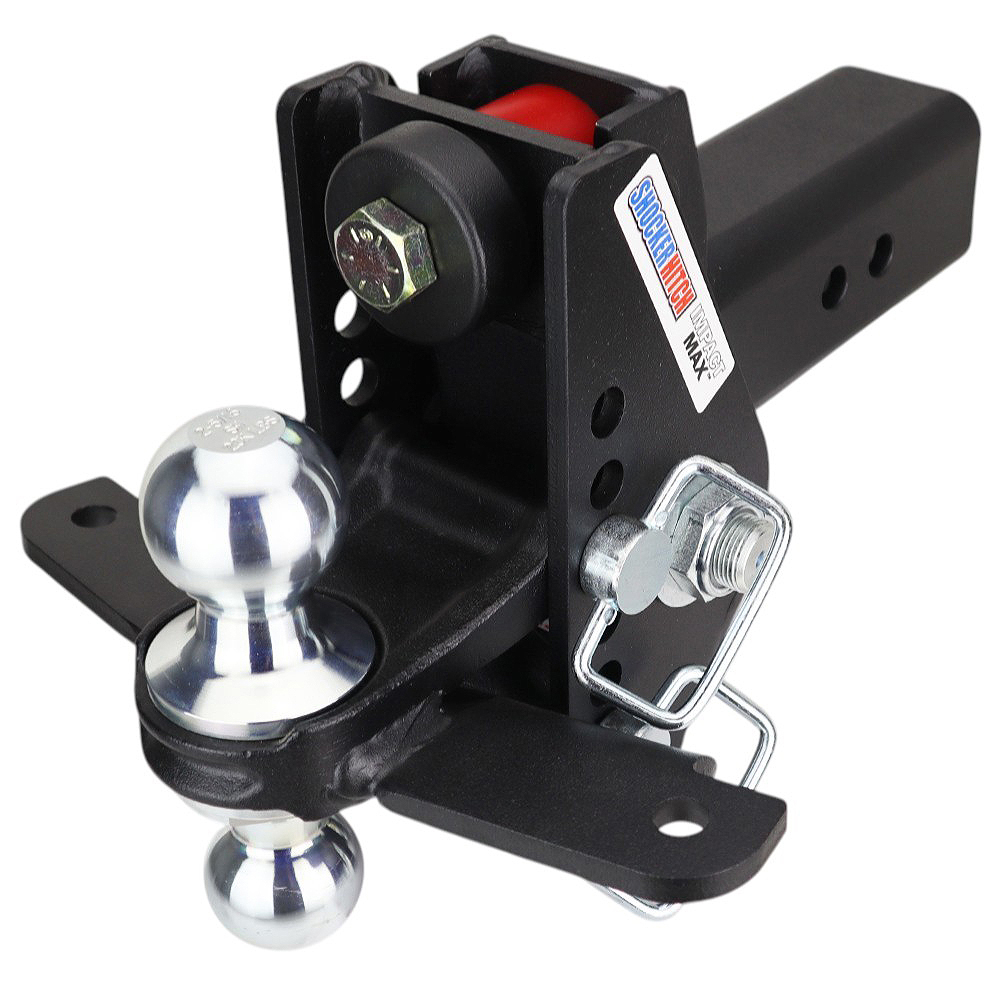

- 20+ Ball Mount Options: Choose the mount(s) that are best for your needs. We have combo ball, drop, raised, sway bar tab options, pintle, pintle with ball, drawbar, cushioned drawbar, clevis pin, shackle & more. Combo balls offer both 2″ & 2-5/16″. Gives you 4″ of rise to 4″ of drop.
- Adjustable Length: 2 hitch pin holes to adjust the length, and there is plenty of room on the receiver shank to accommodate hitch mounted towing mud flaps.
- Premium Textured Matte Black Finish: Impact resistant super-durable textured matte black powder coated finish on hitch and receiver shank.
- Works with Tow Flaps: The longer shank with 2 hitch pin holes is great for hitch-mounted towing mud flaps like the Shocker Hitch Tow Flaps and more
- Safety Notice: Towing capacity limited by lowest rated component. Manufactured by Shocker Hitch® USA in Jamestown, ND.
Impact Max Cushion Hitch Mount Drop & Rise + Rating Guide:

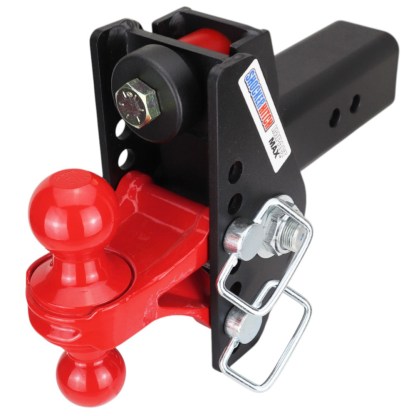

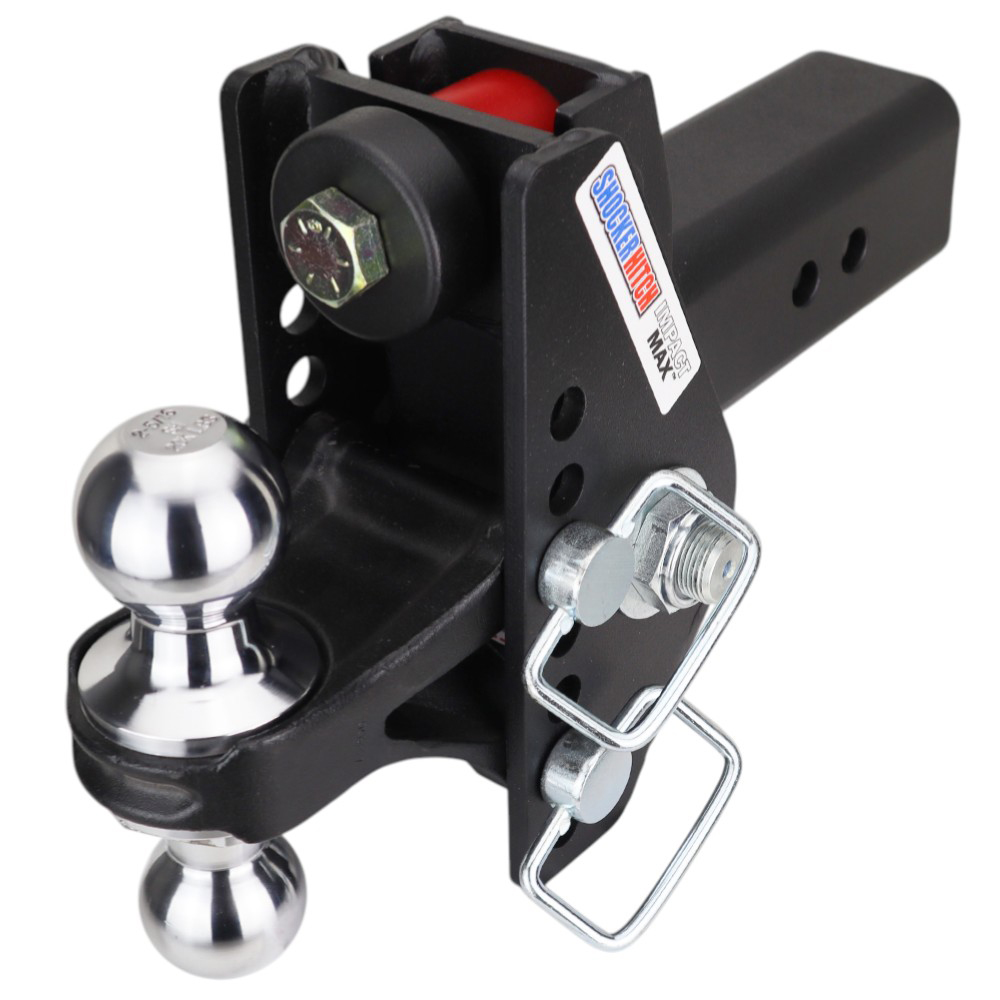

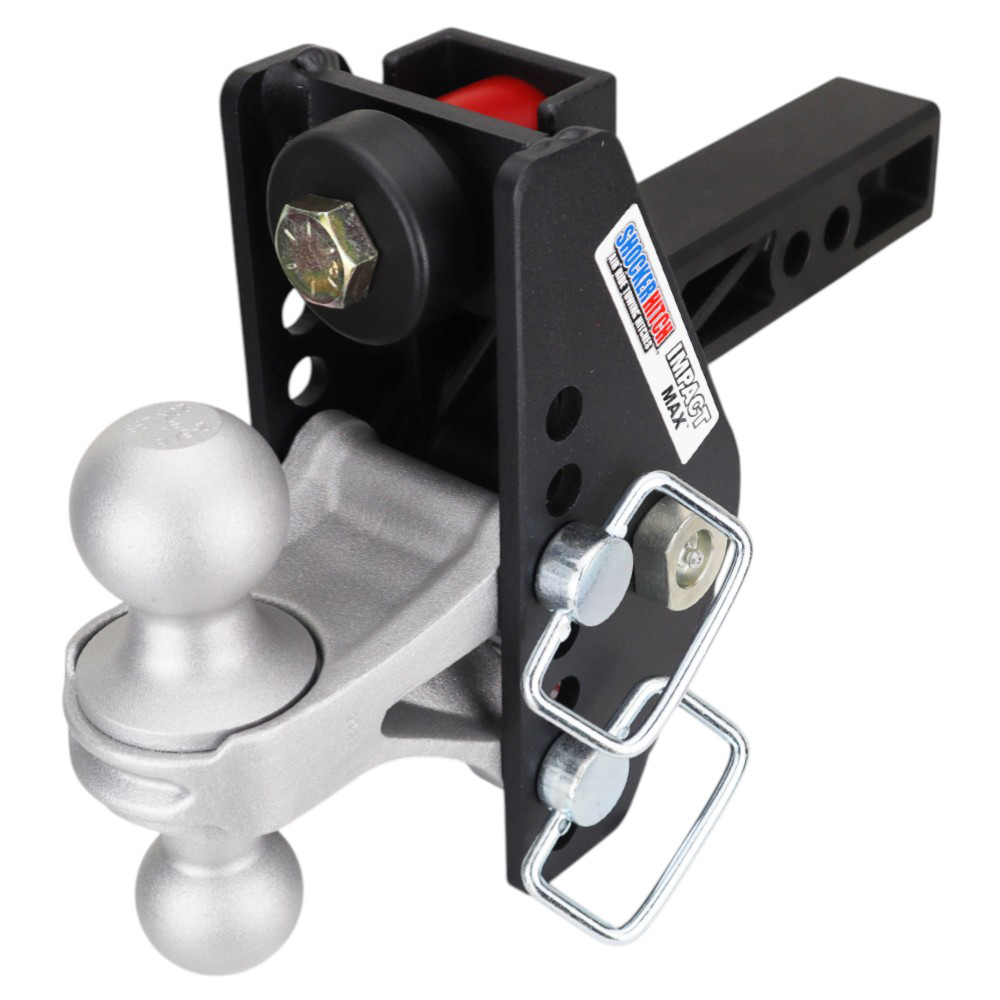

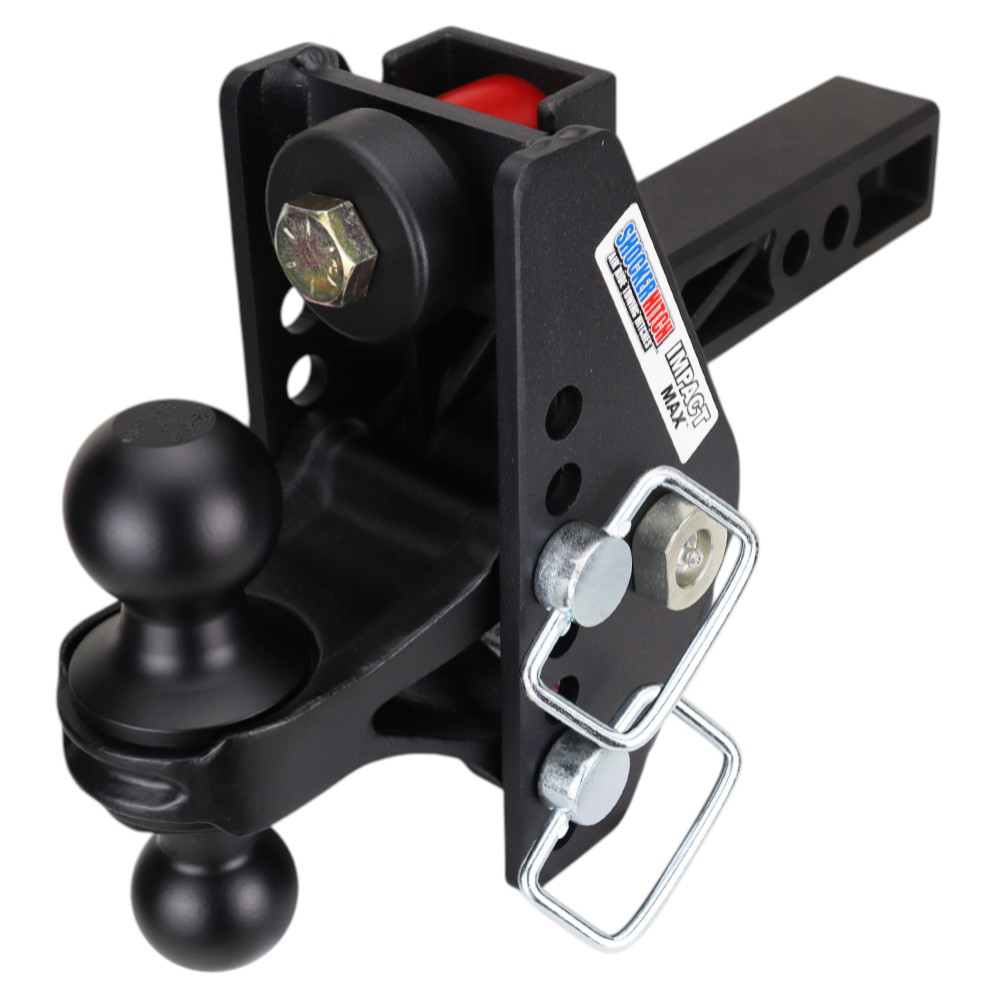

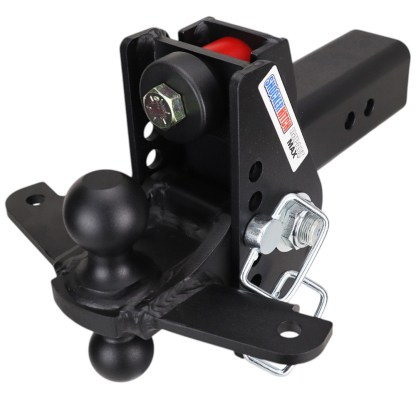

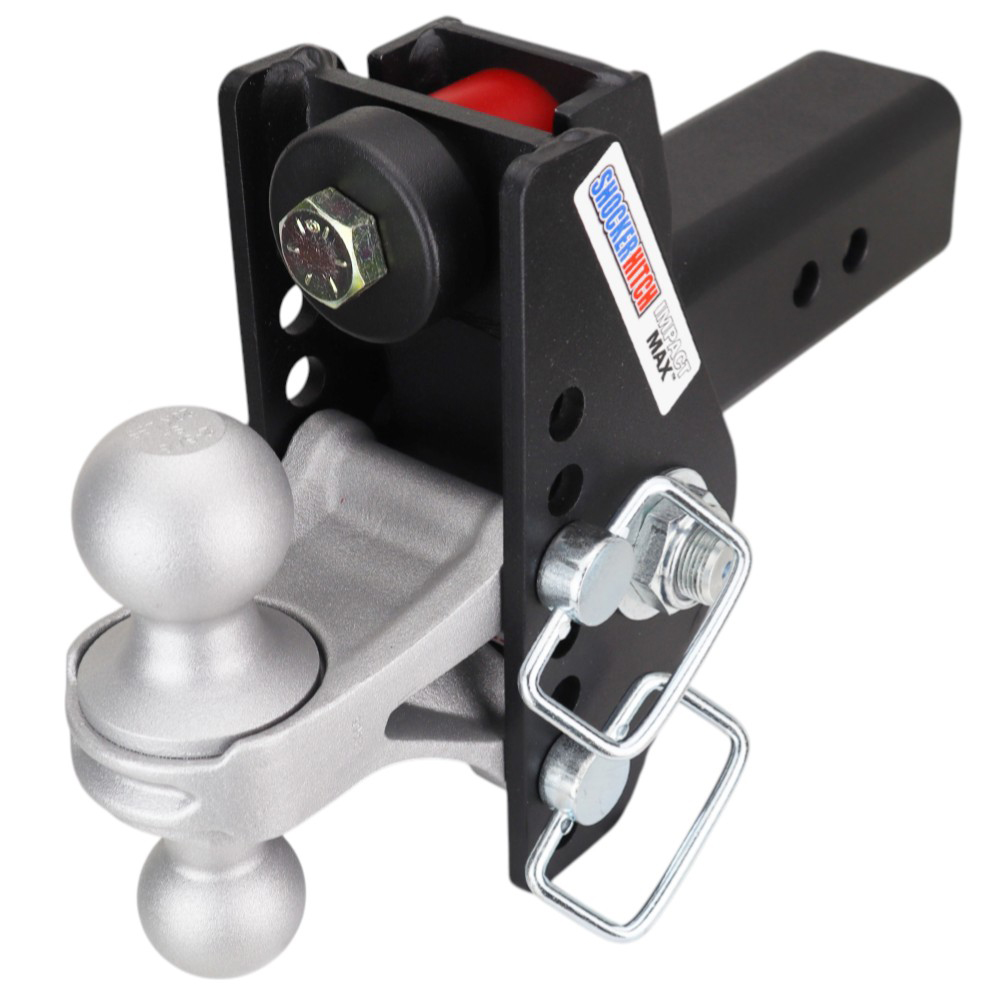

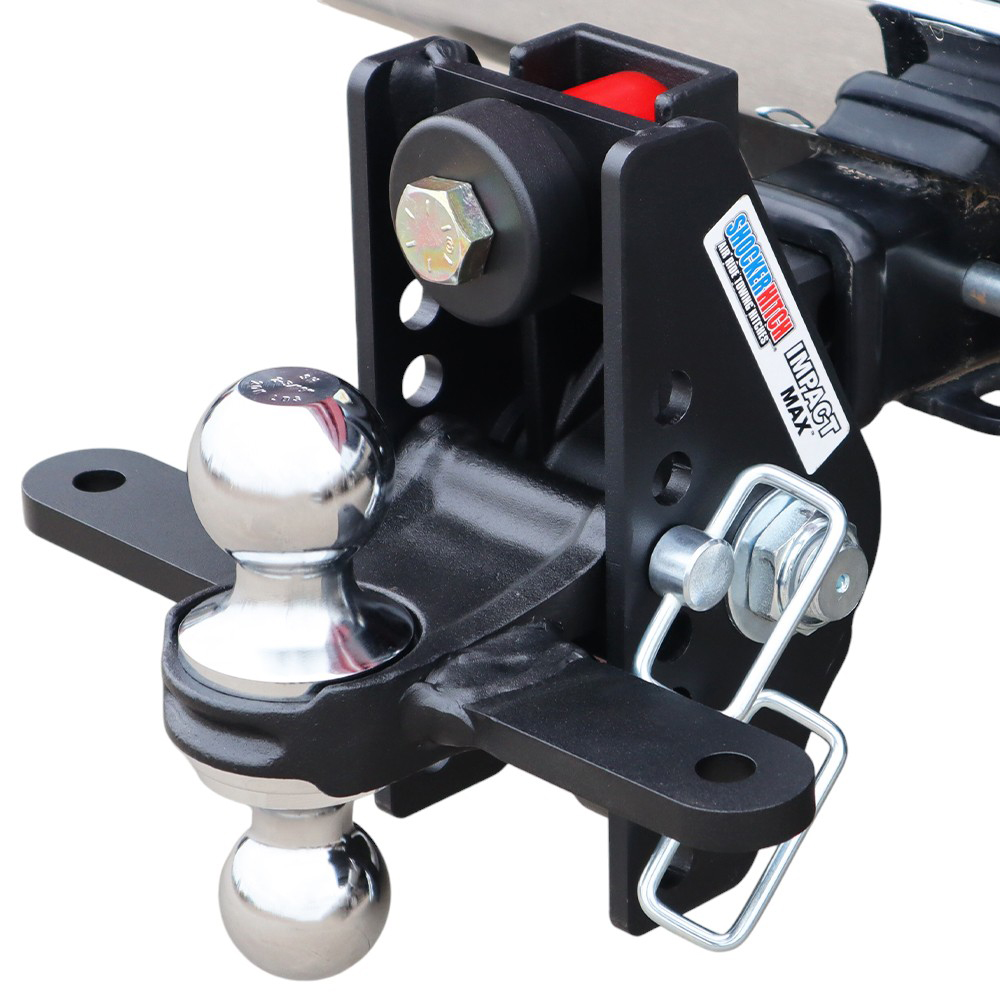

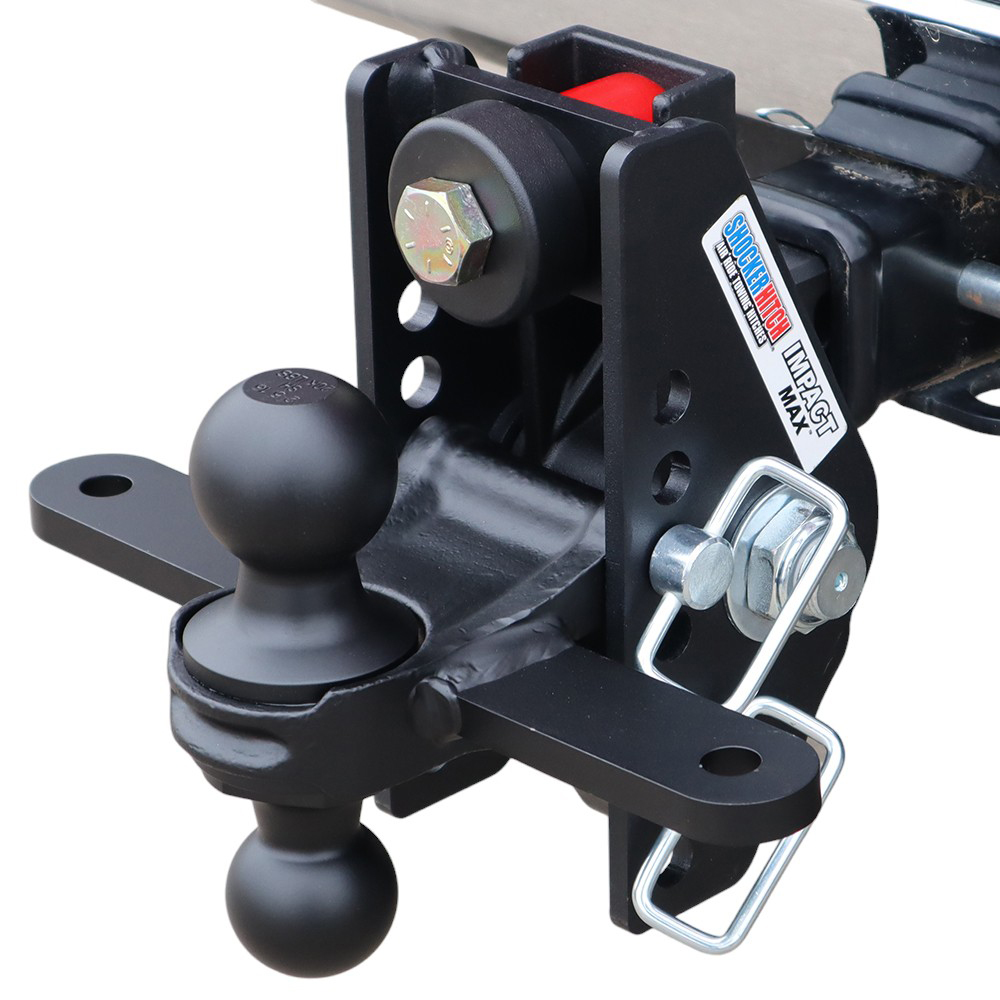

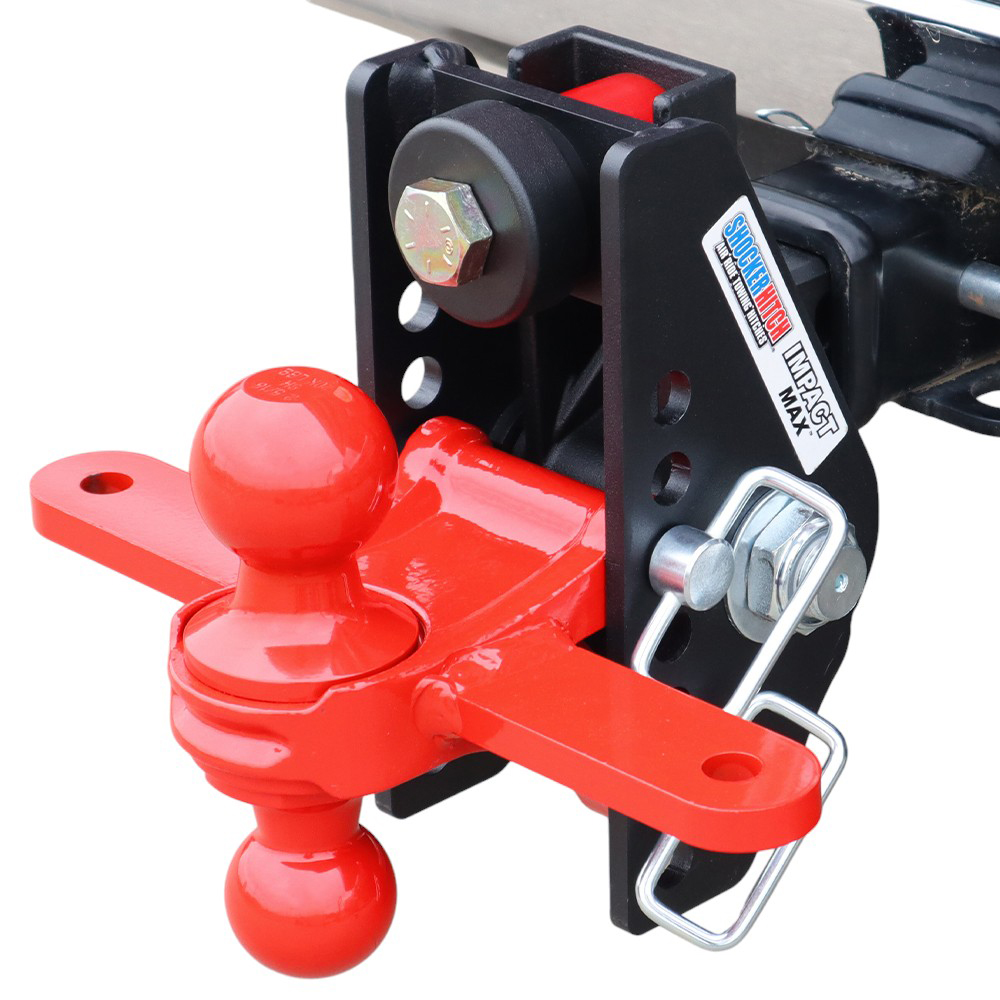

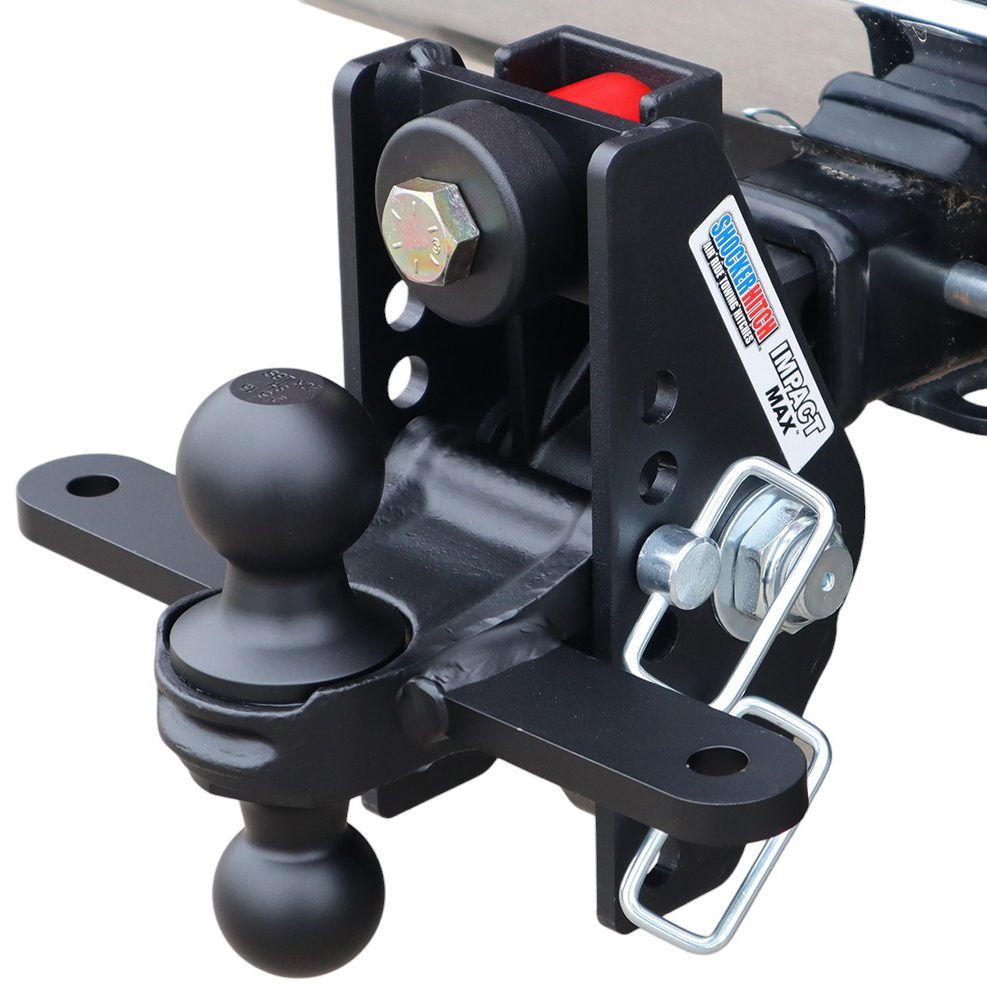

- Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

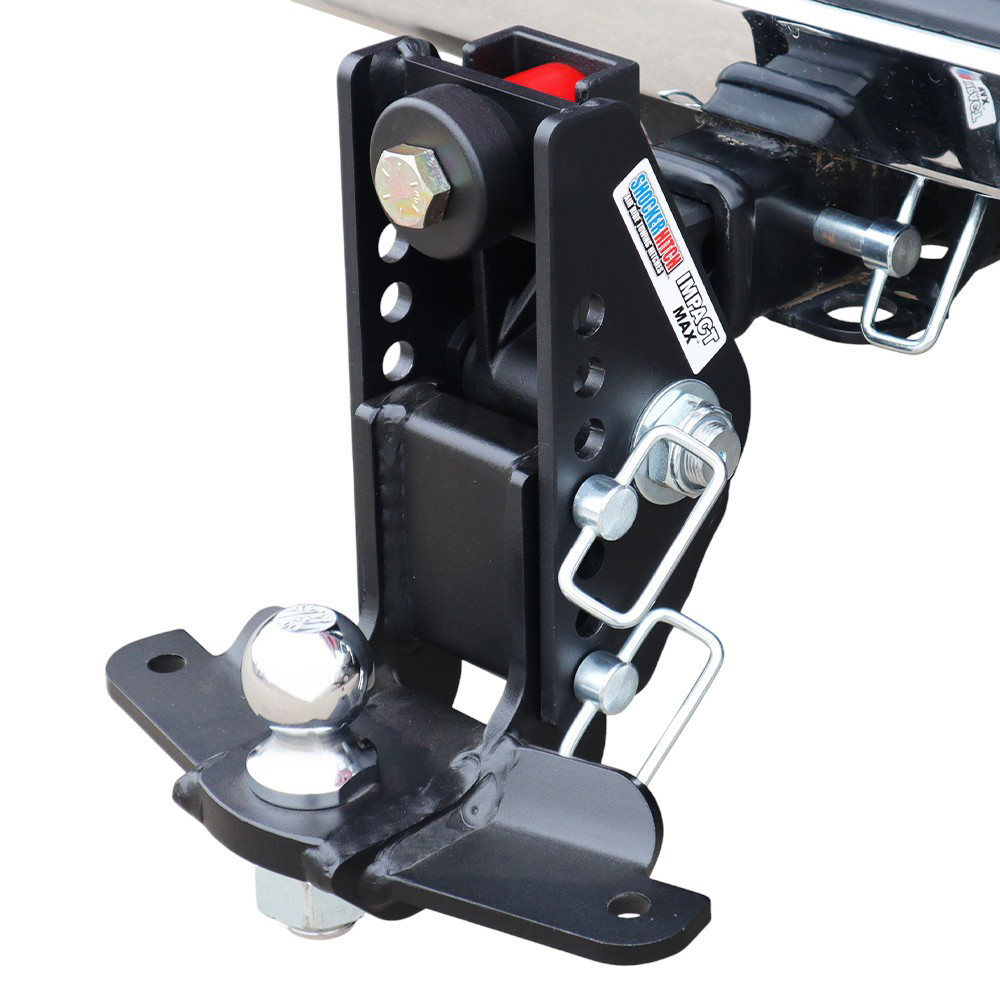

- Drop Ball: 0″ Rise to 7.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

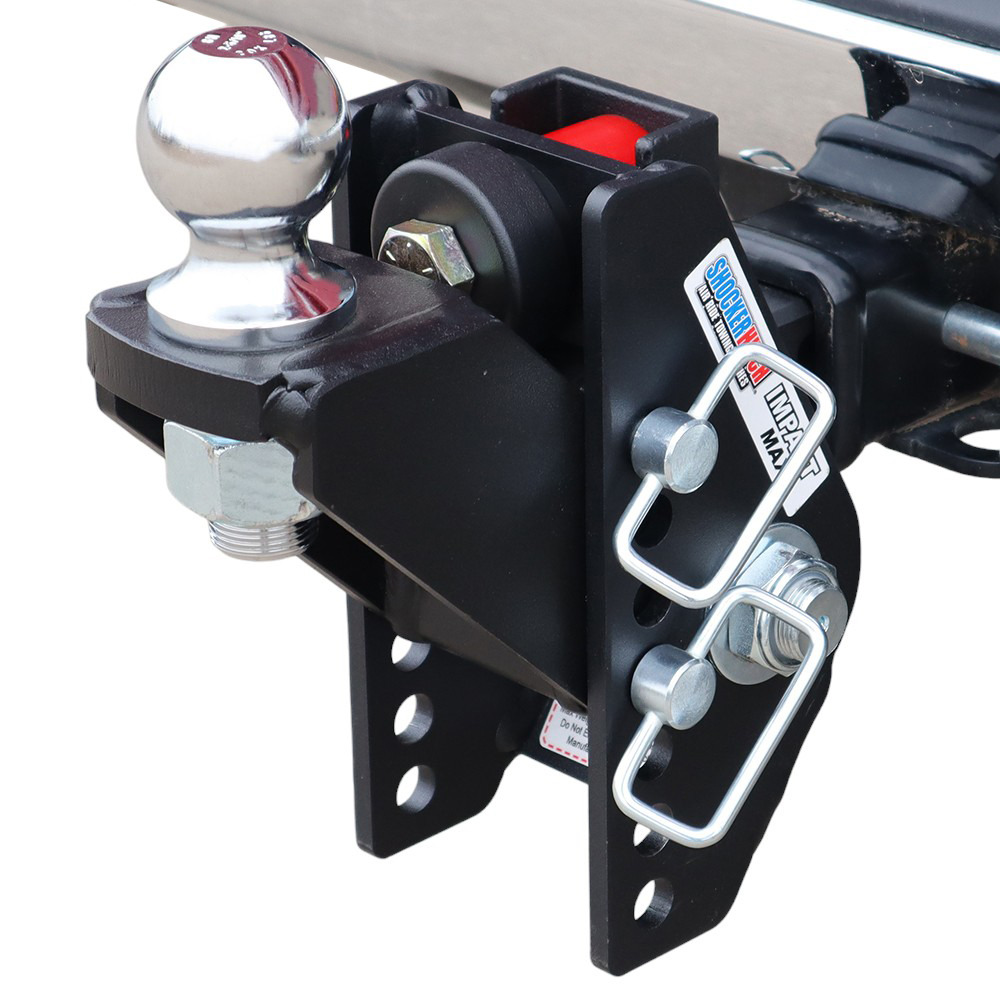

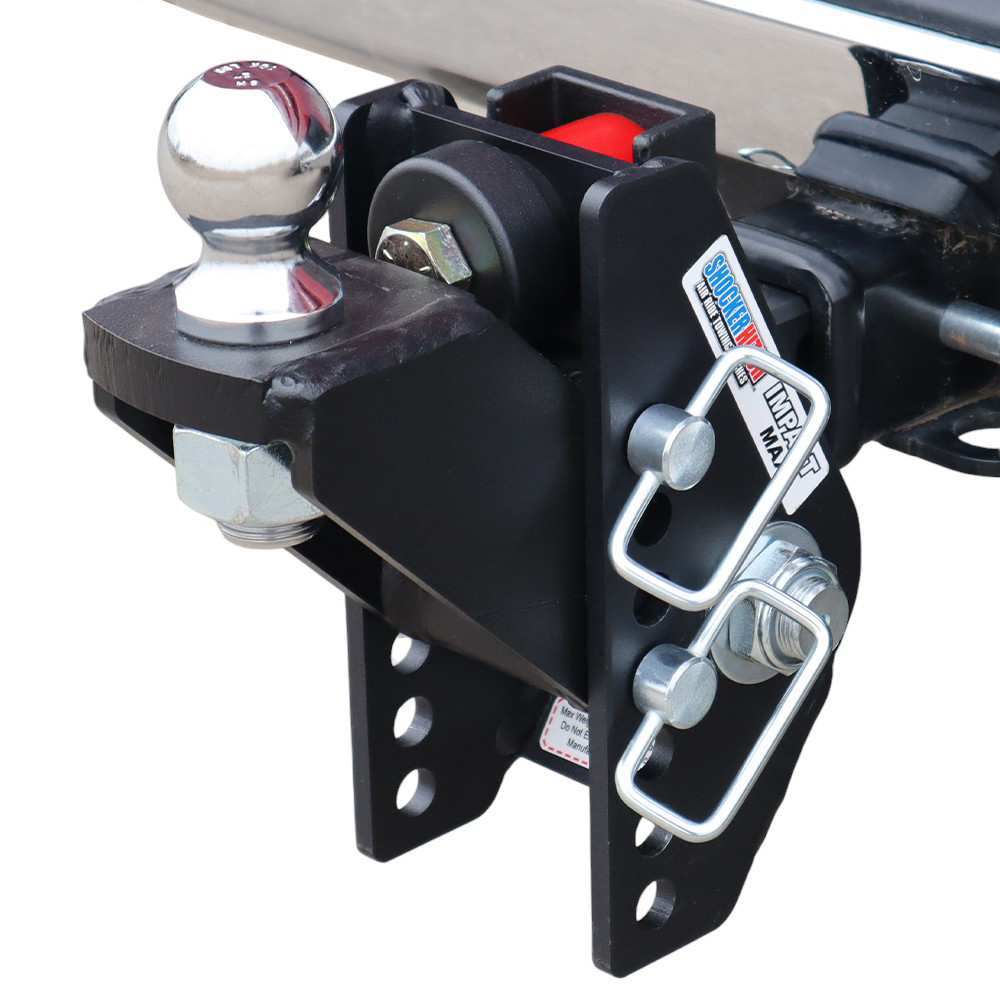

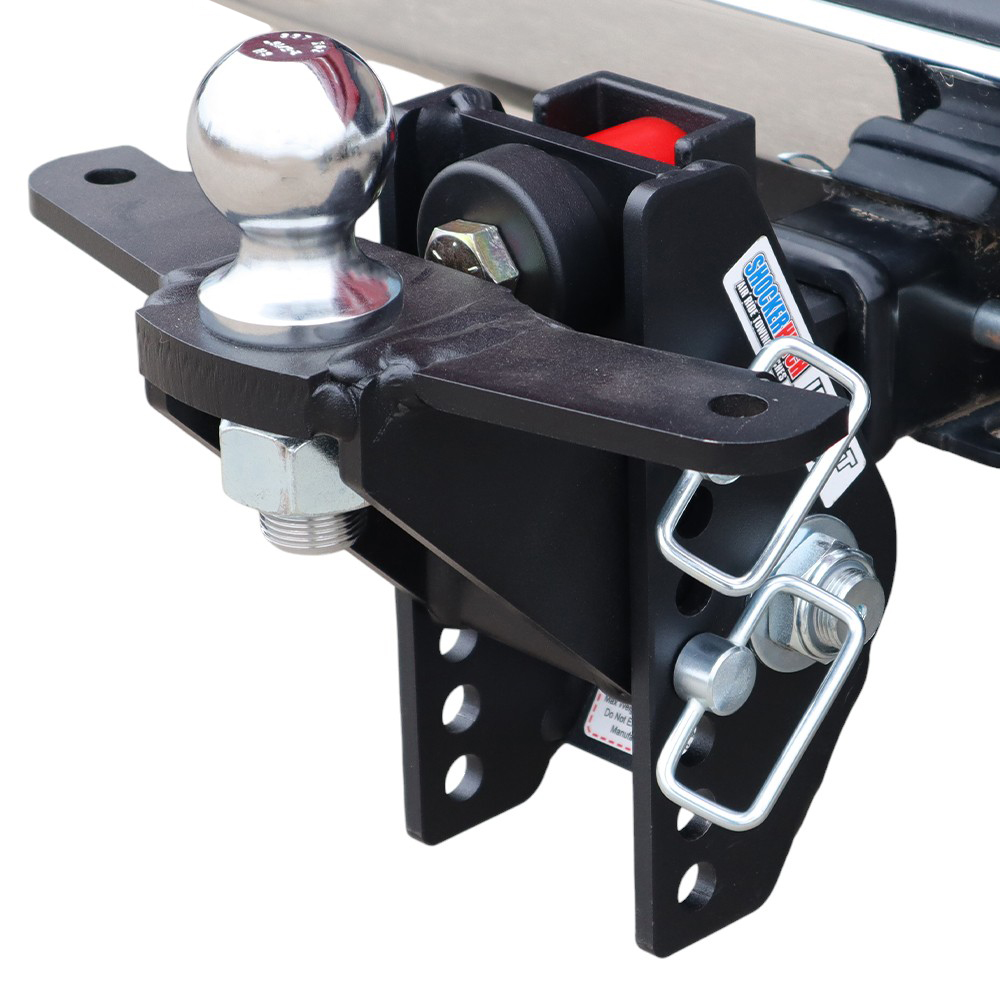

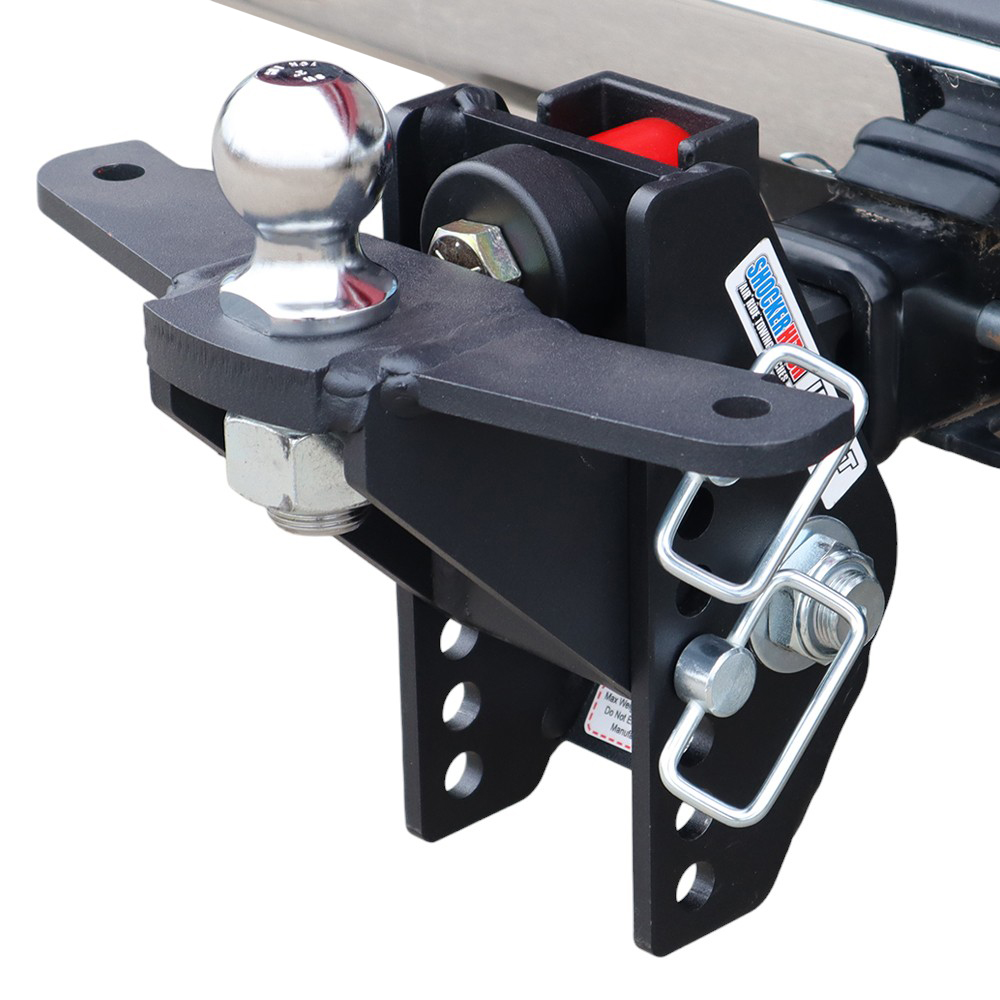

- Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.

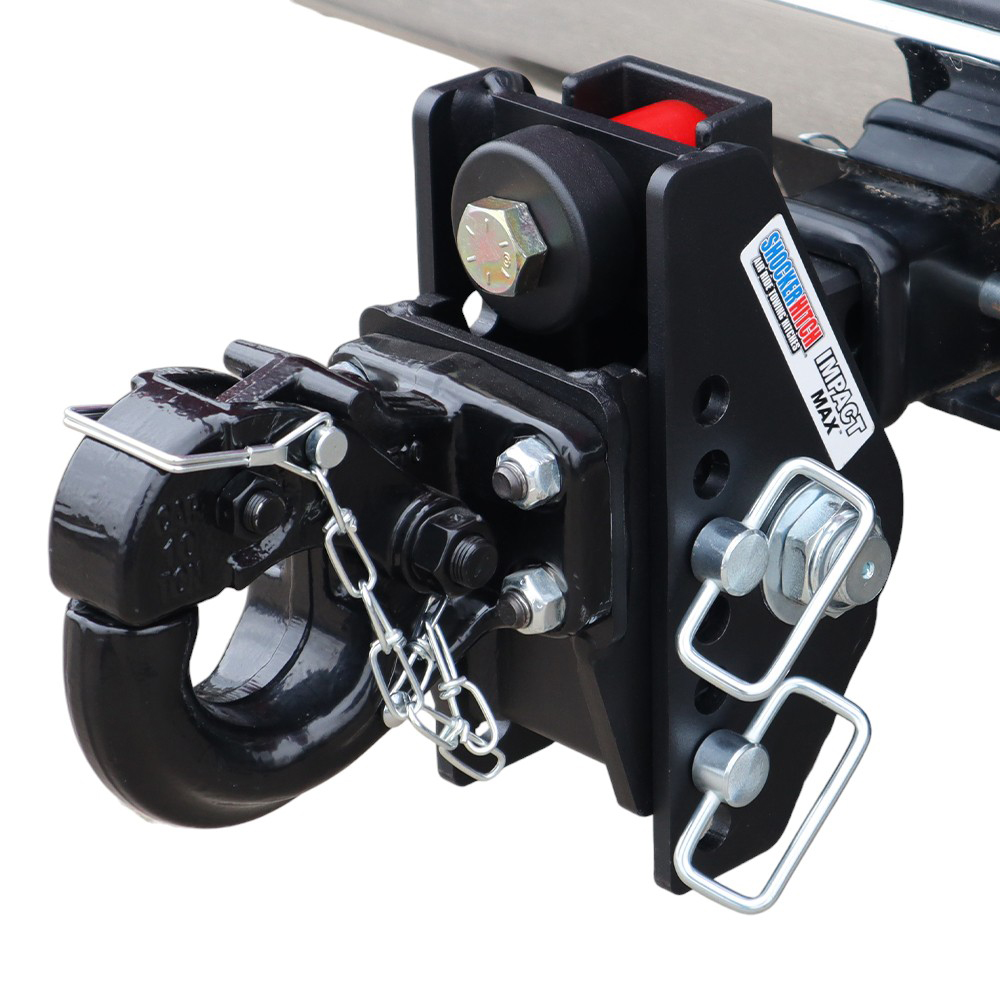

- Bolt on Pintle Hook: 4″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.

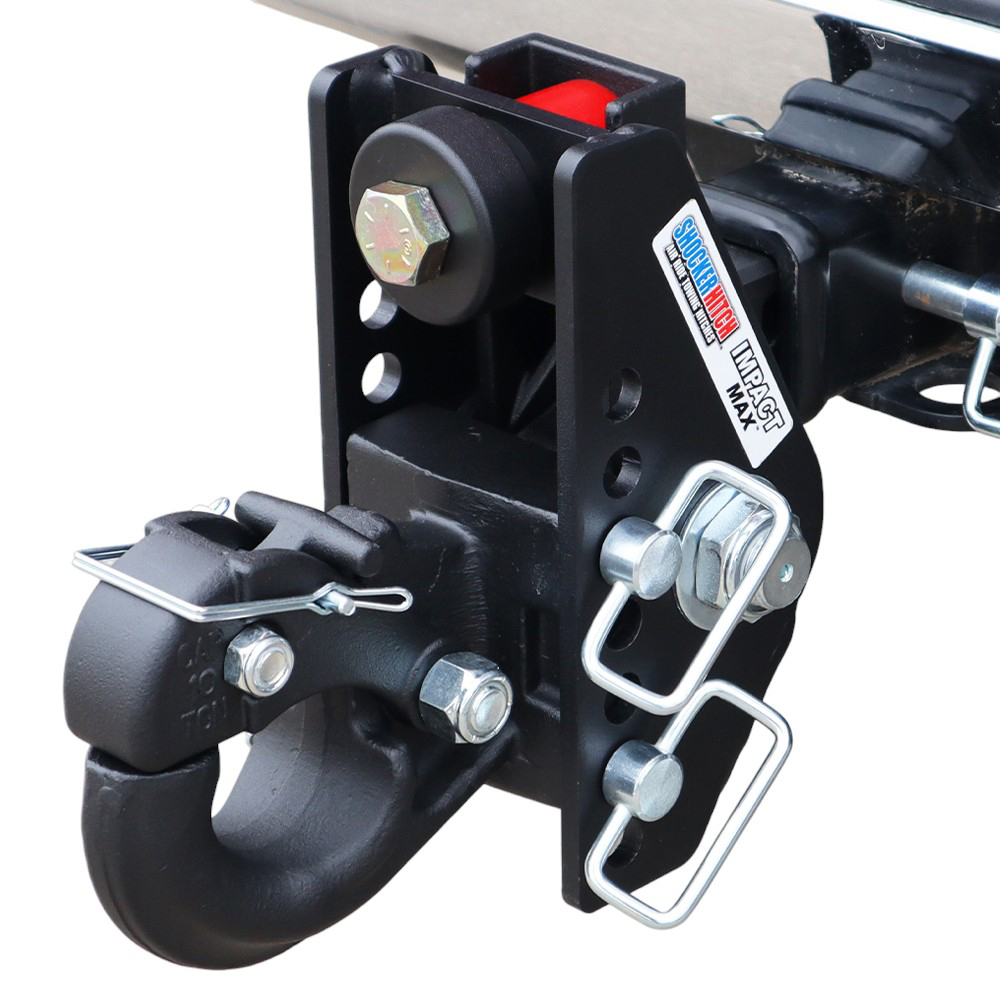

- Channel Style Pintle Hook: 1″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
- Raised Pintle Hook: 3.5″ Rise to 4″ Drop | 10-Ton 20,000 lbs.

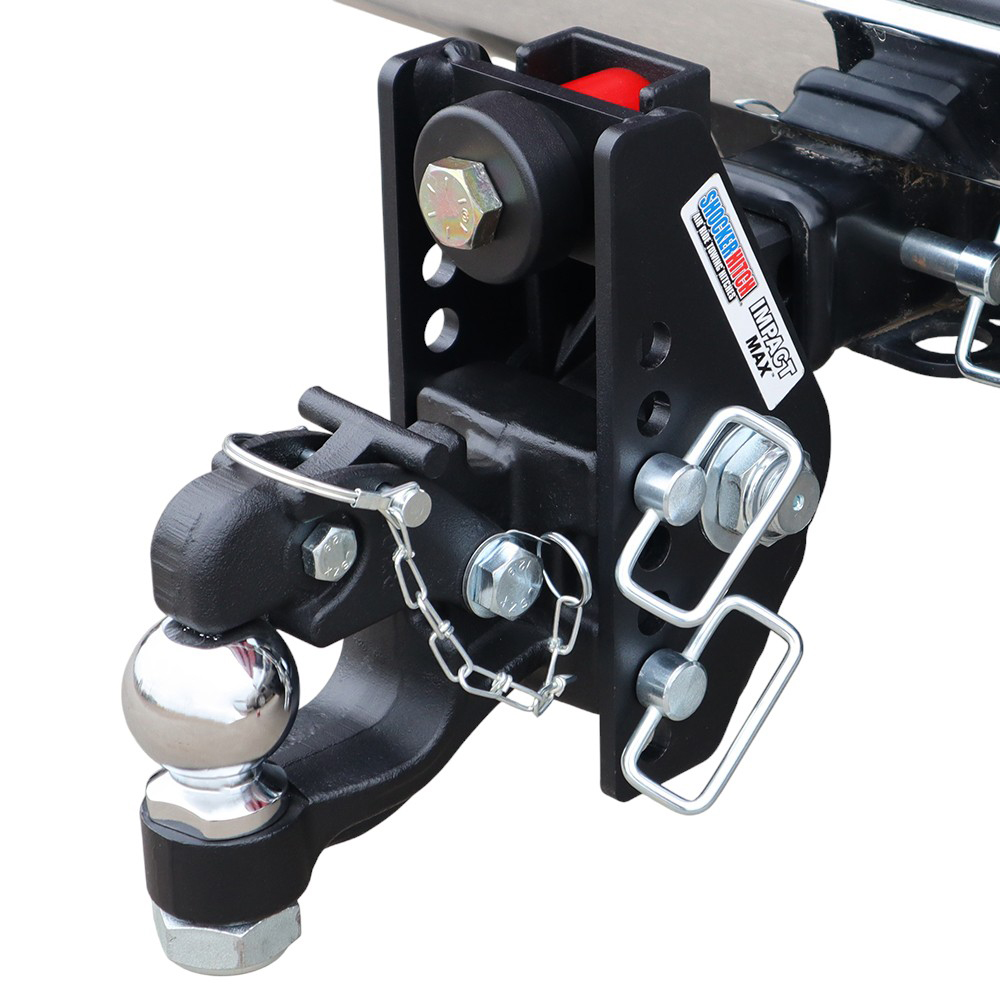

- Channel Style Pintle & Ball: 1″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).

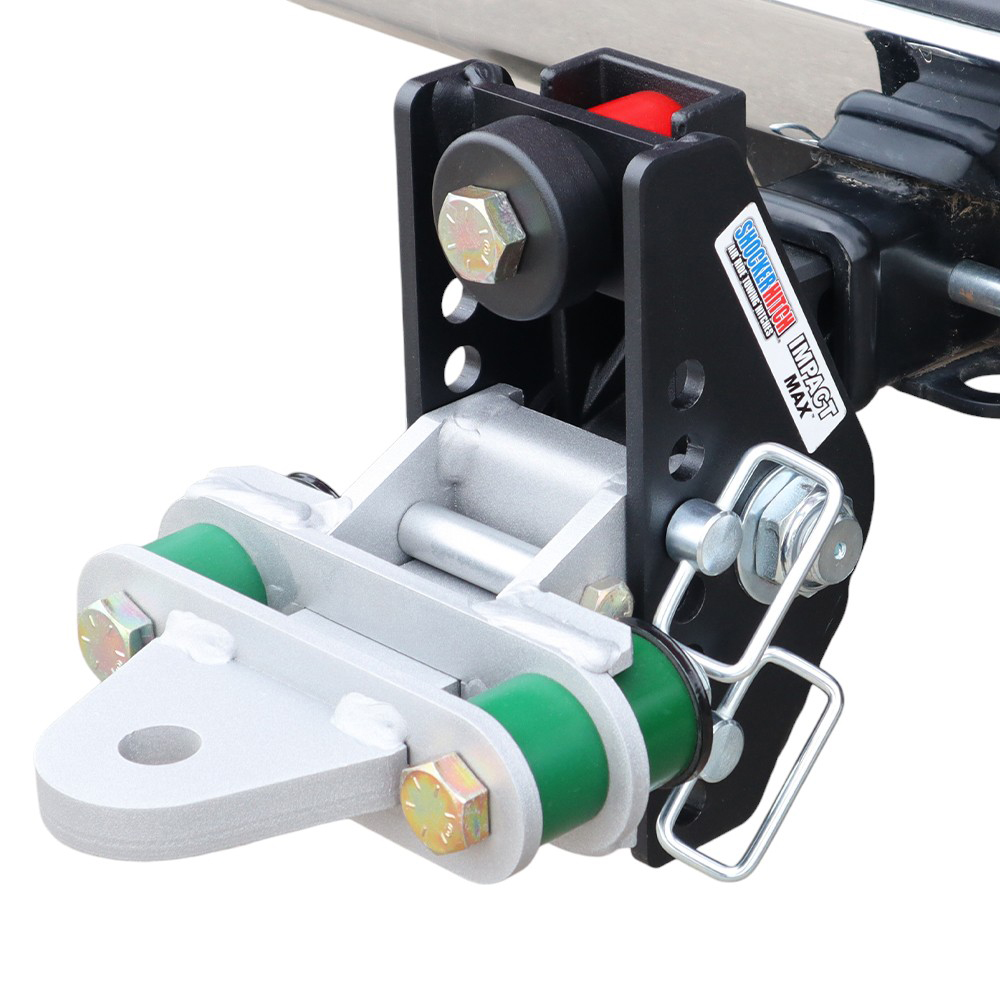

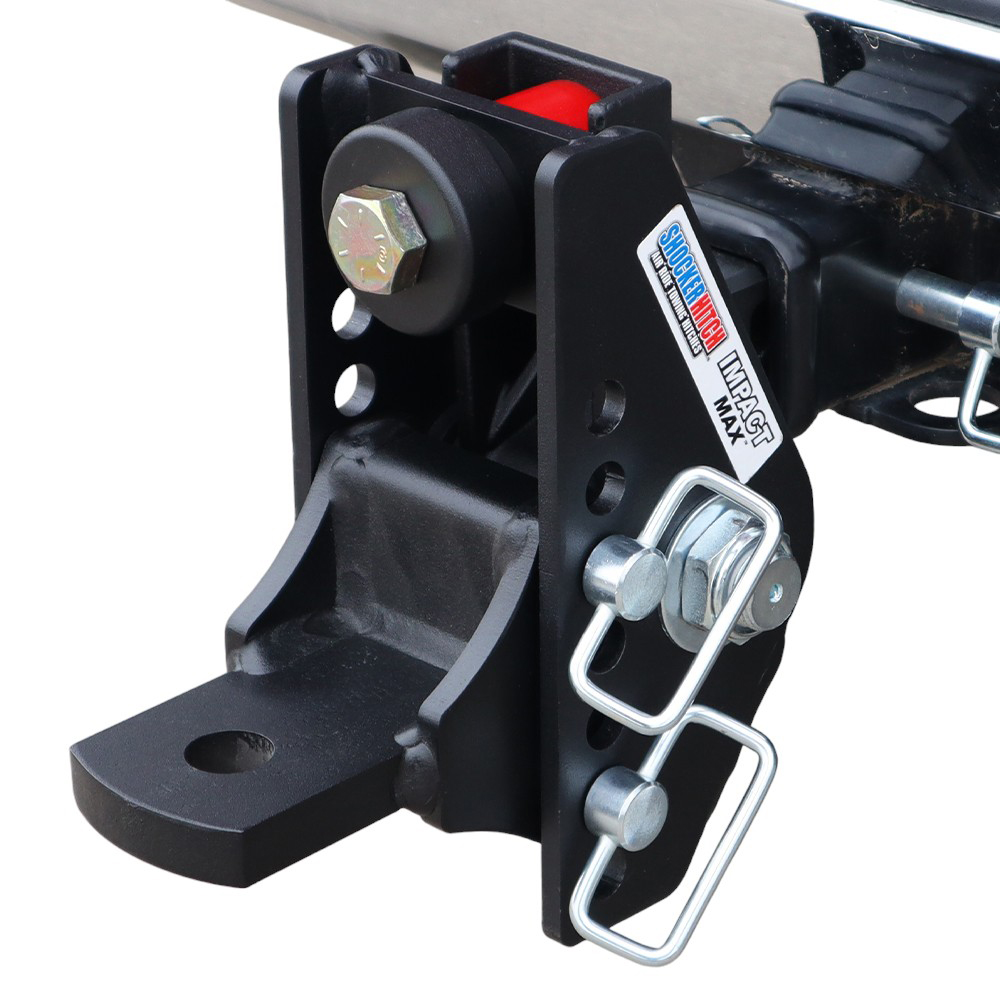

- Drawbar: 4″ Rise to 4″ Drop | 20,000 lbs.
- Clevis Mount: 1.5″ Rise to 5.5″ Drop | 20,000 lbs.
- Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.
Bumper Pull Towing FAQ
- Drop Hitch Calculator
- How to Prevent Trailer Sway
- What Receiver Hitch Size My Truck or SUV Has?
- Types of Towing Capacity
- Impact Max Hitch Ground Clearance Guide
- Common Shocker Hitch Uses
- Correct Way To Measure Receiver Hitch Size?
- Air Ride Hitch Advantages
- How To Level Trailer
- My Truck is Squatting
- Alternatives To A WD Hitch
- Types of Trailers
- Why Grease Your Hitch Ball
- How Does A Shocker Air Receiver Hitch Work?
The ultimate heavy-duty shock absorbing cushion hitch. Dual bump cushion suspension hitch for trailer towing. Build your own Shocker Impact Max black cushion hitch and pick the adjustable ball mount you need. 20+ ball mount attachment options. Drop, dual ball, raised, pintle, drawbar, clevis pin, pintle with ball, and sway bar mounting tabs. The Shocker Impact Max cushioned ball mount is designed for heavy duty to cushion your towing and absorb the road shock. The built in dual bump cushions take the bangs, bumps, and jerks out of towing. The pivoting design, along with the cushions, also helps reduce the tendency for trailer sway. This shock absorbing tow hitch is used by fleets, municipalities, contractors, boat owners, enclosed trailers, race trailers, RVs, motorhomes, toolcats, ATVs, UTVs, and more. The Impact Max comes with an impact-resistant, super-durable textured matte black powder coated finish on the base frame for long-lasting life and a sleek finish. The dual bump cushion design is heavy duty and can handle rough roads and give you a smooth tow. Shocker Impact cushioned hitch ball mount provides the ultimate in versatility and a smoother towing experience than a solid ball mount. The Impact Max ball mount has built in adjustability, maximum versatility with 7 adjustment holes for your towing needs plus the entire hitch can be flipped around for more drop or rise. Works great on motorhomes, pickups & vans. It even has 2 hitch pin holes to adjust the length, and there is plenty of room on the receiver shank to accommodate hitch mounted towing mud flaps or shocker bumper tow flaps. Use this adjustable ball mount however you need to for tons of versatility. This Shocker Impact Max cushioned trailer towing bumper hitch attaches by sliding into a standard receiver tube. Up to 20,000 lbs tow rating capacity and 2,000 lbs tongue weight, depending on the mount.
