Shocker XR Raised Ball Mount Hitch

Select Option:

Clear

Product Information:

List Price: $329.99Sale Price: $249.98Free Ground Shipping*

Money IconExtra 12% OFF, hurry limited time offer.
Reviews
Rated 0 out of 5
SKU: SH-XR100-Raised
Series:

-

Product Description

  • HD Raised Ball Mount Hitch: Adjustable raised ball mount with a 2″ or 2-5/16″  trailer ball.
  • Flip Around Design: Hitch can be flipped around for more drop or rise.
  • 8 Adjustment Holes: 5″ of Rise to 3″ of Drop. Great for RV’s, pickups, SUV’s & UTV’s.
  • 12,000 to 20,000 lb GTW: 12,000 lbs for 2″ hitch, 16,000 lbs GTW for 2-1/2″, and 20,000 lbs GTW for 3″. Tongue weight is 10% of GTW.
  • Choose Hitch Ball: Pick between a 2″ ball or a 2-5/16″ ball. Note the 2″ ball is rated at 10,000 lbs and the 2-5/16″ ball is rated at 20,000 lbs.
  • Great All-Around Use: Works great on pickup trucks, vans, suvs, cuvs, minivans, RV’s & motorhomes.
  • 2 Hitch Pin Holes in Shank: For more length adjustability and it also works with hitch mount tow flaps.
  • Available for 3 Receiver Sizes: Choose either a 2″, 2-1/2″ or 3″ receiver hitch shank.
  • 10+ Ball Mount Attachment Options: Available and sold separately. Works with all our ball mount attachments; Combo ball, sway tab mounts, pintle hook, pintle & ball, clevis, drawbar, drop ball mounts and more.
  • Includes complete adjustable Shocker XR base frame hitch,, adjustable raised ball mount with 2″ or 2-5/16″ ball & 2 d-handle ball mount pins with clips.
  • Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

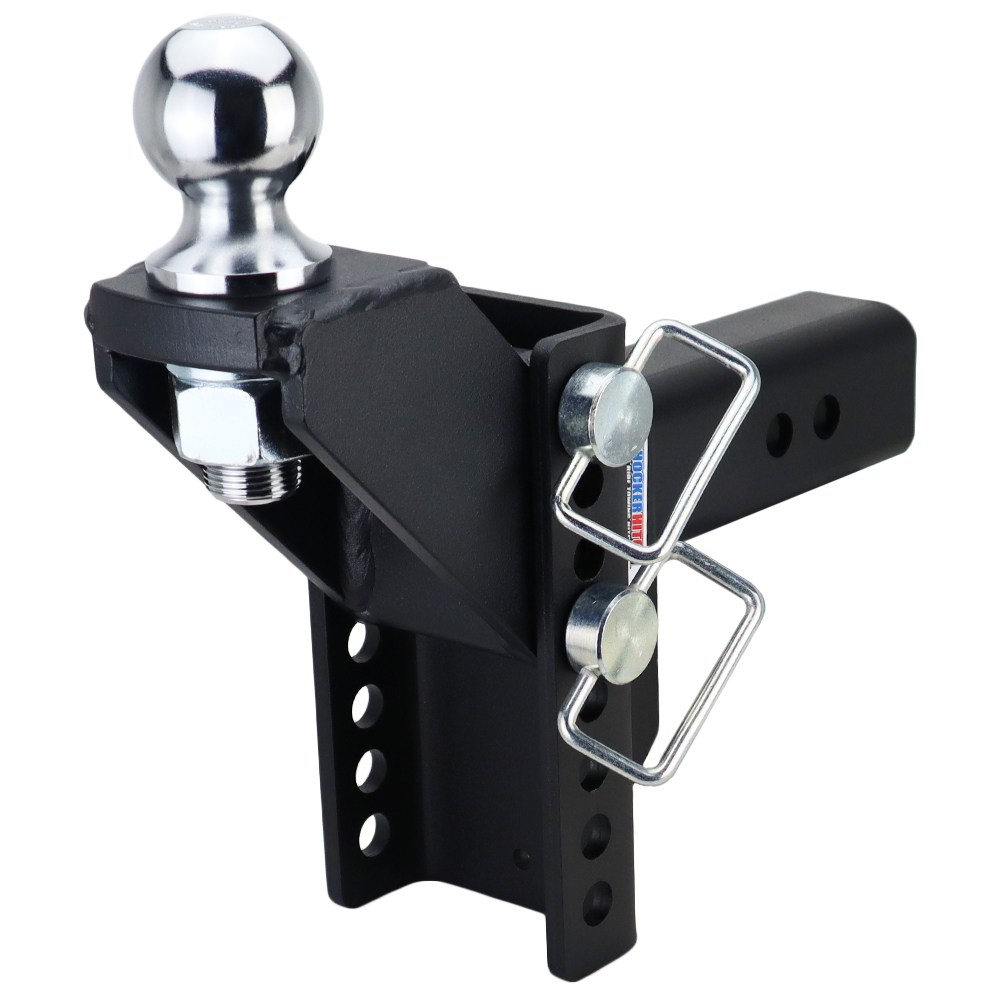

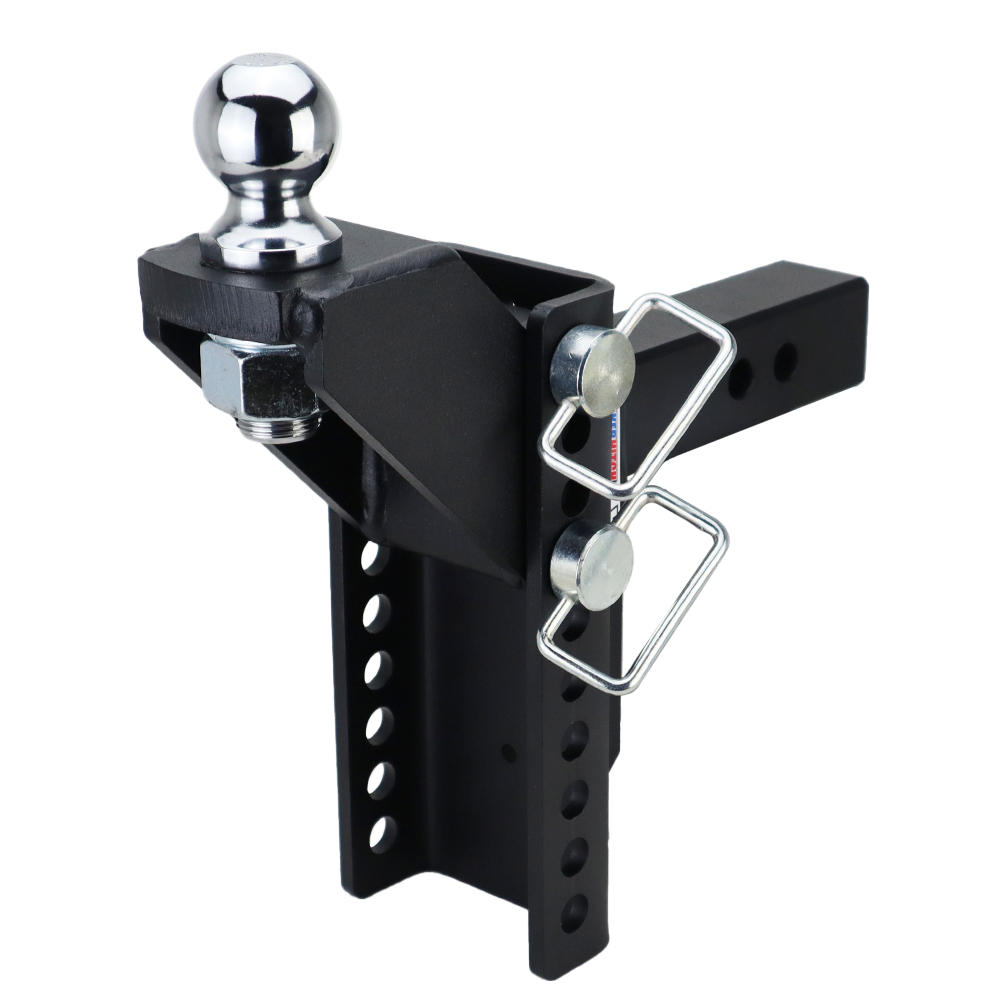

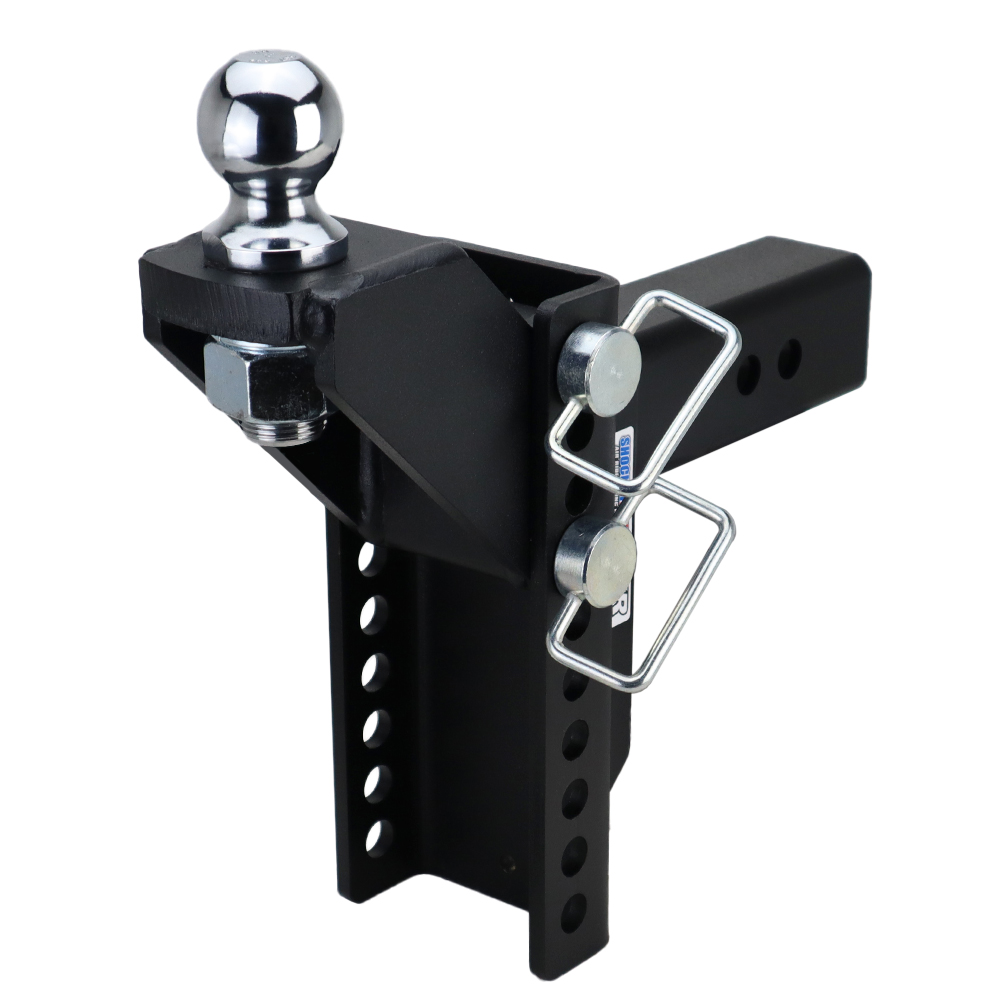

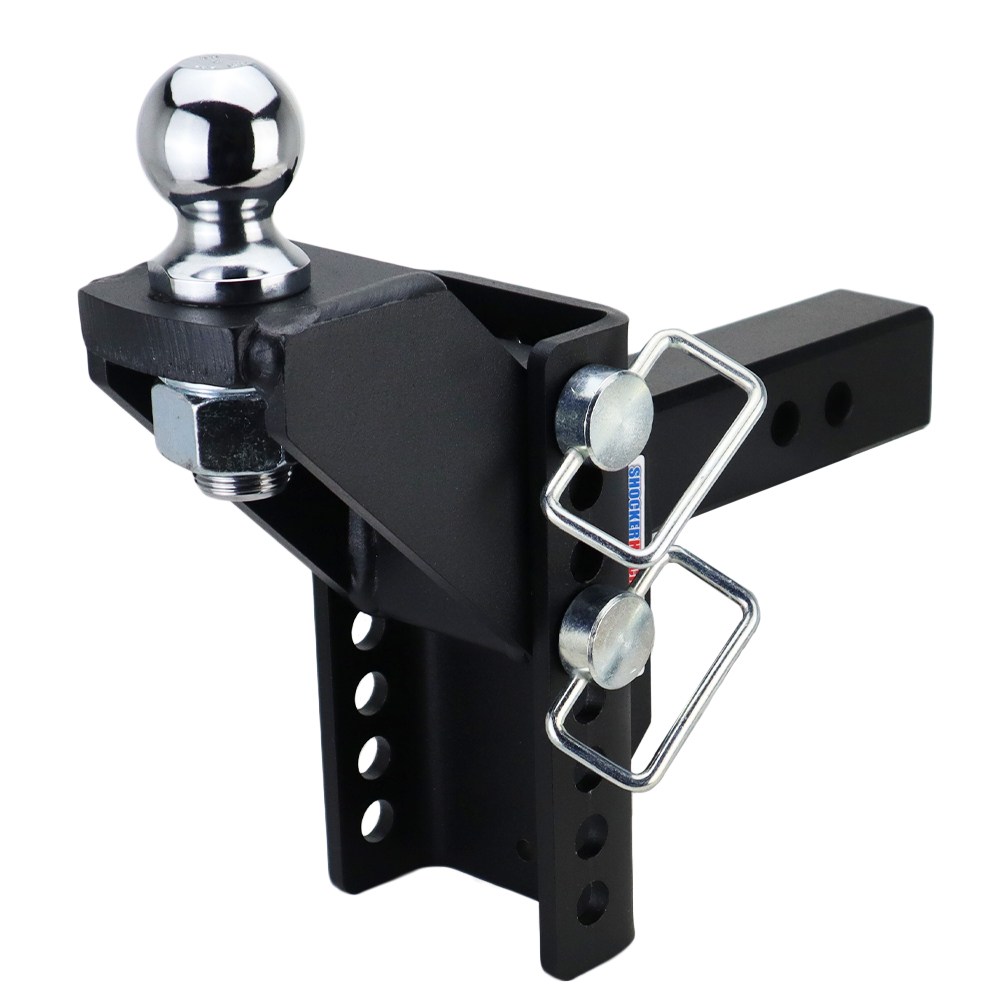

The Shocker XR Adjustable raised ball mount is available with a 2″ hitch ball or a 2-5/16″ hitch ball.  This Shocker XR series raised hitch has  5″ of rise to 3″ of drop and is perfect for towing camper trailers with a higher a-frame trailer coupler. Featuring up to 20,000 lbs tow rating capacity, depending on hitch size selected. Shocker XR raised hitch has built in adjustability with 8 adjustment holes offering maximum versatility for your trailer towing needs. This Shocker XR raised ball mount attaches by sliding into a standard receiver tube. It also features two hitch pin holes for length adjustment, as well as making it compatible with hitch mount towing mud flaps & rock guards. Use this adjustable ball mount however you need to for tons of versatility. Made by Shocker Hitch® USA.

With this adjustable XR ball mount, the hitch balls bolt to a standard mount with a 1-1/4″ thick bolt and feature a premium chrome finish. Note the 2″ ball is rated at 10,000 lbs and the 2-5/16″ ball is rated at 20,000 lbs.

California Residents: Prop 65 Warning

Video

Shocker XR Ball Mount Videos

Install

Shocker XR Ball Mount Hitch Setup Installation Instructions

Download the Shocker XR Series Hitch Instructions Insert the shank of the hitch into the receiver of your tow vehicle. Make sure you are using the correct size shank to work with your receiver. Secure the hitch with a hitch pin. Adjust the ball mount attachment so your tow vehicle and trailer are level. You can flipped the XR frame around for more drop or more rise.

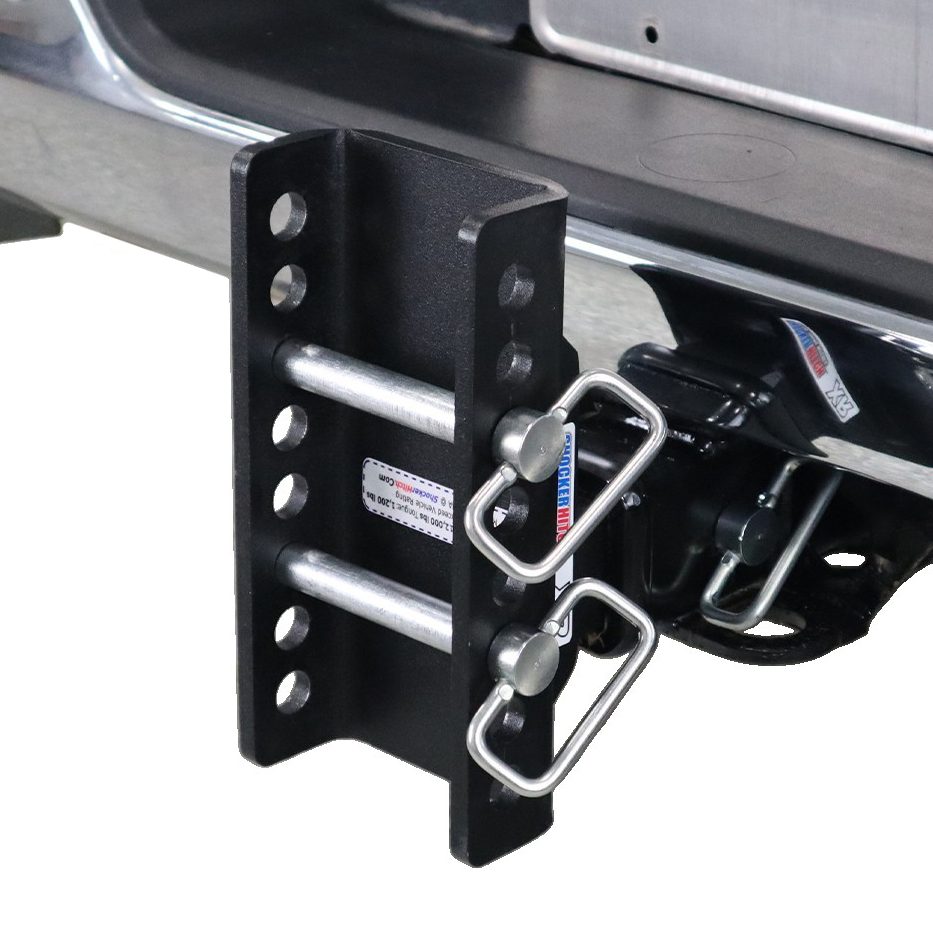

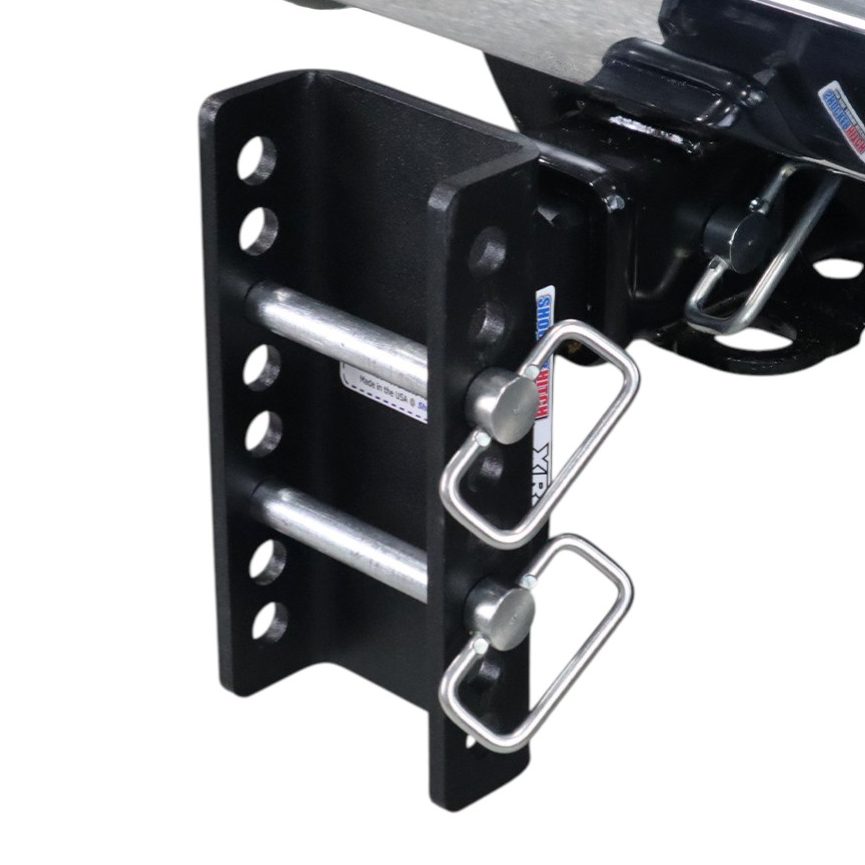

XR Adjustable Ball Mount Flipped
XR Adjustable Ball Mount Flipped
Safety Notice: The Shocker XR series hitches are a heavy-duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle, coupler rating, tow vehicle rating and trailer weight rating.

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.

FAQ

Answers to Frequently Asked Questions

How much drop or rise does the XR ball mount offer?

From 4″ of rise to 7-1/2″ of drop depending on the ball mount attachment used.  The combo mount is 4″ of rise and 4″ of drop.  The drop ball mount is 0″ to 7-1/2″

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

Reviews

Be the first to review “Shocker XR Raised Ball Mount Hitch”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 33 lbs
Dimensions 11 × 11 × 7 in
Select Receiver Hitch & Ball Size

Fits 2-1/2" Hitch, Has 2-5/16" Ball, Fits 2-1/2" Hitch, Has 2" Ball, Fits 2" Hitch, Has 2-5/16" Ball, Fits 2" Hitch, Has 2" Ball, Fits 3" Hitch, Has 2-5/16" Ball, Fits 3" Hitch, Has 2" Ball
