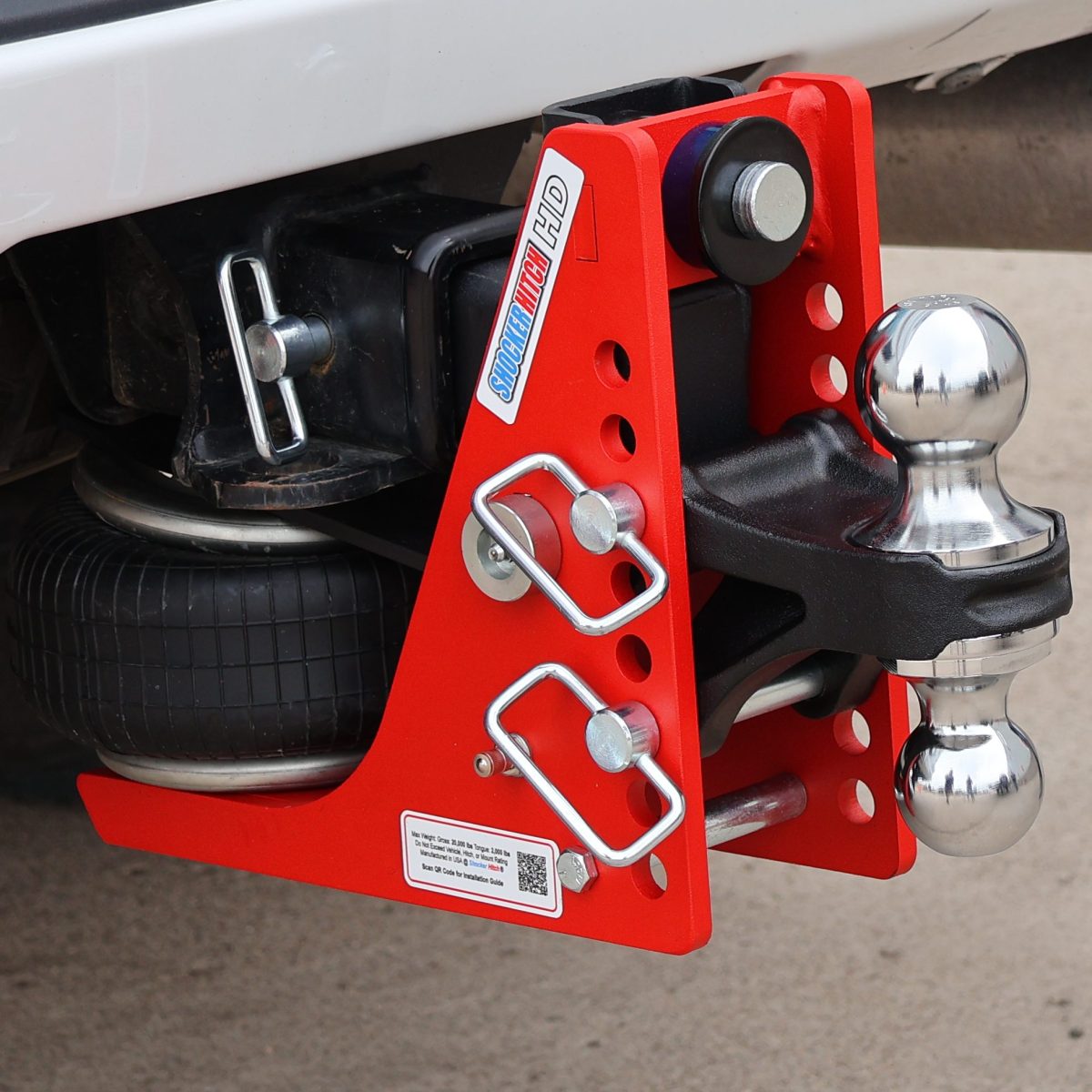

HD Air Receiver Hitch - Chrome Combo Ball - Installed
HD Air Receiver Hitch - Chrome Combo Ball - Installed

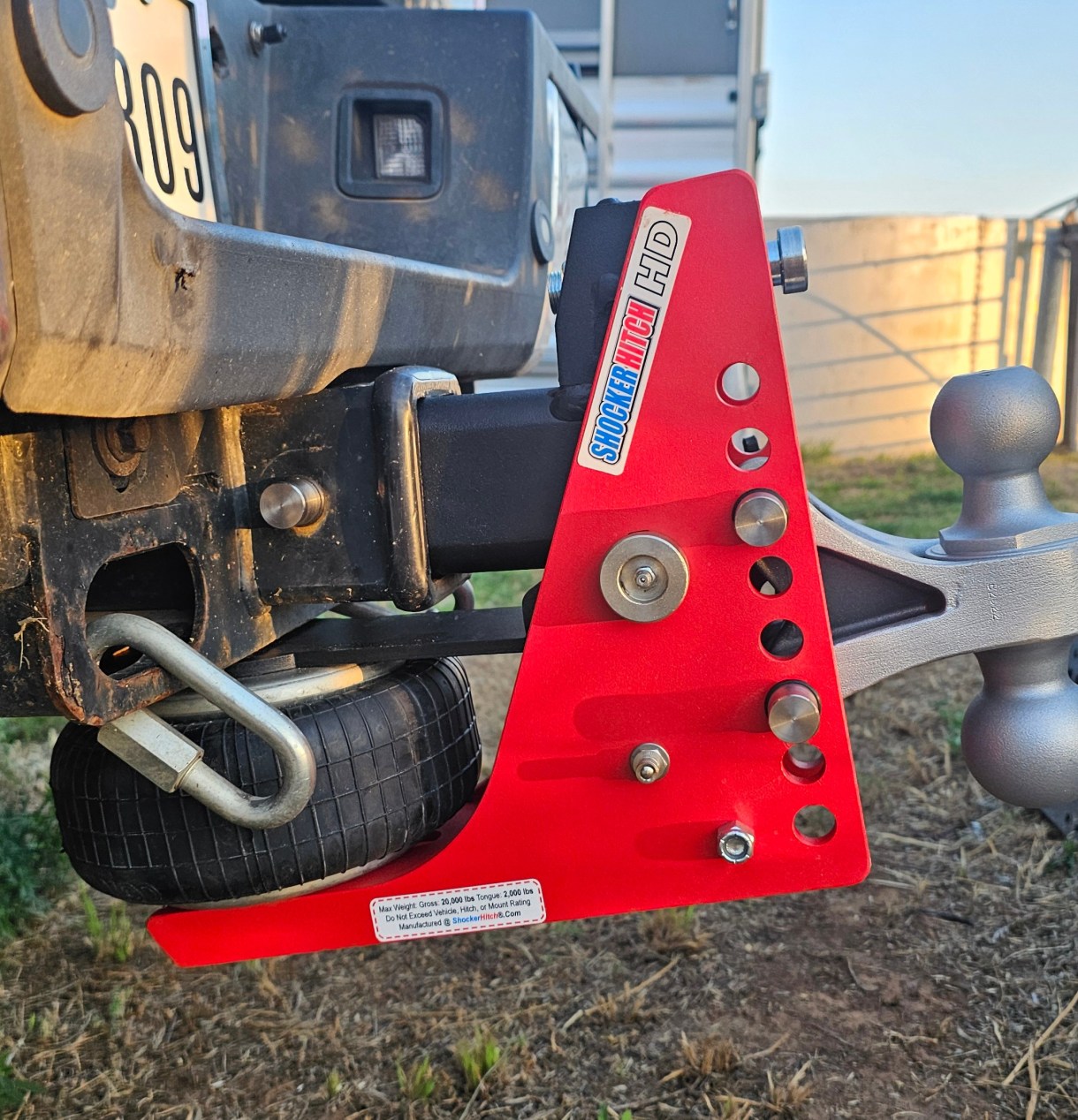

HD Air Hitch - Silver Combo Installed with Bullet Pins
HD Air Hitch - Silver Combo Installed with Bullet Pins
HD Air Hitch & Black Combo Ball Installed
HD Air Hitch & Black Combo Ball Installed
20K HD Air Hitch & Channel 8-Ton Pintle & 2-5/16" Ball Installed
20K HD Air Hitch & Channel 8-Ton Pintle & 2-5/16" Ball Installed
20K HD Air Hitch & Channel Pintle Installed
20K HD Air Hitch & Channel Pintle Installed

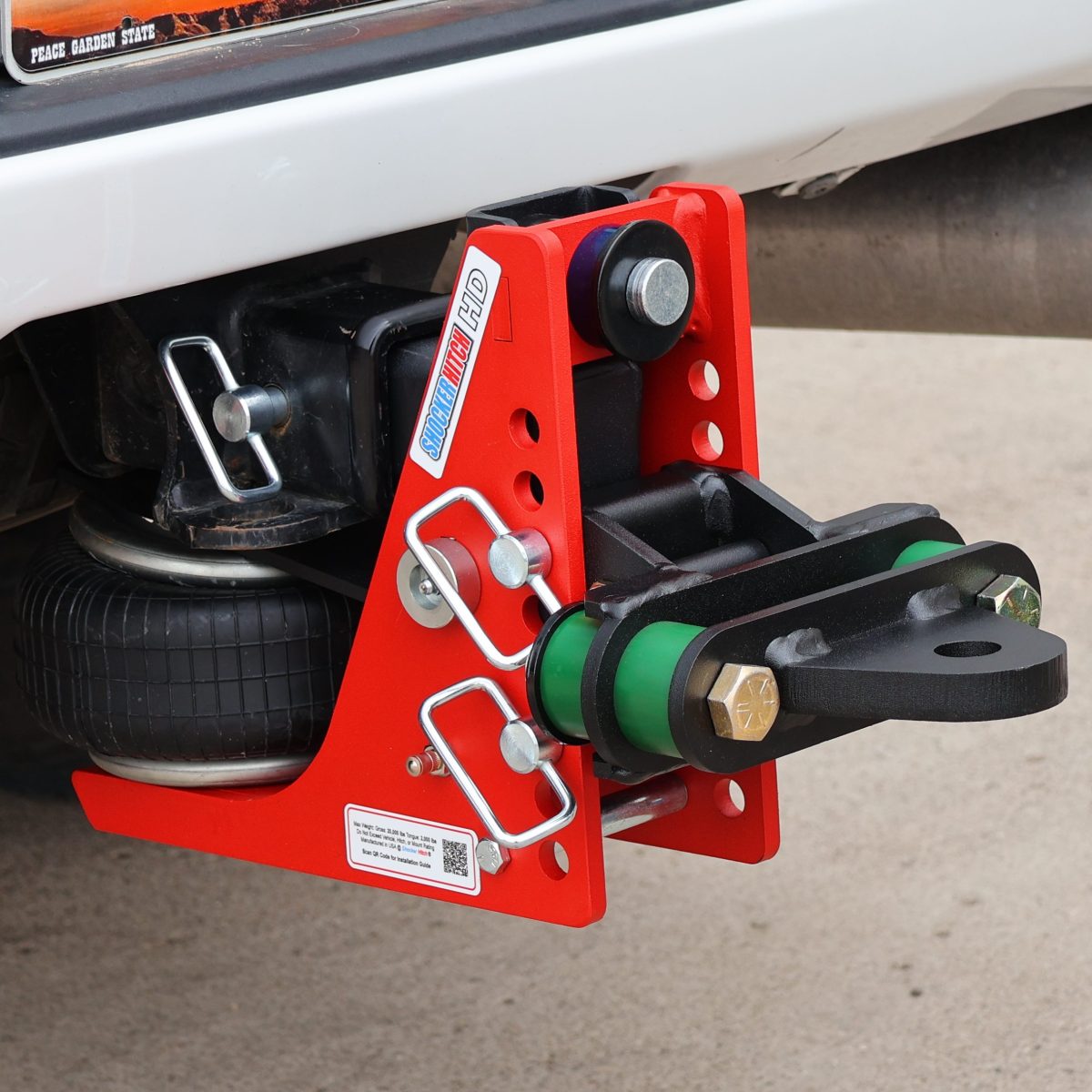

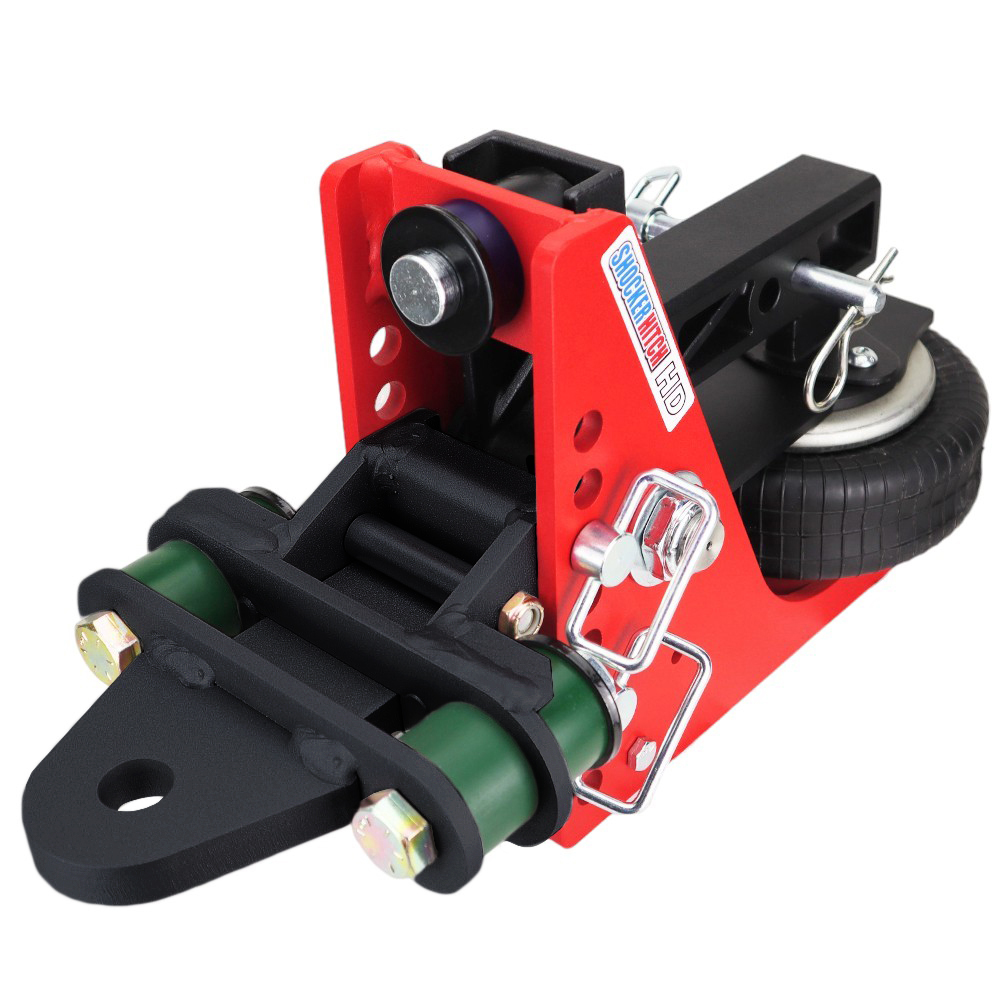

HD Air Receiver Hitch - Cushion Drawbar - Installed
HD Air Receiver Hitch - Cushion Drawbar - Installed
20K HD Air Hitch & Sway Tab Raised Mount w/ 2-5/16" Ball Installed
20K HD Air Hitch & Sway Tab Raised Mount w/ 2-5/16" Ball Installed
20K HD Air Hitch & Raised Mount w/ 2" Ball Installed
20K HD Air Hitch & Raised Mount w/ 2" Ball Installed
20K HD Air Hitch & Sway Tab Drop Mount w/ 2" Ball Installed
20K HD Air Hitch & Sway Tab Drop Mount w/ 2" Ball Installed
20K HD Air Hitch & Drop Mount w/ 2-5/16" Ball Installed
20K HD Air Hitch & Drop Mount w/ 2-5/16" Ball Installed

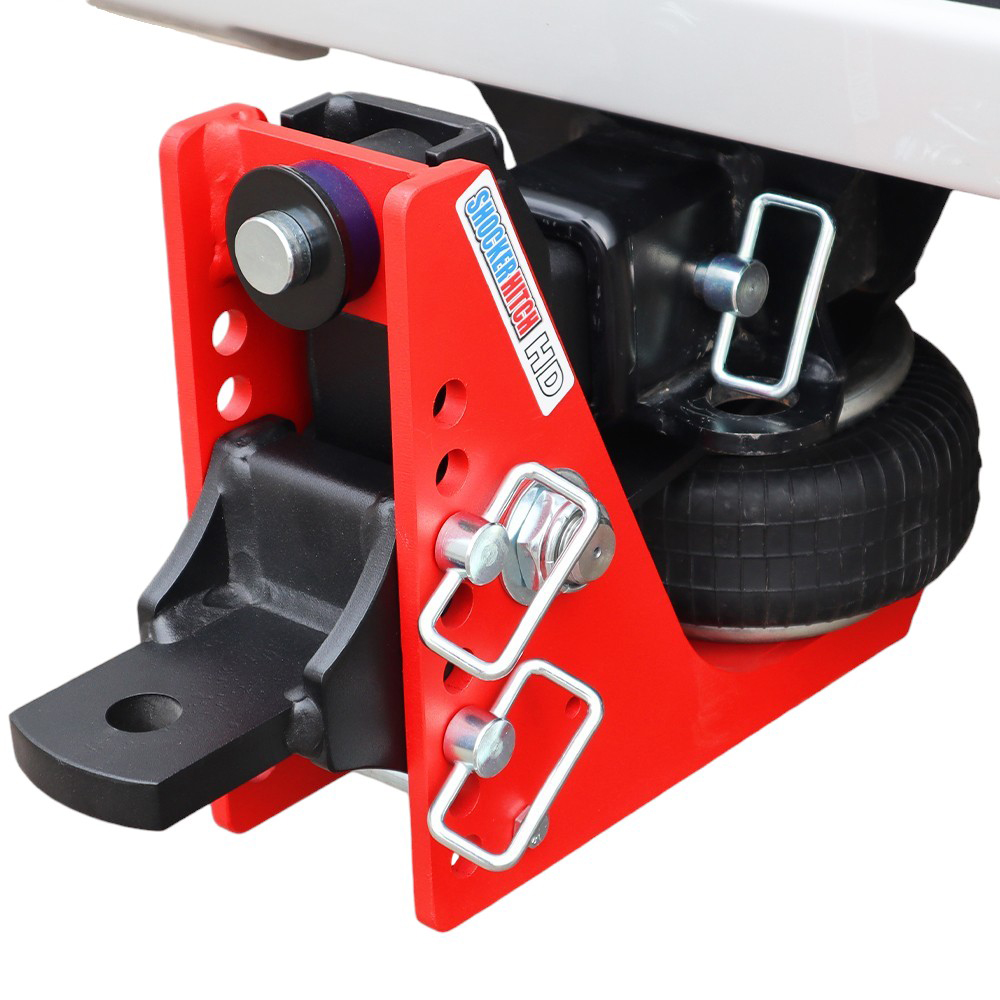

20K HD Air Hitch & Drawbar Installed
20K HD Air Hitch & Drawbar Installed

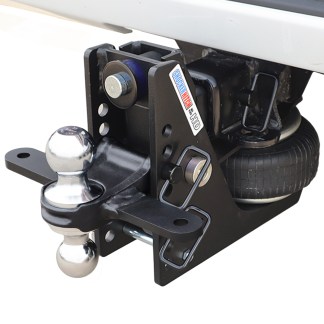

20K HD Air Hitch with Sway Tab Chrome Combo Ball Installed
20K HD Air Hitch with Sway Tab Chrome Combo Ball Installed
20K HD Air Hitch with Sway Tab Black Combo Ball Installed
20K HD Air Hitch with Sway Tab Black Combo Ball Installed

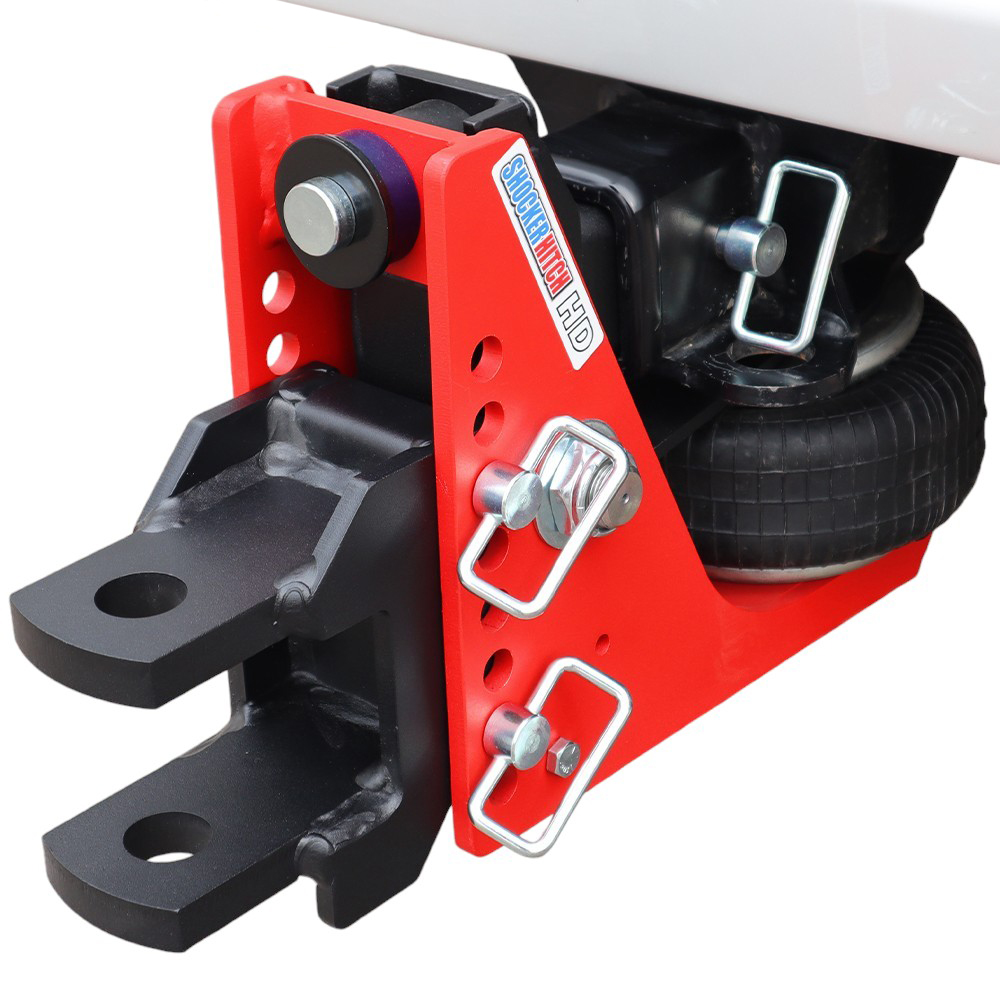

20K HD Air Hitch & Clevis Installed
20K HD Air Hitch & Clevis Installed

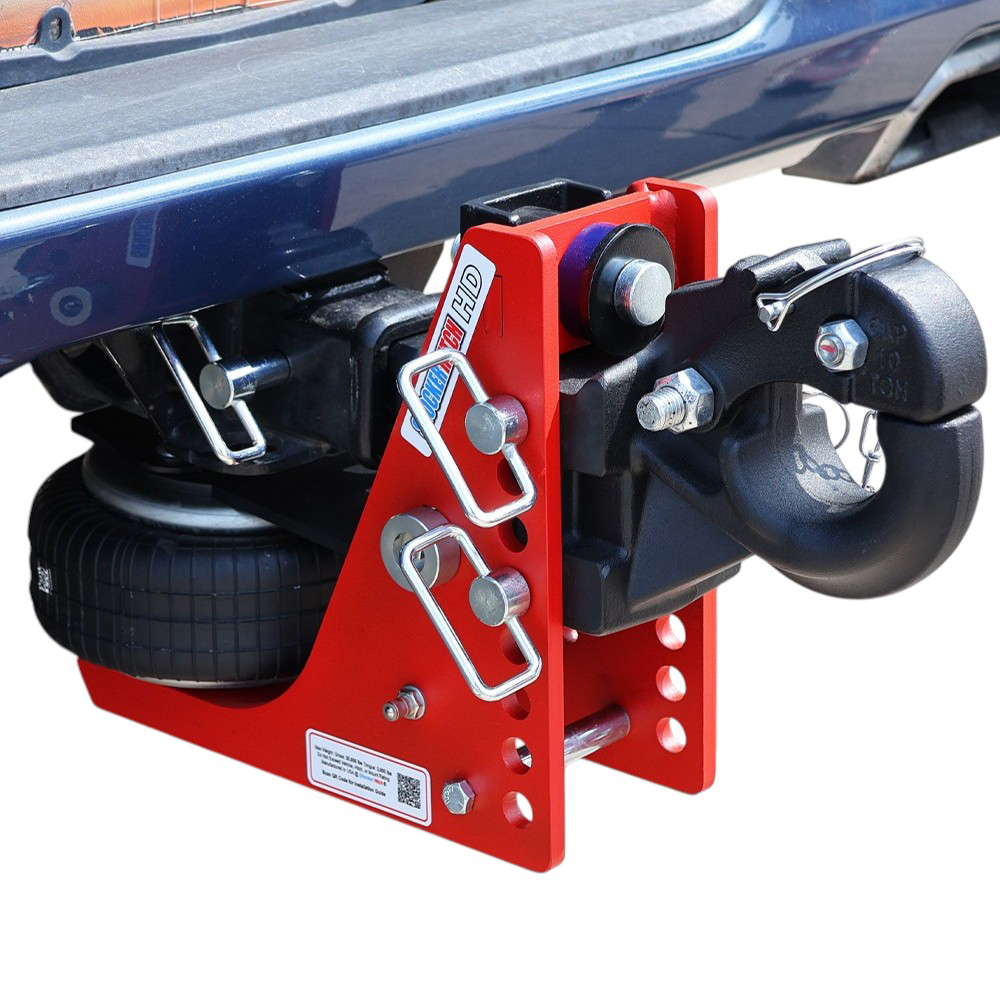

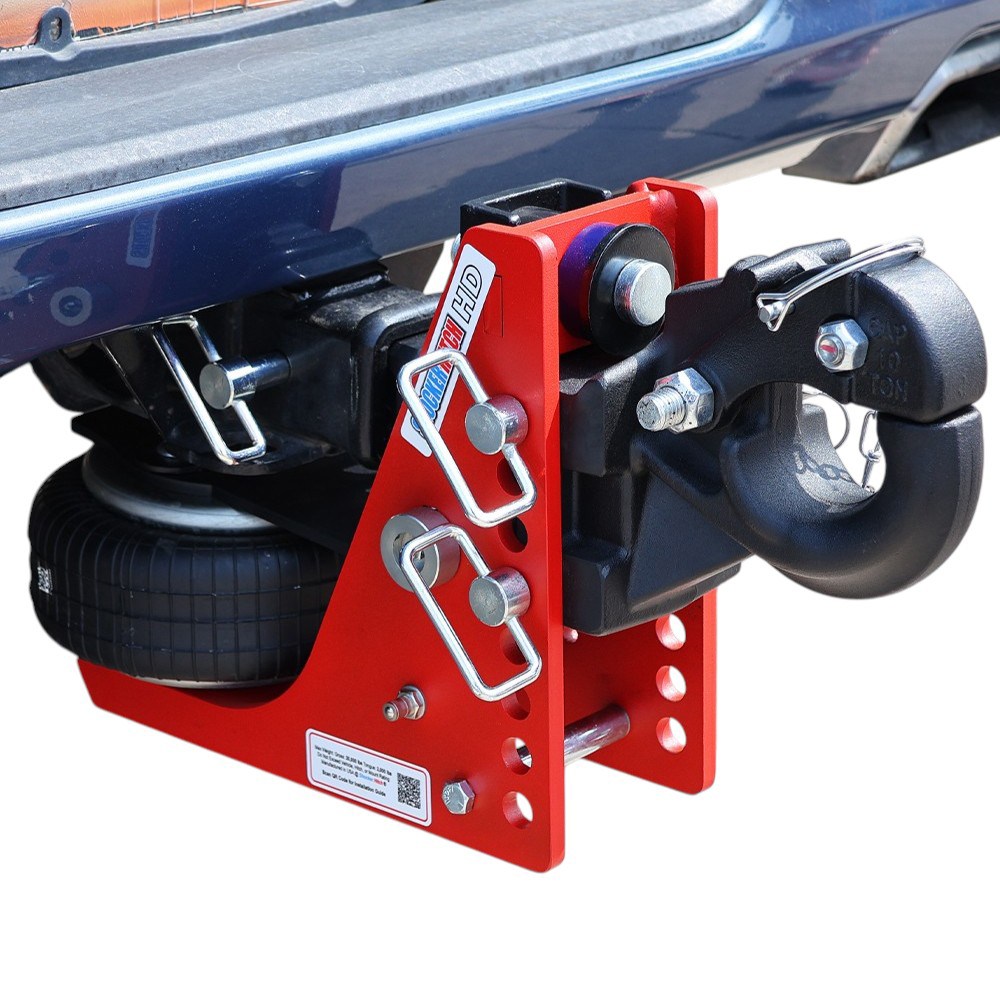

20K HD Air Hitch & 10-Ton Raised Pintle Installed
20K HD Air Hitch & 10-Ton Raised Pintle Installed
20K HD Air Hitch Base Frame with Pins Installed
20K HD Air Hitch Base Frame with Pins Installed
Shocker HD Air Hitch Combo Ball Installed on Service Body
Shocker HD Air Hitch Combo Ball Installed on Service Body

Shocker 20K HD Air Drop Hitch (Build Your Own)

Rated 5.00 out of 5 based on 14 customer ratings
(14)

$630.00 – $859.99$660.00 – $919.99

Usually Ships on or Before Fri 10/23/26
Usually Ships on or Before Fri 10/23/26
Usually Ships on or Before Fri 10/23/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Usually Ships on or Before Mon 10/12/26
Install Guide Install Video
Clear
Not ready yet? Text

Additional Add-Ons

3-Pack (2 Mount & 1 Receiver Pins)
Locking Hitch Pin & 2 Ball Mount Attachment Locking Pins - Fits Base Frame & Receiver
$62.01
|
SKU: SH-317-2-318
Shocker Compact Portable Air Compressor with Digital Gauge
Compact Portable Air Compressor with Digital Gauge
$69.99
|
SKU: SH-5625
OR
Dealer Button

-

  • Videos arrow

    Videos

    Shocker HD Air Ride Receiver Hitch Videos

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    Air Receiver Hitch: Drop, Rise & Tow Ratings

    Never exceed the lowest applicable gross trailer weight or tongue-weight rating of any component in your towing setup. Evaluate each limit separately. Attachment ratings do not increase the hitch base’s ratings. In the table, each pair means maximum trailer weight / maximum tongue weight in pounds. Attachment ratings do not increase the hitch base rating.

    This guide applies to the 8-hole air receiver frame. Use the separate guide for Original 7-hole, Trail Force 10-hole and Super Drop 12-hole frames.

    Your usable adjustment range depends on the selected attachment. Match its name below.

    Maximum attachment ratings in pounds: trailer weight / tongue weight.
    Attachment Drop / rise range Maximum trailer weight / tongue weight (lb)
    Combo Ball Level to 4.5″ Drop 2-5/16″ ball: 20,000 / 2,000
    2″ ball: 10,000 / 1,000
    Drop Ball 4.5″ to 8.5″ Drop 2-5/16″ ball: 20,000 / 2,000
    2″ ball: 10,000 / 1,000
    Raised Ball 2″ Rise to 2″ Drop 2-5/16″ ball: 20,000 / 2,000
    2″ ball: 10,000 / 1,000
    Pintle Hook (SH-333) 3″ to 7″ Drop 20,000 / 2,000
    Raised Pintle Hook (SH-335) Level to 5″ Drop 20,000 / 2,000
    Drawbar Level to 4.5″ Drop 20,000 / 0
    Clevis Mount 3.5″ Drop to 7.5″ Drop 20,000 / 0
    Pintle & Ball — Complete SH-334-2 / SH-334-25 Attachments 3″ to 7″ Drop Pintle mode (with proper ball installed): 16,000 lb GTW / 3,000 lb TW.
    2″ ball mode (SH-334-2): 12,000 lb GTW / 3,000 lb TW.
    2-5/16″ ball mode (SH-334-25): 16,000 lb GTW / 3,000 lb TW.

    Sway-control-tab mounts: Use the range and ball rating for the corresponding combo, drop or raised ball mount. Confirm compatibility with your selected hitch.

    No Ball Mount: A compatible, properly rated attachment is required for towing; the base alone does not provide a towing connection.

    Choose the drop or rise your trailer needs

    Measure on level ground with the trailer level. “Level” means zero drop or rise. How to choose the right drop hitch (opens in a new tab).

    Follow the lowest rating: These are attachment ratings, not a guarantee of your complete hitch capacity. Never exceed the lowest applicable trailer-weight or tongue-weight limit of the vehicle, receiver, hitch base, attachment, ball or trailer. A higher-rated attachment does not increase a lower-rated hitch base’s capacity. Use the marked tongue-weight rating; it is not calculated from towing capacity.

    Drawbar, cushioned drawbar and SH-360 clevis: 0 lb vertical tongue load; these mounts are not for use with a hitch ball.

  • Install arrow

    Install

    Choose your air receiver hitch model

    Select your hitch to jump to its installation instructions.

    Set up your air receiver hitch

    Follow the installation steps for your model, then adjust air pressure with your trailer loaded for travel. Use these shortcuts for setup help and maintenance.

    Set air pressure for your loaded trailer

    100 PSI MAXIMUM — not the target setting.
    Use the truck-side bump cushion to judge the correct adjustment for your load. Never exceed 100 PSI.

    1. Load and connect your trailer. Follow your model’s installation steps and set up the trailer as you normally would for travel.
    2. Add air at your model’s valve. The photos below show where the air compressor connects.
    3. Watch the truck-side bump cushion. Stop adding air once the main frame lightly compresses the cushion closest to the truck (tailgate side). Follow the detailed instructions for your model below.
    Air compressor connected to the standard and HD air receiver hitch valve
    Standard / HD air receivers
    Add air at the valve shown where the compressor connects. Air-pressure steps
    Air compressor connection at the Sport air receiver hitch valve
    Sport™ air receiver
    Locate the valve shown in this close-up. Air-pressure steps
    Trail Force air hitch valve below the air spring with an air hose attached
    Trail Force® air receiver
    The air valve is below the air spring. Air-pressure steps
    Close-up of the truck-side bump cushion lightly compressed by the air receiver hitch frame
    Truck-side bump cushion at the correct light compression.

    Watch this cushion—not a preset PSI number

    Observe the cushion closest to the truck. With the trailer loaded, add air until the main frame lightly compresses that cushion. The pressure needed depends on the load.

    Recheck the adjustment when your trailer load changes. The 100 PSI limit is a ceiling, not an instruction to inflate to 100 PSI.

    See the add-air / stop-adding-air photos ↓

    Know your air receiver hitch components

    Select any photo to open the full-size labeled guide in a new tab.

    Air valve labeled where the compressor hose connects to the air receiver hitch
    Air valve — add air at the valve shown. Enlarge photo
    Paddle labeled on the flat steel plate above the air spring; spacer block shown on top
    Paddle — the flat steel plate above the air spring. This example also shows an installed spacer block. Enlarge photo

    Shocker Air Receiver Hitch Install Video

    Note: Always use a good hitch ball rated for the recommended tow weight.

    Safety Notice: Towing capacity is limited by the lowest rated component.

    Shocker Air Receiver Hitch Installation Instructions

    1. Compressing Air Spring (BEFORE INSTALLATION)

    • Release Pressure: Use the provided cotter pin clip to push in on the valve core to release air pressure from the back.

    • Compress: While releasing pressure, simultaneously push down on the air spring paddle or squeeze the plates together to exhaust the remaining air.

    Releasing air pressure with cotter pin clip and pressing down on paddle simultaneously

    2. Installing the Shocker Hitch into the Receiver

    • Mounting: Slide the hitch shank fully into the receiver tube of your tow vehicle.

    • Align and Secure: Align the pin holes and insert the 5/8” hitch pin. Lock it in place with the cotter pin clip.

    Shank inserted into receiver tube and secured with pin and cotter pin clip

    3. Install Attachment Ball Mount

    • Selection: Choose an attachment that allows your trailer to sit level. Refer to “WHAT SIZE DROP HITCH DO I NEED” and “GROUND CLEARANCE GUIDE” for more information.

    • Attachment: Install your chosen mount into the Shocker Hitch Frame.

    • Secure: Use the hitch pins and cotter pin clips provided to lock the ball mount into place.

    Ball mount installed and secured with hitch pins and cotter pin clips

    4. Setting Air Pressure

    • Load the Trailer: Hook up your trailer and load it as you normally would for travel.

    • To Set Air: Hook up trailer using a properly selected ball adaptor and height adjustment to level trailer when loaded. Next, inflate the air spring. As air pressure increases, the unit will rotate, lifting the hitch point. Install enough air until the top of the hitch frame touches the top (tailgate side) bump cushion, or for heavy loads, until it compresses the tailgate side bump cushion by approximately 1/8″.

    Filling up air ride system using an air compressor on the valve stem

    The “Sweet Spot”

    Stop adding air once the main frame lightly compresses the truck side bump cushion.

    Truck side bump cushion compressed slightly showing proper air compression

    Proper Air Pressure Guide

    Truck-side bump cushion touching the frame — stop adding air
    Truck-side bump cushion touching the frame — stop adding air
    Truck side bump cushion-green-not touching frame (Add Air)
    Truck side bump cushion-green-not touching frame (Add Air)

    Spacer-block decision guide

    Check alignment with your trailer connected, loaded for travel and the air pressure correctly set. The paddle above the air spring should be approximately parallel with the receiver tube.

    When is a spacer block needed?

    Correct paddle alignment without a spacer block
    1. Correct alignment
    Paddle approximately parallel with the receiver tube. A spacer is not needed to correct the angle shown.
    Excessive paddle angle before installing a spacer block
    2. Excessive angle
    If the paddle angle is more than 10 degrees with pressure correctly set, follow the spacer-block guidance for your model.
    Spacer block installed above the paddle to correct excessive angle
    3. Corrected alignment
    The spacer sits on top of the paddle against the underside of the receiver tube, correcting the excessive angle.

    Model notes: 20K HD hitches with a 2-inch receiver come with the spacer installed. Some HD models with a 2-1/2-inch receiver include it in the box. A spacer is generally not needed on 14K air receiver hitches because their air spring is 1 inch taller than the HD air spring.

    Maximum air pressure: 100 PSI. Do not use extra air pressure to exceed this limit while checking alignment. Read the full spacer-block guide.

    Watch: when do you need a spacer block?

    Use this short video alongside the alignment photos above to understand the spacer-block setup.

    Watch on YouTube

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance, it may be necessary to increase air pressure in the Shocker.
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • Ensure you have connected your safety chains and electrical cord before towing.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

    Maximum Air Pressure: Do not exceed 100 psi in the air spring, as it may damage the air spring.

    Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you have an equalizer or weight distribution hitch, then it will not. However, check out our Shocker Air Equalizer for weight distribution hitches. If you are just using friction sway bars that hook to a mini ball (such as the shocker sway control arm bar kit), then yes, if you also have one of our sway bar tab mounts, such as the combo sway control ball mount attachment.

    Sport Air Receiver Hitch Installation Instructions

    1. Compressing Air Spring (BEFORE INSTALLATION)

    • Release Pressure: Use the provided cotter pin clip to push in on the valve core to release air pressure from the back.

    • Compress: While releasing pressure, simultaneously push down on the air spring paddle or squeeze the plates together to exhaust the remaining air.

    Releasing air pressure with cotter pin and pressing down on paddle

    2. Installing the Shocker Sport Hitch into the Receiver

    • Mounting: Slide the hitch shank fully into the receiver tube of your tow vehicle.

    • Align and Secure: Align the pin holes and insert the 5/8” hitch pin. Lock it in place with the cotter pin clip.

    Shank inserted into receiver tube and secured with pin and cotter pin clip

    3. Install Attachment Ball Mount

    • Selection: Choose an attachment that allows your trailer to sit level. Refer to “WHAT SIZE DROP HITCH DO I NEED” and “GROUND CLEARANCE GUIDE” for more information.

    • Attachment: Install your chosen mount into the Shocker Sport Hitch Frame.

    • Secure: Use the hitch pins and cotter pin clips provided to lock the ball mount into place.

    Ball mount installed and secured with hitch pins and cotter pin clips

    4. Setting Air Pressure

    • Load the Trailer: Hook up your trailer and load it as you normally would for travel.

    • To Set Air: Hook up trailer using a properly selected ball adaptor and height adjustment to level trailer when loaded. Next, inflate the air spring. As air pressure increases, the unit will rotate, lifting the hitch point. Install enough air until the top of the hitch frame touches the top (tailgate side) bump cushion, or for heavy loads, until it compresses the tailgate side bump cushion by approximately 1/8″.

    Filling up air spring using an air compressor on the valve stem

    The “Sweet Spot”

    Stop adding air once the main frame lightly compresses the truck side bump cushion.

    Truck side bump cushion compressed slightly showing proper air compression

    Trail Force Receiver Hitch Installation Instructions

    1. Installing the Trail Force Air Hitch into the Receiver

    • Mounting: Slide the hitch shank fully into the receiver tube of your tow vehicle.

    • Align and Secure: Align the pin holes and insert the 5/8” hitch pin. Lock it in place with the cotter pin clip.

    Shank inserted into receiver

    2. Install Attachment Ball Mount

    • Selection: Choose an attachment that allows your trailer to sit level. Refer to “WHAT SIZE DROP HITCH DO I NEED” and “GROUND CLEARANCE GUIDE” for more information.

    • Attachment: Install your chosen mount into the Trail Force Hitch Frame.

    • Secure: Use the hitch pins and cotter pin clips provided to lock the ball mount into place.

    Ball mount installed and secured with hitch pins and clips

    3. Setting Air Pressure

    • Load the Trailer: Hook up your trailer and load it as you normally would for travel.

    • To Set Air: Hook up trailer using a properly selected ball adaptor and height adjustment to level trailer when loaded. Next, inflate the air spring. As air pressure increases, the unit will rotate, lifting the hitch point. Install enough air until the top of the hitch frame touches the top (tailgate side) bump cushion, or for heavy loads, until it compresses the tailgate side bump cushion by approximately 1/8″.

    Filling up air spring using an air compressor on the valve stem

    The “Sweet Spot”

    Stop adding air once the main frame lightly compresses the truck side bump cushion.

    Truck side bump cushion compressed slightly showing proper air compression

    Download Shocker Air Receiver Hitch Install Instructions

    Download: Shocker Air Bumper Hitch Installation Manual

    Shocker Air Receiver Hitch Air Pressure PSI Tuning Video

    Air receiver hitch troubleshooting

    Start with your trailer connected and loaded for travel. Follow the instructions for your model above; do not use extra air pressure or bolt adjustments to compensate for an incorrect setup.

    The ride feels stiff

    Recheck the air setting against the truck-side bump cushion rather than aiming for a preset PSI. The main frame should lightly compress that cushion. Check routine lubrication, too.

    Do not tighten the top jamnut bolt (limiter bolt). If it has already been adjusted, contact our team before making further adjustments.

    See the labeled bolt and cushion · Maintenance steps

    The hitch seems to be losing air

    A changed trailer load, temperature change or a new air spring settling can affect pressure. Recheck the loaded setup. Persistent or substantial pressure loss needs a leak check; use the air receiver section of our detailed guide.

    Never inflate an air spring outside its hitch frame. If the spring will not hold air or appears damaged, contact our team before towing.

    Air-pressure loss troubleshooting

    The paddle angle looks excessive

    With air pressure correctly set, compare your setup with the three alignment examples. The paddle above the air spring should be approximately parallel with the receiver tube. Spacer requirements depend on the model and receiver size.

    Never exceed 100 PSI to try to correct alignment.

    Check the spacer-block decision guide

    Routine Maintenance Guide:

    1. Routine Lubrication
      • Pivot Bolt: Regularly grease the Shocker Hitch unit using the built-in grease zerk located on the main pivot bolt.
      • Over-Greasing: You cannot over-grease the unit; frequent lubrication ensures the air-ride pivot remains fluid and responsive.
      • Hitch Ball: It is highly recommended to grease the trailer coupler ball to reduce friction and prevent premature wear.
    2. Critical Adjustments
      • Top Jamnut Bolt: DO NOT tighten the top jamnut bolt.
      • Factory Specs: This bolt is set to factory specifications out of the box; overtightening will cause a stiff towing experience and limit the airbag’s effectiveness.
      • Attachment Swapping: When changing between different ball mounts (Combo, Pintle, Clevis, etc.), ensure the pins and cotter pin clips are fully seated and locked.
    3. Air System Integrity
      • Max Pressure: Never Exceed 100PSI in the air spring.
      • Component Protection: Excessive pressure can lead to permanent damage to the air spring or the internal bump cushions.
      • Pre-Tow Inspection: Always check your air pressure after loading the trailer to ensure the frame is lightly compressing the bump cushion.

    Common Replacement Part:

    Bump Cushion

    Shocker Air Bumper Hitch Bump Cushions

    Air Spring Bag

    20K Air Spring Bag & Air Line - Shocker HD Air Receiver - SH-204-SH-214

    Pivot Bolt Kit

    Shocker Replacement Pivot Bolt Kit for Receiver Hitch with Dowel Pin - SH-280

    Spacer Block Kit

    Air Hitch Spacer Block - SPBK-REC

    Air receiver hitch installation FAQs

    Quick answers for standard and HD air receivers, Sport™ and Trail Force® models.

    How much air pressure should I use?

    There is no single PSI setting for every trailer. With the trailer connected and loaded, add air until the main frame lightly compresses the truck-side bump cushion, following your model’s steps. Recheck after changing the load. 100 PSI is the maximum, not the target.

    See the air-pressure photos and steps

    Which valve and bump cushion should I look at?

    Use the air valve shown for your model. Watch the cushion nearest the truck, also called the tailgate-side cushion. The paddle is the flat steel plate above the air spring; the limiter bolt is not an air-pressure adjustment.

    View the labeled component photos

    Do I need a spacer block?

    Check the paddle angle with the trailer loaded and air pressure set. An angle greater than 10 degrees calls for reviewing the spacer guidance for your model. The 20K HD with a 2-inch receiver comes with the spacer installed; some HD 2-1/2-inch models include it in the box. A spacer is generally not needed on 14K air receivers.

    Read the full spacer-block guide

    How do I choose the receiver size and ball-mount height?

    Measure the inside opening of your vehicle’s receiver and match the hitch shank to it. Select a ball mount with enough drop or rise to keep the loaded trailer level, then check ground clearance.

    Measure receiver size · Drop hitch calculator · Ground-clearance guide

    Can I use a weight-distribution hitch or friction sway control?

    The air receiver hitches covered here are not for use with a weight-distribution system. See the Shocker Air Equalizer for that application and confirm compatibility with your setup. Friction sway control requires the appropriate sway-bar-tab ball mount and compatible sway-control components; it is a different setup from weight distribution.

    Sway-control guide · Ask about compatibility

    Does adding air increase my towing capacity?

    No. Stay within the vehicle, receiver, hitch, ball mount, ball, coupler and trailer ratings. The lowest-rated component limits the setup, including its applicable tongue-weight limit.

    Understand towing capacity

    What should I check before the first tow?

    Check that the receiver pin, attachment pins and their retaining clips are fully secured; the coupler is locked on the correct ball; and the safety chains and electrical connection are in place. Confirm loaded trailer height, ground clearance and air adjustment, then complete the full pre-tow checks.

    Open the towing checklist

    How do I choose a replacement air spring or cushion?

    Match the part to your exact hitch model and air-valve or air-line configuration. Do not select by appearance alone. Use the replacement-part links on this page, or send our team your model number and a photo before ordering.

    View replacement parts · Get setup help

    We’re here to help. Contact Us

    More help: Support directory · Pre-tow checklist

  • Warranty arrow

    Warranty

    This product is backed by the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.
    60-DAY MONEY BACK GUARANTEE

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.
    SMOOTHER TOWING

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    FREE SHIPPING* & FREE RETURNS

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.
    HOMETOWN CUSTOMER SERVICE

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    INSTALL HELP

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.
    MADE IN THE USA

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Q & A (6) arrow

    Questions and answers of the customers

      On the clevis hitch, how big is the opening? So what is the thickest hitch that will fit in the opening?
    1. 0 votes
      Q On the clevis hitch, how big is the opening? So what is the thickest hitch that will fit in the o...... Read more
      A

      The Clevis Pin Ball Mount has a 3-1/4" opening, please take a look at the diagram linked here.
      2. I have a dump trailer that varies in weight as I receive or dump loads. Would I need to adjust the airbag pressure every time I load and unload?
    2. 0 votes
      Q I have a dump trailer that varies in weight as I receive or dump loads. Would I need to adjust th...... Read more
      A Our air hitches are dependent on the weight of your trailer, so it is recommended that you check your hitch air settings for proper usage to get the full benefit of the air ride. For more information, please see our Air Pressure Guide page.
      3. Where do I buy from in Saskatchewan Canada?
    3. 0 votes
      Q Where do I buy from in Saskatchewan Canada?
      A Our closest dealer to you would be in Moose Jaw at Top Gun Trailer Sales. You can check out all of our dealers on our dealer locator here. https://shockerhitch.com/dealers/
      4. I have aftermarket air bags on my 2019 RAM 2500. Trailer Tongue weight is 900 lbs. Is it possible not to use sway bars if I use your Shocker hitch and the truck air bags? The truck does sag some currently without the stabilizer bars...
    4. 0 votes
      Q I have aftermarket air bags on my 2019 RAM 2500. Trailer Tongue weight is 900 lbs. Is it possible...... Read more
      A

      It's possible you would be able to use our air hitch without sway control, however depending on how much your truck is sagging, you may still need to utilize a weight distribution hitch.
      5. What is the distance from center of hitch pin hole too clear rear bumper. I have an after market bumper that sticks out a little from hitch
    5. 0 votes
      Q What is the distance from center of hitch pin hole too clear rear bumper. I have an after market ...... Read more
      A

      When measured from the furthest pin hole to the red frame, there is  5" of clearance.
      6. I have a 2in shockerhitch and now got a new pickup with a 3inch receiver is there any way to change the receiver shaft on my old hitch
    6. 0 votes
      Q I have a 2in shockerhitch and now got a new pickup with a 3inch receiver is there any way to chan...... Read more
      A We do have replacement shanks to upgrade your hitch from a 2" to a 3". Please see the following link. https://shockerhitch.com/product/replacement-shank/

  • Reviews (14) arrow

    Customer Reviews

    1. Rated 5 out of 5

      Love the shocker hitch, did around 700 miles one way with a 6000 plus pound trailer helped make the ride smooth. Was wife approved

      – Shane
    2. Rated 5 out of 5

      The Shocker Hitch 20k HD significantly improved the handling of my truck with a chipper attached. While going over rough roads with the chipper as well as an equipment trailer with a tractor on it, the bumpy portions of the road were noticeably less jarring. I am impressed by the stoutness of the hitch attachments and the quality and appearance of its overall build.

      – Jesse Hessney
    3. Rated 5 out of 5

      I’m a equiment transfer driver , took a minute to understand air pressure setting , but once I did , give This hitch a solid thumbs up 👍🏼

      – Shocker Hitch a thumb
    4. Rated 5 out of 5

      Super smooth, not sure how I ever survived with out one !

      – AL
    5. Rated 5 out of 5

      Bought a new 36′ enclosed trailer and needed a heavier hitch rating (20k). Researched this receiver and glad I bought it. Had two classic cars inside trailer…. smooth over the worst bridges on my trip. A+

      – Tim O’Sullivan
    6. Rated 5 out of 5

      Absolutely the best hitch I’ve ever owned!!! I’m towing a Malibu M242 wake boat that weights almost 11,000 lbs loaded with the trailer. This hitch definitely cushions the ride that helps you feel more comfortable in your vehicle and it’s so much better for the trailer because it eliminates the hard shock as you go over bumps on the interstate!! It’s worth every penny!!!!

      – Dallas Hixson
    7. Rated 5 out of 5

      I can’t believe I got jolted by trailers all these years….This hitch is amazing. I have pulled 5 different trailers so far ranging from 2500 pounds to 16000 pounds, 12′ to 22′, for well over 500 miles on all kinds of roads. I am now a believer. The price is steep, but worth EVERY penny, and the customer service is fantastic. Buy one! Your kidneys and back will thank you.

      – Ben Branson
    8. Rated 5 out of 5

      OUTSTANDING!! From the ordering process to the tect support was a very smooth. The product itself is well made and makes towing so much easier. I should of switched years ago

      – Robert Kister
    9. Rated 5 out of 5

      I use my shocker everyday

      – William M Nash
    10. Rated 5 out of 5

      Love it! Makes the ride so much smoother.

      – J Richey
    11. Rated 5 out of 5

      This 20K Air hitch is great, I trailer 14 ft containers that are 13yrd container. This hitch gives a great ride. The truck and trailer ride is way smoother then other hitches. Shocker air ride hitch is the way to go.

      – Patrick Mitchell
    12. Rated 5 out of 5

      Crazy fast shipping and order arrived exactly as ordered. Live chat is also crazy fast with answers and follow up. This is an unbelievable product and extremely well built, just large for a half ton pickup, so I returned for a quick refund less freight. Should have ordered the aluminum version, but according to Curt is the same large size. I defiantly would consider a more compact version if ever available. May have to be this size for the action to work properly and be as effective, just a guess. Would be fine for a 3/4 ton or larger vehicle, as I intended to leave on all the time pulling multiple trailers in one day. Expensive, but worth the money for the cushy ride, why shake your tow vehicle or contents of your trailer to pieces when it can float on air. Also travels forward a back, besides up and down. If they ever produce a slightly smaller aluminum version, I would defiantly consider re- purchasing. Will work on a half ton, but looks crazy big and gets low to the ground with a load. Top of the line product and company to do business with. Highly recommend.

      – REX CLY
    13. Rated 5 out of 5

      Love this Air Receiver Hitch. It provides the best bumper mount towing experience. Practically eliminates buck and chuck. I have towed trailer from 8k to 16k and wouldn’t use any other hitch. Ever

      – Scott Miskimens
    14. Rated 5 out of 5

      This hitch has been everything I hoped it would be. I tow different trailers on a daily basis. 7×14′ dump, 20′ enclosed, 22′ equipment and 16′ flatbed. It’s great to be able to change ball sized, ride height and the air pressure within a minute or so between trailers.

      – Joshua McGeachy

    14 reviews for Shocker 20K HD Air Drop Hitch (Build Your Own)

    Add a review

    Your email address will not be published. Required fields are marked *

You may also like…

  • Shocker Compact Portable Air Compressor with Digital Gauge

    Shocker Compact Portable Air Compressor with Digital Gauge

    From:  $69.99
    Rated 5.00 out of 5

    -

  • Extra 10% offShocker Gooseneck Rollup Tonneau Cover

    Shocker Gooseneck Roll Up Tonneau Cover

    From:  $373.49$414.99
    Rated 4.88 out of 5

    -

  • Extra 22% off3-Pack (2 Mount & 1 Receiver Pins)

    Shocker Receiver Hitch Locking Hitch Pins

    From:  $22.23$28.50
    Rated 4.86 out of 5

    -

  • All Shocker Receiver Hitch Attachments and Mounts

    Shocker Receiver Hitch Attachments

    From:  $64.99
    Rated 5.00 out of 5

    -

  • HD Max Black Air Hitch & Chrome Combo Ball Installed

    Shocker 20K HD Max Air Drop Hitch (Build Your Own)

    From:  $630.00
    Rated 5.00 out of 5

    -

  • Quick Latch Towing Mud Flaps

    Shocker Hitch Quick Latch Towing Mud Flaps

    From:  $439.99
    Rated 5.00 out of 5

    -

Related products

  • 20K HD Air Hitch & Sway Tab Drop Mount w/ 2-5/16" Ball Installed

    Shocker 20K HD Air Sway Control Drop Hitch

    From:  $779.99
    Rated 0 out of 5

    -

  • HD Air Hitch & Black Combo Ball Installed

    Shocker 20K HD Air Drop Hitch with Combo Ball

    From:  $749.99
    Rated 4.97 out of 5

    -

  • Extra 10% off20K HD Max Black Air Hitch & Black Combo Ball with Dual Friction Sway Bar Kit

    Shocker 20K HD Max Air Drop Hitch Sway Control Towing Kit with Combo Ball

    From:  $742.02$824.47
    Rated 5.00 out of 5

    -
