Shocker 20K HD Max Air Drop Hitch Base Frame – No Ball Mount

Rated 0 out of 5
(0)
20K HD Max Black Air Hitch Base Frame with Pins Installed
20K HD Max Black Air Hitch Base Frame with Pins Installed
20K HD Max Black Air Hitch - Diagram - Features - Specifications
20K HD Max Black Air Hitch - Diagram - Features - Specifications
Built in Air Ride Absorbs Bumps, Tugs & Jerks - HD Max Black Air Hitch - Fully Adjustable
Built in Air Ride Absorbs Bumps, Tugs & Jerks - HD Max Black Air Hitch - Fully Adjustable
HD Max Black Air Hitch - Built in Dual Bump Cushions for Max Performance
HD Max Black Air Hitch - Built in Dual Bump Cushions for Max Performance
Shocker HD Max Black air hitch base frame with adjustment pins and air spring, without a ball mount

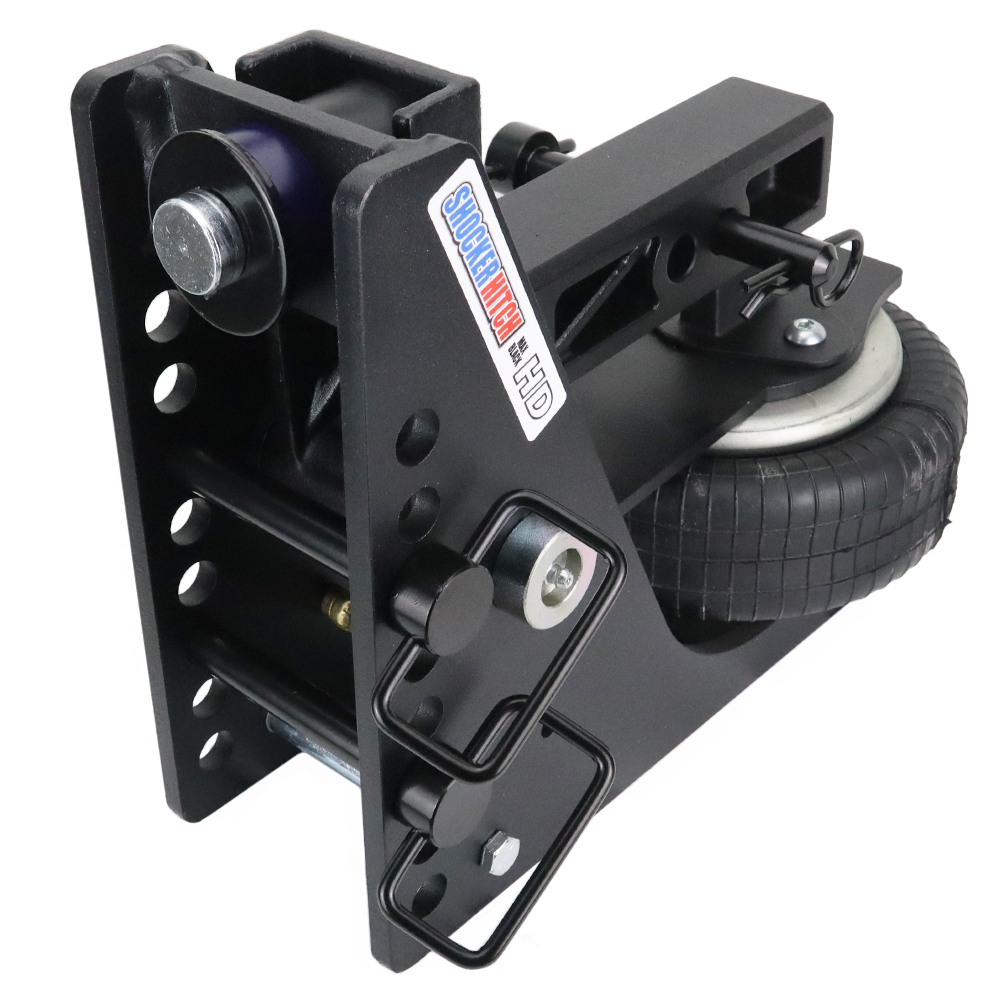

20K HD Max Black Air Hitch Base Frame with Pins - Fits 2" Receiver
20K HD Max Black Air Hitch Base Frame with Pins - Fits 2-1/2" Receiver
20K HD Max Black Air Hitch Base Frame with Pins - Fits 2-1/2" Receiver
20K HD Max Black Air Hitch Base Frame with Pins - Fits 3" Receiver
20K HD Max Black Air Hitch Base Frame with Pins - Fits 3" Receiver
Easy To Use Air Valve on HD Max Black Air Hitch
Easy To Use Air Valve on HD Max Black Air Hitch
HD Max Black Air Receiver Hitch - 1" Diameter 1045 Carbon Steel Pivot Bolt Grease Zerk
HD Max Black Air Receiver Hitch - 1" Diameter 1045 Carbon Steel Pivot Bolt Grease Zerk
Shocker Black Combo Ball Attachment SH-340BLK
Shocker Black Combo Ball Attachment SH-340BLK
Shocker Channel Style Pintle Hook & 2-5/16" Ball Combo Attachment
Shocker Channel Style Pintle Hook & 2-5/16" Ball Combo Attachment
Shocker Pintle Hook - Channel Style Mount Attachment SH-333
Shocker Pintle Hook - Channel Style Mount Attachment SH-333
Shocker Red Combo Ball Attachment SH-340RED
Shocker Red Combo Ball Attachment SH-340RED
Shocker Black Combo Ball Attachment with Sway Tabs SH-340BLK-SC
Shocker Black Combo Ball Attachment with Sway Tabs SH-340BLK-SC
Shocker Raised Ball Mount
Shocker Raised Ball Mount Attachment
Shocker Pintle Mount Plate
Shocker Pintle Mount Plate
Shocker Raised Ball Mount Attachment with Sway Tabs
Shocker Raised Ball Mount Attachment with Sway Tabs
Shocker Drop Ball Mount
Shocker Drop Ball Mount Attachment
Shocker Drop Ball Mount Attachment with Sway Bar Mount Tabs
Shocker Drop Ball Mount Attachment with Sway Bar Mount Tabs
Shocker Cushion Black Drawbar Attachment - SH-370
Shocker Cushion Black Drawbar Attachment - SH-370
Shocker Drawbar Mount with 1" Hole
Shocker Drawbar Mount Attachment with 1" Hole
Shocker Combination Pintle Hook with Hitch Ball & Mount Plate Attachment
Shocker Combination Pintle Hook with Hitch Ball & Mount Plate Attachment
Show with Pintle Hook Bolted On (Pintle Hook Sold Separately)
Show with Pintle Hook Bolted On (Pintle Hook Sold Separately) 10 ton (20,000 lbs)
Shocker 2" Receiver Adapter Mount Attachment
Shocker 2" Receiver Adapter Mount Attachment

Shocker 20K HD Max Air Drop Hitch Base Frame – No Ball Mount

Rated 0 out of 5
(0)

$630.00 – $680.00$660.00 – $710.00

Usually Ships on or Before Mon 09/21/26
Usually Ships on or Before Mon 09/21/26
Usually Ships on or Before Mon 09/21/26
Install Guide Install Video
Clear
Not ready yet? Text

Additional Add-Ons

Shocker Chrome Combo Ball Attachment SH-340C
Combo Ball Attachment
$119.99
|
SKU: SH-340C
Shocker Pintle Hook & Ball Combo with 2-5/16 Ball - Channel Mount
8-Ton Pintle Hook & Ball
$139.99
|
SKU: SH-334-25
OR
Dealer Button

-

  • Videos arrow

    Videos

    Shocker HD Max Black Air Ride Receiver Hitch Videos

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    Shocker Air Ride Receiver Hitch Mount: Drop & Rise + Tow Rating Guide

    For the 8 hole frame.

    • Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
    • Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
    • Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
    • Bolt on Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
    • Channel Style Pintle Hook: 3″ to 7″ Drop | 10-Ton 20,000 lbs.
    • Raised Pintle Hook: 0″ Rise to 5″ Drop | 10-Ton 20,000 lbs.
    • Bolt on Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
    • Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
    • Clevis Mount: 3.5″ Drop to 7.5″ Drop | 20,000 lbs.
    • Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.

    Safety Notice: Towing capacity is limited by lowest rated component.

    Check out our guide to find out how much drop or rise you need.

  • Install arrow

    Install

    Choose your air receiver hitch model

    Select your hitch to jump to its installation instructions.

    Set up your air receiver hitch

    Follow the installation steps for your model, then adjust air pressure with your trailer loaded for travel. Use these shortcuts for setup help and maintenance.

    Set air pressure for your loaded trailer

    100 PSI MAXIMUM — not the target setting.
    Use the truck-side bump cushion to judge the correct adjustment for your load. Never exceed 100 PSI.

    1. Load and connect your trailer. Follow your model’s installation steps and set up the trailer as you normally would for travel.
    2. Add air at your model’s valve. The photos below show where the air compressor connects.
    3. Watch the truck-side bump cushion. Stop adding air once the main frame lightly compresses the cushion closest to the truck (tailgate side). Follow the detailed instructions for your model below.
    Air compressor connected to the standard and HD air receiver hitch valve
    Standard / HD air receivers
    Add air at the valve shown where the compressor connects. Air-pressure steps
    Air compressor connection at the Sport air receiver hitch valve
    Sport™ air receiver
    Locate the valve shown in this close-up. Air-pressure steps
    Trail Force air hitch valve below the air spring with an air hose attached
    Trail Force® air receiver
    The air valve is below the air spring. Air-pressure steps
    Close-up of the truck-side bump cushion lightly compressed by the air receiver hitch frame
    Truck-side bump cushion at the correct light compression.

    Watch this cushion—not a preset PSI number

    Observe the cushion closest to the truck. With the trailer loaded, add air until the main frame lightly compresses that cushion. The pressure needed depends on the load.

    Recheck the adjustment when your trailer load changes. The 100 PSI limit is a ceiling, not an instruction to inflate to 100 PSI.

    See the add-air / stop-adding-air photos ↓

    Know your air receiver hitch components

    Select any photo to open the full-size labeled guide in a new tab.

    Air valve labeled where the compressor hose connects to the air receiver hitch
    Air valve — add air at the valve shown. Enlarge photo
    Paddle labeled on the flat steel plate above the air spring; spacer block shown on top
    Paddle — the flat steel plate above the air spring. This example also shows an installed spacer block. Enlarge photo

    Shocker Air Receiver Hitch Install Video

    Note: Always use a good hitch ball rated for the recommended tow weight.

    Safety Notice: Towing capacity is limited by the lowest rated component.

    Shocker Air Receiver Hitch Installation Instructions

    1. Compressing Air Spring (BEFORE INSTALLATION)

    • Release Pressure: Use the provided cotter pin clip to push in on the valve core to release air pressure from the back.

    • Compress: While releasing pressure, simultaneously push down on the air spring paddle or squeeze the plates together to exhaust the remaining air.

    Releasing air pressure with cotter pin clip and pressing down on paddle simultaneously

    2. Installing the Shocker Hitch into the Receiver

    • Mounting: Slide the hitch shank fully into the receiver tube of your tow vehicle.

    • Align and Secure: Align the pin holes and insert the 5/8” hitch pin. Lock it in place with the cotter pin clip.

    Shank inserted into receiver tube and secured with pin and cotter pin clip

    3. Install Attachment Ball Mount

    • Selection: Choose an attachment that allows your trailer to sit level. Refer to “WHAT SIZE DROP HITCH DO I NEED” and “GROUND CLEARANCE GUIDE” for more information.

    • Attachment: Install your chosen mount into the Shocker Hitch Frame.

    • Secure: Use the hitch pins and cotter pin clips provided to lock the ball mount into place.

    Ball mount installed and secured with hitch pins and cotter pin clips

    4. Setting Air Pressure

    • Load the Trailer: Hook up your trailer and load it as you normally would for travel.

    • To Set Air: Hook up trailer using a properly selected ball adaptor and height adjustment to level trailer when loaded. Next, inflate the air spring. As air pressure increases, the unit will rotate, lifting the hitch point. Install enough air until the top of the hitch frame touches the top (tailgate side) bump cushion, or for heavy loads, until it compresses the tailgate side bump cushion by approximately 1/8″.

    Filling up air ride system using an air compressor on the valve stem

    The “Sweet Spot”

    Stop adding air once the main frame lightly compresses the truck side bump cushion.

    Truck side bump cushion compressed slightly showing proper air compression

    Proper Air Pressure Guide

    Truck-side bump cushion touching the frame — stop adding air
    Truck-side bump cushion touching the frame — stop adding air
    Truck side bump cushion-green-not touching frame (Add Air)
    Truck side bump cushion-green-not touching frame (Add Air)

    Spacer-block decision guide

    Check alignment with your trailer connected, loaded for travel and the air pressure correctly set. The paddle above the air spring should be approximately parallel with the receiver tube.

    When is a spacer block needed?

    Correct paddle alignment without a spacer block
    1. Correct alignment
    Paddle approximately parallel with the receiver tube. A spacer is not needed to correct the angle shown.
    Excessive paddle angle before installing a spacer block
    2. Excessive angle
    If the paddle angle is more than 10 degrees with pressure correctly set, follow the spacer-block guidance for your model.
    Spacer block installed above the paddle to correct excessive angle
    3. Corrected alignment
    The spacer sits on top of the paddle against the underside of the receiver tube, correcting the excessive angle.

    Model notes: 20K HD hitches with a 2-inch receiver come with the spacer installed. Some HD models with a 2-1/2-inch receiver include it in the box. A spacer is generally not needed on 14K air receiver hitches because their air spring is 1 inch taller than the HD air spring.

    Maximum air pressure: 100 PSI. Do not use extra air pressure to exceed this limit while checking alignment. Read the full spacer-block guide.

    Watch: when do you need a spacer block?

    Use this short video alongside the alignment photos above to understand the spacer-block setup.

    Watch on YouTube

    Additional Set Up Notes:

    • When towing heavy trailers or trailers with high wind resistance, it may be necessary to increase air pressure in the Shocker.
    • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
    • Ensure you have connected your safety chains and electrical cord before towing.
    • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

    Maximum Air Pressure: Do not exceed 100 psi in the air spring, as it may damage the air spring.

    Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you have an equalizer or weight distribution hitch, then it will not. However, check out our Shocker Air Equalizer for weight distribution hitches. If you are just using friction sway bars that hook to a mini ball (such as the shocker sway control arm bar kit), then yes, if you also have one of our sway bar tab mounts, such as the combo sway control ball mount attachment.

    Sport Air Receiver Hitch Installation Instructions

    1. Compressing Air Spring (BEFORE INSTALLATION)

    • Release Pressure: Use the provided cotter pin clip to push in on the valve core to release air pressure from the back.

    • Compress: While releasing pressure, simultaneously push down on the air spring paddle or squeeze the plates together to exhaust the remaining air.

    Releasing air pressure with cotter pin and pressing down on paddle

    2. Installing the Shocker Sport Hitch into the Receiver

    • Mounting: Slide the hitch shank fully into the receiver tube of your tow vehicle.

    • Align and Secure: Align the pin holes and insert the 5/8” hitch pin. Lock it in place with the cotter pin clip.

    Shank inserted into receiver tube and secured with pin and cotter pin clip

    3. Install Attachment Ball Mount

    • Selection: Choose an attachment that allows your trailer to sit level. Refer to “WHAT SIZE DROP HITCH DO I NEED” and “GROUND CLEARANCE GUIDE” for more information.

    • Attachment: Install your chosen mount into the Shocker Sport Hitch Frame.

    • Secure: Use the hitch pins and cotter pin clips provided to lock the ball mount into place.

    Ball mount installed and secured with hitch pins and cotter pin clips

    4. Setting Air Pressure

    • Load the Trailer: Hook up your trailer and load it as you normally would for travel.

    • To Set Air: Hook up trailer using a properly selected ball adaptor and height adjustment to level trailer when loaded. Next, inflate the air spring. As air pressure increases, the unit will rotate, lifting the hitch point. Install enough air until the top of the hitch frame touches the top (tailgate side) bump cushion, or for heavy loads, until it compresses the tailgate side bump cushion by approximately 1/8″.

    Filling up air spring using an air compressor on the valve stem

    The “Sweet Spot”

    Stop adding air once the main frame lightly compresses the truck side bump cushion.

    Truck side bump cushion compressed slightly showing proper air compression

    Trail Force Receiver Hitch Installation Instructions

    1. Installing the Trail Force Air Hitch into the Receiver

    • Mounting: Slide the hitch shank fully into the receiver tube of your tow vehicle.

    • Align and Secure: Align the pin holes and insert the 5/8” hitch pin. Lock it in place with the cotter pin clip.

    Shank inserted into receiver

    2. Install Attachment Ball Mount

    • Selection: Choose an attachment that allows your trailer to sit level. Refer to “WHAT SIZE DROP HITCH DO I NEED” and “GROUND CLEARANCE GUIDE” for more information.

    • Attachment: Install your chosen mount into the Trail Force Hitch Frame.

    • Secure: Use the hitch pins and cotter pin clips provided to lock the ball mount into place.

    Ball mount installed and secured with hitch pins and clips

    3. Setting Air Pressure

    • Load the Trailer: Hook up your trailer and load it as you normally would for travel.

    • To Set Air: Hook up trailer using a properly selected ball adaptor and height adjustment to level trailer when loaded. Next, inflate the air spring. As air pressure increases, the unit will rotate, lifting the hitch point. Install enough air until the top of the hitch frame touches the top (tailgate side) bump cushion, or for heavy loads, until it compresses the tailgate side bump cushion by approximately 1/8″.

    Filling up air spring using an air compressor on the valve stem

    The “Sweet Spot”

    Stop adding air once the main frame lightly compresses the truck side bump cushion.

    Truck side bump cushion compressed slightly showing proper air compression

    Download Shocker Air Receiver Hitch Install Instructions

    Download: Shocker Air Bumper Hitch Installation Manual

    Shocker Air Receiver Hitch Air Pressure PSI Tuning Video

    Air receiver hitch troubleshooting

    Start with your trailer connected and loaded for travel. Follow the instructions for your model above; do not use extra air pressure or bolt adjustments to compensate for an incorrect setup.

    The ride feels stiff

    Recheck the air setting against the truck-side bump cushion rather than aiming for a preset PSI. The main frame should lightly compress that cushion. Check routine lubrication, too.

    Do not tighten the top jamnut bolt (limiter bolt). If it has already been adjusted, contact our team before making further adjustments.

    See the labeled bolt and cushion · Maintenance steps

    The hitch seems to be losing air

    A changed trailer load, temperature change or a new air spring settling can affect pressure. Recheck the loaded setup. Persistent or substantial pressure loss needs a leak check; use the air receiver section of our detailed guide.

    Never inflate an air spring outside its hitch frame. If the spring will not hold air or appears damaged, contact our team before towing.

    Air-pressure loss troubleshooting

    The paddle angle looks excessive

    With air pressure correctly set, compare your setup with the three alignment examples. The paddle above the air spring should be approximately parallel with the receiver tube. Spacer requirements depend on the model and receiver size.

    Never exceed 100 PSI to try to correct alignment.

    Check the spacer-block decision guide

    Routine Maintenance Guide:

    1. Routine Lubrication
      • Pivot Bolt: Regularly grease the Shocker Hitch unit using the built-in grease zerk located on the main pivot bolt.
      • Over-Greasing: You cannot over-grease the unit; frequent lubrication ensures the air-ride pivot remains fluid and responsive.
      • Hitch Ball: It is highly recommended to grease the trailer coupler ball to reduce friction and prevent premature wear.
    2. Critical Adjustments
      • Top Jamnut Bolt: DO NOT tighten the top jamnut bolt.
      • Factory Specs: This bolt is set to factory specifications out of the box; overtightening will cause a stiff towing experience and limit the airbag’s effectiveness.
      • Attachment Swapping: When changing between different ball mounts (Combo, Pintle, Clevis, etc.), ensure the pins and cotter pin clips are fully seated and locked.
    3. Air System Integrity
      • Max Pressure: Never Exceed 100PSI in the air spring.
      • Component Protection: Excessive pressure can lead to permanent damage to the air spring or the internal bump cushions.
      • Pre-Tow Inspection: Always check your air pressure after loading the trailer to ensure the frame is lightly compressing the bump cushion.

    Common Replacement Part:

    Bump Cushion

    Shocker Air Bumper Hitch Bump Cushions

    Air Spring Bag

    20K Air Spring Bag & Air Line - Shocker HD Air Receiver - SH-204-SH-214

    Pivot Bolt Kit

    Shocker Replacement Pivot Bolt Kit for Receiver Hitch with Dowel Pin - SH-280

    Spacer Block Kit

    Air Hitch Spacer Block - SPBK-REC

    Air receiver hitch installation FAQs

    Quick answers for standard and HD air receivers, Sport™ and Trail Force® models.

    How much air pressure should I use?

    There is no single PSI setting for every trailer. With the trailer connected and loaded, add air until the main frame lightly compresses the truck-side bump cushion, following your model’s steps. Recheck after changing the load. 100 PSI is the maximum, not the target.

    See the air-pressure photos and steps

    Which valve and bump cushion should I look at?

    Use the air valve shown for your model. Watch the cushion nearest the truck, also called the tailgate-side cushion. The paddle is the flat steel plate above the air spring; the limiter bolt is not an air-pressure adjustment.

    View the labeled component photos

    Do I need a spacer block?

    Check the paddle angle with the trailer loaded and air pressure set. An angle greater than 10 degrees calls for reviewing the spacer guidance for your model. The 20K HD with a 2-inch receiver comes with the spacer installed; some HD 2-1/2-inch models include it in the box. A spacer is generally not needed on 14K air receivers.

    Read the full spacer-block guide

    How do I choose the receiver size and ball-mount height?

    Measure the inside opening of your vehicle’s receiver and match the hitch shank to it. Select a ball mount with enough drop or rise to keep the loaded trailer level, then check ground clearance.

    Measure receiver size · Drop hitch calculator · Ground-clearance guide

    Can I use a weight-distribution hitch or friction sway control?

    The air receiver hitches covered here are not for use with a weight-distribution system. See the Shocker Air Equalizer for that application and confirm compatibility with your setup. Friction sway control requires the appropriate sway-bar-tab ball mount and compatible sway-control components; it is a different setup from weight distribution.

    Sway-control guide · Ask about compatibility

    Does adding air increase my towing capacity?

    No. Stay within the vehicle, receiver, hitch, ball mount, ball, coupler and trailer ratings. The lowest-rated component limits the setup, including its applicable tongue-weight limit.

    Understand towing capacity

    What should I check before the first tow?

    Check that the receiver pin, attachment pins and their retaining clips are fully secured; the coupler is locked on the correct ball; and the safety chains and electrical connection are in place. Confirm loaded trailer height, ground clearance and air adjustment, then complete the full pre-tow checks.

    Open the towing checklist

    How do I choose a replacement air spring or cushion?

    Match the part to your exact hitch model and air-valve or air-line configuration. Do not select by appearance alone. Use the replacement-part links on this page, or send our team your model number and a photo before ordering.

    View replacement parts · Get setup help

    We’re here to help. Contact Us

    More help: Support directory · Pre-tow checklist

  • Warranty arrow

    Warranty

    This product is backed by the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.
    60-DAY MONEY BACK GUARANTEE

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.
    SMOOTHER TOWING

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    FREE SHIPPING* & FREE RETURNS

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.
    HOMETOWN CUSTOMER SERVICE

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    INSTALL HELP

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.
    MADE IN THE USA

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Q & A arrow

    Questions and answers of the customers

    There are no questions yet. Be the first to ask a question about this product.

  • Reviews (0) arrow

    Customer Reviews

    There are no reviews yet.

    Reviews

    Be the first to review “Shocker 20K HD Max Air Drop Hitch Base Frame – No Ball Mount”

    Your email address will not be published. Required fields are marked *

You may also like…

  • All Shocker Receiver Hitch Attachments and Mounts

    Shocker Receiver Hitch Attachments

    From:  $64.99
    Rated 5.00 out of 5

    -

  • Extra 5% offQuick Latch Towing Mud Flaps

    Shocker Hitch Quick Latch Towing Mud Flaps

    From:  $417.99$439.99
    Rated 5.00 out of 5

    -

  • Extra 22% off3-Pack (2 Mount & 1 Receiver Pins)

    Shocker Receiver Hitch Locking Hitch Pins

    From:  $22.23$28.50
    Rated 4.86 out of 5

    -

  • Shocker Euro Mount - Metric - Works with Geist Style Connection (Europe / Australia Only)

    Shocker Metric Hitch Ball Mount Attachments (Australia / Europe Only)

    From:  $119.99
    Rated 0 out of 5

    -

Related products

  • 14K Air Hitch & Cushioned Drawbar Installed

    Shocker 14K Air Drop Hitch with Cushion Drawbar

    From:  $759.99
    Rated 0 out of 5

    -

  • 20K HD Air Hitch & Drop Mount w/ 2-5/16" Ball Installed

    Shocker 20K HD Air Drop Hitch

    From:  $739.99
    Rated 5.00 out of 5

    -

  • 20K HD Max Black Air Hitch & Drop Mount w/ 2" Ball Installed

    Shocker 20K HD Max Air Drop Hitch

    From:  $739.99
    Rated 0 out of 5

    -
