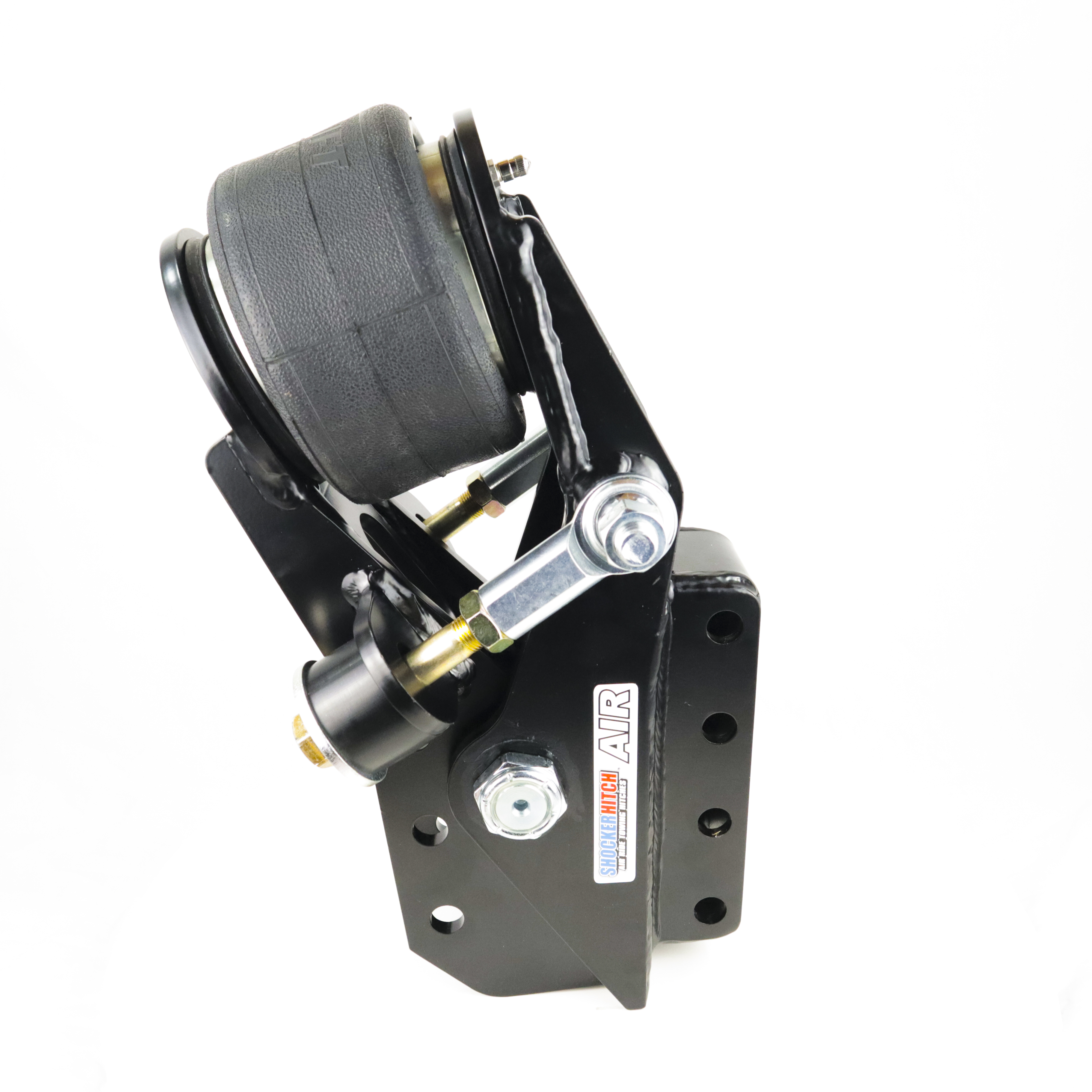

Shocker Air Trailer Tongue Mount – No Coupler

• Bolt on Air Ride Hitch: Bolt on to vertical channel on your truck. Shocker Air is designed with a built-in 12,000 lbs tow rated air bag for a smoother towing experience. Featuring a built in height adjustment plus weight adjustable. Just add or reduce air depending on the weight of your trailer and it’s contents.
• Instant Air Ride for Your Trailer: Smoother safer towing. Improves your ride, reduces wear & tear on pickup & trailer.
• Up to 14,000 lbs GTW & 1,400 lbs Tongue Weight:  (Note: For 14K tow capacity, make sure the coupler you use it rated at 14k). Tow capacity is limited by the lowest-rated component.
• Features 3″ Wide Front Vertical Channel to Mount Coupler or Pintle Ring: Front 3″ inner diameter wide channel is used to mount a 3″ Vertical Channel Mount Trailer Ball Coupler or Pintle Ring NOT INCLUDED. We recommend a bolt on vertical channel coupler from wallage forge or demco DEM-14040-81) or a shocker pintle ring (Part#: SH-P2000-B) for best fit and rating.
• No Ball Coupler or Pintle Ring Included. This does not include the bolt on vertical channel trailer ball coupler or pintle ring.  We recommend a wallace forge or demco ball coupler or a shocker pintle ring for best fit and rating design to fit the 3″ wide front channel.
• Quickly Mounts to Front of Your Trailer Tongue: 2 Mounting Options: Vertical Channel Mount: For Trailers with 3-1/2″ Wide Vertical Channel, most use 5/8″ bolts or pins that are 4-1/2″ long for mounting to trailer. This option fits 3-1/2″ wide OD / 3″ wide ID vertical channel on front of trailer with 2″ center on center bolt pattern. (Need a Vertical Channel? Optional Part # SH-410-C Optional Weld on Vertical Channel Kit Available – Sold Separately). 4 Bolt Flat Plate Mount: For Trailers with Square Flat Plate Mount with 4-1/2″ square bolt pattern). For Trailers with 4 Bolt Flat Plate, The Size & Length of Bolts Needed Vary By Trailer. Generally 5/8″ diameter by 4″ long. (Does Not Include Trailer Mounting Bolts).
• Works with WD Hitches: This product WILL work with a weight-distribution hitch system.
• Air Ride Technology: Built-in 12,000 lb air ride system for a smoother towing experience with built in height adjustment plus weight adjustable. Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air tongue mount with built in air ride and bump cushions, absorbs the thumps, bumps, jerks & bangs on whatever road you travel.
• Heavier Load, Just Add Air: Fine tune for your towing weight. Just add air for heavier loads.
• Adds Life To Your Trailer: It adds life to your trailer. By reducing wear and tear on pickups driveline and frame as well as the frame of the trailer! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations.
• Shock Dampening Action: Shocker air trailer tongue mount effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and your receiver hitch.
• Simple Pivot Design: uses a rocker arm pivot design which produces a down and back motion, much different than other air ride products on the market. Our design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple air bags common to other air hitches.
• Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker air ride tongue mount absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.

Note: The main pivot bolt, or center pivot bolt, used in the Shocker Air Ride Bolt Tongue Mount is a custom made 1 inch diameter 1045 medium carbon steel bolt. Heat treated to prevent wear & has machined grease passage for easy lubrication. The yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler on the average vertical channel adapter.

Safety Notice: Tow capacity is limited by the lowest-rated component.
