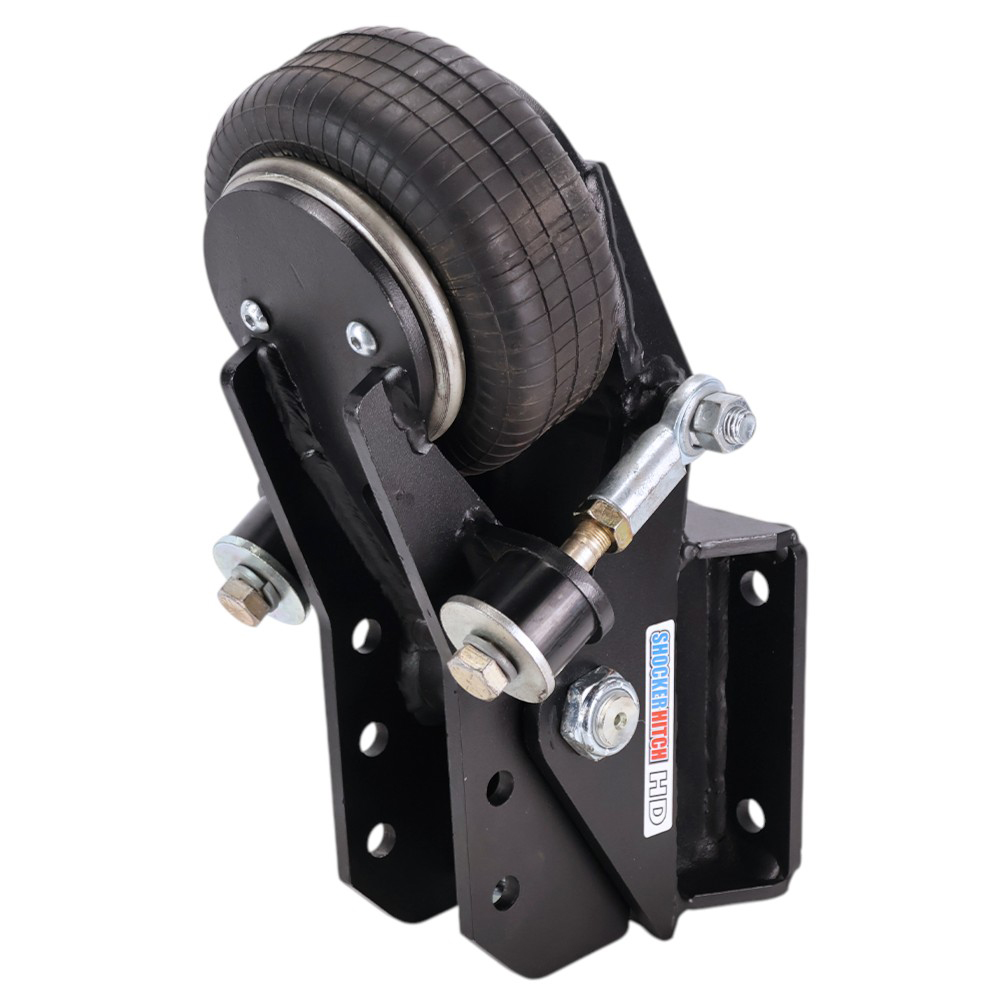

Shocker HD Air Trailer Tongue Mount – No Coupler

Rated 5.00 out of 5 based on 1 customer rating

$669.99$729.99

Free Ground Shipping*
Usually Ships on or Before Mon 07/22/24
Usually Ships on or Before Mon 07/22/24
Clear
OR

-

  • Videos arrow

    Videos

    Shocker Air Trailer Tongue Coupler Mount Videos

  • Install arrow

    Install

    Shocker Air Trailer Tongue Mount with Coupler Installation

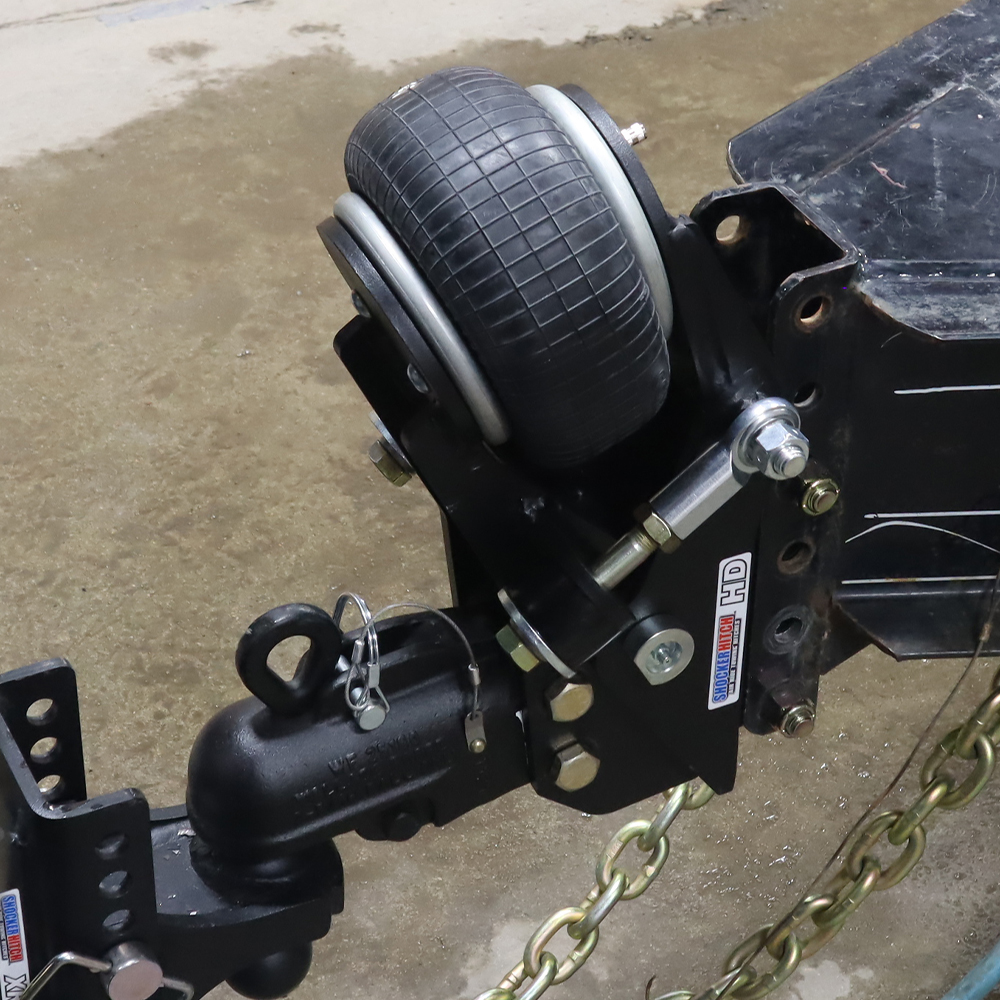

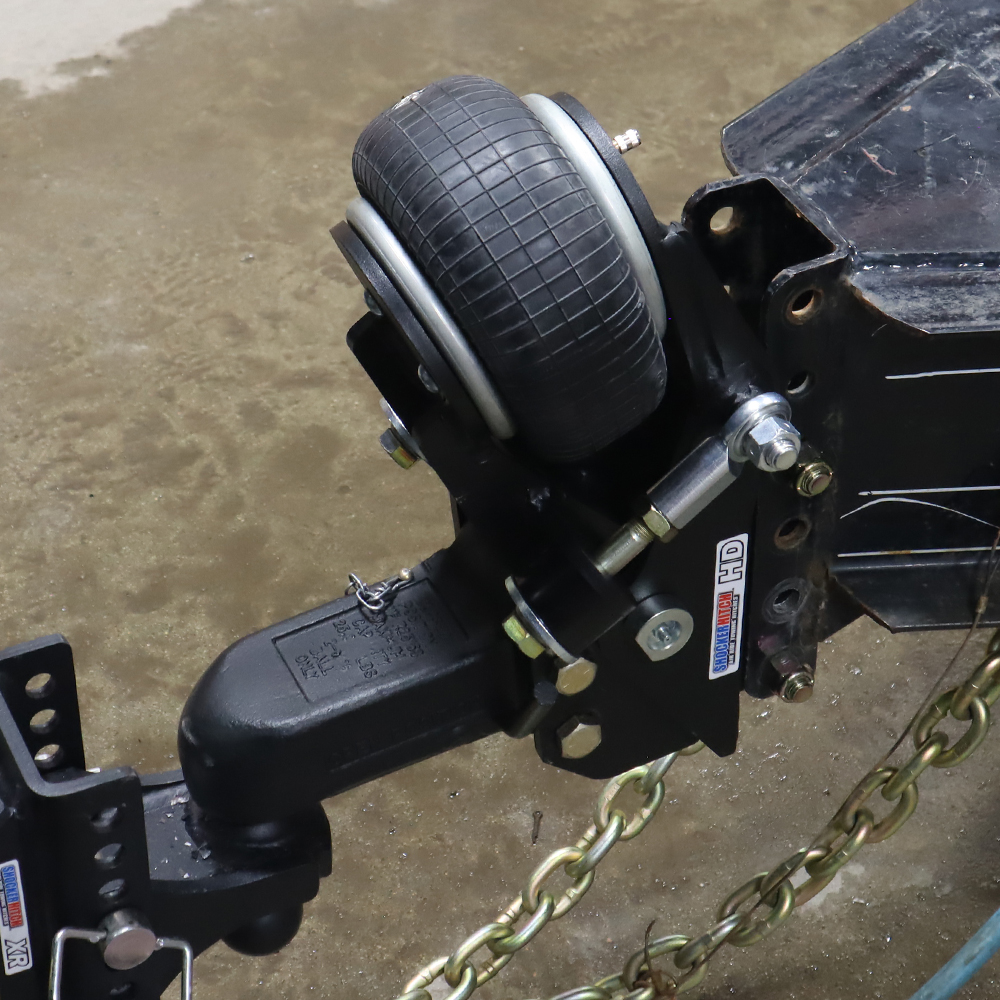

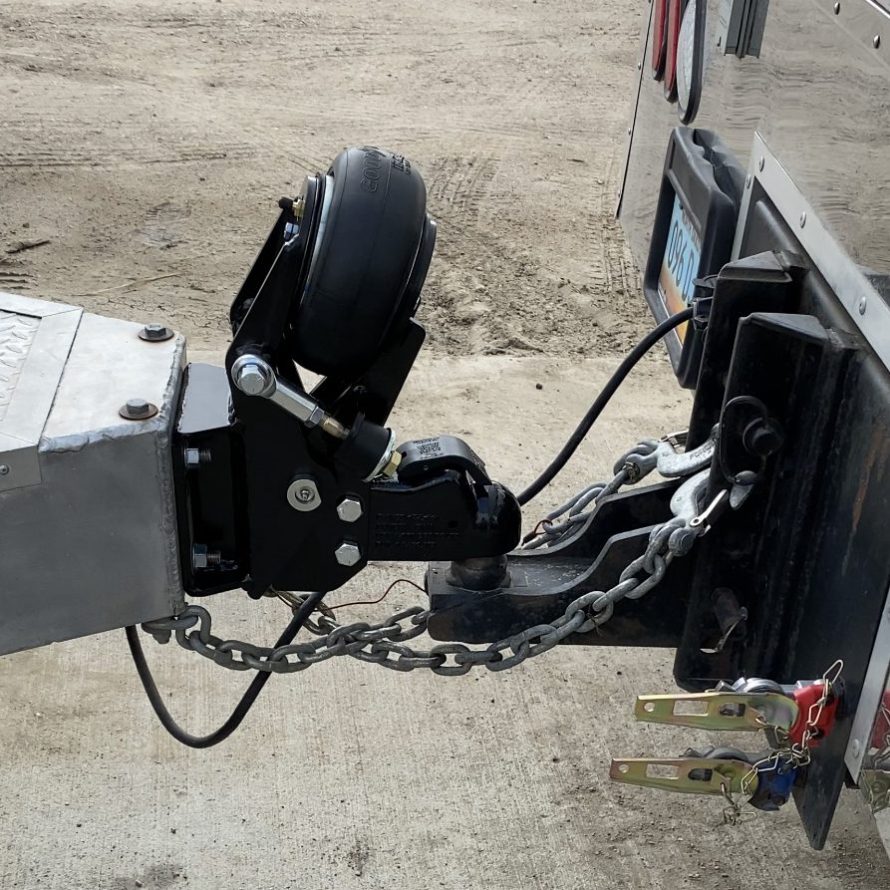

    Vertical Channel & Square Plate adaptor styles only: Remove your existing coupler and bolt on the air trailer tongue mount to your vertical channel or 4 bolt flat plate trailer tongue.  Replace the existing ball coupler on the tongue of trailer with the Shocker Hitch Tongue Mount Hitch. Verify or lengthen safety chains and wiring connections to ensure proper clearance when turning corners.

    Shocker Air Trailer Tongue Mount Install Video

    When used properly these products will make noticeable improvements in your trailer towing quality. Giving both truck and trailer a smoother ride with less trailer fatigue and breakage.

    Setting Shocker Air Pressure for Trailer Tongue Mount Coupler

    To Set Air

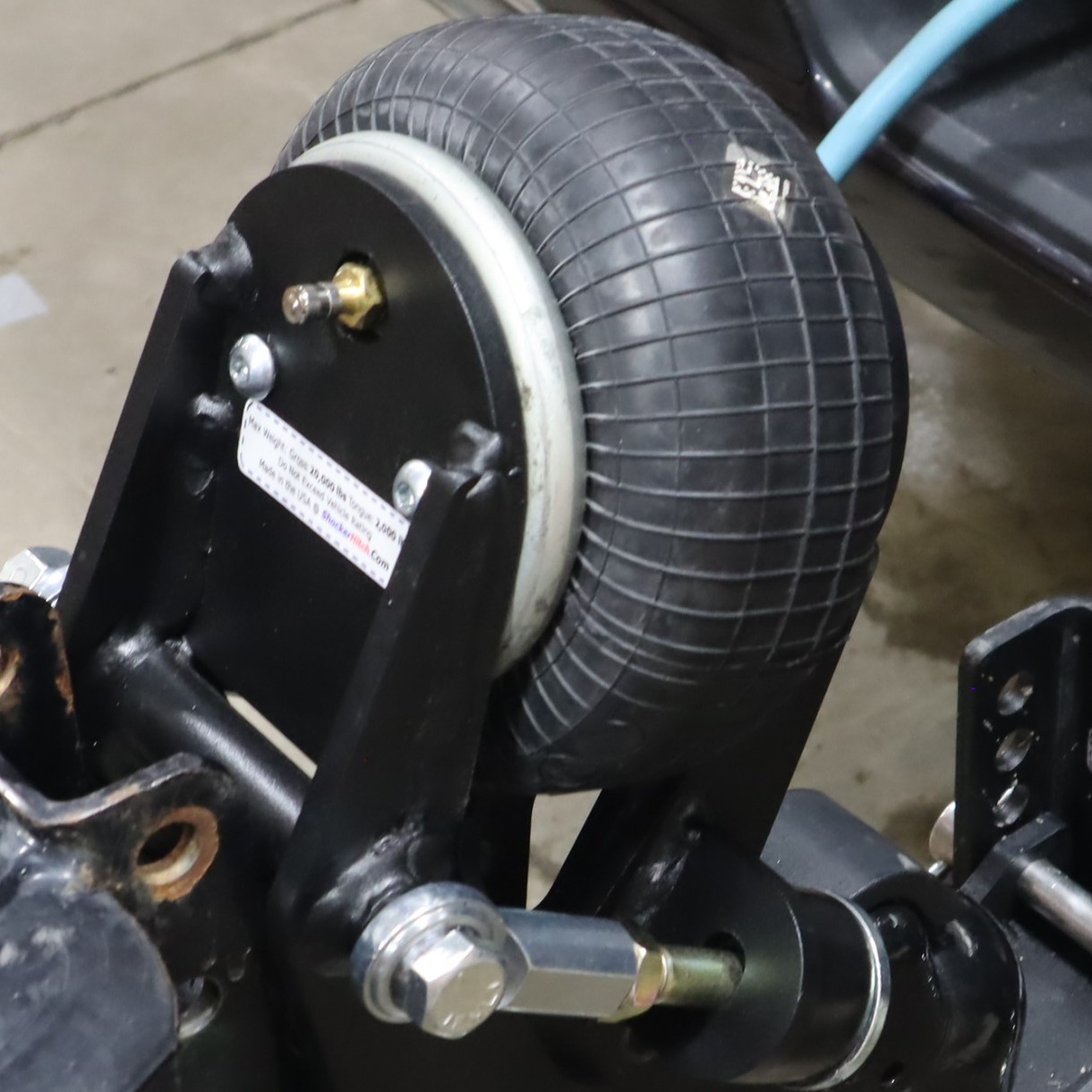

    Load trailer the way it will be towed. Inflate airbag on Shocker Air Trailer Tongue Mount hitch. CAUTION: Keep hands and clothing away from moving parts of hitch to avoid pinching and injury. As air pressure increases, the unit will rotate lifting the hitch and trailer tongue. Install air until green bushing has 1/4″ clearance from the red frame. Always inflate air bag to set the Shocker Hitch, never deflate air bag to set Shocker Hitch, unsatisfactory results may occur. When using Equalizer/ Weight Distribution Hitch: Follow directions above, then hook up equalizer bars, and continue inflating air bag until 1/4″ clearance on bump stops is achieved. Note: When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker. Usage: Under normal circumstances, tongue weight should be at least 10 percent of the total towing weight. NOTE: IT IS HIGHLY RECOMMENDED THAT THE HITCH BALL BE GREASED TO REDUCE WEAR AND IMPROVE SHOCKER ACTION. Maximum Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.
    Air Trailer Tongue Mount Hitch Diagrams
    Air Trailer Tongue Mount Hitch Diagrams

    Installation Issues

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

    We’re here to help. Contact Us

  • FAQ arrow

    FAQ

    Answers to Frequently Asked Questions

    What is the air trailer tongue mount tow rating? The rating is 20,000 lbs GTW & 2,000 lbs Tongue Weight with the 20,000 lb GTW cast coupler for 2-5/16″ ball or 20,000 lb pintle ring. The 12K air trailer tongue is rated at 12,000 lbs GTW. It must have a 12,000 lbs GTW coupler to the rating to apply.

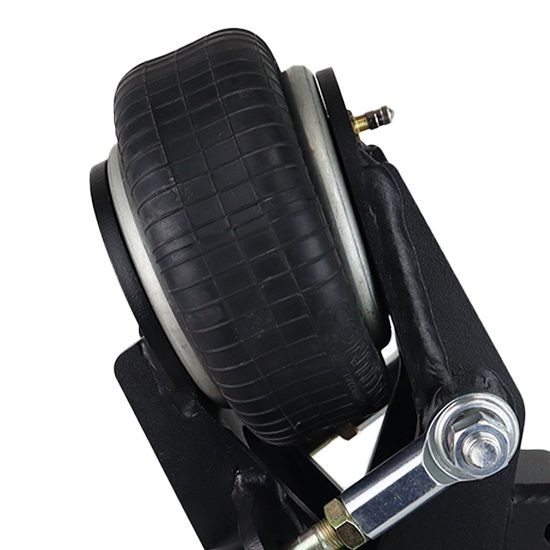

    How long will the airbag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

    Will this work with a W-D Hitch? Yes it will.

    How strong is the center pivot bolt?  The main pivot bolt with grease zerk, or center pivot bolt, used in the Tongue Mount Shocker air coupler, is a custom made 1 inch diameter 1045 medium carbon steel bolt. Strategically heat treated to prevent wear and includes a machined grease passage for easy lubrication and maintenance. It should be noted that the yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler on the average vertical channel adapter.

    Safety Notice: The Shocker Hitch is a heavy duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle, your tow vehicle rating, trailer rating and coupler rating.

    How much air do I put in the air trailer tongue mount? With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker air tongue until green bushing has 1/4″ clearance from the red frame. See install guide.

    How does it install? Simple bolt on installation in minutes. See install guide.

    How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

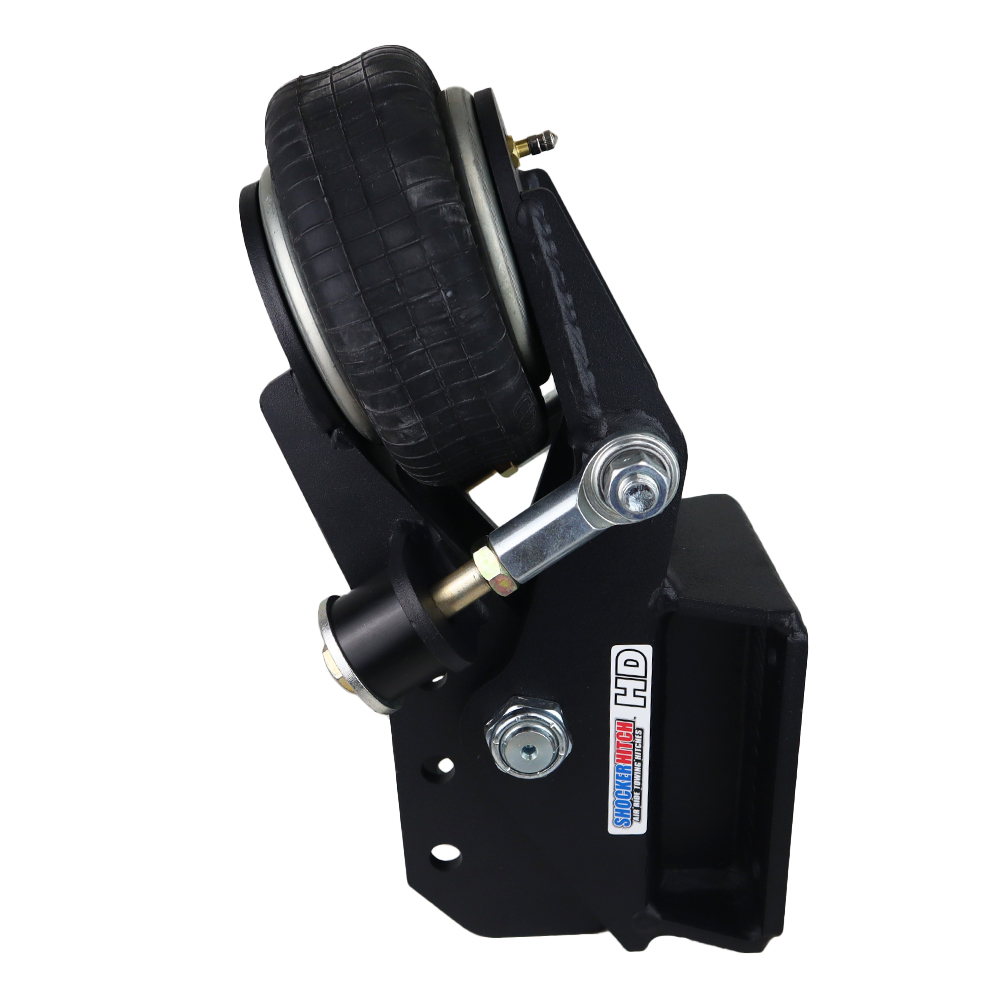

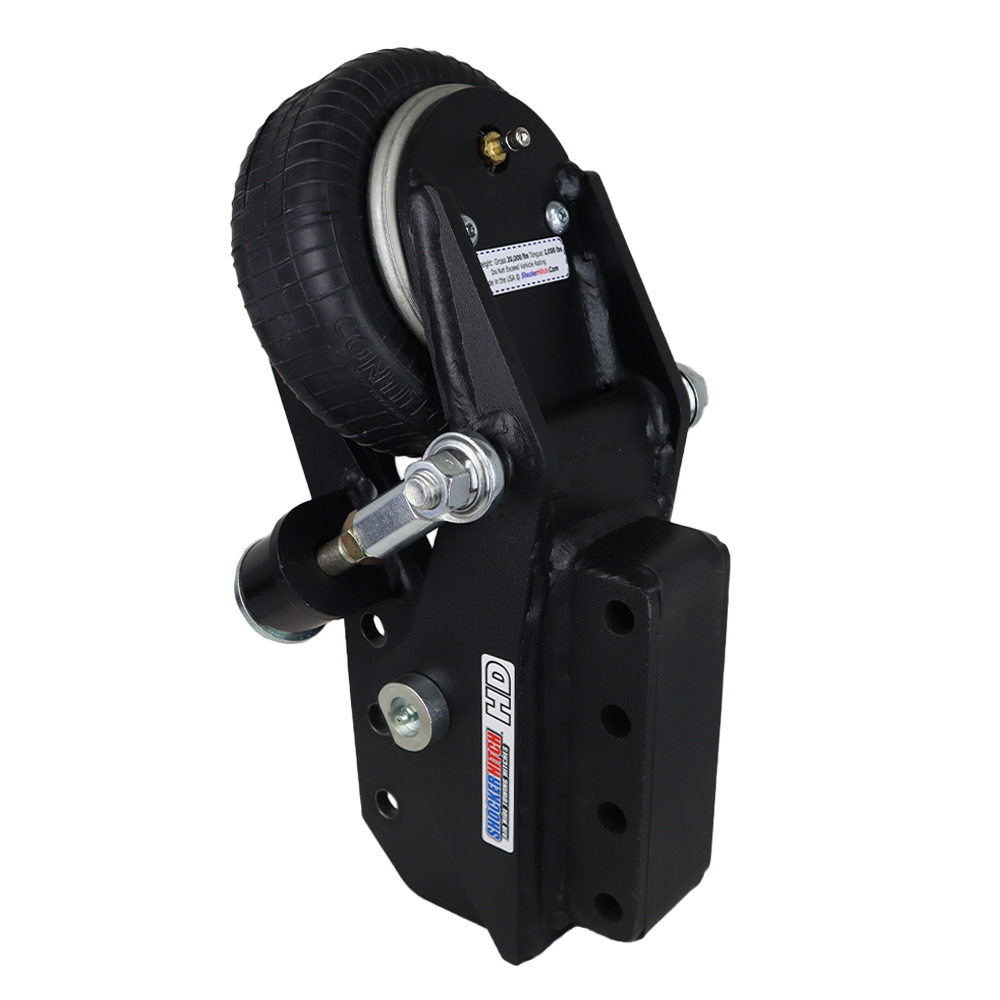

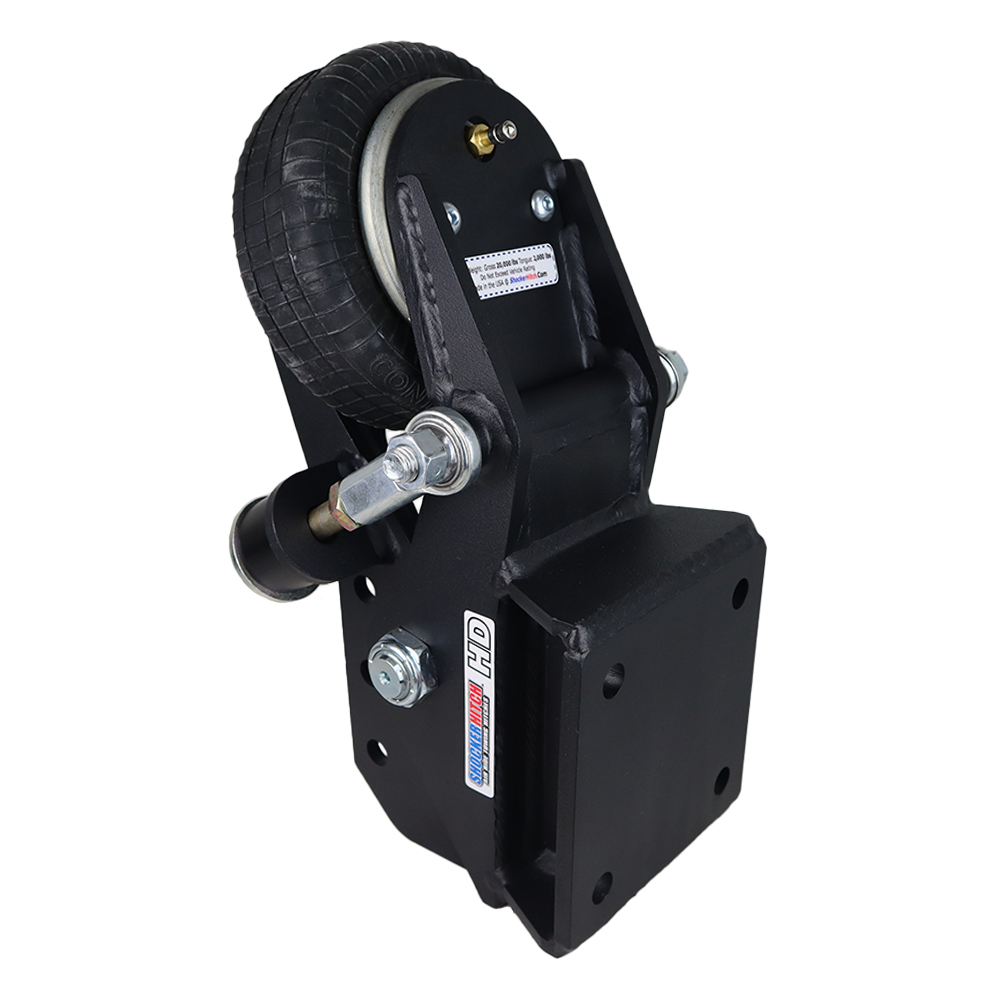

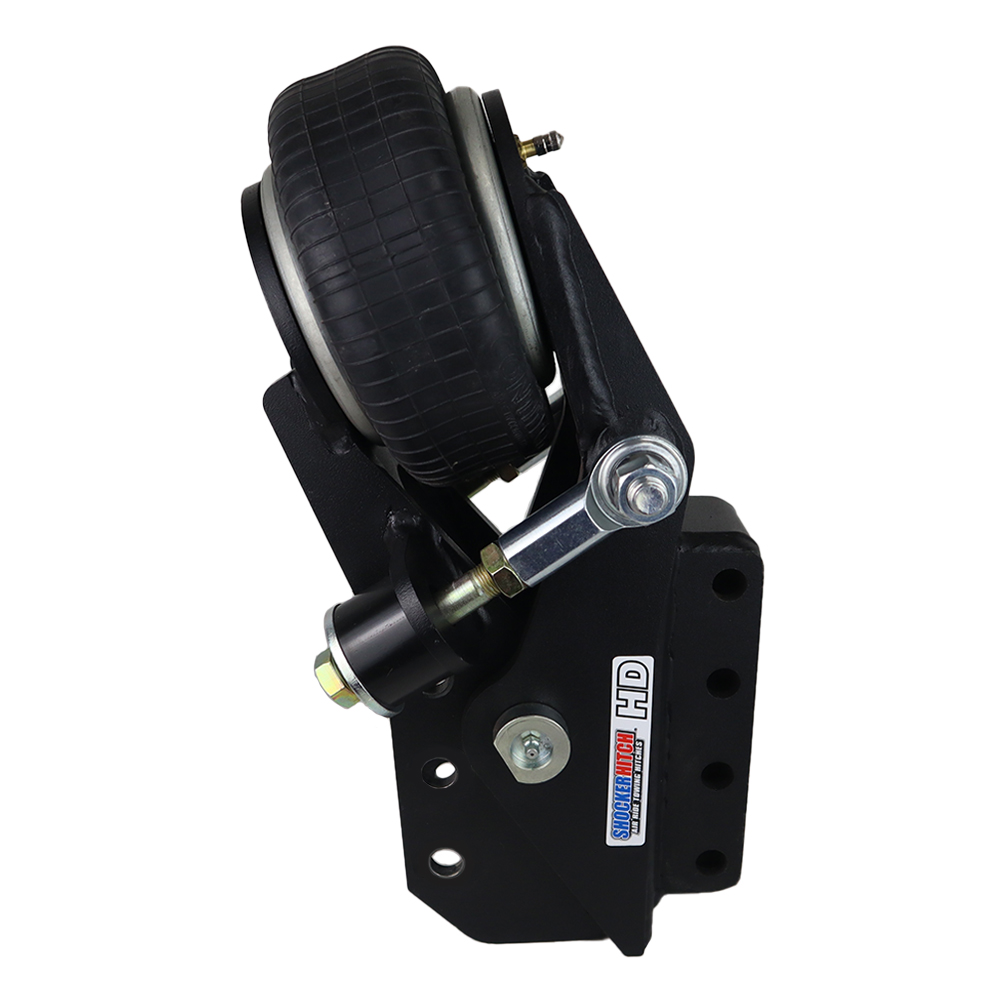

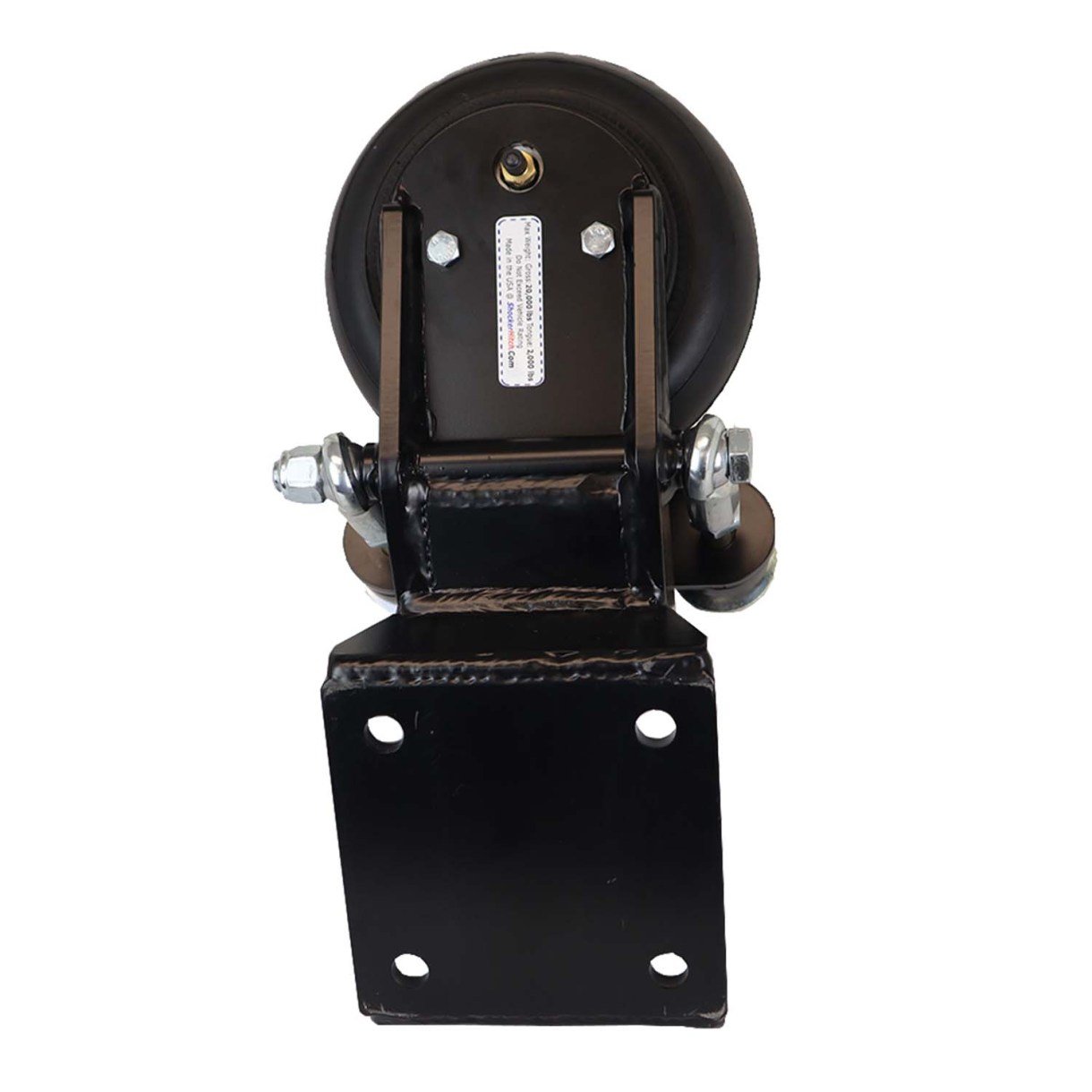

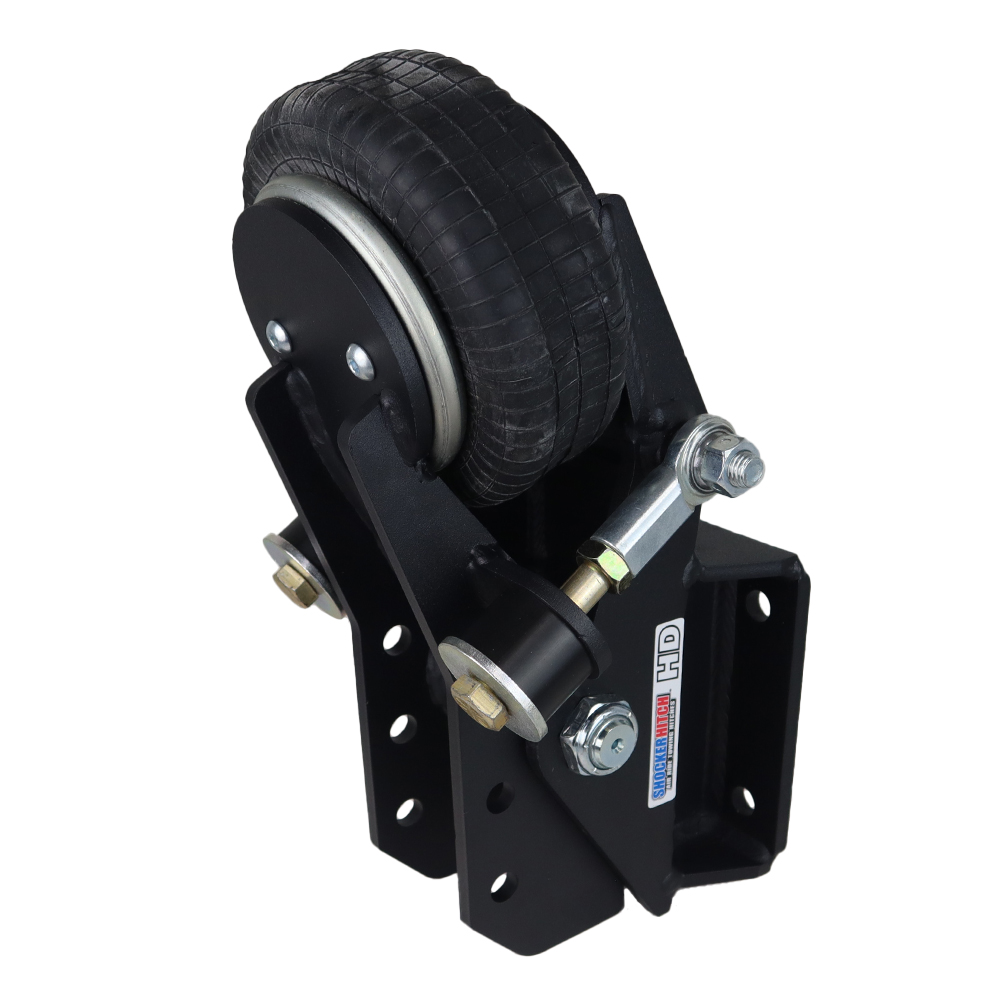

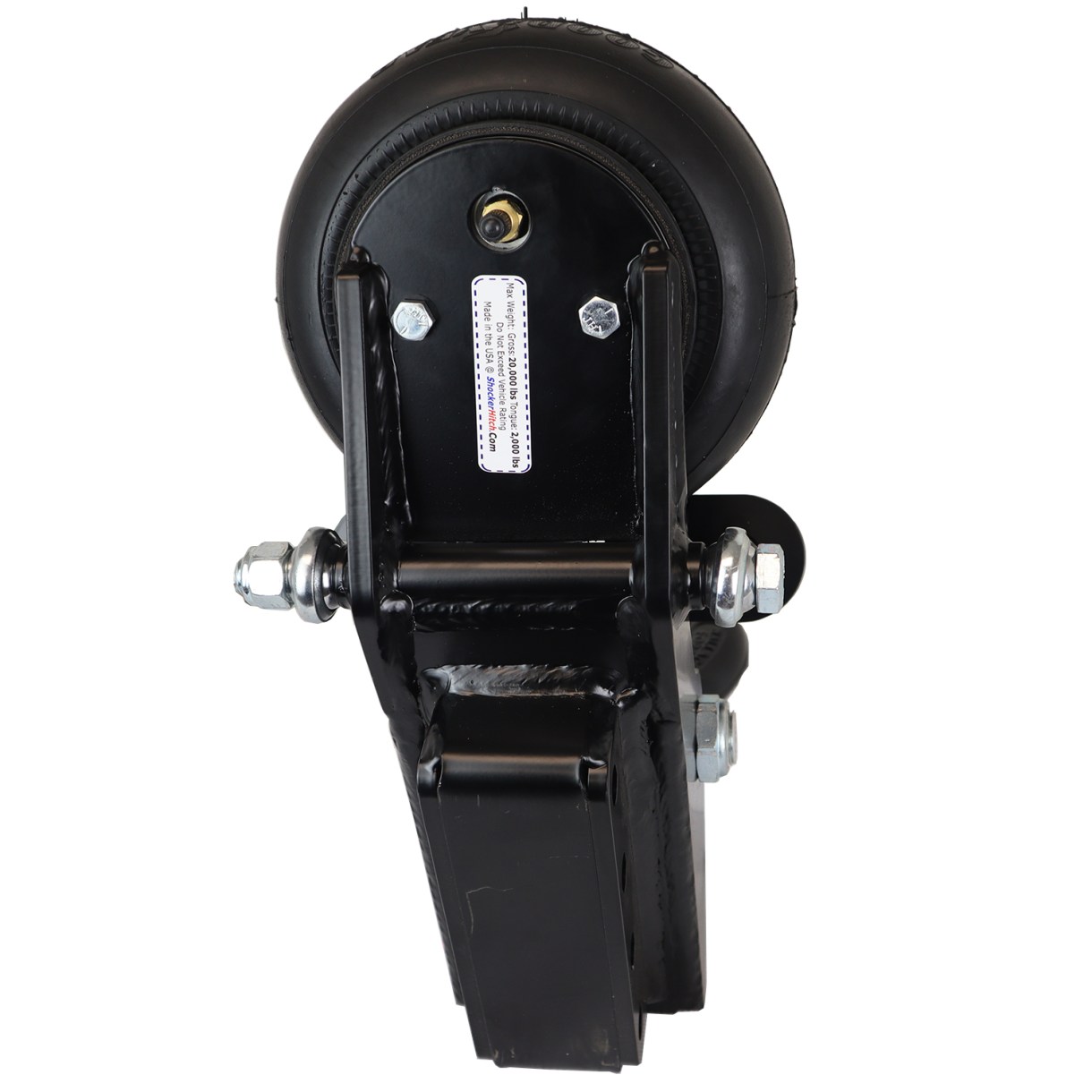

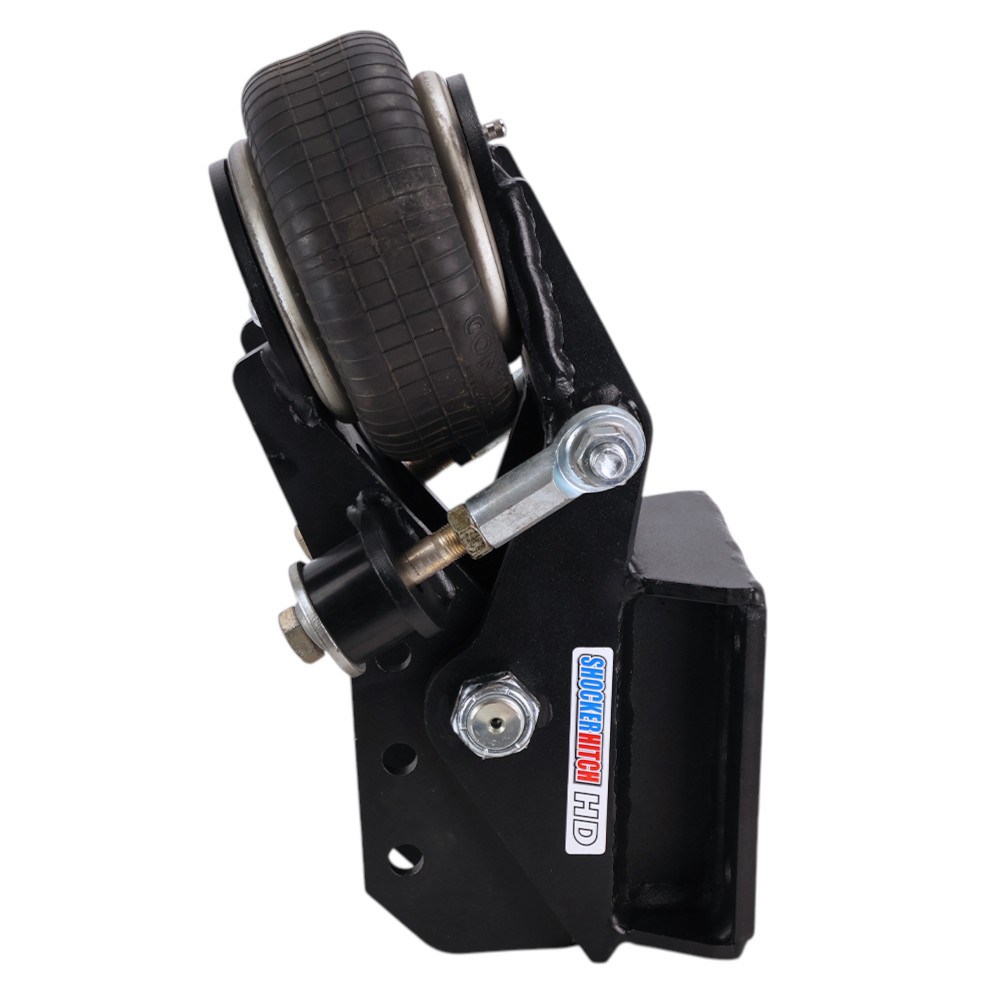

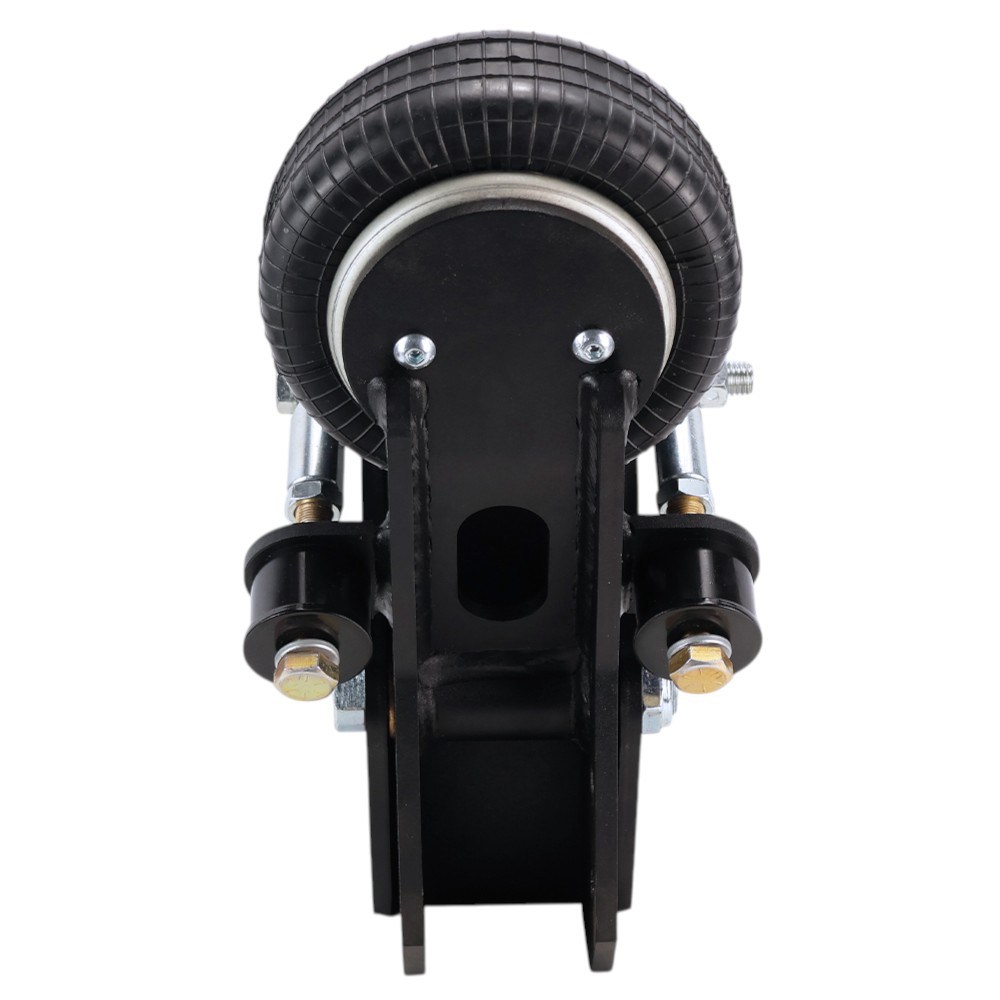

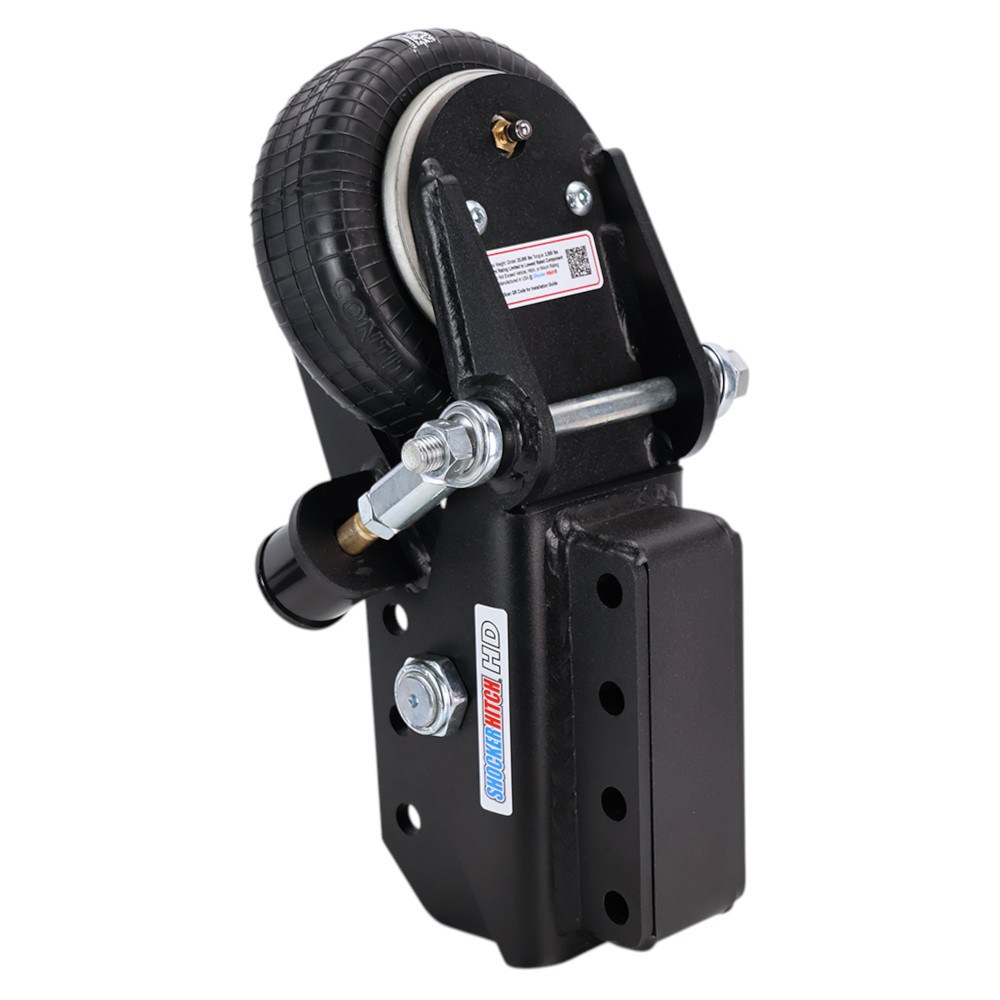

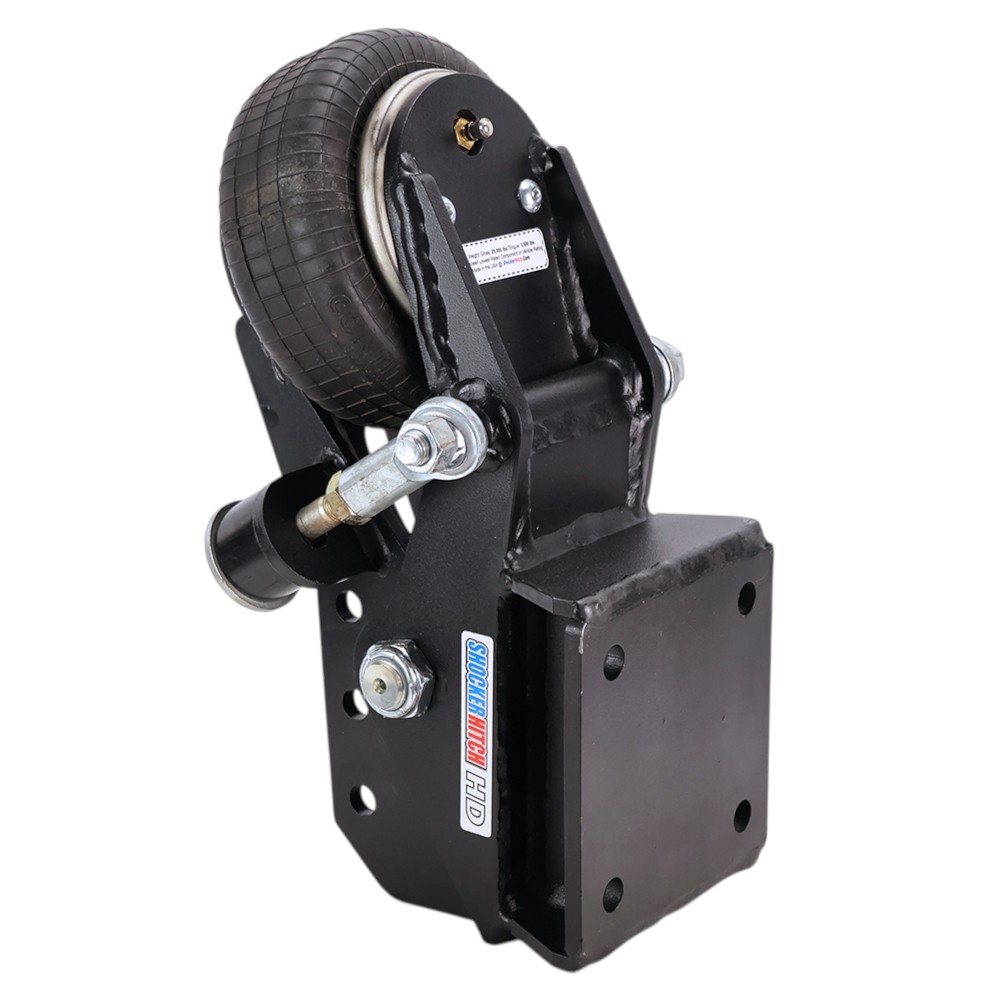

    How do I know the Shocker Air trailer tongue mount with fit my trailer? We have 2 mounting options.  Square plate mount:  Simply bolts in place of existing coupler and has a 4-1/2″ square bolt pattern. Vertical channel mount: Simply bolts in place with existing trailer vertical channel for typical trailer couplers.  We do offer a weld on channel adaptor for your trailer tongue that can also be used if you don’t have one on your trailer.

    Does this affect my trailers ground clearance? No, the air bag is above the trailer tongue for maximum ground clearance

    How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

    Does the Shocker air trailer tongue limited my tailgate with hooked up to the trailer? Maybe. It depends on your vehicles ball mount length. You can still open your tailgate, but it may rest on your air bag.

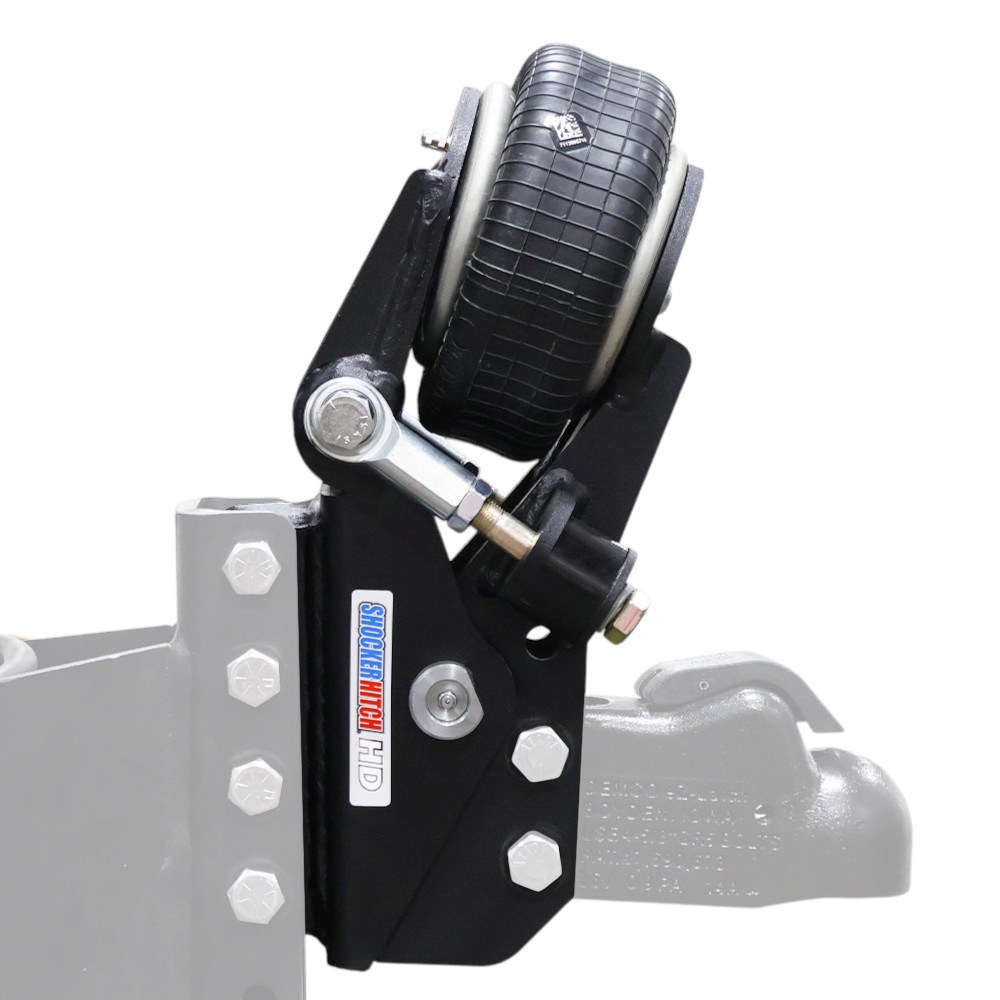

    How does the air ride trailer tongue coupler work? The air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

    How much does an Shocker Air trailer tongue mount weigh? The Receiver Air Shocker weighs 60-70 pounds depending on model.

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Q & A arrow

    Questions and answers of the customers

    There are no questions yet. Be the first to ask a question about this product.
