Shocker XR Drop Hitch with Combo Ball & Shackle

Name: Shocker XR Drop Hitch with Combo Ball &amp; Shackle
Brand: Shocker Hitch
SKU: SH-XR-Combo-Black-with-Shackle
Availability: InStock

Rated 0 out of 5

(0)

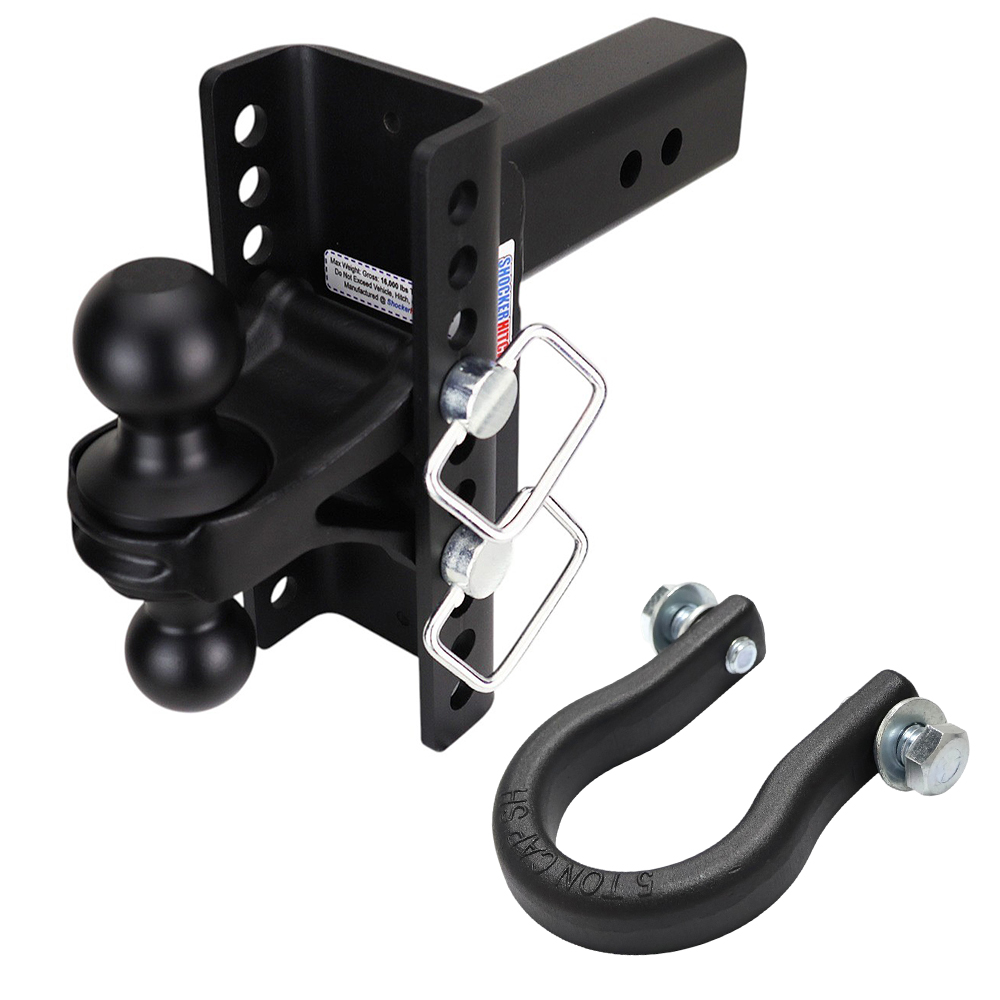

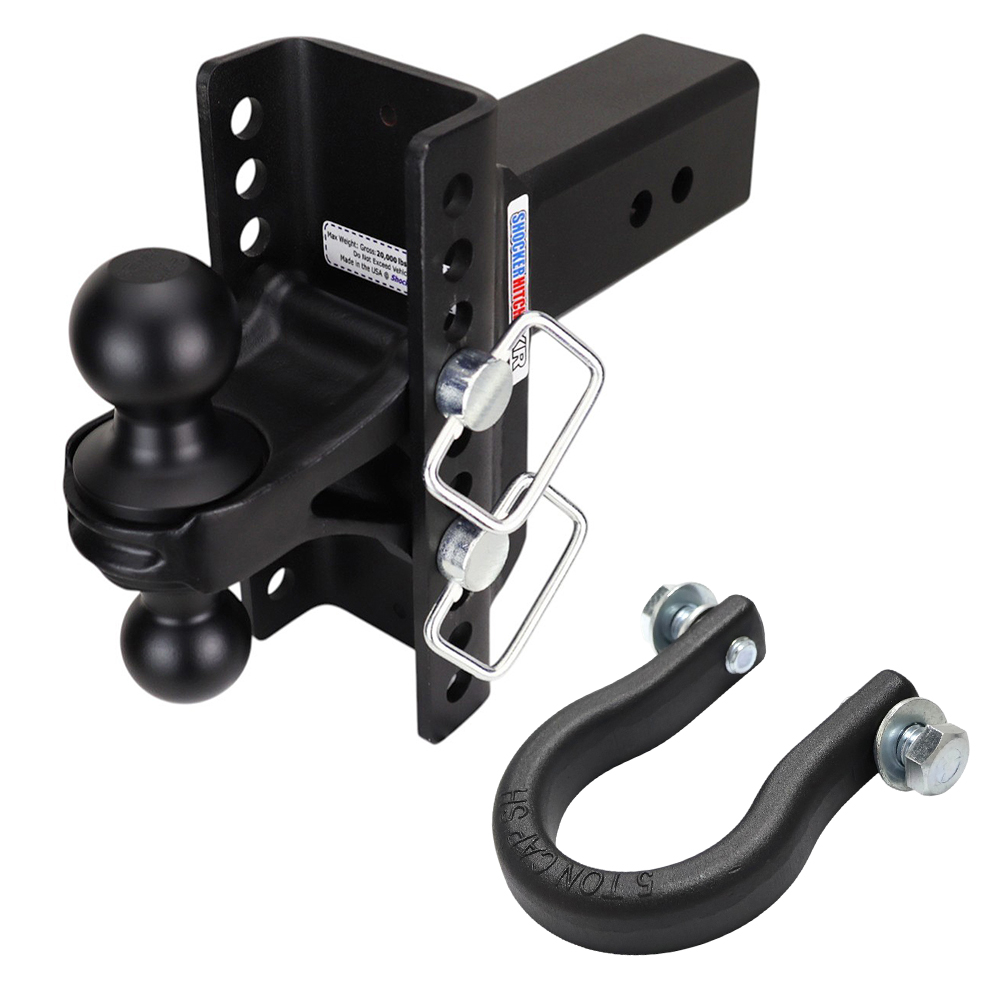

XR Hitch w/ Black Combo Ball & Shackle - 10-Hole

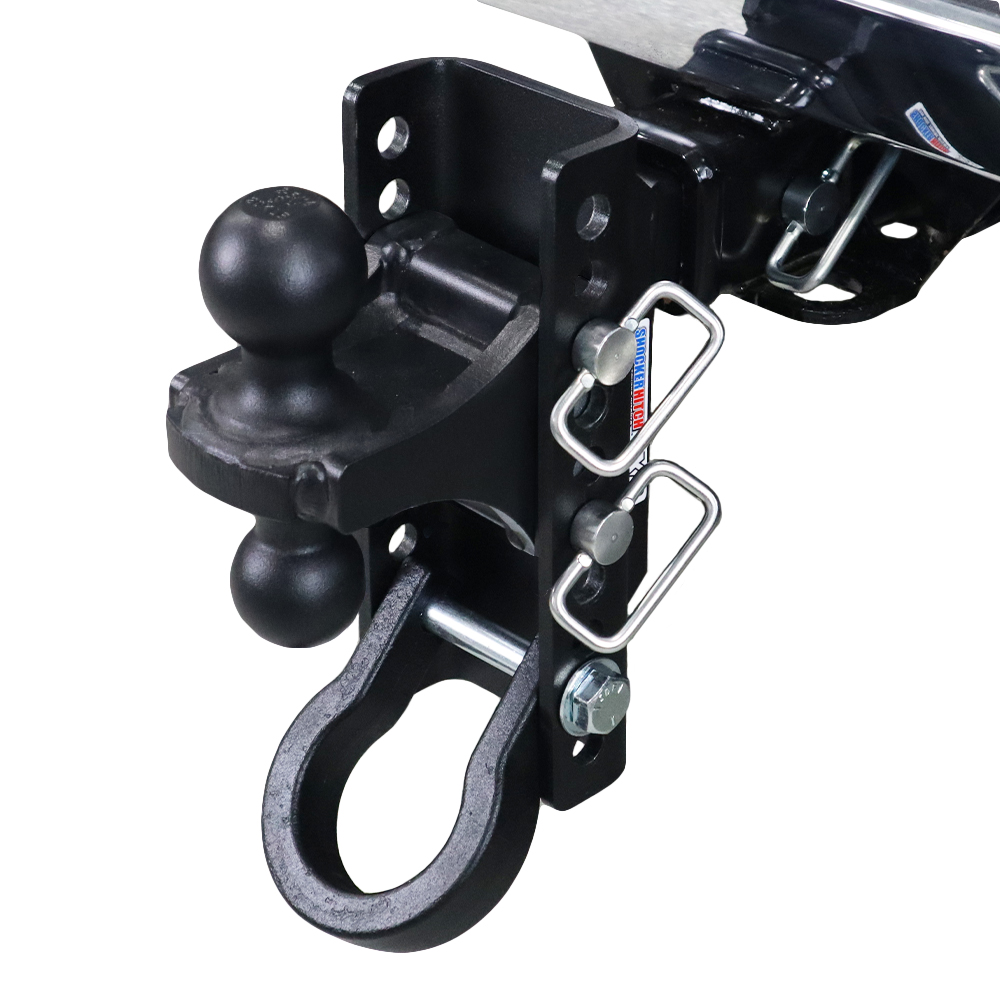

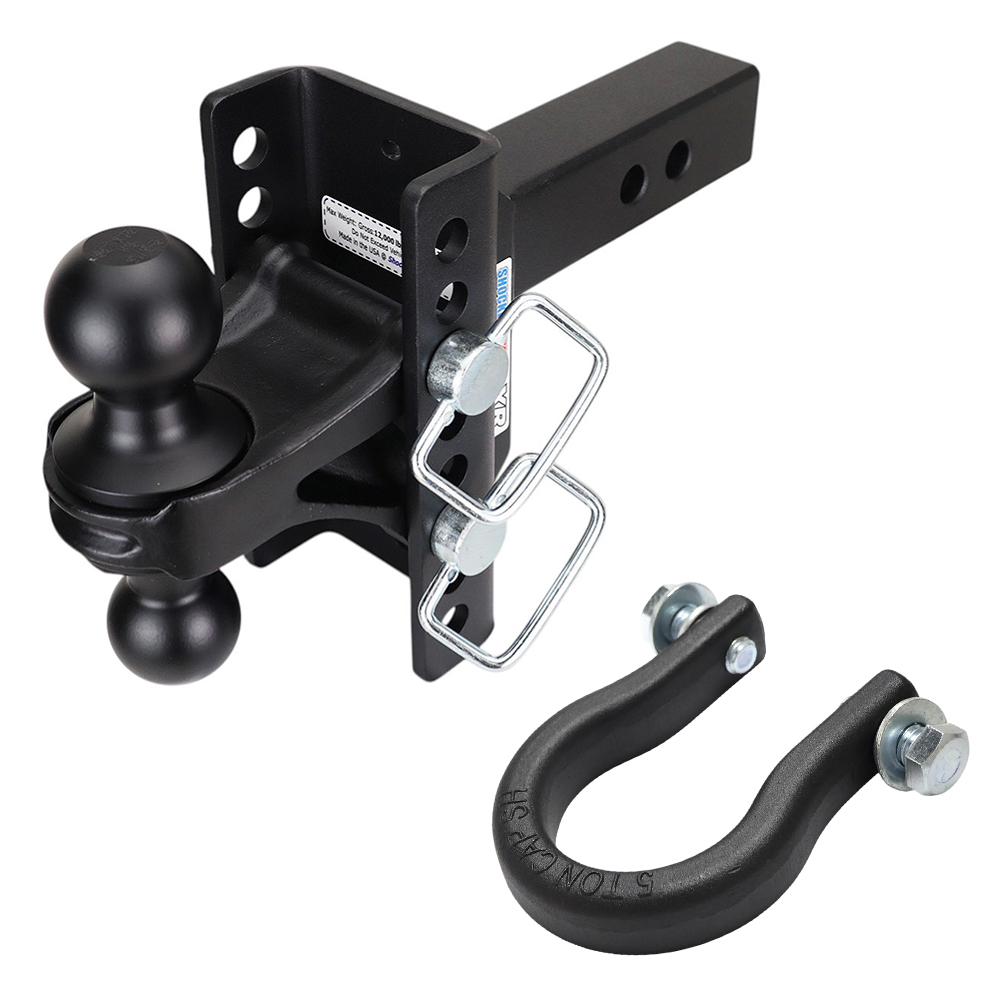

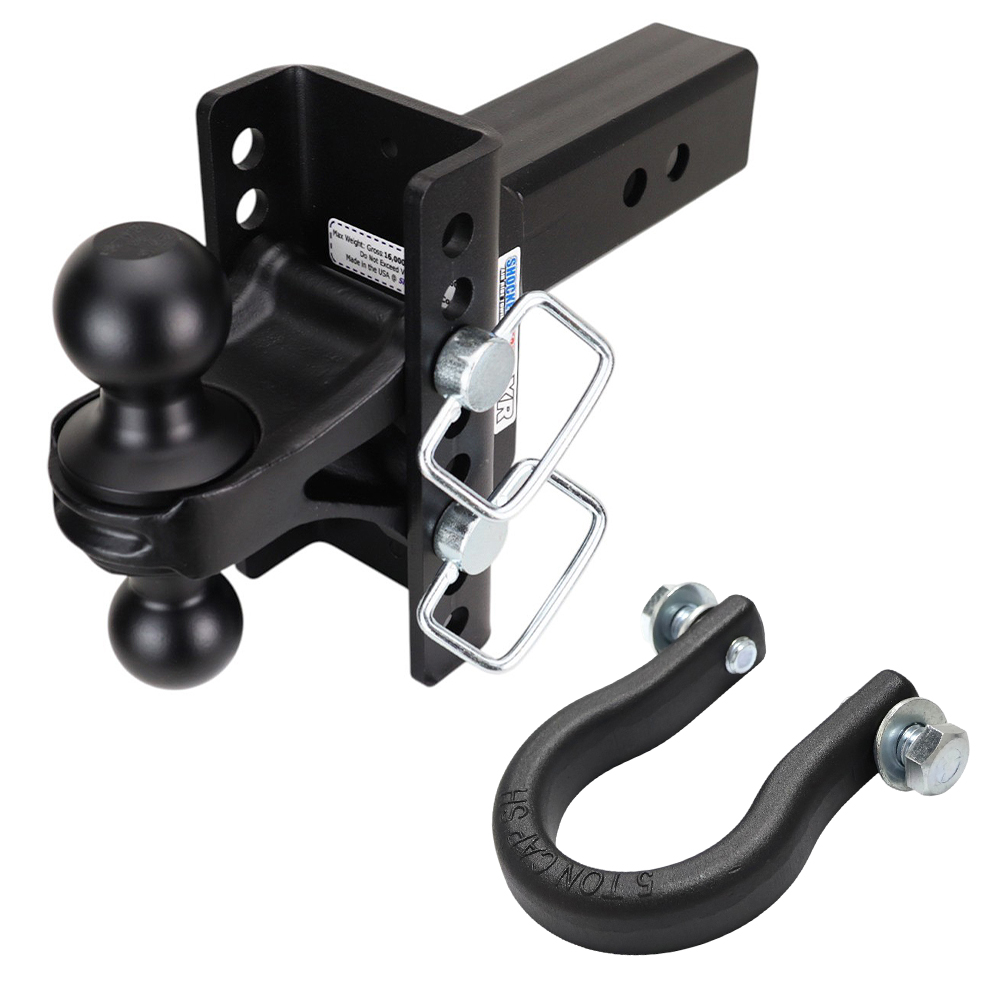

XR Hitch w/ Black Combo Ball & Shackle - 8-Hole

Shocker XR Drop Hitch with Combo Ball & Shackle

Rated 0 out of 5

(0)

$273.88 – $294.63~~$329.98 – $354.98~~

Extra 17% OFF, hurry limited time offer.

Usually Ships on or Before Wed 10/21/26

Clear

Additional Add-Ons

Locking Hitch Pin & 2 Ball Mount Attachment Locking Pins - Fits Base Frame & Receiver

$62.01

SKU: SH-317-2-318

Compact Portable Air Compressor with Digital Gauge

$69.99

SKU: SH-5625

Description
Product Description

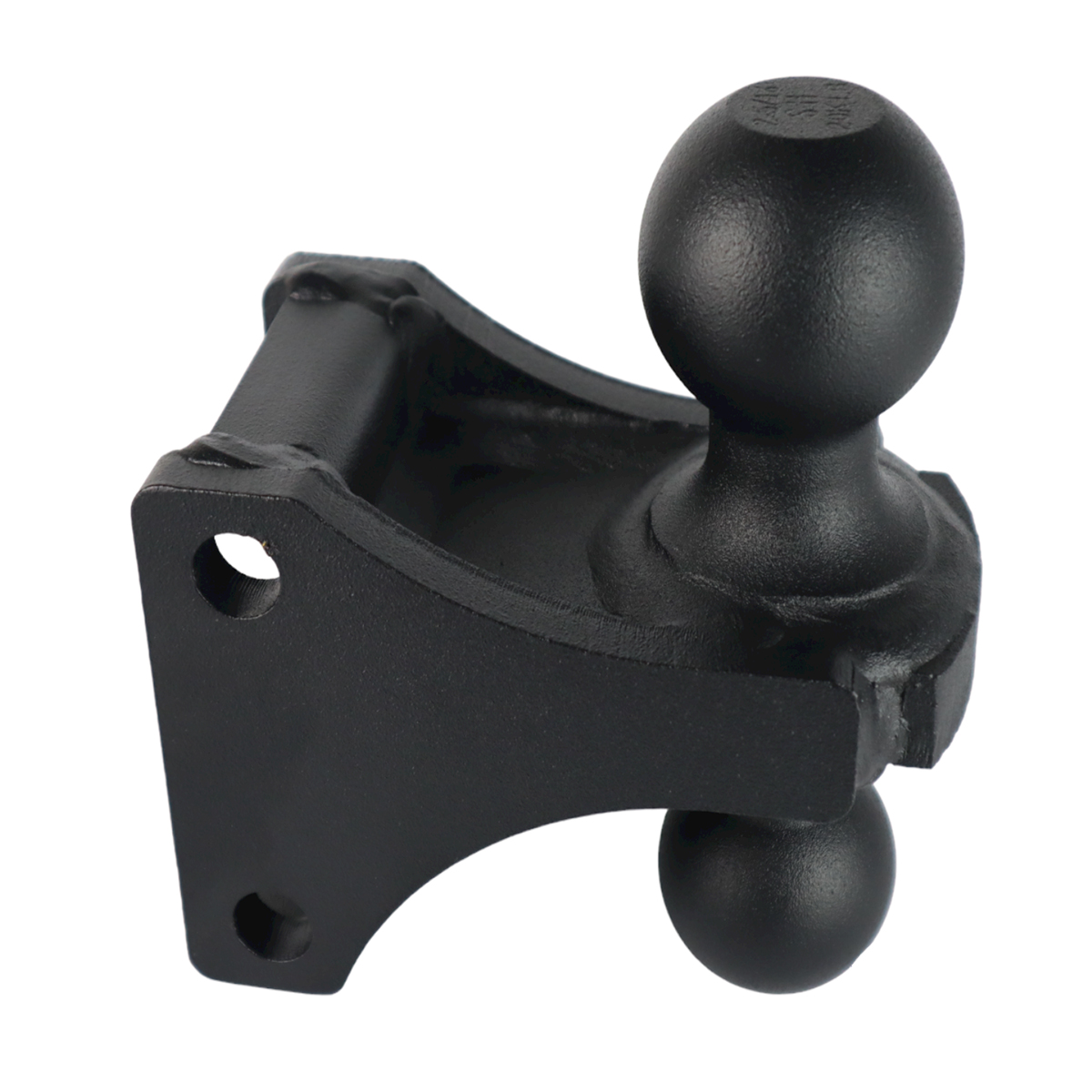

- Adjustable Matte Black Combo Ball: HD adjustable combo ball mount has 2" & 2-5/16" balls. Multi-ball construction for max strength & durability.
- 3-5/8" Wide 5-Ton Shackle: Great for tow straps, a winch cable or a ratchet puller come along.

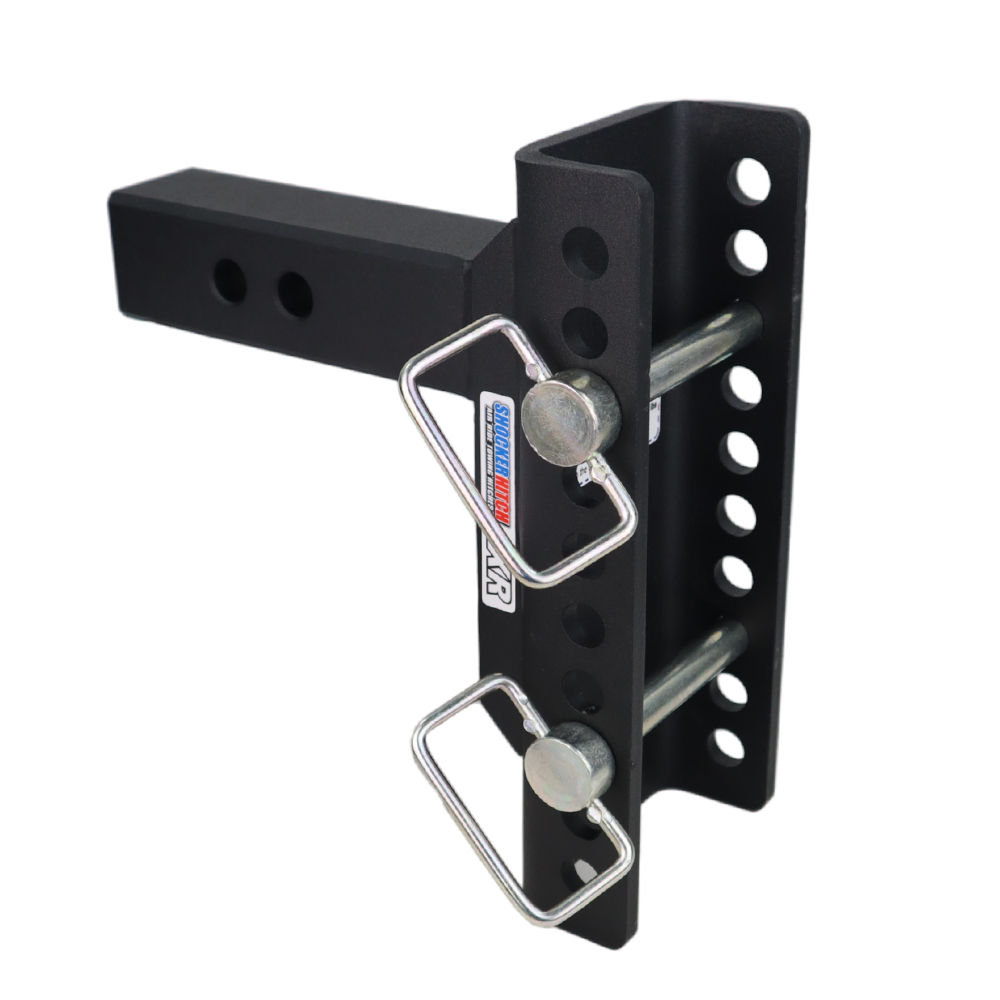

- Flip Around Design: Versatile hitch. Hitch frame can be flipped around for more drop or rise.
- 8" or 10" of Adjustment: 4" of drop & 4" of rise or 6" Drop & 6" Rise depending on option chosen.
- Adjustable Length: 2 hitch pin holes for length adjustment and it also allows for use with hitch mount towing mud flaps.
- 12,000 to 20,000 lb GTW: 12,000 lbs for 2" hitch, 16,000 lbs GTW for 2.5". Tongue weight is 10% of GTW.
- Textured Matte Black Powder Coat: Premium impact resistant matte black textured powder-coated finish on base hitch and combo ball.
- Available for 2 Receiver Sizes: Choose either a 2" or 2.5" receiver hitch shank
- 10+ Ball Mount Attachment Options: Works with all our other ball mount adaptors attachments including drop & raised mounts, pintle hooks, clevis, cushioned drawbar, drawbar, pintle with ball, ball mounts with sway bar mounting tabs & more.

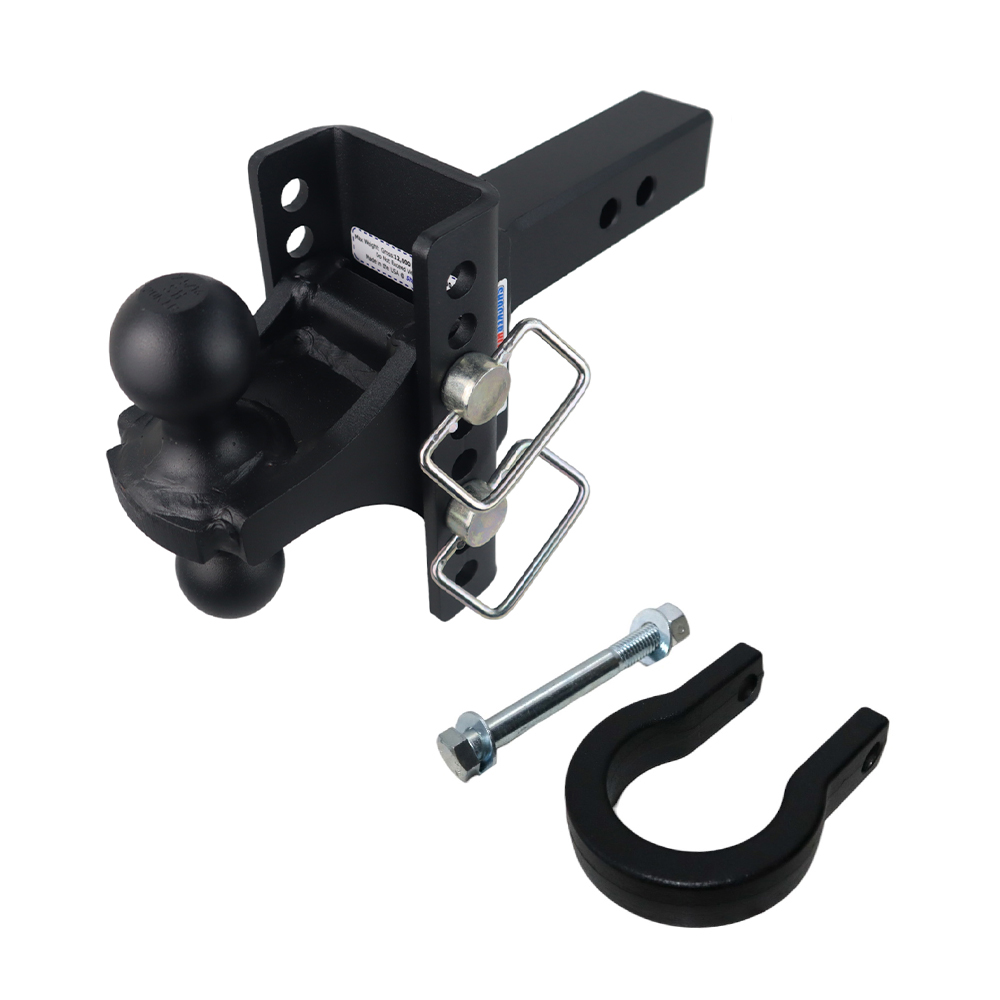

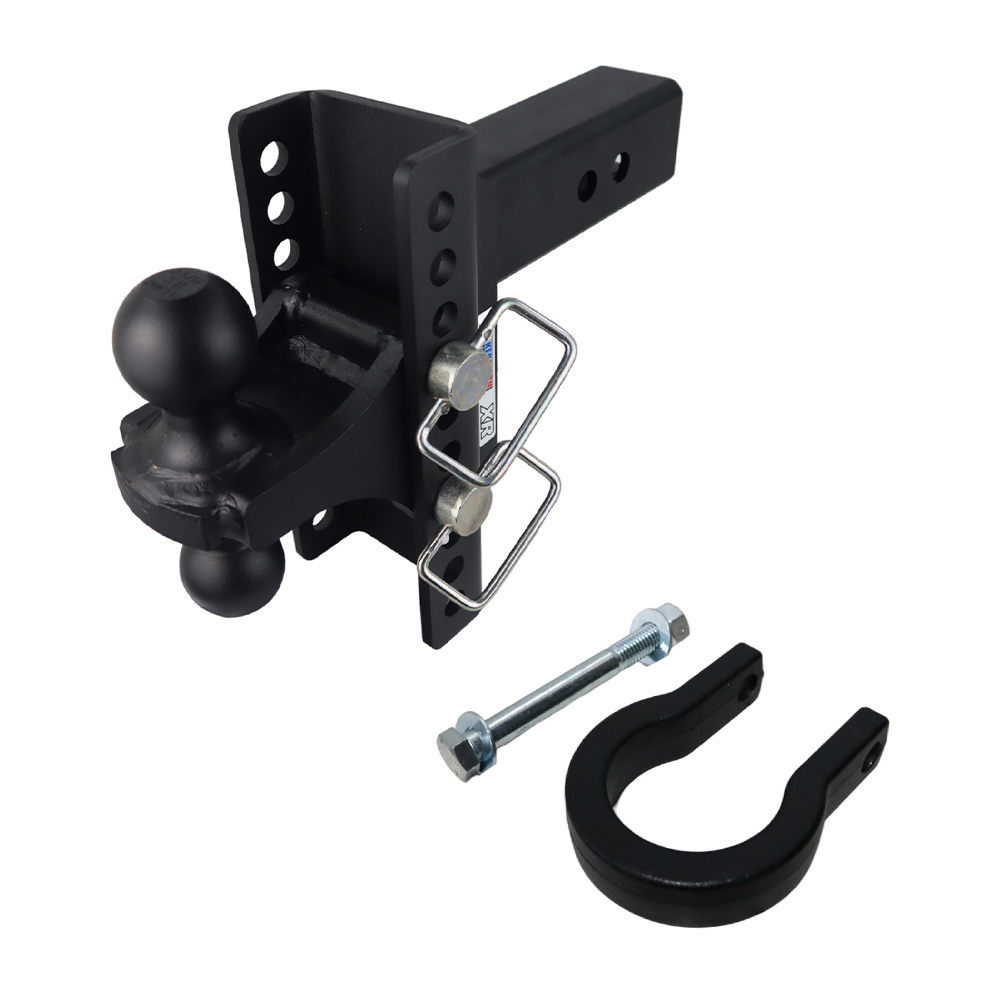

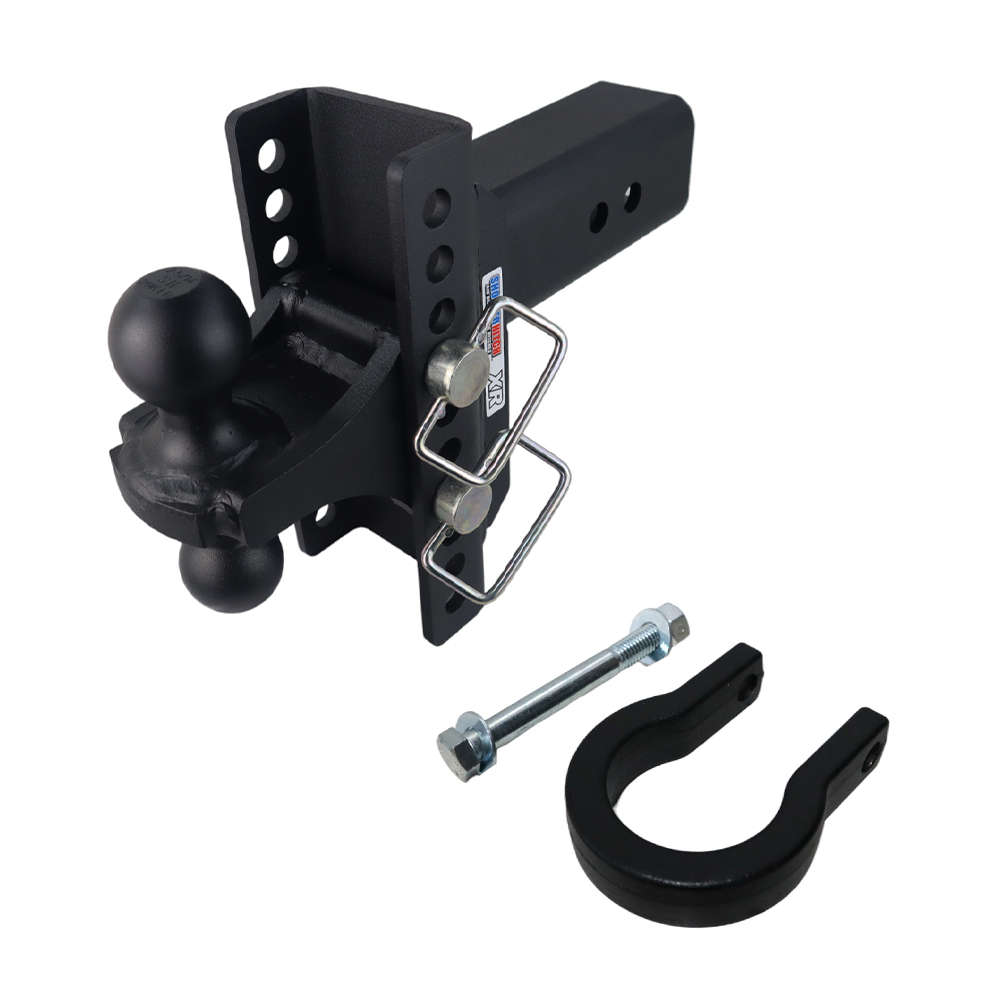

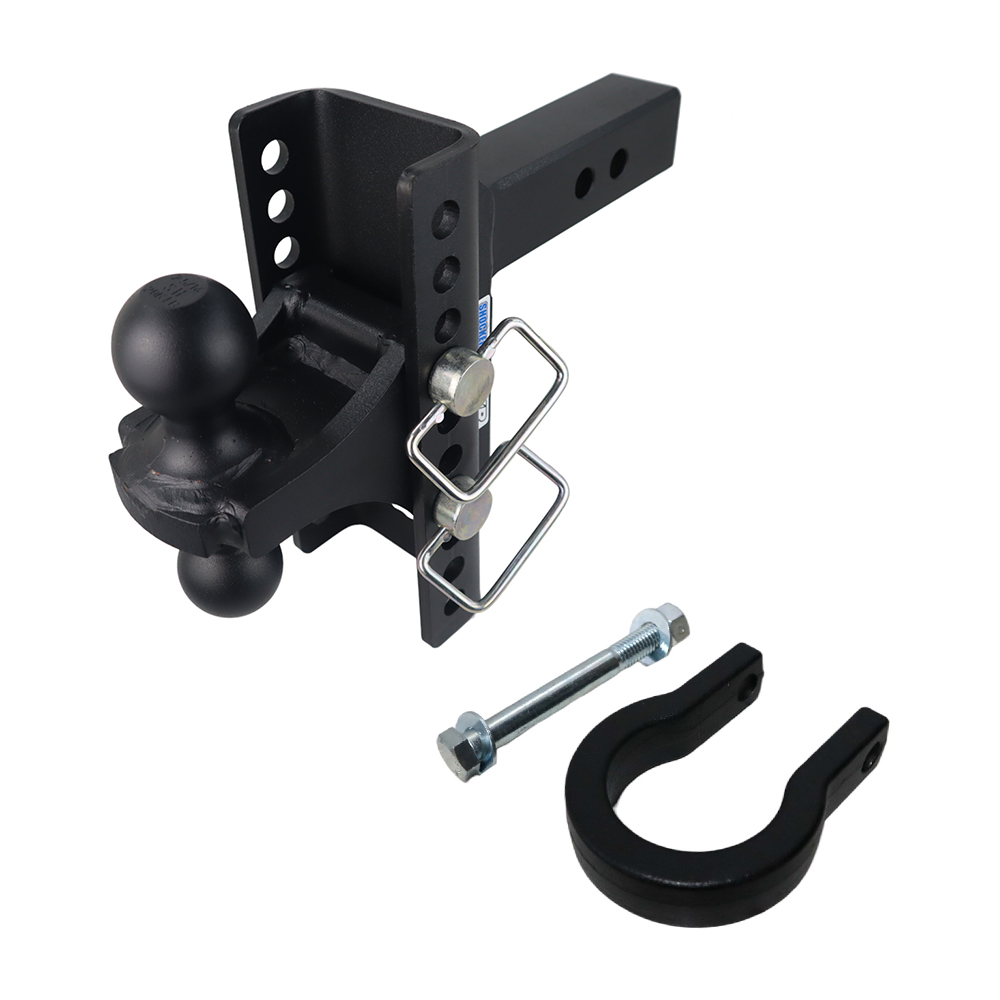

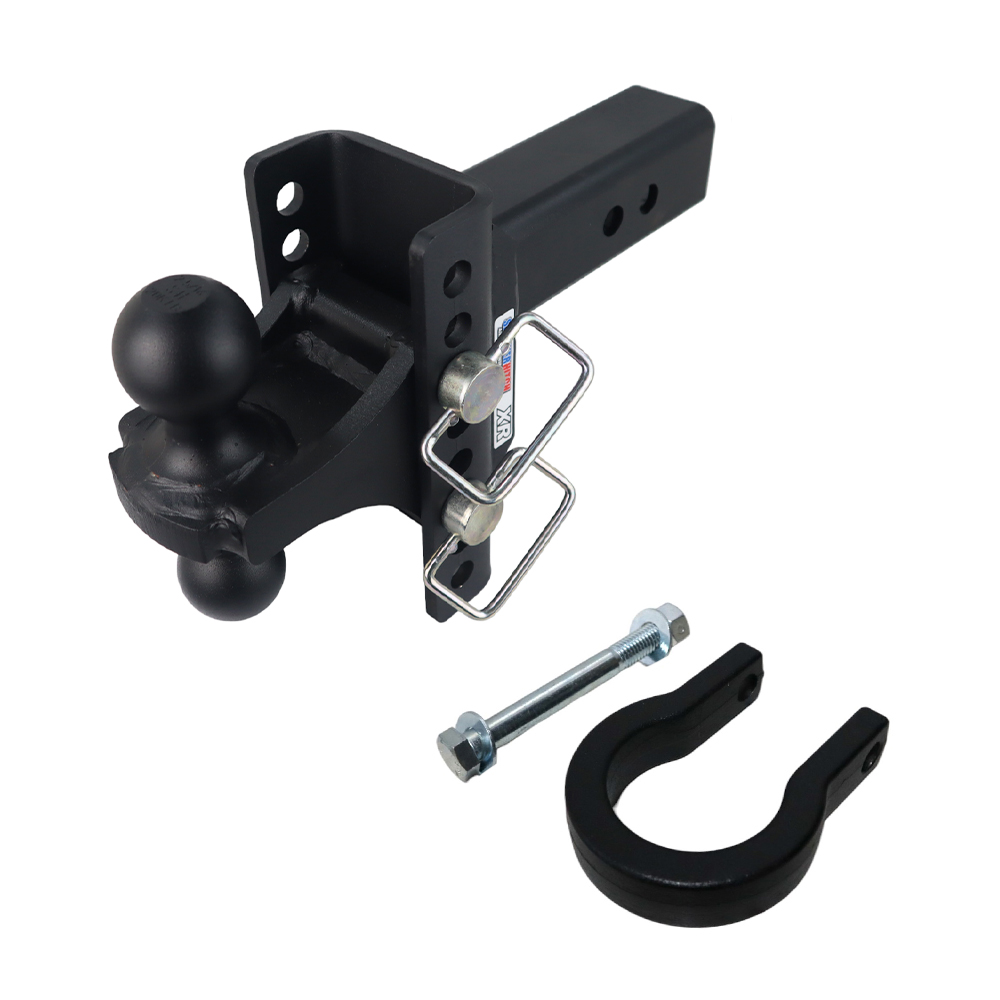

- Kit Includes a Shocker XR hitch with 8 or 10 holes, adjustable black combo ball mount with 2" & 2-5/16" hitch balls, 5-Ton Shackle with hardware & 2 d-handle ball mount pins with clips
- Safety Notice: Towing capacity is limited by lowest rated component. Manufactured by Shocker Hitch® USA in Jamestown, ND. 2" Ball is 10,000 lbs GTW & 1,000 lbs TW / 2-5/16" Ball is 20,000 lbs GTW & 2,000 lbs TW.
- What Size Receiver Hitch Do I Need? Not sure if you have a 2" or 2.5" receiver tube? Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
- How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

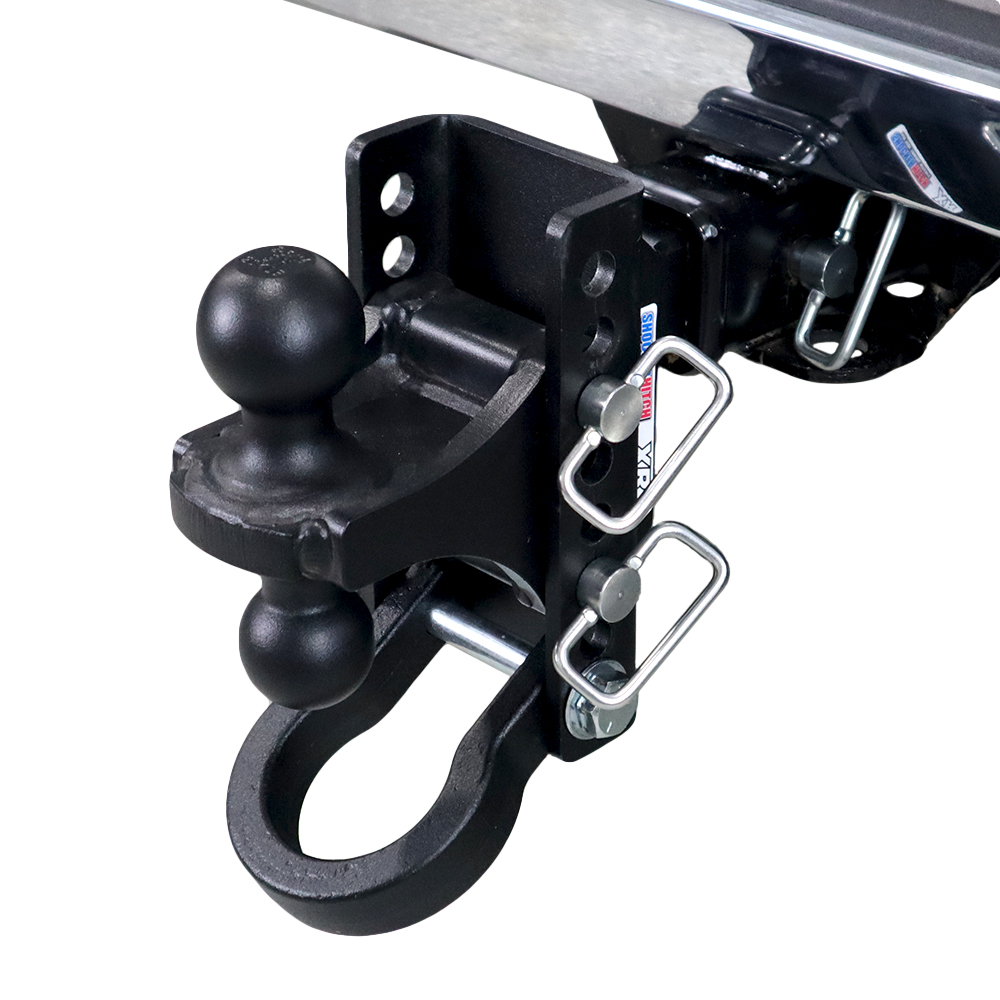

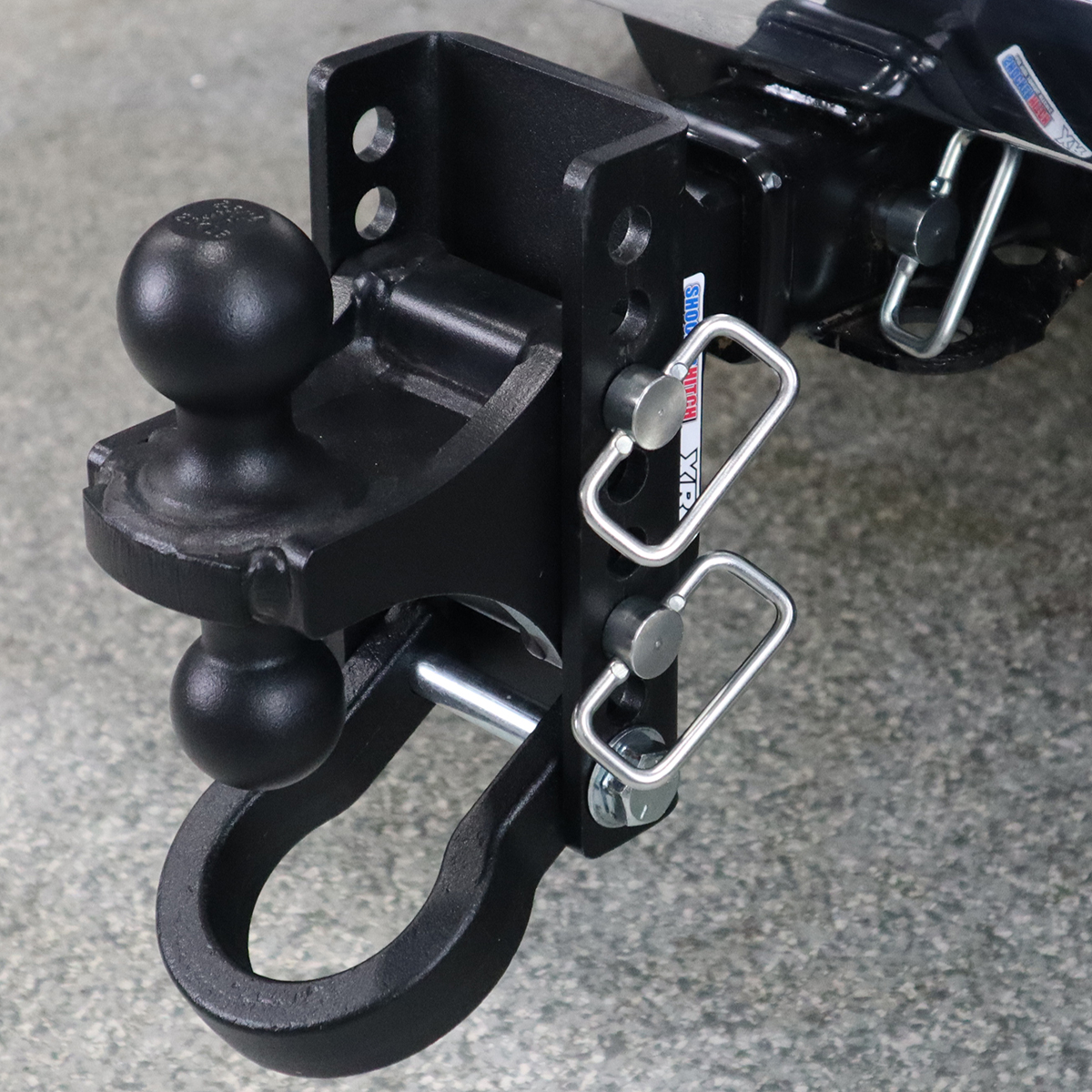

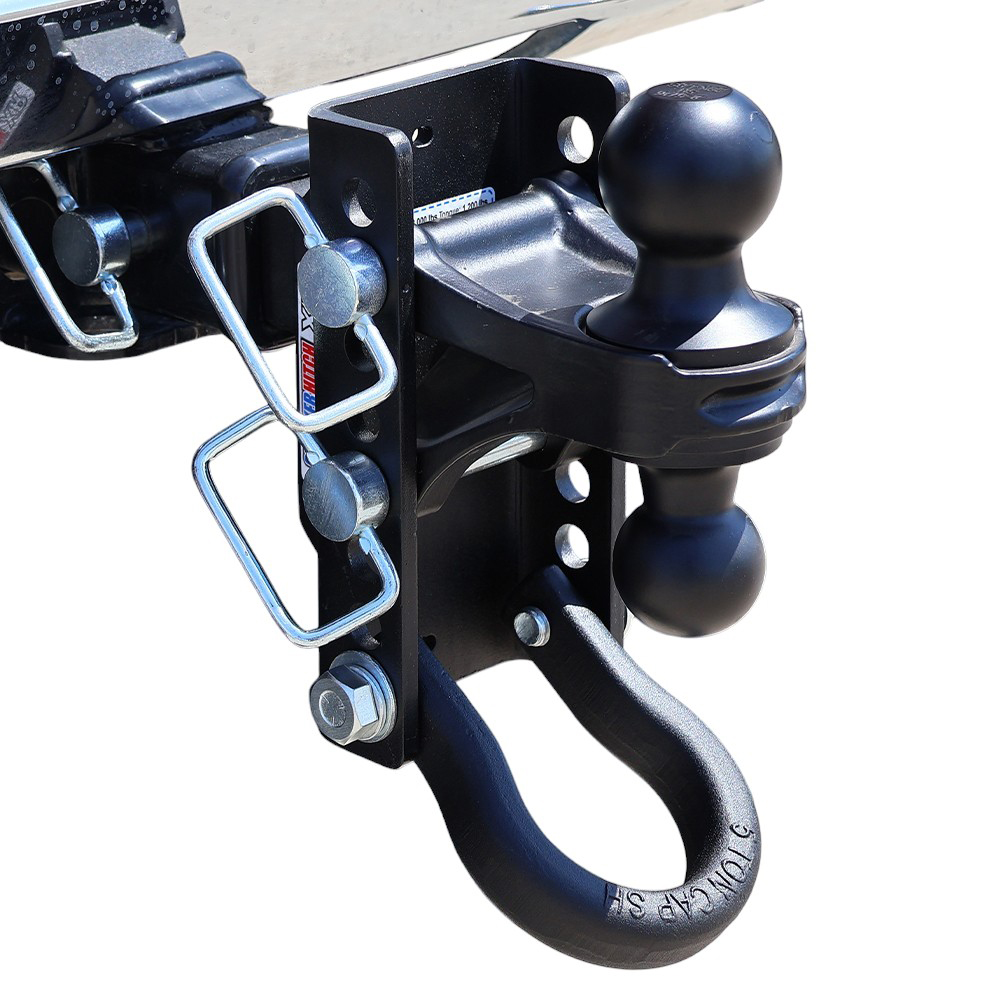

The matte black Shocker XR Adjustable drop hitch with combo ball & shackle always comes in handy. It has a black combo ball mount with both a 2" hitch ball and a 2-5/16" hitch ball along with a 5-ton shackle. The Shocker XR Hitch is adjustable and can be flipped around for more drop or more rise. It’s great for a variety of trailer towing applications. Especially if you are towing different trailers or with different vehicles. This XR series drop hitch has adjustability of 4" of rise to 4" of drop or 6" to 6" of drop, with up to 20,000 lbs tow rating capacity and 2,000 lbs tongue weight depending on shank size selected. The all black combo ball mount along with the shackle, looks sharp plus gets the job done. Shocker XR receiver hitch ball mount provides the ultimate in versatility. Both the XR hitch and the black combo ball feature impact resistant textured matte black finish. It also features two hitch pin holes for length adjustment, as well as making it compatible with hitch mount towing mud flaps & rock guards. Available for 2" or 2.5" receiver hitches. Made by Shocker Hitch® USA.

California Residents: Prop 65 Warning
Video

Video
Shocker XR Hitch Videos

Install

Install and adjust your XR receiver hitch

Use the instructions and video below to install the receiver shank and adjust your ball mount. Check the ratings of your complete towing setup before towing.

Here you can download the Shocker XR Receiver Hitch installation instructions – Version 1.2.

Current XR models and installation

SH-XR100 / SH-XR100-10: 2-inch receiver, 12,000 lb GTW / 1,200 lb tongue weight. SH-XR125 / SH-XR125-10: 2-1/2-inch receiver, 16,000 lb GTW / 1,600 lb tongue weight. These limits apply to both 8-hole and 10-hole frames.

Version 1.2, created October 10, 2026. This current-model guide excludes legacy SH-XR130. For that model, follow its original instructions and rating labels or contact our team.

Match your equipment. Check receiver size, hitch/base labels, attachment and coupler ratings. Park on level ground; support and secure the trailer before adjusting the hitch.
Install the XR base. Slide the matching shank into the receiver. Align a receiver pin hole and install a 5/8-inch hitch pin with its clip, or a compatible locking pin. Check clearance.
Set the height. With the trailer supported, select drop or rise orientation. Position the compatible attachment to keep the loaded trailer level. Install BOTH attachment pins and secure both clips/locks.
Connect and inspect. The trailer coupler must match the hitch-ball size. Latch and secure it. Connect safety chains, breakaway cable and lights as applicable. Check all pins, locks and clearance.
Maintain. Inspect pins, clips, holes and mounts for wear or damage. Grease the hitch ball as directed by the coupler maker. Follow the separate instructions for pintle or sway attachments.

TOWING CAPACITY IS LIMITED BY THE LOWEST-RATED COMPONENT.

GTW = gross trailer weight; TW = tongue weight. Do not exceed any applicable rating for the tow vehicle, receiver, hitch, attachment, ball or pintle, trailer coupler or lunette ring, or trailer.

XR Hitch Flip Around Design for More Drop or Rise

XR Hitch Install Video

Video library: Watch the Shocker XR Adjustable Ball Mounts playlist.

Videos show product features and attachment options. Some clips include older models and ratings. Use the current Version 1.2 instructions and your model labels for installation, receiver size and capacity.

XR attachment drop, rise and capacity

The values below are attachment ratings, not complete XR assembly ratings. A higher-rated attachment does not increase the XR base capacity.

Attachment	8-hole: rise / drop	10-hole: rise / drop	Attachment GTW / TW (lb)
Combo ball*	4" / 4"	6" / 6"	2" ball: 10,000 / 1,000 2-5/16" ball: 20,000 / 2,000
Drop ball*	0" / 7-1/2"	2" / 9-1/2"	Same ball limits as combo above
Raised ball*	5" / 3"	7" / 5"	Same ball limits as combo above
Pintle hook SH-333	1" / 7"	3" / 9"	20,000 / 2,000
Raised pintle SH-335	3-1/2" / 4"	5-1/2" / 6"	20,000 / 2,000
Pintle & ball SH-334-2/-25	1" / 7"	3" / 9"	Pintle or 2-5/16": 16,000 / 3,000 2" ball: 12,000 / 3,000
Drawbar SH-350 / SH-370	4" / 4"	6" / 6"	20,000 / 0 (no vertical load)
Clevis SH-360	1-1/2" / 6-1/2"	3-1/2" / 8-1/2"	20,000 / 0 (no vertical load)

*Sway-tab versions use the corresponding ball-mount limits. Sway arms require compatible mounting tabs; follow the sway-kit instructions. Drawbar/clevis are not for use with hitch ball.

Optional sway-control setup

Have an XR combo, raised or drop ball mount with sway-bar tabs? Those tabs provide the hitch-side connection for a compatible friction sway-control arm. You also need the appropriate connection on your trailer.

SH-1001
Friction sway-control kit

Start here for installing and connecting the friction sway-control arm between your hitch attachment and trailer.

View SH-1001 installation instructions →

SH-7010
Clamp-on trailer-frame bracket

An optional trailer-side mounting method. Check the guide for frame compatibility and installation requirements.

View SH-7010 installation instructions →

SH-7015
Airstream trailer brackets

For the applicable Airstream installation with two sway bars. Check the current guide to confirm compatibility with your trailer.

View SH-7015 installation instructions →

Choose the hardware that fits your trailer—you do not need all three kits. Follow the applicable guide for installation, adjustment and operating precautions.

Replacement pins and receiver hitch locks

Standard pins with clips: SH-BH625456PR (pair), SH-HP-3Pack (3 pins).
Clear zinc bullet-style pins with clips: P00476-2Pack (pair), P00476-3Pack (3 pins).
Standard and bullet-style pins: 5/8-inch diameter, 4-5/8-inch usable span.
SH-318 receiver locking pin: 3-5/8-inch span. SH-317 attachment locking pin: 4-5/8-inch span. SH-317-2-318: keyed-alike 3-pack.

Confirm pin fit, clearance and lock engagement for your setup. Register your warranty.
