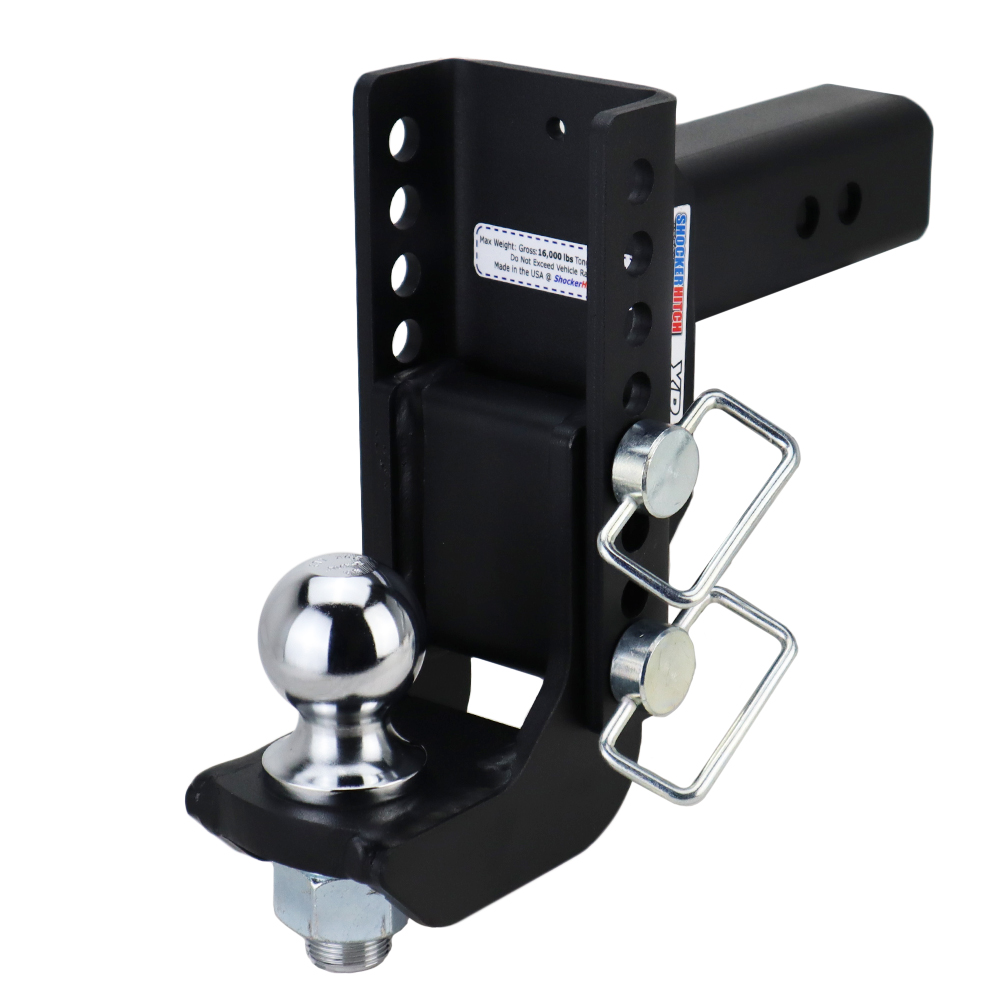

Shocker XR Adjustable Drop Ball Mount – Up to 9″ of Drop

Select Option:


Product Information:

List Price: $319.99$359.99Sale Price: $233.99$242.99Free Ground Shipping*

Money IconExtra 10% OFF, hurry limited time offer.
Rated 5.00 out of 5 based on 3 customer ratings
SKU: SH-XR100-320-Series


Product Description

  • HD Adjustable Drop Ball Mount: Can be flipped around for more drop or rise.
  • Ideal on Pickup  Trucks: Works great on motorhomes, rv’s, pickup trucks, vans, suvs, cuvs and minivans.
  • 12,000 to 20,000 lb GTW: 12,000 lbs for 2″ hitch, 16,000 lbs GTW for 2-1/2″ and 20,000 lbs GTW for 3″. Tongue weight is 10% of GTW.

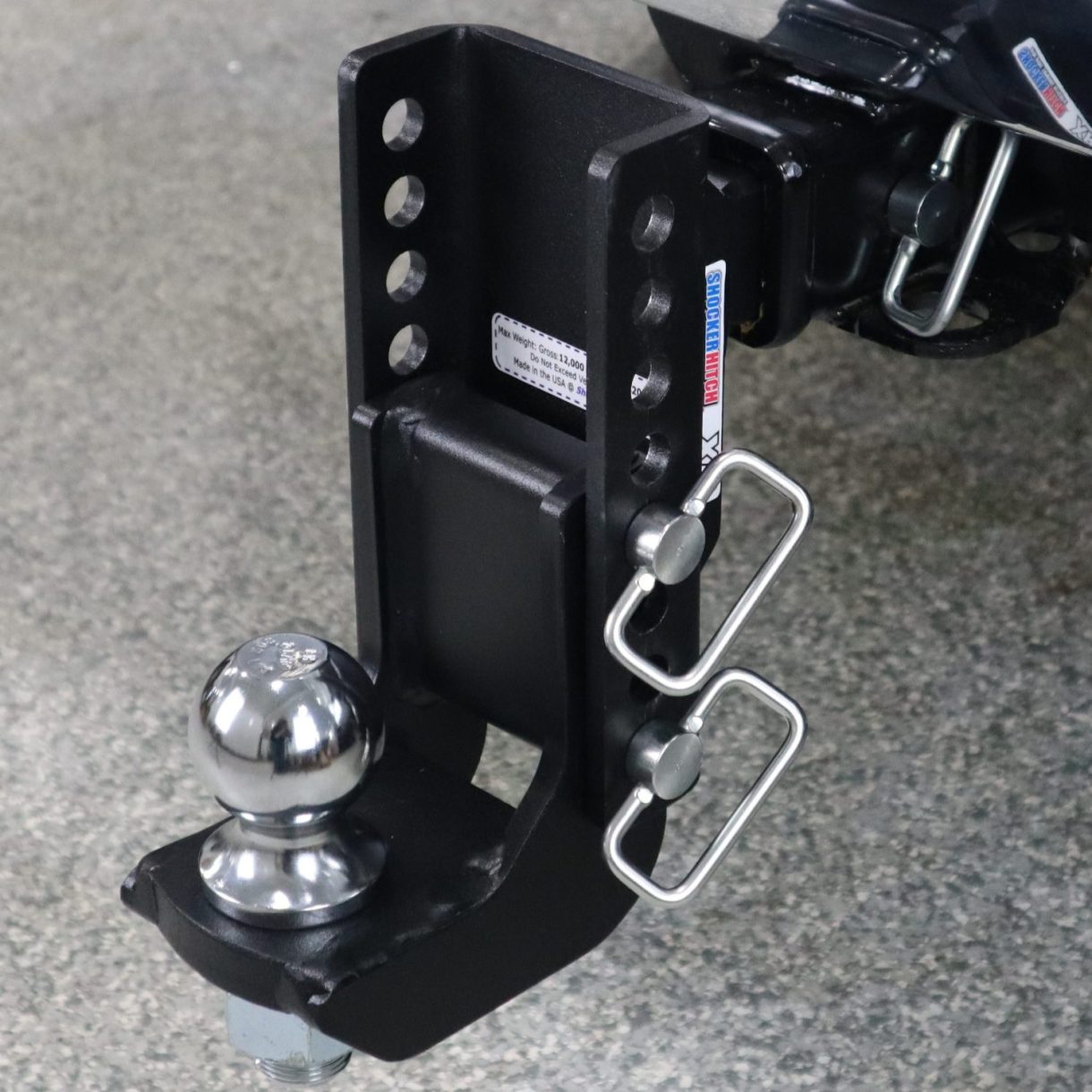

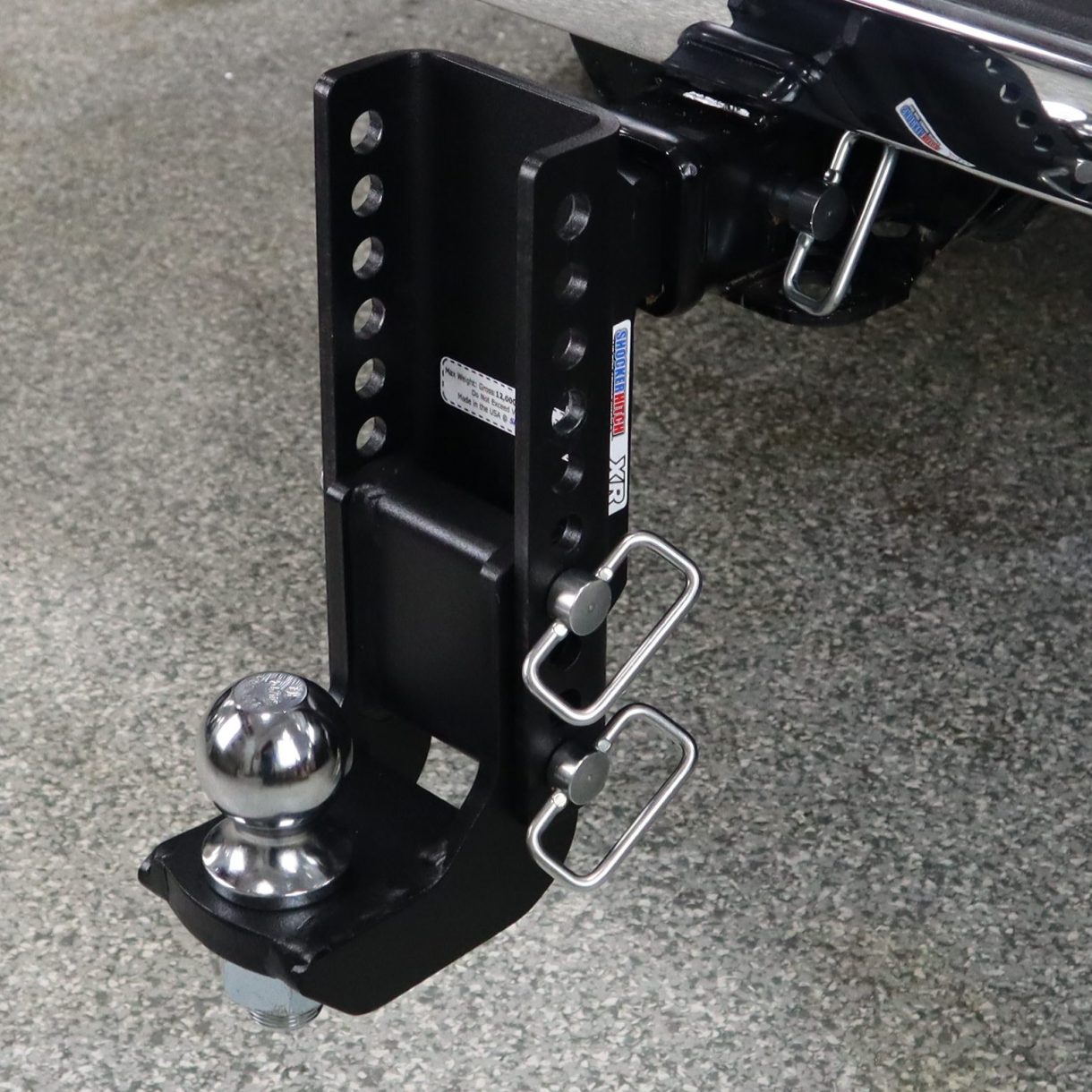

  • 8 or 10 Adjustment Holes: Choose XR series with 8 or 10 adjustment holes. 0-7-1/2″ or 0 to 9″ of drop for lifted trucks.
  • 2″ or 2-5/16″ Ball: Choose either a heavy duty 2″ or 2-5/16″ bolt on hitch ball.
  • Premium Powder-Coat Finish: HD Premium powder coated finish of base frame / clear zinc plated ball mount.
  • Adjustable Length: 2 hitch pin holes to adjust the length and there is plenty of room on the receiver shank to accommodate hitch mounted towing mud flaps or shocker bumper tow flaps.
  • Works with Tow Flaps: The longer shank with 2 hitch pin holes is great for hitch  mounted towing mud flaps.

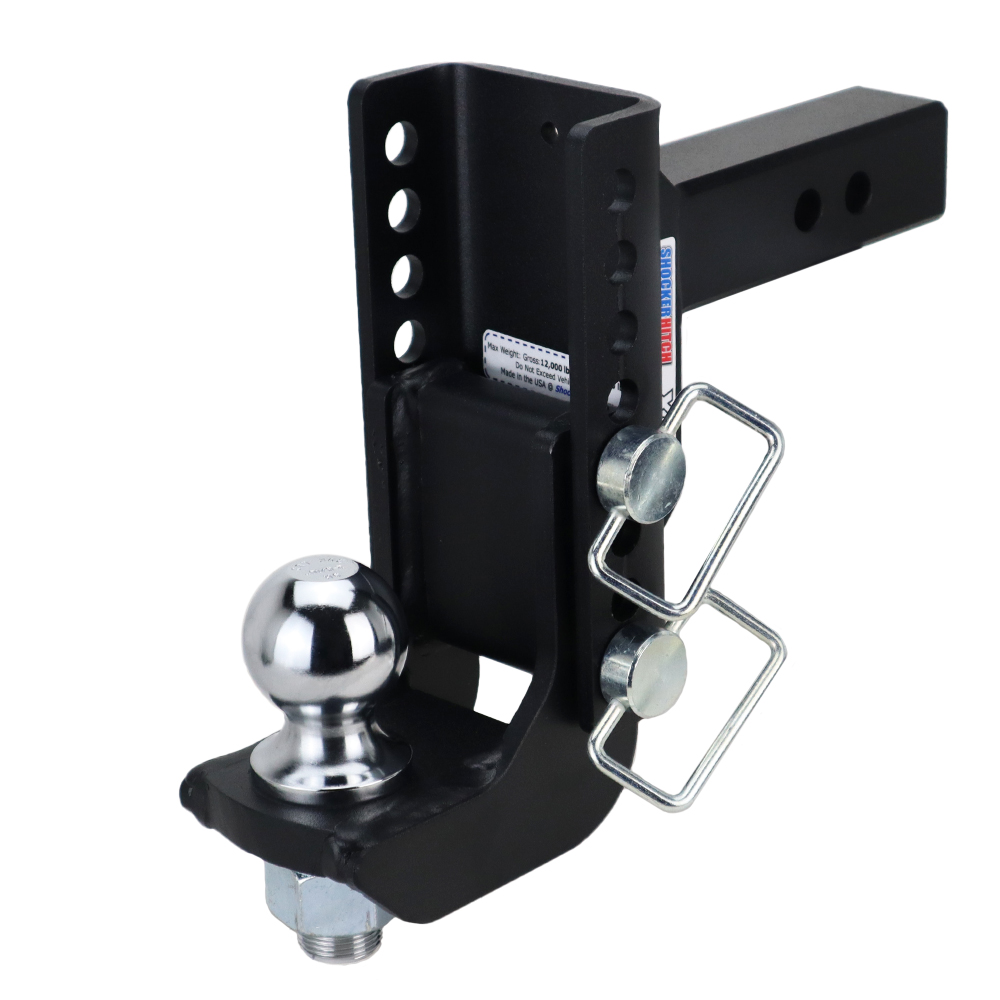

  • Choose Your Receiver Size: Available for 2″, 2-1/2″ and 3″ receiver hitches.
  • Comes Complete: Includes everything you need, the adjustable Shocker XR series base frame hitch assembly, adjustable drop ball mount of your choice & 2 d-handle ball mount pins with clips.

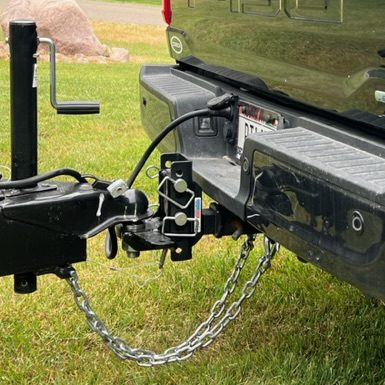

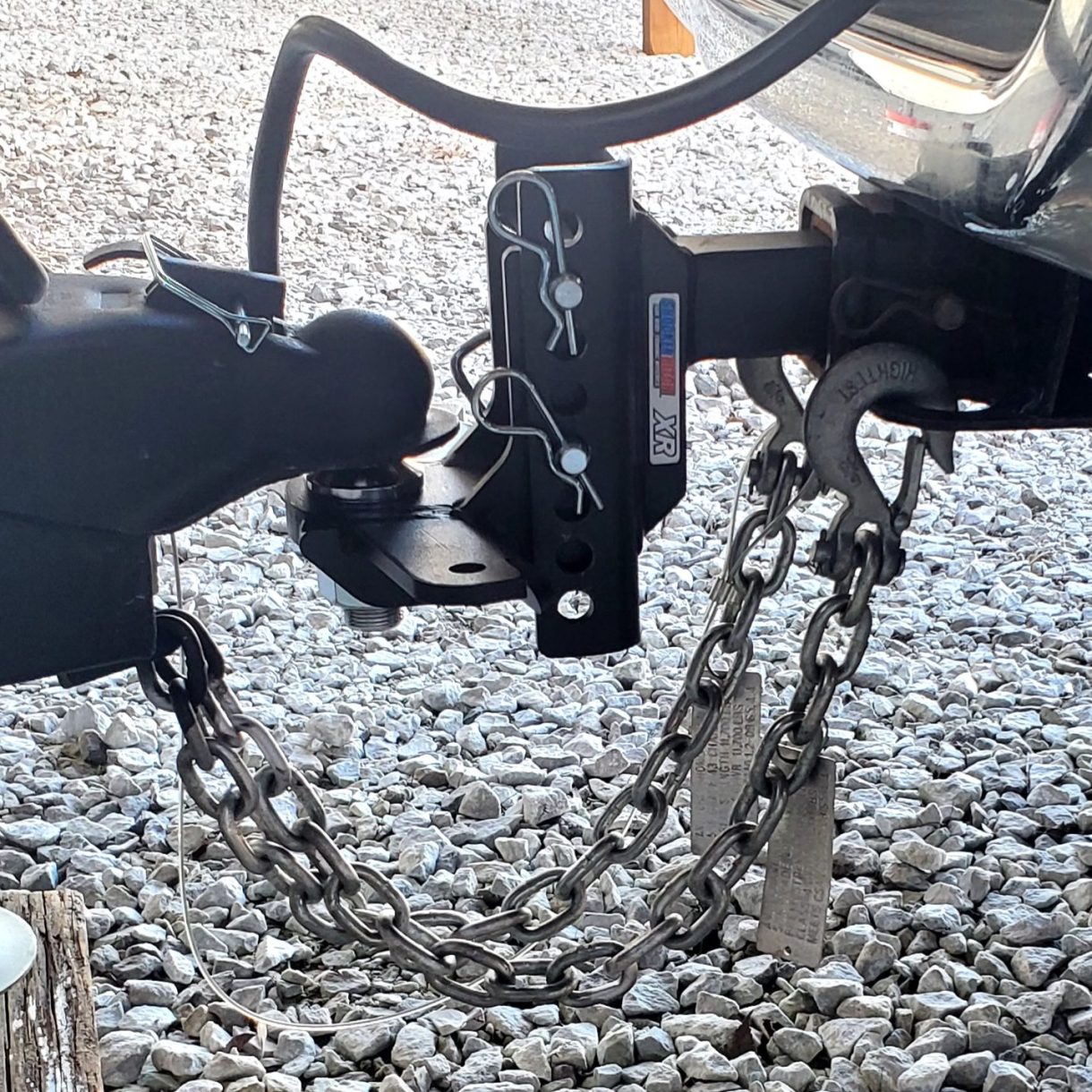

  • 10+ Ball Mount Options: The XR works will all our ball mount attachments. We have dual ball, drop, raised, pintle hooks, combo multi-ball, clevis pin, dual ball with sway bar tabs, cushioned drawbar, drawbar and more. Combo balls are 2″ & 2-5/16″ welded design for maximum strength. Combo gives you 4″ of rise to 4″ of drop. Premium clear zinc finish.
  • Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

The Shocker XR Adjustable drop ball mount is available with a 2″ hitch ball or a 2-5/16″ hitch ball.  This Shocker XR series drop hitch offers 0″ to 7-1/2″ of drop or 0 to 9″ of drop and is perfect for taller or lifted pickup trucks. Featuring up to 20,000 lbs tow rating capacity and 2,000 lbs tongue weight depending on shank size. Shocker XR drop hitch has built in adjustability with 8 adjustment holes or 10 adjustment holes offering maximum versatility for your towing needs. This Shocker XR drop ball mount attaches by sliding into a standard receiver tube. It also features two hitch pin holes for length adjustment, as well as making it compatible with hitch mount towing mud flaps & rock guards. Use this adjustable ball mount however you need to for tons of versatility. Made by Shocker Hitch® USA.

With this adjustable XR ball mount, the hitch balls bolt to a standard mount with a 1-1/4″ thick bolt and feature a premium chrome finish. Note the 2″ ball is rated at 10,000 lbs and the 2-5/16″ ball is rated at 20,000 lbs

California Residents: Prop 65 Warning


Shocker XR Ball Mount Videos


Shocker XR Ball Mount Hitch Setup Installation Instructions

Download the Shocker XR Series Hitch Instructions

Insert the shank of the hitch into the receiver of your tow vehicle. Make sure you are using the correct size shank to work with your receiver. Secure the hitch with a hitch pin. Adjust the ball mount attachment so your tow vehicle and trailer are level. You can flipped the XR frame around for more drop or more rise.

XR Adjustable Ball Mount Flipped
XR Adjustable Ball Mount Flipped

Safety Notice: The Shocker XR series hitches are a heavy-duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle, coupler rating, tow vehicle rating and trailer weight rating.


This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.



Answers to Frequently Asked Questions

How much drop or rise does the XR ball mount offer?

From 4″ of rise to 7-1/2″ of drop depending on the ball mount attachment used.  The combo mount is 4″ of rise and 4″ of drop.  The drop ball mount is 0″ to 7-1/2″

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

3 reviews for Shocker XR Adjustable Drop Ball Mount – Up to 9″ of Drop

Add a review

Your email address will not be published. Required fields are marked *

Customer Reviews

  1. I’ve purchased two hitches from Shockerhitch, the Shocker Air Receiver hitch with a 2-1/2″ receiver and it was the BEST thing I ever did for pulling a trailer [pull behind travel trailer]. You notice the difference right away and immediately realize that it was money very well spent.

    For another truck, an occasional puller [so I pull the hitch out when not using], I purchased a Ball mount hitch.

    Both are solidly built, both have excellent craftsmanship. The wife and I will be moving to a fifth wheel travel trailer in the next year or so and we’ll be spending the money for the Shockerhitch 5th wheel cushion.

    – Greg Shoe
  2. Super fast shipping and great quality! Love the versatility, it works great for the boat, car, and jetski trailers.

    – Meghan R
  3. Arrived quickly and works great for my boat and car trailer.

    – Davie J

Weight / Dimensions

Weight 33 lbs
Dimensions 11 × 11 × 7 in
Select Receiver Hitch & Ball Size

Fits 2-1/2" Hitch, Has 2-5/16" Ball, Fits 2-1/2" Hitch, Has 2" Ball, Fits 2" Hitch, Has 2-5/16" Ball, Fits 2" Hitch, Has 2" Ball, Fits 3" Hitch, Has 2-5/16" Ball, Fits 3" Hitch, Has 2" Ball

Select XR Drop / Rise

0-7-1/2" Drop, 0-9" Drop
