Product Description
- Air Ride Sway Control Towing Kit: Smoother Safer Towing. Air ride towing technology with a heavy duty built in air ride. Air hitch absorbs road shock and smooths out the ride & the friction sway bar helps prevent trailer sway
- Built in Air Ride System: Absorbs road shock, creates a smooth ride & reduces the tendency to trailer sway. Dual bump cushions offer additional HD performance.
- Dual Sway Bar Kit: Come with 2 sway bar kits. Use 1 system for trailers under 10,000 lbs and 2 sway kits for trailers over 10,000 lbs. Adjustable friction sway arm bar can be adjusted to fine-tune your towing experience.

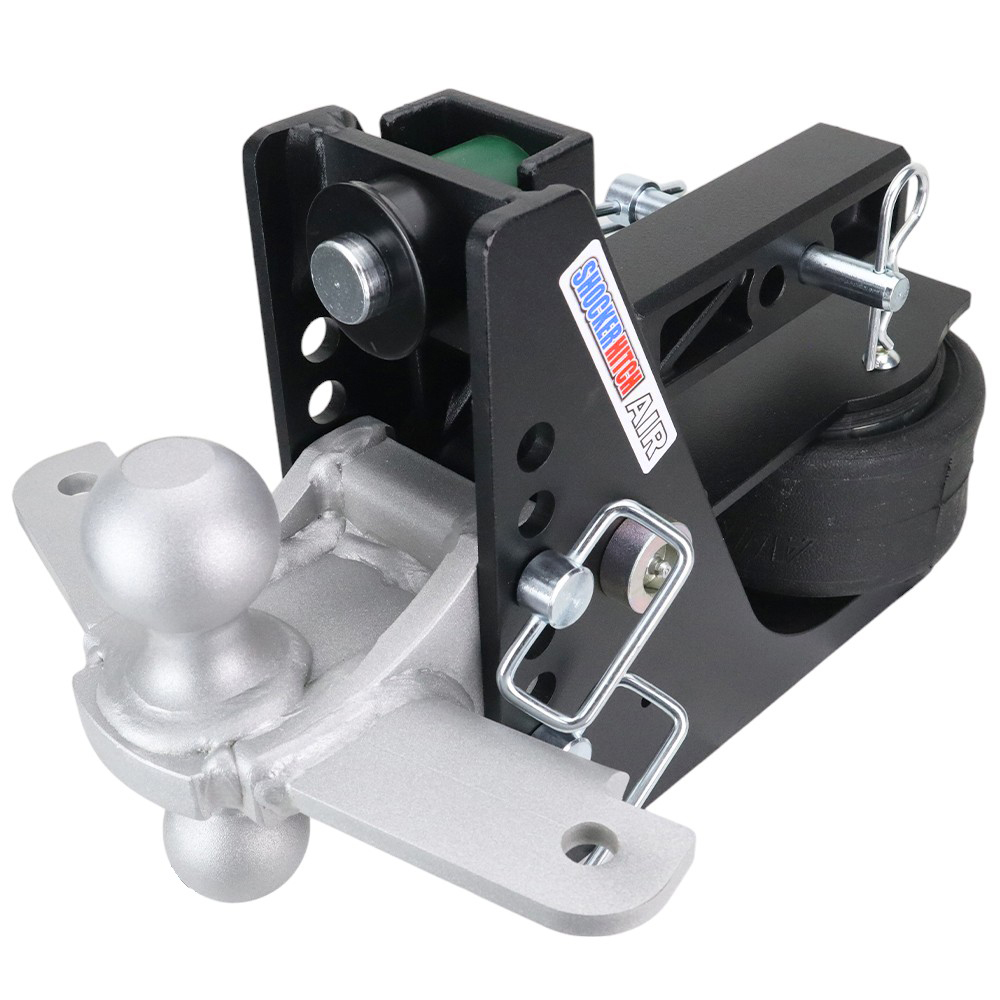

- Adjustable Sway Tab Combo Ball: 2″ & 2-5/16″ combo ball with 2 sway control tabs for mounting the provided sway control arm bar & mini balls.
- Adjustable Design: 8 Adjustment Holes for 1/2″ to 4-1/2″ of drop.
- 14,000 lbs Heavy Duty Capacity: 14,000 lbs towing capacity and a 1,400 lbs tongue weight.
- Combo Ball Mount Tow Rating: 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs. Choose black, red, silver, or chrome powder coat finish. Also available with chrome trailer hitch balls. The red option makes it easier to hook up when viewing through a backup camera.
- Adjustable for Weight: Fine tune for your towing weight. Just add air for heavier loads. The air ride system sits under the receiver tube. Adjust the air pressure for the best ride and load control.
- Simple Pivot Design: uses a rocker arm pivot design which produces a down & back motion. This premium design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple air bags common to other air hitches.
- Improves Safety: By giving you improved control of your tow vehicle and trailer. The air ride system allows for better control of your pickup and the trailer it is towing.
- Shock Dampening Action: Shocker air hitch effectively absorbs the jerking, tugging, and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and receiver hitch.
- Saves Money & Adds Life to Pickup & Trailer: By reducing trailer breakage on both the trailer & contents. Absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds & doing other long-term damage to your equipment & cargo.

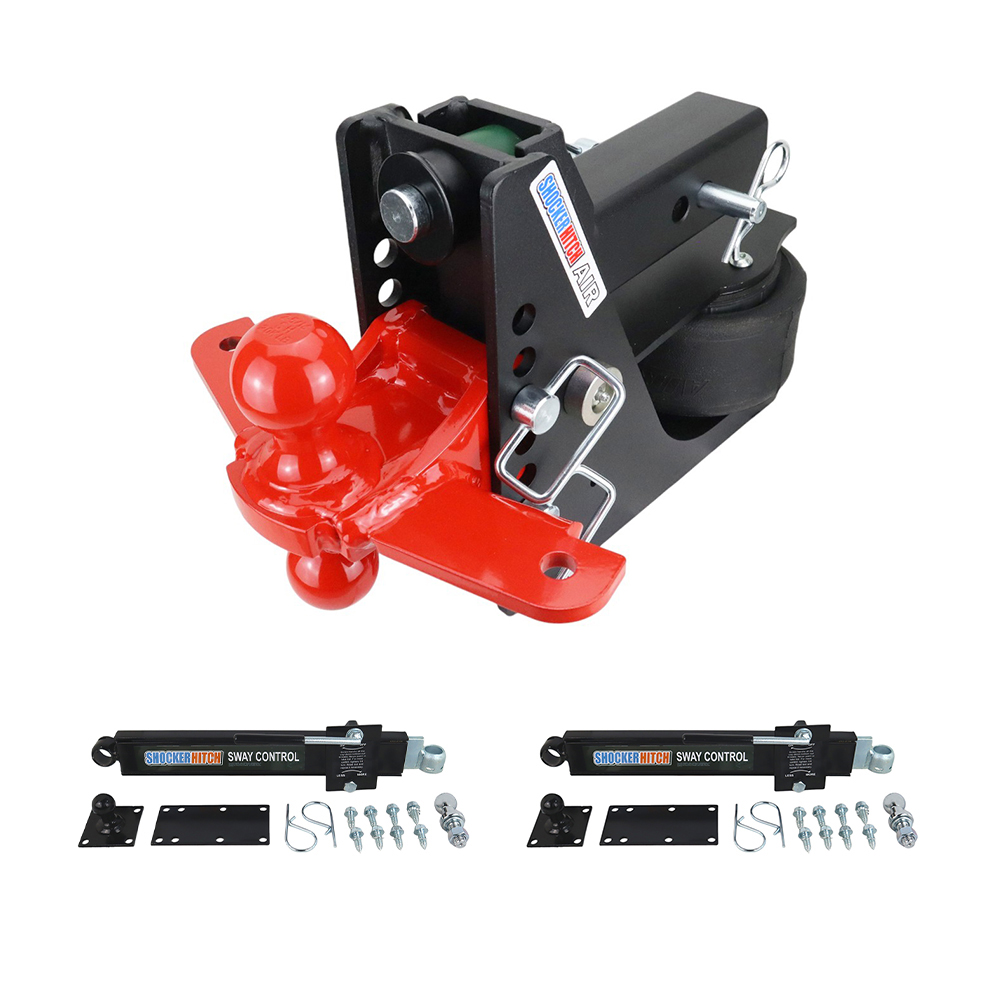

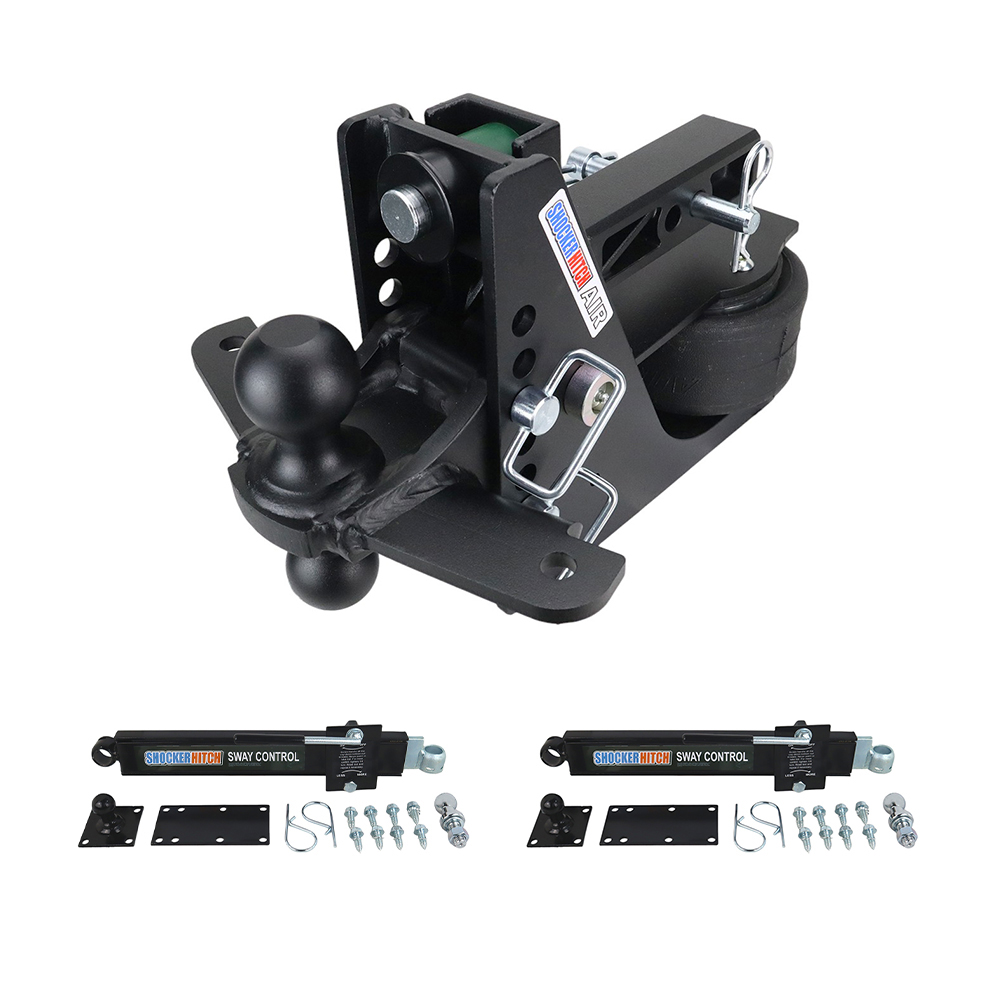

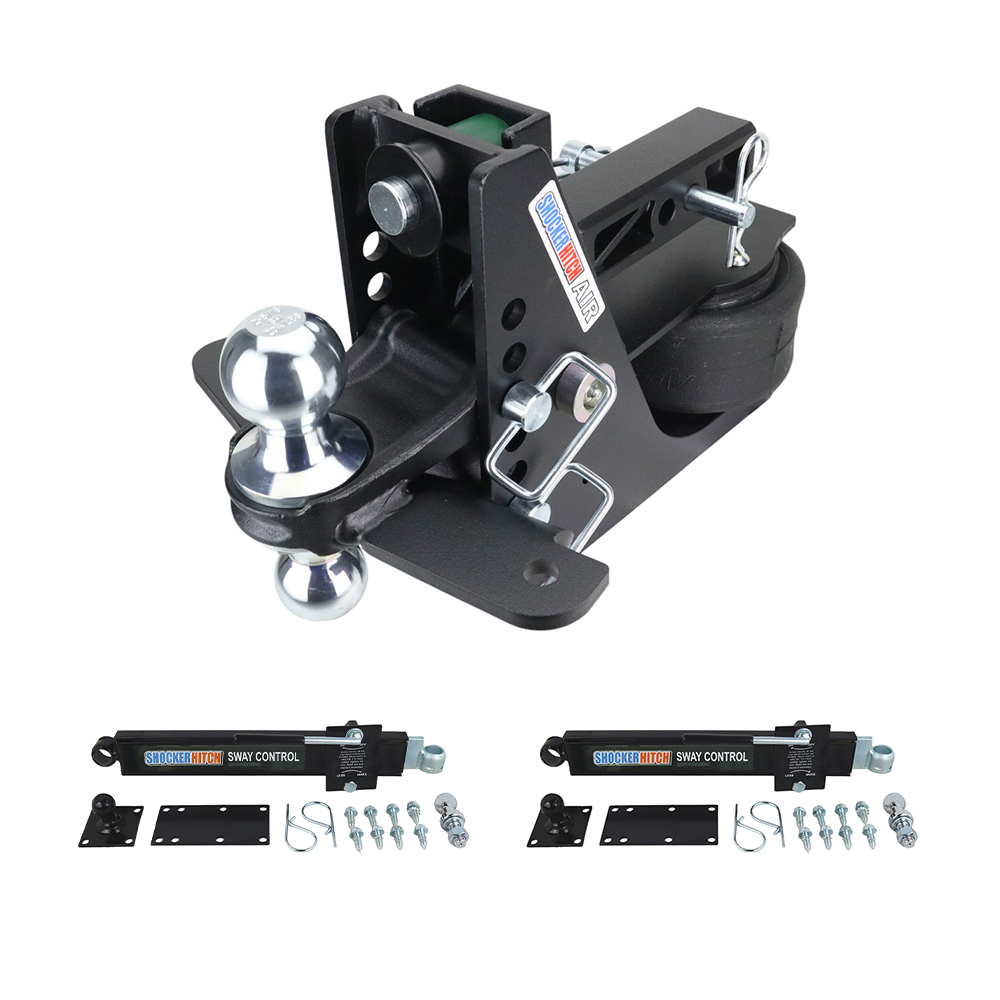

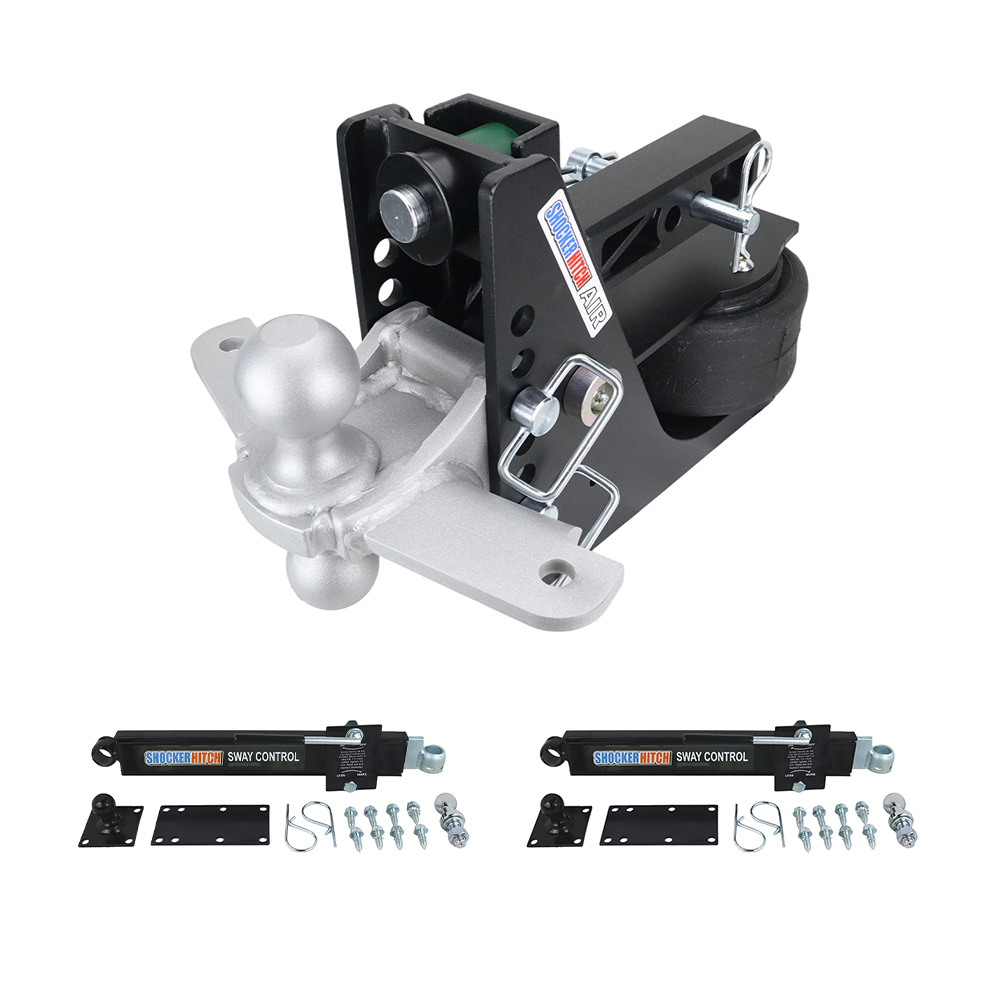

- Air Ride Sway Control Towing Kit Includes: Comes with everything you need. Complete with Shocker Max Black air hitch with built in air ride system, adjustable combo dual ball mount (2″ & 2-5/16″ balls) with sway bar mount tabs and three d-handle ball mount attachment pins with clips, along with 2 Friction Sway Bar Kits.
- A single sway control arm kit comes with the sway control friction arm assembly, 1 1-1/4″ trailer mounted mini ball, 1 1-1/4″ hitch mounted ball with a lock washer and nut for your sway control ball mount tab, along with 4 metal lag screws and 2 retaining clips. This is great for travel camping trailers, heavy-duty trailers, race trailers, and toy haulers.

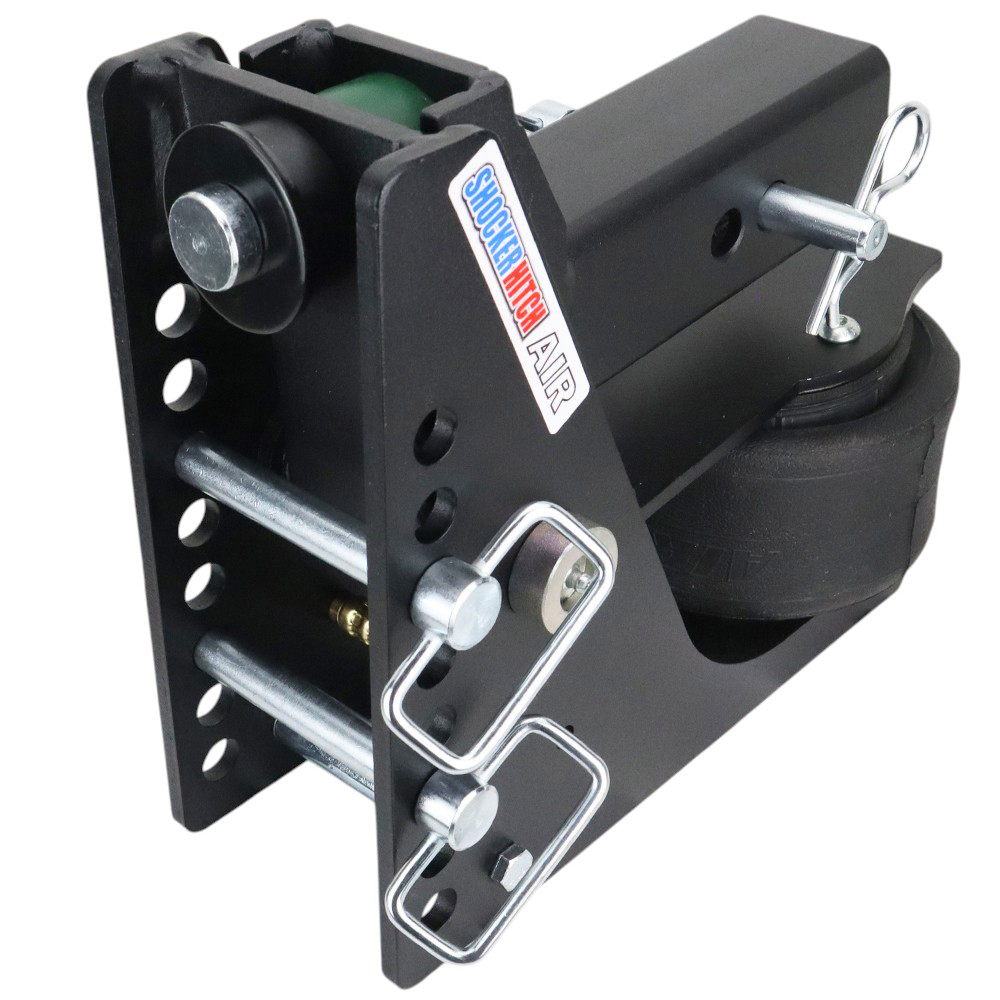

- Max Black Powder Coat Finish: Impact Resistant Textured Matte Black Premium Powder-Coat Finish on Base Frame.
- 2 Hole Receiver Shank: Available for 2″ & 2 1/2″ receiver hitch tubes with two hitch pin holes for length adjustability.
- Choose Your Receiver Size: Available for 2″ or 2-1/2″ receiver hitches.
- Provide Comfort: With a smoother ride. Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps and bumps.
- Great for Pickups: Fits Great for Full Size Pickup Trucks & Vans, Midsize Pickups & Select SUVS (with receiver under bumper). Popular installs include GMC Sierra, Chevy Silverado, Chevy Colorado, GMC Canyon, Dodge Ram, Ford Ranger, Maverick F150, F250, F350, F450, F550 Superduty, Toyota Tundra, Tacoma, Nissan Titan, Frontier, Honda Ridgeline & Hyundai Santa Cruz.
- 20+ Ball Mount Options (Sold Separately): Huge selection of ball mount adapters available from Pintle hooks, pintle & ball, cushion drawbars, drawbar, clevis pin, drop ball mounts, raise ball mounts and more.
- NOTE: This product won’t work with a weight-distribution hitch. If you have a w-d hitch, see our Shocker Hitch Air Equalizer.
- Safety Notice: Towing capacity is limited by the lowest rated component. Manufactured by Shocker Hitch® USA in Jamestown, ND.
- What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″, or 3″ receiver tube? Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
- How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.
It’s time to get control of your trailer’s sway and get the smoothest and safest towing around. This complete air ride sway control trailer towing kit combines a Shocker Max black air ride receiver hitch with 2 friction sway control arm bar kits, providing you with the necessary tools for a smooth ride. The air ride system absorbs the bumps, bangs, jerks, and tugs by filter them through air ride system, which naturally reduces sway. The tow included friction sway arm bars allow you to fine-tune, if sway is an issue for you when towing. This system adds an instant air ride trailer towing to your pickup and trailer with the Max Black Shocker air bumper hitch. This Shocker Max Black Air Hitch has a combo ball mount with sway bar tabs and is made for the basic sway control arm/bars with a mini hitch ball. The combo ball mount has both a 2″ hitch ball and a 2-5/16″ hitch ball, along with mount tabs on both sides for the included sway control mini hitch balls. It also offers 8 adjustment holes for 1/2″ to 4-1/2″ drop. With a 14,000 lbs tow rating capacity and 1,400 lbs tongue weight. Shocker Air Hitch provides the ultimate smooth ride. This shocker-absorbing hitch is an air suspension unit mounted between your pickup truck and trailer. The built-in air ride system cushions the ride and absorbs the road shock, creating a smoother and safer towing experience. This Shocker air receiver hitch with sway bar ball mount fits into a standard receiver hitch tube. This shock-absorbing ball mount takes the bumps, jerks, tugs, and roughness out of trailer towing and cushions your ride. Cushions ride and work nicely to help the tendency of the trailer to sway. Works great on compact, midsize, and full-size pickup trucks, vans, and select SUVs where the receiver hitch is under the bumper. Have a CUV? Check out our Cushion Ball Mounts. Manufactured by Shocker Hitch® USA in Jamestown, ND.

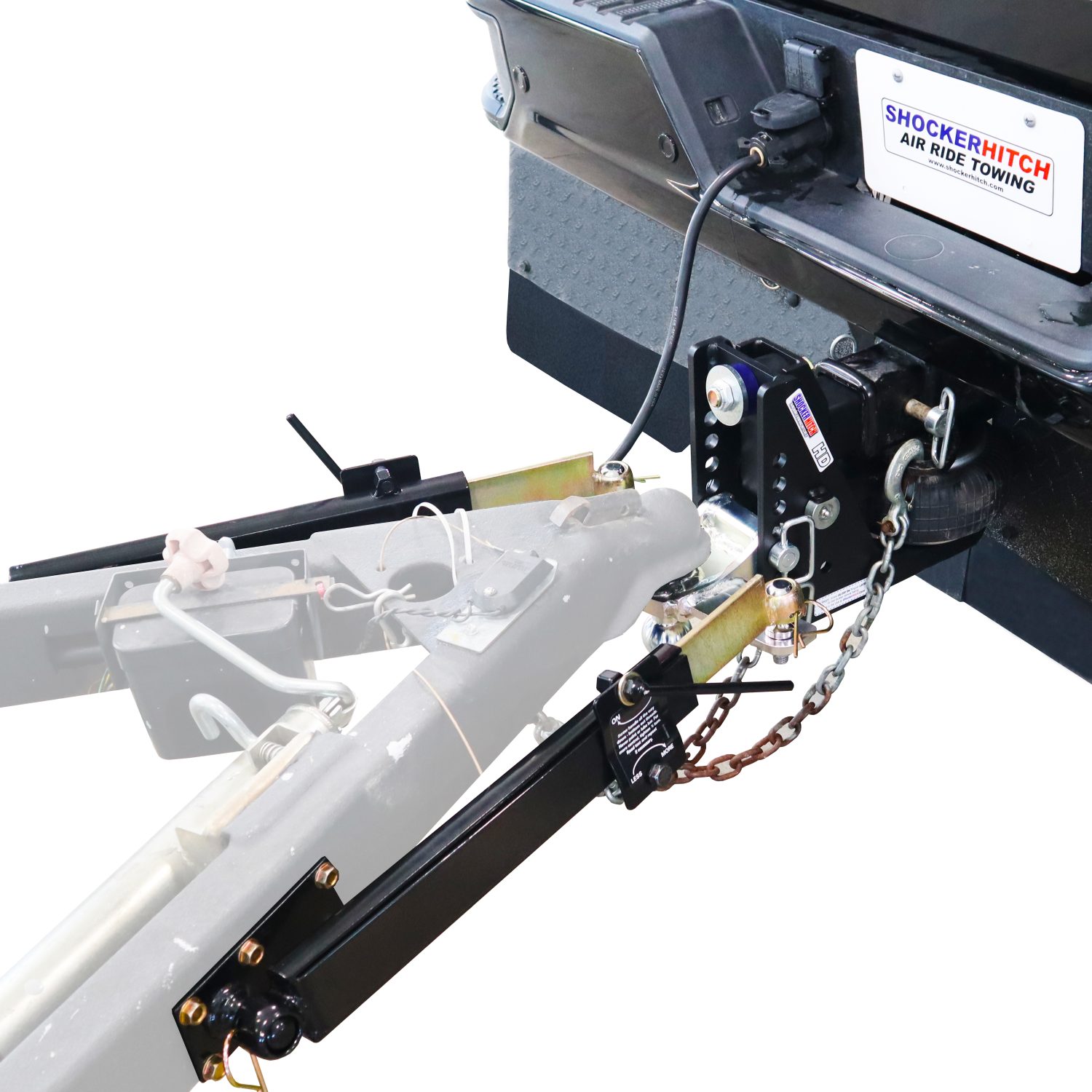

If you are experiencing trailer sway while towing, then the Sway control towing starter kit is perfect for you. Especially when towing larger trailers, you may experience trailer sway from wind, passing vehicles, rough & uneven road surfaces. This sway control arm kit system is made to prevent the trailer from swaying. We offer a sway control arm bar system kit that connects from the Shocker sway control ball mount part of the hitch to the front of the trailer. This sway control system is used to stiffen the connection between the truck and trailer, keeping it straight and in line with the towing vehicle.
You will want to use one (1) friction sway control arm kit when towing up to 10,000 pounds and/or 24′ trailers & when towing over 10,000 pounds and/or trailers longer than 24′, use two (2) friction sway control arm kits. A single sway control arm kit comes with the sway control friction arm assembly, 1 1-1/4″ trailer mounted mini ball, 1 1-1/4″ hitch mounted ball with lock washer and nut for your sway control ball mount tab, along with 4 metal lag screws and 2 retaining clips. This is great for travel camping trailers, heavy-duty trailers, race trailers, and toy haulers.
The air ride system sits under the receiver tube, allowing a short distance of 10-inches between the mounting pin and the ball center. You will find the advantage of the Air Shocker is your ability to adjust air pressure for the best ride and load control. Fits standard 2″ or 2-1/2″ receiver hitches.
Manufactured by Shocker Hitch® USA in Jamestown, ND.
