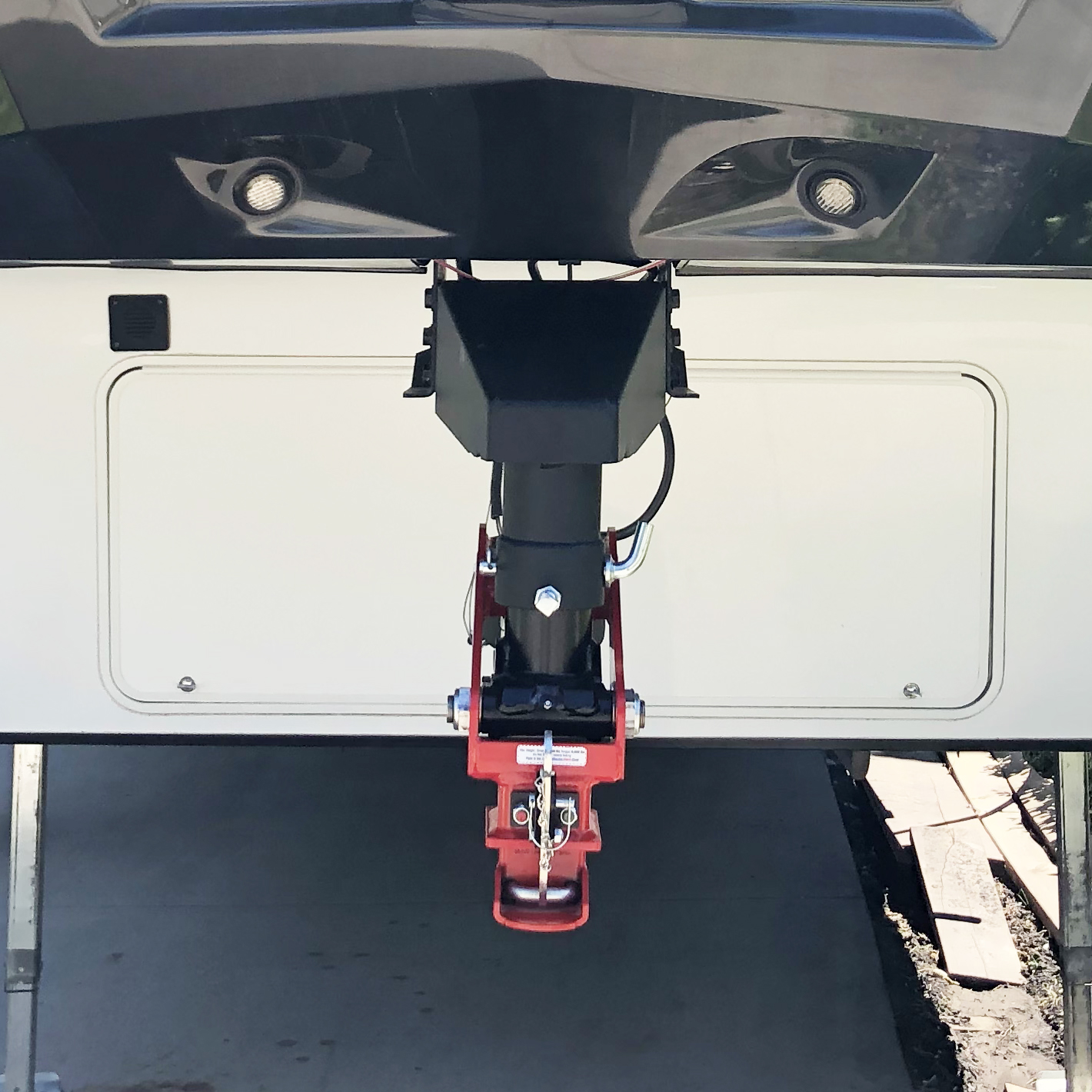

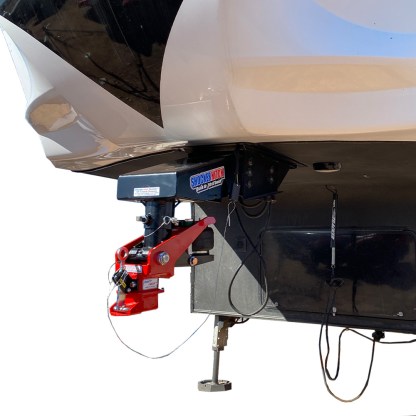

Shocker Quick Air 5th Wheel to Gooseneck Air Hitch & Coupler Conversion Kit

Rated 4.73 out of 5 based on 11 customer ratings

$1,699.99$1,849.99$1,829.99$1,999.99

Free Ground Shipping*
Usually Ships on or Before Fri 06/21/24
Usually Ships on or Before Fri 06/21/24
Usually Ships on or Before Fri 06/21/24
Usually Ships on or Before Fri 06/21/24
Clear
OR

-

  • Video arrow

    Video

    Shocker QuickAir 5th Wheel to Gooseneck Air Hitch Videos

  • Install arrow

    Install

    Shocker Quick Air 5th Wheel to Gooseneck Air Ride Hitch Setup Instructions

    View our installation instructions for installing the 5th wheel to goose pin box, installing the Gooseneck air hitch & coupler along with setting your air pressure. When used & set up properly the Gooseneck surge air hitch will make noticeable improvements in your gooseneck trailer towing quality. Giving both truck and 5th wheel camper trailer a smoother ride with less trailer fatigue and breakage. We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the item’s product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

    Installing Quick Air 5th Wheel to Gooseneck Air Hitch Video

    Shocker Quick Air 5th Wheel to Gooseneck Air Pressure Settings

    Download Quick Air 5th Wheel to Goose Surge Installation Manuals

    Maximum weights for Shocker QuickAir 5th to Goose Air Kit: Towing capacity = 24,000 lbs Tongue = 6,000 lbs for 2-5/16″ Ball. Patent #’s 11,370,257 B1 & D898,628. Safety Notice: The Shocker Hitch is a heavy-duty unit, however, towing capacity is limited by lowest rated component. Use only a 2 5/16″ dia. Ball. V-19 rated. Do not exceed G.V.W.R. of ball being used. This gooseneck hitch has a shorter stem than a normal gooseneck and is designed to be used with the Shocker Replacement Goose Box for 5th Wheel Campers only. This gooseneck air hitch cannot be used on a normal gooseneck trailer as the inner tube steel is too short for that application.
    Shocker Gooseneck Surge Hitch Diagram

    INSTALLATION

    1. Remove your existing king pin box and install the Replacement Goose Box (SH-RVGC-4405 or SH-RVGC-4410) in the same location on your camper.
    2. TORQUE PIN BOX FASTENERS TO 120 FT POUNDS.
    3. Slide Gooseneck  stem into Goose Box sleeve with air bag toward rear of trailer. Align and install 3/4″ x 5″ thru pin with keeper. Tighten 1⁄2″ x 1″ Set Bolt on back of down tube.
    4. Test fit camper to truck, verify installed height will allow camper to ride level – Apply grease to trailer ball and or shift lock coupler ball socket. Hook up trailer by shifting the lever back and lowering coupler onto the ball. Pull shift lever forward and align the locking hole – insert pin.
    5. To adjust trailer ride height simply loosen the 1⁄2″ x 1″ set bolt in the back of the down tube. Remove the 3/4″ x 5″ thru pin with keeper. Move Shocker Gooseneck Surge hitch to desired position, reinstall bent pin with keeper and tighten set bolt.
    6. Routine Lubrication Maintenance should include: Oil the coupler shifting fork shafts, grease the coupling ball socket, and grease the hitch ball to REDUCE WEAR AND IMPROVE SHOCKER ACTION. Main pivot grease zerk should be greased periodically for maximum bushing life. ( Simply, you cannot over grease it! )

    Gooseneck Air Hitch Air Pressure Settings

    • This is a LOW PRESSURE hitch, that works by tow resistance.
    • Set air pressure at approx. 15 psi, then test drive.
    • Increase pressure in 5 psi increments until optimum results are found.
    • Typical air pressure range is 5 – 15 psi.
    • Do NOT EXCEED 100 psi
    Note: When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker. We’re here to help. Contact Us
  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
    The Shocker Hitch Guarantee applies to products purchased from ShockerHitch.com.
  • Q & A (25) arrow

    Questions and answers of the customers

      Is this approved by Lippert? Would it void their frame warranty?
    1. 0 votes
      Q Is this approved by Lippert? Would it void their frame warranty?
      A

      This product is not approved by Lippert. It will void the warranty.

    2. Does this help take away the stress from the front of the 5th wheel? Typical setups like this tend to create leverage that can bend or crack the structure that the kingpin box is attached too. Does the warranty cover that?
    3. 0 votes
      Q Does this help take away the stress from the front of the 5th wheel? Typical setups like this ten...... Read more
      A

      Our system does add some leverage to the front but not near as much as other systems out there. The vibration/jerking from other systems does play a factor in the failure on the camper frames which our hitches does minimize. So, no we don't cover the camper frame under warranty but our system is one of the better ones out there for this issue.

    4. Will this hitch adapter fit on a 2022 Flagstaff Super Lite with the Curt Turning Point 5th Wheel Pin Box?
    5. 0 votes
      Q Will this hitch adapter fit on a 2022 Flagstaff Super Lite with the Curt Turning Point 5th Wheel ...... Read more
      A

      Can you please send us in some photos of the pinbox you have now to Orders@shockerhitch.com. We can take a look for you and make sure our system will work.

    6. Do you have a replacement for a Leland 7921
    7. 0 votes
      Q Do you have a replacement for a Leland 7921
      A

      We do not have an exact fitment chart for all trailers just yet. However, the best and easiest way we can guarantee fitment for you is by measuring your current pin box on your trailer. It should either be 12" wide or 12.5" wide at the base where it attaches to your trailer. With the dimensions, we can guarantee to get you the correct hitch. Please feel free to call our tech team at 701-707-2666 if you have any fitment questions.

    8. How do you know which pin box to select? I have a 2005 Dodge Ram 3500 SHORT BED, and have a gooseneck hitch already installed in my truck. I just bought a 34ft Montana Mountaineer 5th wheel RV and want a converter hitch that won’t jerk the truck around so bad
    9. 0 votes
      Q How do you know which pin box to select? I have a 2005 Dodge Ram 3500 SHORT BED, and have a goose...... Read more
      A

      In order to verify which pin box is needed, check the manufacturer sticker on your RV's current pin box. It should have a model #, such as, Lippert 1621 or Rhino Box. Once you locate that number, select that number in our ordering drop box. I hope this helps! If you are still unsure, please do not hesitate to shoot us some images at service@shockerhitch.com or give us a call at (701) 707-2666. https://shockerhitch.com/product/5th-to-gooseneck-air-kit/

    10. Would this work on my 32 ft I closed trailer? It is a gooseneck
    11. 0 votes
      Q Would this work on my 32 ft I closed trailer? It is a gooseneck
      A

      This kit is designed to convert a 5th wheel camper over to a gooseneck hitch. We do have air ride gooseneck hitches that would work with your trailer that you can check out here. https://shockerhitch.com/products/gooseneck-surge-hitch/

    12. Will this work with a flat bed with recessed ball
    13. 0 votes
      Q Will this work with a flat bed with recessed ball
      A

      Our gooseneck conversion will work with a flat bed with recessed ball as long as the recessed hole is at least 12" by 12", and the top of the ball can be no further from the top of the bed than 2". If you're within these thresholds our hitch will work with your flatbed.

    14. Does this have a offset to help with clearance the cab of the truck during right turns.
    15. 0 votes
      Q Does this have a offset to help with clearance the cab of the truck during right turns.
      A

      The Shocker QuickAir 5th Wheel to Gooseneck Air hitch and coupler conversion kit does come with 2.5" of offset.

    16. I have the Lippert 1621 HD. Will this still fit
    17. 0 votes
      Q I have the Lippert 1621 HD. Will this still fit
      A

      This will fit with a Lippert 1621. Depending on the bolt pattern and overall width of the pin box, you should have a good fitment.

    18. How do I know which bolt pattern I need to order I have a lippert 5th wheel I just don’t know how to tell which one I need
    19. 0 votes
      Q How do I know which bolt pattern I need to order I have a lippert 5th wheel I just don’t know how...... Read more
      A

      To determine which of our pin boxes will fit best, you will want to measure the width of the pin box itself. We can accomodate a 12" or a 12.5" width.
