Product Description
- Weld on Outer Tube Sleeve & Inner Gooseneck & 9″ Extender Demco Gooseneck Coupler Kit: Available with outer tube sleeve diameters of 5″ & 4.5″.
- Heavy Duty Thick Wall Design Outer Sleeve & Stem for Superior Strength: Outer sleeve is 20″ in height. Available with Inner Diameter 4″ Square & 4.5″ Square gooseneck stems. Reinforced collar and fabricated & formed outer for added strength featuring 2 set bolts & jam nuts.

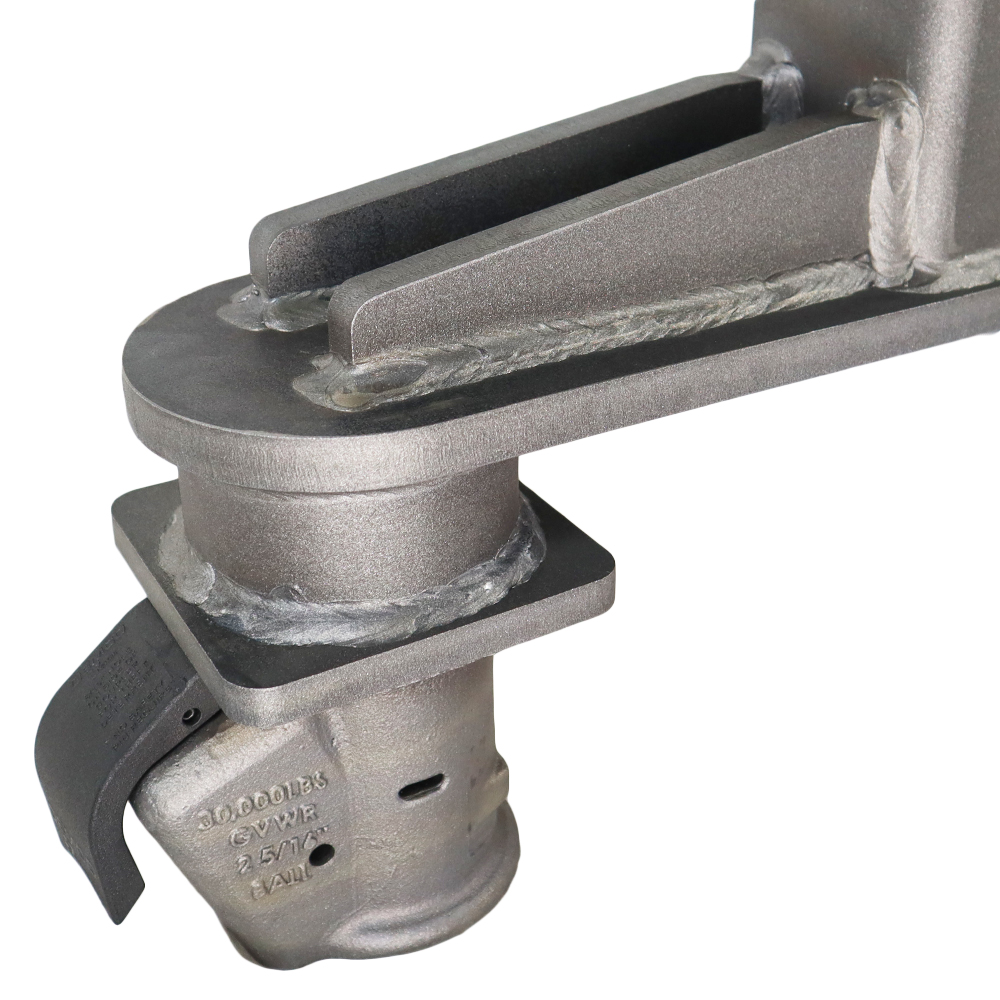

- Extra Plating for Welded Stem & Coupler Connection for Years of Use: Additional plating used to weld the coupler to stem for long term strength and durability.
- Dual Gusset Supports & Collar Plating Steel for Extension Coupler: Offset extender gooseneck hitch is built super strong at extends your gooseneck coupler 9 inches.
- Auto Latching Demco Gooseneck Coupler for 2-5/16″ Ball: Auto latches onto gooseneck ball. Easy to use handle, just lift up to release from gooseneck trailer ball.
- 30,000 lbs GTW & 6,000 lbs Tongue Weight Capacity: Built for the heavy duty gooseneck hauling. Both out and inner tubing are walled for extra strength.
- Comes in US Made Raw Steel: Comes in raw steel and is ready to weld onto the front of a gooseneck trailer. This is the set up gooseneck trailer manufacturers use.
- Inner Stem has 4 Adjustment Holes & Coupler fits 2-5/16″ Gooseneck Ball: Stem has 4 adjustment holes that are 2-3/4″ apart. Built for heavy duty hauling.
- 2 Sizes to Choose From: 4.5″ OD Sleeve with 4″ Square Gooseneck coupler with straight pin holes, 5″ OD Sleeve with 4.5″ Square Gooseneck coupler with straight pin holes.

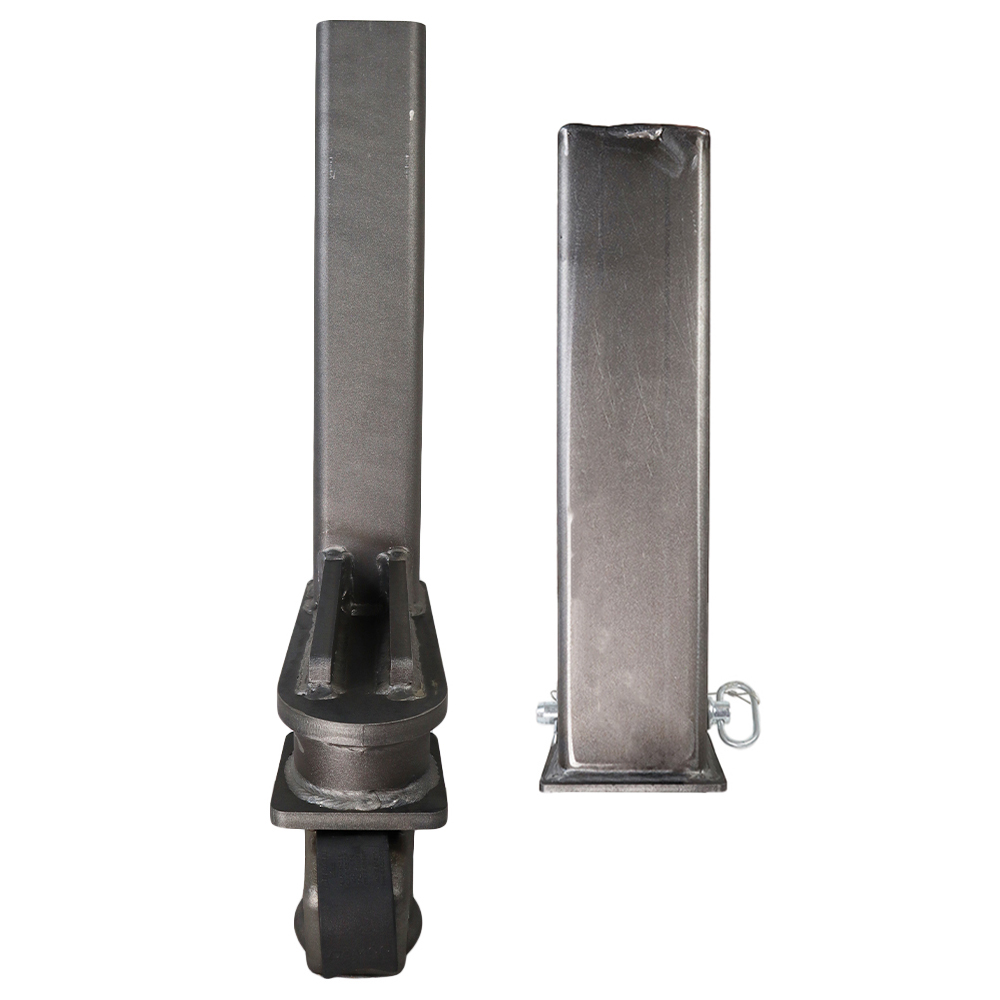

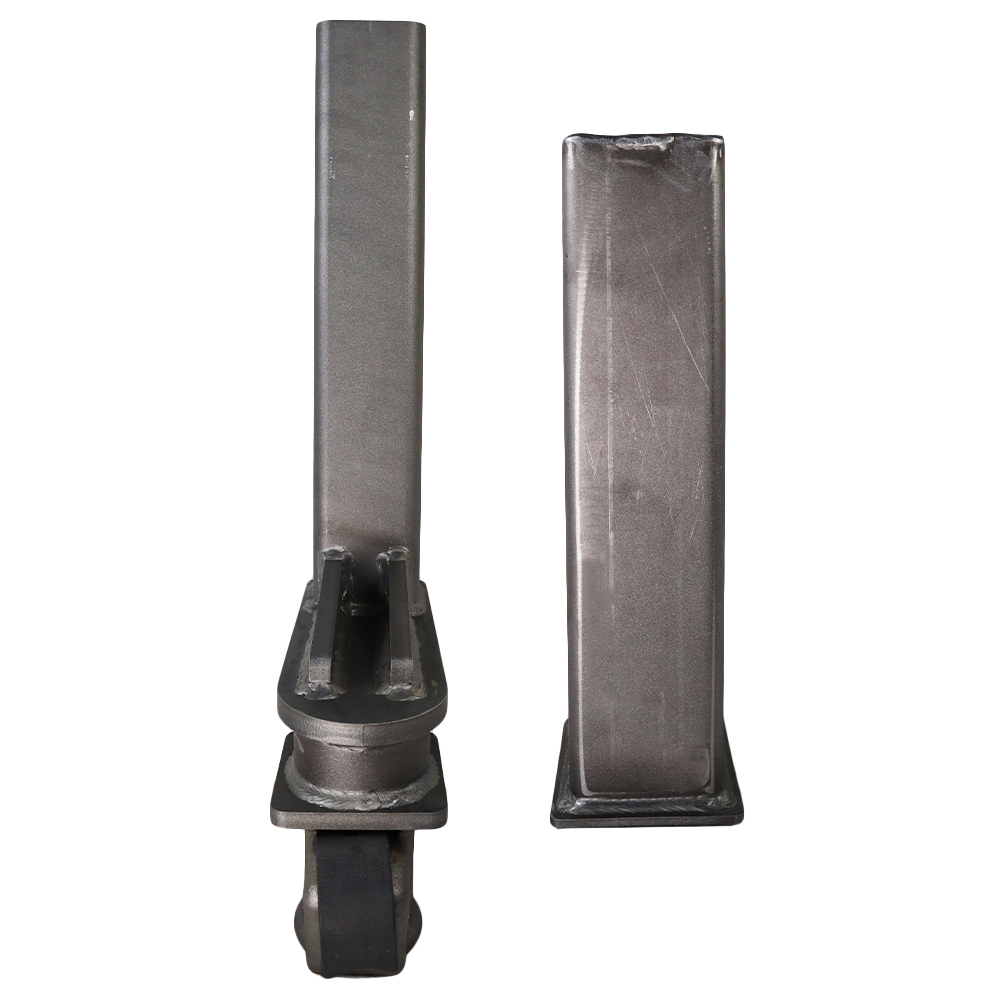

- Sold as a Set – Includes Outer Sleeve Tube, Inner Stem with welded on 9″ Offset Gooseneck Coupler: Includes complete outer sleeve & inner tube gooseneck stem & 9″ offset extension demco gooseneck coupler.
- Professional Welding Required for Installation: Professional welding is required for proper installation and weight rating.
- Optional Gooseneck Locks: Box style coupler & set bolt lock kit is part #: SH-GDSP-400GL-BLK. Pad lock style coupler lock for demco gooseneck coupler is part #DEM-17654-81 and set bolt lock, part # SH-400GL-ISP-BLK. All lock options sold separately.
- What an air ride upgrade for your gooseneck trailer? Check out our Gooseneck Surge Air Hitches.

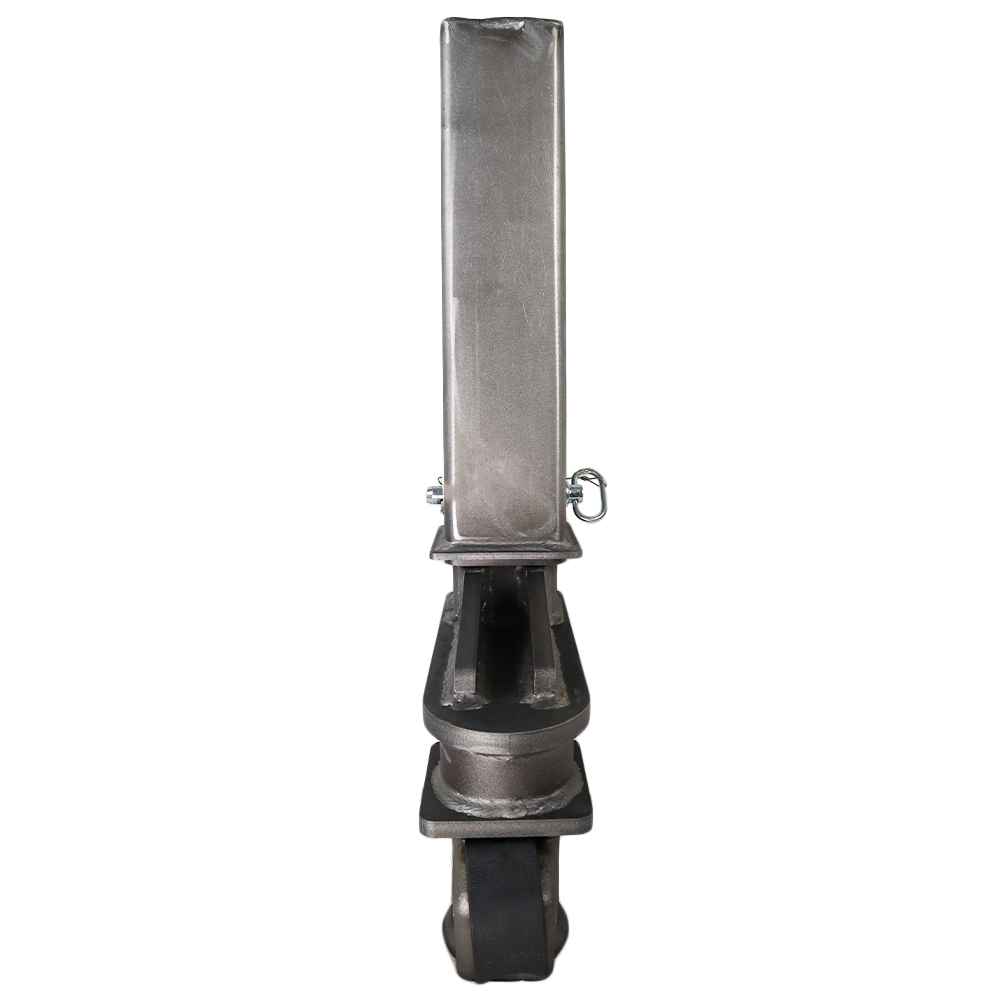

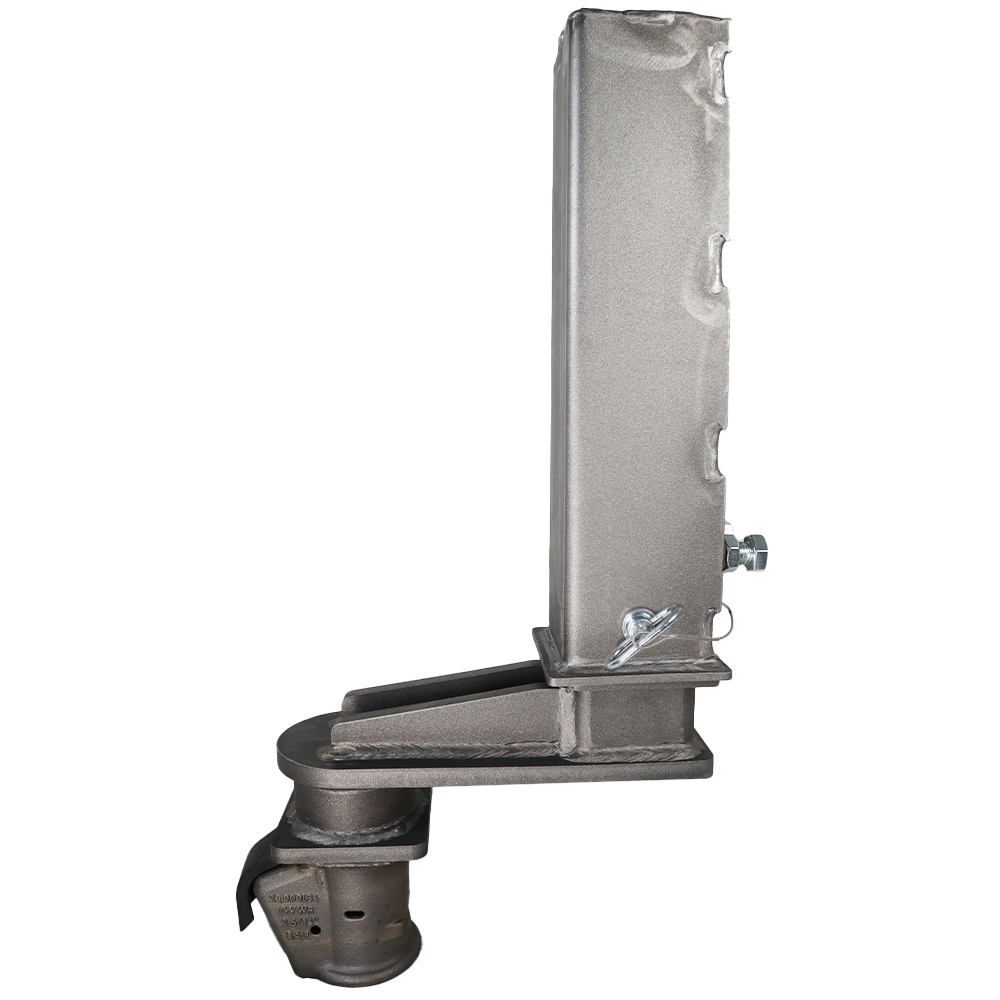

Weld on raw steel thick walled square outer tube sleeve and inner gooseneck stem, and a 9″ offset EZ Latch Demco coupler for a 2-5/16″ gooseneck ball. Design for offering 30,000 lbs gtw on a gooseneck trailer. Great for a gooseneck trailer when you want extra cab clearance. The package set features both the thick wall inner stem & outer sleeve, along with an adjustable height demco coupler. Inner tube replacement gooseneck stem features the EZ latching 9″ extender demco gooseneck coupler that will auto latch onto the ball. Outer square sleeve is available in 2 sizes: 5″OD x 4.5″ ID or 4.5″ OD with 4″ ID. Available with inner square stem options of 4-1/2″ & 4″. Thick walled square inner stem tube options have extra heavy duty plating to weld coupler to stem for long term strength and durability. Upgrade your gooseneck trailer with the easy to use, patented Demco coupler for gooseneck trailers. Available in raw steel. Professional welding is required for installation. Works great on gooseneck style trailers; dumps, flatbed, horse, race trailers, and more. Square gooseneck outer sleeve, inner stem & coupler options can be ordered in raw steel as a set. This is commonly ordered by gooseneck trailer manufacturers, and professional welding is required to weld on the square outer sleeve tube on the gooseneck trailer tongue. Weld on gooseneck trailer tongue kit for gooseneck trailer manufacturer.
Looking for an air ride upgrade for your gooseneck trailer? We also manufacture Gooseneck Air Hitches.
California Residents: Prop 65 Warning
