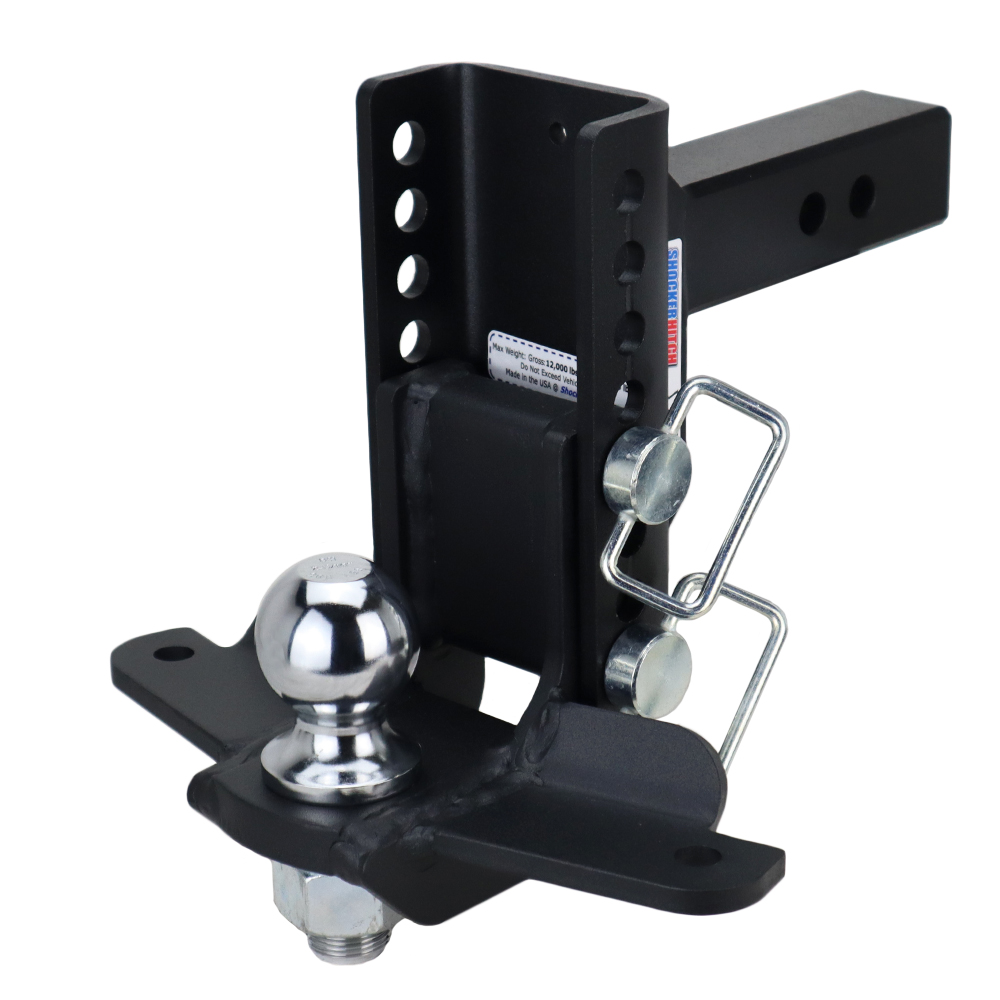

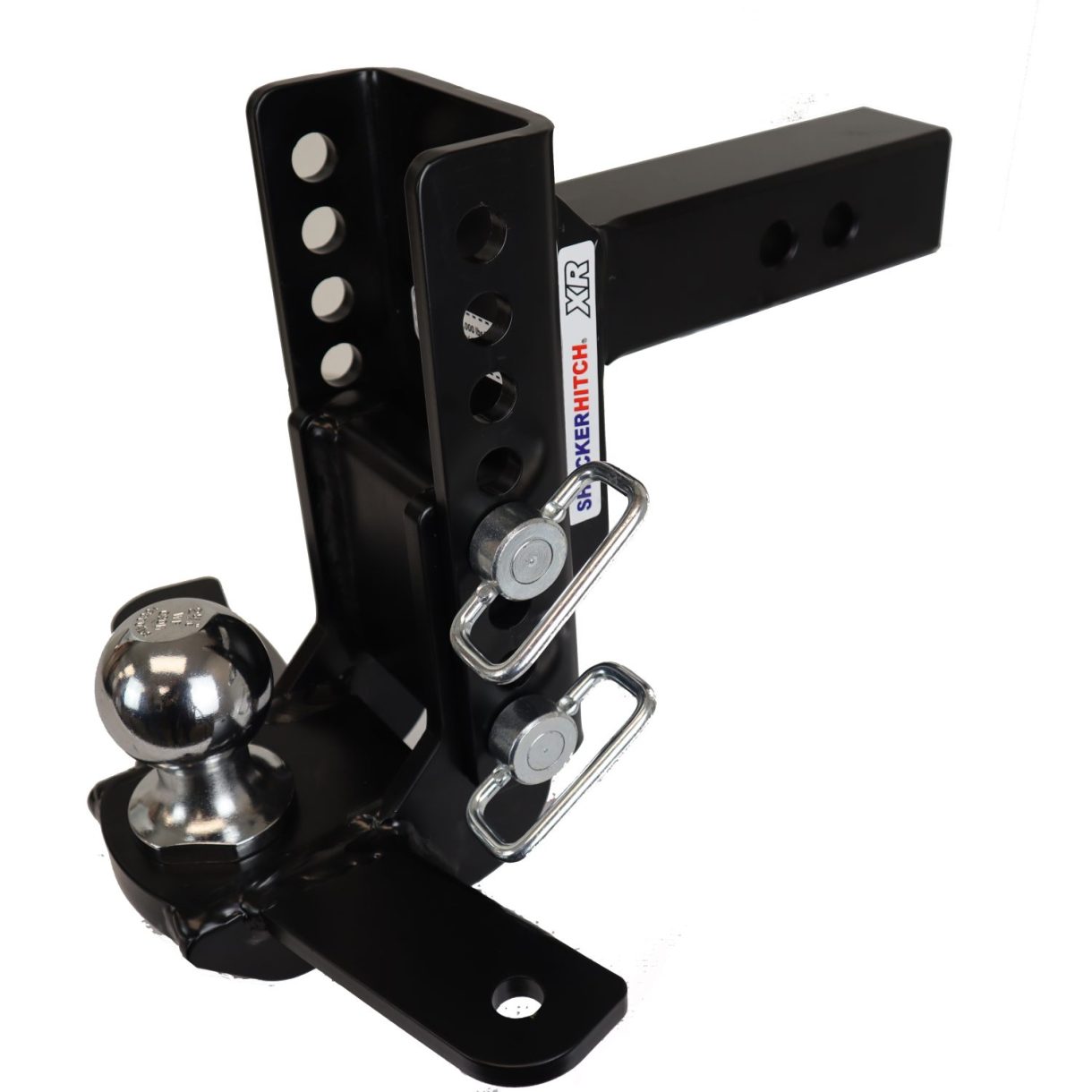

Refurbished Shocker XR Drop Hitch w/ Sway Bar Mount Tabs

Rated 0 out of 5

$180.00$190.00$359.99$409.99

Free Ground Shipping*
Usually Ships on or Before Thu 11/07/24
Usually Ships on or Before Thu 11/07/24
Usually Ships on or Before Thu 11/07/24
Usually Ships on or Before Thu 11/07/24
Usually Ships on or Before Thu 11/07/24
Usually Ships on or Before Thu 11/07/24
Usually Ships on or Before Thu 11/07/24
Usually Ships on or Before Thu 11/07/24
Usually Ships on or Before Thu 11/07/24
Usually Ships on or Before Thu 11/07/24
Clear
OR

-

  • Video arrow

    Video

    Shocker XR Hitch Videos

  • Drop/Rise Guide arrow

    Drop/Rise Guide

    • XR Series 8 Hole Hitch Mount Drop & Rise + Rating Guide: (Add 1.5″ if Using 10-Hole Frame)
      – Combo Ball: 4″ Rise to 4″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Drop Ball: 0″ Rise to 7-1/2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
      – Raised Ball: 5″ Rise to 3″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
       Pintle Hook: 6″ Rise to 6″ Drop | 10-Ton 20,000 lbs.
      – Pintle & Ball: 6″ Rise to 6″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
      – Drawbar: 4″ Rise to 4″ Drop | 20,000 lbs.
      – Clevis Mount: 1-1/2″ Rise to 6-1/2″ Drop | 20,000 lbs.
      – Sway Bar Mounts: Same Rating as Like Type Mount Listing Above

    Safety Notice: It’s important you read and follow the tongue & gross towing weight recommendations of all components of your trailer towing set up. This includes the tow vehicle, receiver hitch, tow hitch, ball mount attachment, trailer coupler & the ratings of the trailer you are towing. Never exceed max for any of the components you are using.  If the coupler rating is 8,000 lbs and the hitch is 12,000 lbs, then don’t tow over 8,000 lbs.

    Check out our guide to find out how much drop or rise you need.

  • Install arrow

    Install

    Shocker XR Ball Mount Hitch Setup Installation Instructions

    Download the Shocker XR Series Hitch InstructionsInsert the shank of the hitch into the receiver of your tow vehicle. Make sure you are using the correct size shank to work with your receiver. Secure the hitch with a hitch pin. Adjust the ball mount attachment so your tow vehicle and trailer are level. You can flipped the XR frame around for more drop or more rise.

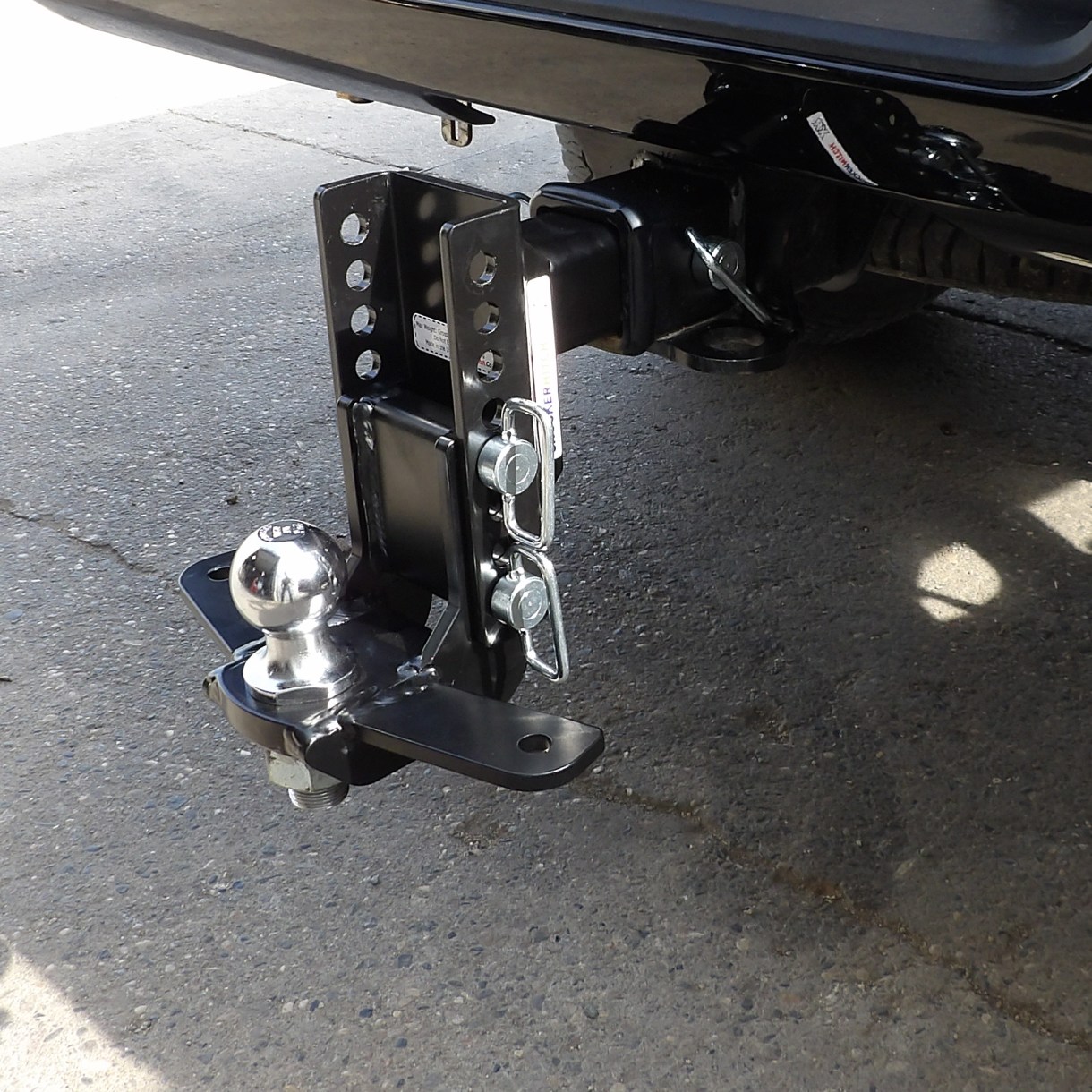

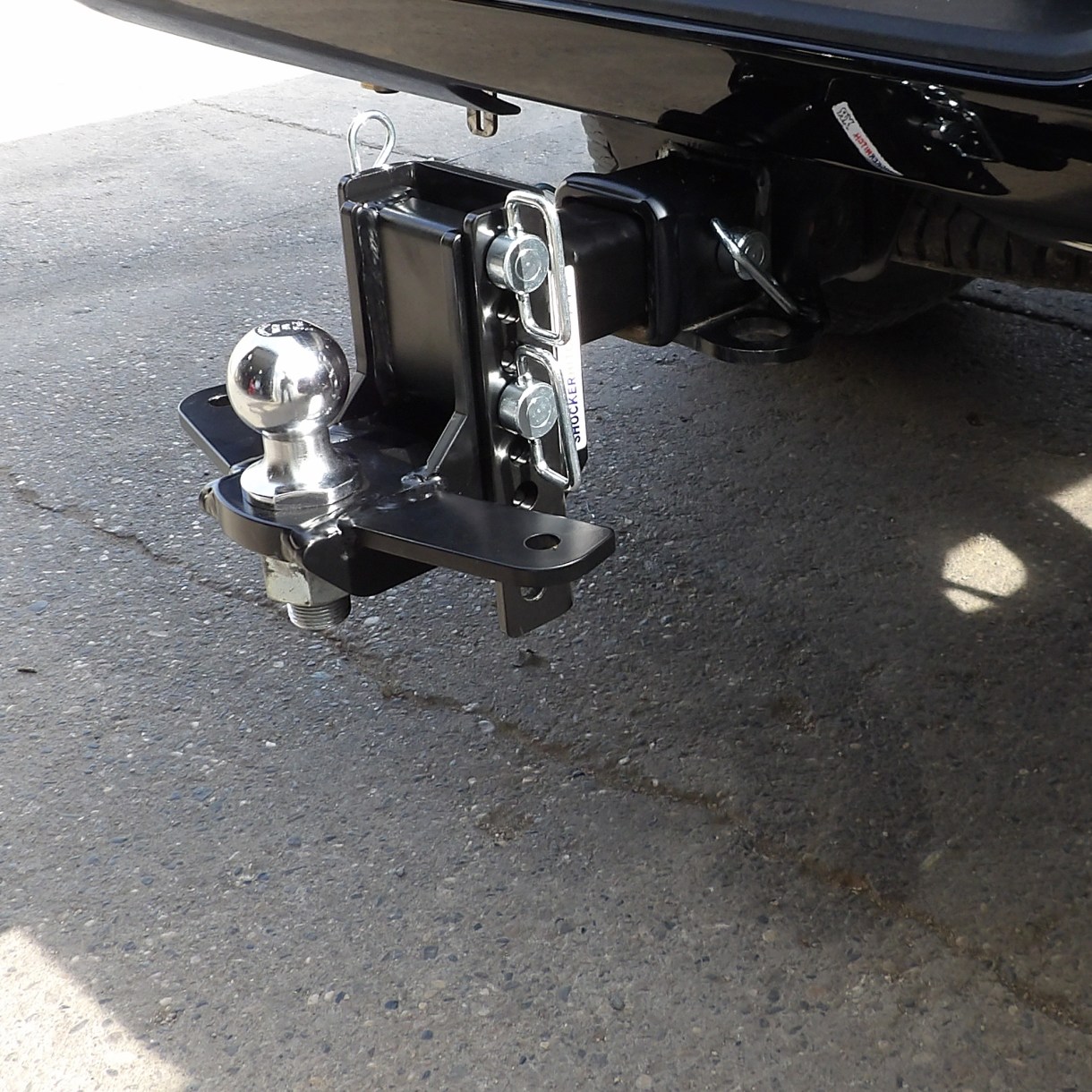

    XR Adjustable Ball Mount Flipped
    XR Adjustable Ball Mount Flipped
    Safety Notice: The Shocker XR series hitches are a heavy-duty unit that in most cases exceeds factory receiver hitch weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the receiver hitch that is mounted on your tow vehicle, coupler rating, tow vehicle rating and trailer weight rating.
  • Warranty arrow

    Warranty

    Refurbished – As is No Warranty

  • Q & A arrow

    Questions and answers of the customers

    There are no questions yet. Be the first to ask a question about this product.
