Product Description
- Complete Heavy-Duty Towing System: This all-in-one kit combines a 20,000 lbs GTW rated Demco cast steel coupler with a rugged 3/8″ thick raw steel vertical channel, providing a total mounting and coupling solution for work trailers and farm equipment.
- 20,000lbs GTW Channel Capacity: Vertical channel is engineered to handle up to 20,000 lbs Gross Trailer Weight when properly welded for maximum structural integrity when properly welded on.

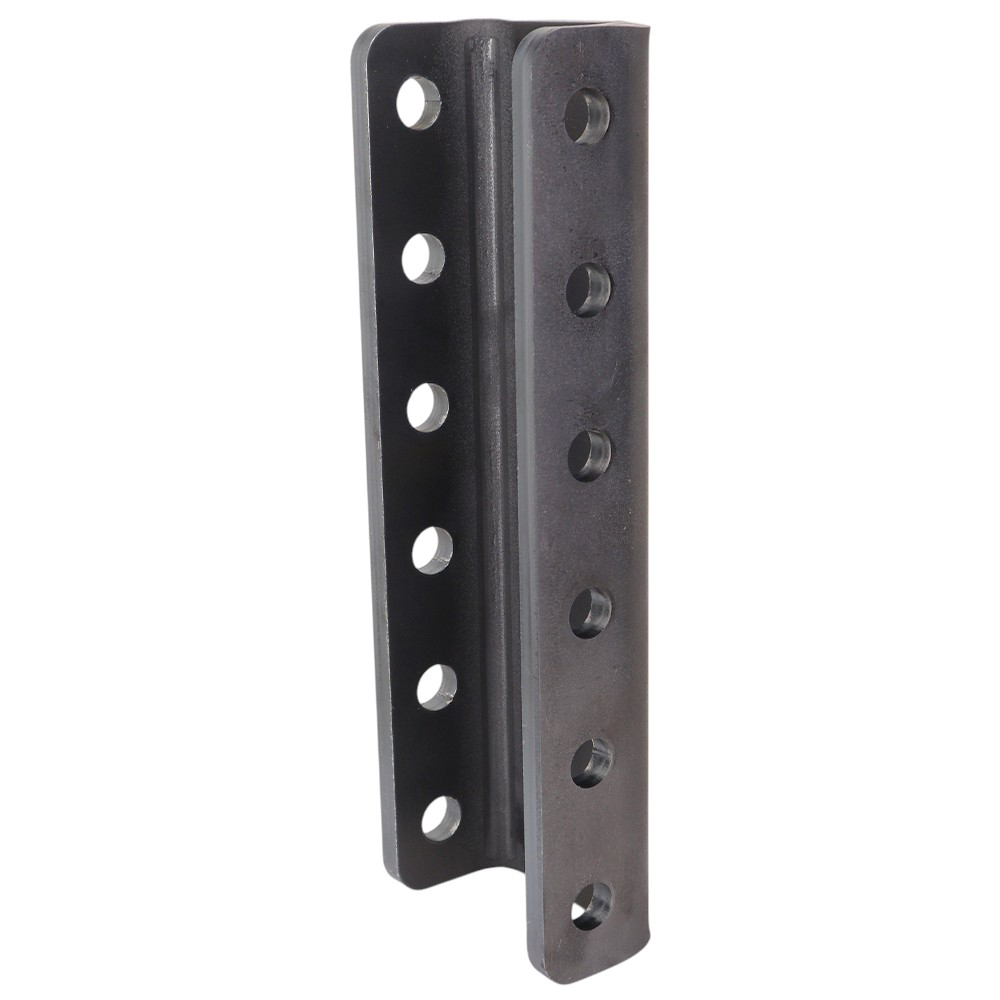

- Thick 3/8″ Steel Construction & Five-Position Height Adjustability: 2″ on-center bolt pattern with six adjustment holes. Measures 3.68″ O.D. x 2.93″ I.D. x 12″ tall for superior strength, weld penetration, and long-term durability in harsh conditions. Allows precise ball coupler height setup for multiple trailer configurations. Welding required for vertical channel installation.
- Seamless Drop-and-Go Hookup: Designed for speed, the kit features Demco’s EZ Latch that automatically snaps onto a 2-5/16″ hitch ball the moment it is lowered, eliminating the need for manual pins or latches to secure the ball.
- Industrial-Grade Durability: Both components are engineered for harsh environments; the coupler boasts a 500-hour salt spray rating with a black powder-coated finish, while the raw steel channel is ready for a high-penetration weld to your trailer A-frame.
- Grade 8 Hardware Included: Fastens securely using four Grade 8 bolts and lock nuts for extreme clamping force and safety under heavy loads.
- Demco & Vertical Channel Kit Includes: Demco HD EZ-Latch Trailer Coupler with composite handle, weld on raw steel 6-hole vertical channel, four 5/8″diameter grade 8 bolts with lock nuts.

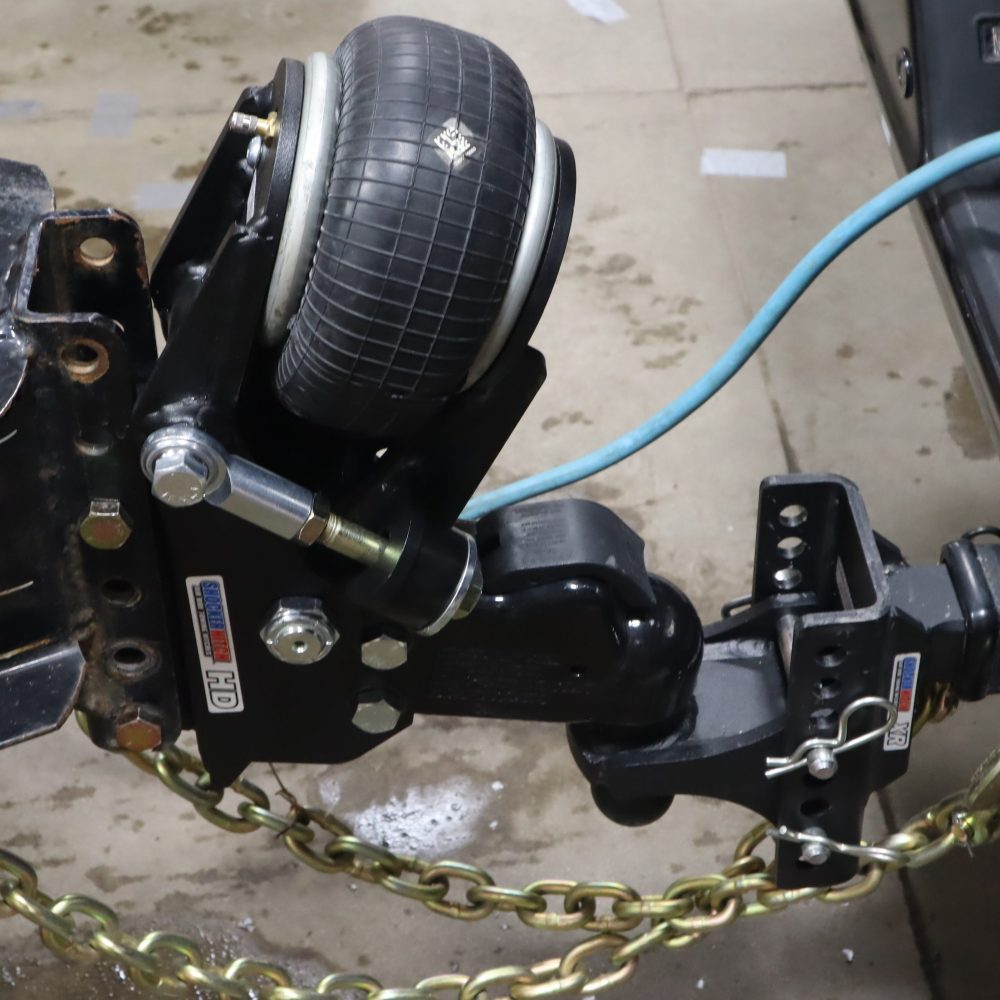

- Shocker Air Mount Compatible: Designed to integrate seamlessly with Shocker Air Trailer Tongue Mount systems for a complete air ride towing solution.
- Built for the Toughest Jobs: Ideal for farm equipment, industrial trailers, construction rigs, and marine-duty towing where strength is non-negotiable.
- Made by Shocker Hitch USA: Manufactured by Shocker Hitch with premium materials and strict quality control.

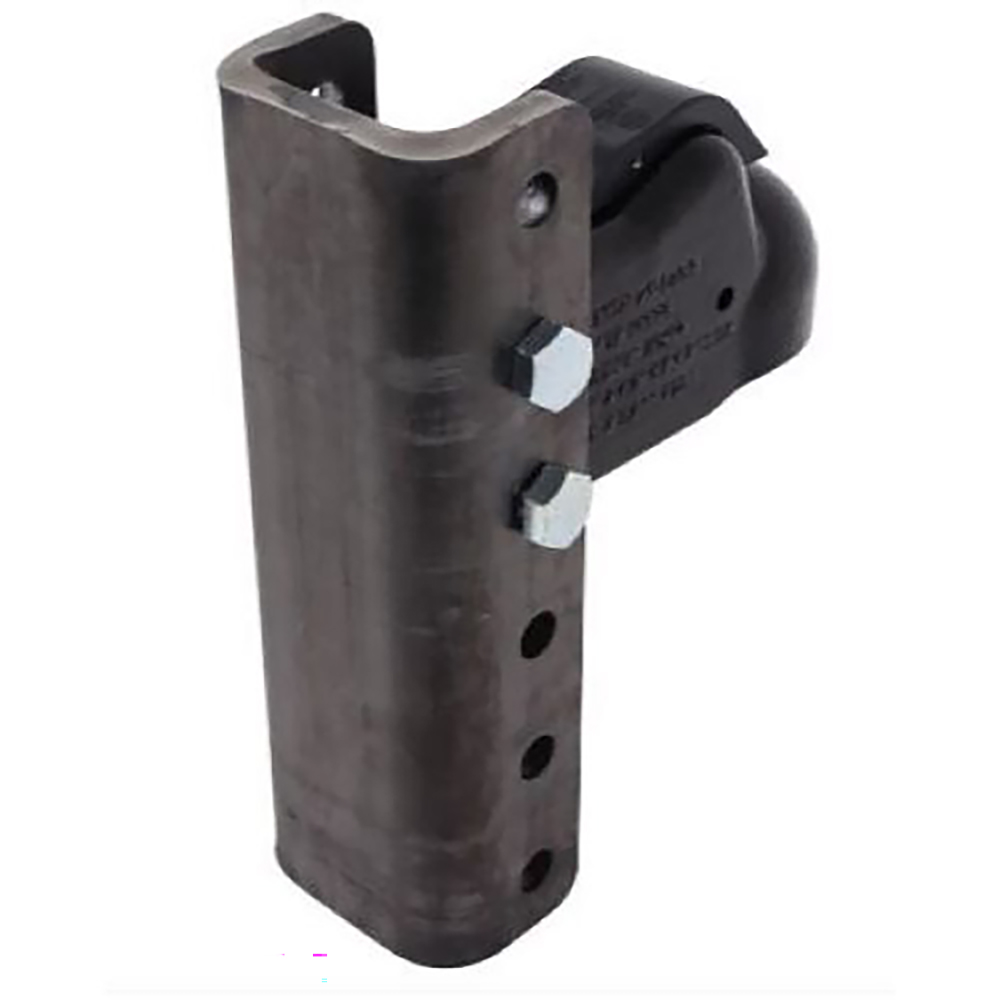

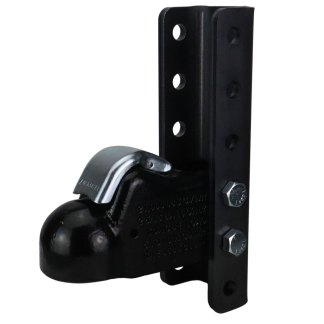

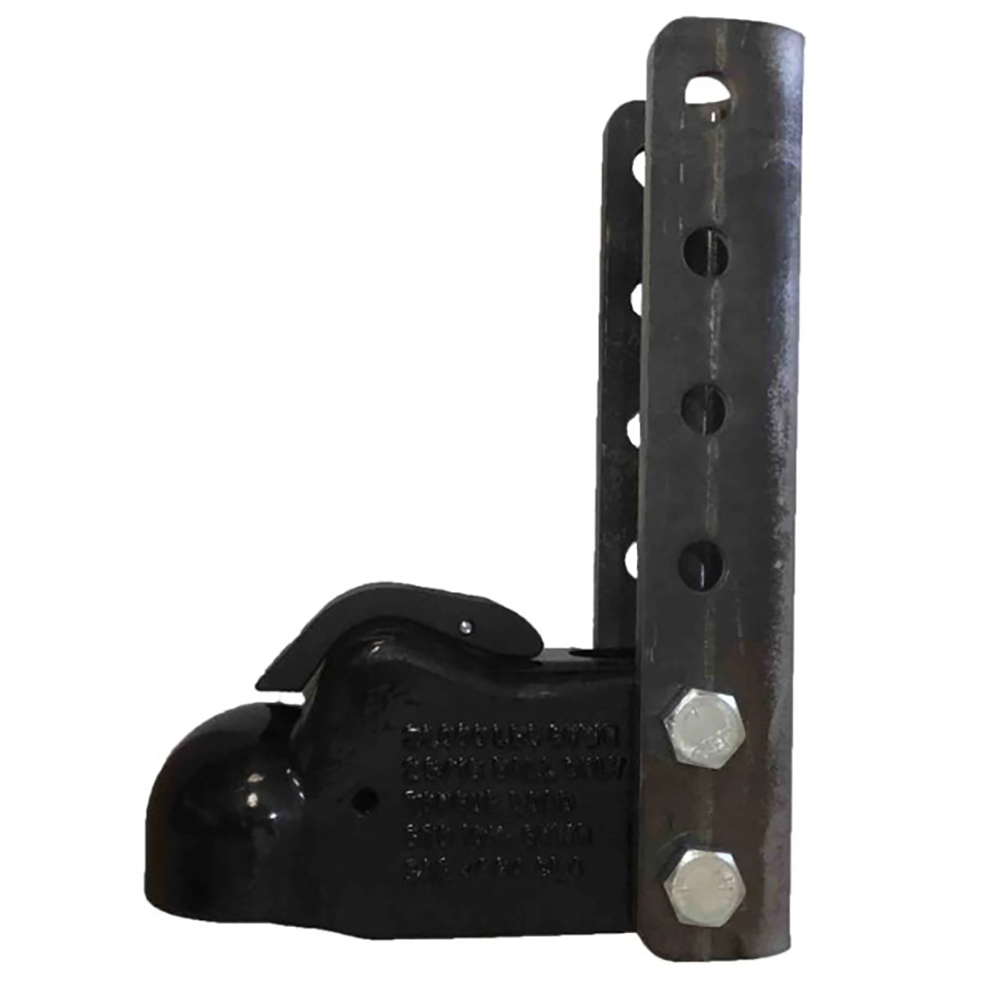

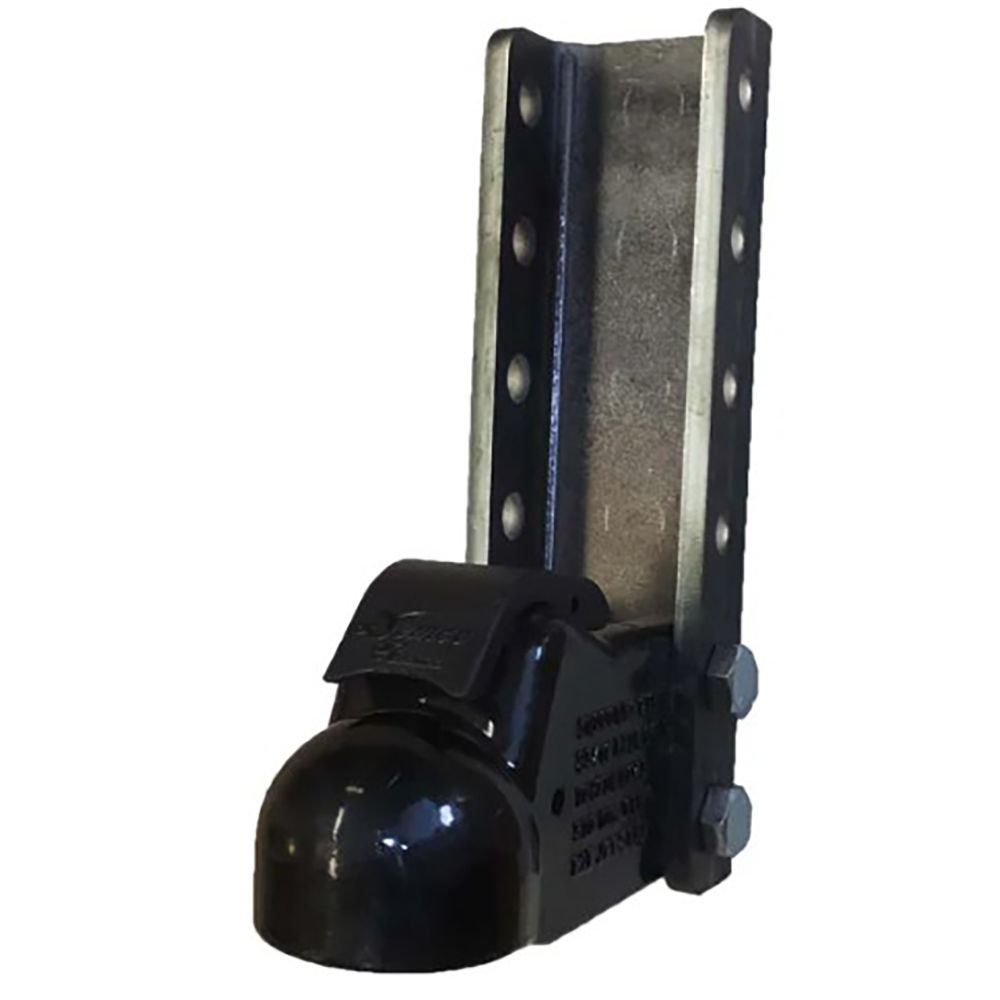

The Demco eZ-Latch trailer coupler with 5-position vertical channel is a premium, heavy-duty towing solution engineered for work trailers, farm equipment, and high-capacity air ride systems. This system features a 12-inch tall, 6-hole vertical channel constructed from 3/8″ thick raw steel that welds directly to your trailer’s A-frame, providing a height-adjustablity at it’s fondation and rated for rated for up to 20,000lbs GTW. By utilizing a 2″ on-center bolt pattern, this setup allows for precise height adjustments to ensure your trailer remains level, making it a versatile choice for demanding commercial, agricultural, and construction environments.
At the heart of this kit is the Demco 21K composite handle EZ Latch Coupler for 2-5/16″ Ball, designed to provide one of the most user-friendly and secure hitching experiences on the planet Its standout feature is an automatic latching: simply lower the coupler onto the hitch ball and it snaps into place instantly and securely, while a simple upward flip of the corrosion-proof polymer-nylon-resin handle allows for a quick release. Designed for longevity, the cast steel coupler boasts a 500-hour salt spray rating and a black powder-coated finish for industry-leading corrosion resistance. This complete kit includes four 5/8″ Grade 8 mounting bolts and lock nuts, providing a professional-grade connection that is as durable as it is easy to operate.
