• Bolt on Auto Latching Trailer Ball Coupler & Weld-on Vertical Channel Combo: This all-in-one kit combines a 20,000 lbs GTW rated Demco cast steel coupler with a rugged 3/8″ thick raw steel vertical channel, providing a total mounting and coupling solution for work trailers and farm equipment.
• 20,000lbs GTW Channel Capacity on Vertical: Vertical channel is engineered to handle up to 20,000 lbs Gross Trailer Weight when properly welded for maximum structural integrity when properly welded on.
• Thick 3/8″ Steel Construction & Five-Position Height Adjustability: 2″ on-center bolt pattern with six adjustment holes. Measures 3.68″ O.D. x 2.93″ I.D. x 12″ tall for superior strength, weld penetration, and long-term durability in harsh conditions. Allows precise ball coupler height setup for multiple trailer configurations. Welding required for vertical channel installation.
• Seamless Drop-and-Go Hookup & Industrial-Grade Durability: Designed for speed, the kit features Demco’s EZ Latch that automatically snaps onto a 2-5/16″ hitch ball the moment it is lowered, eliminating the need for manual pins or latches to secure the ball. Both components are engineered for harsh environments; the coupler boasts a 500-hour salt spray rating with a black powder-coated finish, while the raw steel channel is ready for a high-penetration weld to your trailer A-frame.
• Shocker Air Trailer Mount Compatible: Designed to integrate seamlessly with Shocker Air Trailer Tongue Mount systems for a complete air ride towing solution.
• Channel Mount Demco Coupler & Weld on Vertical Channel Kit Includes: Demco 21K EZ-Latch Trailer Coupler for 2-5/16″ ball with metal handle, weld-on raw steel 6-hole vertical channel & four 5/8″diameter grade 8 bolts with lock nuts.
• Grade 8 Hardware Included: Fastens securely using four Grade 8 bolts and lock nuts for extreme clamping force and safety under heavy loads.
• Built for the Toughest Jobs: Ideal for farm equipment, industrial trailers, construction rigs, and marine-duty towing where strength is non-negotiable.
• Note: Towing capacity is limited by lowest rated component.

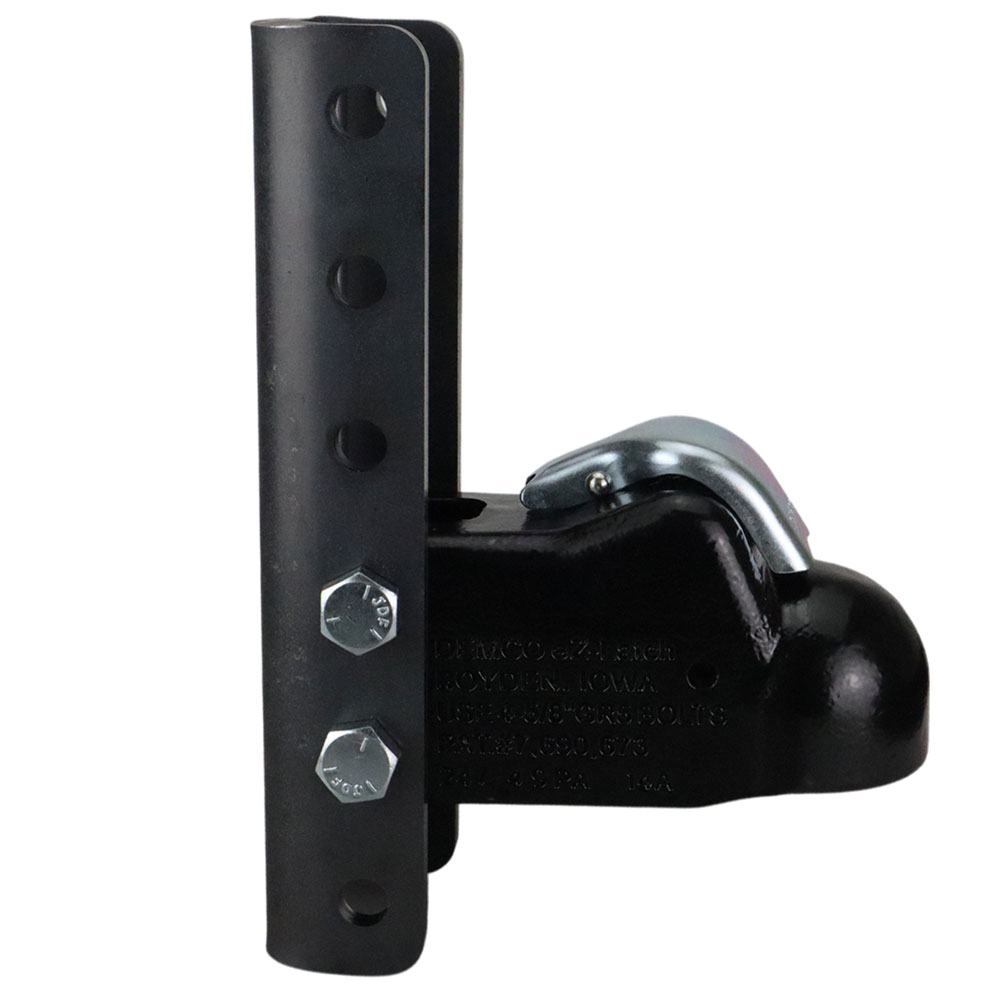

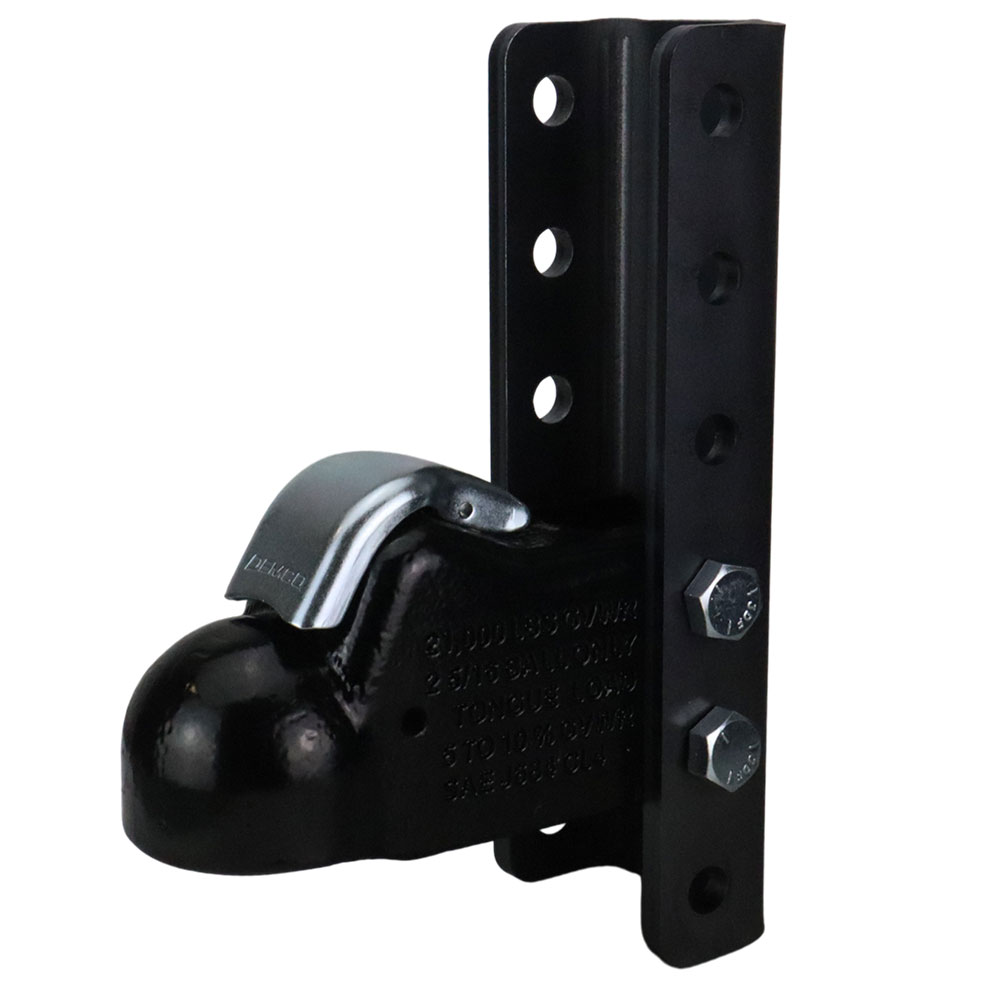

The channel mount, adjustable Demco metal handle eZ-Latch trailer coupler with 6-Hole vertical channel is a premium, heavy-duty towing solution engineered for work trailers, farm equipment, and high-capacity air ride systems. This system features a 12-inch tall, 5 position vertical channel constructed from 3/8″ thick raw steel that welds directly to your trailer’s A-frame, providing a height-adjustablity at it’s fondation and rated for rated for up to 20,000lbs GTW. By utilizing a 2″ on-center bolt pattern, this setup allows for precise height adjustments to ensure your trailer remains level, making it a versatile choice for demanding commercial, agricultural, and construction environments. Professional welding required to install the 6 hole, 5 position vertical channel onto your trailer tongue.

At the heart of this kit is the Demco 21K metal handle EZ Latch Coupler for 2-5/16″ Ball, designed to provide one of the most user-friendly and secure hitching experiences on the planet Its standout feature is an automatic latching: simply lower the coupler onto the hitch ball and it snaps into place instantly and securely, while a simple upward flip of the heavy duty metal handle allows for a quick release. Designed for longevity, the cast steel coupler boasts a 500-hour salt spray rating and a black powder-coated finish for industry-leading corrosion resistance. This complete kit includes four 5/8″ Grade 8 mounting bolts and lock nuts, providing a professional-grade connection that is as durable as it is easy to operate.
