Shocker HD 20K Air Hitch Combo Ball & Sway Control Towing Kit

Select Option:

Clear

Product Information:

List Price: $849.99$969.99Sale Price: $737.99$845.99Free Ground Shipping*

Money IconExtra 10% OFF, hurry limited time offer.
Reviews
SKU: SH-HD-Air-Hitch-Sway-Control-Towing-Kit
Series:

-

Product Description

  • Smoother Safer Towing – Air ride towing technology with a heavy duty built in air spring to cushion the ride & absorb the road shock.
  • Built in HD Airbag: Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
  • Friction Sway Control Bar Kit Options: Order with 1 Sway Arm Kit for use with Trailer up to 10K lbs & 2 Sway Arm Kits for use with Trailers over 10K lbs.

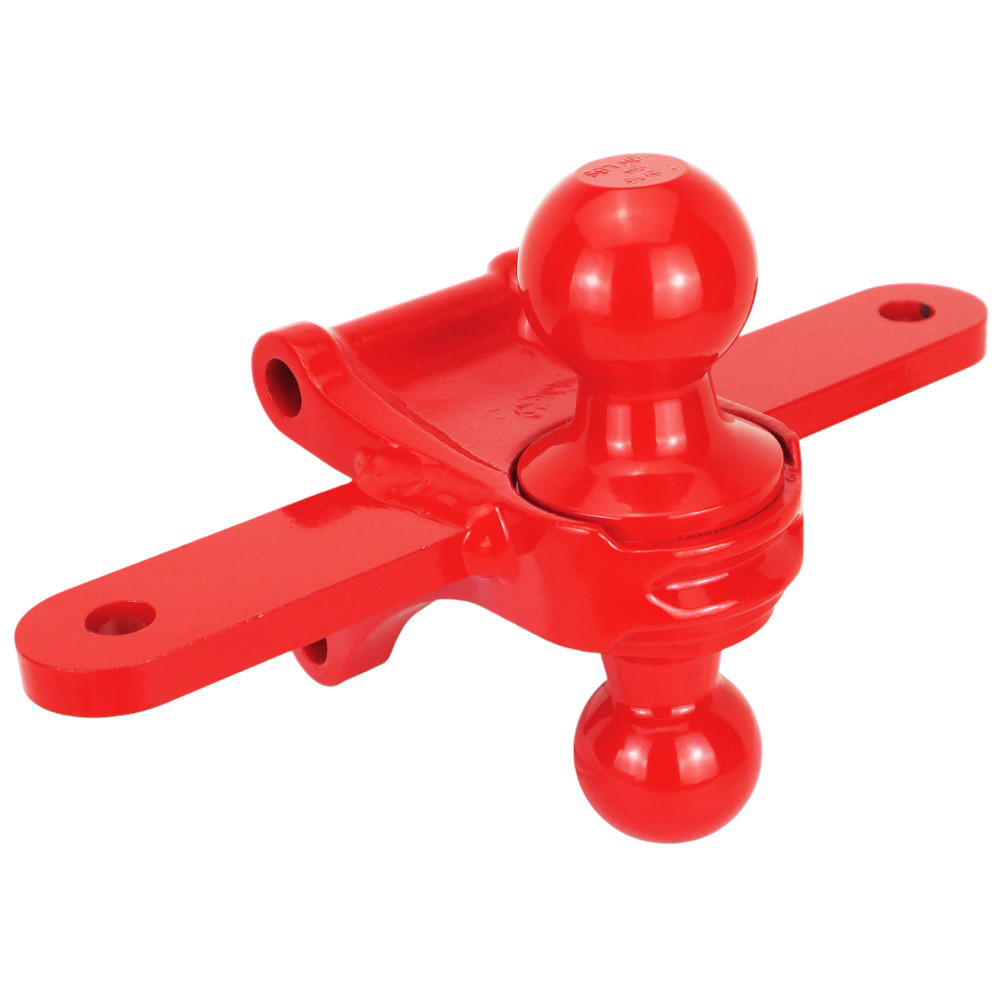

  • Sway Tab Combo Ball: 1 piece welded design 2″ & 2-5/16″ combo ball with 2 sway control tabs for mounting the provided sway control arm bar(s) & mini balls.
  • Adjustable Design: 8 Adjustment Holes for 1/2″ to 4-1/2″ of drop.
  • Air Ride Technology: The air bag sits under receiver tube. Adjust the air pressure for the best ride and load control.
  • Safety Red Powder Coat Finish: Impact Resistant Premium Powder-Coat Finish on Base Frame.
  • 20,000 lbs Heavy Duty Capacity: 20,000 lbs towing capacity and a 2,000 lbs tongue weight.
  • Combo Ball Mount Tow Rating: 2-5/16″ ball rated at 16,000 lbs & 2″ ball rated at 8,000 lbs.
  • Adjustable for Weight: Fine tune for your towing weight. Just add air for heavier loads.
  • 2 Hole Receiver Shank: Available for 2″, 2 1/2″ & 3″ receiver hitch tubes with Two hitch pin holes for length adjustability.
  • Choose Your Receiver Size: Available for 2″, 2-1/2″ and 3″ receiver hitches.
  • Great for Pickups: Fits Great for Full Size Pickup Trucks & Vans, Midsize Pickups & Select SUVS (with receiver under bumper). Popular installs include GMC Sierra, Chevy Silverado, Chevy Colorado, GMC Canyon, Dodge Ram, Ford Ranger, Maverick F150, F250, F350, F450, F550 Superduty, Toyota Tundra, Tacoma, Nissan Titan, Frontier, Honda Ridgeline & Hyundai Santa Cruz.

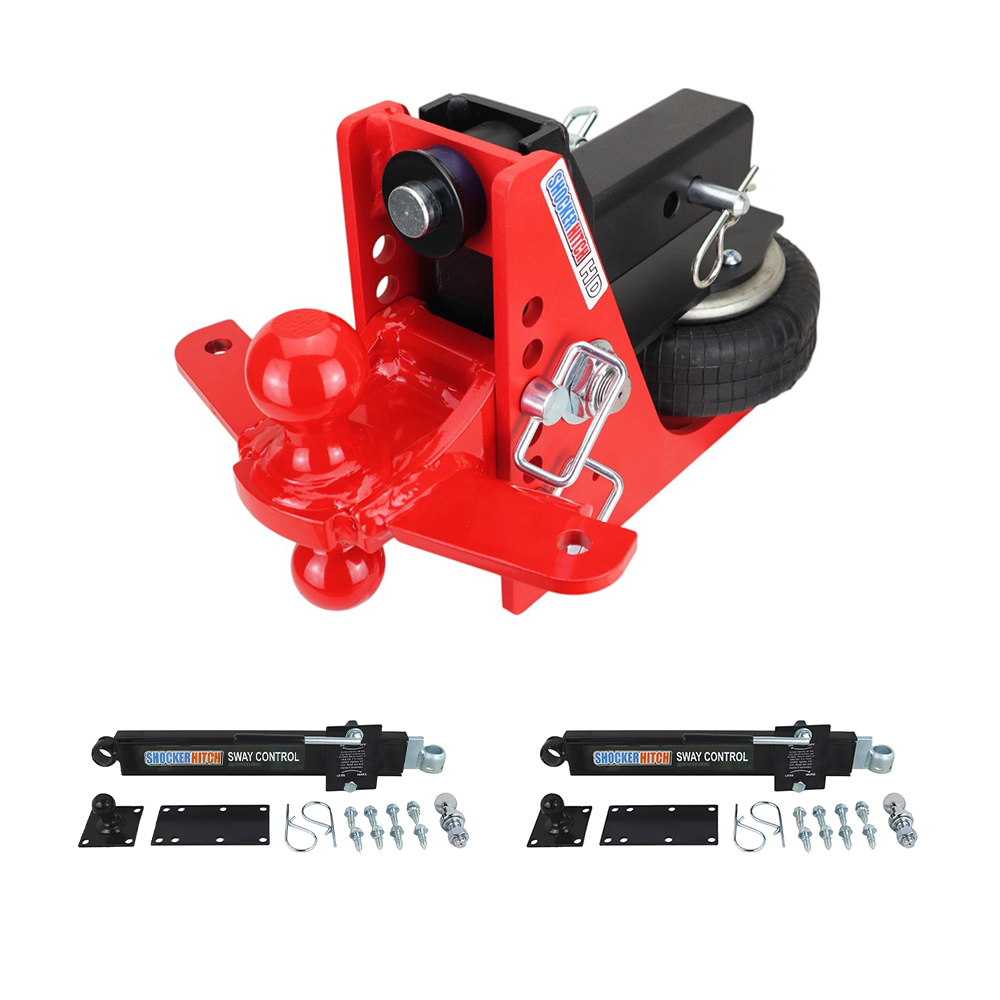

  • Comes complete with Shocker air base frame assembly with built in airbag, adjustable combo dual ball mount (2″ & 2-5/16″ balls) with sway bar tabs and two d-handle ball mount pins. Sway control friction bar assembly, one 1-1/4″ trailer mounted ball, one 1-1/4″ mini hitch ball for sway control tab ball mount and install hardware.
  • A single sway control arm kit comes with the sway control friction arm assembly, 1 1-1/4″ trailer mounted mini ball, 1 1-1/4″ hitch mounted ball with a lock washer and nut for your sway control ball mount tab along with 4 metal lag screws and 2 retaining clips. This is great for travel camping trailers, heavy-duty trailers, race trailers, and toy haulers.
  • 10+ Ball Mount Options (Sold Separately): Huge selection of ball mount adapters available from Pintle hooks, draw bars, drawbar, clevis, drop ball mounts, raise ball mounts and more.
  • NOTE: This product won’t work with a weight-distribution hitch, if you have a w-d hitch, see our Shocker Hitch Air Equalizer.
  • Safety Notice: The Shocker Hitch is a heavy duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. Bolt on 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / Bolt on 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out  how much drop or rise you need.

Shocker Hitch Guarantee

Free Ground Shipping* | Shocker Guarantee | Free Returns

Its time to reduce trailer sway and get the smoothest and safest towing around. This kit combines shocker HD Air Cushioning Hitch with 1 or 2 friction sway control kits providing you with the necessary tools for a shock free ride. Add instant air ride to your pickup and trailer with the Heavy-Duty Shocker air hitch. This Shocker HD Air Hitch has a combo ball mount with sway bar tabs is made for the basic sway control arm / bars with mini hitch ball. The combo ball mount has both a 2″ hitch ball and a 2-5/16″ hitch ball along with mount tabs on both sides for the included sway control mini hitch balls.  It also offers 8 adjustment holes for 1/2″ to 4-1/2″ drop. 20,000 lbs tow rating capacity and 2,000 lbs tongue weight. Shocker Hitch air provides the ultimate smooth ride. This shocker absorbing hitch is a air suspension unit mounted between your pickup truck and trailer. The built-in airbag cushions the ride and absorbs the road shock creating a smoother and safer towing experience. This Shocker air receiver hitch with sway bar ball mount, fits into a standard receiver hitch tube. This shock absorbing ball mount takes the bumps, jerks, tugs and roughness out of trailer towing and cushions your ride. The combo multi-ball mount features welded hitch balls for superior strength and the combo ball mount comes in a premium zinc plated finish. Cushions ride and works nicely to help tendency of trailer sway. Works great on compact, midsize and fullsize pickup trucks, vans and select suv’s that the receiver hitch is under the bumper. Have a CUV? Check out our Cushion Ball Mounts.  Manufactured by Shocker Hitch® USA in Arthur, ND.

If you are experiencing trailer sway while towing then this Sway control towing starter kit is perfect for you. Especially when towing larger trailers, you may experience trailer sway from wind, passing vehicles, rough & uneven road surfaces. This sway control arm kit system is made to prevent the trailer from swaying. We offer a sway control arm bar system kit that connects from the Shocker sway control ball mount part of the hitch to the front of the trailer. This sway control system is used to stiffen the connection between the truck and trailer, keeping it straight and in line with the towing vehicle.

You will want to use one (1) friction sway control arm kit when towing up to 10,000 pounds and/or 24′ trailers & when towing over 10,000 pounds and/or trailers longer than 24′, use two (2) friction sway control  arm kits. This is great for travel camping trailers, heavy duty trailers, race trailers and toy haulers.

The air bag sits under the receiver tube allowing a short distance of 10-inches between mounting pin and ball center. You will find the advantage of the Air Shocker is your ability to adjust air pressure for best ride and load control. Fits standard 2″ receiver tube, 2 1/2″ and 3″ receivers.

Air Ride Hitch: Shocker Airbag bumper hitch is designed with a built-in airbag for a smoother towing experience. Featuring a built in height adjustment plus weight adjustable. Just add or ride air depending on the weight of your trailer and it’s contents.

Provide Comfort: With a smoother ride! Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps and bumps.

Simple Pivot Design: uses a rocker arm pivot design which produces a down and back motion, much different than other air hitches on the market. Our design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple air bags common to other air hitches.

Improves Safety: By giving you improved control of your tow vehicle and trailer. The air bag receiver hitch system allows for better control of your pickup and the trailer it is towing.

Shock Dampening Action: Shocker air hitch effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and your receiver hitch.

Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker hitch absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.

Adds Life To Your Vehicle: By reducing wear and tear on driveline and frame! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations. Join the list of satisfied customers that are using Shocker hitches.

Tons of Attachments: We offer a wide variety of our ball mount attachments; standard mounts, drop ball mounts, clevis mounts, drawbar mounts, cushioned drawbar mounts, pintle hook attachments, raised mounts and combo multi-ball mounts.

California Residents: Prop 65 Warning

Video

Shocker HD Air Hitch & Sway Control Towing Kit Video

Shocker Sway Control Kit – What You Need to Know

Original Shocker Air vs. Shocker HD Air Hitch

Install

Shocker Air Bumper Hitch Installation Instructions

The Shocker Air Bag Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag. Once the bag has been compressed, you can install the unit into the receiver tube. Next, install the hitch pin.

To Set Air: Hook up a trailer using a properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to lightly compress top bushing or until bump stop clearance is approximately 1/8″.

Shocker Air Bumper Hitch Air Pressure Setting Video

Additional Set Up Notes:

  • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
  • Spacer block included and may be required when using 2″ shank (see spacer block install manual below)
  • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
  • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

Shocker Air Receiver Hitch Install Instructions

Shocker Air Hitch Install Video

Shocker Air Receiver Hitch Diagram
Shocker Air Receiver Hitch Diagram


Note: Always use a good hitch ball with the proper recommended tow weight.

FAQ

Answers to Frequently Asked Questions

How much air do I put in the Shocker Air Bumper Mount Receiver Hitch?
With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker until main frame rotates and lightly compresses top bushing (about 1/8″ of squeeze or pinch in the bushing). See our quick How To Set PSI in Shocker Bumper Hitch Video.

Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you are just use sway bars that hook to a mini ball, then yes, if you order the combo sway control ball mount attachment. If you have a equalizer or weight distribution hitch then it will not. However, check out our Air Equalizer for weight distribution hitches.  Note: If your pickup suspension can handle the weight of your trailer and doesn’t “squat” when you hook up your trailer to pickup, then you really don’t need a weight distribution hitch. A load leveling weight distribution hitch, distributes the weight between the pickup and trailer and is generally used if your pickup can’t handle the static trailer tongue weight load.

How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

How long will the airbag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

How do I know the Shocker Air receiver hitch will fit my truck?
We have made sure that the receiver air shocker will fit into most Ford, Chevy, GMC Dodge, Toyota, Nissan & Honda Pickups, Vans & SUV’s (SUV’s were the receiver is under the bumper). There are some clearance issues with the Chevy Envoy, Ford Explorer, some imports and service body vehicles where the body extends below the receiver tube or the receiver tube is inside the bumper.  The Shocker Air receiver hitch is available in a 2″, 2 1/2″ & 3″ shank.

How far below my pickup does the receiver air shocker hang? Five inches below bottom of receiver tube.

How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

Does the receiver air hitch work with sway bars?
Yes, it works with the friction style sway control bar, however you want to order a ball mount with sway bar tabs. See our sway bar tab ball mount attachments.

How does the Air hitch work? The Receiver air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

Should I tighten up the top jam nut on the receiver shocker? No. The air shocker needs at least one half inch of play to work properly.

How much does an Shocker Air bag receiver hitch weigh? The Receiver Air Shocker weighs 50-55 pounds

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Guarantee.

Shocker Hitch Guarantee

Questions and answers of the customers

    I have a 2008 Toyota Tundra towing a 13K 34ft trailer Momentum 29G. Please let me know the best most stable setup.
  1. 0 votes
    Q I have a 2008 Toyota Tundra towing a 13K 34ft trailer Momentum 29G. Please let me know the best m...... Read more
    A

    Glenn,

    We would reccomend https://shockerhitch.com/product/shocker-air-hitch-combo-ball-mount-sway-control-kit/ .

    Please call us at 701-707-2666 to customize and place an order for you or you may order directly online as well.

Send me a notification for each new answer.

1 review for Shocker HD 20K Air Hitch Combo Ball & Sway Control Towing Kit

Add a review

Your email address will not be published.

Customer Reviews

  1. Great product. Best purchase I made for my travel trailer. You can still feel you are pulling a trailer, just no bumping or jerking on the truck. Sway bar works awesome too. I put two away bars on mine, This is well worth the money. A must have

    – Russell Janzen

Weight / Dimensions

Weight 64 lbs
Dimensions 18 × 12 × 12 in
