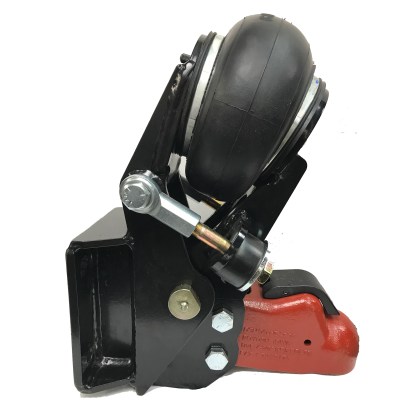

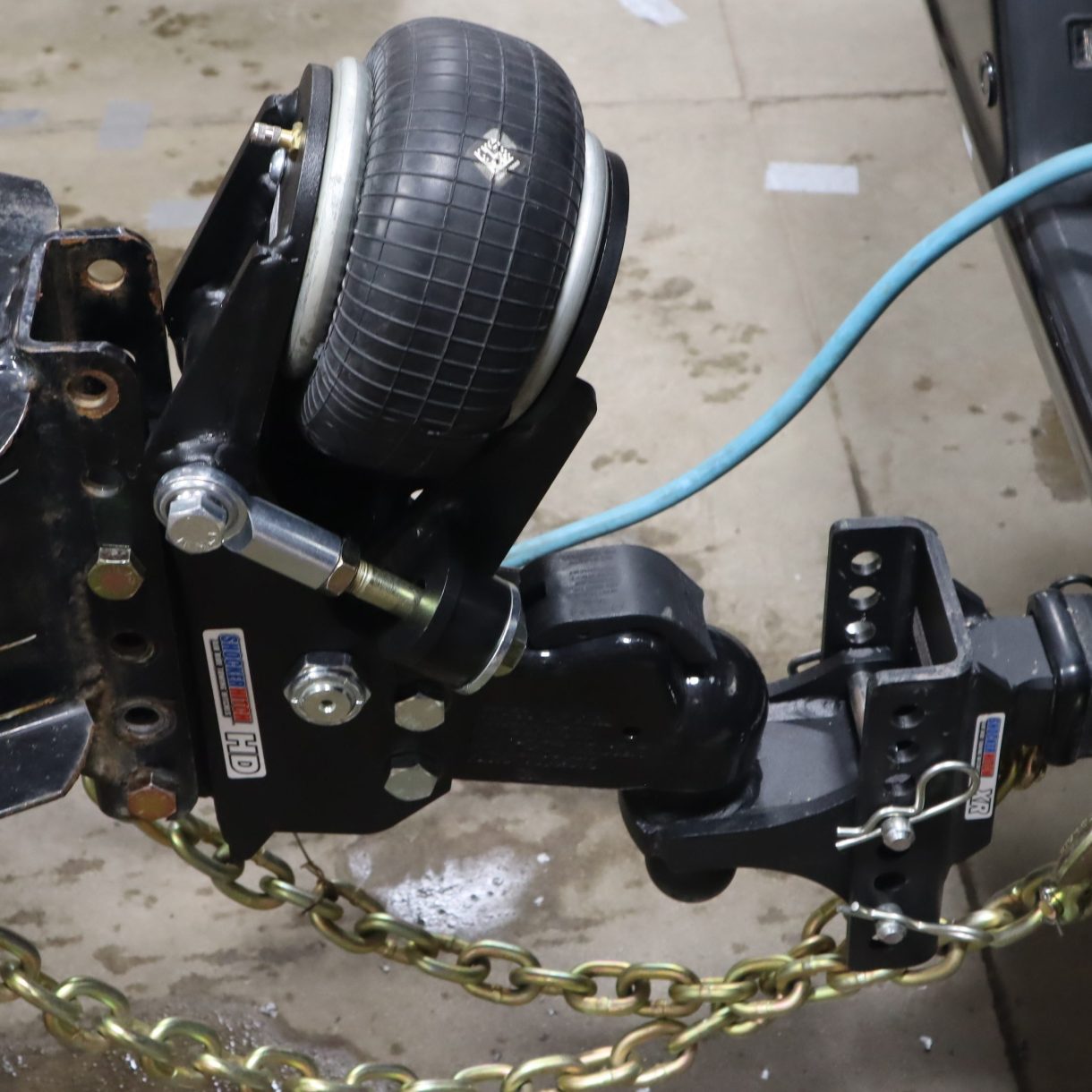

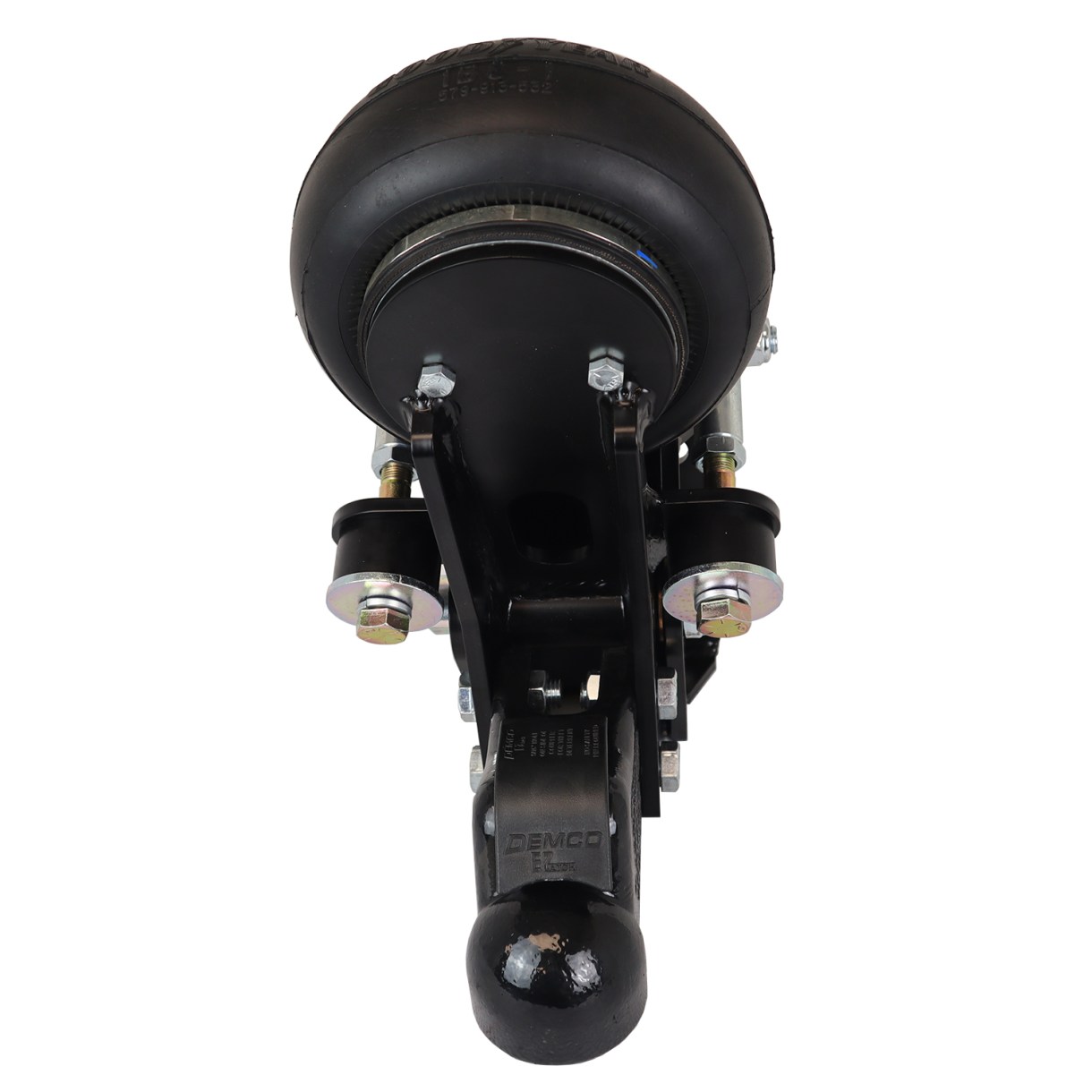

Shocker HD 21K Air Trailer Tongue Mount & Demco Coupler for 2-5/16″ Ball

Rated 4.95 out of 5 based on 19 customer ratings

$689.99$814.99

Money IconExtra 8% OFF, hurry limited time offer.
Free Ground Shipping*
Usually Ships on or Before Tue 03/19/24
Usually Ships on or Before Tue 03/19/24
Clear
OR

-

  • Videos arrow

    Videos

    Shocker Air Trailer Tongue Coupler Mount Videos

  • Install arrow

    Install

    Shocker Air Trailer Tongue Mount with Coupler Installation

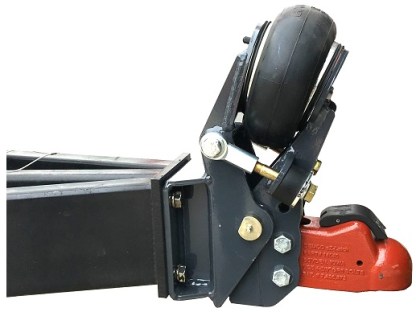

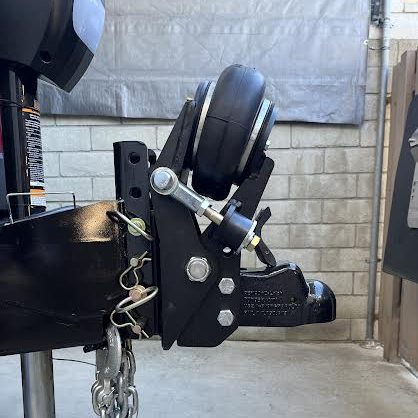

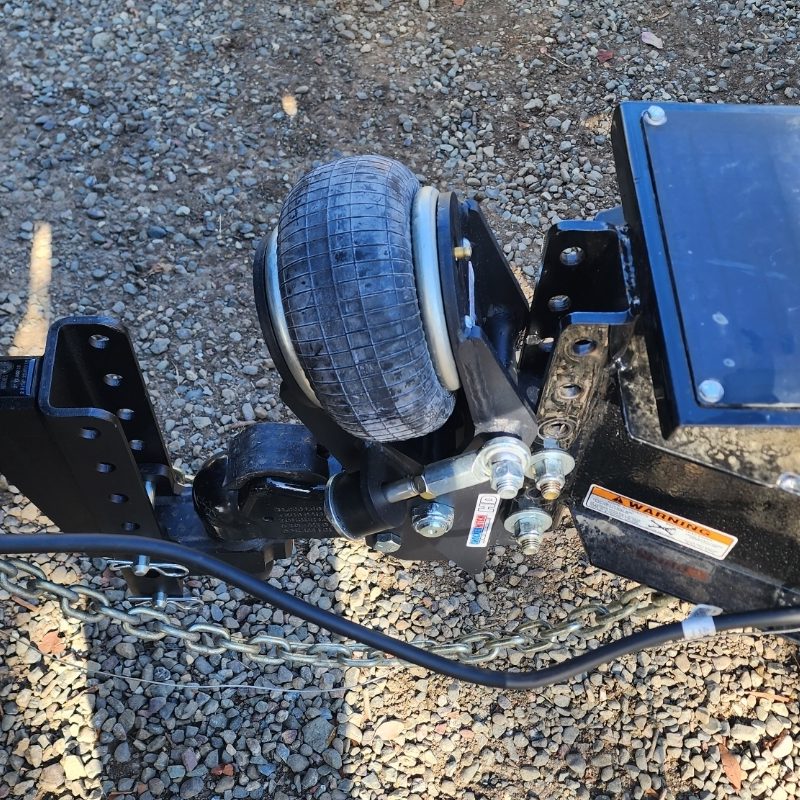

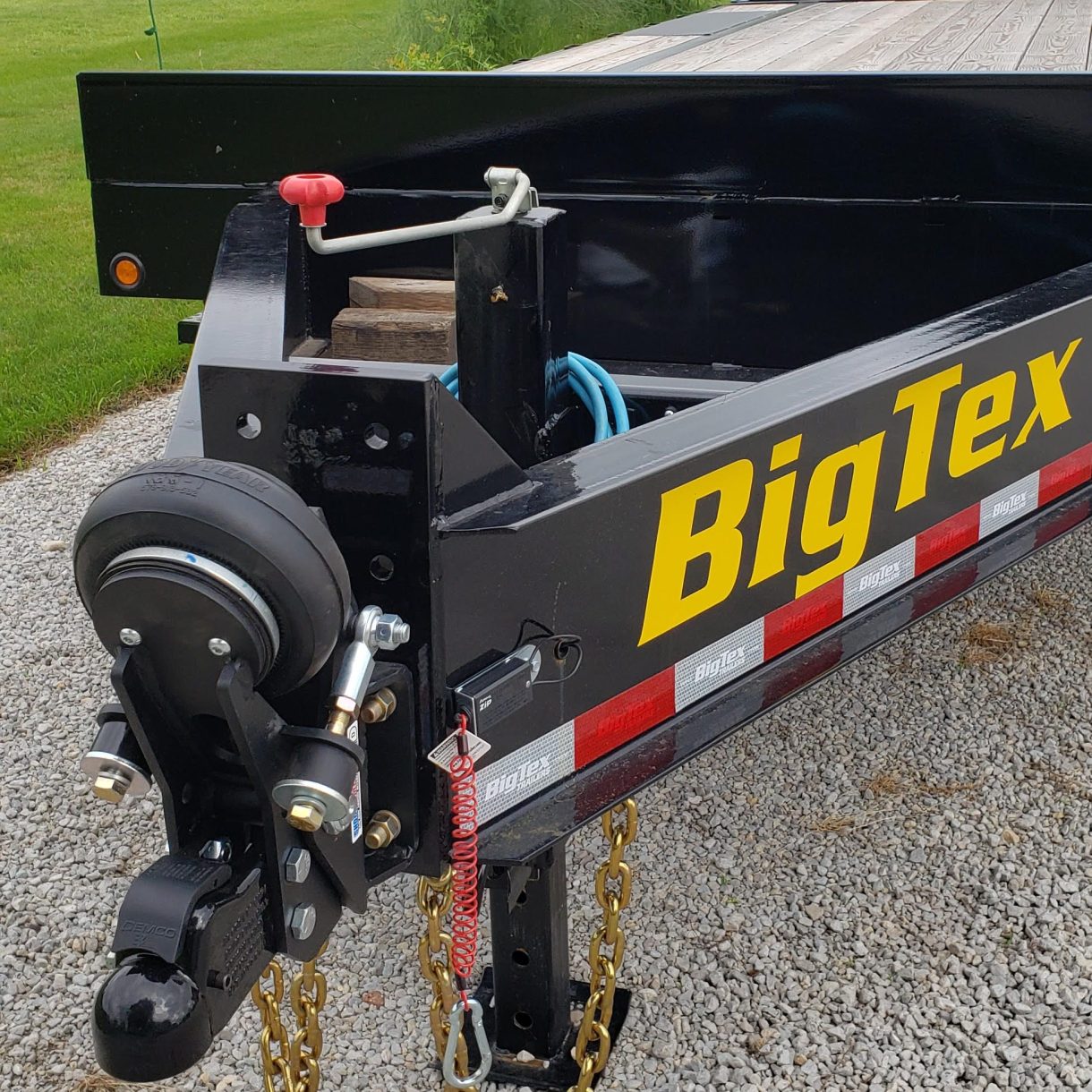

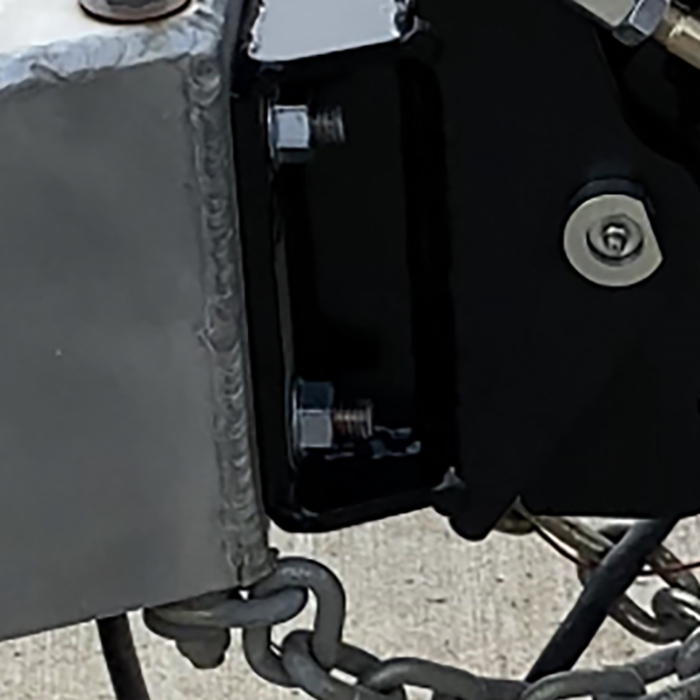

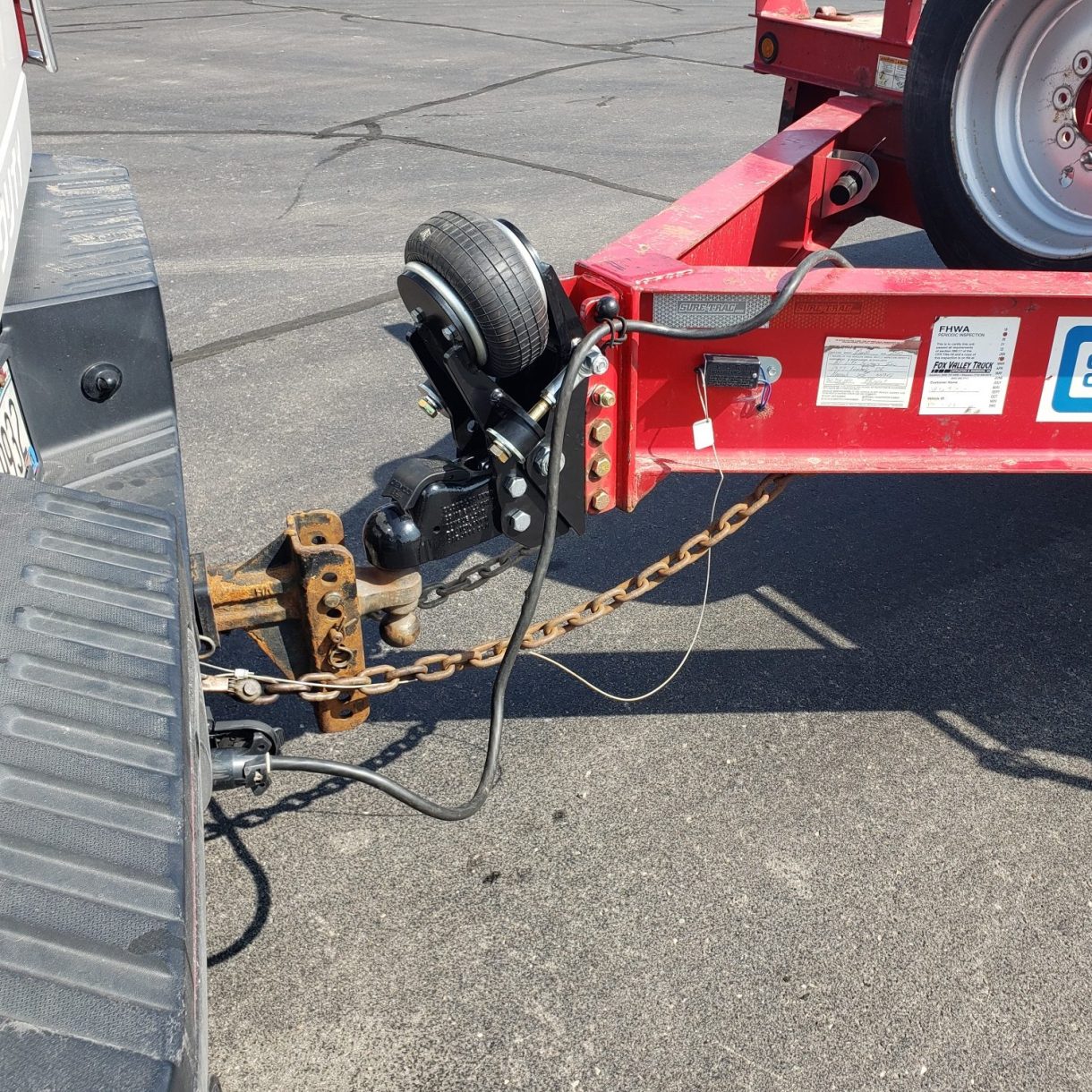

    Vertical Channel & Square Plate adaptor styles only: Remove your existing coupler and bolt on the air trailer tongue mount to your vertical channel or 4 bolt flat plate trailer tongue.  Replace the existing ball coupler on the tongue of trailer with the Shocker Hitch Tongue Mount Hitch. Verify or lengthen safety chains and wiring connections to ensure proper clearance when turning corners.

    Shocker Air Trailer Tongue Mount Install Video

    When used properly these products will make noticeable improvements in your trailer towing quality. Giving both truck and trailer a smoother ride with less trailer fatigue and breakage.

    Setting Shocker Air Pressure for Trailer Tongue Mount Coupler

    To Set Air

    Load trailer the way it will be towed. Inflate airbag on Shocker Air Trailer Tongue Mount hitch. CAUTION: Keep hands and clothing away from moving parts of hitch to avoid pinching and injury. As air pressure increases, the unit will rotate lifting the hitch and trailer tongue. Install air until green bushing has 1/4″ clearance from the red frame. Always inflate air bag to set the Shocker Hitch, never deflate air bag to set Shocker Hitch, unsatisfactory results may occur. When using Equalizer/ Weight Distribution Hitch: Follow directions above, then hook up equalizer bars, and continue inflating air bag until 1/4″ clearance on bump stops is achieved. Note: When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker. Usage: Under normal circumstances, tongue weight should be at least 10 percent of the total towing weight. NOTE: IT IS HIGHLY RECOMMENDED THAT THE HITCH BALL BE GREASED TO REDUCE WEAR AND IMPROVE SHOCKER ACTION. Maximum Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.
    Air Trailer Tongue Mount Hitch Diagrams
    Air Trailer Tongue Mount Hitch Diagrams

    Installation Issues

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.

    We’re here to help. Contact Us

  • FAQ arrow

    FAQ

    Answers to Frequently Asked Questions

    What is the air trailer tongue mount tow rating? The HD air tongue mount model rating is up to 25,000 lbs GTW & 3,500 lbs Tongue Weight. The air tongue mount rating is rated up to 14,000 lbs GTW and 1,400 lbs tongue weight.. It must have an appropriately rated coupler or pintle ring for the rating to apply. Note: Tow capacity is limited by the lowest-rated component.

    How long will the air bag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

    Will this work with a W-D Hitch? Yes it will.

    How strong is the center pivot bolt?  The main pivot bolt with grease zerk, or center pivot bolt, used in the Tongue Mount Shocker air coupler, is a custom made 1 inch diameter 1045 medium carbon steel bolt. Strategically heat treated to prevent wear and includes a machined grease passage for easy lubrication and maintenance. It should be noted that the yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler on the average vertical channel adapter.

    Safety Notice: Note: Tow capacity is limited by the lowest-rated component.

    How much air do I put in the air trailer tongue mount? With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker air tongue until green bushing has 1/4″ clearance from the red frame. See install guide.

    How does it install? Simple bolt on installation in minutes. See install guide.

    How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

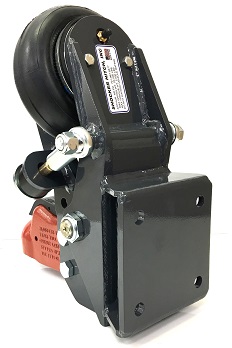

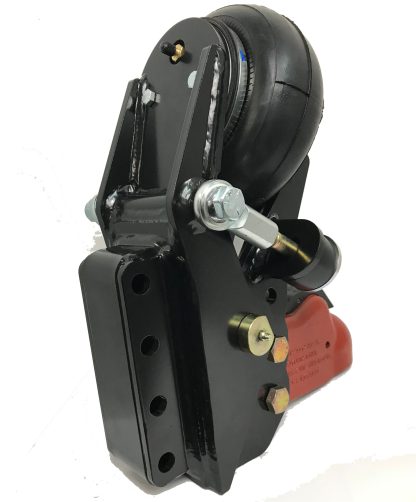

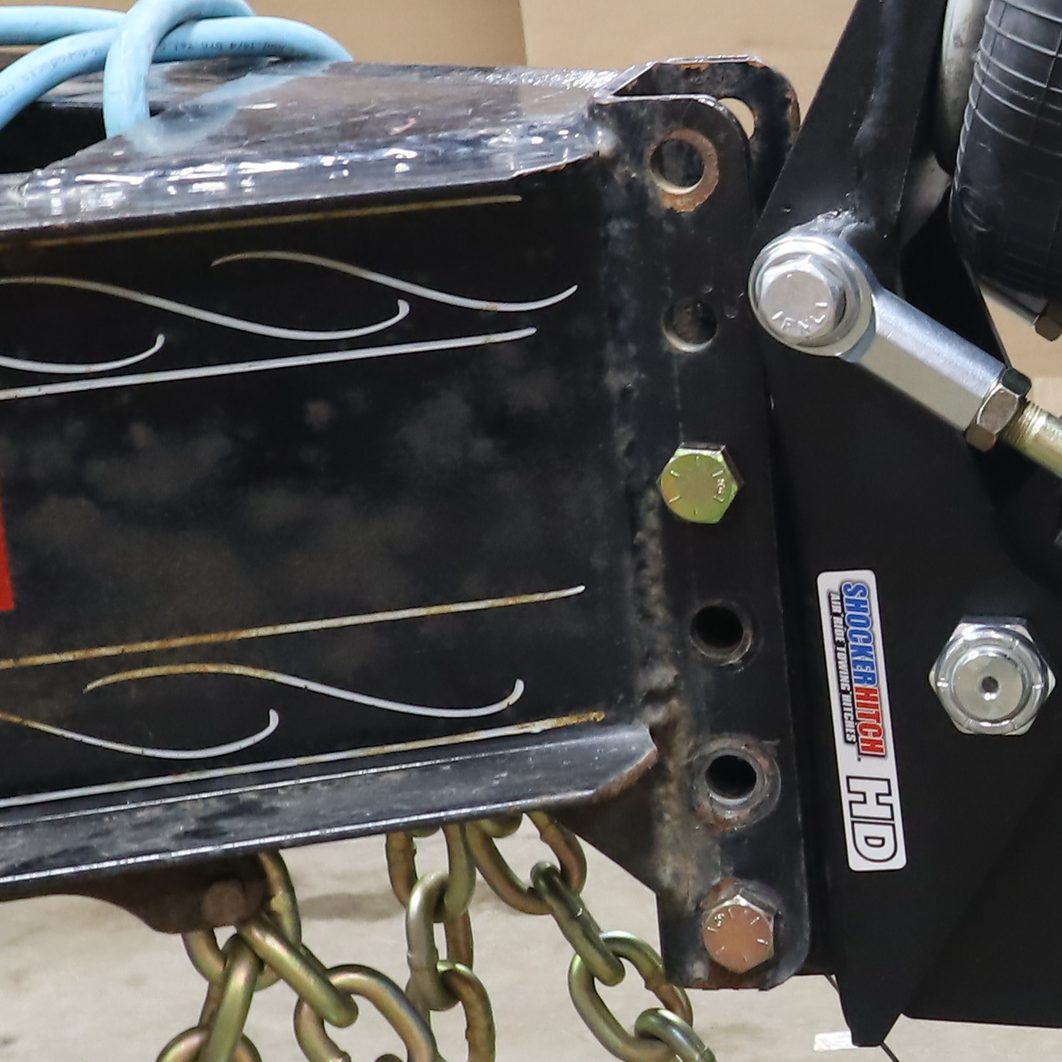

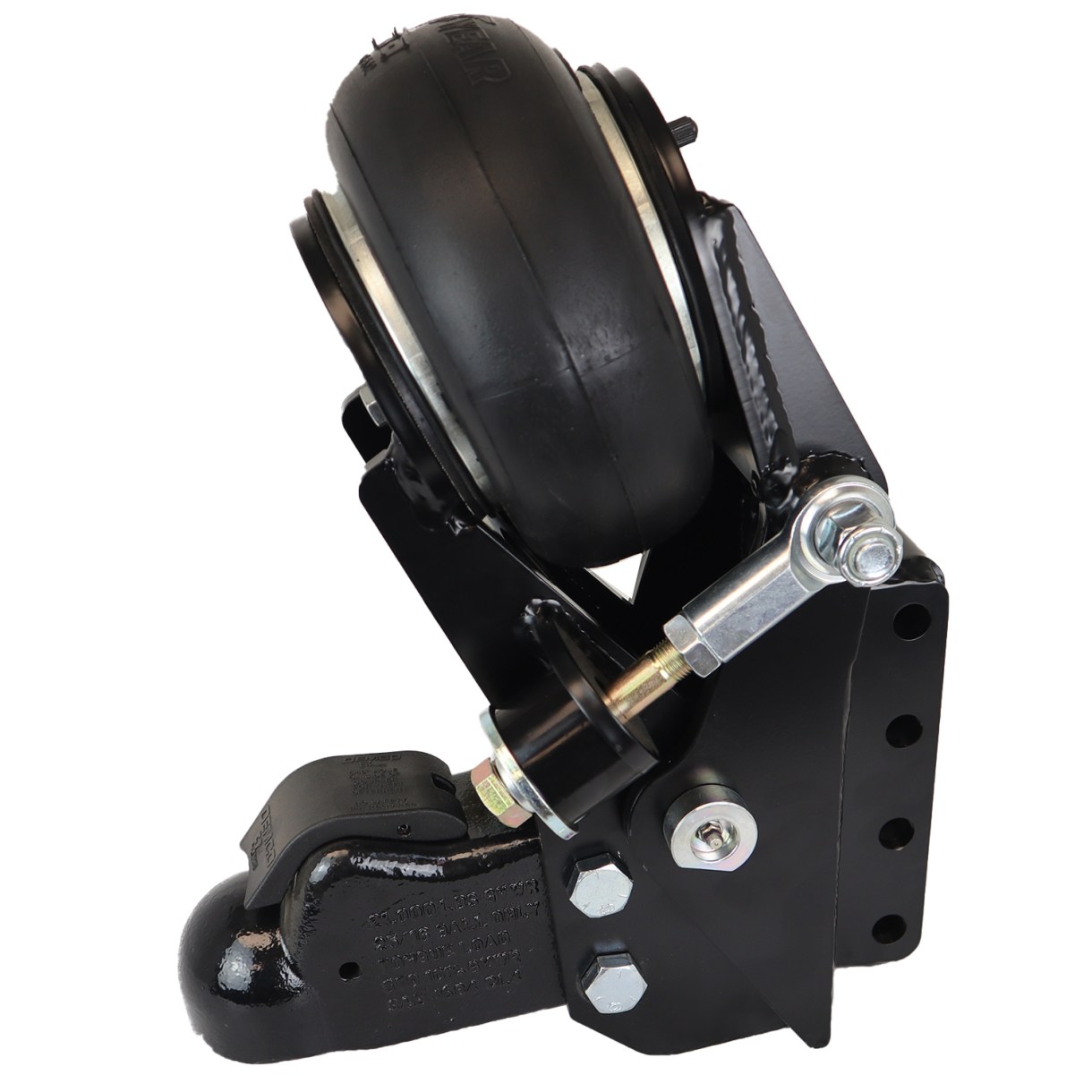

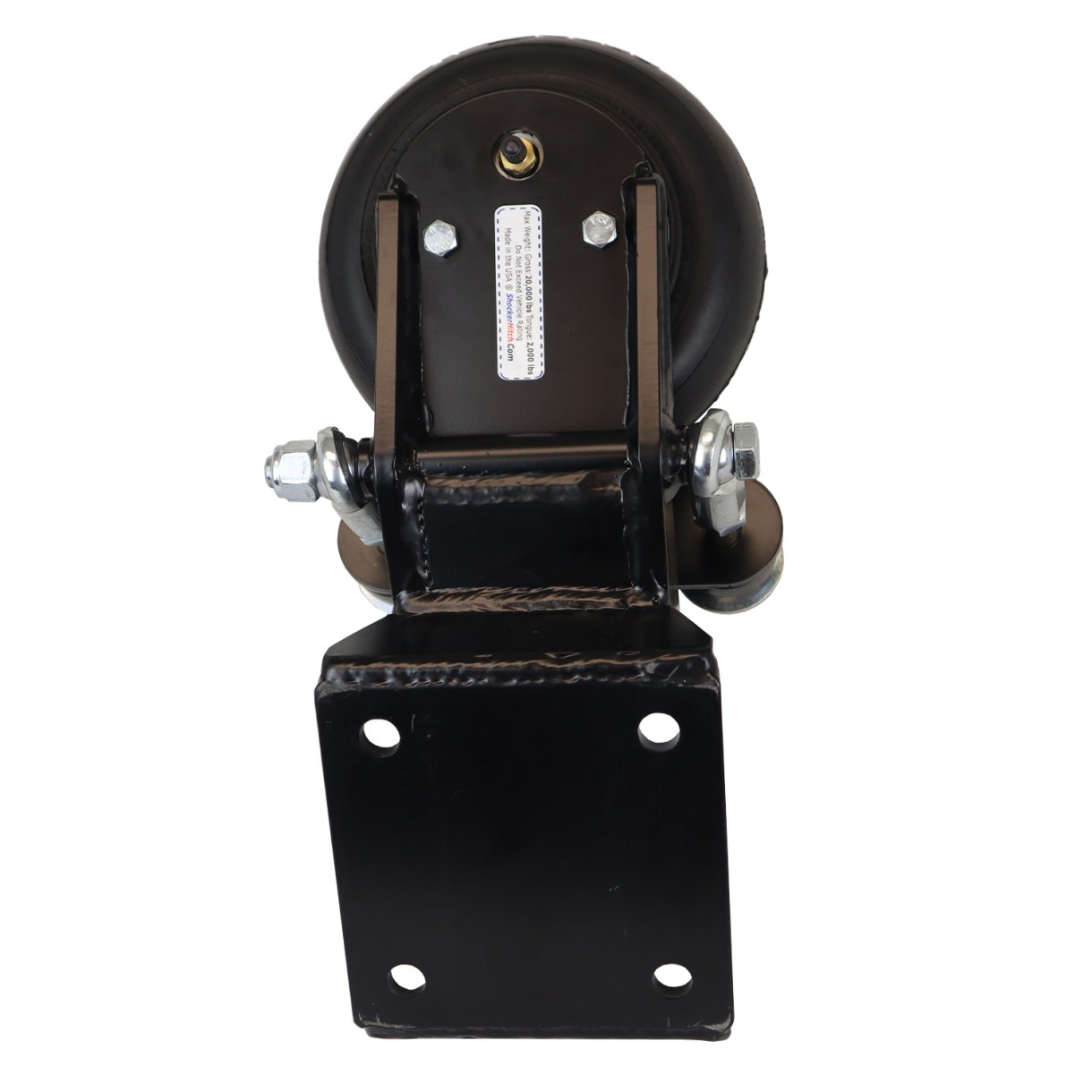

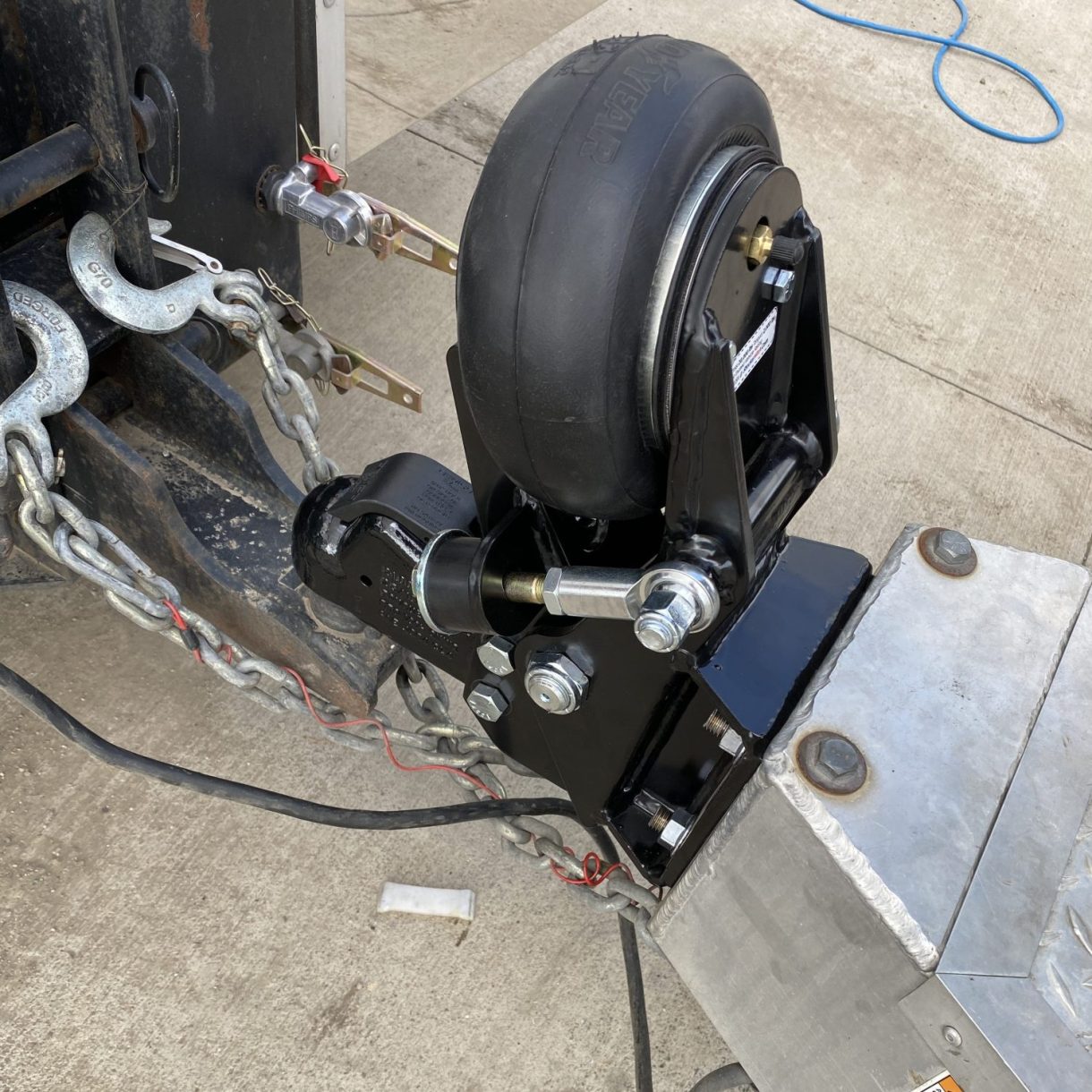

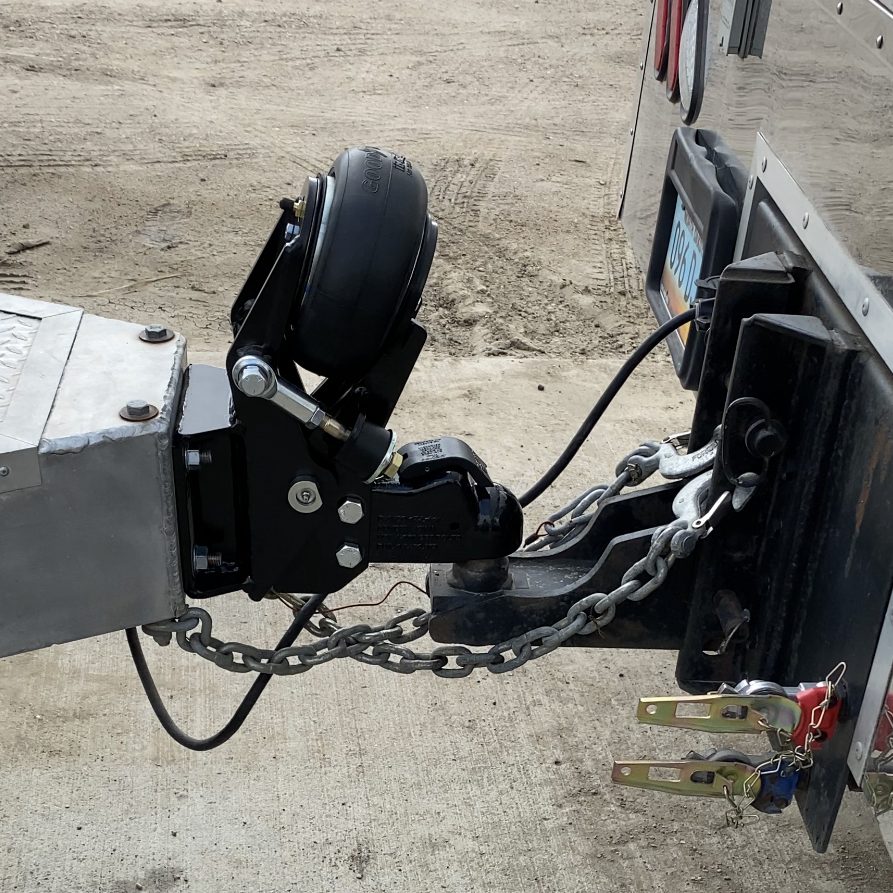

    How do I know the Shocker Air trailer tongue mount with fit my trailer? We have 2 mounting options.  Square plate mount:  Simply bolts in place of existing coupler and has a 4-1/2″ square bolt pattern. Vertical channel mount: Simply bolts in place with existing trailer vertical channel for typical trailer couplers.  We do offer a weld on channel adaptor for your trailer tongue that can also be used if you don’t have one on your trailer.

    Does this affect my trailers ground clearance? No, the air bag is above the trailer tongue for maximum ground clearance

    How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

    Does the Shocker air trailer tongue limited my tailgate with hooked up to the trailer? Maybe. It depends on your vehicles ball mount length. You can still open your tailgate, but it may rest on your air bag.

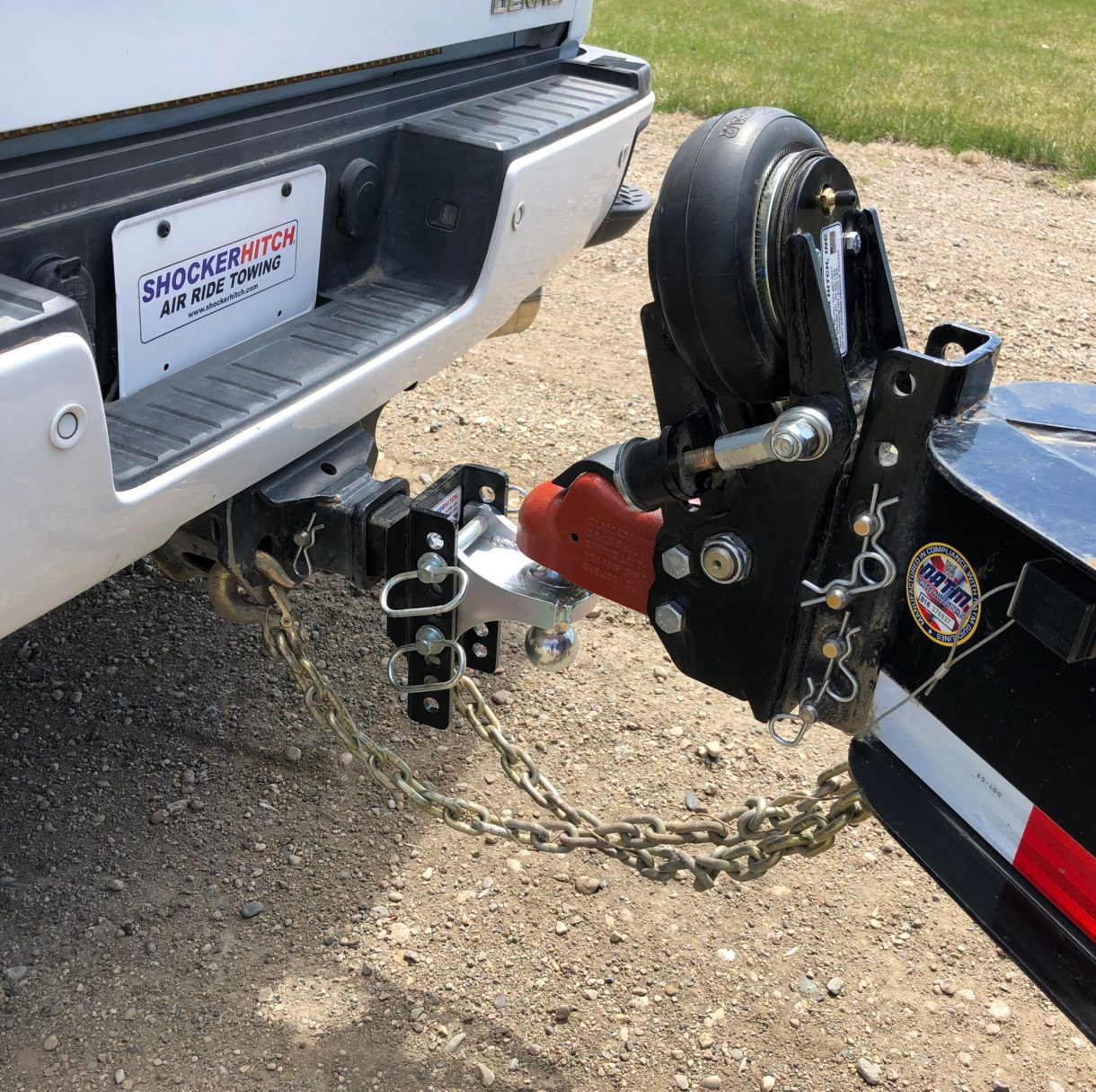

    How does the air ride trailer tongue coupler work? The air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

    How much does an Shocker Air trailer tongue mount weigh? The Receiver Air Shocker weighs 60-70 pounds depending on model.

  • Warranty arrow

    Warranty

    This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.

  • Q & A (9) arrow

    Questions and answers of the customers

      Hi. Because of my installation, I need to know the total height of this shocker trailer hitch, from the very bottom of the ball mount to the very top of the airbag. Thank you very much.
    1. 0 votes
      Q Hi. Because of my installation, I need to know the total height of this shocker trailer hitch, fr...... Read more
      A It is about 18" from the bottom of the coupler to the top of the airbag.
    2. What if I have a shocker hitch on my truck and trailer. Can I use both shocker hitch products together ?
    3. 0 votes
      Q What if I have a shocker hitch on my truck and trailer. Can I use both shocker hitch products tog...... Read more
      A

      Yes you are able to use both of them at the same time. It will not necessarily give you a smoother ride when doing this but they are able to work with each other.

    4. Can you install an air psi gauge and use it to gat your trailer tongue weight. thanks Bryan
    5. 0 votes
      Q Can you install an air psi gauge and use it to gat your trailer tongue weight. thanks Bryan
      A

      Yes, you can install a pressure gauge into the system if you would like. However, that gauge would not tell you the tongue weight on the trailer.

    6. do you ship to canada ?
    7. 0 votes
      Q do you ship to canada ?
      A

      Yes we do. However you will need to pay the duties and taxes when you receive the shipment.  We also have dealers in Canada you can find in our dealer locator

      https://shockerhitch.com/dealers/

    8. Can you use this with a weight distribution hitch?
    9. 0 votes
      Q Can you use this with a weight distribution hitch?
      A

      Yes this would work with a weight distribution hitch but it is not necessarily required with this airbag system. We do carry an Air Equalizer system specifically designed to work with pre existing W-D hitches. You can find that here. https://shockerhitch.com/product/air-equalizer/

    10. Can you use this with a weight distribution hitch?
    11. 0 votes
      Q Can you use this with a weight distribution hitch?
      A Yes, you can, but it is not necessarily needed with this hitch.

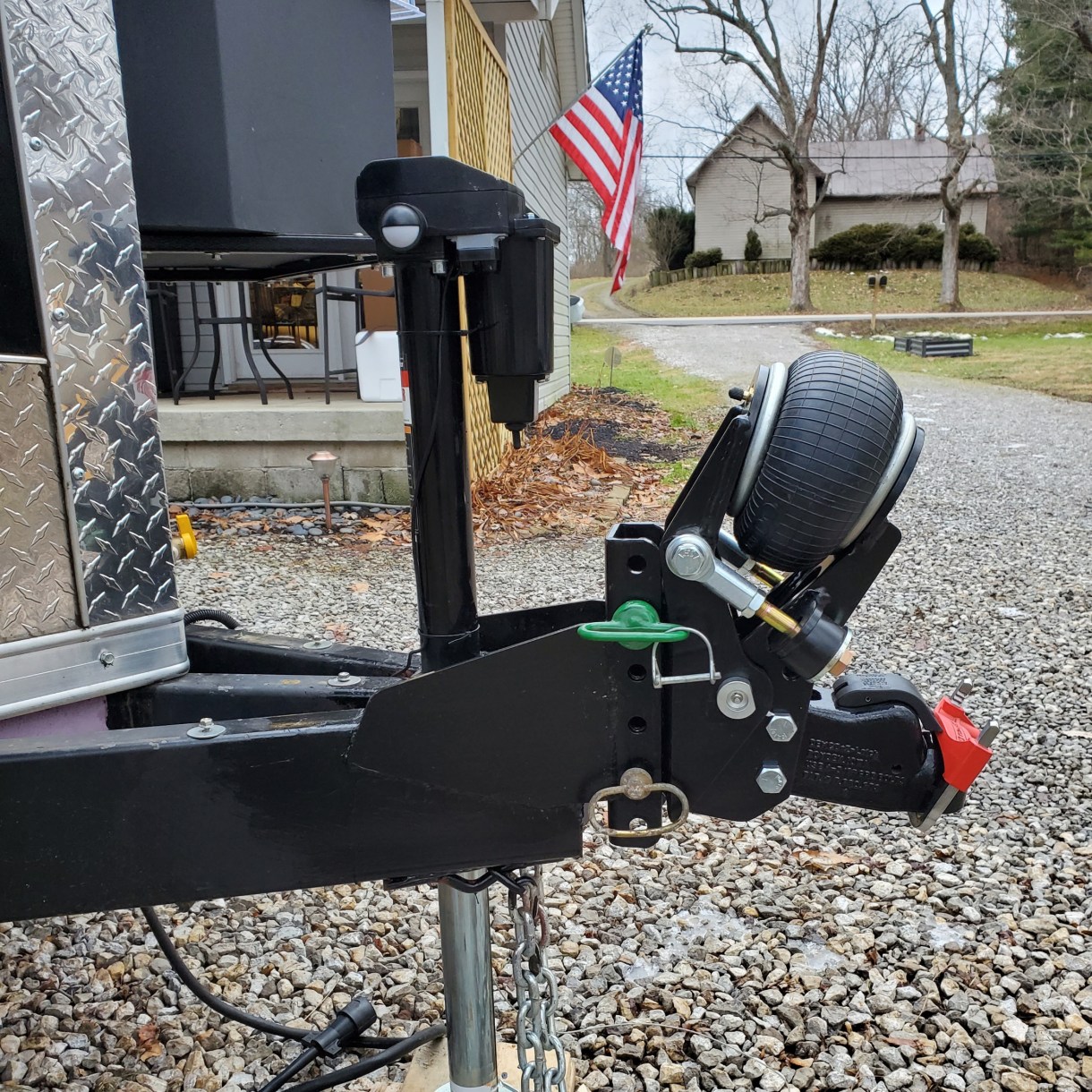

    12. Can the coupler be locked when attached to the hitch?
    13. 0 votes
      Q Can the coupler be locked when attached to the hitch?
      A

      Yes the coupler can be locked, however we do not have locks for the tongue mount to the trailer.

    14. Can the coupler be locked when attached to the hitch?
    15. 0 votes
      Q Can the coupler be locked when attached to the hitch?
      A You can lock the coupler, however we do not have locks for the tongue mount.
    16. how much tongue weight will the 20000 lb trailer mount take.
    17. 0 votes
      Q how much tongue weight will the 20000 lb trailer mount take.
      A 2000 lbs
      A The tongue weight rating is 2000lbs
