Product Description
- Deluxe Sway Arm Bar, Ball & Clamp on A-Frame Kit: Combine an adjustable friction sway control arm bar kit with no-drill trailer-frame mounting.
- Choose one or Two Sway Bars with a matching A-Frame Clamp Kit: SH-1101 includes one SH-1001 sway bar kit plus one SH-7010 A-frame clamp kit. SH-1102 includes two SH-1001 kits and two SH-7010 kits, one for each side on your trailer A-frame rail.
- Adjustable Friction Sway Control: Fine-tune resistance to help reduce trailer sway from wind, passing vehicles, and uneven roads. Follow the arm instructions for adjustment, tight turns, and backing.
- Great For Aluminum Trailers & If You Don’t Want to Drill Your Trailer A-Frame: The included SH-7010 brackets clamp around compatible trailer A-frame rails to mount the trailer-side sway balls without drilling the frame.
- Fits 4" to 8" Tall Trailer Frames: The bracket kit is designed to fit 4", 5", 6", & 8" tall frame rails. The hardware provided is designed for 2"-thick frame rails; thicker frame rails will require longer 3/8" carriage bolts.
- Durable Materials: The friction arm is steel and has a black finish. Clamp plates are 6061-T6 aluminum with a textured matte-black powder coat and stainless steel hardware.
- Compatible Hitch Required: Works with a suitable hitch or ball mount equipped with sway-control tabs, including compatible Shocker sway control hitches and weight-distribution hitch setups. Hitch and ball mount are sold separately.

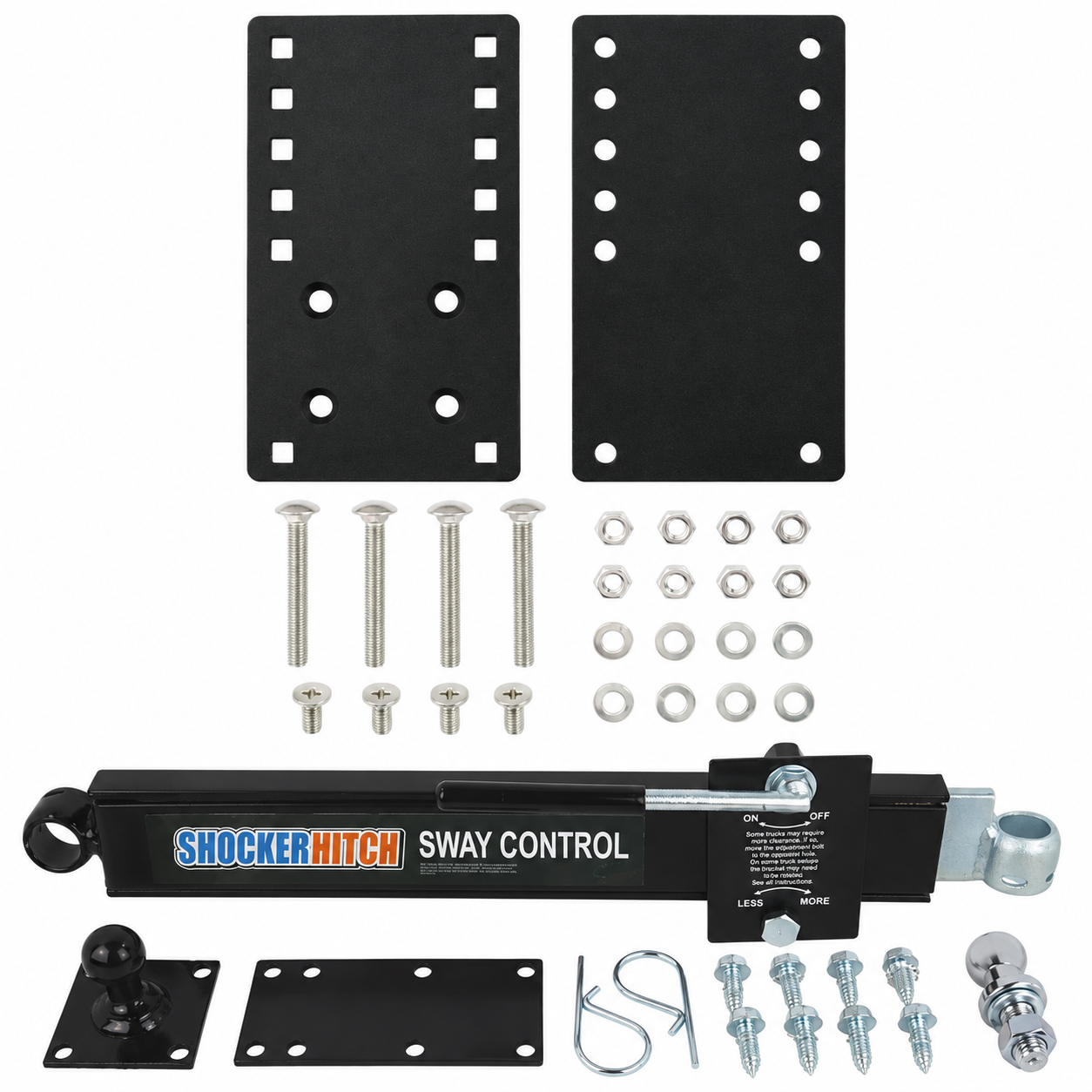

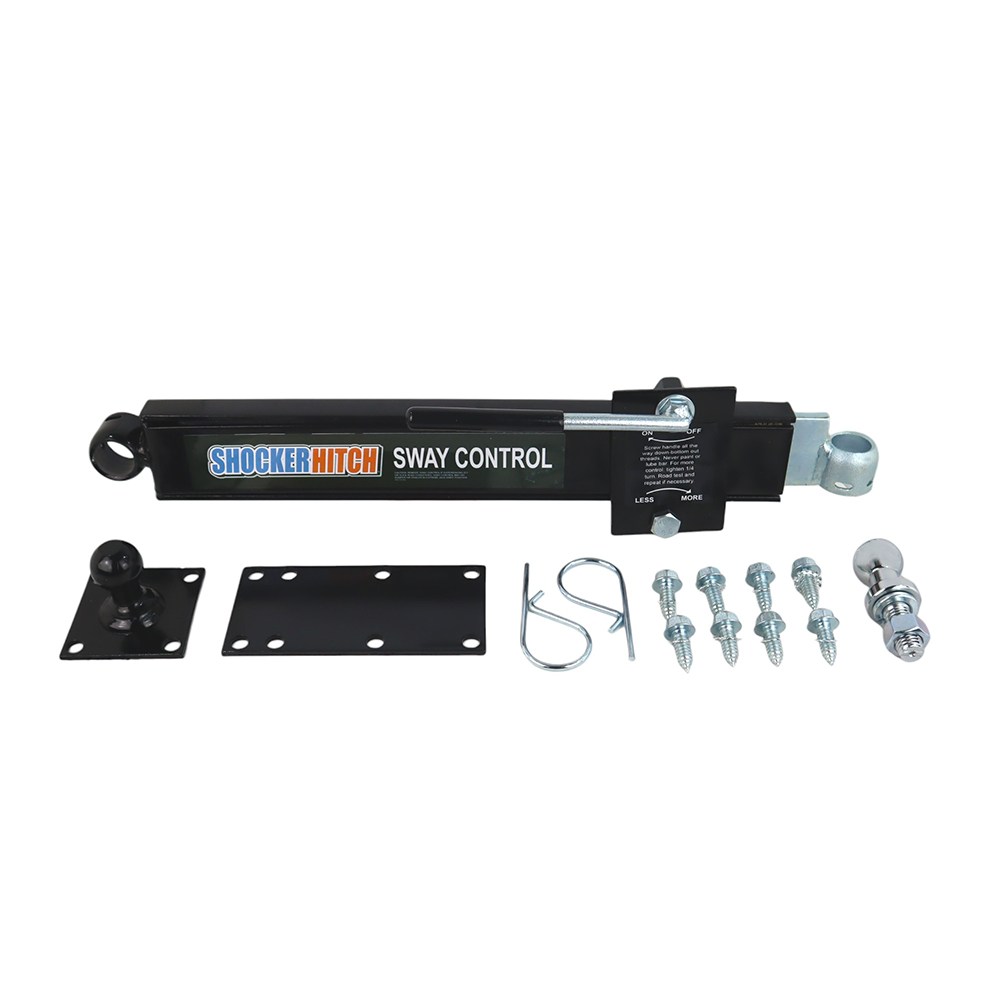

- What Is Included – Single-Arm Kit: One adjustable friction sway arm; one 1-1/4-inch trailer-mounted sway ball; one 1-1/4-inch hitch-mounted sway ball with lock washer and nut; two retaining clips; four metal lag screws supplied with the arm kit; and one no drill clamp kit containing two aluminum plates, four carriage bolts with split lock washers and nuts, four 3/8-inch x 3/4-inch stainless steel countersunk bolts with lock washers and nuts, and one 7/32-inch hex wrench. The included clamp plates and hardware provide the no-drill frame mounting.

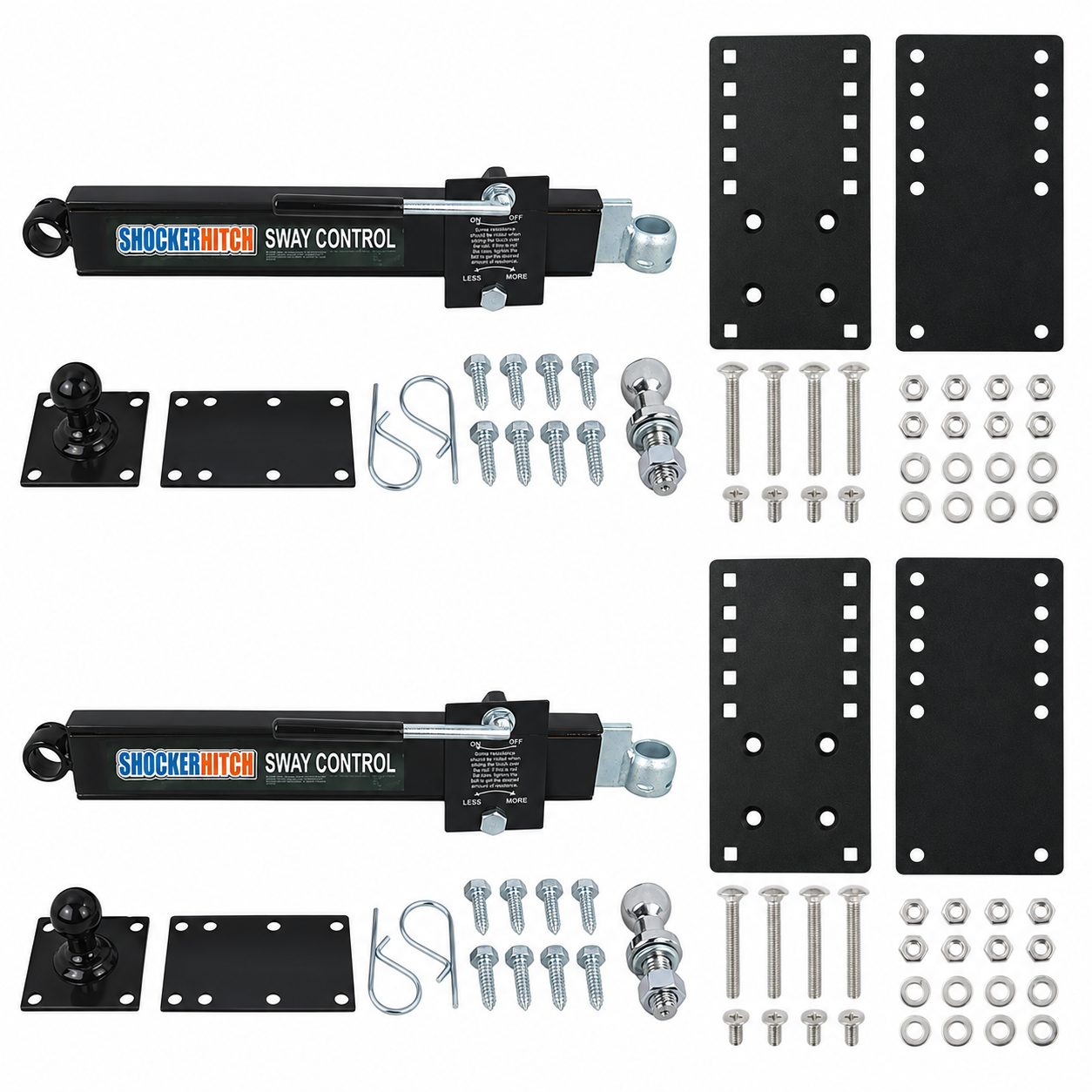

- What Is Included – Two-Arm Kit: Two adjustable friction sway arm; two 1-1/4-inch trailer-mounted sway ball; two 1-1/4-inch hitch-mounted sway ball with lock washer and nut; four retaining clips; eight metal lag screws supplied with the arm kit; and two no drill clamp kit containing four aluminum plates, eight carriage bolts with split lock washers and nuts, eight 3/8-inch x 3/4-inch stainless steel countersunk bolts with lock washers and nuts, and two 7/32-inch hex wrench. The included clamp plates and hardware provide the no-drill frame mounting.
FAQ
- Does the Trailer Frame Need Drilling? No. The included SH-7010 brackets clamp around compatible frame rails.
- Is a Hitch Included? No. A compatible hitch or ball mount with sway-control tabs is required and sold separately.
- What if I have an Airstream Trailer: For Airstream trailers or trailers with front propane-tank interference, review the SH-7015 Airstream bracket option for fit before ordering.
Towing Guides

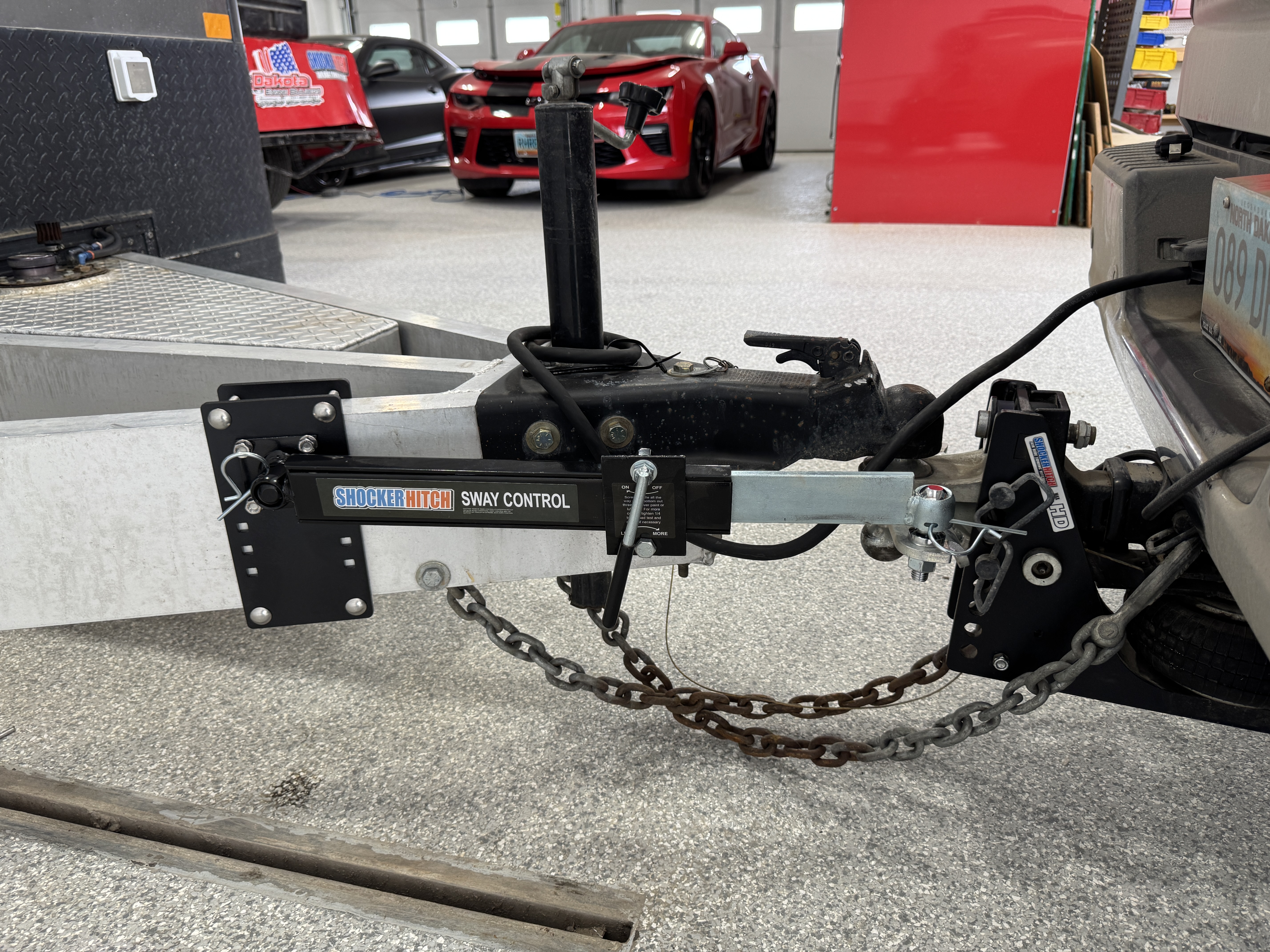

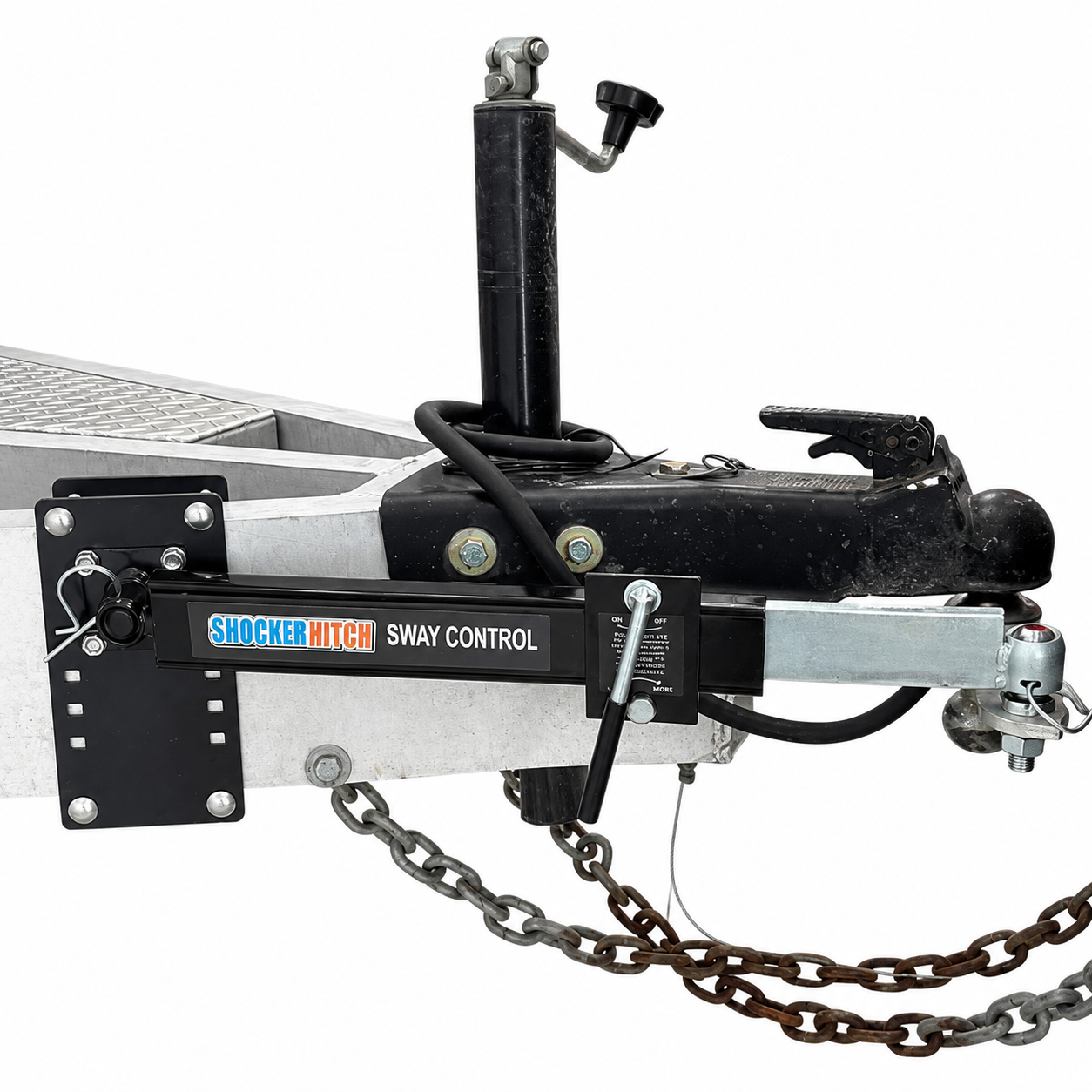

Help reduce trailer sway with the Shocker Deluxe Clamp-on Sway Control Friction Arm Bar & Ball Kit. This Deluxe kit combines the friction sway control arm and ball kit with the clamp-on trailer frame bracket kit for adjustable friction sway control and no-drill trailer-frame mounting. Whether you tow a camping trailer, enclosed cargo trailer, race trailer, or toy hauler, the friction arm helps resist sway caused by wind, passing vehicles, and uneven roads. Adjust the arm to fine-tune resistance for your towing conditions, following the supplied instructions.

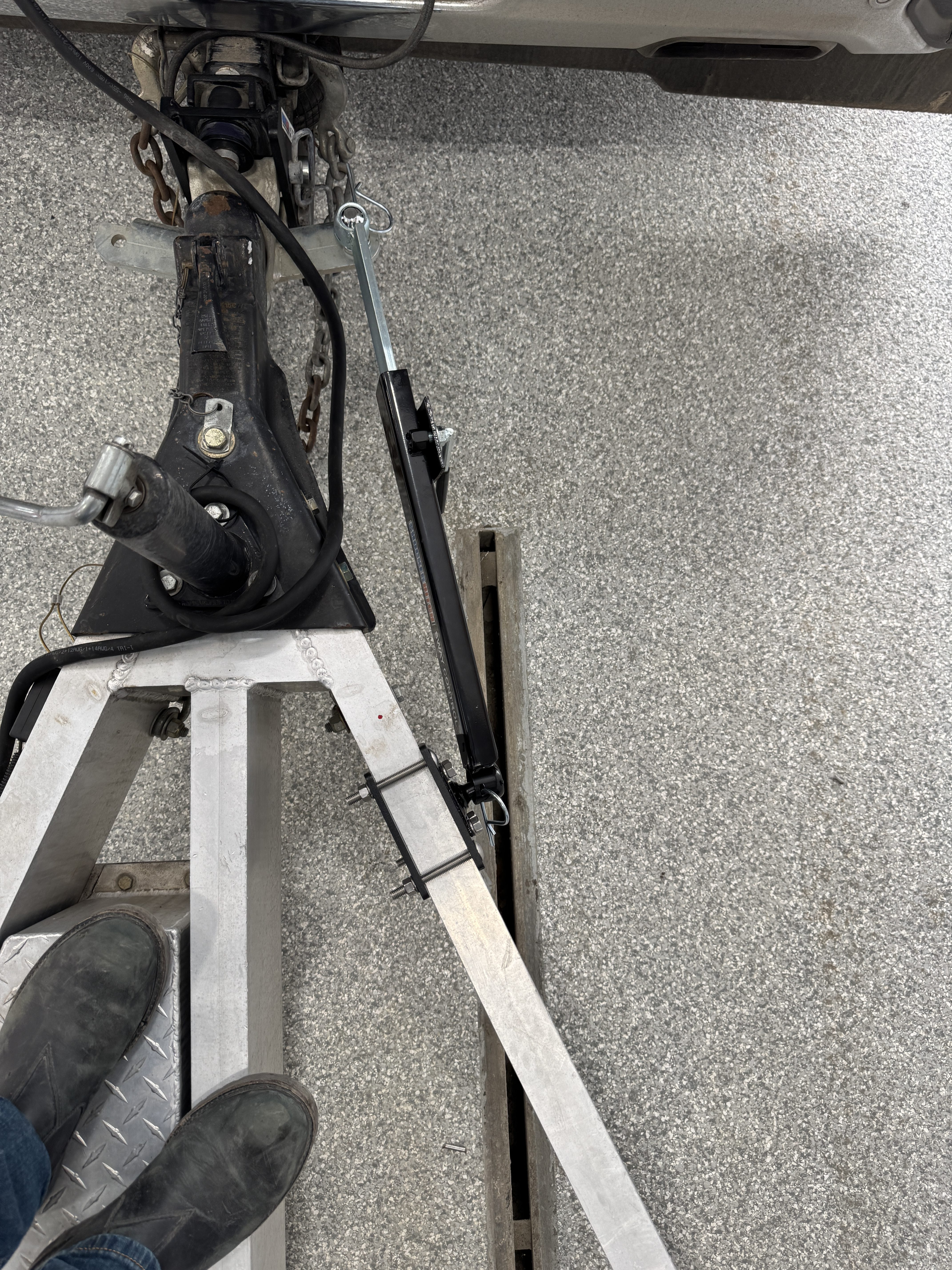

Great for aluminum trailers and other compatible trailer frames, the two flat clamp plates sandwich the A-frame rail so you can mount the trailer-side 1-1/4-inch sway ball without drilling the frame. The brackets fit 4, 5, 6, and 8-inch-tall frame rails. Supplied hardware fits 2-inch-thick rails; thicker rails require longer 3/8-inch carriage bolts. The 6061-T6 aluminum plates have a textured matte-black powder coat, and the mounting hardware is stainless steel. For Airstream trailers or trailers with front propane-tank interference, review the Airstream bracket option for fit before ordering.

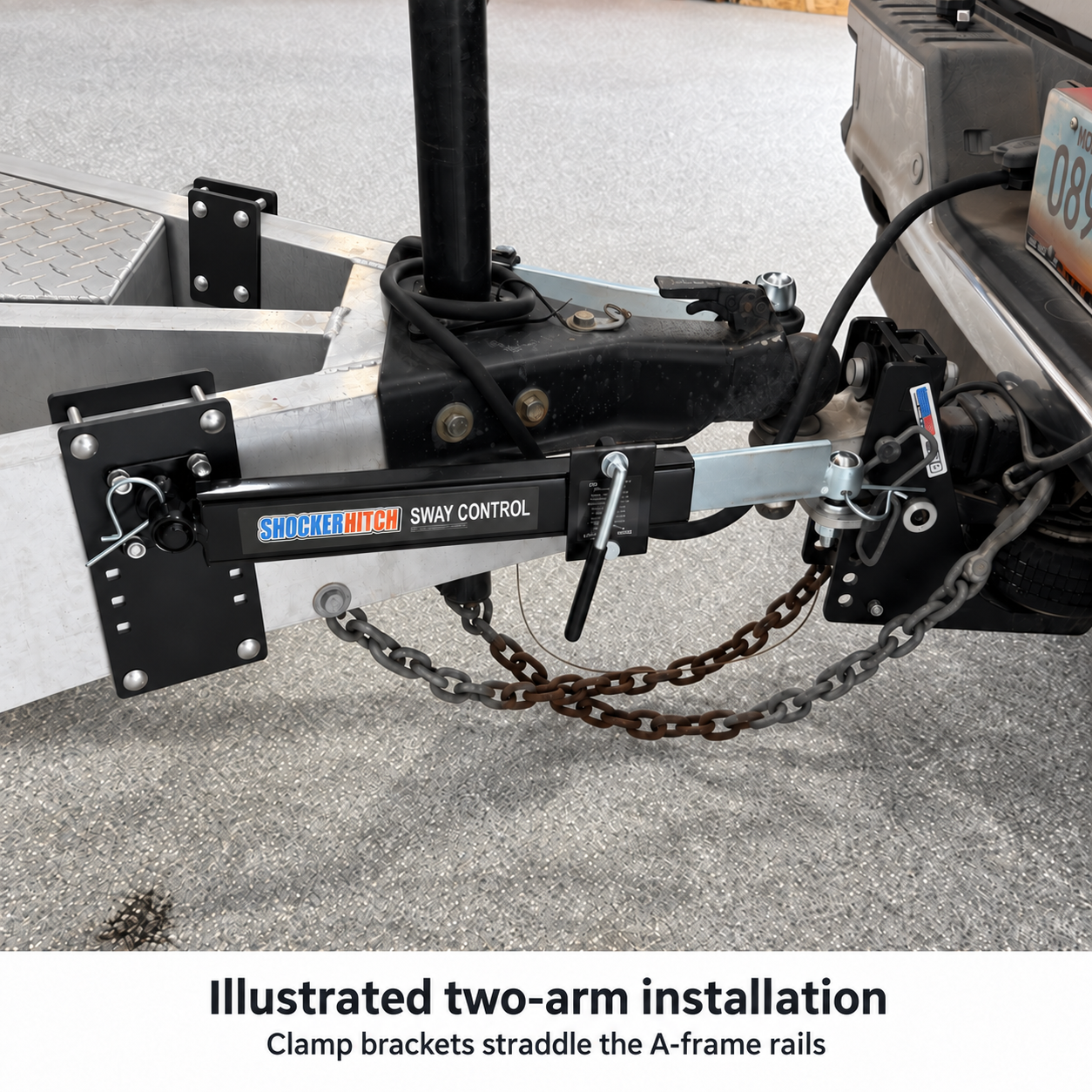

Choose between a single-arm kit that includes one arm and ball kit and one no-drill clamp kit that is great for trailers under 10,000 lbs, or the two-arm kit with two of each and this kit is perfect for trailers over 10,000 lbs. A single arm can be installed on either outside A-frame rail. The two-arm kit mounts one assembly on each side, with each clamp surrounding its rail and each friction arm running along the outside. The friction arm connects the trailer-side sway ball to a compatible hitch or ball mount with sway-control tabs. This kit works with compatible Shocker sway control hitches and weight distribution hitches. The hitch or ball mount with sway-control tabs is sold separately.
