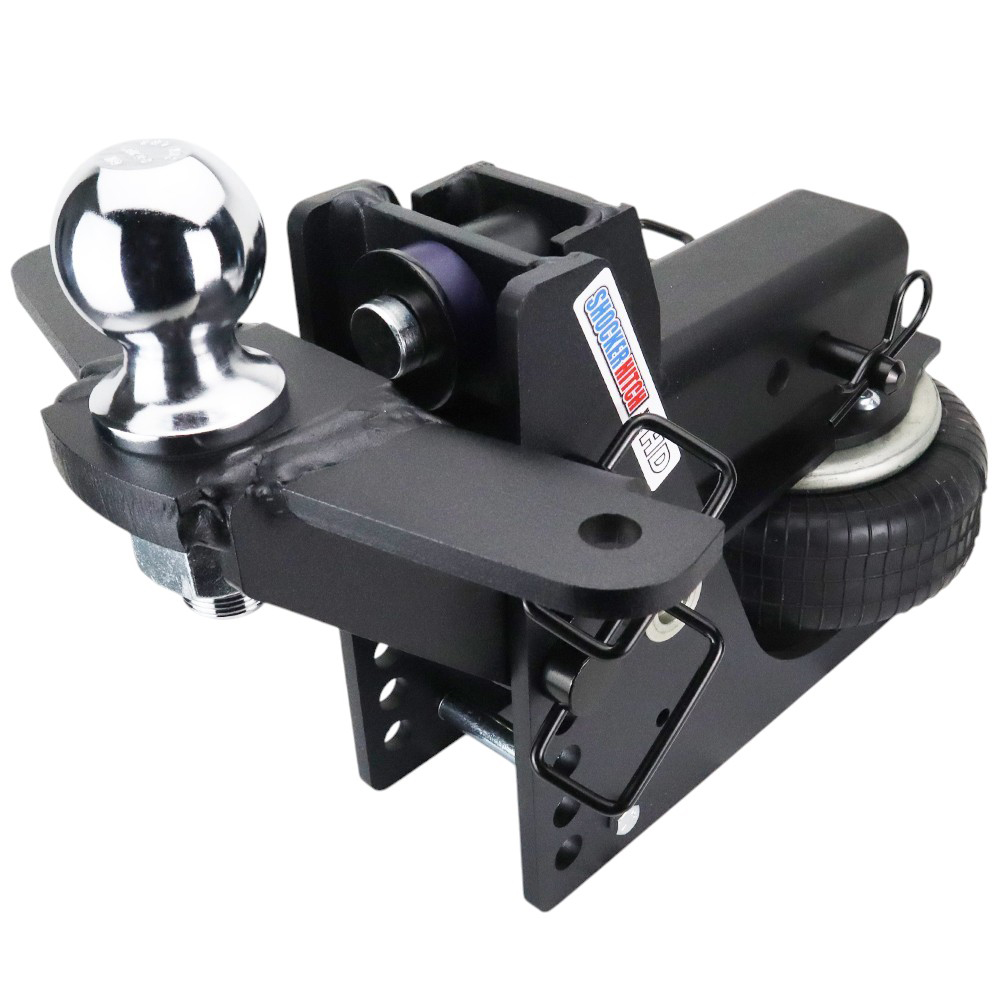

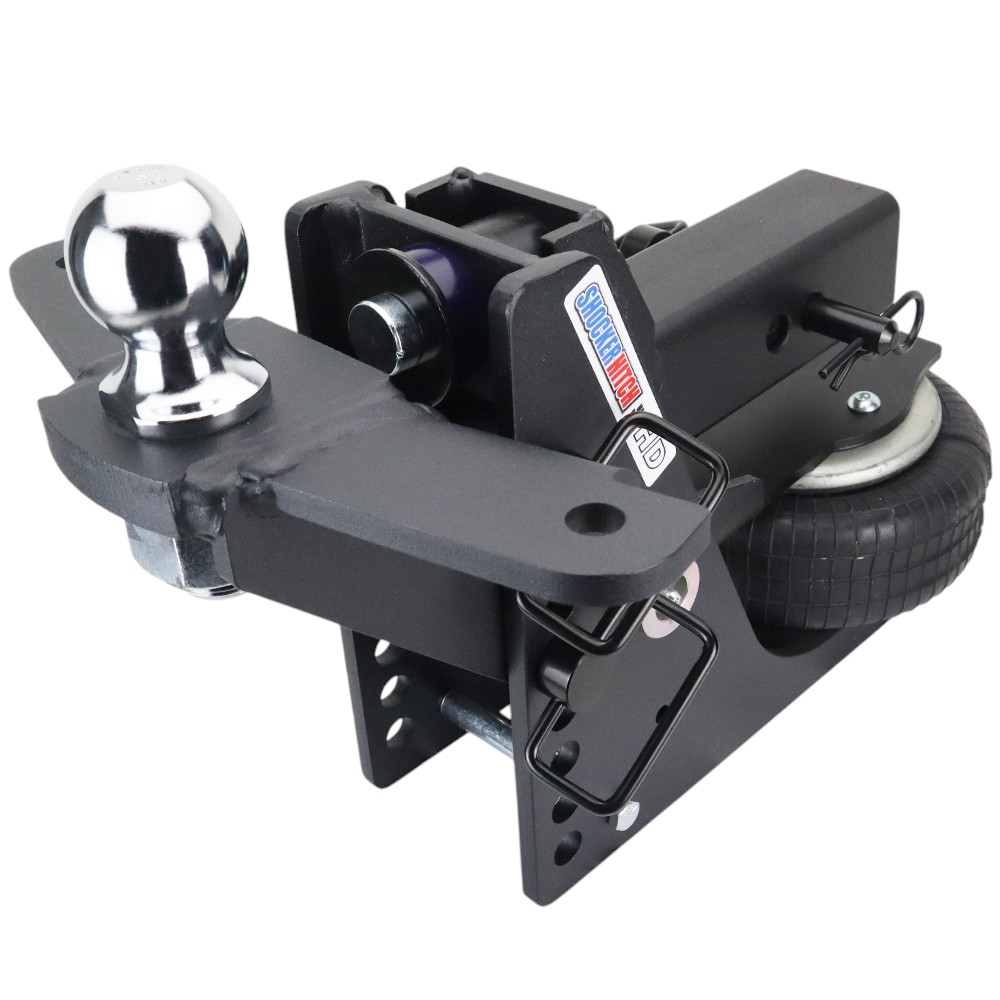

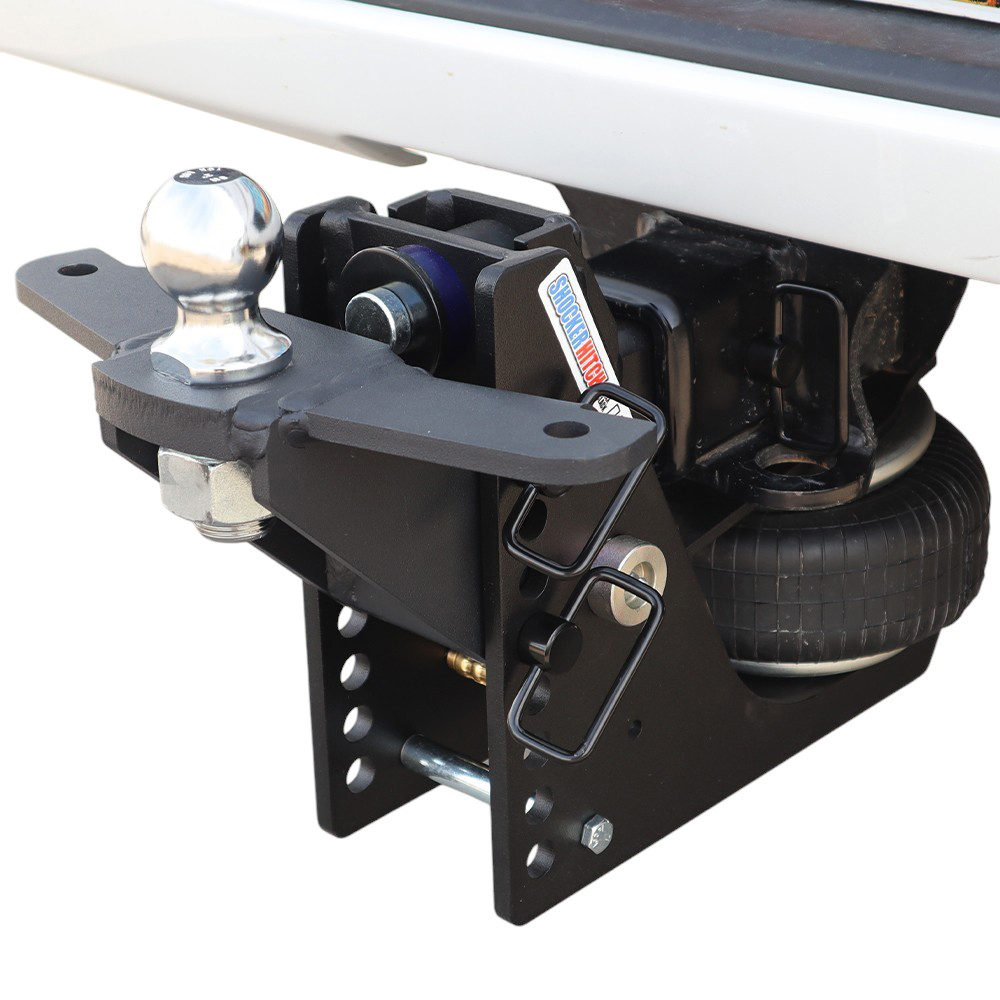

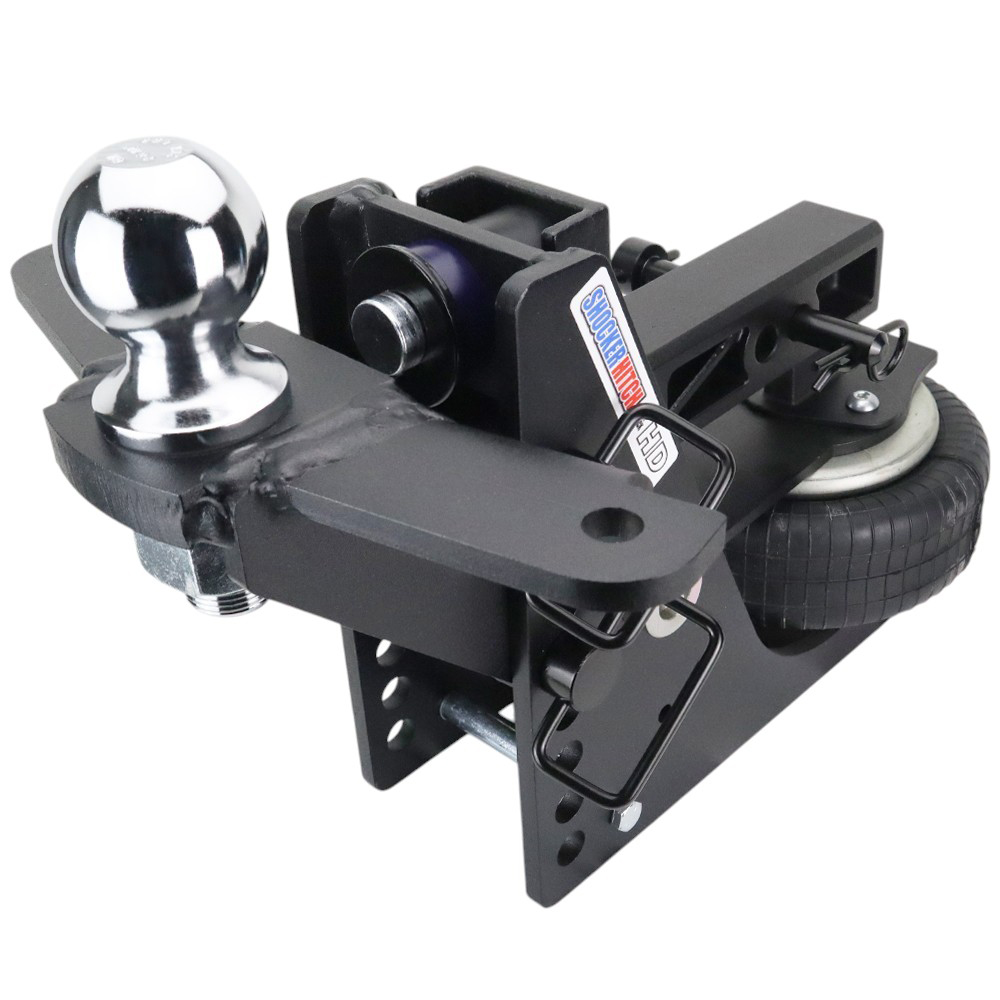

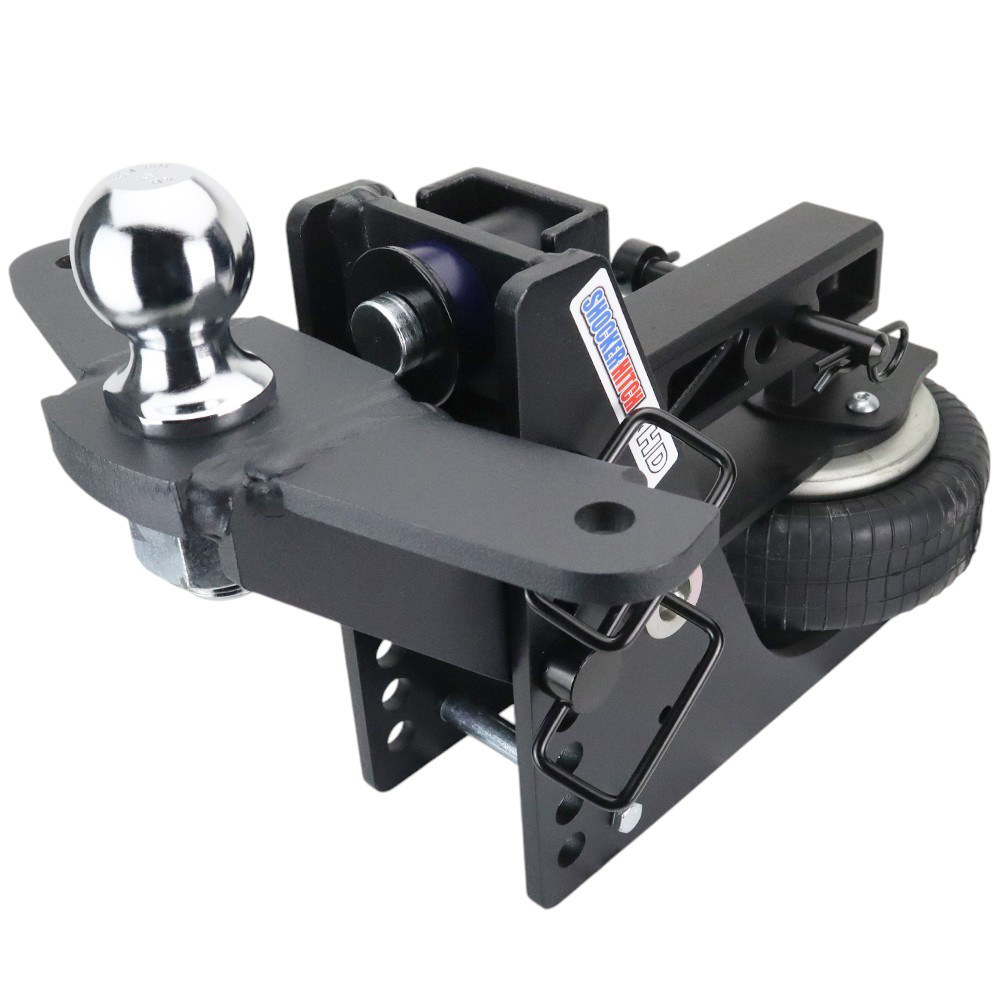

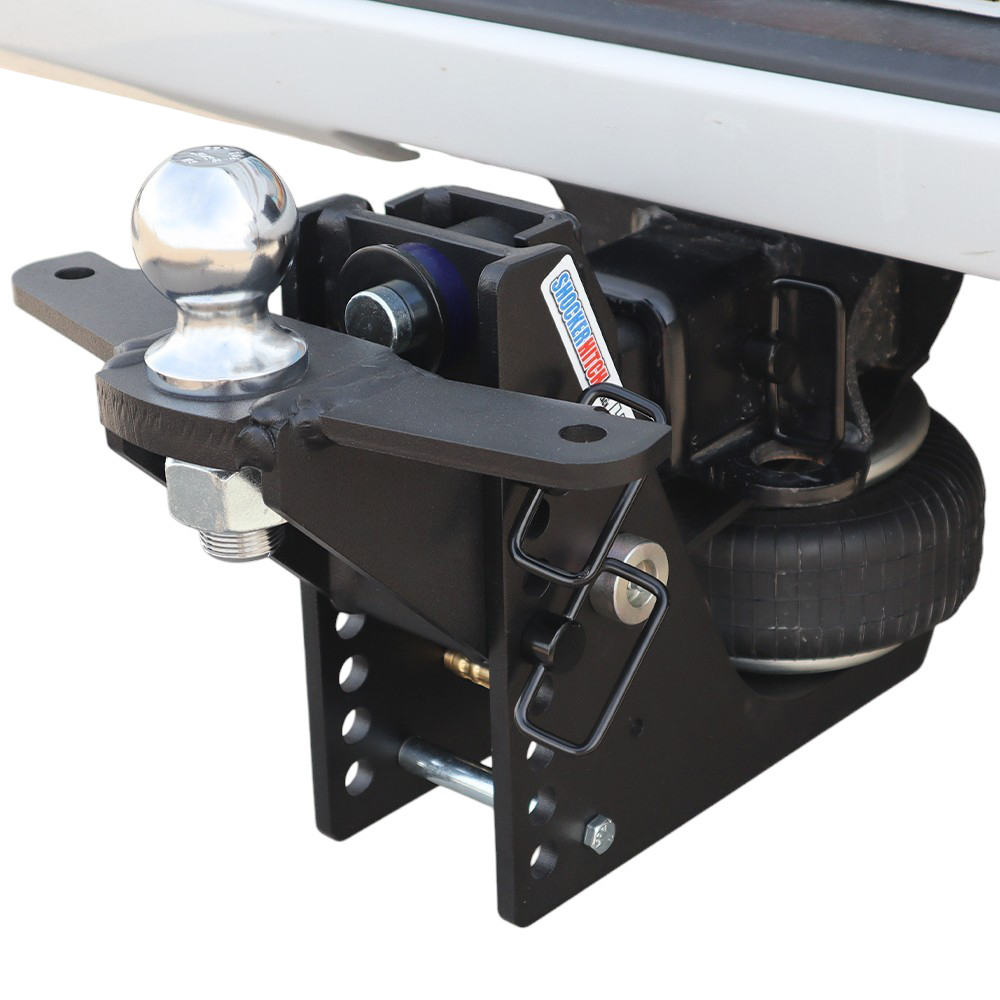

Shocker HD Max Black Air Hitch & Sway Control Raised Ball Mount (+2″ of Rise to 2″ of Drop)

Select Option:

Clear

Product Information:

List Price: $819.99$869.99Sale Price: $769.99$819.99Free Ground Shipping*

Reviews
Rated 0 out of 5
SKU: SH-HD-MB-SR
Series: ,

-

Product Description

  • Smoother Safer Towing: Air ride towing technology with a heavy duty built in air spring to cushion the ride & absorb the road shock. The air bag sits under receiver tube. Adjust the air pressure for the best ride and load control.
  • Built in Airbag: Instant air ride towing for your pickup & trailer. Absorbs road shock, creates smooth ride & reduces tendency to trailer sway. Dual rubber bump cushions also offer additional HD performance.
  • Sway Tab Design: Raised ball mount with welded on sway control tabs for mounting sway control arm bar(s) & mini balls such as the Shocker 17200 Friction Bar Sway Control Kit, which is not included and available separately. Suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs. Great for camper towing with sway issues.
  • 8 Adjustment Holes & Raised Ball Mount: Raised mount with sway bar tabs for 2″ rise to 2″ of drop, choose 2″ or 2-5/16″ hitch ball.

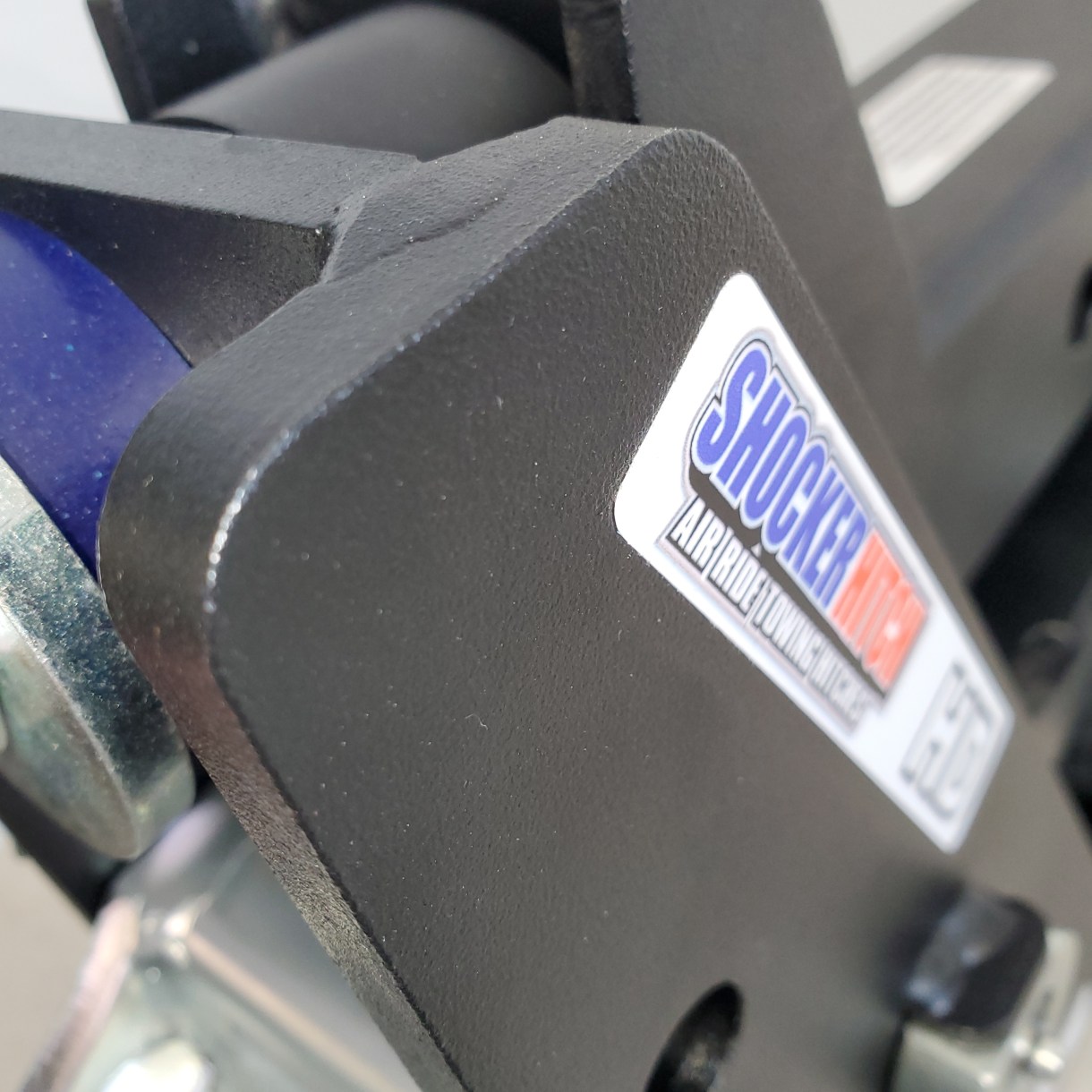

  • Textured Matte Black Finish: Impact Resistant Premium Powder-Coat Finish on Base Frame.
  • 20,000 lbs Heavy Duty Capacity: 20,000 lbs towing capacity and a 2,000 lbs tongue weight.
  • Adjustable for Weight: Fine tune for your towing weight. Just add air for heavier loads.
  • 2 Hole Receiver Shank: Available for 2″, 2 1/2″ & 3″ receiver hitch tubes with Two hitch pin holes for length adjustability.
  • Choose Your Receiver Size: Available for 2″, 2-1/2″ and 3″ receiver hitches.
  • Great for Pickups: Fits Great for Full Size Pickup Trucks & Vans, Midsize Pickups & Select SUVS (with receiver under bumper). Popular installs include GMC Sierra, Chevy Silverado, Chevy Colorado, GMC Canyon, Dodge Ram, Ford Ranger, Maverick F150, F250, F350, F450, F550 Superduty, Toyota Tundra, Tacoma, Nissan Titan, Frontier, Honda Ridgeline & Hyundai Santa Cruz.
  • Comes complete with Shocker HD air base frame assembly with built in HD airbag, adjustable raised ball mount (2″ or 2-5/16″ ball) with sway bar tabs, two d-handle ball mount pins.
  • Note: The raised hitch sway control tab mount is designed to work with the Shocker 17200 or Reese 83660 friction sway control kit, which are not included and are available separately. Suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs.
  • 10+ Ball Mount Options (Sold Separately): Huge selection of ball mount adapters available from Pintle hooks, draw bars, drawbar, clevis, drop ball mounts, comb ball mounts and more.
  • Safety Notice: The Shocker Hitch is a heavy-duty unit that in most cases exceeds factory towing weight capacities, therefore it is imperative that you always read and follow the tongue and towing weight recommendations of the truck that is mounted on, the trailer coupler rating and the ratings of the trailer you are towing. Manufactured by Shocker Hitch® USA in Arthur, ND. 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
  • NOTE: This product will NOT work with a weight-distribution hitch system, if you have a w-d hitch, check out our Shocker Air Equalizer for WD Hitches.
  • What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube?  Measure inside to inside. Check out our guide on How to measure receiver your hitch tube size.
  • How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.
  • NOTE: This product will not work with a weight-distribution hitch system, if you have a w-d hitch, check out our Shocker Hitch Air Equalizer.

This Shocker HD Max Black Air Receiver Hitch with a sway control raised ball mount features 8 adjustment holes for 2″ of rise to 2″ Drop. The raised hitch option was designed for pulling campers with higher trailer tongues or lower than stock trucks. To help eliminate any of the unwanted sway issues this mount has welded sway bar tabs that work with the Shocker 17200 or Reese 83660 friction sway control kit as well as many others.  The impact-resistant textured matte black finish looks great and the Heavy duty air suspension hitch is rated for 20,000 lbs trailer tow rating capacity and 2,000 lbs tongue weight. Shocker HD air provides the ultimate smooth ride. The Shocker HD Air is a miniature air suspension unit mounted between your pickup truck and trailer. Built in heavy-duty airbag directs road shock, bumpers and bangs through air bag, cushioning the towing and makes your towing experience smoother for you, your truck, trailer and its’ contents.  This Heavy-duty shock absorbing trailer hitch mounts by sliding into a standard receiver tube. This shock absorbing hitch is a must have for smoother trailer towing. The included raised ball mount is black powdered coated with a bolted on chrome hitch ball for maximum strength.  Great for pickup trucks, vans and select Motorhomes & SUV’s where the receiver hitch tube is under the bumper.  Manufactured by Shocker Hitch® USA in Arthur, ND

The 20k HD air bag sits under the receiver tube allowing a short distance of 10-inches between mounting pin and ball center. You will find the advantage of the HD Air Shocker is your ability to adjust air pressure for best ride and load control. Plus the drop range is great for stock pickup trucks. Fits standard 2″, 2-1-/2″ & 3″ receivers.

Improves Safety: By giving you improved control of your tow vehicle and trailer. The air bag receiver hitch system allows for better control of your pickup and the trailer it is towing and reduces that tendency of trailer sway. If sway is a real issue your you, check out our sway control hitches.

Heavy Duty Air Ride Towing: Shocker Air is designed with a built-in air bag for a smoother towing experience. Featuring a built in height adjustment plus weight adjustable. Just add or ride air depending on the weight of your trailer and it’s contents.

Simple Pivot Design: uses a rocker arm pivot design which produces a down and back motion, much different than other air hitches on the market. Our design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple air bags common to other air hitches.

Shock Dampening Action: Shocker air hitch effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and your receiver hitch.

Provide Comfort: With a smoother ride! Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps and bumps.

Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker hitch absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.

Adds Life To Your Vehicle: By reducing wear and tear on driveline and frame! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations. Join the list of satisfied customers that are using Shocker hitches. Order one today and get ready for your ultimate smooth towing experience the next time out.

California Residents: Prop 65 Warning



Video

Shocker HD Max Black Air Hitch Videos

Shocker HD Installation

Shocker Air Hitch & Sway Control Towing Kit Video

Shocker HD Hitches vs Shocker Original Air Hitch

Setting the Shocker HD Air Bag Pressure



Install

Shocker HD Air Hitch Ball Mount Installation Instructions

The Shocker HD Air Hitch ball mount is easy to install.  It comes complete with easy-to-understand instructions along with everything you need.  You can download the installation instructions or view the video below.

Shocker Air Installation: First you must compress the air bag. Do this by depressing the air valve and pushing down on air bag.
Once the bag has been compressed, you can install the unit into the receiver tube. Next install hitch pin.

Shocker HD Air Hitch Install Video

To Set Air: Hook up trailer using properly selected ball adaptor and height adjustment in order to a level trailer when loaded. Next, inflate the air bag. As air pressure increases, the unit will rotate lifting the hitch point. Install enough air to slightly compress top bushing or until bump stop clearance is approximately 1/8″.

Shocker HD Air Hitch PSI Air Pressure Setting Guide Video

Additional Set Up Notes:

  • When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
  • Spacer block included and may be required when using 2″ shank (see install manual below)
  • It is highly recommended that the hitch ball be greased to reduce wear and improve shocker action.
  • DO NOT TIGHTEN THE TOP BOLT, IT IS A LIMITER STOP ONLY.

Maximum Air Pressure: Do not exceed 100 psi in the air bag, as it may damage the air bag.

Shocker HD Air Receiver Hitch Install Instructions

Shocker 20K HD Air Hitch Diagram
Shocker 20K HD Air Hitch Diagram


Note: Always use a good hitch ball with the proper recommended tow weight.

Warranty

This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.

FAQ

Answers to Frequently Asked Questions

How much air do I put in the Shocker Air Bumper Mount Receiver Hitch?
With your trailer hooked up to the tow vehicle, and loads positioned for transport, air up shocker until main frame rotates and lightly compresses top bushing (about 1/8″ of squeeze or pinch in the bushing). See our quick How To Set PSI in Shocker Bumper Hitch Video.

Will the Shocker Air Bumper Hitch work with Equalizer or Weight-Distribution?  If you are just use sway bars that hook to a mini ball, then yes, if you order the combo sway control ball mount attachment. If you have a equalizer or weight distribution hitch then it will not. However, check out our Air Equalizer for weight distribution hitches.  Note: If your pickup suspension can handle the weight of your trailer and doesn’t “squat” when you hook up your trailer to pickup, then you really don’t need a weight distribution hitch. A load leveling weight distribution hitch, distributes the weight between the pickup and trailer and is generally used if your pickup can’t handle the static trailer tongue weight load.

How long will it hold air? This is a sealed system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

How long will the airbag last? Our airbags are an industrial bag and will last for years and years. They are similar to truck airbags but have been beefed up internally for our towing applications.

How strong is the center pivot bolt?  The main pivot bolt with grease zerk, or center pivot bolt, used on the shocker air bumper hitch, is a custom made 1 inch diameter 1045 medium carbon steel bolt. Strategically heat treated to prevent wear and includes a machined grease passage for easy lubrication and maintenance. It should be noted that the yield strength of the 1″ pivot bolt exceeds the two 5/8″ bolts used to hold the typical ball coupler or receiver hitch.

How do I know the Shocker Air receiver hitch will fit my truck?
We have made sure that the receiver air shocker will fit into most Ford, Chevy, GMC Dodge, Toyota, Nissan & Honda Pickups, Vans & SUV’s (SUV’s were the receiver is under the bumper). There are some clearance issues with the Chevy Envoy, Ford Explorer, some imports and service body vehicles where the body extends below the receiver tube or the receiver tube is inside the bumper.  The Shocker Air receiver hitch is available in a 2″, 2 1/2″ & 3″ shank.

How far below my pickup does the receiver air shocker hang? Five inches below bottom of receiver tube.

How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

Does the receiver air hitch work with sway bars?
Yes, it works with the friction style sway control bar, however you want to order a ball mount with sway bar tabs. See our sway bar tab ball mount attachments.

How does the Air hitch work? The Receiver air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

Should I tighten up the top jam nut on the receiver shocker? No. The air shocker needs at least one half inch of play to work properly.

How long do the bump cushions last? This depends on if the hitch is left on the truck year round or not. If they bump cushions become mushy, you should replace them. Typical life expectancy is 5-7 years.

How much does an Shocker Air bag receiver hitch weigh? The Receiver Air Shocker weighs 50-55 pounds

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.

Reviews

Be the first to review “Shocker HD Max Black Air Hitch & Sway Control Raised Ball Mount (+2″ of Rise to 2″ of Drop)”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 53 lbs
Dimensions 15 × 8 × 14 in
Select Receiver Hitch & Ball Size

Fits 2-1/2" Hitch, Has 2-5/16" Ball, Fits 2-1/2" Hitch, Has 2" Ball, Fits 2" Hitch, Has 2-5/16" Ball, Fits 2" Hitch, Has 2" Ball, Fits 3" Hitch, Has 2-5/16" Ball, Fits 3" Hitch, Has 2" Ball
