Product Description
- Custom Fit for Mini Shocker: Designed and works for Mini Shocker Cushion Hitch.
- 1-7/8″, 2″ or No Ball Option: Choose a mount with 1-7/8″,2″ ball or with no hitch ball. Up to 3,500 lbs GTW.
- 2-1/2″ Wide Mount Attachment: Fits 3″ wide OD hitch with 2.63″ wide ID channel with a 1″ on-center hole pattern for 5/8″ pin for mini Shocker cushion hitches.
- 1″ Diameter Ball Shank Hole: 1″ hole to mount hitch ball.
- Powder-Coated Steel: Constructed of heavy-duty steel that is black powder coated.

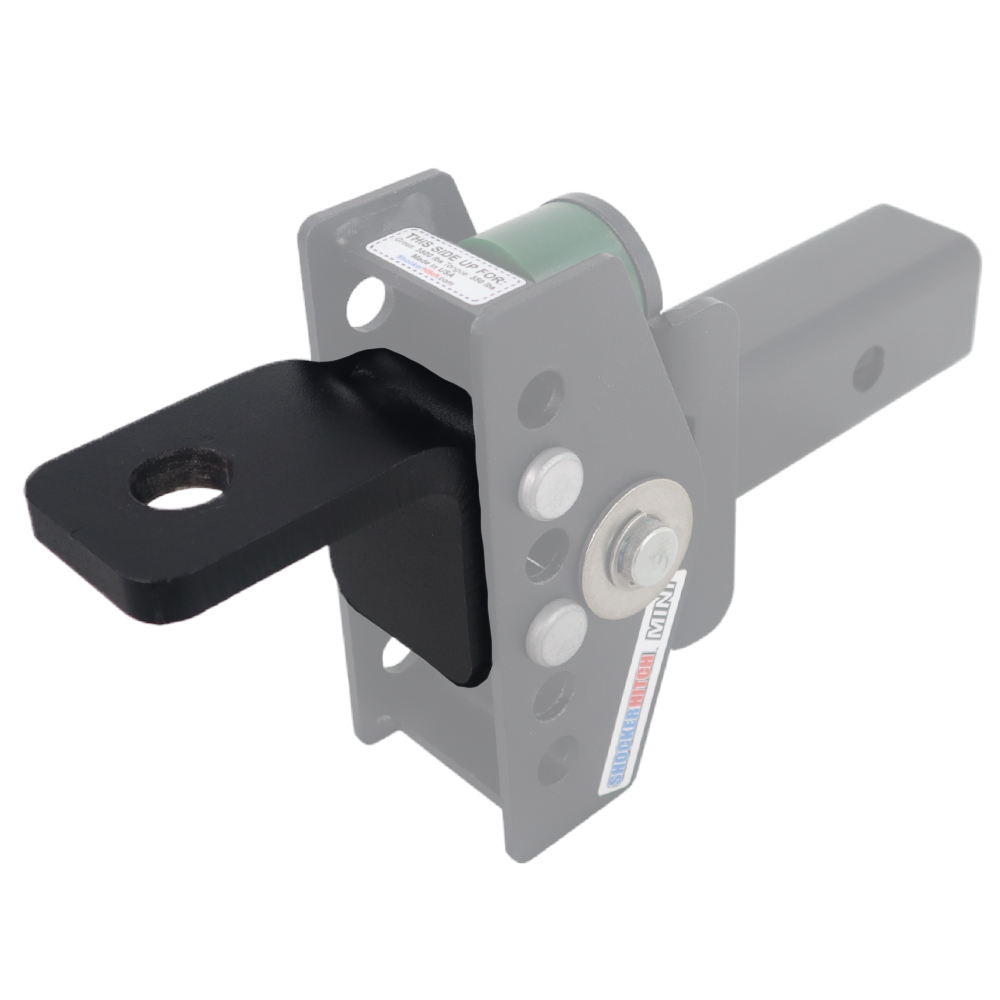

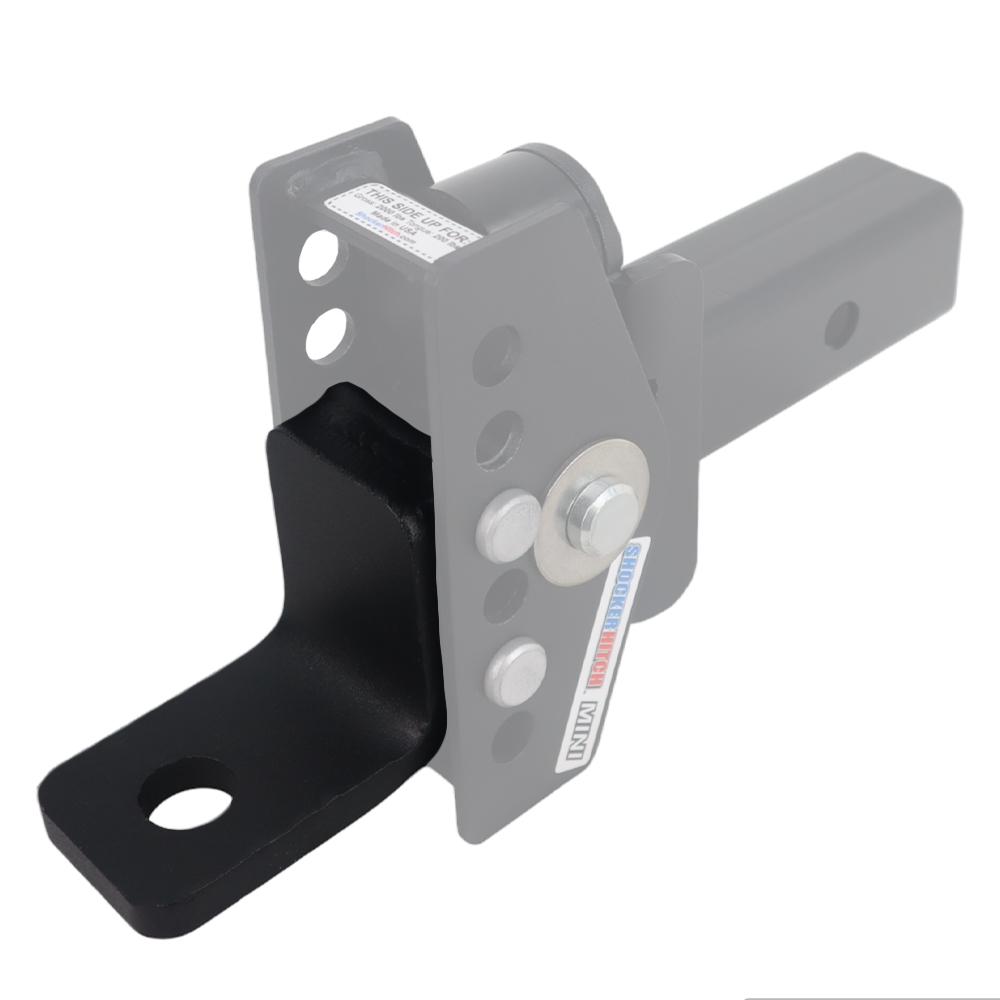

The Shocker Mini Ball Mount attachment is available with a 1-7/8″ ball, 2″ hitch ball, or no hitch ball. This ball mount attachment features a 1-1/4″ hole for the hitch ball to mount through and is custom-designed to fit the Mini Shocker Cushion hitch. Fits Mini Shocker Cushion Hitches with a 2.63″ Wide ID channel and a 1″ on-center hole pattern. The Mount attachment is constructed out of heavy-duty steel and is black powder-coated; the balls are made from high-strength steel and are nickel-chrome plated for a premium finish. This mount attachment fits and only works with the Mini Shocker Cushion Hitch. Made in the USA, Jamestown, ND.
Mini hitch setup and capacity
This replacement ball mount does not increase the rating of the Mini hitch. Use the cushion orientation and capacity below for the complete Mini hitch.
Check the cushion position before towing. GTW means gross trailer weight; TW means tongue weight.
- Orange 80A on top; green 90A on the bottom: maximum 3,500 lb GTW / 350 lb TW. The load rests on the green cushion.
- Green 90A on top; orange 80A on the bottom: maximum 2,000 lb GTW / 200 lb TW. The load rests on the orange cushion.
Note: Towing capacity is limited by the lowest rated component.
View Installation Instructions (PDF, new tab)
