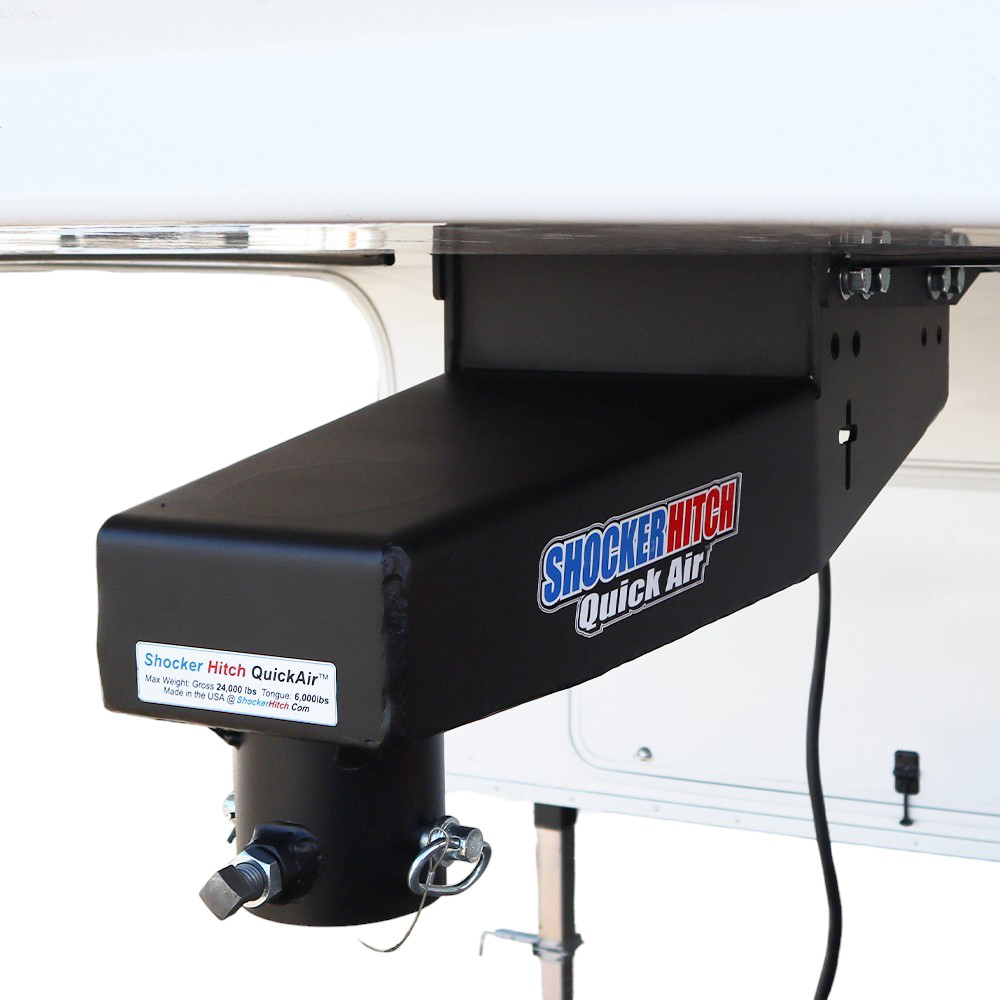

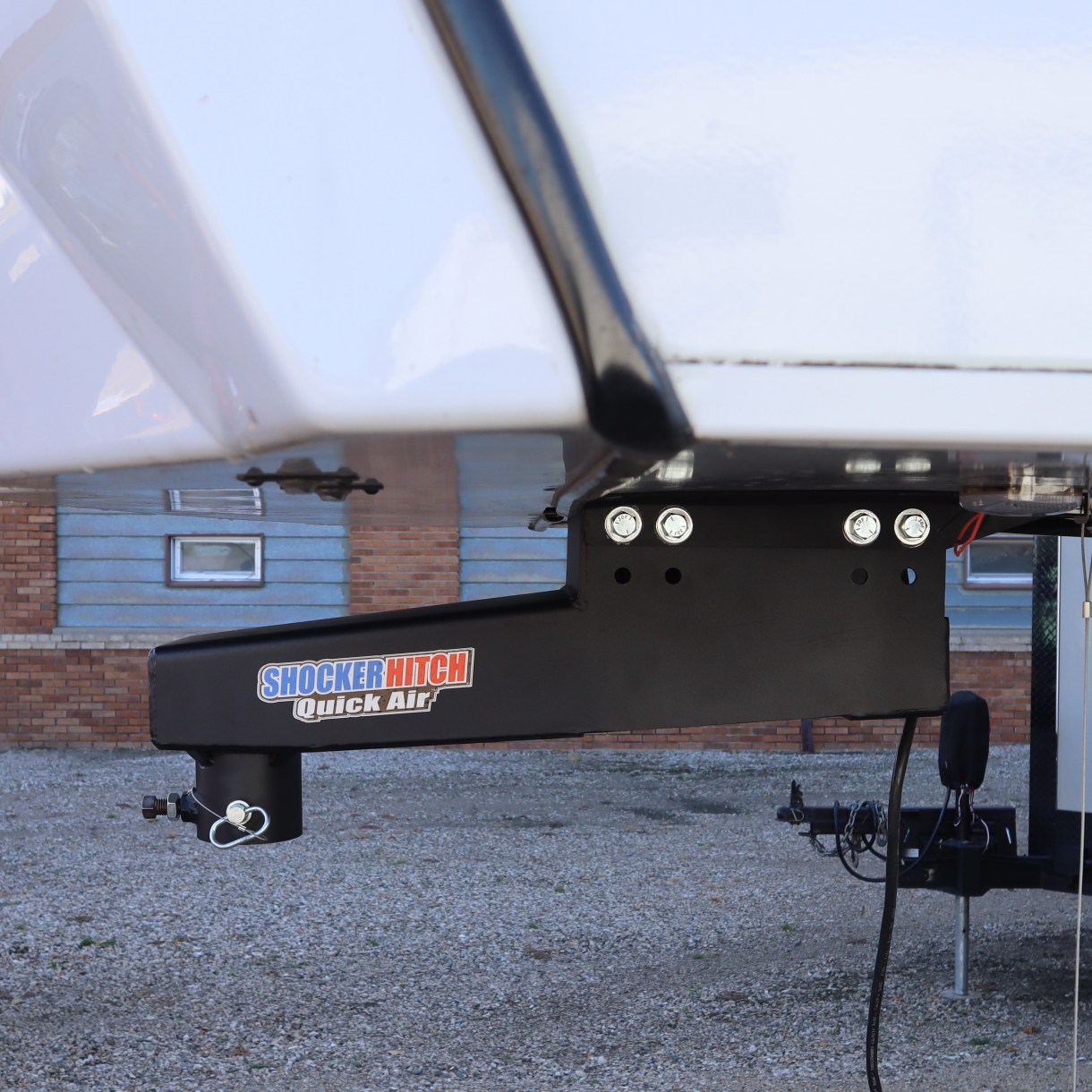

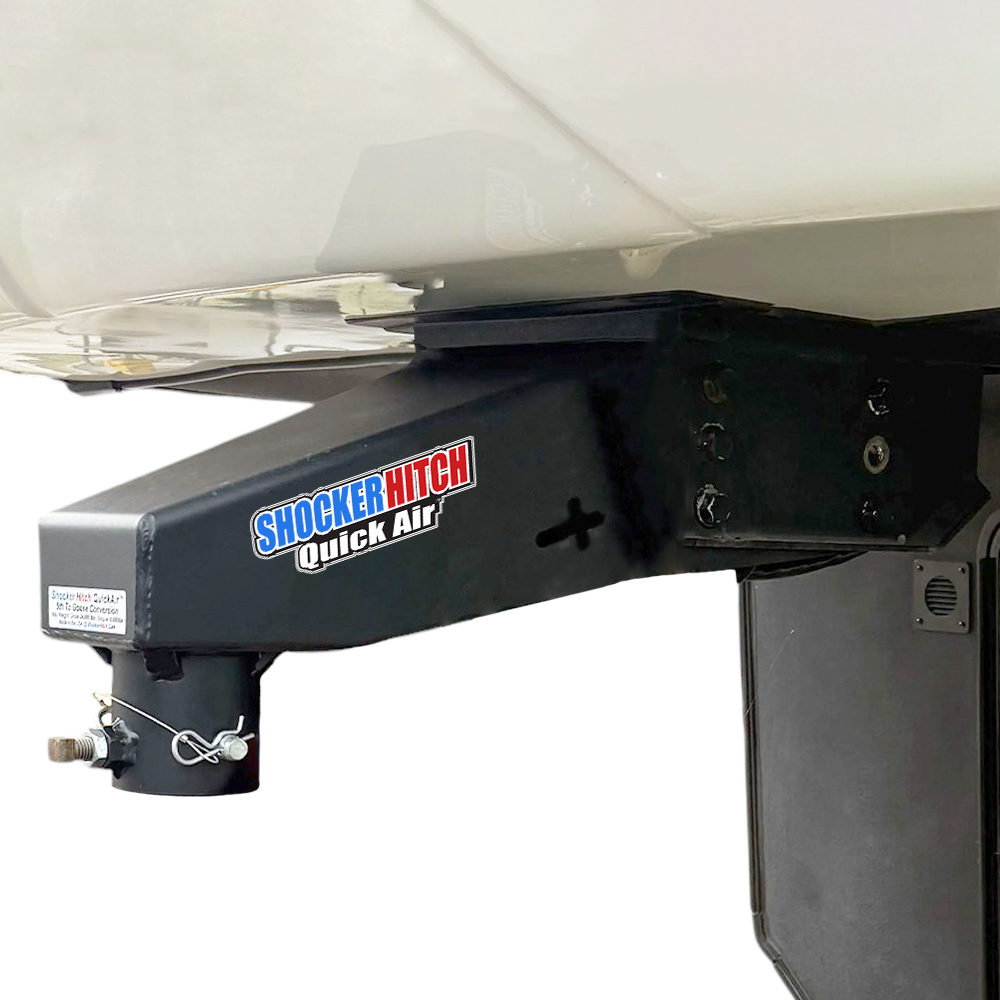

5th Wheel to Gooseneck Box Only: Replacement Goose Box for 5th Wheel Campers (used to convert to gooseneck hitch & coupler).
Up to 24,000 lbs Tow & 6,000 lbs tongue weight: Gooseneck pin box is designed to fit 4″ round stem gooseneck coupler.
2 Replacement Goose Box Option to Choose From: Choose Lippert 1621, 0719 or Rhino Box, as well as the Lippert 1716, 1116, 0115, FabEx 500, 503, 520, 530, 560.
Easy Install: Completely replaces your factory 5th wheel box with a goose box on your 5th wheel camper trailer. Then then Shocker Air QuickAir Gooseneck air hitch & coupler installs into it (gooseneck air hitch sold separately).
Heavy-Duty: Made with Heavy Duty powder coated steel for years and years of on the road performance.
Includes complete Replacement Goose box along with mounting hardware.

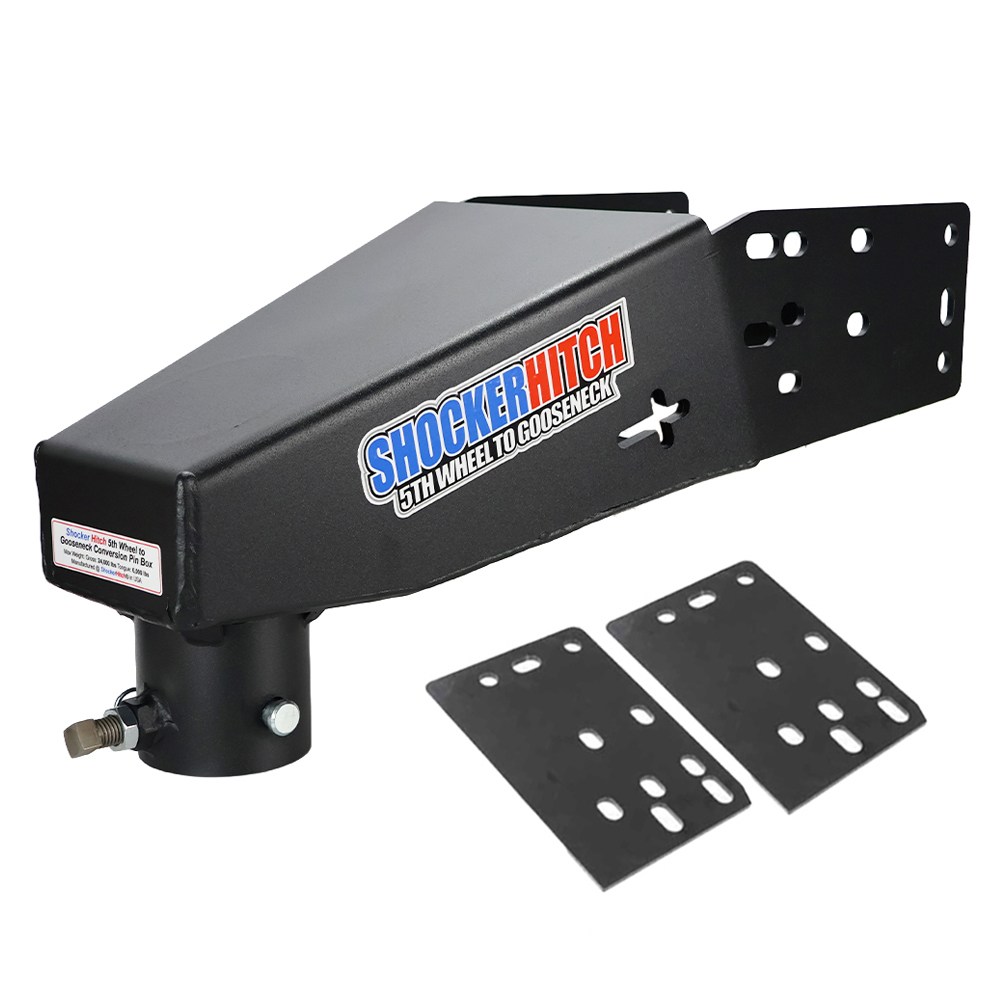

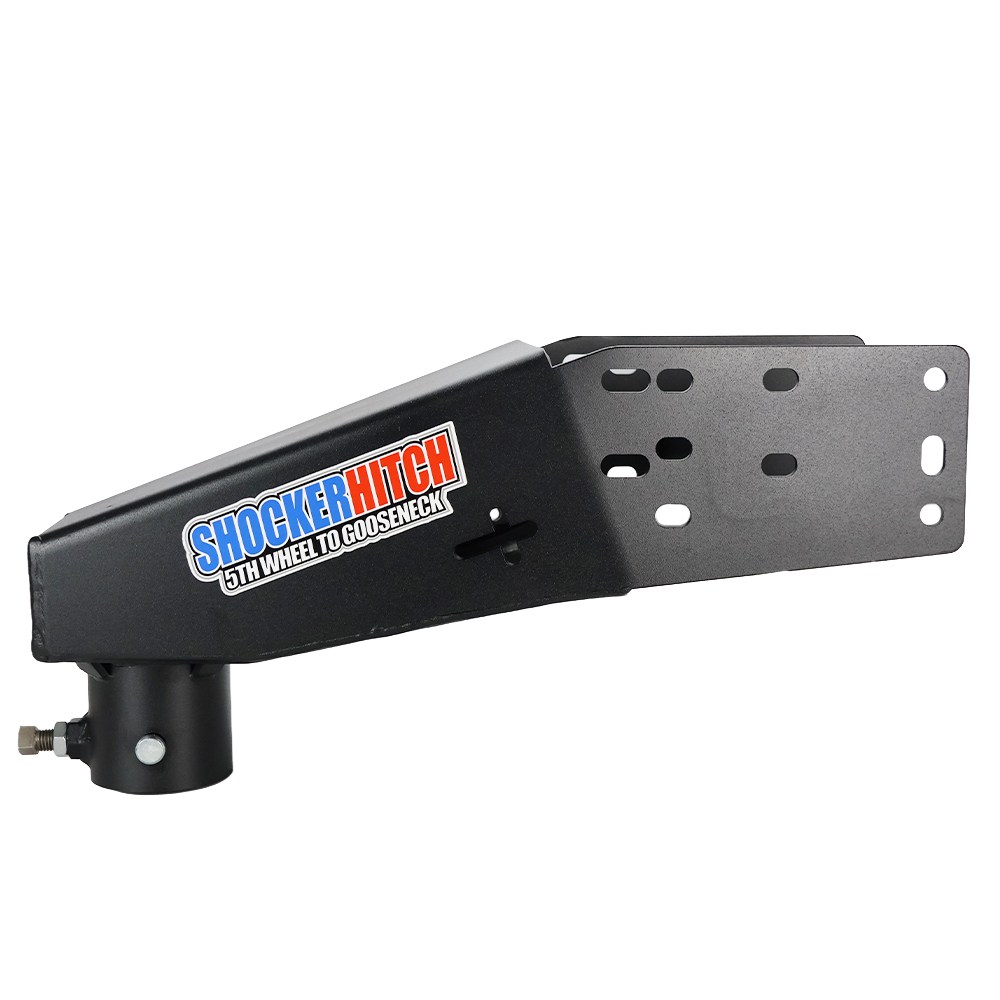

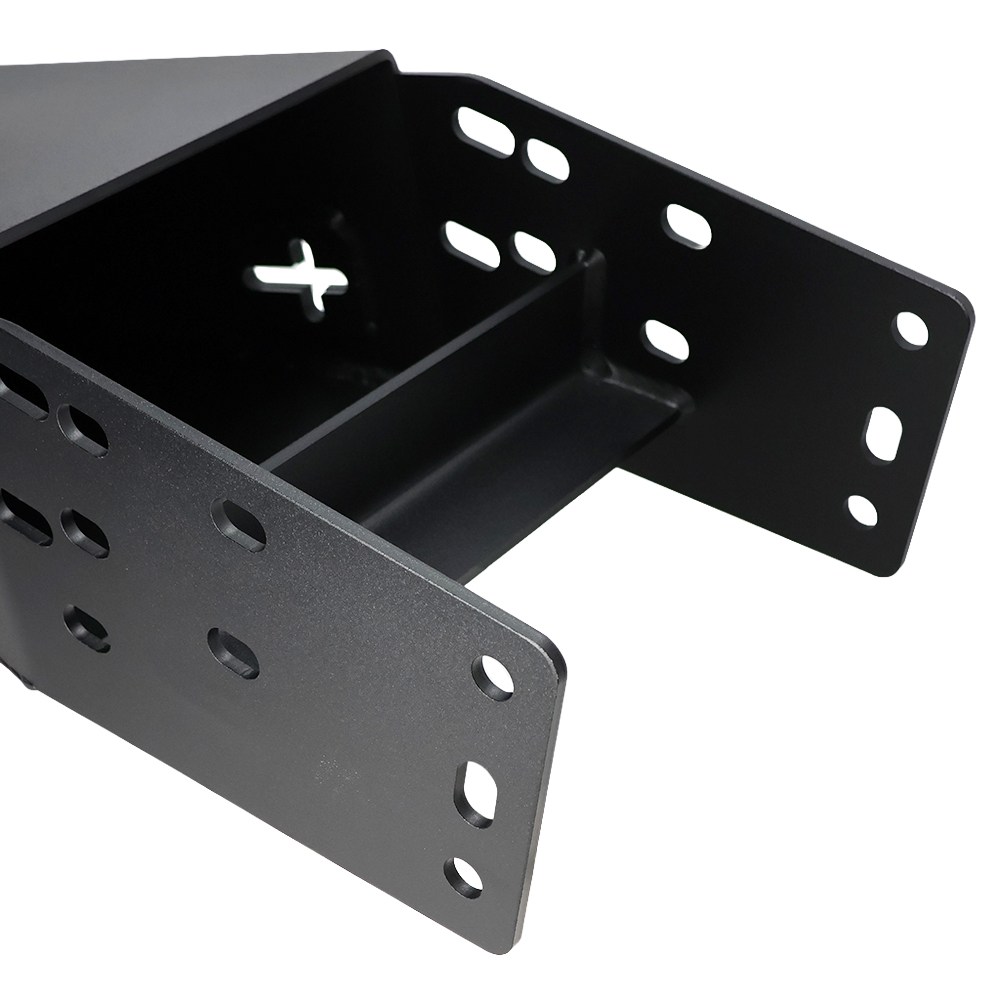

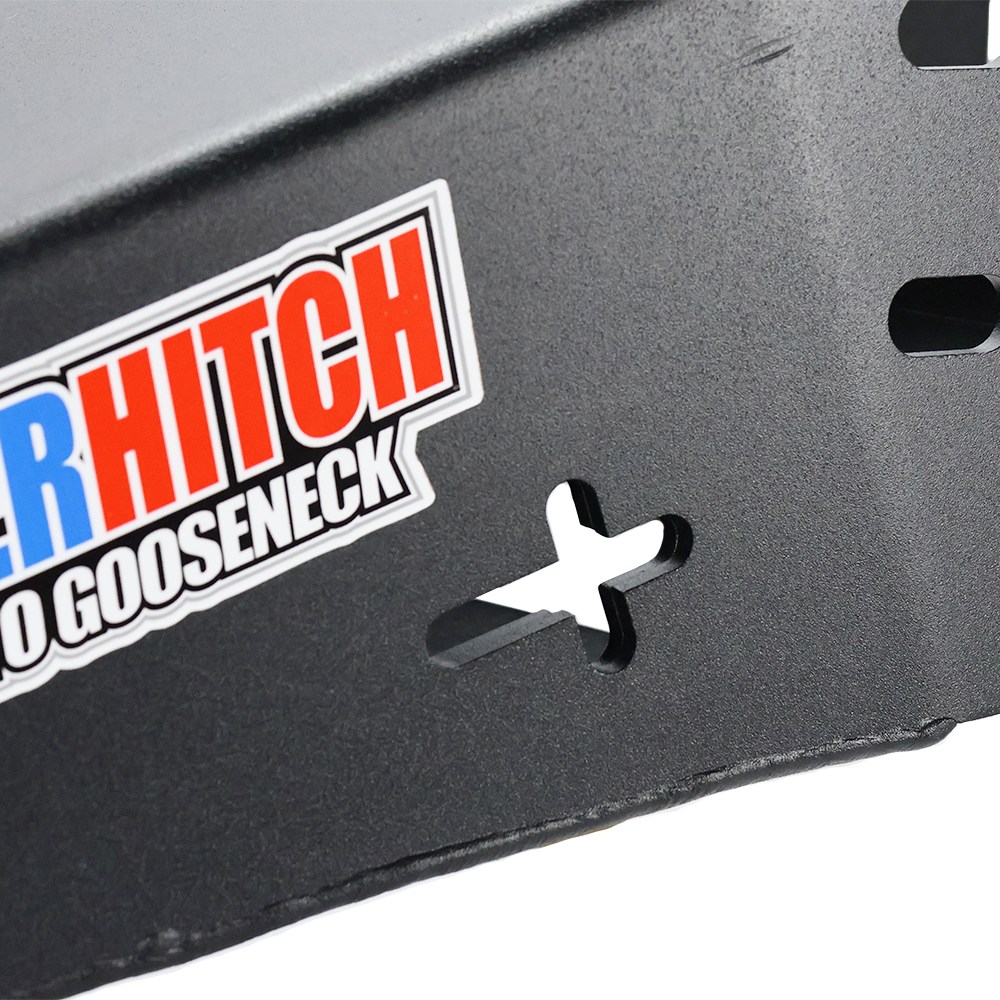

Heavy duty black powder coated steel goose box is available for these 5th wheel Campers with Lippert 1621, 0719 or Rhino Box, as well as the Lippert 1716, 1116, 0115, FabEx 500, 503, 520, 530, 560. This gooseneck pin box does not include the chain kit.
Shocker QuickAir 5th Wheel to Gooseneck Air Hitch Videos
Install
Shocker QuickAir 5th Wheel to Gooseneck Setup Instructions
View our installation instructions for installing the 5th wheel to goose pin box, installing the Gooseneck air hitch & coupler along with setting your air pressure. When used & set up properly the Gooseneck surge air hitch will make noticeable improvements in your gooseneck trailer towing quality. Giving both truck and 5th wheel camper trailer a smoother ride with less trailer fatigue and breakage. We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the item’s product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.
Installing QuickAir 5th Wheel to Gooseneck Air Hitch Video
Shocker QuickAir 5th Wheel to Gooseneck Air Pressure Settings
Download QuickAir 5th Wheel to Goose Surge Installation Manuals
Maximum weights for Shocker QuickAir 5th to Goose Air Kit: Towing capacity = 24,000 lbs Tongue = 6,000 lbs for 2-5/16″ Ball. Patent #’s 11,370,257 B1 & D898,628.
Safety Notice: The Shocker Hitch is a heavy-duty unit, however, it is imperative that any weight capacity ratings are not exceeded on the ball that is mounted on your tow vehicle, or the Shocker Hitch. Use only a 2 5/16″ dia. Ball. V-19 rated. Do not exceed G.V.W.R. of ball being used.
This gooseneck hitch has a shorter stem than a normal gooseneck and is designed to be
used with the Shocker Replacement Goose Box for 5th Wheel Campers only. This gooseneck air
hitch cannot be used on a normal gooseneck trailer as the inner tube steel is too short for that
application.
Shocker QuickAir 5th to Gooseneck Air Hitch Dimensions
Shocker Gooseneck Surge Air Hitch Diagram Guide
Shocker Gooseneck Surge Hitch Diagram
INSTALLATION

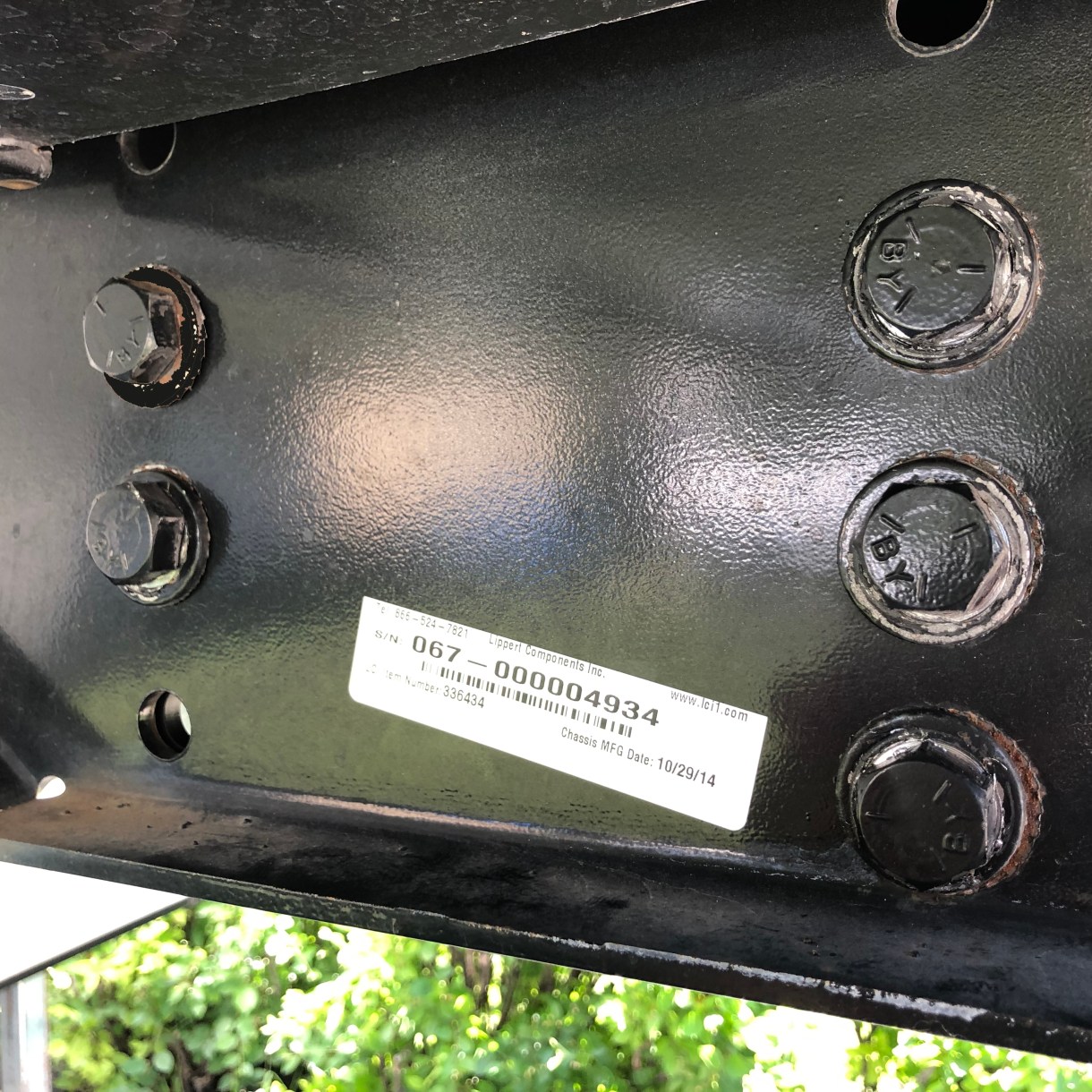

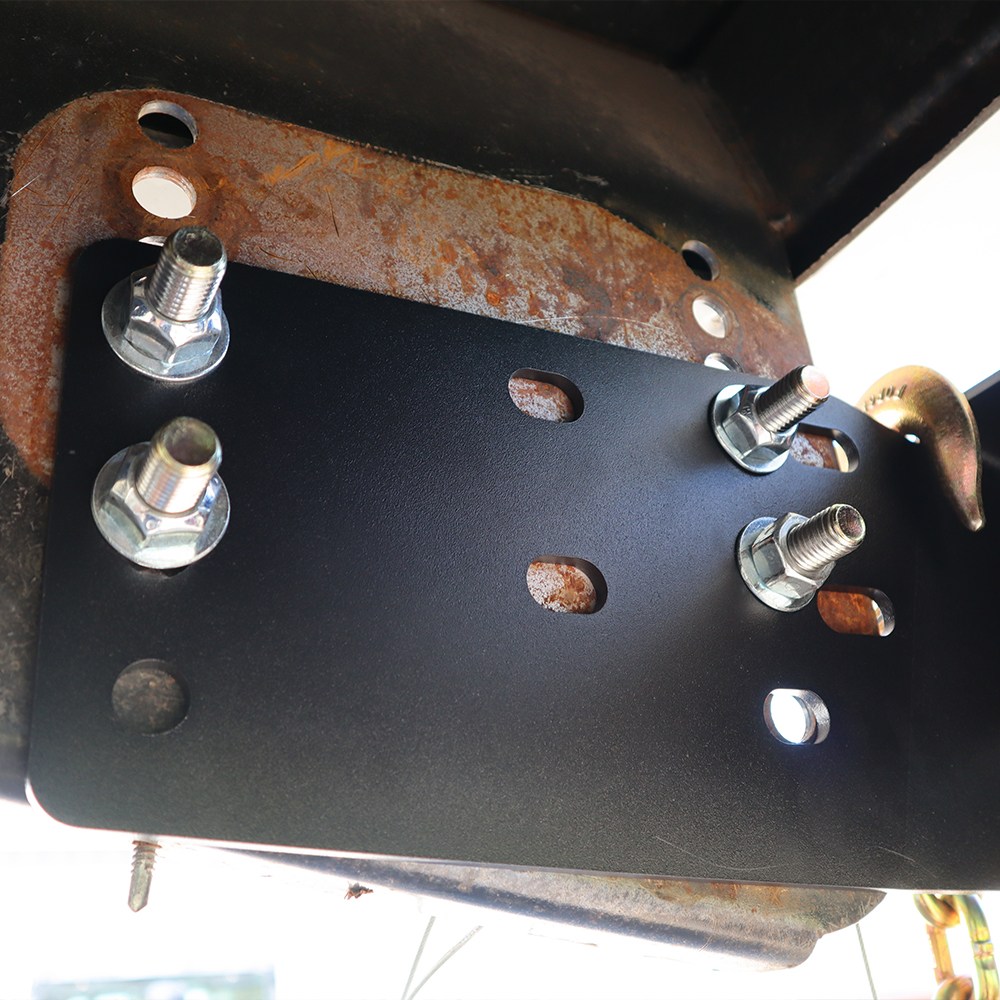

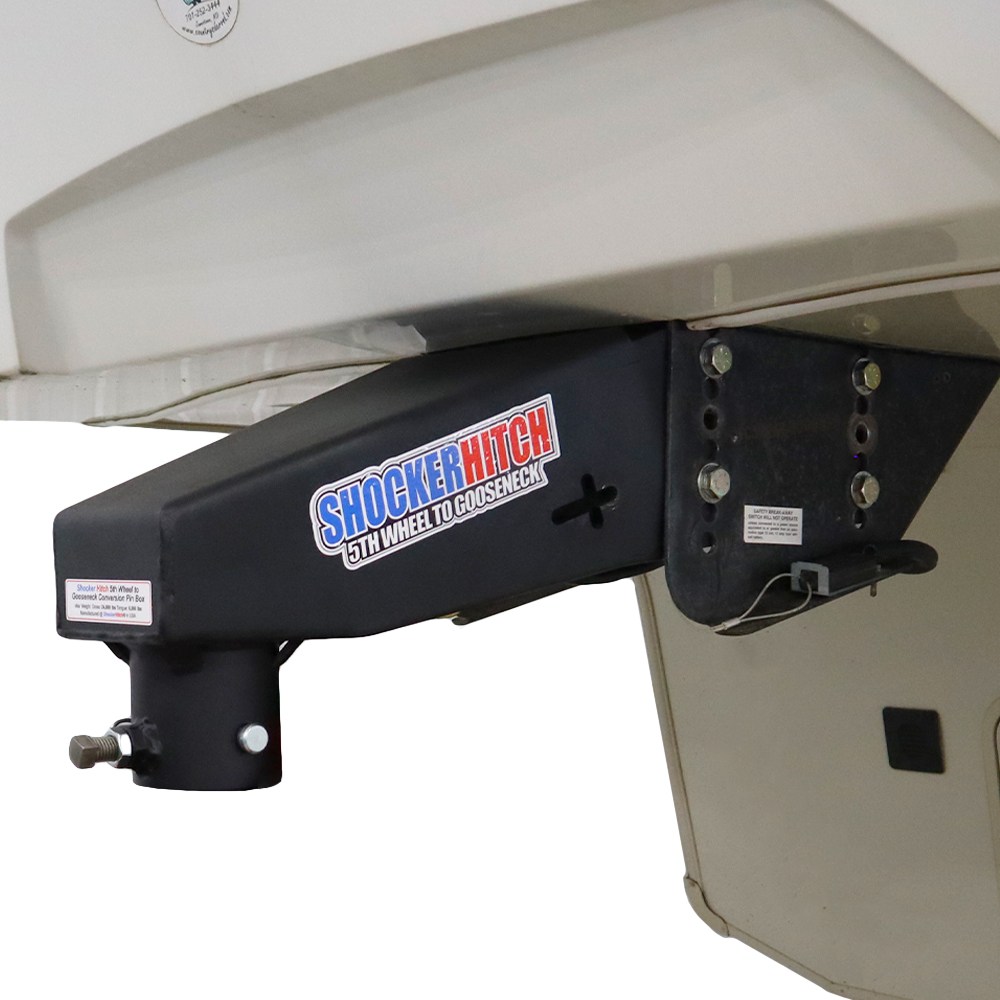

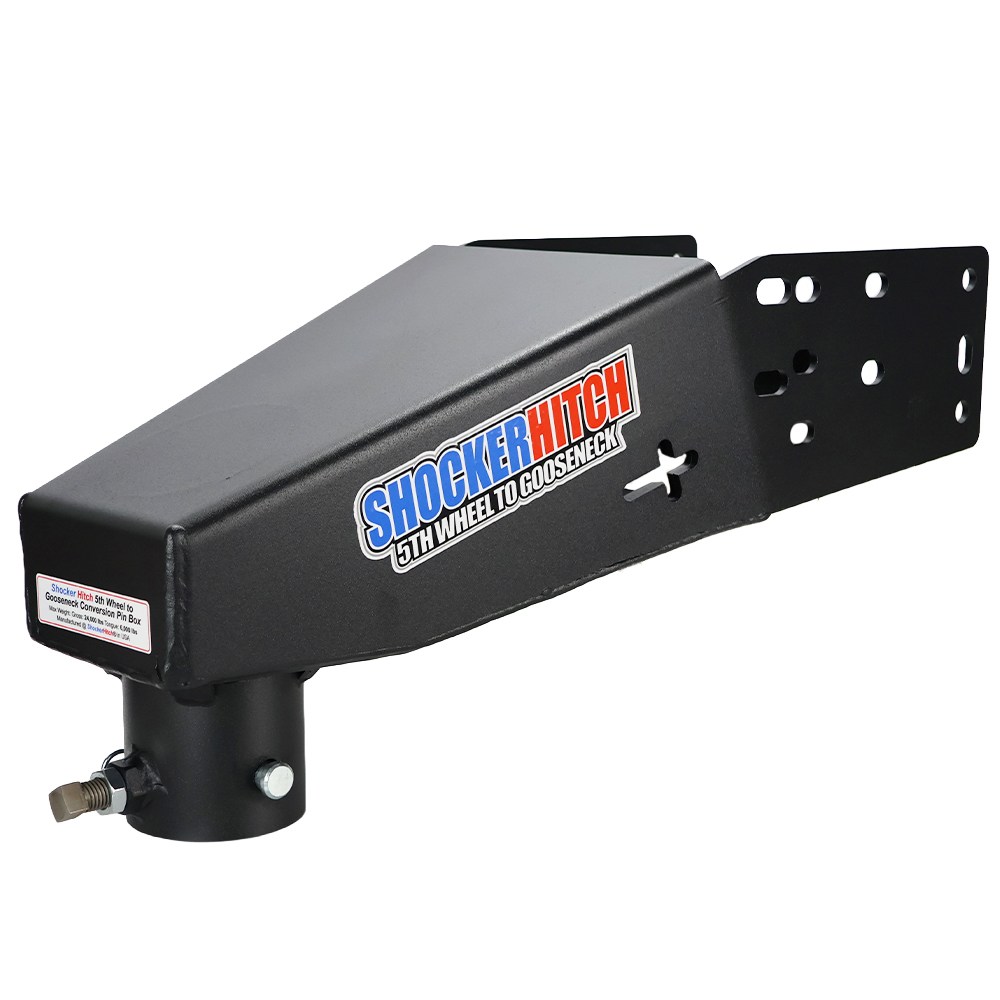

Remove your existing king pin box and install the Replacement Goose Box (SH-RVGC-4405 or SH-RVGC-4410)
in the same location on your camper.
TORQUE PIN BOX FASTENERS TO 120 FT POUNDS.

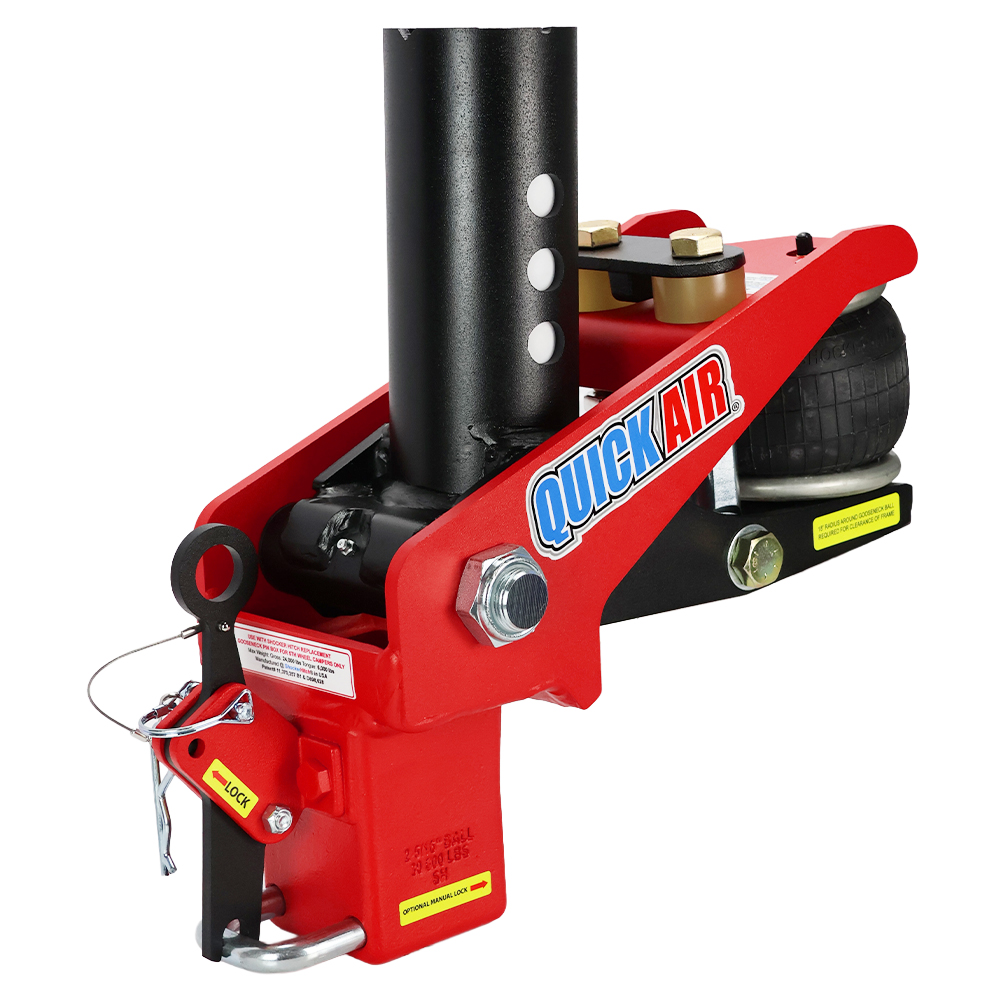

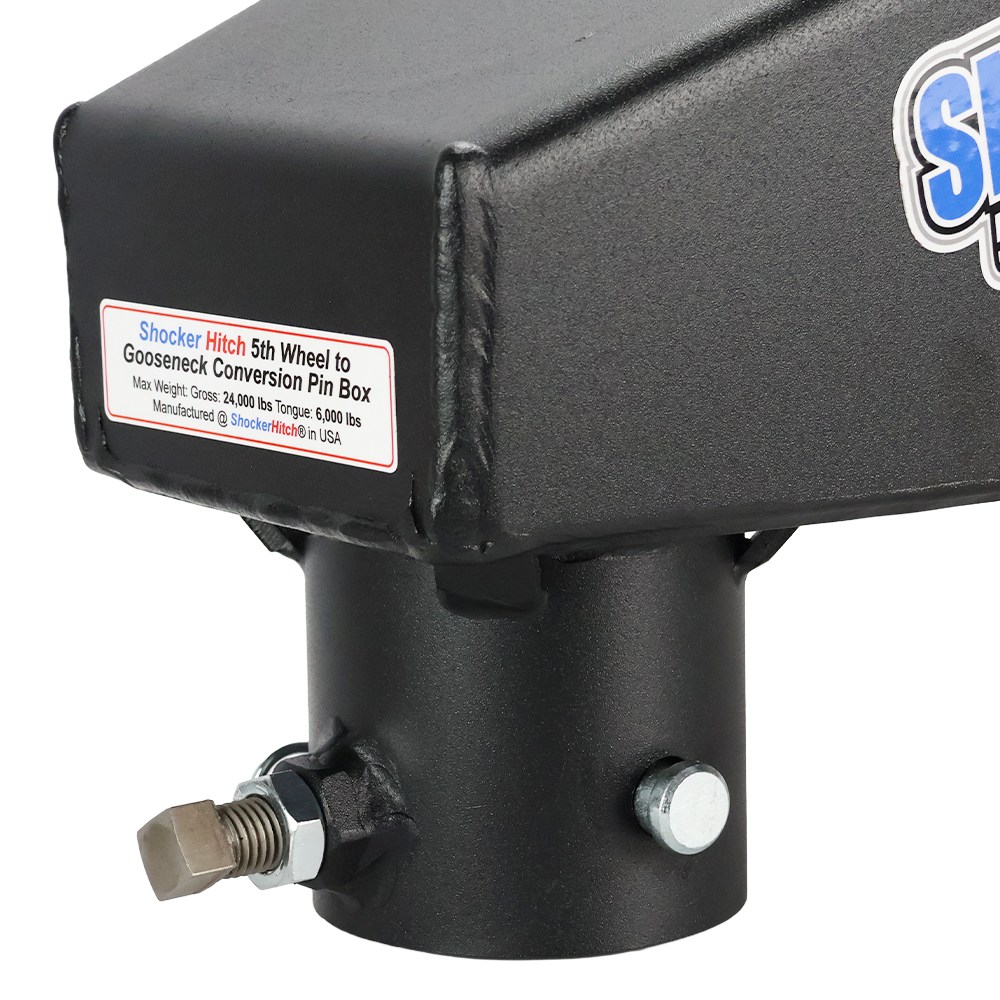

Slide Gooseneck stem into Goose Box sleeve with air bag toward rear of trailer. Align and install 3/4″ x 5″ thru pin with keeper. Tighten 1⁄2″ x 1″ Set Bolt on back of down tube.
Test fit camper to truck, verify installed height will allow camper to ride level – Apply grease to trailer ball and or shift lock coupler ball socket. Hook up trailer by shifting the lever back and lowering coupler onto the ball. Pull shift lever forward and align the locking hole – insert pin.
To adjust trailer ride height simply loosen the 1⁄2″ x 1″ set bolt in the back of the down tube. Remove the 3/4″ x 5″ thru pin with keeper. Move Shocker Gooseneck Surge hitch to desired position, reinstall bent pin with keeper and tighten set bolt.
Routine Lubrication Maintenance should include: Oil the coupler shifting fork shafts, grease the coupling ball socket, and grease the hitch ball to REDUCE WEAR AND IMPROVE SHOCKER ACTION. Main pivot grease zerk should be greased periodically for maximum bushing life. ( Simply, you cannot over grease it! )
Gooseneck Air Hitch Air Pressure Settings
This is a LOW PRESSURE hitch, that works by tow resistance.
Set air pressure at approx. 15 psi, then test drive.
Increase pressure in 5 psi increments until optimum results are found.
Typical air pressure range is 5 – 15 psi.
Do NOT EXCEED 100 psi
Note: When towing heavy trailers or trailers with high wind resistance it may be necessary to increase air pressure in the Shocker.
We’re here to help. Contact Us
Can you make a 90 degree turn with this hitch without your trailer hitting the rear window of your truck?
0 votes
QCan you make a 90 degree turn with this hitch without your trailer hitting the rear window of you......
Read more
A
It does depend on the style of truck you are pulling with. When using our gooseneck hitch it will offset the gooseneck stem 3" back from gooseneck ball. So it will add additional clearance compared to normal hitches. If you are needing more clearance then you can use an extended gooseneck ball in the bed of the truck.
