Product Description
- This is a refurbished or slightly used like new hitch that was returned to factory for whatever reason. It may have nicks and dings in finish. Otherwise it is a almost a brand new hitch & works great.
- Smoother Safer Towing: Air ride towing technology with a 20K built air bag to cushion the ride & absorb the road shock.
- Built in Air Ride System: Absorbs the bumps, bags, tugs & jerks when towing and creates safer, smoother towing.
- 8 Adjustment Holes. (See drop and rise chart)
- Choose Available Mount.
- Available for 2″, 2 1/2″ and 3″ receiver hitch tubes with Two hitch pin holes for length adjustability
- 20,000 lb rated towing capacity & 2,000 lb tongue wt
- Fine tune for your towing weight. Just add air for heavier loads.
- Huge selection of ball mount adapters available from Pintle hooks, draw bars, drawbar, clevis, drop ball mounts, raise ball mounts and more.
- Fits Great for Full Size Pickup Trucks & Vans, Midsize Pickups & Select SUVS. GMC Sierra, Chevy Silverado, Chevy Colorado, GMC Canyon, Dodge Ram, Ford Ranger, Maverick F150, F250, F350, F450, F550 Superduty, Toyota Tundra, Tacoma, Nissan Titan, Frontier, Honda Ridgeline & Hyundai Santa Cruz.
- Kit includes complete Shocker HD receiver hitch base frame assembly with built in 20K air bag, combo ball or drop ball mount and two d-handle hitch pins.
- Air Bumper Mount Drop & Rise + Tow Rating Guide
– Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
– Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
– Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
– Clevis Mount: 3.5″ Drop to 5.5″ Drop | 20,000 lbs.

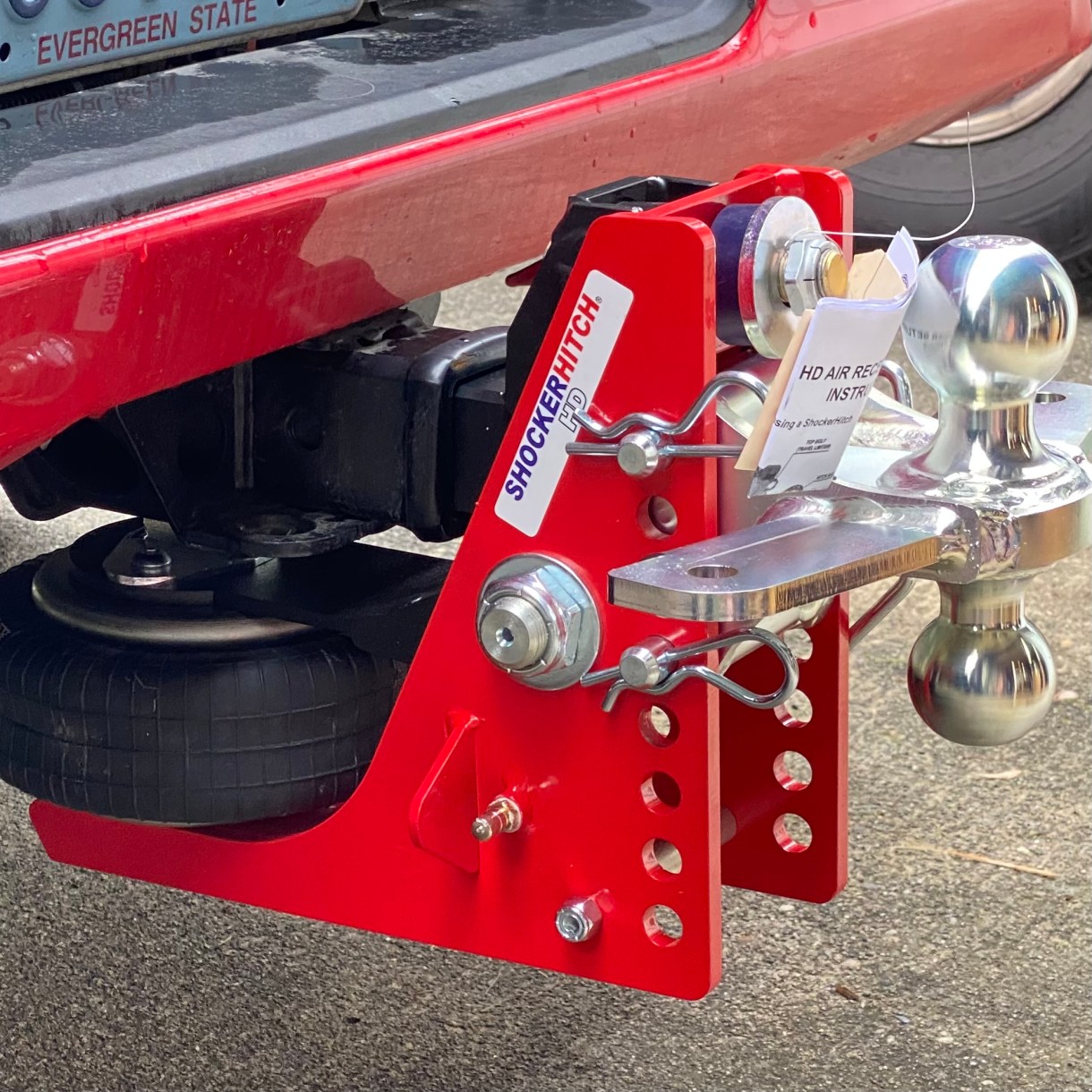

– Sway Bar Mounts: Same Rating as Like Type Mount Listing Above. - Safety Notice: Towing capacity is limited by lowest rated component. Manufactured by Shocker Hitch® USA in Jamestown, ND. Bolt on 2″ Ball is 10,000 lbs GTW & 1,000 lbs TW / Bolt on 2-5/16″ Ball is 20,000 lbs GTW & 2,000 lbs TW.
- Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide
– Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
– Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
– Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
– Clevis Mount: 3.5″ Drop to 7.5″ Drop | 20,000 lbs.
– Sway Bar Mounts: Same Rating as Like Type Mount Listing Above. - What Size Receiver Hitch Do I Need? Not sure if you have a 2″, 2-1/2″ or 3″ receiver tube? Measure inside to inside. Check out our guide on How to measure receiver hitch tube size.
- How Much Drop or Rise Do I Need? Check out our guide to find out how much drop or rise you need.

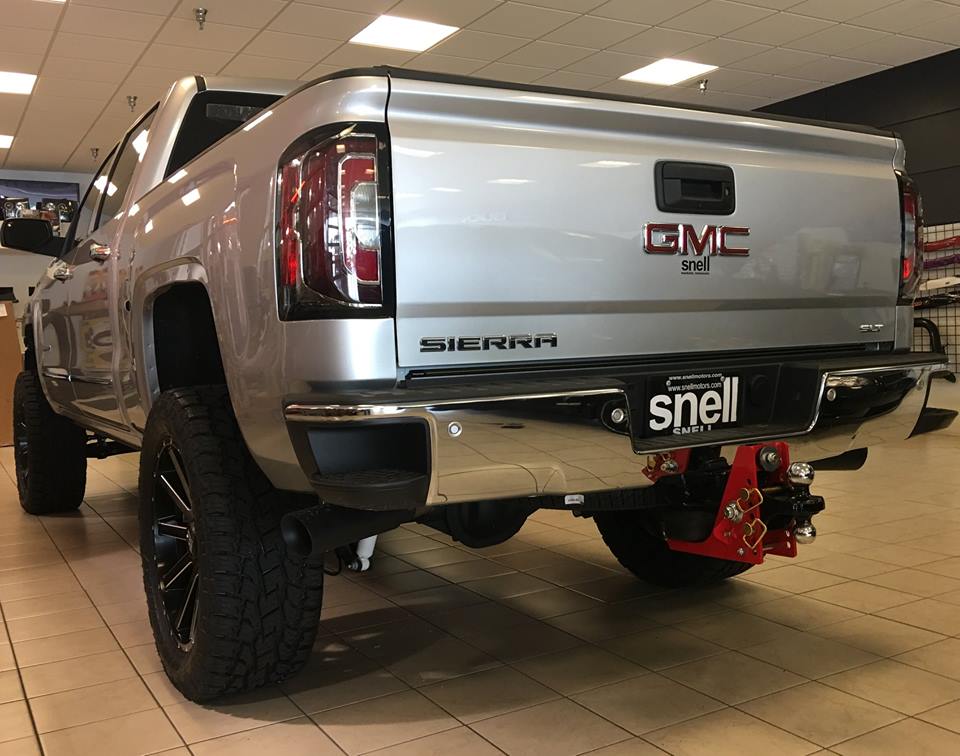

This is a refurbished OR slightly used like new hitch that was returned to factory for whatever reason. It may have nicks and dents in finish. Otherwise it is a almost new hitch & works great.

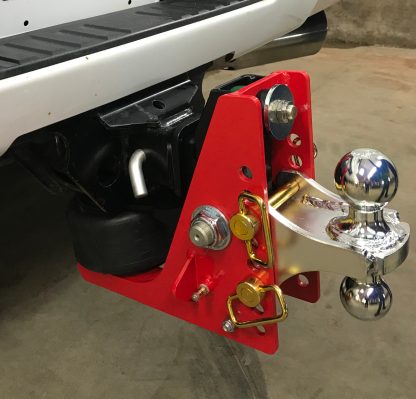

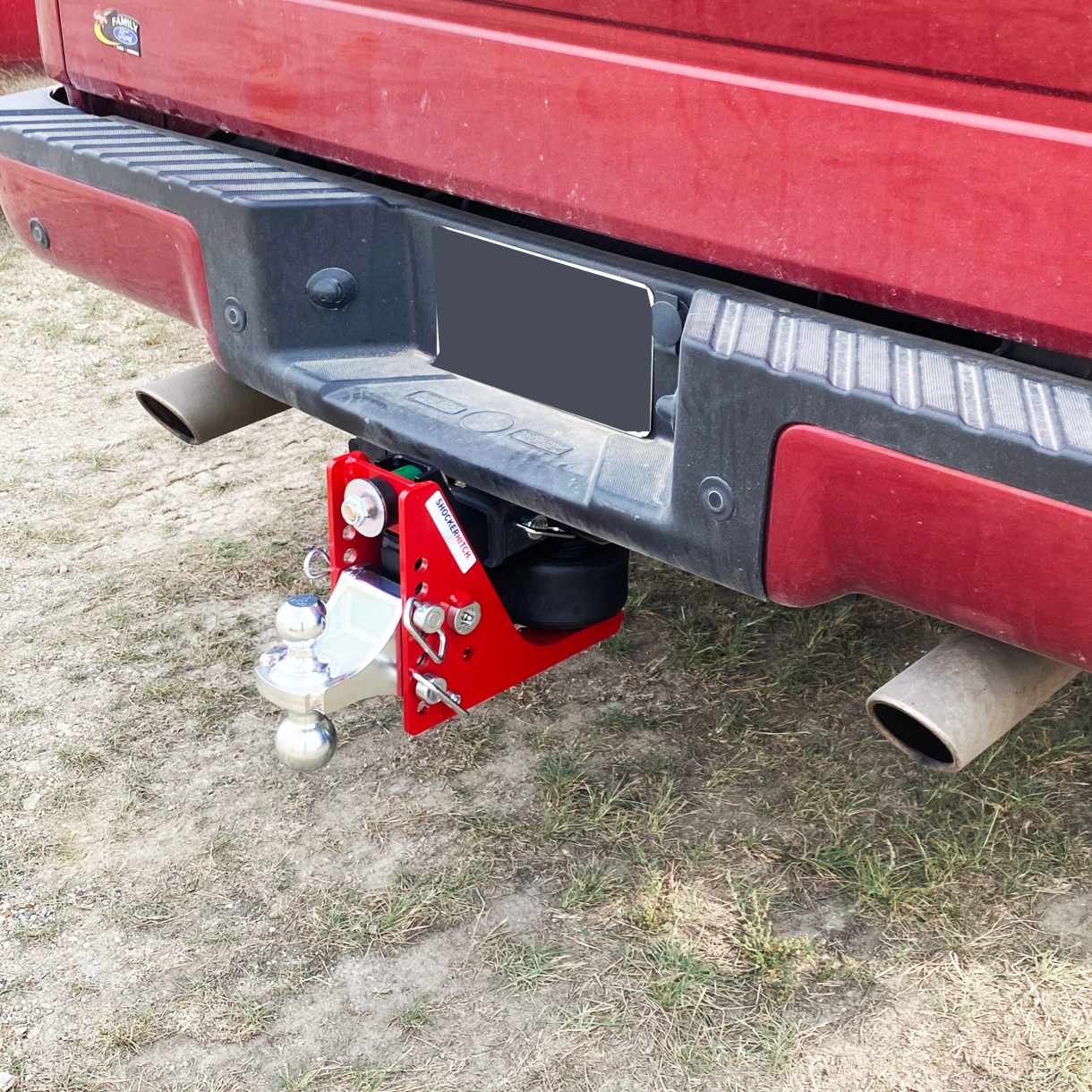

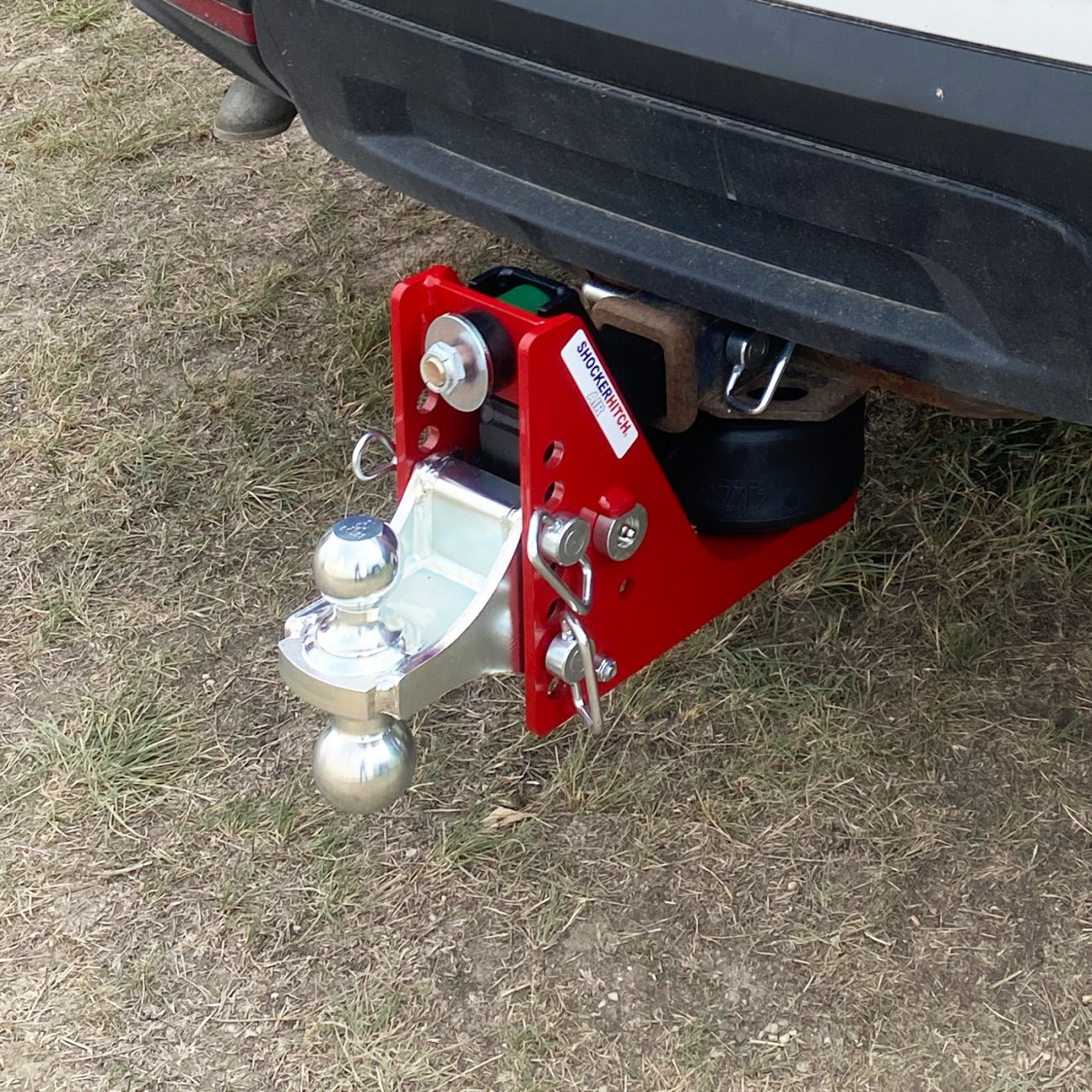

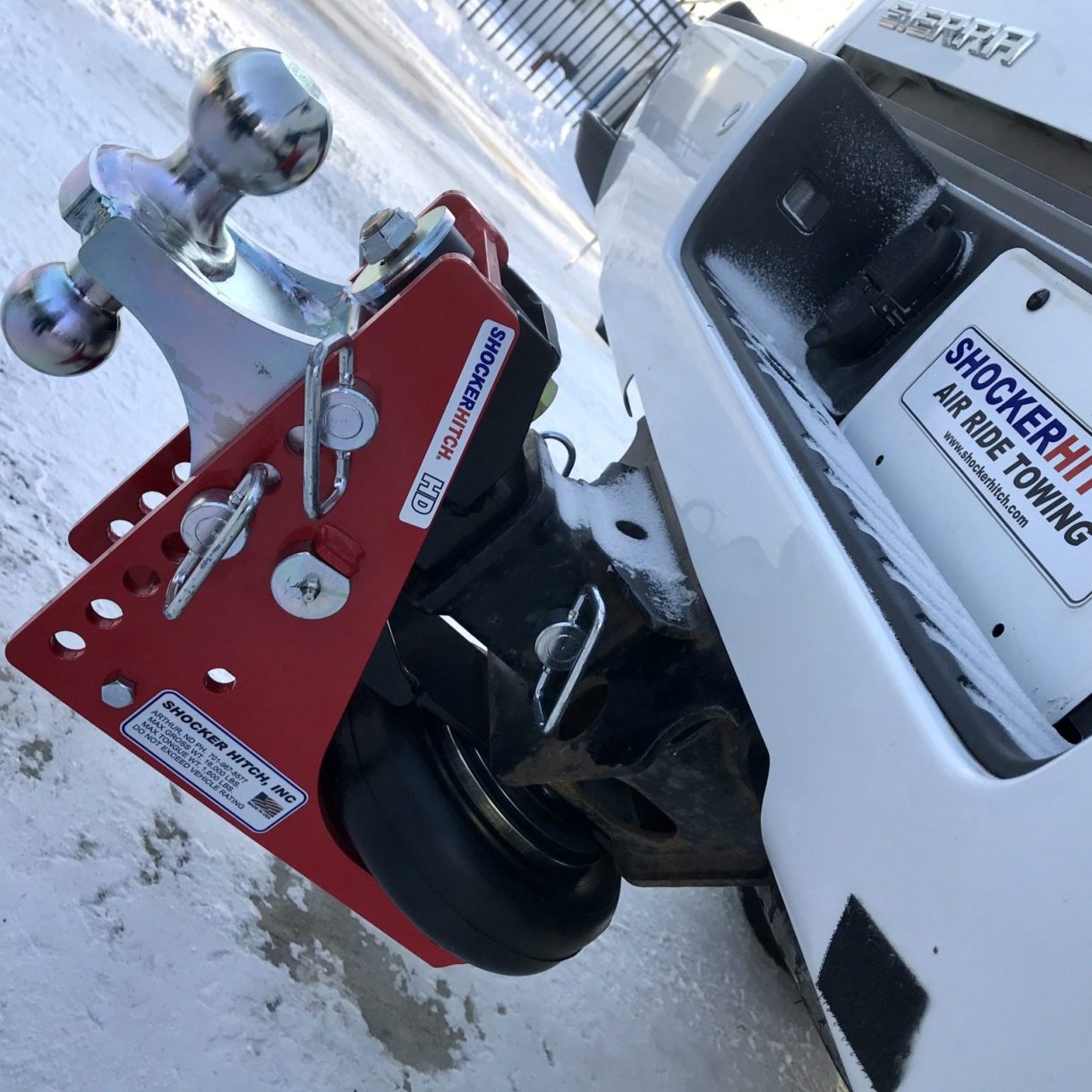

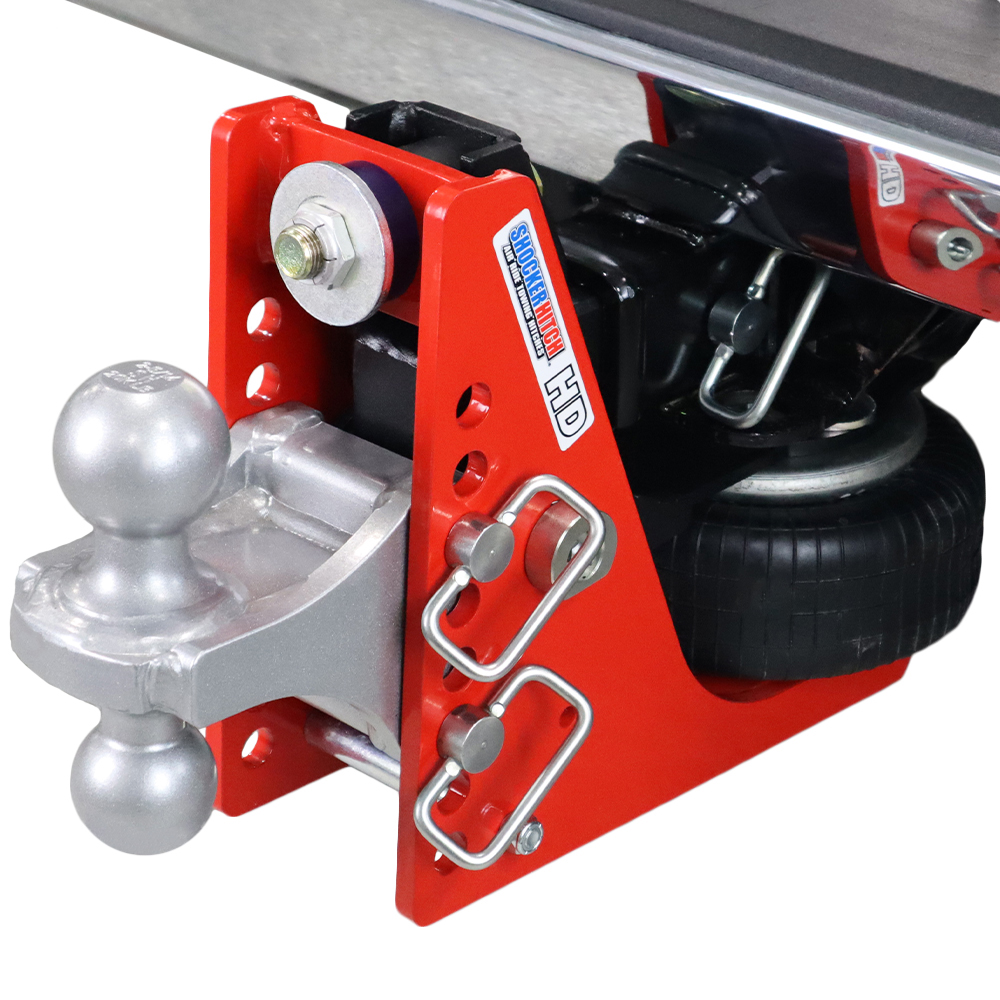

The Shocker HD™ 20K Air Receiver Hitch with combo multi-ball mount with both a 2″ hitch ball and a 2-5/16″ hitch ball with a 1/2″ to 4-1/2″ Drop. Instantly add air ride towing for your pickup and trailer. This heavy-duty shock absorbing hitch & ball mount cushions the ride and takes the bumps and bangs out of towing. Shocker HD bumper style air hitch provides the ultimate smooth ride when you’re towing. The Shocker Air is a miniature air suspension hitch mounted between your truck and trailer. You can fine tune the air pressure for the weight of your trailer. This Shock absorbing air ride cushion hitch mounts by sliding into a standard receiver tube. Made for pickup trucks only. Shocker air hitch effectively absorbs the jerking, tugging and damaging forces experienced with a typical hard connection when towing trailers. There is no reason to beat yourself or your equipment up with a hard connection between your trailer and your receiver hitch. Upgrade to smooth, safer towing. This air hitch cushions the ride for you, your trailer and the trailer contents. Great for all around heavy-duty bumper hitch towing. Made by Shocker Hitch® USA in Jamestown, ND. 20,000 lbs tow rating capacity and 2,000 lbs tongue weight.
The combo ball mount features welded hitch balls for superior strength. By reducing wear and tear on driveline and frame! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations. Join the list of satisfied customers that are using Shocker HD air hitches. Get ready for your ultimate smooth towing experience the next time out.

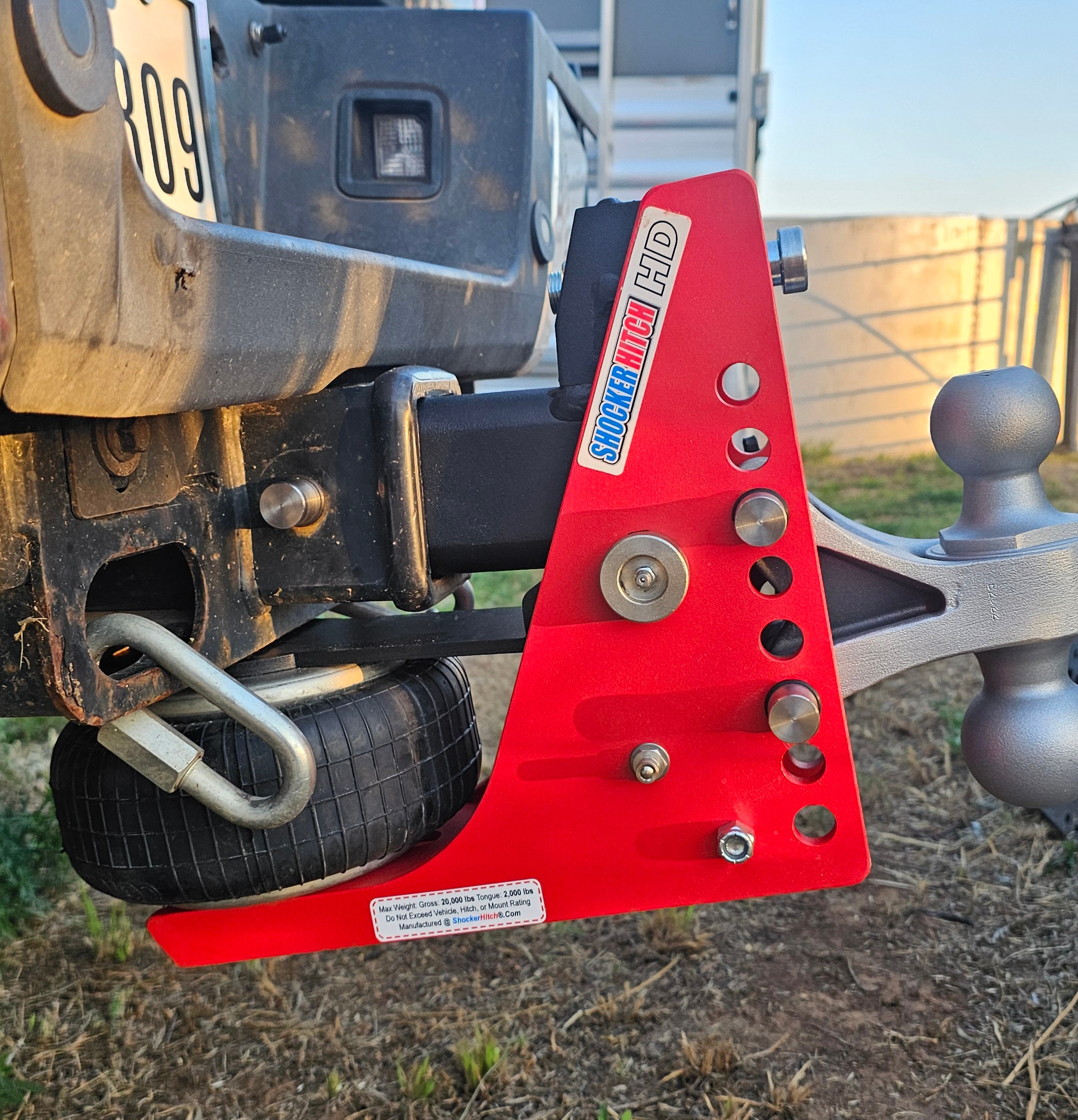

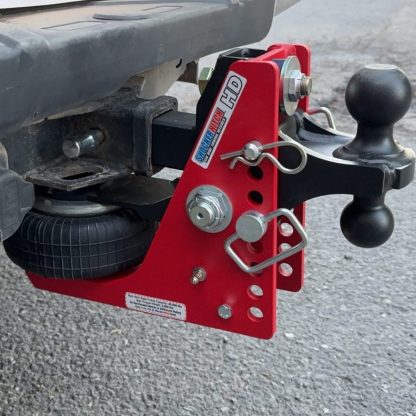

The 20K air bag sits under the receiver tube allowing a short distance of 10-inches between mounting pin and ball center. You will find the advantage of the Air Shocker is your ability to adjust air pressure for best ride and load control.
- Air Bumper Hitch Mount Drop & Rise + Tow Rating Guide
– Combo Ball: 0″ Rise to 4.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Drop Ball: 4.5″ to 8.5″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Raised Ball: 2″ Rise to 2″ Drop | 2-5/16″ ball rated at 20,000 lbs & 2″ ball rated at 10,000 lbs.
– Pintle Hook: 2.5″ Rise to 6.5″ Drop | 10-Ton 20,000 lbs.
– Pintle & Ball: 2.5″ Rise to 6.5″ Drop | 8-Ton 16,000 lbs. (2″ Ball is 10,000 lbs).
– Drawbar: 0″ Rise to 4.5″ Drop | 20,000 lbs.
– Clevis Mount: 3.5″ Drop to 7.5″ Drop | 20,000 lbs.
– Sway Bar Mounts: Same Rating as Like Type Mount Listing Above.
The Shocker HD is 20,000 lbs towing capacity and 2,000 lbs on tongue weight.
Quality Manufacturing: With the combo adjustable ball mount, the hitch balls are manufactured together – one piece construction for maximum strength and durability. Featuring a powder coat finish for resistance to the elements.
Air Ride Hitch: Shocker Air is designed with a built-in air bag for a smoother towing experience. Featuring a built in height adjustment plus weight adjustable. Just add or ride air depending on the weight of your trailer and it’s contents.
Provide Comfort: With a smoother ride! Travel a lot on concrete highways? No more jarring every time you cross a section divider. Your Shocker air hitch absorbs the thumps and bumps.
Simple Pivot Design: uses a rocker arm pivot design which produces a down and back motion, much different than other air hitches on the market. Our design eliminates the need for slides, parallel linkages, rollers, shock absorbers, or multiple air bags common to other air hitches.
Improves Safety: By giving you improved control of your tow vehicle and trailer. The air bag receiver hitch system allows for better control of your pickup and the trailer it is towing.
Saves Money: By reducing trailer breakage on both the trailer and the trailer contents! The Shocker hitch absorbs the damaging forces experienced with a typical hard connection. This greatly reduces the chances of breaking welds and doing other long term damage to your equipment as well as the valuable cargo you have inside the truck and trailer.
Adds Life To Your Vehicle: By reducing wear and tear on driveline and frame! Treat yourself, your equipment, and your passengers to a much smoother ride. You’ll never go back to the ‘old days’ of continual bumps, jerks, and vibrations. Join the list of satisfied customers that are using Shocker hitches. Order one today and get ready for your ultimate smooth towing experience the next time out.
Tons of Attachments: We offer a wide variety of our ball mount attachments; standard mounts, drop ball mounts, clevis mounts, drawbar mounts, cushioned drawbar mounts, pintle hook attachments, raised mounts and combo multi-ball mounts.
