Shocker Gooseneck Air Hitch & Coupler for K-Trail Trailers

Rated 0 out of 5

$1,249.99$1,299.99$1,299.99$1,369.99

Free Ground Shipping*
Usually Ships on or Before Wed 12/11/24
Usually Ships on or Before Wed 12/11/24
Clear
OR

-

  • Videos arrow

    Videos

    Shocker Gooseneck Surge Air Hitch & Coupler Videos

    Install a Gooseneck Surge in Minutes

    How The Gooseneck Surge Air Hitch Works Video

    Gooseneck Surge Hitch for Stem Selection Video

  • Install arrow

    Install

    Shocker Gooseneck Surge Air Hitch Installation Videos

    The Shocker Hitch Gooseneck Surge Air Hitch takes minutes to install. Below you can find downloadable PDF files and videos to help guide you.

    Download Installation Guide: Shocker Gooseneck Surge & Gooseneck Surge Air Hitch & Coupler Installation Manual
    Quick Install: On a level surface, measure coupler tube bottom to trailer frame sleeve bottom, transfer measurement to Shocker Hitch. Remove original coupler (inner) tube; loosen set bolt(s), pull pin, slide out. Insert Shocker Hitch into trailer’s outer tube, reinstall pin, and set bolt(s).

    NOTE: Standard red frame: air bag faces trailer rear (Figure 1). 9″ offset black frame: air bag faces vehicle cab/trailer front (Figure 2). Ensure hitch sits straight and parallel with trailer (Figures 3-4). Torque locking set bolt(s) to trailer manufacturer’s recommended specifications or 125 ft. lbs. Before hooking up, lubricate coupler u-bolt and gooseneck ball. For proper use of Shift Lock coupler, see “How To Use Shift Lock Coupler” section.
    Shocker Gooseneck Surge Air Hitch Installation
    Multi-Fit Stem Quick Install: On a level surface, measure coupler tube bottom to trailer frame sleeve bottom, transfer measurement to Shocker Hitch. Remove original coupler (inner) tube; loosen set bolt(s), pull pin, slide out. Slide Multi-Fit round stem into trailer tube to desired hole, secure with 3/4″ pin (Figure 5).

    NOTE: Standard red frame: air bag faces trailer rear (Figure 6) and secure with pin (Figure 7). 9″ offset black frame: air bag faces vehicle cab/trailer front. Tighten trailer set bolt(s) and jam nut(s) first, then tighten Multi-Fit stem set bolt and jam nut (Figure 8). DO NOT tow if hitch is crooked (Figures 9-10). Torque locking set bolt(s) to trailer manufacturer’s recommended specifications or 125 ft. lbs. Before hooking up, lubricate coupler u-bolt and gooseneck ball. Adjust as needed for alignment. See angle guide for different positions (Figure 11-13).
    • Top hole: 4″ Round Stems with 10°-20° Angled Pin Holes
    • Middle hole: 100mm Round Stems with 20°-30° Angled Pin Holes
    • Bottom hole: Round Stems with Straight Pin Holes.
    For proper use of Shift Lock coupler, see “How To Use Shift Lock Coupler” section.
    Shocker Multi-Fit Round Stem Gooseneck Surge Air Hitch Installation
    Top Crank Handle Quick Install: Remove 3/8″ bolt and handle assembly. Loosen set bolts and remove existing coupler stem. Transfer bearing and 3/8″ washer to Shocker Hitch stem. Grease stem threads generously, slide into trailer until engaged, tighten set screws, add 3/8″ washer to exposed crank stem. Reinstall crank handle with 3/8″ bolt before vehicle hook-up. Hook up trailer and adjust coupler to level trailer.

    Note: Bulldog brand couplers require an additional 3/8″ washer (supplied with Shocker Hitch). Torque locking set bolt(s) to trailer manufacturer’s recommended specifications or 125 ft. lbs. Before hooking up, lubricate coupler u-bolt and gooseneck ball. For proper use of Shift Lock coupler, see “How To Use Shift Lock Coupler” section.
    Shocker Top Crank Handle Gooseneck Surge Air Hitch Installation

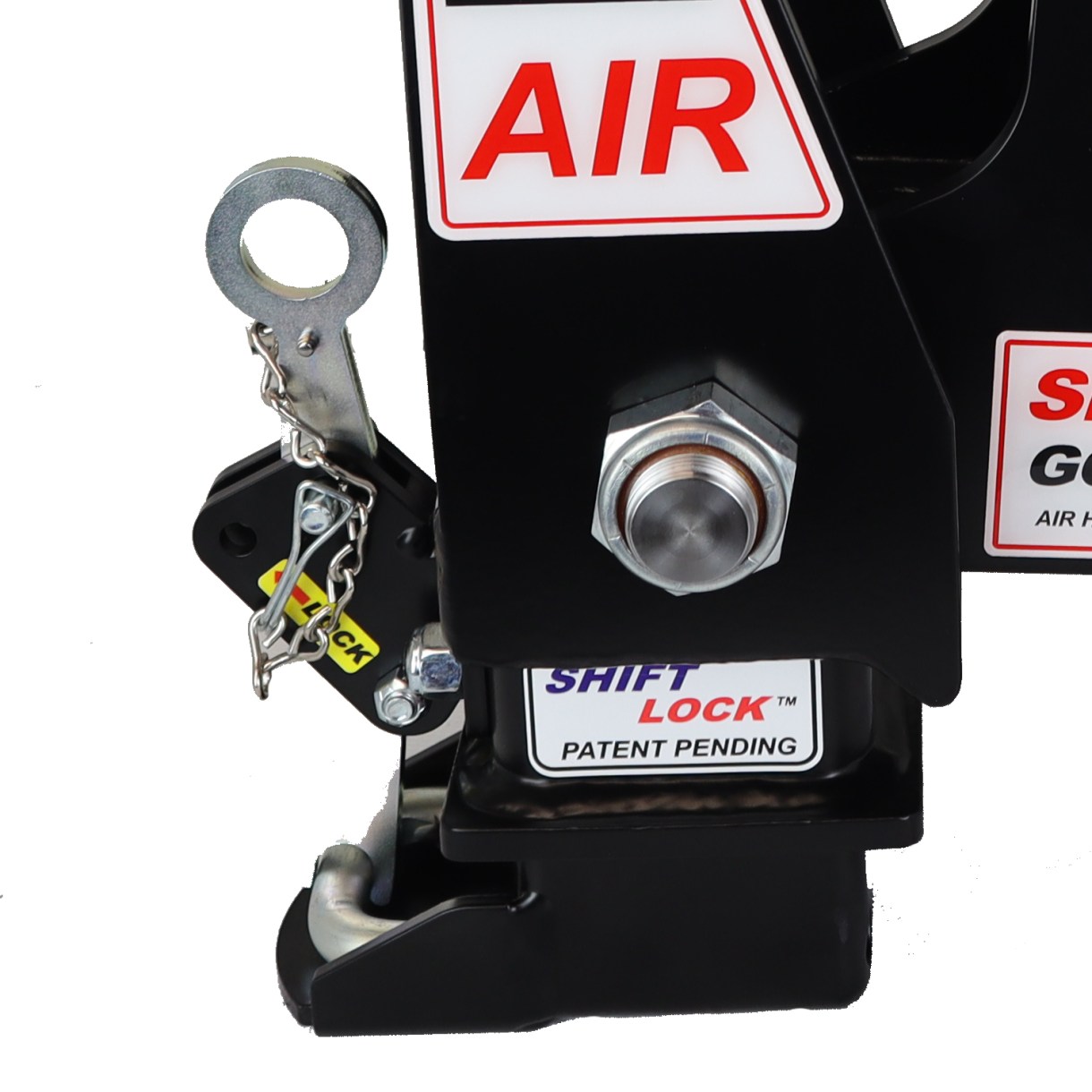

    To connect: Move handle to unlocked position (Figure 15), lower trailer ontoo ball (Figure 16), move handle to locked position, insert quick clip pin. Check Lock: u-bolt should stick out 1″ from coupler rear when locked (Figure 17). If you do NOT see this, repeat stems 1 and 2 until u-bolt is visible from rear of coupler. Manual lock option available for additional security or if Shift Lock handle is damaged (Figure 18).
    How To Use Shift Lock Coupler
    Start at 15 PSI. Test drive and adjust in 5 PSI increments until optimal. High winds may require added PSI. NEVER exceed 100 PSI in air bag, this will damage air bag. Grease hitch ball and pivot bolt regularly using the grease zerk on base of stem. Recommended to grease every 6-12 months based on usage to reduce wear.
    Setting Air Pressure & Maintenance
    Additional Information – Clearance & Diagrams

    Installation Issues? Contact us!

    We want you to have the best possible towing experience with your product and proper installation is important. If you need help, we are here for you. Just give us a call at 701-707-2666 or use our contact us form. You can also look up the items product page on our website and view the installation tab. Most products on our website have a set-up guide and installation video.
  • FAQ arrow

    FAQ

    Answers to Frequently Asked Questions on the Gooseneck Surge Hitch

    How do I know the Gooseneck surge with fit my gooseneck trailer? There are two things you need to know. What kind of stem your gooseneck trailer has and what kind of ball your pickup has. You can also find the hitch you need by using our Gooseneck Trailer MFG guide.

    What is the Gooseneck surge tow rating?  30,000 lbs towing capacity for 30K Gooseneck air with shift lock coupler for 2-5/16″ ball & 7,000 lbs tongue weight. 40,000 lbs towing capacity with 40K goose air with shift lock coupler for 3″ ball. The 9″ offset coupler for 2-5/16″ ball has 6,000 lbs tongue weight.

    How long will the airbag last? Our air spring bags are an industrial bag and will last for years and years. They are similar to truck air spring bags but have been beefed up internally for our towing applications. We do offer replacement airbags. How long will it hold air? This is a sealed air system that will hold air for weeks or months. If you haul the same trailer with the same load weight, it should be good for quite some time.

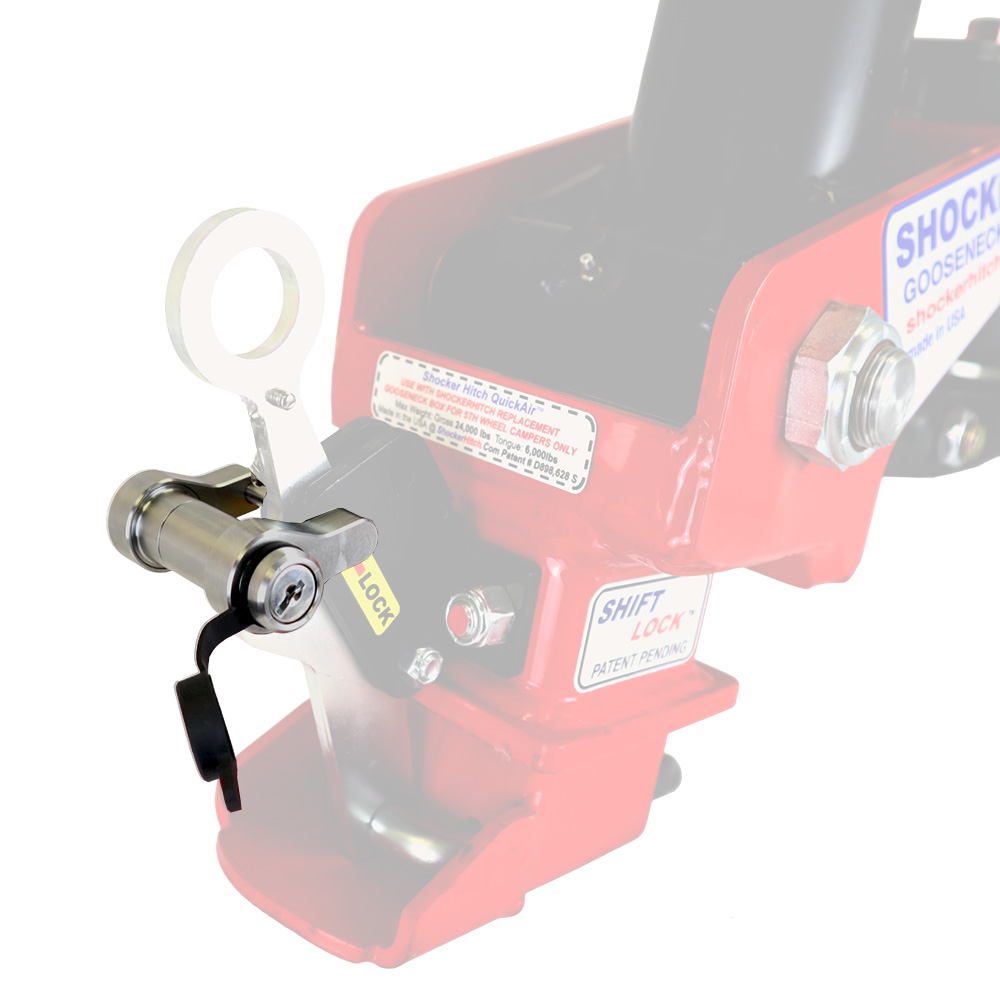

    Is there a way to lock the Gooseneck coupler? Yes, we do carry a Shift lock gooseneck coupler lock specially made for our Gooseneck surge hitch & coupler as well as a stem set bolt locks.

    Can you really install the Gooseneck Surge in a couple of minutes? Yes check out the install video.

    How much air do I put in the gooseneck surge air hitch?  See air pressure video.

    What do your mean when you say straight or angled / slotted pin holes?  We are wondering if your gooseneck stem has holes that are straight across OR if it is slightly angled 10-30 degrees, where the stem hitch pin is off set or at an angle. Below is a picture of an angled stem, which we would use a stem with slotted holes to fit this angled pin. See our gooseneck stem selection guide.

    Will it work with my flat bed pickup with recessed in a flatbed pocket? Yes, see the fitment guide for recessed ball.

    If I Order a gooseneck surge air hitch & coupler, what all comes in the box? Includes a complete replacement inner gooseneck stem, surge air hitch system & shift lock coupler along with clear-cut installation instructions.

    How strong is the center pivot bolt?  The main pivot bolt with grease zerk, or center pivot bolt, used on the gooseneck hitch, is a custom made 1.25 inch diameter 1045 medium carbon steel bolt. Strategically heat treated to prevent wear and includes a machined grease passage for easy lubrication and maintenance. It should be noted that the yield strength of the 1.25″ pivot bolt exceeds the rating of the gooseneck hitch. How often do I grease it? The grease does not just lube the pivot; it also keeps water and dirt out. You cannot over grease it, once every few months should do it.

    How does the air ride work? The air shocker is like a teeter totter. One end is an air bag, a pivot in the middle, and a ball at the other end. This gives a “pillow” effect at the ball end.

    How much does an Shocker gooseneck surge weigh? The Gooseneck Surge Air Hitch & Coupler weighs 95 to 100 lbs depending on the model.

  • Warranty arrow

    Warranty

    This product is backed by the Shocker Hitch Manufacturer Warranty and the Shocker Hitch ✅ 60 Day Money Back Smooth Towing Guarantee!. View our online Warranty Registration Form to register your Shocker Hitch.

    60-DAY MONEY BACK GUARANTEE

    We want you to be 100% satisfied. You’ve got 60 days to ensure your hitch fits your lifestyle.

    SMOOTHER TOWING

    We guarantee whatever you are towing, the ride on your pickup and trailer will be smoother with any of our air & cushion products period.
    Installation Help

    FREE SHIPPING* & FREE RETURNS

    If you are not satisfied, you can return it for free the first 60 days. See our free shipping* & free return policy.

    HOMETOWN CUSTOMER SERVICE

    We are here to help. We are happy, when you are happy.
    Made in the USA

    INSTALL HELP

    We’re glad to answer any questions you have. support is here 8am‐5pm, Mon‐Fri at 701-707-2666 or you can email anytime.

    MADE IN THE USA

    All of our products are custom made with good all American folks in Jamestown, ND USA
