Shocker Sway Control Standard Ball Mount Attachment – 1/2″ to 4-1/2″ of drop

Select Option:


Product Information:

List Price: $139.99$169.99Sale Price: $124.99$139.99Free Ground Shipping*

Rated 0 out of 5
SKU: SH-Std-Sway-Ball-Mount


Product Description

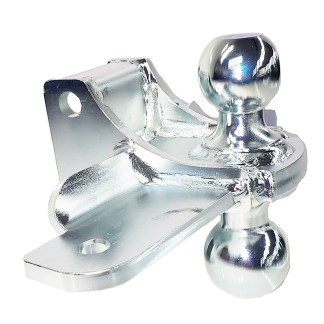

  • Standard ball mount has 2 tabs for mounting mini balls for sway control arm(s) (mini-balls not included) (such as the Shocker 17200 friction sway control kit or Reese 83660 Sway Kit).

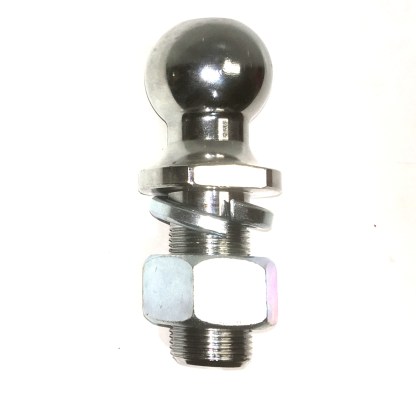

  • Choose no ball, 2″ ball or 2-5/16″ ball.
  • Hole size for ball is  1-1/4″ hole.
  • Left & Ride side Welded on sway bar tabs.
  • Drop range 1/2″ to 4-1/2″.
  • 20,000 lbs tow & 2,000 lbs tongue weight for 2-5/16″ ball and 10,000 lbs tow & 1,000 lbs tongue for 2″ ball.
  • Works with Shocker bumper hitch products: Shocker air receiver hitch, Shocker HD, XR, Impact Max & Impact series ball mounts.
  • 3-3/4″ wide fits the shocker bumper hitch & ball mount channels.

The Shocker standard ball mount with welded tabs for the sway control mini ball attachment offers 1/2″ to 4-1/2″ of drop and can be ordered with a 2″ or  2-5/16″ hitch ball or without a hitch ball. Mini ball for 1 or 2 sway control bar arms is not included. This sway mount features a 1-1/4″ hole for the hitch ball. Built for heavy-duty towing. Built for heavy-duty towing. The 2-5/16″ hitch ball has a towing capacity of 20,000 lbs & 2,000 lb tongue weight, the 2″ hitch ball is 10,000 lbs & 1,000 lbs.  Designed specifically to work with Shocker bumper hitch receiver hitching, including Shocker Air, Shocker HD, Shocker XR, Shocker Impact Max and Shocker Impact series ball mounts.

Note: The sway control tab mount is designed to work with the Shocker 17200 Friction Sway control kit or Reese 83660 friction sway control kit,which are not included and available separately. Suggested to get 1 kit if towing under 10,000 lbs and 2 kits if towing over 10,000 lbs.

California Resident: Prop 65 Warning



Shocker Bumper Hitch Attachments Videos


This product is back the Shocker Hitch Manufacturer Warranty and the Shocker Hitch Smooth Towing Guarantee. View our online Warranty Registration Form to register your Shocker Hitch.

Questions and answers of the customers

There are no questions yet. Be the first to ask a question about this product.

Send me a notification for each new answer.


Be the first to review “Shocker Sway Control Standard Ball Mount Attachment – 1/2″ to 4-1/2″ of drop”

Your email address will not be published. Required fields are marked *

Customer Reviews

There are no reviews yet.

Weight / Dimensions

Weight 18 lbs
Dimensions 9 × 7 × 5 in
